Page 1
RN160
Page 2
RN160
A = 518 mm
B = 612 mm
A
3,84 l (6 bar) /
Ps max. = 8,3 bar
Haubold Nails 21°
B C
Min. 5,0 bar
Max. 8,3 bar
EN 12096 : 1997
ISO 8662-11
L = 100 - 160 mm
D
max
d = 3,8 - 4,6 mm
=
Max. 60 x
P
= 37 or 42 mm
c
= 6,5 or 8,5 mm
P
n
= 9,2 mm
C = 168 mm
= 7,16 kg
wA,1s = 110 dBA
L
L
pA,1s = 100 dBA
pA,1s,1m = 97 dBA
L
= 5,8 m/s
D
19º
18
2
L
d
+ =
2
EN ISO11148-13
International
Safety
Standard
Page 3
Sequential trigger actuation/ Einzelauslösung/ enkelschots/ Déclenchement du
tir - mode séquentiel/ Funcionamiento secuencial "en continuo"/ Gatilho de
actuação sequencial/ funzionamento sequenziale (colpo a colpo)/ Enkeltskuds
aftrækker/ Enkelskott/ Enkeltskudds avtrekker/ Kertalaukaisu/ Üksiklasu
meetodil töötamine/ Uruchomienie spustu sekwencyjne/ Sekvenční spoušť/
Egyes lövés (szakaszosan működtetett elsütő billentyűvel)/ Posamezno
proženje/ Kontaktirajte singl / Последовательная активация при нажатии на
курок/ Sekvenčná aktivácia spúšte/
Nuoseklusis paleidimo mechanizmas/ Sekvenciālās palaides iedarbināšana
Raðkveikjuvirkjun
Model: RN160 Full sequential actuation
No. 576204
RN160
PNEUMATIC STRIP NAILER
Code: 576204
Trigger actuation: Full sequential
ITW Befestigungssysteme GmbH,
Carl-Zeiss-Str. 19 - 30966 Hemmingen, Germany
Nail specification:
L = 100 – 160 mm
D = 9.2 mm
max
d = 3.8 – 4.6 mm
18
19º
P = 37 or 42 mm
P = 6.5 or 8.5 mm
D
L
d
c
n
No. 014748 + No. 576203
No. 014121
Accessories
No. 151299 / No. 576216 No. 576377 No. 576365
0,5 l oil / 1 l oil Hanger Exhaust Filter
3
Page 4
Min. 5,0 bar
Max. 8,3 bar
014 748
2 31
7
clic
4
5
6
2
1
8
5

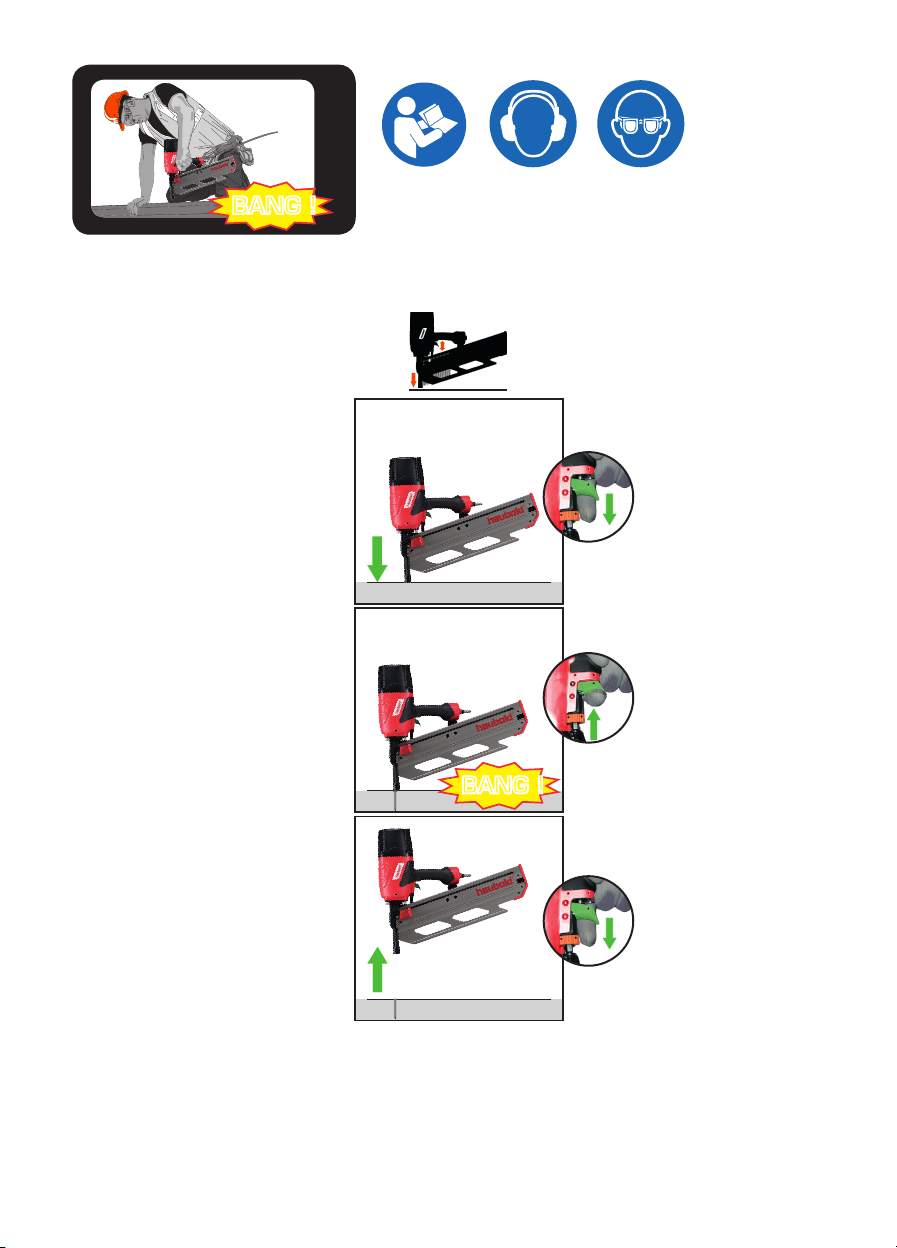

Page 5
BANG !
1
2
BANG !
3
6
Page 6
7

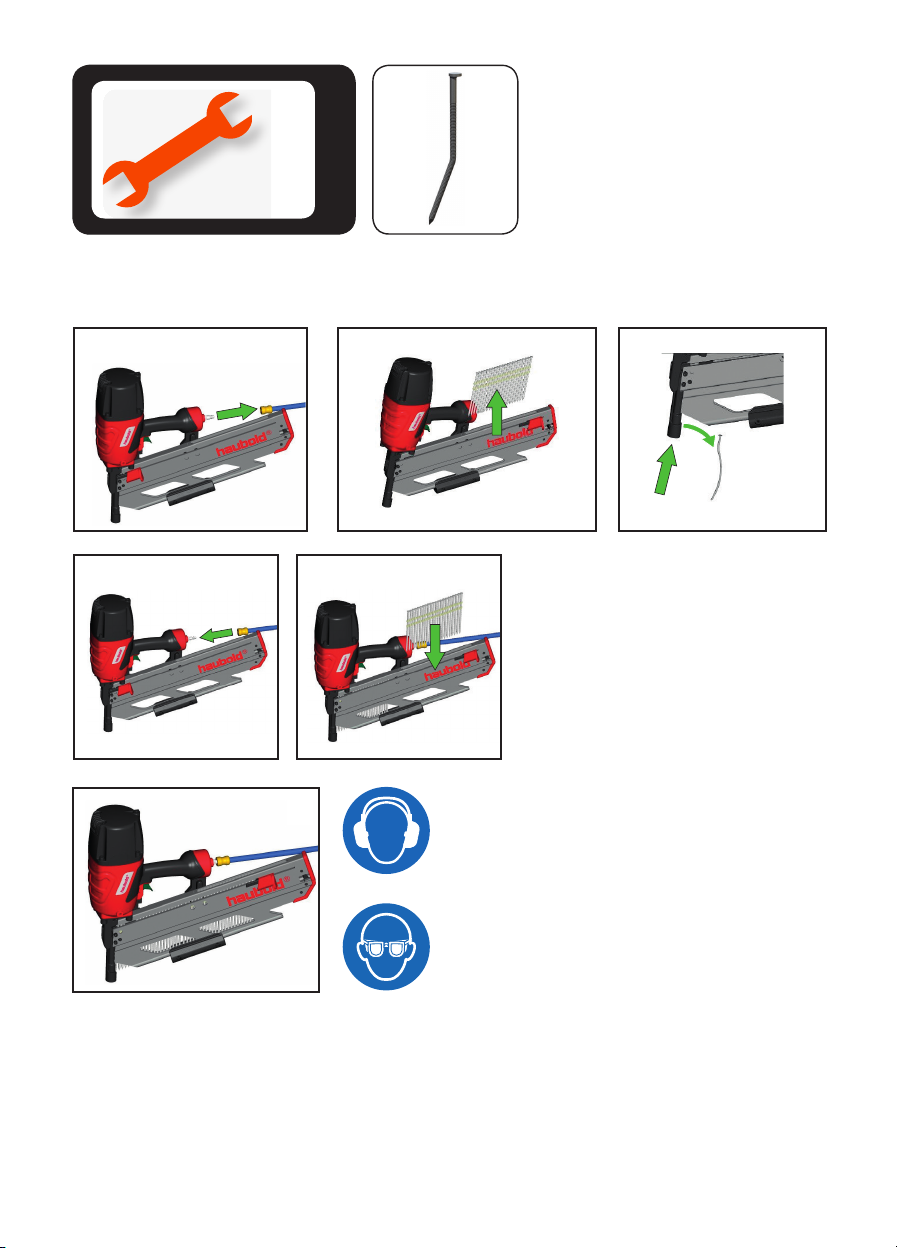

Page 7
1
32
4
5
6
8
Page 8
YY/WW....
YY= Year of manufacture
WW = Week of manufacture
Resting position/ Ruheposition/ Position de repos/ Ruststand/
Posición de descanso/ Posizione di riposo/ Posição de descanso/ Pozycja spoczynku/ Klidová poloha/ Nyugalmi állapot/
Положение в нерабочем состоянии/ Θέση αδράνειας/ Hvilestilling/ Viloläge/ Hvileposisjon/ Lepoasento/ Položaj mirovanja/
Pokojová poloha/ Položaj mirovanja/
/ Ramybės
padėtis/ Ooteasend/ Miera stāvoklis/ Hvíldarstaða
9
Page 9
ITW CONSTRUCTION PRODUCTS EUROPE
Code 576203 (05/2019)
www.spitpaslode.com
