Page 1
Quick Reference Guide
Quick Reference Guide
Quick Reference GuideQuick Reference Guide
Page 2
GT54
16.18 meters53' 10"Length Overall
14.53 meters47' 7"Waterline Length
5.26 meters17' 3"Beam
1.28 meters4' 2"Draft
681 liters180 gallonsFreshwater Capacity
4,542 liters1,200 gallonsFuel Capacity
359 liters95 gallonsHolding Capacity
34,019 kilos75,000 poundsDisplacement
4.51 meters14' 8"Height to Top of Open Flybridge
Engine Options
–Twin CAT C18A Diesel Engines 1135 BHP
–Twin CAT C32A Diesel Engines 1600 BHP
Key Selling Features
–True Carolina Custom Styling
–Incredible Offshore Performance
•Both Speed and Handling
–Tournament Style Cockpit
–270 Degree Visibility
–Island Style Galley
–Side by Side Guest Stateroom Layout
Page 3
Hatteras GT
54
I Arrangements
18 I Hatteras GT54
Standard Flybridge
Layout
Standard 3-Stateroom /
2-Head Layout
Standard Layout with
Optional Bow V-Berth
Page 4
GT54 VESSEL SPECIFICATIONS
Standard Fuel: 1,200 Gallons
Displacement: 75,000 Lbs (Full Load)
PERFORMANCE DATA
Engines: (2) C18 ACERT CATERPILLAR DIESELS Rated @ 1135 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 34-36 120 333 9.5
2100 30-32 90 393 12.7
2000 28-30 81 408 14.1
1800 24-26 62 460 18.4
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1600 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 40-42 170 275 6.7
2100 37-39 135 321 8.4
2000 35-37 120 342 9.5
1800 32-34 100 376 11.4
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 5
GT54
(Options)
Packaged Items
–Full Teak Package -Includes Salon Entry Door, Bow Deck Toe Rail, Flybridge Teak
Accent Strip, Flybridge Teak Helm Pod, And Cockpit Package (Covering Boards,
Curved Coaming Boards, Mezzanine Deck, and Cockpit Sole)
–Cockpit Teak Package -Covering Boards, Curved Coaming Boards, Mezzanine
Deck, And Cockpit Sole
Cockpit
–Starboard In-Deck Refrigerated Fishbox
–Circulating Livewellin Fishbox(Port)
–Wing Station
–Wing Board Rod Holders
–Coaming Lights
–Lift Up Coaming Gate
–Swim Platform with ReboardingLadder
–Underwater Lights
–Chipped Ice Machine
–Handheld Shower
–Air Conditioning with Blowers at Overhang
Open Flybridge
–Air Conditioning Blowers
Interior
–PlexiMirrored Ceiling in Head(s)
–Pneumatic Sliding Salon Door
–Salon Privacy Blinds
–Overhead Lockers in Bow Stateroom
–Double Berth Port And Single Berth Starboard in Bow Stateroom
–Rod Storage Locker in Starboard Stateroom
–19 inch LCD with DVD/Stereo in Bow or Starboard Stateroom
–HMC System 3 Mattress Upgrade
Deck / Exterior
–Colored Hull, Various Colors
–Boot Stripe Paint, Various Colors
–Port and Starboard Bow Deck Hatches
–Additional Outlet for the Bow Deck Freshwater Wash Down
Page 6
GT54
(Options)
Teak
–Teak Curved Coaming Boards with Natural Finish
–Teak Cockpit Sole with Natural Finish
–Teak Covering Boards with Natural Finish
–Teak Mezzanine Deck
–Teak Salon Entry Door
–Teak Toe Rail
–Teak Helm Pod
–Teak Flybridge Accent Strip
Mechanical / Electrical
–Hydraulic Bow Thruster System (8 Inch, 16 HP)
–Electric Bow Thruster System (8 Inch)
–Fiberglass Pulpit with Anchor Chute And Windlass, 1700 Pound, Rope-Chain, with
Deck Mount Control Switches
–Additional Generator (9 KW)
–1400 GPD Watermaker
–Back-Up Sea Water Pump for Air Conditioning System
–Freshwater AC Back-Up Pump
–Prop Removal and Installation Tool
–Wiring and Thru Hulls for Future Installation of the Following Options: Windlass ,
Chipped Ice Machine or Watermaker
–Weatherproof 120V Receptacle
–Water Delivery Kit
–Electrical System -Full 50 HZ 220V
–Electrical System -50/60 HZ
–Air Conditioning Upgrade for Mideast Region
–CE Certification
Tower / Electronics
–Custom Electronics Package by HST
–Custom Tower by Pipewelders
Page 7
GT54
HOLDING TANK
95 GALLONS
FUEL TANK
1,200 GALLONS
WATER TANK
180 GALLONS
Page 8
GT60
18.20 meters59' 10"Length Overall
15.62 meters51' 11"Waterline Length
5.78 meters19' 0"Beam
1.44 meters4' 9"Draft
757 liters200 gallonsFreshwater Capacity
5,678 liters1,500 gallonsFuel Capacity
946 liters250 gallonsOptional Fuel Capacity
378 liters100 gallonsHolding Capacity
40,597 kilos89,500 poundsDisplacement
4.39 meters14' 5”Height to Top of Open Flybridge
5.26 meters17' 3”Height to Top of Enclosed Flybridge
Engine Options
–Twin CAT C32A Diesel Engines 1600 BHP
–Twin CAT C32A Diesel Engines 1800 BHP
–Twin CAT C32A Diesel Engines 1900 BHP
Key Selling Features
–True Carolina Custom Styling
–Incredible Offshore Performance
•Both Speed and Handling
–Tournament Sized Cockpit
•Large Mezzanine
•Gaff Storage
–Booth Style Dinette
–Optional 4th Stateroom
–Additional Fuel
Page 9

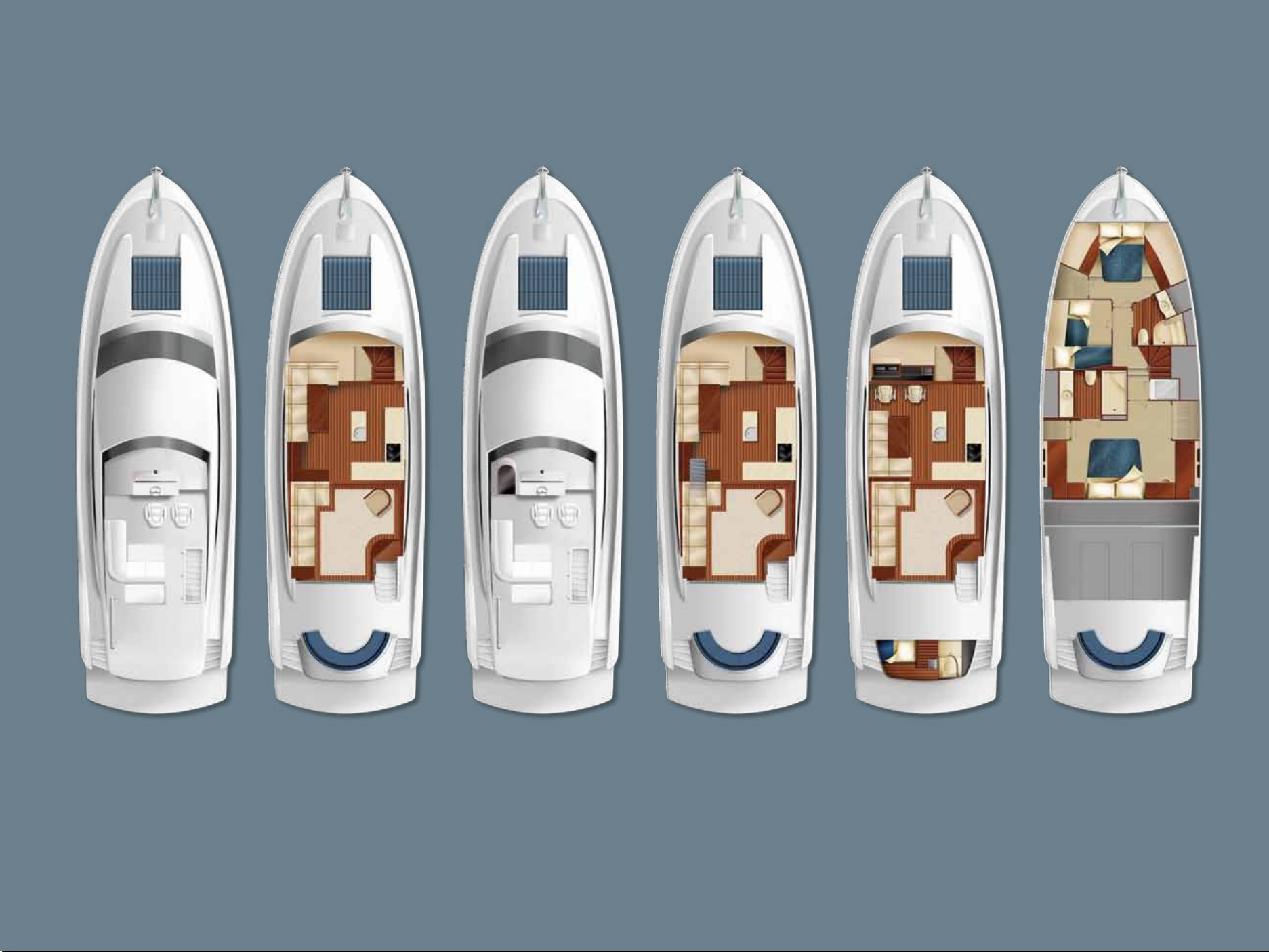

Hatteras GT
60
I Arrangements
Standard Flybridge
Layout
30 I Hatteras GT60
Optional Flybridge
Layout
Optional Enclosed
Flybridge Layout
Standard 3-Stateroom /
3-Head Layout
Optional 4-Stateroom /
3-Head Layout
w/ Bar Stools
Standard Layout w/
Optional Bow
V-Berth & Bar
Stools
Page 10
GT60 VESSEL SPECIFICATIONS
Standard Fuel: 1,500 Gallons
Displacement: 89,500 Lbs (Full Load)
PERFORMANCE DATA
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1600 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 36-38 155 340 9.2
2100 32-34 126 377 11.3
2000 30-32 113 391 12.6
1800 26-28 89 432 16.0
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1800 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 39-41 180 317 7.9
2100 35-37 150 342 9.5
2000 33-35 130 373 11.0
1800 29-31 100 428 14.3
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1900 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 40-42 200 292 7.1
2100 36-38 170 310 8.4
2000 34-36 150 333 9.5
1800 30-32 107 413 13.3
SPEED
(KNOTS)
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 11
GT60
(Options)
Packaged Items
–Full Teak Package -Includes Salon Entry Door, Bow Deck Toe Rail, Flybridge Teak Accent Strip,
Flybridge Teak Helm Pod, And Cockpit Package (Covering Boards, Curved Coaming Boards,
Mezzanine Deck, and Cockpit Sole)
–Cockpit Teak Package -Covering Boards, Curved Coaming Boards, Mezzanine Deck, And Cockpit
Sole
Cockpit
–Starboard In-Deck Refrigerated Fishbox
–Circulating Livewellin Fishbox(Port)
–Transom Fishboxor Livewell
–Wing Station
–Wing Board Rod Holders
–Coaming Lights
–Lift Up Coaming Gate
–Swim Platform with ReboardingLadder
–Underwater Lights
–Chipped Ice Machine
– Additional Mezzanine Seat in Lieu of Bait Center
–Handheld Shower
– Air Conditioning with Blowers at Overhang
Open Flybridge
–Peninsula Console and Twin Helmchairs
– Air Conditioning Blowers
–8 Cubic Feet Top Loading Freezer
–Enclosed Flybridge
Enclosed Flybridge
–Mast with Radar Platform
–Pedestal Stool for Aft Control Station
Interior
–Four Stateroom with Three Head Arrangement
–PlexiMirrored Ceiling in Head(s)
–Single Drawer Dishwasher
–Third Unit, UndercounterAppliances
–Salon Bar Stool with Footrests Upgrade (Pair)
–Pneumatic Sliding Salon Door
–Salon Privacy Blinds
–Overhead Lockers in Bow Stateroom
–Double Berth Port And Single Berth Starboard in Bow Stateroom
–Rod Storage Locker in Starboard Stateroom
–19 inch LCD with DVD/Stereo in Bow Stateroom
–15 inch Flip Down LCD TV with DVD/Stereo in 4th or Bunk Stateroom
–HMC System 3 Mattress Upgrade
Page 12
GT60
(Options)
Deck / Exterior
–Colored Hull, Various Colors
–Boot Stripe Paint, Various Colors
–Port and Starboard Bow Deck Hatches
Teak
–Teak Curved Coaming Boards with Natural Finish
–Teak Cockpit Sole with Natural Finish
–Teak Covering Boards with Natural Finish
–Teak Mezzanine Deck
–Teak Salon Entry Door
–Teak Toe Rail
–Teak Helm Pod
–Teak Flybridge Accent Strip
Mechanical / Electrical
–Auxiliary Fuel Tank (245 Gallon)
–Hydraulic Bow Thruster System (12 Inch, 22 HP)
–Electric Bow Thruster System (12 Inch)
–Fiberglass Pulpit with Anchor Chute And Windlass, 1700 Pound, Rope-Chain, with
Deck Mount Control Switches
–Additional Generator (21.5 KW)
–1400 GPD Watermaker
–Back-Up Sea Water Pump for Air Conditioning System
–Freshwater AC Back-Up Pump
–Prop Removal and Installation Tool
–Wiring and Thru Hulls for Future Installation of the Following Options: Windlass ,
Chipped Ice Machine or Watermaker
–50 Amp Retractable Shorecordin Lieu of Fixed Cord
–Weatherproof 120V Receptacle
–Water Delivery Kit
–Electrical System -Full 50 HZ 220V
–Electrical System -50/60 HZ
–Air Conditioning Upgrade for Mideast Region
–CE Certification
Tower / Electronics
–Custom Electronics Package by HST
–Custom Tower by Pipewelders
Page 13
GT60
HOLDING TANK
100 GALLONS
FUEL TANK
1,500 GALLONS
FUEL TANK (OPTIONAL)
250 GALLONS
WATER TANK
200 GALLONS
Page 14
GT63
19.46 meters63' 10"Length Overall
17.20 meters56' 5"Waterline Length
6.10 meters20' 0"Beam
1.53 meters5' 0"Draft
1,022 liters270 gallonsFreshwater Capacity
7,192 liters1,900 gallonsFuel Capacity
568 liters150 gallonsHolding Capacity
46,266 kilos102,000 poundsDisplacement
4.57 meters15' 0"Height to Top of Open Flybridge
5.49 meters18' 0"Height to Top of Enclosed Flybridge
Engine Options
–Twin CAT C32A Diesel Engines 1600 BHP
–Twin CAT C32A Diesel Engines 1800 BHP
–Twin CAT C32A Diesel Engines 1900 BHP
Key Selling Features
–True Carolina Custom Styling
–Incredible Offshore Performance
•Both Speed and Handling
–Tournament Sized Cockpit
•Large Mezzanine
•Gaff Storage
–Standard 4 S/R Layout
–Large & Open Floor Plan –Salon/Galley
–Optional Tackle Room
Page 15

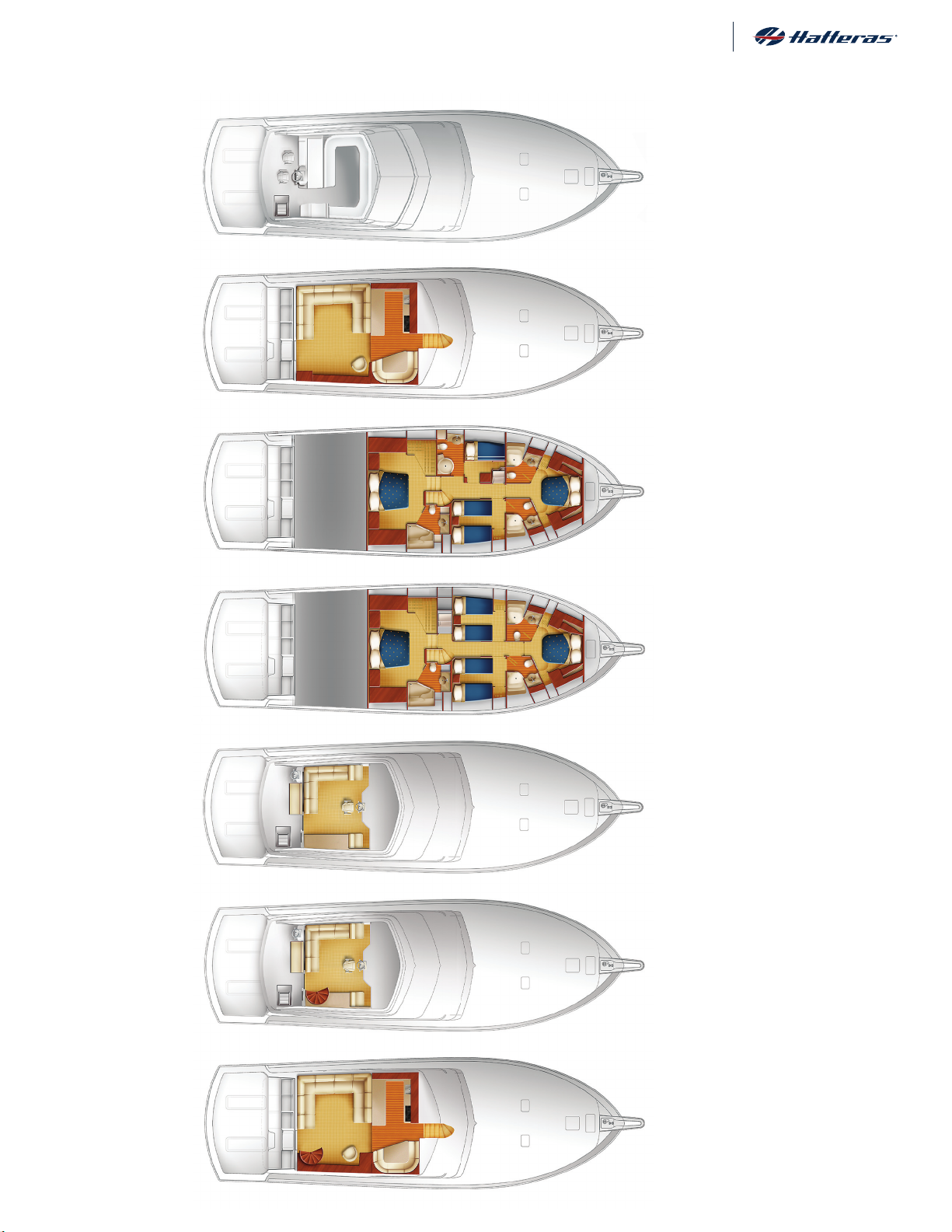

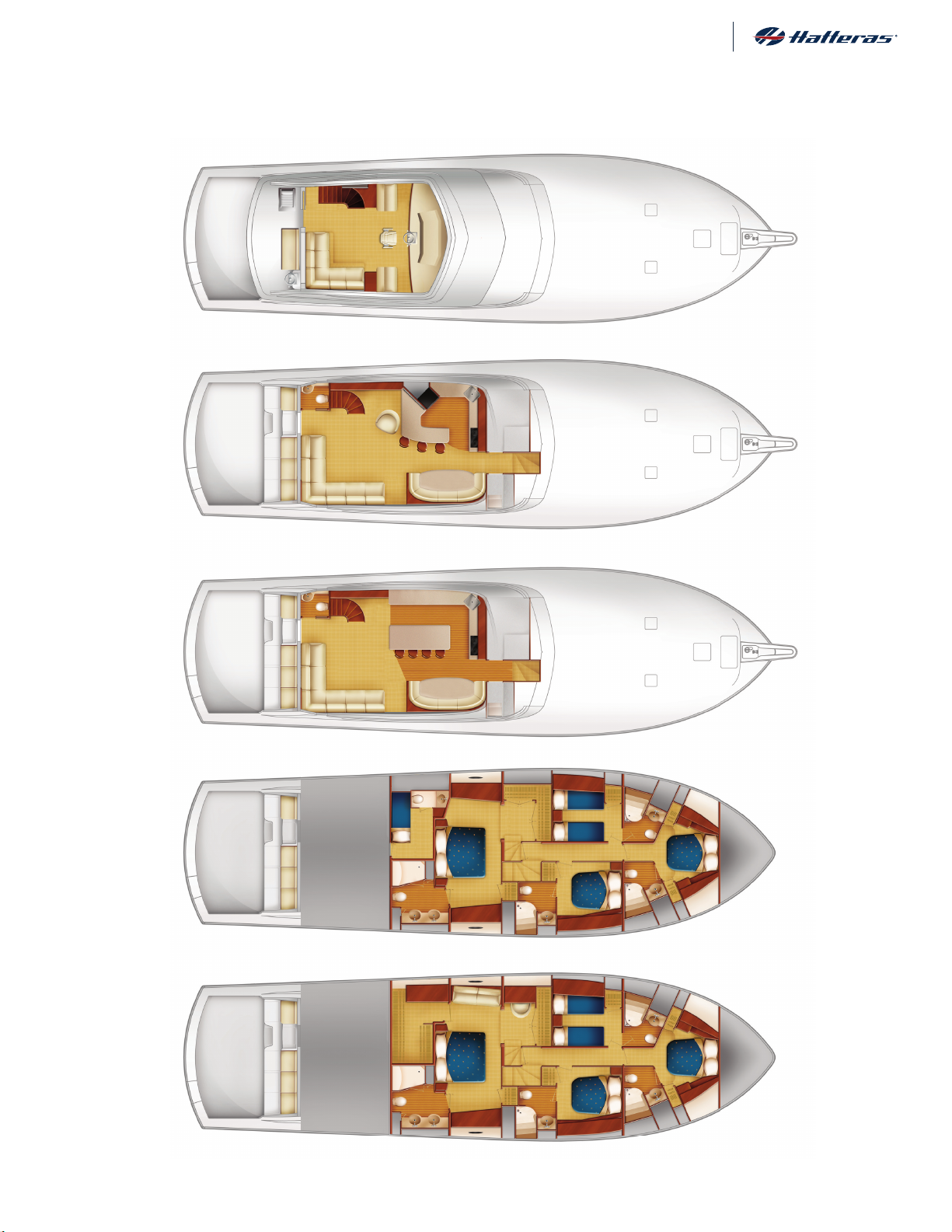

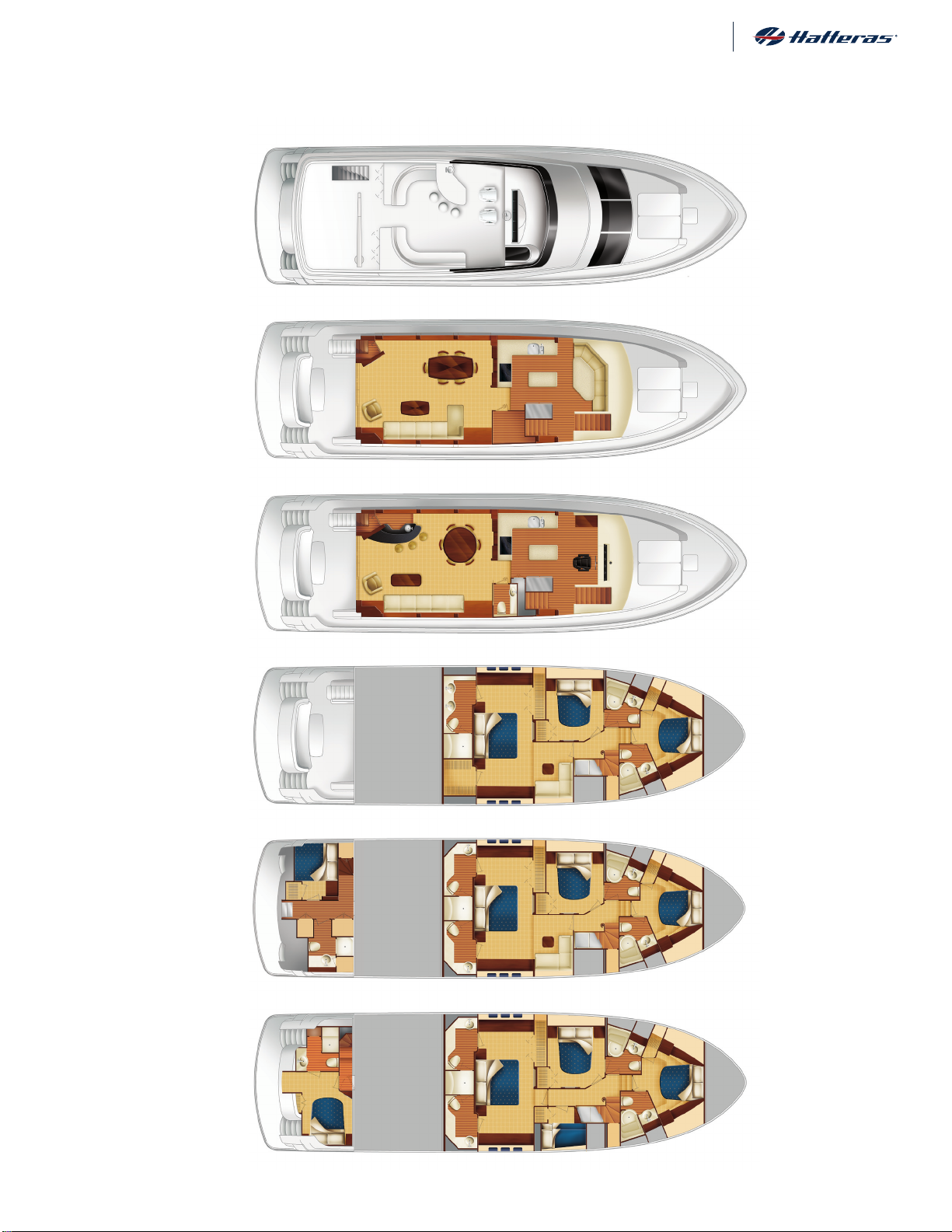

Hatteras GT
63
I Arrangements
Standard Flybridge
Arrangement
42 I Hatteras GT63
Optional Flybridge
Arrangement
Optional Enclosed
Flybridge Arrangement
Enclosed Flybridge
w/ Optional Stairwell
to Salon
Standard 4-Stateroom /
3-Head Arrangement
Optional Arrangement
w/ Office , V-Berth Bow
and Stairwell to the
Enclosed Flybridge
Page 16
GT63 VESSEL SPECIFICATIONS
Standard Fuel: 1,900 Gallons
Displacement: 102,000 Lbs (Full Load)
PERFORMANCE DATA
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1600 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 35-37 160 406 11.3
2100 31-33 142 407 12.7
2000 29-31 129 420 14.0
1800 25-27 100 469 18.1
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1800 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 38-40 185 381 9.8
2100 34-36 158 400 11.4
2000 32-34 141 422 12.8
1800 28-30 110 476 16.4
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1900 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 39-41 200 361 9.0
2100 35-37 170 382 10.6
2000 33-35 154 399 11.7
1800 29-31 125 433 14.4
SPEED
(KNOTS)
SPEED
(KNOTS)
FUEL CONS .
(ENGINES ONLY)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 17
GT63
(Options)
Packaged Items
–Full Teak Package -Includes Salon Entry Door, Bow Deck Toe Rail, Flybridge Teak
Accent Strip, Flybridge Teak Helm Pod, And Cockpit Package (Covering Boards,
Curved Coaming Boards, Mezzanine Deck, and Cockpit Sole)
–Cockpit Teak Package -Covering Boards, Curved Coaming Boards, Mezzanine
Deck, And Cockpit Sole
Cockpit
–Starboard In-Deck Refrigerated Fishbox
–Circulating Livewellin Fishbox(Port)
–Wing Station
–Wing Board Rod Holders
–Coaming Lights
–Lift Up Coaming Gate
–Swim Platform with ReboardingLadder
–Underwater Lights
–Chipped Ice Machine
–Additional Seat in Lieu of Bait Center
–Handheld Shower
–Air Conditioning with Blowers at Overhang
Open Flybridge
–Peninsula Console and Twin Helmchairs
–Air Conditioning Blowers
–8 Cubic Feet Top Loading Freezer
Enclosed Flybridge
–Enclosed Flybridge
–Interior Stairwell
–Pedestal Stool for Aft Control Station
Interior
–PlexiMirrored Ceiling in Head(s)
–Single Drawer Dishwasher
–Salon Privacy Blinds
–Overhead Lockers in Bow Stateroom
–Double Berth Port And Single Berth Starboard in Bow Stateroom
–Rod Storage Locker in Starboard Stateroom
–19 inch LCD with DVD/Stereo in Bow Stateroom
–16 inch Flip Down LCD TV with DVD/Stereo in 4th or Bunk Stateroom
–HMC System 3 Mattress Upgrade
Page 18
GT63
(Options)
Deck / Exterior
–Colored Hull, Various Colors
–Boot Stripe Paint, Various Colors
–Port and Starboard Bow Deck Hatches
Teak
–Teak Curved Coaming Boards with Natural Finish
–Teak Cockpit Sole with Natural Finish
–Teak Covering Boards with Natural Finish
–Teak Mezzanine Deck
–Teak Salon Entry Door
–Teak Toe Rail
–Teak Helm Pod
–Teak Flybridge Accent Strip
Mechanical / Electrical
–Hydraulic Bow Thruster System (12 Inch, 22 HP)
–Electric Bow Thruster System (8 Inch)
–Fiberglass Pulpit with Anchor Chute And Windlass, 1700 Pound, Rope-Chain, with
Deck Mount Control Switches
–Additional Generator (21.5 KW)
–1400 GPD Watermaker
–Back-Up Sea Water Pump for Air Conditioning System
–Freshwater AC Back-Up Pump
–Prop Removal and Installation Tool
–Wiring and Thru Hulls for Future Installation of the Following Options: Windlass ,
Chipped Ice Machine or Watermaker
–Weatherproof 120V Receptacle
–Water Delivery Kit
–Electrical System -Full 50 HZ 220V
–Electrical System -50/60 HZ
–Air Conditioning Upgrade for Mideast Region
–CE Certification
Tower / Electronics
–Custom Electronics Package by HST
–Custom Tower by Pipewelders
Page 19
GT63
HOLDING TANK
150 GALLONS
FUEL TANK
1,900 GALLONS
WATER TANK
270 GALLONS
Page 20
68 Convertible
20.89 meters68' 6"Length Overall
18.22 meters59' 9"Waterline Length
6.57 meters21' 6"Beam
1.60 meters5' 3"Draft
1,514 liters400 gallonsFreshwater Capacity
7,947 liters2,100 gallonsFuel Capacity
473 liters125 gallonsHolding Capacity
63,503 kilos140,000 poundsDisplacement
4.60 meters15' 1"Height to Top of Open Flybridge
5.84 meters19' 2"Height to Top of Enclosed Flybridge
Engine Options
–Twin CAT C32A Diesel Engines 1600 BHP
–Twin CAT C32A Diesel Engines 1800 BHP
–Twin CAT C32A Diesel Engines 1900 BHP
–Twin MTU 16V2000 Diesel Engines 2000 BHP
Key Selling Features
–Extremely Popular Model –Built 52 Units
–Incredible Offshore Ride –Solid/Stable
–Long Range Battle Wagon
–Resin Infused Construction
–Improved Performance –Resin Infusion
–Optional Enclosed Bridge
–Huge Cockpit and Mezzanine Area
–Standard 4 S/R 3 Head Layout
–Optional Built In Interior Stairwell
–Large Open Galley –(3) Under Counter Units
–Full Beam Master Stateroom
–Amazingly Spacious Layout
Page 21

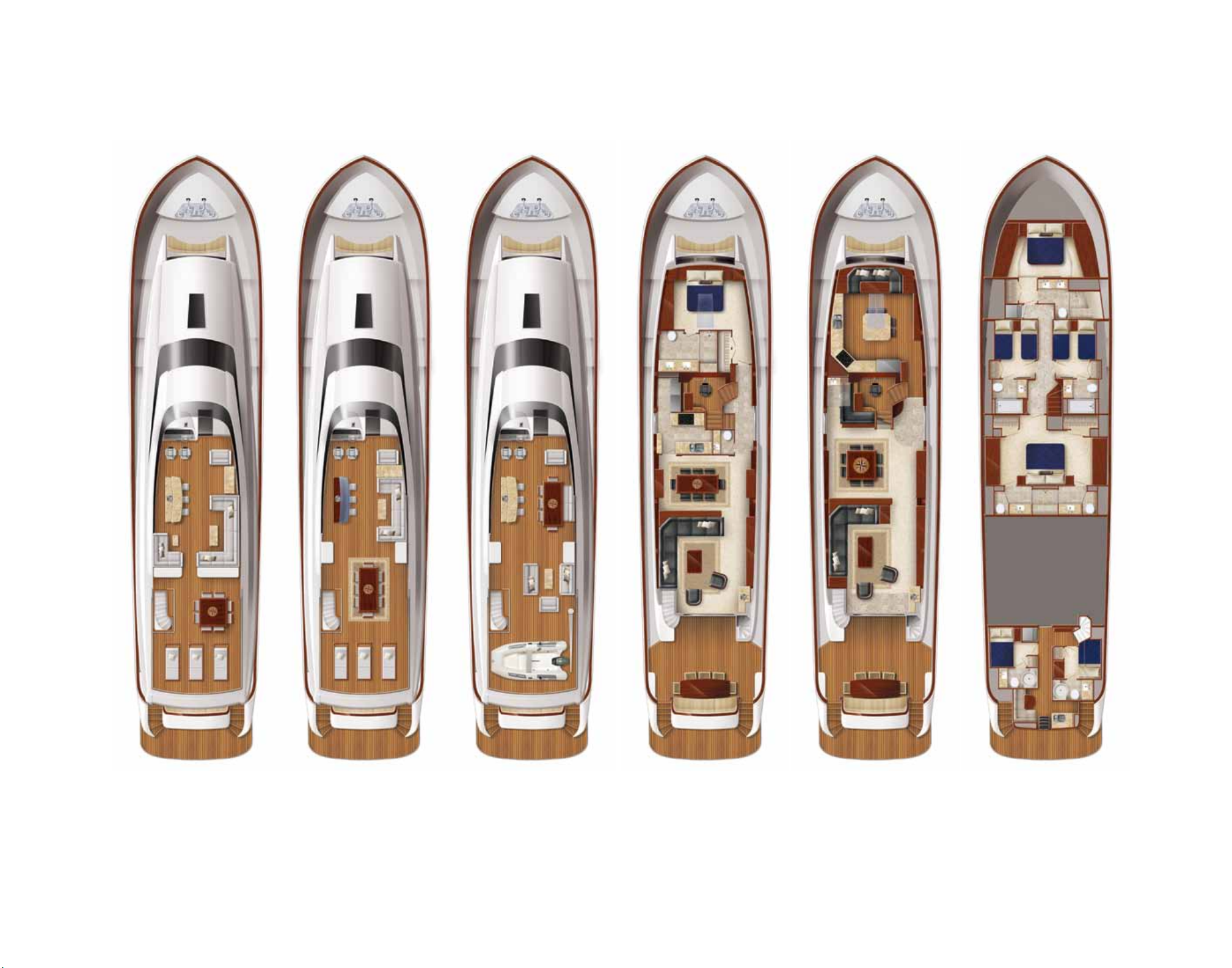

Hat teras 68 Conv ertible
ARRANGEMENTS
Standard Flybridge
Arrangement
Standard Upper Deck
Arrangement
www.HatterasYachts.com
Standard
Four-Stateroom / Four-Head
Arrangement
Optional
Four-Stateroom / Three-Head
Arrangement
Optional
Enclosed Flybridge
Optional Enclosed
Flybridge with
Stairwell to Salon
Optional Upper Deck
Arrangement with Stairwell
to Enclosed Flybridge
Page 22
68 CONVERTIBLE VESSEL SPECIFICATIONS
Standard Fuel: 2,100 Gallons
Displacement: 140,000 Lbs (Full Load)
PERFORMANCE DATA
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1600 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 28-30 172 336 11.6
2100 25-27 134 387 14.9
2000 24-26 122 409 16.4
1800 22-24 98 468 20.4
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1800 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 32-34 188 350 10.6
2100 29-31 150 399 13.3
2000 27-29 134 417 14.9
1800 24-26 104 480 19.2
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1900 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 33-35 198 343 10.1
2100 30-32 160 387 12.5
2000 28-30 140 413 14.3
1800 25-27 110 472 18.1
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 23
68 CONVERTIBLE VESSEL SPECIFICATIONS (PAGE 2)
Engines: (2) 16V-2000 MTU DIESELS Rated @ 2000 BHP @ 2350 RPM’s
RPM HOURS @ SPEED
2350 33-35 202 336 9.9
2100 29-31 152 394 13.1
2000 27-29 138 405 14.5
1800 23-25 114 420 17.5
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 24
68 Convertible
(Options)
Cockpit
–Starboard In-Deck Refrigerated Fishbox
–Port In-Deck Refrigerated Fishbox
–Circulating Livewellin Fishbox(Port and Starboard)
–Transom Fishboxor Livewell
–Wing Station
–Wing Board Rod Holders
–Swivel Rod Holders
–Coaming Padding
–Lift Up Coaming Gate
–Swim Platform with ReboardingLadder
–Underwater Lights
–10 Cubic Feet Freezer in Lieu of Standard Freezer & Inboard Storage Box
–5 Cubic Feet Second Freezer
–Chipped Ice Machine
–Vertical Tackle Center in Lower Mezzanine
–Double Bait Tray in Lieu of 2 Single Tubs
–Handheld Shower
– Air Conditioning with Blowers at Overhang
Open Flybridge
– Air Conditioning Blowers
Enclosed Flybridge
–Enclosed Flybridge
–Interior Stairwell
–Overhead Hatch with Privacy Cover
–20 Inch Flip Down LCD TV with AM/FM CD/DVD Stereo
–Pneumatic Sliding Door
–Table
–Mast with Radar Platform
–Pedestal Stool for Aft Control Station
–Instrument Cover for Aft Station
–Cut Out for Optional Center Line Tower
Interior
–Four Stateroom with Three Head Arrangement
–PlexiMirrored Ceiling in Head(s)
–Teak and Maple Flooring in Heads
–Dishwasher
–Third Unit, UndercounterAppliance
–Insta-Hot
–Soap Dispenser at Sink
–Teak and Maple Flooring in Galley
–Coffee Table with High Gloss Finish
–Pneumatic Sliding Salon Door
–Salon Door Cover with Snaps
–Salon Aft Entry AmticoFlooring
–20 inch LCD TV in Port Stateroom
–HMC System 3 Mattress Upgrade
Page 25
68 Convertible
(Options)
Deck / Exterior
–Colored Hull, Various Colors
–Boot Stripe Paint, Various Colors
–Welded Stainless Steel Bow and Flybridge Rails with Ladder
–Bow Rail Fender Racks
–Additional Outlet for the Bow Deck Freshwater Wash Down
Teak
–Teak Curved Coaming Boards with Natural Finish
–Teak Cockpit Sole with Natural Finish
–Teak Covering Boards with Natural Finish
–Teak Mezzanine Deck
Mechanical / Electrical
–Davit with Hydraulic Boom (1,000 lb or 1,500 lb)
–Hydraulic Bow Thruster (12 Inch, 25 HP)
–Integrated Bow And Stern Thruster
–Omit Bow Pulpit with Windlass
–Stern Docking Windlass, 3,500 lb Each
–Windlass, 2500 Upgrade to 300 3/8 Chain with Divider
–Inverter with Battery Bank
–1400 GPD Watermaker
–Back-Up Sea Water Pump for Air Conditioning System
–Freshwater AC Back-Up Pump
–Emergency Electric Bilge Pump
–Fuel Transfer System Spare Pump (Load Aboard)
–Bow Thruster Backup Redundant Pump
–Prop Removal and Installation Tool
–Wiring and Thru Hulls for Future Installation of the Following Options: Chipped Ice
Machine or Watermaker
–Wireless Remote for the Shorecord
–Weatherproof 120V Receptacle
–Water Delivery Kit
–Electrical System -Full 50 HZ 220V
–CE Certification
Tower / Electronics
–Custom Electronics Package by HST
–Custom Tower by Pipewelders
Page 26
68C
FUEL TANK
762 GALLONS
FUEL TANK
PORT & STARBOARD
398 GALLONS (EACH)
HOLDING TANK
125 GALLONS
WATER TANK
400 GALLONS
FUEL TANK
PORT & STARBOARD
271 GALLONS (EACH)
Page 27
77 Convertible
23.42 meters76' 10"Length Overall
20.12 meters66' 0"Waterline Length
6.71 meters22' 0"Beam
1.60 meters5' 3"Draft
1,491 liters394 gallonsFreshwater Capacity
11,356 liters3,000 gallonsFuel Capacity
916 liters242 gallonsHolding Capacity
79,379 kilos175,000 poundsDisplacement
6.10 meters20' 0"Height to Top of Enclosed Flybridge
Engine Options
–Twin CAT C32A Diesel Engines 1800 BHP
–Twin CAT C32A Diesel Engines 1900 BHP
–Twin MTU 16V2000 Diesel Engines 2000 BHP
–Twin MTU 16V2000 CR Diesel Engines 2600 BHP
Key Selling Features
–Long Range Battle Wagon
–Incredible Offshore Ride –Solid/Stable
–Resin Infused Construction
–Standard Enclosed Bridge
–Huge Cockpit and Mezzanine Area
–Standard 4 S/R 3 Head Layout
–Built In Interior Staircase
–Large Open Galley –(3) Bar Stools
–Full Beam Master Stateroom w/ Crew
–Amazingly Spacious Layout
Page 28

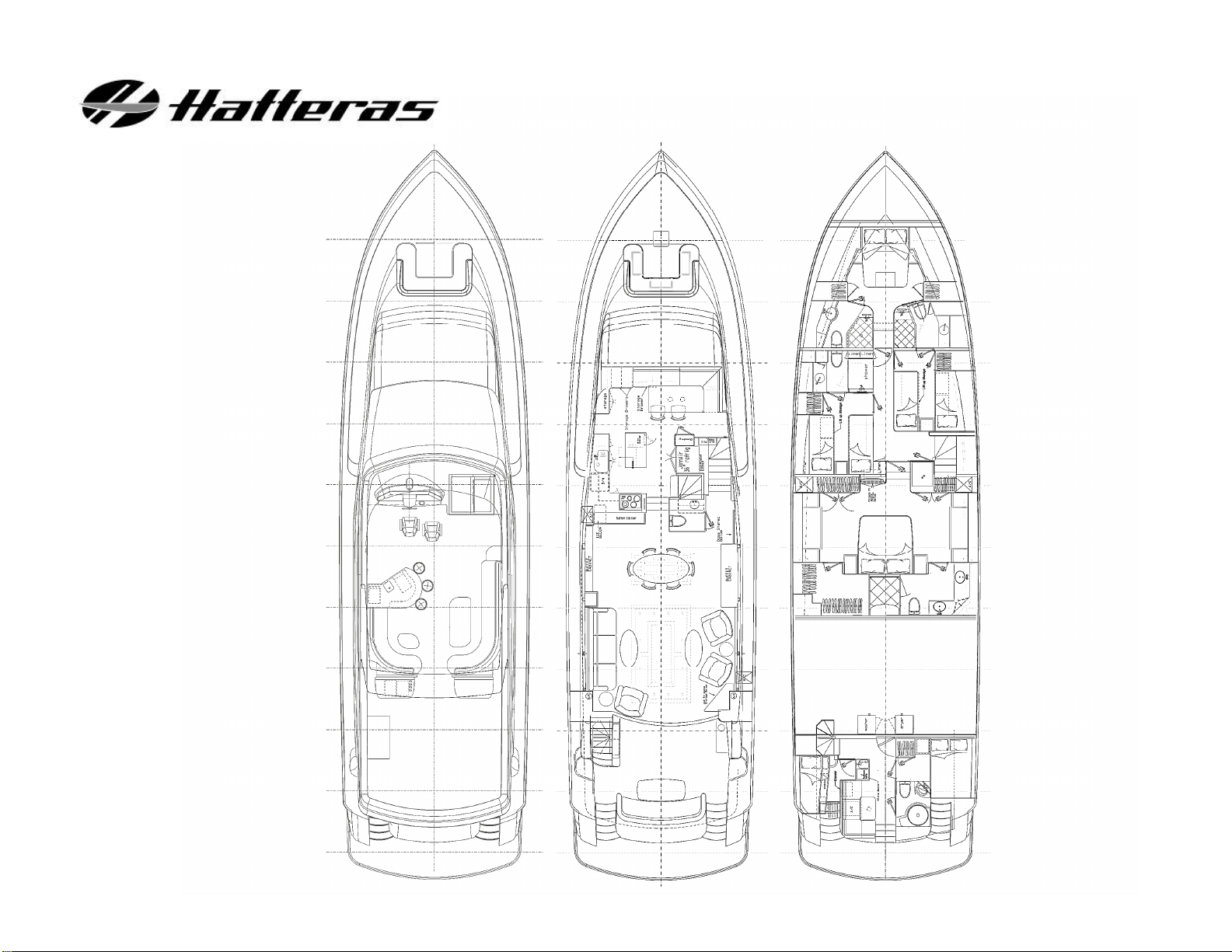

Hat teras 77 Conv ertible
ARRANGEMENTS
Standard Enclosed
Flybridge
Standard Upper Deck
Arrangement
www.HatterasYachts.com
Optioanl Upper Deck
Arrangement with
Galley Island
Standard Lower Deck
Arrangement with
Crew Quarters
Optional Lower Deck
Arrangement with Desk and
His & Hers Head in Master
Page 29
77 CONVERTIBLE VESSEL SPECIFICATIONS
Standard Fuel: 3,000 Gallons
Displacement: 175,000 Lbs (Full Load)
PERFORMANCE DATA
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1800 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 25-27 188 394 15.2
2100 22-24 150 437 19.0
2000 20-22 134 447 21.3
1800 17-19 104 493 27.4
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1900 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 26-28 198 389 14.4
2100 23-25 160 428 17.8
2000 21-23 140 448 20.4
1800 18-20 110 492 25.9
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) 16V-2000 MTU DIESELS Rated @ 2000 BHP @ 2350 RPM’s
RPM HOURS @ SPEED
2350 27-29 202 395 14.1
2100 23-25 152 450 18.8
2000 21-23 138 454 20.7
1800 20-22 114 475 25.0
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 30
77 CONVERTIBLE VESSEL SPECIFICATIONS (PAGE 2)
Engines: (2) 16V-2000CR MTU DIESELS Rated @ 2600 BHP @ 2450 RPM’s
RPM HOURS @ SPEED
2450 33-35 278 349 10.3
2200 30-32 244 362 11.7
2100 28-30 218 379 13.1
2000 26-28 196 393 14.5
1800 23-25 156 438 18.3
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 31
77 Convertible
(Options)
Cockpit
–Circulating Livewellin Fishbox(Port)
–Transom Fishboxor Livewell
–Wing Station
–Wing Board Rod Holders
–Swivel Rod Holders
–Coaming Padding
–Lift Up Coaming Gate
–Swim Platform with ReboardingLadder
–Underwater Lights
–10 Cubic Feet Freezer in Lieu of Standard Freezer & Inboard Storage Box
–Chipped Ice Machine
–Vertical Tackle Center in Lower Mezzanine
–Double Bait Tray in Lieu of 2 Single Tubs
–Handheld Shower
– Air Conditioning with Blowers at Overhang
Enclosed Flybridge
–Overhead Hatch with Privacy Cover
–Pneumatic Sliding Door
–Wet Bar
–Table
–Mast with Radar Platform
–Pedestal Stool for Aft Control Station
–Instrument Cover for Aft Station
–Cut Out for Optional Center Line Tower
–Freshwater Connection for Tower Washdown
Interior
–Master Stateroom with His and Her Heads in Lieu of Crew Stateroom
–Master Stateroom Arrangement with Foyer, Sofa and 20 Inch LCD TV
–Master Stateroom with Foyer and Office
–Master Stateroom with a Sofa in Lieu of the Port Dresser
–PlexiMirrored Ceiling in Head(s)
–Teak and Maple Flooring in Heads
–UndercounterDrawer Refrigerator/Freezer in Lieu of Upright
–Wine Cooler
–Insta-Hot
–Soap Dispenser at Sink
–Teak and Maple Flooring in Galley
–Coffee Table with High Gloss Finish
–Pneumatic Sliding Salon Door
–Salon Door Cover with Snaps
–Salon Aft Entry AmticoFlooring
–20 inch LCD TV in the Crew Stateroom
–HMC System 3 Mattress Upgrade
–4.6 Cubic Foot Door Style Freezer in Utility Room
Page 32
77 Convertible
(Options)
Deck / Exterior
–Colored Hull, Various Colors
–Boot Stripe Paint, Various Colors
–Welded Stainless Steel Bow and Flybridge Rails with Ladder
–Bow Rail Fender Racks
–Additional Outlet for the Bow Deck Freshwater Wash Down
Teak
–Teak Curved Coaming Boards with Natural Finish
–Teak Cockpit Sole with Natural Finish
–Teak Covering Boards with Natural Finish
–Teak Mezzanine Deck
Mechanical / Electrical
–Davit with Hydraulic Boom (1,000 lb or 1,500 lb)
–Hydraulic Bow Thruster (12 Inch, 38 HP)
–Integrated Bow And Stern Thruster
–Omit Bow Pulpit with Windlass
–Stern Docking Windlass, 3,500 lb Each
–Windlass, 2500 Upgrade to 300 3/8 Chain with Divider
–Inverter with Battery Bank
–1400 GPD Watermaker
–Back-Up Sea Water Pump for Air Conditioning System
–Freshwater AC Back-Up Pump
–Emergency Electric Bilge Pump
–Optional Oil Tank, 100 Gallons
–Prop Removal and Installation Tool
–Wiring and Thru Hulls for Future Installation of the Following Options: Chipped Ice
Machine or Watermaker
–Wireless Remote for the Shorecord
–Weatherproof 120V Receptacle
–Water Delivery Kit
–Electrical System -Full 50 HZ 220V
–CE Certification
Tower / Electronics
–Custom Electronics Package by HST
–Custom Tower by Pipewelders
Page 33
77C
FUEL TANK
1,430 GALLONS
WATER TANK
PORT & STARBOARD
197 GALLONS (EACH)
HOLDING TANK
242 GALLONS
FUEL TANK
657 GALLONS
FUEL TANK
498 GALLONS
FUEL TANK
415 GALLONS
Page 34
60 Motor Yacht
18.57 meters60' 11"Length Overall
16.18 meters53' 1"Waterline Length
5.53 meters18' 2"Beam
1.37 meters4' 6"Draft
946 liters250 gallonsFreshwater Capacity
3,785 liters1,000 gallonsFuel Capacity
378 liters100 gallonsHolding Capacity
39,780 kilos87,700 poundsDisplacement
4.57 meters15' 0"Height to Top of Flybridge Windshield
6.02 meters19' 9"Height to Top of Arch
Engine Options
–Twin CAT C18A Diesel Engines 1000 BHP
–Twin CAT C18A Diesel Engines 1135 BHP
Key Selling Features
–Large Aft Deck Area
–Class Leading Interior Volume
–Luxury and Livability of a Larger MY
–Open and Inviting Galley Area
–Optional Interior Stairwell
–Optional Dining Chair Storage
–Unsurpassed Visibility
–Updated Interior Styling
–Full Beam Master Stateroom
–Huge Master Head
–Bow Deck Seating Available
–Incredible Ease of Use
–Increased Performance 31kt WOT with 1150HP Engines
Page 35
Hatteras 60 Motor Yacht I Standard Arrangements
Standard Flybridge
Arrangement
10 I Hatteras 60 Motor Yacht
Standard Salon / Galley
Arrangement
Optional Flybridge w /
Hatch to Interior Stairwell
Optional Interior
Flybridge Stairwell
Optional Lower Helm
and Crew Quarters
Standard 3-Stateroom
/ 2-Head Arrangement
Page 36
60 MOTOR YACHT VESSEL SPECIFICATIONS
Standard Fuel: 1,000 Gallons
Displacement: 87,700 Lbs (Full Load)
PERFORMANCE DATA
Engines: (2) C18 ACERT CATERPILLAR DIESELS Rated @ 1000 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 28-30 105 262 9.0
2100 25-27 83 298 11.4
2000 23-25 75 304 12.7
1800 19-21 61 311 15.6
Engines: (2) C18 ACERT CATERPILLAR DIESELS Rated @ 1135 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 30-32 114 258 8.3
2100 26-28 87 300 10.9
2000 24-26 80 297 11.9
1800 20-22 66 302 14.4
SPEED
(KNOTS)
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 37
60 Motor Yacht
(Options)
Aft Deck
–Passerelle
–Retractable Shorecords(2)
–Solid Surface Table
–Teak Table
–Bustle Gates (Port and Starboard)
–ReboardingLadder with Storage Bracket
–Hatch to Flybridge
–Handheld Shower
Open Flybridge
–Seating on Aft Overhang (Not available with optional davit)
–Solid Surface Table
–Interior Stairs with Hatch Access to Flybridge
–Grill with Cabinet
–Air Conditioning Blowers
–Refrigerator and Icemaker
Interior
–Optional Lower Helm
–Crew Quarters with Head
–Tub in Lieu of Shower in Master Head
–PlexiMirrored Ceiling in Master Head
–Portlight(Guest Stateroom)
–Washer and Dryer in Companionway
–Oven
–Icemaker
–Wine Cooler
–Dishwasher
–Appliance Fronts in Matching Wood for Refrigerator/Freezer and Dishwasher
–19 inch LCD with DVD/Stereo in Bow Stateroom
–19 inch LCD TV in Port Stateroom
–HMC System 3 Mattress Upgrade
–7.0 Cubic Foot Chest Style Freezer in Utility Room
Page 38
60 Motor Yacht
(Options)
Deck / Exterior
–Cushions for Bow Sunpad
–Boot Stripe Paint, Various Colors
–Additional Outlet for the Bow Deck Freshwater Wash Down
Teak
–Teak Aft Deck with Natural Finish
–Teak Steps to Boat Deck
–Teak Steps to Swim Platform
Mechanical / Electrical
–Davit with Hydraulic Boom (1,000 lb)
–Hydraulic Bow Thruster with Integrated Joystick Controlled Maneuvering System
(12 Inch)
–Integrated Bow And Stern Thruster
–Bow Thruster Backup Pump
–Polyurethane Painted Engine Room
–Additional 21.5 KW Generator
–Generator Exhaust and Water Separator
–Inverter with Battery Bank
–800 GPD Watermaker
–Oil Change System
–Prop Removal and Installation Tool
–Wiring and Thru Hulls for Future Installation of the Watermaker
–Water Delivery Kit
–Electrical System -Full 50 HZ 220V
–Electrical System -50/60 HZ
–CE Certification
Hardtop / Electronics
–Custom Electronics Package by HST
–Custom Hardtop by Pipewelders
Page 39
60MY
HOLDING TANK
100 GALLONS
WATER TANK
250 GALLONS
FUEL TANK
1,000 GALLONS
Page 40
72 Motor Yacht
22.35 meters73' 4"Length Overall
19.81 meters65' 0"Waterline Length
6.15 meters20' 2"Beam
1.63 meters5' 4"Draft
1,135 liters300 gallonsFreshwater Capacity
8,403 liters2,220 gallonsFuel Capacity
1,249 liters330 gallonsHolding Capacity
72,574 kilos160,000 poundsDisplacement
5.41 meters17' 9"Height to Top of Flybridge Windshield
6.50 meters21' 4"Height to Top of Arch
Engine Options
–Twin CAT C32A Diesel Engines 1600 BHP
–Twin CAT C32A Diesel Engines 1800 BHP
–Twin CAT C32A Diesel Engines 1900 BHP
Key Selling Features
–Large Motor Yacht Features in a 72 Foot Size
–Maintains Styling and Features of the Popular Flush Deck Motor Yacht Series
–Fantastic Offshore Performance –Incredible Ride
–Available with 3-4 or 5 Staterooms
–Offered with Either Open or Enclosed Flybridge Arrangements
–Optional Integrated Hard Top
–Spacious Aft Deck and Bridge Area
–Walk Around Side Decks
–Impressive Salon Layout with Formal Dining
–Optional Day Head
–Optional Salon Bar
–Interior Crew and Engine Room Access
–Optional Crew Quarter or 5th Stateroom Arrangement
–Full Beam Master Stateroom
–Optional His/Her Head Arrangement
–Queen Size VIP Stateroom
–Bow Deck Seating Area
Page 41
Hatteras 72 Motor Yacht
ARRANGEMENTS
Standard
Flybridge
Arrangement
Standard
Upper Deck
Arrangement
www.HatterasYachts.com
Optional Upper Deck
Arrangement with Sunken Bar
Lower Helm and Day Head
Standard
Lower Deck
Arrangement
Optional Lower Deck Arrangement
with Crew’s Quarters and
His & Hers Head in Master
Optional Lower Deck with
Four-Stateroom / Three-Head
Arrangement, Aft VIP, and
His & Hers Head in Master
Page 42
72 MOTOR YACHT VESSEL SPECIFICATIONS
Standard Fuel: 2,220 Gallons
Displacement: 160,000 Lbs (Full Load)
PERFORMANCE DATA
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1600 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 23-25 162 311 13.0
2100 21-23 116 398 18.1
2000 20-22 106 416 19.8
1800 17-19 88 430 23.9
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1800 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 25-27 188 290 11.2
2100 23-25 140 360 15.0
2000 22-24 120 403 17.5
1800 18-20 98 407 21.4
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1900 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 26-28 198 286 10.6
2100 24-26 160 328 13.1
2000 23-25 141 357 14.9
1800 19-21 110 382 19.1
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 43
72 Motor Yacht
(Options)
Aft Deck
–Teak Table
–Wing Station
–Bustle Gates (Port and Starboard)
–ReboardingLadder with Storage Bracket
–Underwater Lights
–Handheld Shower
– Additional Outlet for the Aft Deck Freshwater Wash Down
–20" LCD Television
Open Flybridge
–Ethernet Monitoring System with LCD Touchscreen
–Table with Dual Fixed Pedestals
–Table with Dual Hi-Lo Pedestals
–Double Grill with Cabinet
– Adjustable Companion Chair (Additional)
– Air Conditioning (32,000 BTU) for Open Flybridge
–Soft Enclosure, Flybridge
–Hinged Arch, Manual
–Instrument Cover
–Bar Cover
Enclosed Flybridge
–Enclosed Flybridge
Integrated Hardtop
–Integrated Hardtop with air conditioning, fixed forward windshield, wipers, washers, and defogger
–Radar Mast
Interior
–Optional Lower Helm
–Crew Quarters with Head
– Aft VIP Stateroom
–Day Head in Lieu of Pantry
–Sunken Wet Bar in Salon
–Four Stateroom with Three Head Arrangement
–His and Hers Heads in Master Stateroom
–Master Stateroom with Foyer and Office
–Master Stateroom with Walk-in Hanging Locker
–PlexiMirrored Ceiling in Head(s)
–Portlight
–Washer and Dryer in in Optional Crew Quarters
–Wine Cooler
–Dishwasher
–Trash Compactor
–Pocket Door Separating Salon from Galley
–Insta-Hot
–Soap Dispenser at Sink
–Electric Sliding Salon Door
–20" LCD TV in Bow Stateroom
–20" LCD TV in Optional 4th Stateroom
–20" LCD TV in Port Stateroom
–20" LCD TV in Galley
–HMC System 3 Mattress Upgrade
–Freezer in Aft Utility Room
Page 44
72 Motor Yacht
(Options)
Deck / Exterior
–Boot Stripe Paint, Various Colors
–Transom Bustle Hoop Rails
–Seat / SunpadCover
Teak
–Teak Aft Deck with Natural Finish
–Teak Steps to Boat Deck
–Teak Steps to Swim Platform
–Teak Swim Platform with Natural Finish
Mechanical / Electrical
–1,500 lb Fully Hydraulic Davit on Flybridge
–Integrated Bow And Stern Thruster
–Stabilizer System
–Bow Thruster Backup Pump
–Stern Docking Windlass, Each
–Inverter with Battery Bank
–1400 GPD Watermaker
–Back-Up Sea Water Pump for Air Conditioning System
–Freshwater AC Back-Up Pump
–Freshwater DC Back-Up Pump
–Emergency Electric Bilge Pump
–Fuel Transfer System Spare Pump (Load Aboard)
–Prop Removal and Installation Tool
–Wiring and Thru Hulls for Future Installation of the Watermaker
–Wireless Remote for the Shorecord
–Weatherproof 120V Receptacle
–Gray Water Tank
–Flagstaff Bow Pennant
–Fender Track
–Electronic Controls (Addl. Station)
–Water Delivery Kit
–Electrical System -Full 50 HZ 220V
–CE Certification
Hardtop / Electronics
–Custom Electronics Package by HST
–Custom Hardtop by Pipewelders
Page 45
72MY
HOLDING TANK
330 GALLONS
GRAY WATER TANK (OPTIONAL)
185 GALLONS
FUEL TANK
460 GALLONS
FUEL TANK
1,020 GALLONS
WATER TANK
PORT & STARBOARD
150 GALLONS (EACH)
FUEL TANK
740 GALLONS
Page 46
80 Motor Yacht
24.33 meters79' 10"Length Overall
20.98 meters68' 10"Waterline Length
6.48 meters21' 3"Beam
1.73 meters5' 8"Draft
1,234 liters326 gallonsFreshwater Capacity
10,819 liters2,858 gallonsFuel Capacity
1,468 liters388 gallonsHolding Capacity
86,183 kilos190,000Displacement
5.74 meters18' 10"Height to Top of Flybridge Windshield
6.43 meters21' 1"Height to Top of Arch
Engine Options
–Twin CAT C32A Diesel Engines 1600 BHP
–Twin CAT C32A Diesel Engines 1800 BHP
–Twin CAT C32A Diesel Engines 1900 BHP
–Twin MTU 16V2000 Diesel Engines 2000 BHP
Key Selling Features
–Extremely Popular –Building Hull #46
–The Most Spacious and Luxurious Motor Yacht in its Class
–Available with Either an Open Bridge or Enclosed Skylounge
–Spacious Aft Deck with Seating
–Incredibly Large Salon Layout
–Optional Bar In Salon
–Formal Dining Area
–Country Galley Layout Forward with Dinette
–Full-Size Upright Refrigerator
–Standard Day Head
–Amazingly Spacious Lower Level with 4 Staterooms
–Full Beam Master Stateroom
–Optional His/Her Head
–Standard Crew Area with 2 Crew Staterooms
–Separate Crew and Engine Room Access From the Aft Deck
Updated for
2013
Page 47
80MY
Page 48
80 MOTOR YACHT VESSEL SPECIFICATIONS
Standard Fuel: 2,858 Gallons
Displacement: 190,000 Lbs (Full Load)
PERFORMANCE DATA
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1600 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 23-25 166 393 16.4
2100 20-22 114 500 23.8
2000 17-19 98 499 27.7
1800 15-17 82 530 33.1
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1800 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 24-26 188 361 14.4
2100 21-23 138 433 19.7
2000 18-20 116 445 23.4
1800 15-17 94 462 28.8
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1900 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 25-27 198 357 14.4
2100 22-24 160 390 19.7
2000 19-21 122 445 23.4
1800 16-18 99 466 28.8
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 49
80 MOTOR YACHT VESSEL SPECIFICATIONS (PAGE 2)
Engines: (2) 16V-2000 MTU DIESELS Rated @ 2000 BHP @ 2350 RPM’s
RPM HOURS @ SPEED
2350 25-27 202 349 13.4
2100 22-24 136 459 20.0
2000 19-21 116 468 23.4
1800 16-18 98 471 27.7
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 50
80 Motor Yacht
New Standard Features - Exterior
–Updated PortlightDesign
–Standard Bow and Guest Portlights
–Updated Quarter Fender Design
–Integrated Bow Deck Seating w/ Cover
–Fender Track
–Console Cover
–Sea Stair Storage Rack
New Standard Features - Interior
–Increased Natural Light –Multiple Portlights
–Lower Full Queen Bow Berth
–Straight Companionway
–(2) Side by Side Guest Staterooms
–Updated Master Stateroom Cabinet Design
Updated for
2013
–Omit China Cabinet Salon
–Wood Trim Around Mirror -Day Head
–Dedicated Trash Receptacle in Galley
–LED Lighting
–Mirrored Ceilings in Heads
–Tile Showers in all Heads
–Sconce Lights in Master
–New “Crew Lounge”Layout
–2nd Washer/Dryer in Engine Room
–All TV’s Now Standard
–HMC System 3 Mattresses
Important Changes / Options
–Davit Becomes Optional
•Bridge Deck Hoop Rails Are Now Standard
–NEW Zero Speed Stabilizer Option
–Gray Water Tank Remains Optional
Page 51
80 Motor Yacht (Options)
Aft Deck
–Underwater Lights
–22" LED Television
– Aft Deck Bar with Refrigerator and Sink
Open Flybridge
– Adjustable Companion Chair (Additional)
–Wing Station (Additional)
Enclosed Flybridge
–Enclosed Flybridge
Interior
–High Gloss Interior Finish
–Optional Lower Helm
–Sunken Wet Bar in Salon
–His and Her Head in Master Stateroom
–Wine Cooler
–Electric Sliding Salon Door
–Freezer in Crew Quarters
Deck / Exterior
–Boot Stripe Paint, Various Colors
–Bow Deck Table
Teak
–Teak Aft Deck with Natural Finish
–Teak Steps to Boat Deck
–Teak Steps to Swim Platform
–Teak Swim Platform with Natural Finish
Mechanical / Electrical
–1,500 lb, Fully Hydraulic Davit on Flybridge
–Integrated Bow And Stern Thruster with Stabilizer System
–Zero Speed Stabilizer System
–Stern Docking Windlass, 2,200 lbs Each
–Back-Up Sea Water Pump for Air Conditioning System
–Freshwater AC Back-Up Pump
–Prop Removal and Installation Tool
–Weatherproof 120V Receptacle
–Gray Water Tank
–Water Delivery Kit
–Electrical System -Full 50 HZ 220V
–CE Certification
Hardtop / Electronics
–Custom Electronics Package by HST
–Custom Hardtop by Pipewelders
Updated for
2013
Page 52
80MY
FUEL TANK
1,248 GALLONS
GREY WATER TANK (OPTIONAL)
PORT & STARBOARD
126 GALLONS (EACH)
HOLDING TANK
388 GALLONS
WATER TANK
PORT & STARBOARD
163 GALLONS (EACH)
FUEL TANK
910 GALLONS
FUEL TANK
PORT & STARBOARD
225 GALLONS (EACH)
FUEL TANK
250 GALLONS
Page 53
100 Raised Pilothouse
31.09 meters102' 0"Length Overall
6.86 meters22’ 6”Beam
1.80 meters5' 11"Draft
3,104 liters820 gallonsFreshwater Capacity
17,659 liters4,665 gallonsFuel Capacity
1,590 liters420 gallonsHolding Capacity
122,470 kilos270,000 lbsDisplacement
6.83 meters22’ 5”Height to Top of Hardtop
Engine Options
–Twin CAT C32A Diesel Engines 1900 BHP
–Twin MTU 16V2000 CR Diesel Engines 2600 BHP
Key Selling Features
–Updated Yet Classic Exterior Styling
–Spacious Aft Deck with Seating
–Incredibly Large Salon Layout
–Massive Country Galley Layout Forward with Dinette
–Available Optional On-deck Master Stateroom
–Amazingly Spacious Lower Level with 4 Staterooms
–Large Crew Quarters with 2 Staterooms / 2 Heads and Lounge Area
–Modular Flybridge Design for Customization
–Turnkey Package
Page 54
Hatteras 1OO Raised Pilothouse
Flybridge
Arrangement
Option
Customer Note: All information included in this publication is subject to change without notice. This includes, but is not limited to, standard specifications, options, measurements, capacities, and
performance. Furthermore, accuracy of photographs, renderings, and illustrations is not guaranteed. Content is provided in good faith with a reasonable effort to maintain accuracy on the date of issue.
Some items shown may be optional, and not come as standard. This publication is not a legal contract nor a supplement to any sales agreement and does not establish any obligations of Hatteras Yachts.
Flybridge
Arrangement
Option
Flybridge
Arrangement
Option w/ Davit
Optional Main Deck
Arrangement w/
On-Deck Master Suite
Standard Main Deck
Arrangement w/
Country Kitchen
Standard Lower Deck
Arrangement w/
Full-Beam Master
Page 55
100 RAISED PILOTHOUSE VESSEL SPECIFICATIONS
Standard Fuel: 4,665 Gallons
Displacement: 270,000 Lbs (Full Load)
PERFORMANCE DATA
Engines: (2) C32 ACERT CATERPILLAR DIESELS Rated @ 1900 BHP @ 2300 RPM’s
RPM HOURS @ SPEED
2300 23-25 198 537 22.4
2100 19-21 158 561 28.0
2000 17-19 125 638 35.5
1800 11-13 102 521 43.4
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
Engines: (2) 16V-2000CR MTU DIESELS Rated @ 2600 BHP @ 2450 RPM’s
RPM HOURS @ SPEED
2500 27-29 278 446 15.9
2200 23-25 244 436 18.2
2100 22-24 218 468 20.3
2000 20-22 196 475 22.6
1800 14-16 156 426 28.4
SPEED
(KNOTS)
FUEL CONS.
(ENGINES ONLY)
RANGE
(NAUTICAL MILES)
RANGE
(NAUTICAL MILES)
Fuel consumption is based on (2) engines at any given RPM. Speed and ranges are estimates based on
engineering calculations. Range is based on 95% of standard fuel capacity. Actual performance will vary
and be affected by water and weather conditions, load and conditions of boat, engines, and propellers.
Speed will increase as fuel is consumed. All data is illustrative and is not warranted.
Page 56
100 Raised Pilothouse
(Options)
Flybridge
–Air Conditioning (48,000 BTU) for Open Flybridge
–Soft Enclosure, Flybridge
Interior
–Main Deck Master Stateroom
–Full Bar (Includes stone countertop and three barstools)
–Automatic Entryway Door at MidshipAtrium
Deck / Exterior
–Light Hull Color, Optional Color
–Boot Top, Optional Color
–Transom Bustle Hoop Rails
Teak
–Teak Steps to Flybridge, Natural Finish
–Teak Steps to Swim Platform, Natural Finish
–Teak On Swim Platform, Natural Finish
–Teak Flybridge Deck, Natural Finish
–Teak Cap Rail
Mechanical / Electrical
–2,000 lb Fully Hydraulic Davit on Flybridge
–4,000 lb Stern Docking Windlass, Port and Starboard
–2,000 lb Hydraulic Swim Platform
–Sewage Treatment System
Page 57
100RPH
WATER TANK
820 GALLONS
GRAY WATER TANK
PORT & STARBOARD
250 GALLONS (EACH)
HOLDING TANK
420 GALLONS
FUEL TANK
PORT & STARBOARD
590 GALLONS (EACH)
FUEL TANK
1,378 GALLONS
OIL TANK
PORT & STARBOARD
110 GALLONS (EACH)
FUEL TANK
1,317 GALLONS
FUEL TANK
790 GALLONS
Loading...
