Hatteland HD 12T04, HD 15T06SERIES, HT MMC0* A0, HD 19T03 User Manual

User Manual MMC Series 2

Updated: 14 Aug 2013 Doc Id: INB100027-1 (Rev 17)

For models: BOAA, BOBA, COAA, COBA, FOAA, FOBA (standard models) BOAC, BOBC, COAC, COBC, FOAC, FOBC (with touch screen) MMC0x-A01, MMC0x-A02 (AC and DC)

HD 12T04 xxxx - 12.1 inch Display HD 15T06 xxxx - 15.0 inch Display HD 19T03 xxxx - 19.0 inch Display

HT MMC0x A0x - Maritime Multi Computer Backpack

Series 2 - Display and Computer Backpack range

USER MANUAL

Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway

Tel: (+47) 4814 2200 - mail@hatteland-display.com - www.hatteland-display.com

Please visit www.hatteland-display.com for the latest electronic version of this manual.

Aamsosen, N-5578 Nedre Vats, Norway.

All rights are reserved by Hatteland Display AS. This information may not, in whole or in part, be

copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-

readable form without the prior written consent of Hatteland Display AS. Review also:

www.hatteland-display.com/pdf/misc/doc100703-1_permission_to_create_user_manuals.pdf

The products described, or referenced, herein are copyrighted to the respective owners.

The products may not be copied or duplicated in any way. This documentation contains proprietary

information that is not to be disclosed to persons outside the user’s company without prior written consent

of Hatteland Display AS.

The copyright notice appearing above is included to provide statutory protection in the event of

unauthorized or unintentional public disclosure.

All other product names or trademarks are properties of their respective owners !

WARNING: This is a class A product. In a domestic environment this product may cause radio interference

in which case the user may be required to take adequate measures.

Last revised 9 Nov 2012

IND100130-18

Contents

Contents ................................................................................................. 3

Contents of package .......................................................................................... 5

General ................................................................................................... 7

About this manual .............................................................................................. 8

About Hatteland Display .................................................................................... 8

www.hatteland-display.com ............................................................................... 8

Contact Information ........................................................................................... 8

Maritime Multi Computer (MMC) - Introduction ................................................. 9

Winner of Red Dot award 2007 ........................................................................ 9

Basic Construction - Series 2 .......................................................................... 10

Product Labels (Examples) ..............................................................................11

Serial Number Labels Placement ............................................................... 11

Warranty Label ............................................................................................ 11

Windows® OEM Certicate of Authenticity (COA) ...................................... 11

Serial Number Label Layout (Display Module) ........................................... 12

Serial Number Label Layout (Backpack Module) ........................................ 12

Touch screen products .................................................................................... 13

Touchscreen ........................................................................................ 13

Location of Touch Screen label ................................................................... 14

Installation ............................................................................................ 15

Installation and mounting ................................................................................. 16

Panel cut-out mounting precaution .................................................................. 17

Flange model installation ................................................................................. 17

Ergonomics ...................................................................................................... 18

Cables ............................................................................................................. 19

Cable Entries & Connectors (Marked area) - Illustration only ..................... 19

Backpack / Bracket Replace / Removal - Series 2 .......................................... 20

Physical Connections - Series 2 MMC Backpack ............................................ 22

Operation .............................................................................................. 25

User Controls ................................................................................................... 26

Status LED Overview ...................................................................................... 27

For ECDIS Calibrated Products ....................................................................... 27

IND100130-18

Contents

Specications ...................................................................................... 29

Specications - HD 12T04 BOxx + HT MMC0x-A0x ....................................... 30

Specications - HD 12T04 FOxx + HT MMC0x-A0x ........................................ 31

Specications - HD 12T04 COxx + HT MMC0x-A0x ....................................... 32

Specications - HD 15T06 BOxx + HT MMC0x-A0x ....................................... 33

Specications - HD 15T06 FOxx + HT MMC0x-A0x ........................................ 34

Specications - HD 15T06 COxx + HT MMC0x-A0x ....................................... 35

Specications - HD 19T03 BOxx + HT MMC0x-A0x ....................................... 36

Specications - HD 19T03 FOxx + HT MMC0x-A0x ........................................ 37

Specications - HD 19T03 COxx + HT MMC0x-A0x ....................................... 38

Technical Drawings ............................................................................. 39

Technical Drawings - HD 12T04 BOxx + HT MMC0x-A0x ............................... 40

Technical Drawings - HD 12T04 BOxx + HT MMC0x-A0x ............................... 41

Technical Drawings - HD 12T04 FOxx + HT MMC0x-A0x ............................... 42

Technical Drawings - HD 12T04 COxx + HT MMC0x-A0x .............................. 44

Technical Drawings - HD 15T06 BOxx + HT MMC0x-A0x ............................... 45

Technical Drawings - HD 15T06 BOxx + HT MMC0x-A0x ............................... 46

Technical Drawings - HD 15T06 FOxx + HT MMC0x-A0x ............................... 47

Technical Drawings - HD 15T06 COxx + HT MMC0x-A0x .............................. 49

Technical Drawings - HD 19T03 BOxx + HT MMC0x-A0x ............................... 50

Technical Drawings - HD 19T03 FOxx + HT MMC0x-A0x ............................... 52

Technical Drawings - HD 19T03 COxx + HT MMC0x-A0x .............................. 54

Accessories ......................................................................................... 55

Technical Drawings - HD 12VESA TBR-A1 ..................................................... 56

Technical Drawings - HD xxVESA TBR-A1 ..................................................... 57

Technical Drawings - HD xxTBR CMB-A1 ....................................................... 58

Technical Drawings - HD 19TBR STD-B1 ....................................................... 60

Technical Drawings - HD TBR BPM-A1 ........................................................... 61

Specications - Serial Split Cable .................................................................... 62

Appendixes .......................................................................................... 63

MMC2 Utility - Series 2 .................................................................................... 64

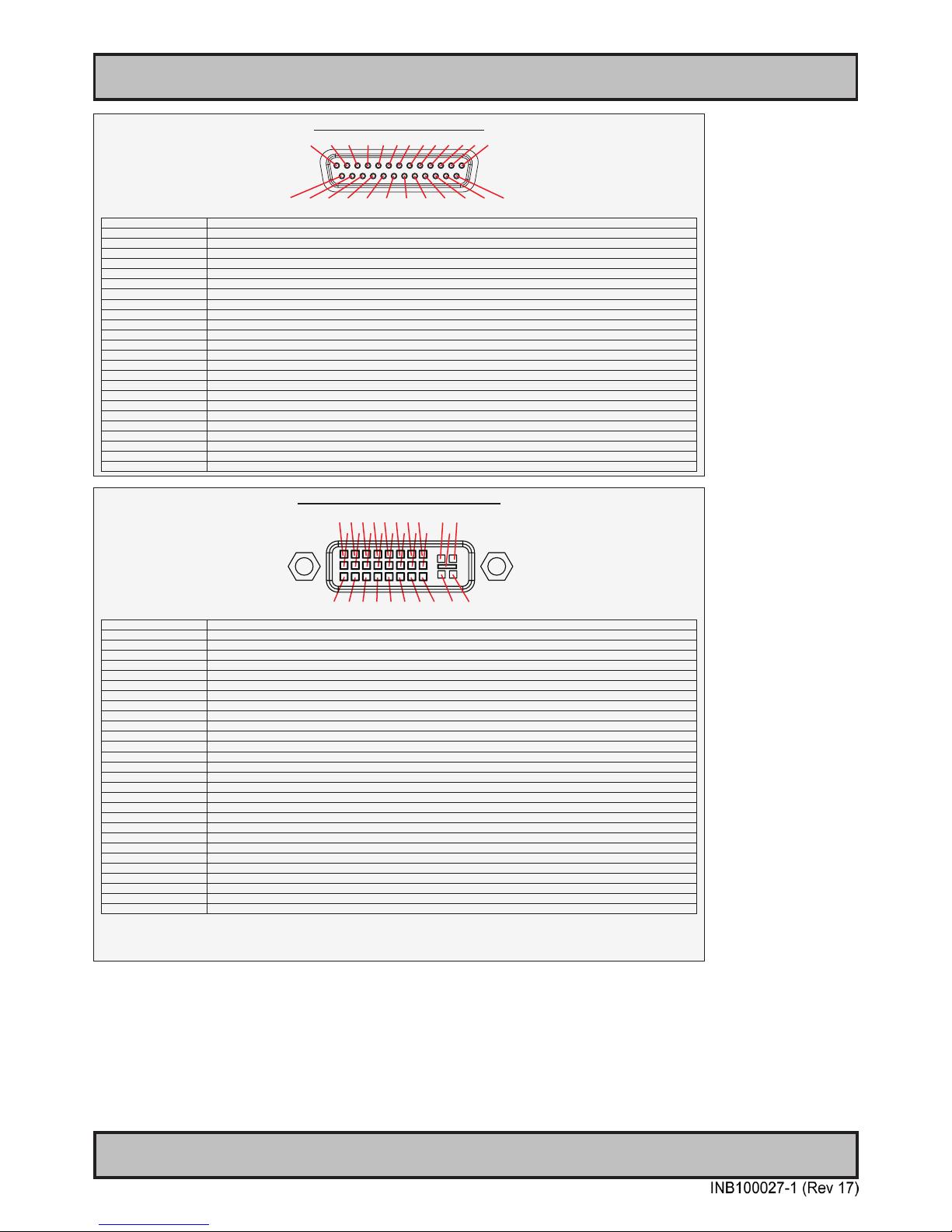

Pinout Assignments - Common Connectors .................................................... 65

Basic Trouble-shooting .................................................................................... 67

Declaration of Conformity ................................................................................ 69

Return Of Goods Information .......................................................................... 70

Terms ............................................................................................................... 71

Pixel Defect Policy ........................................................................................... 73

Notes ............................................................................................................... 74

Safety Considerations ................................................................................. 74

Revision History ............................................................................................... 75

IND100131-12

Contents of package

Item Description Illustration

FS-CABLE EU

1 pcs of power cable European Type F “Schuko” to IEC. Length 1.8m

Note: Power cable not included with the DC model.

EUR TYPE F

IEC

80099

1 pcs of power cable US Type B plug to IEC. Length 1.8m

Note: Power cable not included with the DC model.

US TYPE B

IEC

HD 1xTBR 020-A1

x=For 12”,15” or 19”

1 pcs of Series 2 Bracket stand.

Note: Only supplied with the Bracket version of the complete unit (display unit +

backpack unit). This bracket is factory premounted.

MEDIA STD01

1 pcs of Documentation and Driver DVD. Contains files for motherboard, BIOS & settings. Software/Drivers for factory installed components like mainboard, IDE, network etc. including touch screen driver suitable for Series 2 Panel Computers.

Menu and Driver browser

for Microsoft®

Windows®

This product is shipped with:

Item Description Illustration

Flange Clips Kit

4 x Flange Clips (P004591-1) 4 x Tapped M6x25mm DIN912 Black with Unbrako 5.0mm head (XX470) 4 x M4x8mm DIN 965 Black Torx (145 040x008 TA4B)

Note: This kit are only included with the Fxxx (Flange Models)

Package may also include:

This page left intentionally blank

General

Hatteland Display AS

IND100077-1

General

About this manual

The manual contains electrical, mechanical and input/output signal specications. All specications in this manual,

due to manufacturing, new revisions and approvals, are subject to change without notice. However, the last update and revision of this manual are shown both on the frontpage and also in the “Revision History” chapter at the end of the manual.

Furthermore, for third party datasheet and user manuals, please see dedicated Documentation and Driver DVD delivered with the product or contact our sales/technical/helpdesk personnel for support.

About Hatteland Display

Hatteland Display is the leading technology provider of specialized display and computer products, delivering high quality, unique and customized solutions to the international maritime, naval and industrial markets.

The company represents innovation and quality to the system integrators world wide. Effective quality assurance and investment in sophisticated in-house manufacturing methods and facilities enable us to deliver Type Approved and Mil tested products. Our customer oriented approach, technical knowledge and dedication to R&D, makes us a trusted and preferred supplier of approved solutions, which are backed up by a strong service network.

www.hatteland-display.com

You will nd our website full of useful information to help you make an informed choice as to the right product for your needs. You will nd detailed product descriptions and specications for the entire range on Displays, Computers and

Panel Computers, Military solutions as well as the range of supporting accessories. The site carries a wealth of information regarding our product testing and approvals in addition to company contact information for our various

ofces around the world, the global service centers and the technical help desk, all ensuring the best possible

support wherever you, or your vessel, may be in the world.

Contact Information

Head ofce, Vats / Norway:

Hatteland Display AS

Åmsosen

N-5578 Nedre Vats, Norway

Tel: +47 4814 2200

Fax: +47 5276 5444

mail@hatteland-display.com

Sales ofce, Frankfurt / Germany:

Hatteland Display GmbH

Werner Heisenberg Strasse 12,

D-63263 Neu-Isenburg, Germany

Tel: +49 6102 370 954 Fax: +49 6102 370 968

Sales ofce, Oslo / Norway:

Solbråveien 20

N-1383 Asker

Norway

Tel: +47 4814 2200

Fax: +47 5276 5444

Sales ofce, Aix-en-Provence / France:

Hatteland Display SAS

ACTIMART, 1140 RUE AMPERE, BP 50 196

13795 AIX-EN-PROVENCE, CEDEX 3

France

Tel: +33 (0) 4 42 16 47 57 Fax: +33 (0) 4 42 16 47 00

Sales ofce, San Diego / USA:

Hatteland Display Inc.

11440 W. Bernardo Court, Suite 300

San Diego, CA 92127, USA

Tel: +1 858 753 1959

Fax: +1 858-408-1834

For an up-2-date list, please visit www.hatteland-display.com/locations

Panel Computers Series 2

IND101057-4

General

Maritime Multi Computer (MMC) - Introduction

Innovative is a word often used but rarely does it capture the essence of the product it’s used to describe. With the Series 2 panel computer though, innovation is key.

When Series 2 is chosen as a panel computer you get all the benefits of the ultimate marine display, Series 2, but with added power and flexibility. The panel computer backpack replaces the Series 2 display interface backpack and plugs directly into the rear of the display, instantly transforming it into a powerful computer.

As part of the Hatteland Display philosophy of form, fit, function, the Series 2 panel computer backpack is the same dimensions as the interface backpack of the standard Series 2, so it is a simple plug and play exercise to upgrade to what is one of the most powerful, and definitely the most stylish marine computers on the market.

The Series 2 panel computer helped create the concept of the glass bridge and leads the way in both style and substance, making it the ideal marine computer for the discerning boat owner or systems integrator looking to give their solutions the edge both in high quality design or pure functionality.

- TYPE APPROVED

- ECDIS COMPLIANT

- HIGH BUILD QUALITY

- SUNLIGHT VIEWABLE

- SUPERIOR BONDING TECHNOLOGY

Winner of Red Dot award 2007

The Design Zentrum Nordrhein Westfalen in Germany has been marking outstanding international product design with its famous and highly regarded dot since 1955. The Red Dot Product Design Award is an annual international awards scheme where products from all industries are chosen for their innovative visual and industrial design.

In 2007 the Hatteland Display Series 2 Display/Panel Computers range won the Red Dot Award for the overall design and modular backpack concept, which docks into the screen at the back, comprises either the typical display connections or a fully equipped panel computer. Even the computer backpack can operate on its own as a stand-alone computer.

IND100077-39

General

User Controls (Bracket or Console Version)

Basic Construction - Series 2

Bonded Glass/TFT

Centerbox

Electronics / PCB’s

Basic Construction - Series 2

Casing

USB Hatch

Backpack Cover

Backpack Electronics

Backpack Casing

Stand Bracket

Mounting Flange*

*Available with or without ange (3mm or 16mm) (factory default delivery)

Modular Backpack Concept - Series 2

Display and MMD2 (Display) Backpack Display and MMC2 (Computer) Backpack

IND100077-40

General

Product Labels (Examples)

Serial Number Labels Placement

The Series 2 products are based on a modular backpack concept, which allows users to easily change the functionality. Both the display modules and the backpack modules are by factory default labelled with unique labels. These are located as illustrated below.

Location Display Module:

Location Backpack Module:

Warranty Label

If you are to perform service on a unit still under warranty, any warranty will be void if this label is attempted removed / re-glued or removed completely. This label is located on the product as shown in illustration.

Top of backpack

Windows® OEM Certicate of Authenticity (COA)

Applies for products produced before FEB 2007.

On the Series 2 MMC (computer backpack), a COA label for the operating system license is placed as shown in illustration.

Top of backpack

Underside backpack

Windows® OEM Certicate of Authenticity (COA)

Applies for products after JAN 2007.

On the Series 2 MMC (computer backpack), a COA label for the operating system license is placed as shown in illustration.

Top of backpack

Product Labels (Example)

IND100077-40

General

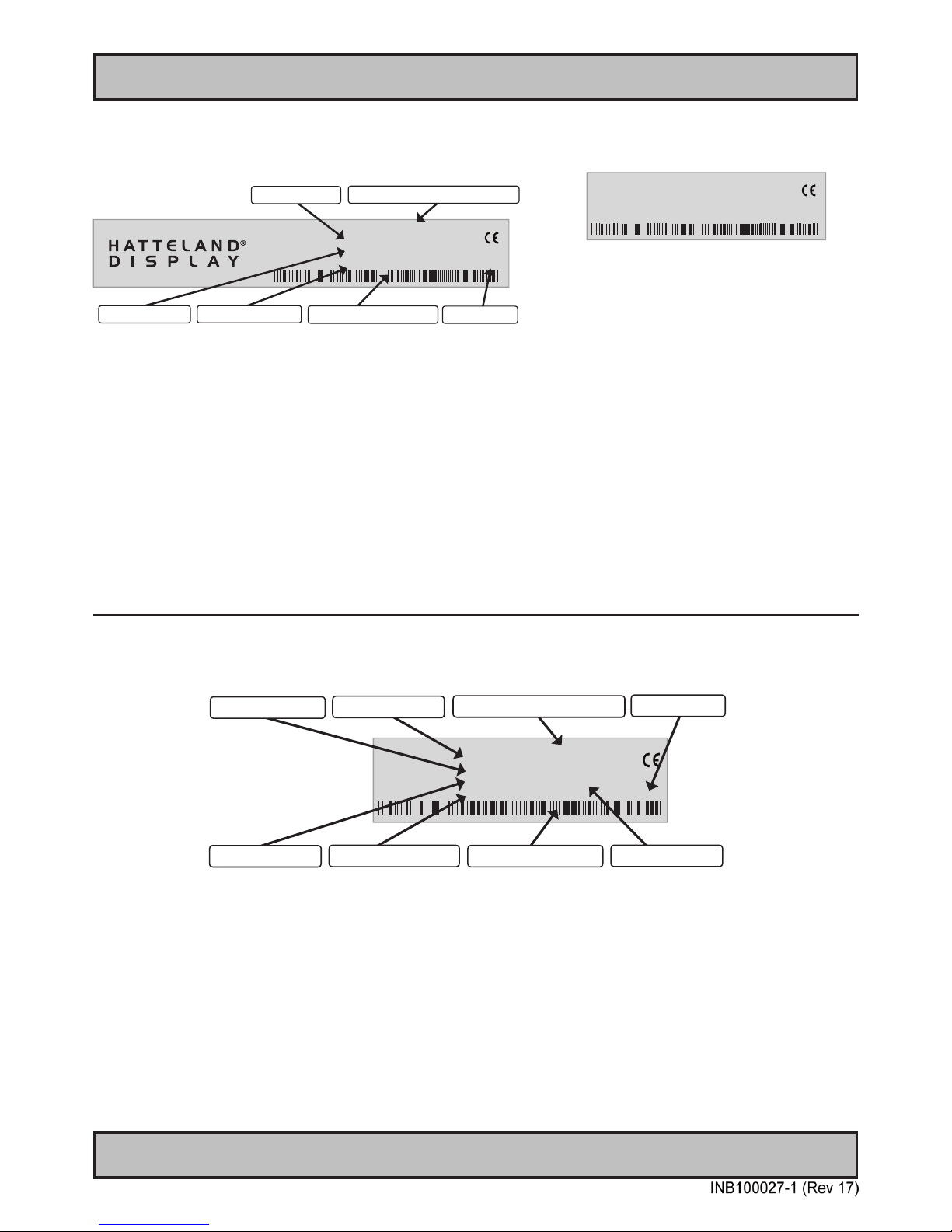

Serial Number Label Nomenclature

Serial Number Label Layout (Backpack Module)

Manufacturer HATTELAND DISPLAY AS - NORWAY Product MMD Backpack - Series 2 Product type HD MMD01-A01 Power 115 & 230VAC - 50/60Hz 100W SERIAL NUMBER HD MMD01-A01-0000120

Code 128

Product Type

Description

Manufacturer & Country

Serial Number

Barcode (TYP+SNO)

Input Voltage

Power Rating

Barcode ID

Serial Number Label Layout (Display Module)

Serial Number Label Nomenclature (TFT Module)

Manufacturer HATTELAND DISPLAY AS - NORWAY

Product 19 Inch TFT - Series 2

Product type HD 19T03 BOAA

SERIAL NUMBER HD 19T03 BOAA-0000120

Code 128

Product Type

Description

Manufacturer & Country

Serial Number

Barcode (T YP+SNO)

Barcode ID

HD yyxyy xxxx-yyyyyyy NOMENCLATURE - y=numbers, x=Letters HD 19T03 BOAA-0000120 Example || ||||| |||| |||||||

|| ||||| |||| ¤¤¤¤¤¤¤-- Serial Number ID, 7 digits || ||||| |||¤---------- Factory Mounted Option ID (A=Standard, C=Touch Screen) || ||||| ||¤----------- User Interface Type ID (A=Std+USB, B=IP66) || ||||| |¤------------ Glass/TFT Technology ID (O=Optically Bonded)/Reserved ID || ||||| ¤------------- Mechanical Version ID (B=Bracket, C=Console, F=Flange) || ||¤¤¤--------------- TFT (Thin Film Transistor)/Electronics Revision ID || ¤¤------------------ Display Size (inch) ¤¤--------------------- Manufacturer ID / Product Series ID

HD xxxyy-xyy-yyyyyyy NOMENCLATURE - y=numbers, x=Letters HD MMD01-A01-0000128 Example || ||||| ||| |||||||

|| ||||| ||| ¤¤¤¤¤¤¤--- Serial Number ID, 7 digits || ||||| ||¤----------- Power Input (1=AC - 115&230VAC / 2=DC - 24VDC) || ||||| |¤------------ Electronics / Mainboard Revision ID || ||||| ¤------------- Sub Version ID (A=Standard, C=Touch Support) / Reserved ID || |||¤¤--------------- Processor Type+Speed ID / Reserved ID || ¤¤¤----------------- Backpack Technology Type (MMD/MMC) ID / Reserved ID ¤¤--------------------- Manufacturer ID / Product Series ID

Manufacturer HATTELAND DISPLAY AS - NORWAY

Product 19 Inch TFT - Series 2

Product type HD 19T03 BOAA

SERIAL NUMBER HD 19T03 BOAA-0000120

Code 128

Note: Due to printer upgrades in the factory (August

2013), some serviced units may have a smaller Serial Label as indicated above. The label has the same information as before, only company logo was removed. Reference: QAR/119408.

IND100110-1

Touchscreen

Introduction to products with touch screen

Both Resistive and Capacitive touch screen solutions are used for our products. Please review specications found in this manual or our website (www.hatteland-display.com) to nd your exact type number and then determine if it uses

Resistive or Capacitive.

Capacitive Touch screen

The glass overlay has a coating that stores the charge deposited over its surface electrically. It will not operate with either a gloved hand or with a mechanical stylus. Capacitive touch screens operate by applying a small amount of

voltage to each corner of the touch screen. When the screen is touched by a human nger it draws a minute amount

of current to the X,Y point of contact. This location is calculated by the touch screen controller and transmitted back to the computer connected to the touch screen controller.

CAPACITIVE - Brief Specications

Subject Details

Construction Top: ClearTek protective overcoat protects the sensors and increase durability.

Inside: Electrode X/Y grid pattern and conductive coating. Bottom: Glass and conductive coating.

Small amount of voltage is applied to the four corners for measuring X and Y coordinates of the touch point.

Positional Accurancy Reported touch coordinates are within 1.0% of true position. (Based on viewing area dimensions)

Touch Contact Requirements 3 ms for nger input.

Enduarance Tested More than 225 million touches in one location without noticable degradation to the surface.

Cleaning Water, isopropyl, alcohol, and similar non-abrasive cleaners.

Liquid Resistance Liquids on screen does not impede touchscreen performance.

Light Transmission Up to 88% at 550 nm; dependant on specic surface nish chosen.

Resistive Touch screen

It generally uses a display overlay composed of layers, each with a conductive coating on the interior surface. Special separator “dots” are distributed evenly across the active area and separate the conductive interior layers. The

pressure from using either a mechanical stylus or nger produces an internal electrical contact at the “action point”

which supplies the controller with vertical and horizontal analog voltages for data input. The resistive touch screens

are anti-glare to reduce reective shine intensity, which will slightly diffuse the light output throughout the screen. Resistive technology activation can be initiated by; a gloved hand, ngernail, mechanical stylus or an ungloved nger.

RESISTIVE - Brief Specications

Subject Details

Construction Top: Polyester with outside hard-surface coating with clear or anti-glare nish.

Inside: Transparent conductive coating. Bottom: Glass substrate with uniform conductive coating.

Top and bottom layers separated by separator dots.

Positional Accurancy Standard deviation of error is less than +- 0.080-inch (2mm).

Touch Activation Force Typically 57 to 133 g

Expected Life Performance More than 35 million touches in one location without failure, using a stylus similar to a nger.

Cleaning Water, isopropyl, alcohol, and similar non-abrasive cleaners.

Chemical Resistance (Exposed for one hour)

Acetone, Common food and beverages, Hexane, Isopropyl alcohol, Methylene chloride, Methyl ethyl ketone, Mineral spirits, Turpentine

Light Transmission Typically 75% over visible light spectrum.

Touch screen products

IND100110-4

Touch Screen

Touch Screen products

Location of Touch Screen label

Information about the factory mounted touch screen and what driver to use, are indicated on the dedicated label. The location is shown in this illustration together with label example. We use the same touch screen glass technology and controller technology on all the Series 2 products.

(This label is attached on products produced after September 2006)

If this label is not present, the type numbers can be identied to indicate mounted touch screen.

Example: HD 19T03 BOAC & HD MMD01-C01 (Underlined and in bold indicates C as touchscreen models)

|| Displaymodule || || Backpack ||

TOUCH SCREEN

This product is equipped with a Resistive Touch Screen: Manufacturer : Hampshire Company Touch Controller : TSHARC-12V Driver Download : www.tsharc.com VSD100564-TSHARC-12V

TOUCH SCREEN

This product is equipped with a Resistive Touch Screen: Manufacturer : ELO TouchSystems Touch Controller : 2210 Serial Controller P/N 055165-000 Driver Download : www.elotouch.com VSD100564-2210

Actual label on Series 2 products

Up-2-date touch screen drivers and documentation:

All Series 2 products are shipped with a Documentation and Drivers DVD which contains suitable drivers for touch screens.

You can also visit our website www.hatteland-display.com to view the same list (or even recently new added products) of our models with touch screen. Before using the touch screen, it should be calibrated for your system. Please install the 3rd party software and use the Calibrate function from there.

For additional touch controller/screen documentation and updated drivers, please visit the 3rd party manufacturer site as found in the Touch Screen Wizard CD menu.

Installation

IND100078-12

General Installation Recommendations

Installation

Installation and mounting

1. Most of our units are intended for various methods of installation or mounting (panel mounting, bracket mounting, ceiling/wall mounting etc.); for details, please see the relevant mechanical drawings.

2. Adequate ventilation is a necessary prerequisite for the life of the unit. The ventilation apertures (red/gray area

shown in the illustration to the right) must denitely be kept clear.

The Series 2 units was designed to be fan less, and covering up the ventilation apertures (shown in closeup chassis below) is not permissable, doing so can lead to overheating and could damage the unit.

Suggested and a safe minimum air distance between the ventilation apertures and other panels near the unit should be 5cm. However, this can be lower or higher depending on the installation space and design. If in question, please contact your local installation technican or

qualied personnell for advise!

3. Generally, do not install the unit in a horizontal position (laying down), as this will cause heat to build up inside the display which will damage the LCD Panel. To prevent this problem we recommend installing the unit in a

vertical position (±40 degrees) to improve the airow through the unit.

4. To further improve the cooling of the unit we recommend installing Cooling Fans underneath blowing upwards going past the ventilation apertures. This may be required in high temperature applications and also when there is reason to expect temperature problems due to non-optimal way of mounting.

5. Exposure to extreme direct sunlight condition over longer periods can cause a considerable increase in the temperature of the unit, and might under certain circumstances lead to overtemperature. This point should already be taken into consideration when the bridge equipment is being planned (sun shades, distance from the windows, ventilation, etc.)

6. Space necessary for ventilation, for cable inlets, for the operating procedures and for maintenance, must be

provided.

7. Information about necessary pull-relievers for cables is given in the installation drawings. Attention must be paid to this information so that cable breaks will not occur, e.g. during service work.

8. Do not paint the product. The surface treatment inuences on the excess heat transfer. Painting, labels or other

surface treatments that differ from the factory default, might cause overheating.

IND100078-12

General Installation Recommendations

Installation

Panel cut-out mounting precaution

If you intend to mount the -Bxxx (bracket / stand-alone) model into a precut panel, make sure you have read and understood the following section. The Series 2 frameless design means that the front glass reaches all the way to the outer rims of the unit.

Further, between the product chassis and the backside of the glass

there is a small gap which is lled with a gasket. This little gap is

subject of beeing “hooked” into the cut-out area edge if it is really tight and you mount the product hasty. Also, if your panel cut-out have small deviations you can accidentally break the glass edges.

Try to slide the unit gently straight forward and avoid skewing the unit. Do not force the unit into place. If you nd

yourself in this position and notice that the back of the glass edge is forced forward by the panel cut-out edges or you suspect a pressure building up, remove the unit, carefully modify the panel cut-out and check the

dimensions again. The unit can not be adjusted / modied in any way. The modifcation/adjustment has to be performed on the cut-out. The mounting bracket HD 12TBR CMB-A1 is suitable for ush console mounting.

1: Start sliding the unit into the cut-out area 2: Continue to slide, while checking the corners 3: Glass edge now aligned. Fasten the unit.

Flange model installation

The Flange Kit comes in 3 parts for each corner of the model (to be mounted at TOP and BOTTOM). The kit consists of 4 x Flange Clips, 4 x mounting screws and 4 x panel mounting screws. Also, please review the PANEL MOUNTING drawings in this manual for further illustrations.

1: Unscrew 4 screws from the chassis at top and bottom of unit. These screws are no longer needed.

Warning: Do not unscrew left and right screws.

2: Place Clips and secure it with the Flange Clip Screws M4x8mm at top and bottom.

Warning: Using longer screw can result in instant internal damage to the unit.

3: Place model into cut out and secure unit from behind using the M6x25mm Screws.

Warning: Avoid using excessive force to fasten these screws. Damage may occur over time.

IND100078-12

General Installation Recommendations

Installation

Ergonomics

1. The front surface of the display glass has an anti-reective (AR) coating which can be scratched and damaged with improper cleaning. It is recommended to use only 90+% pure Isopropyl alcohol (Isopropanol) and a soft fabric cloth for this rst cleaning. Fold a cloth into a small pad, dampen the cloth with alcohol, and wipe the glass from one edge

to the other in one direction with one continuous motion.

The product glass will require cleaning as needed. The soft cloth & alcohol wipe is recommended to clean

ngerprints and oils off the glass. Water stains (including coffee, tea & coke) should be rst cleaned off the glass

with a soft fabric cloth wet with water, immediately followed with wiping using an alcohol wetted cloth.

2. Adjust the unit height so that the top of the screen is at or below eye level. Your eyes should look slightly downwards when viewing the middle of the screen.

3. Adjust screen inclination to remain gaze angle to the centre of the screen approximately perpendicular to the line of gaze.

4. When products are to be operated both from a sitting position and from a standing position, a screen inclination of about 30° to 40° (from a vertical plane) has turned out to be favourable.

5. Series 2 are optically enhanced to reduce reections and are viewable in direct sun light, but as a general rule the

units at the bridge wing area is recommended to be installed or mountedby suitable alignment or bulkhead / deck-

head mounting in such a way that reections of light from the front pane of the display are not directed into the

observer’s viewing direction.

6. The use of ordinary commercial lter plates or lter lms is not permitted for items of equipment that require

approval (by optical effects, “aids” of that kind can suppress small radar targets).

General mounting instructions

- The useful life of the components of all Electronics Units generally decreases with increasing ambient temperature; it is therefore advisable to install such units in air-conditioned rooms. If there are no such facilities these rooms must at least be dry, adequately ventilated and kept at a suitable temperature.

- With most Electronic Units, cooling takes place via the surface of the casing.

- In the area of the wheel house, the distance of each electronics unit from the magnetic standard compass or the magnetic steering compass must not be less than the permitted magnetic protection distance.

This distance is measured from the centre of the magnetic system of the compass to the nearest point on the corresponding unit concerned.

- Units which are to be used on the bridge wing must be installed inside the “wing control console” protected against the weather. In order to avoid misting of the viewing screen, a 25 ... 50 W console-heating (power depending on the volume) is recommended.

- When selecting the site of a display unit, the maximum cable lengths have to be considered.

- Transportation damage, even if apparently insignicant at rst glance, must immediately be examined and be

reported to the freight carrier. The moment of setting-to-work of the equipment is too late, not only for reporting the damage but also for the supply of replacements.

IND100078-12

General Installation Recommendations

Installation

Cables

Use only high quality shielded signal cables for RGB / DVI signals.

Cable Entries & Connectors (Marked area) - Illustration only

Bottom View Back View

Maximum Cable Length

The signal cables should generally be kept as short as possible to provide a high quality output on the display. The maximum cable length will depend on the signal resolution and frequency, but also on the quality of the signal output from the computer. Recommended refresh rate is 60Hz.

Cables up to 10 meters generally provides good picture quality even with a 1600x1200 (UXGA) 60Hz signal. In most cases (especially with lower resolutions) even longer cables will provide a satisfactory result. This should however be tested in advance before making the decision on how far the unit can be placed from the signal source.

Backpack / Bracket Replace / Removal - Series 2

IND100078-13

Installation

How to change functionality / replace backpacks or remove bracket from product.

The Series 2 products are based on a modular backpack concept, which allows users to easily change the functionality. To change the functionality of your product from a display product to operate as a computer product or vice versa for example, please follow this procedure.

Note: Please review the corresponding manual for your backpack on how to operate your Series 2 product. Also review the serial number label on the backpack. These labels have information regarding the power input.

Note: Ignoring the warnings we have provided with the icon, will be subject for warranty void.

1: Turn the power off and remove all cables.

Place the product as indicated on a table.

Make sure the display glass is protected!

The navigator control should be free of any obstruction. Do not move the product on the table while its in this position, as this will scratch and damage the glass.

2: With bracket: Remove all 8 screws as shown. Note: On 12inch there is only 4 screws (4x12mm) (DIN 965 Torx A4 Black) located on the product.

Do NOT mount/dismount the bracket/backpack when the product is in a upright/stand position. Place it as shown in step 1 above.

Notice where the different lengths of screws are located. Failure to remount the screws back to their original factory location may cause the bracket to loose it’s strength and/or stability.

Bracket Removal

If you wish to use the Series 2 product without the factory mounted bracket, remove all 8 screws (4x10mm and 4x12mm) (DIN 965 Torx A4 Black) as shown in step 2 above. Now, leave the backpack in place and fasten it to the display module using 4x6mm screws as shown in illustration (step 3) below.

DO NOT EXCEED THE LENGTH OF 4x6mm WHEN MOUNTING/REMOUNTING THE BACKPACK TO THE DISPLAY MODULE.

3: Without bracket: Remove 4 screws only. 4x6mm.

Backpack / Bracket Replace / Removal - Series 2

Length: 6mm

Length: 12mm

Length: 10mm

Length: 12mm

12mm

10mm

6mm

Backpack / Bracket Replace / Removal - Series 2

IND100078-13

Installation

4: Lift the backpack gently with both hands upwards from the

display module. Now change backpack and repeat steps 3-2 above in reverse.

Again note the length of the screws and their locations as shown in the previous steps.

5: Note serial numbers of backpack AND the main display module. The serial numbers are located on the labels. Like: HD MMD01-A01-0000128 (Backpack) HD 19T03 BOAA-0000120 (Display module)

6: The HATTELAND® Series 2 products are shipped mounted and fully operational with a customized combination of display unit and backpack unit. The two serial numbers are linked and registered by Hatteland, and together constitute an important basis for future customer service, quality records and technology improvements.

IMPORTANT: Hatteland Display provides normal warranty after any changes of backpack / display module combinations, when changes are made according to this manual AND when information of serial numbers after such changes are reported back to the Hatteland Display service department.

The following information should be returned to Hatteland Display AS, attn: Service Department:

- Customer / end-user name and address

- Date of change

- Serialnumber of display module.

- Serialnumber of backpack module.

- Serialnumber of replaced module (display or backpack).

If several units are reported, note which units are mounted together.

7: For the MMD backpacks you must SETUP DDC (Display Data Channel) to reset/optimize image

information. It allows the display to send its specications

to the display controller.

For more information on how to use the On Screen Display (OSD)

menu, please review the “OPERATION” chapter in this manual rst.

Reconnect power to the product and turn it on. Enter the OSD menu and navigate your way through the “Utilities / Load Default “ submenu. (FIG 1)

Navigate down to SETUP DDC and execute it. (FIG 2) A message “Press MENU to Setup DDC” will appear. Press the navigator button/knob to execute.

Utilities

User Setting OSD Setting Zoom Calibrate RGB Gain Display Orientation

Load Default

Test Pattern Return

Load User Default Save User Default Load Factory Default

Setup DDC

Return

phone

fax e-mail

FIG 1

FIG 2

Operation

IND100133-18

Front area of backpack (illustration)

Introduction:

The MMC Backpack - Series 2 can operate as a stand-alone computer without beeing mounted or connected to the main display module. If mounted or connected to the main display module, the power on/off switch will have the same function on both the MMC backpack and on the main display module in front.

Power ON:

To turn the unit on, push the navigator knob/button inwards.

Power OFF:

To turn the unit off, push the navigator knob/button inwards and hold it down for 4 seconds. The operating system may require additionally tasks to be performed before computer shuts down and turns off the unit.

Also read the STATUS LED overview earlier in this manual.

Rubber Hatch:

The rubber hatch IS NOT designed to be removed, but lifted/bended away as the arrow above shows. Use a pen, nail or similar to open the hatch. The rubber hatch can later be pushed back into place when the USB front connector is not in use.

1 x USB INPUT/OUTPUT:

Behind the HATTELAND® rubber hatch you will nd a USB IO port. Supports any USB1.1 (12Mbps) or USB2.0

(480Mbps) compliant peripherals. Drivers for most USB devices are useally included in operating system or on separate installation CD’s delivered with product. USB 1.1 devices will operate in USB 1.1 mode (12 Mbps).

NOTE: Do NOT exceed the maximum current limit on a USB port. (500mA)

ON/OFF - Push Button Switch

and STATUS LED ring

Rubber Hatch

USB IO PORT

Physical Connections - Series 2 MMC Backpack

Operation

IND100133-18

3 x USB INPUT/OUTPUT:

Supports any USB1.1 (12Mbps) or USB2.0 (480Mbps) compliant peripherals. Drivers for most USB devices are useally included in operating system or on separate installation CD’s delivered with product. USB 1.1 devices will operate in USB 1.1 mode (12 Mbps).

NOTE: Do NOT exceed the maximum current limit on a USB port. (500mA)

PS/2 Keyboard and PS/2 Mouse INPUTS:

Connect the PS/2 keyboard cable to the PS/2 5P Connector (female) marked with a keyboard icon in the metal casing. Connect the PS/2 mouse cable to the PS/2 5P Connector (female) marked with a mouse icon in the metal casing. Also check the illustration above to determine its locations.

Network LAN/GBLAN INPUTS/OUTPUTS:

Supports 10/100Mbps Ethernet (LAN) and 10/100/1000Mbps Ethernet (GBLAN). Suitable for twisted pair cables CAT.5E. Make sure the network cable connector ”clicks” into the RJ-45 connector.

RGB OUT:

Will output a clone signal from the computer for use with external display or monitor. Connects via a High Density DSUB 15P Female connector. Fasten the cable to the connector using the provided screws on the cable housing itself.

COM1

PS/2 Keyboard

3 x USB

Connection area of backpack (illustration)

Power Input

PS/2 Mouse

Network

LAN

RGB OUT

Network

GBLAN

CF Slot

Physical Connections - Series 2 MMC Backpack

Operation

IND100133-18

COM1:

A 9PIN D-SUB Female connector that supports RS232/422/485 (all optically isolated). Initially by factory default this has set to operate in RS232 mode. Via software (MMC2 Utility*), COM1 can be congured to operate in either RS422 or RS485 as well.

*Note: The “MMC2 Utility” software is preinstalled by factory default. You will nd the icon on the operating system start menu. For usage, please read the chapter: “HATTELAND® MMC2 Utility - Series 2” in this manual.

COM2 SERIAL CONTROL INTERFACE:

This is only an internal serial port and is indentied in the operating system as “COM2”. This will allow you to control brightness and retrieve various parameters, as well as conguring the communication mode for COM1

(RS232/422/485). For in-depth information, manual is available on this link:

http://www.hatteland-display.com/pdink/inb100018-2.php

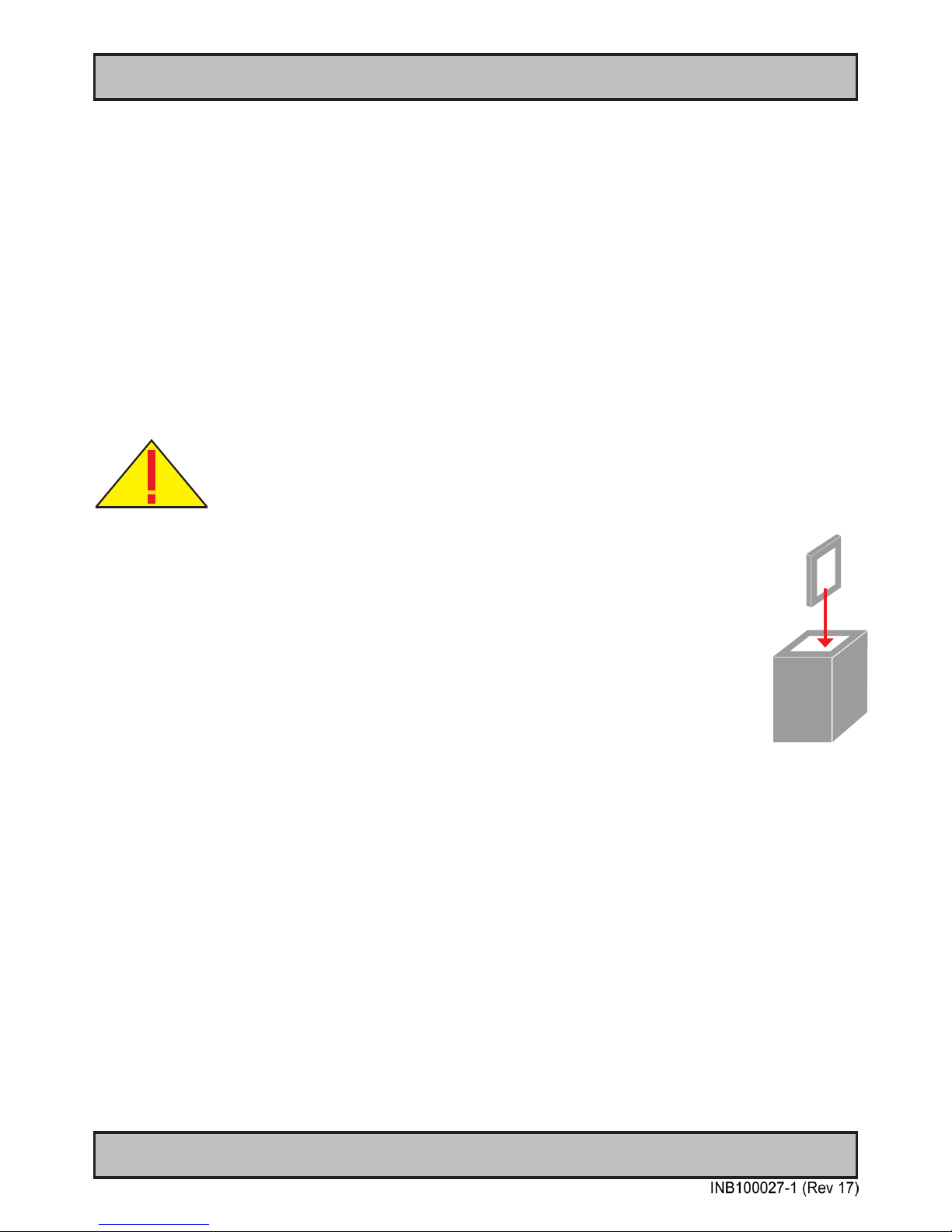

CompactFlash Reader: (Not plug & play)

CompactFlash Reader supports Type I & II cards. Insert the card gently into the slot with the logo facing upwards (only when the unit is OFF). The card is removed by pressing the EJECT button next to the card slot. A wide range of card

sizes are supported. The compact ash will be recognised as Primary IDE SLAVE. The selection of MASTER / SLAVE setting for the compact ash is jumper congurable.

NOTE: DO NOT ATTEMPT TO REMOVE THE FLASH CARD WHILE THE UNIT IS OPERATING! This is because

the CF Slot has been congured to operate as a IDE device. If the Flash Card is removed from the slot while

the unit is on, data may be lost or partly corrupted.

POWER INPUT: (AC Version)

The internal AC power module supports both 115VAC & 230VAC - 50/60Hz power input. You may secure the connector further by using the clamp mounted on the connector base.

POWER INPUT: (DC Version)

Secure the cables (check polarity on your model, marked on the label) to the screw terminal. The internal DC power module supports 24 VDC nominal (18-36VDC).

Operation

IND100064-13

User Controls

NAVIGATOR OVERVIEW - Maritime Multi Display (MMD):

The products features a multi functional user control via the navigator rotary & push knob with 8 independent LEDs for multiple feedback on different status/modes that may occur during usage. With this navigator you can also control brightness and navigating the OSD menu for further preferences. Two different versions are available of this navigator:

Bracket Version (i.e. cockpit use) = 1-button (with rotary switch and USB Connector) Console Version (i.e. ybridge use) = 3-button (without rotary switch and USB Connector)

The navigator is mounted into the glass by factory default and can not be replaced afterwards. The console version of the user controls in front is IP66 rated. Please refer to the illustrations below to determine what version you have and how to operate the unit. The USB connector is located behind the HATTELAND® rubber hatch in the right lower corner in the front. The rubber hatch IS NOT designed to be removed, but lifted/bended away as the arrow below shows. Use a pen, nail or similar to open the hatch. The rubber hatch can later be pushed back into place when the USB front connector is not in use.

Push Function

+HOT KEY function

Rotary Function

Status LED Ring

Push Function

+HOT KEY function

Decrease/Increase Push Function

Status LED Ring

3-BUTTON VERSION:

Power ON:

To turn the unit on, push the navigator knob/button inwards. The unit will start searching for signal sources. A green led

will move around the led ring. Please read the STATUS LED overview on the next page for verication on the various

LED patterns.

Power OFF:

To turn the unit off, push the navigator knob/button inwards and hold it down for 6 seconds, after 3 seconds the menu will appear. 3 seconds later the unit is turned off, and all LED indicators will turn red. Also read the STATUS LED overview on the next page for various LED patterns.

1-BUTTON VERSION:

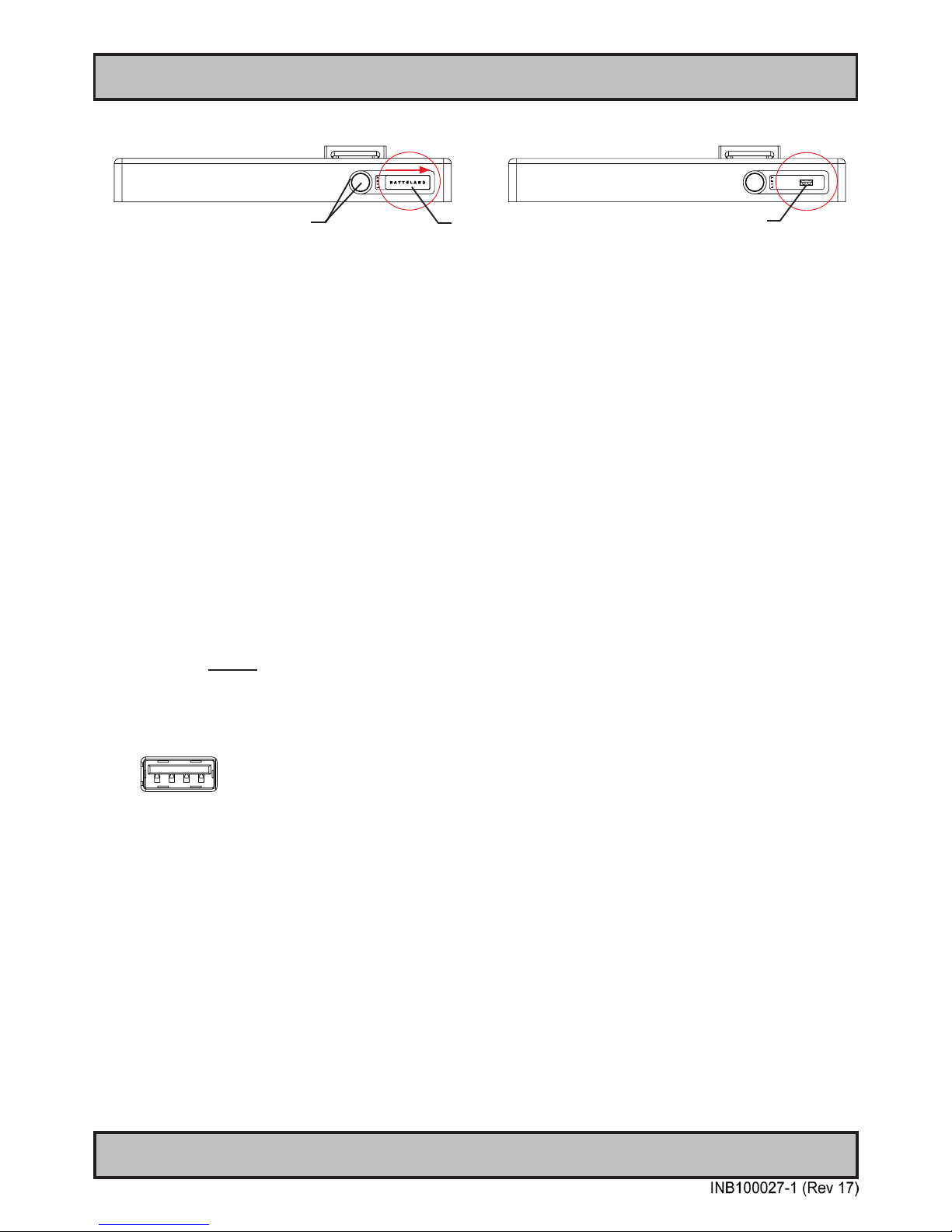

1-BUTTON VERSION WITH FRONT USB BEHIND RUBBER HATCH:

With rubber hatch in place ->

Rubber hatch lifted away ->

Operation

IND100064-13

HOT KEY FUNCTION:

User can access input video/signal sources by DOUBLE clicking the navigator knob/button inwards. The cycle of the video/signal detection are; Analog RGB1, Analog RGB2, DVI, Composite Video & S-Video. It will only switch to the

next detectable video/signals sources that are present (physically connected). The incoming signal will be identied

and displayed as clear text in the upper left corner of the display.

STATUS LED OVERVIEW

The display features a multi purpose indicator LED status ring which through different patterns and realtime activity gives back the status of the signal detected, power on/off, calibration, menu activity and more. The LEDs are multicolored which either illuminate green or red, based on the activity.

Status LED Overview

OFF (No power connected)

8 LED OFF

OFF (Standby, power detected)

8 RED LED STATIC ON

ON (Signal Search)

1 GREEN LED MOVEMENT looping.

ON (Signal OK)

8 GREEN LED STATIC ON

ON (No Signal)

4 RED LED STATIC ON

ON (Menu Delay)

7 GREEN LED STATIC +

1 LED OFF MOVEMENT doing 1 loop.

OFF (Shutdown)

1 RED LED MOVEMENT doing 1 loop.

ON (Calibrated)

4 GREEN LED STATIC ON

ON (Calibrated +)

4 GREEN LED STATIC ON + where 1 show

BRIGHTNESS INDICATION POSITION

ON (Calibrated -)

4 GREEN LED STATIC ON + where 1 show

BRIGHTNESS INDICATION POSITION

For ECDIS Calibrated Products

For the MMD/MMC products that are ECDIS calibrated from factory, the following LED pattern (Calibrated) indicates that the backlight/brightness is at calibrated level. (Calibrated +) or (Calibrated -) means that the knob/brightness is above or below the calibrated brightness level. Fine adjust the navigator knob either clockwise or counter-clockwise until the pattern for (Calibrated) is reached.

This page left intentionally blank

Specications

IND100129-65

Specications - HD 12T04 BOxx + HT MMC0x-A0x

Bracket Models

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HD 12T04 BOxx + HT MMC0x-A0x

T E C H N I C A L D E S C R I P T I O N M E C H A N I C A L D E S C R I P T I O N

T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S

Power Specifications:

Power Supply Options & Type Numbers:

• 115&230VAC - 50/60Hz : HD 12T04 BOxx + HT MMC0x-A01*

• 24 VDC : HD 12T04 BOxx + HT MMC0x-A02*

Power Consumption:

• Operating : 36W (Max) (Brightness+CPU @ 100%)

This product have been tested / type approved by the following classification societies:

EN60945 4

(IEC945 4th) DNV - Det Norske Veritas ABS - American Bureau of Shipping ClassNK - Nippon Kaiji Kyokai

IACS E10 BV - Bureau Veritas GL - Germanischer Lloyd LRS - Lloyd’s Register of Shipping

TFT Characteristics:

Physical Considerations:

• 296.20 (W) x 252.20 (H) x 84.50 (D) mm (w/cooler & without bracket)

• 11.66” (W) x 9.93” (H) x 3.33” (D) (w/cooler & without bracket)

• 296.20 (W) x 307.39 (H) x 146.51 (D) mm (with bracket)

• 11.66” (W) x 12.10” (H) x 5.77” (D) (with bracket)

• Weight: 5kg (approx)

Global Computer Specifications:

• Installed OS : Microsoft® Windows® XP Professional w/SP2

• Flash Drive : 4GB 2.5” Flashdrive ATA-3

• Compact Flash : Type I & II Compatible (with eject button)

Additional computer specifications are explained in table below.

• Navigator Push Function : On/Off

• Navigator Rotary Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User I/O Ports:

Environmental Considerations:

User Controls - BOAA / BOAC:

Behind Rubber Hatch - Front (BOAA / BOAC only):

• USB I/O : 1 x USB TYPE A

Backpack:

• USB I/O : 3 x USB 2.0 TYPE A

• PS/2 Keyboard & Mouse : 2 x PS/2 (female)

• Network LAN : 1 x RJ45 - 10/100Mbps

• Network GBLAN : 1 x RJ45 - 10/100/1000Mbps

• RGB OUT : 1 x 15Pin HD D-SUB (female)

• COM1 RS232 : 1 x D-SUB 9P (male)

• Compact Flash : 1 x CF-Slot with eject button

• If AC Power IN : 1 x Std IEC Inlet (female)

• If DC Power IN : 1 x Screw Terminals

Behind Rubber Hatch - Backpack:

• USB I/O : 1 x USB 2.0 TYPE A

Internal - Backpack:

• COM2 Internal : Serial Control Interface

• Resistive Factory Mounted Touchscreen (BOAC/BOBC) 4wire

• HD 12TBR 020-A1 = Desktop/Ceiling Mount Bracket (included by default)

• HD TBR BPM-A1 = Backpack mount bracket (for stand-alone use)

• HD VESA 12TBR-A1 = VESA bracket for complete unit

• HD 12TBR CMB-A1 = Console Mounting Bracket for complete unit

• VSD100507-1 Split Cable RS422/484 = MALE to 2 x FEMALE 9P D-SUB

NOTE: Products with factory mounted touchscreen is not type approved

Available Options/Accessories:

• Navigator Push Function : On/Off

• Navigator -/+ Buttons Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User Controls - BOBA / BOBC:

• TFT Technology : Color Active Matrix LCD Module a-Si Thin Film Transistor (TFT)

• TFT Size : 12.1 inch

• Pixel Number : 1024 x 768

• Pixel Pitch (RGB) : 0.24 (H) x 0.24 (V) mm

• Response Time : 33 ms (TYP) - black to white to black

• Contrast Ratio : 600:1 (TYP)

• Light Intensity : 400 cd/m2 (TYP)

• Viewable Angle : 45(Up), 55(Down), 70(Left/Right) (TYP)

• Active Display Area : 245.76 (H) x 184.32 (V) mm

• Max Colors : 16.7 millions

• Operating : Temperature -15 deg. C to +55 deg. C

- Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C

- Humidity up to 95%

• IP Rating : IP22 (BOA A/BOAC) models (flush mounted only) : IP66 (BOBA/BOBC) models (flush mounted only)

• Compass Safe Dist. : HD 12T04 BOxx + HT MMC0x-A0x Standard: 70cm Steering: 50cm

To prevent heat to build up inside the display we recommend installing the unit in a vertical position +/- 40 degrees maximum. We also recommend adding forced cooling in applications where; Vertical mounting angle is above +/- 40 degrees -Operating temperature is above 25C -- Ventilation area around unit is restricted. Fans should be mounted to enhance natural airflow directed upwards through the unit.

Safety Considerations:

Even although the test conditions for bridge units provide for a maximum operating temperature of 55°C, continuous operation of all electronic components should, if possible, take place at ambient temperatures of only 25°C. This is a necessary prerequisite for long life and low service costs.

HT MMC01-A0y:*

HT MMC04-A0y:*

HT MMC03-A0y:*

• Processor : Intel®Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

• Processor : Intel®Celeron®M 600MHz, ULV, Zero-Cache

• Front Side Bus : 400MHz

• Chipset : Intel® 852GM

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE supports UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

*Format HT MMC0x-A0y: x = Processor Option, y = AC or DC Option

Processor Board / Backpack Options:

• Processor : Intel®Pentium®M 745 “Dothan”,1.8GHz,2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 1024MB (Max 1GB)

IND100129-65

Specications - HD 12T04 FOxx + HT MMC0x-A0x

Flange Models

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HD 12T04 FOxx + HT MMC0x-A0x

T E C H N I C A L D E S C R I P T I O N M E C H A N I C A L D E S C R I P T I O N

T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S

This product have been tested / type approved by the following classification societies:

IEC 60945 4th (EN 60945:2002) DNV - Det Norske Veritas IACS E10

Physical Considerations:

• 311.20 (W) x 267.20 (H) x 84.50 (D) mm (with cooler & flange)

• 12.25” (W) x 10.52” (H) x 3.33” (D) (with cooler & flange)

• Weight: 4.5kg (approx)

Environmental Considerations:

• Resistive Factory Mounted Touchscreen (FOAC/FOBC) 4wire

• HD 12TBR 020-A1 = Desktop/Ceiling Mount Bracket

• HD VESA 12TBR-A1 = VESA bracket for complete unit

• HD TBR BPM-A1 = Backpack mount bracket (for stand-alone use)

• VSD100507-1 Split Cable RS422/484 = MALE to 2 x FEMALE 9P D-SUB

NOTE: Products with factory mounted touchscreen is not type approved

Available Options/Accessories:

• Navigator Push Function : On/Off

• Navigator Rotary Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User I/O Ports:

User Controls - FOAA / FOAC:

Behind Rubber Hatch - Front (FOAA / FOAC only):

• USB I/O : 1 x USB TYPE A

Backpack:

• USB I/O : 3 x USB 2.0 TYPE A

• PS/2 Keyboard & Mouse : 2 x PS/2 (female)

• Network LAN : 1 x RJ45 - 10/100Mbps

• Network GBLAN : 1 x RJ45 - 10/100/1000Mbps

• RGB OUT : 1 x 15Pin HD D-SUB (female)

• COM1 RS232 : 1 x D-SUB 9P (male)

• Compact Flash : 1 x CF-Slot with eject button

• If AC Power IN : 1 x Std IEC Inlet (female)

• If DC Power IN : 1 x Screw Terminals

Behind Rubber Hatch - Backpack:

• USB I/O : 1 x USB 2.0 TYPE A

Internal - Backpack:

• COM2 Internal : Serial Control Interface

• Navigator Push Function : On/Off

• Navigator -/+ Buttons Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User Controls - FOBA / FOBC:

Power Specifications:

Power Supply Options & Type Numbers:

• 115&230VAC - 50/60Hz : HD 12T04 FOxx + HT MMC0x-A01*

• 24 VDC : HD 12T04 FOxx + HT MMC0x-A02*

Power Consumption:

• Operating : 36W (Max) (Brightness+CPU @ 100%)

TFT Characteristics:

Global Computer Specifications:

• Installed OS : Microsoft® Windows® XP Professional w/SP2

• Flash Drive : 4GB 2.5” Flashdrive ATA-3

• Compact Flash : Type I & II Compatible (with eject button)

Additional computer specifications are explained in table below.

• TFT Technology : Color Active Matrix LCD Module a-Si Thin Film Transistor (TFT)

• TFT Size : 12.1 inch

• Pixel Number : 1024 x 768

• Pixel Pitch (RGB) : 0.24 (H) x 0.24 (V) mm

• Response Time : 33 ms (TYP) - black to white to black

• Contrast Ratio : 600:1 (TYP)

• Light Intensity : 400 cd/m2 (TYP)

• Viewable Angle : 45(Up), 55(Down), 70(Left/Right) (TYP)

• Active Display Area : 245.76 (H) x 184.32 (V) mm

• Max Colors : 16.7 millions

• Operating : Temperature -15 deg. C to +55 deg. C

- Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C

- Humidity up to 95%

• IP Rating : IP22 (FOA A/FOAC) models (flush mounted only) : IP66 (FOBA/FOBC) models (flush mounted only)

• Compass Safe Dist. : HD 12T04 FOxx + HT MMC0x-A0x Standard: 70cm Steering: 50cm

Safety Considerations:

HT MMC01-A0y:*

HT MMC04-A0y:*

HT MMC03-A0y:*

• Processor : Intel®Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

• Processor : Intel®Celeron®M 600MHz, ULV, Zero-Cache

• Front Side Bus : 400MHz

• Chipset : Intel® 852GM

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE supports UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

*Format HT MMC0x-A0y: x = Processor Option, y = AC or DC Option

Processor Board / Backpack Options:

• Processor : Intel®Pentium®M 745 “Dothan”,1.8GHz,2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 1024MB (Max 1GB)

IND100129-65

Specications - HD 12T04 COxx + HT MMC0x-A0x

Console Models

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HD 12T04 COxx + HT MMC0x-A0x

T E C H N I C A L D E S C R I P T I O N M E C H A N I C A L D E S C R I P T I O N

T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S

This product have been tested / type approved by the following classification societies:

EN60945 4

(IEC945 4th) DNV - Det Norske Veritas ABS - American Bureau of Shipping ClassNK - Nippon Kaiji Kyokai

IACS E10 BV - Bureau Veritas GL - Germanischer Lloyd LRS - Lloyd’s Register of Shipping

Physical Considerations:

• 337.20 (W) x 293.20 (H) x 84.50 (D) mm (with cooler & flange)

• 13.28” (W) x 11.54” (H) x 3.33” (D) (with cooler & flange)

• Weight: 4.5kg (approx)

Environmental Considerations:

• Resistive Factory Mounted Touchscreen (COAC/COBC) 4wire

• HD 12TBR 020-A1 = Desktop/Ceiling Mount Bracket

• HD VESA 12TBR-A1 = VESA bracket for complete unit

• HD TBR BPM-A1 = Backpack mount bracket (for stand-alone use)

• VSD100507-1 Split Cable RS422/484 = MALE to 2 x FEMALE 9P D-SUB

NOTE: Products with factory mounted touchscreen is not type approved

Available Options/Accessories:

• Navigator Push Function : On/Off

• Navigator Rotary Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User I/O Ports:

User Controls - COAA / COAC:

Behind Rubber Hatch - Front (COAA / COAC only):

• USB I/O : 1 x USB TYPE A

Backpack:

• USB I/O : 3 x USB 2.0 TYPE A

• PS/2 Keyboard & Mouse : 2 x PS/2 (female)

• Network LAN : 1 x RJ45 - 10/100Mbps

• Network GBLAN : 1 x RJ45 - 10/100/1000Mbps

• RGB OUT : 1 x 15Pin HD D-SUB (female)

• COM1 RS232 : 1 x D-SUB 9P (male)

• Compact Flash : 1 x CF-Slot with eject button

• If AC Power IN : 1 x Std IEC Inlet (female)

• If DC Power IN : 1 x Screw Terminals

Behind Rubber Hatch - Backpack:

• USB I/O : 1 x USB 2.0 TYPE A

Internal - Backpack:

• COM2 Internal : Serial Control Interface

• Navigator Push Function : On/Off

• Navigator -/+ Buttons Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User Controls - COBA / COBC:

Power Specifications:

Power Supply Options & Type Numbers:

• 115&230VAC - 50/60Hz : HD 12T04 COxx + HT MMC0x-A01*

• 24 VDC : HD 12T04 COxx + HT MMC0x-A02*

Power Consumption:

• Operating : 36W (Max) (Brightness+CPU @ 100%)

TFT Characteristics:

Global Computer Specifications:

• Installed OS : Microsoft® Windows® XP Professional w/SP2

• Flash Drive : 4GB 2.5” Flashdrive ATA-3

• Compact Flash : Type I & II Compatible (with eject button)

Additional computer specifications are explained in table below.

• TFT Technology : Color Active Matrix LCD Module a-Si Thin Film Transistor (TFT)

• TFT Size : 12.1 inch

• Pixel Number : 1024 x 768

• Pixel Pitch (RGB) : 0.24 (H) x 0.24 (V) mm

• Response Time : 33 ms (TYP) - black to white to black

• Contrast Ratio : 600:1 (TYP)

• Light Intensity : 400 cd/m2 (TYP)

• Viewable Angle : 45(Up), 55(Down), 70(Left/Right) (TYP)

• Active Display Area : 245.76 (H) x 184.32 (V) mm

• Max Colors : 16.7 millions

• Operating : Temperature -15 deg. C to +55 deg. C

- Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C

- Humidity up to 95%

• IP Rating : IP22 (COAA/COAC) models (flush mounted only) : IP66 (COBA/COBC) models (flush mounted only)

• Compass Safe Dist. : HD 12T04 COxx + HT MMC0x-A0x Standard: 70cm Steering: 50cm

To prevent heat to build up inside the display we recommend installing the unit in a

vertical position +/- 40 degrees maximum. We also recommend adding forced cooling in applications where; Vertical mounting angle is above +/- 40 degrees -Operating temperature is above 25C -- Ventilation area around unit is restricted. Fans should be mounted to enhance natural airflow directed upwards through the unit.

Safety Considerations:

HT MMC01-A0y:*

HT MMC04-A0y:*

HT MMC03-A0y:*

• Processor : Intel®Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

• Processor : Intel®Celeron®M 600MHz, ULV, Zero-Cache

• Front Side Bus : 400MHz

• Chipset : Intel® 852GM

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE supports UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

*Format HT MMC0x-A0y: x = Processor Option, y = AC or DC Option

Processor Board / Backpack Options:

• Processor : Intel®Pentium®M 745 “Dothan”,1.8GHz,2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 1024MB (Max 1GB)

IND100129-66

Specications - HD 15T06 BOxx + HT MMC0x-A0x

Bracket Models

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HD 15T06 BOxx + HT MMC0x-A0x

T E C H N I C A L D E S C R I P T I O N M E C H A N I C A L D E S C R I P T I O N

T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S

Power Specifications:

Power Supply Options & Type Number:

• 115&230VAC - 50/60Hz : HD 15T06 BOxx + HT MMC0x-A01*

• 24 VDC : HD 15T06 BOxx + HT MMC0x-A02*

Power Consumption:

• Operating : 49W (Max) (Brightness+CPU @ 100%)

This product have been tested / type approved by the following classification societies:

EN60945 4

(IEC945 4th)* DNV - Det Norske Veritas ABS - American Bureau of Shipping ClassNK - Nippon Kaiji Kyokai

IACS E10* BV - Bureau Veritas GL - Germanischer Lloyd LRS - Lloyd’s Register of Shipping

*Testing not actually performed, but 15 inch is covered within range by 12 and 19 inch test report.

TFT Characteristics:

Physical Considerations:

• 344.20 (W) x 292.20 (H) x 84.50 (D) mm (w/cooler & without bracket)

• 13.55” (W) x 11.50” (H) x 3.33” (D) (w/cooler & without bracket)

• 344.20 (W) x 326.19 (H) x 153.35 (D) mm (with bracket)

• 13.55” (W) x 12.84” (H) x 6.04” (D) (with bracket)

• Weight: 8.5kg (approx)

Global Computer Specifications:

• Installed OS : Microsoft® Windows® XP Professional w/SP2

• Flash Drive : 4GB 2.5” Flashdrive ATA-3

• Compact Flash : Type I & II Compatible (with eject button)

Additional computer specifications are explained in table below.

Environmental Considerations:

• Resistive Factory Mounted Touchscreen (BOAC/BOBC) 4wire

• HD 15TBR 020-A1 = Desktop/Ceiling Mount Bracket (included by default)

• HD TBR BPM-A1 = Backpack mount bracket (for stand-alone use)

• HD VESA 15TBR-A1 = VESA bracket for complete unit

• HD 15TBR CMB-A1 = Console Mounting Bracket for complete unit

• VSD100507-1 Split Cable RS422/484 = MALE to 2 x FEMALE 9P D-SUB

NOTE: Products with factory mounted touchscreen is not type approved

Available Options/Accessories:

• Navigator Push Function : On/Off

• Navigator Rotary Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User I/O Ports:

User Controls - BOAA / BOAC:

Behind Rubber Hatch - Front (BOAA / BOAC only):

• USB I/O : 1 x USB TYPE A

Backpack:

• USB I/O : 3 x USB 2.0 TYPE A

• PS/2 Keyboard & Mouse : 2 x PS/2 (female)

• Network LAN : 1 x RJ45 - 10/100Mbps

• Network GBLAN : 1 x RJ45 - 10/100/1000Mbps

• RGB OUT : 1 x 15Pin HD D-SUB (female)

• COM1 RS232 : 1 x D-SUB 9P (male)

• Compact Flash : 1 x CF-Slot with eject button

• If AC Power IN : 1 x Std IEC Inlet (female)

• If DC Power IN : 1 x Screw Terminals

Behind Rubber Hatch - Backpack:

• USB I/O : 1 x USB 2.0 TYPE A

Internal - Backpack:

• COM2 Internal : Serial Control Interface

• Navigator Push Function : On/Off

• Navigator -/+ Buttons Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User Controls - BOBA / BOBC:

• TFT Technology : Color Active Matrix LCD Module a-Si Thin Film Transistor (TFT)

• TFT Size : 15.0 inch

• Pixel Number : 1024 x 768

• Pixel Pitch (RGB) : 0.297 (H) x 0.297 (V) mm

• Response Time : 30 ms (TYP) - black to white to black

• Contrast Ratio : 350:1 (TYP)

• Light Intensity : 600 cd/m2 (TYP)

• Viewable Angle : 45(Up), 55(Down), 60(Left/Right) (TYP)

• Active Display Area : 304.1 (H) x 228.1 (V) mm

• Max Colors : 16.7 millions

• Operating : Temperature -15 deg. C to +55 deg. C

- Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C

- Humidity up to 95%

• IP Rating : IP22 (BOA A/BOAC) models (flush mounted only) : IP66 (BOBA/BOBC) models (flush mounted only)

• Compass Safe Dist. : HD 15T06 BOxx + HT MMC0x-A0x Standard: TBD Steering: TBD

Safety Considerations:

HT MMC01-A0y:*

HT MMC04-A0y:*

HT MMC03-A0y:*

• Processor : Intel®Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

• Processor : Intel®Celeron®M 600MHz, ULV, Zero-Cache

• Front Side Bus : 400MHz

• Chipset : Intel® 852GM

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE supports UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

*Format HT MMC0x-A0y: x = Processor Option, y = AC or DC Option

Processor Board / Backpack Options:

• Processor : Intel®Pentium®M 745 “Dothan”,1.8GHz,2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 1024MB (Max 1GB)

IND100129-66

Specications - HD 15T06 FOxx + HT MMC0x-A0x

Flange Models

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HD 15T06 FOxx + HT MMC0x-A0x

T E C H N I C A L D E S C R I P T I O N M E C H A N I C A L D E S C R I P T I O N

T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S

This product have been tested / type approved by the following classification societies:

*Testing not actually performed, but 15 inch is covered within range by 12 and 19 inch test report.

IEC 60945 4th (EN 60945:2002) DNV - Det Norske Veritas IACS E10

Physical Considerations:

• 359.20 (W) x 307.20 (H) x 84.50 (D) mm (with cooler & flange)

• 14.14” (W) x 12.09” (H) x 3.33” (D) (with cooler & flange)

• Weight: 8kg (approx)

Environmental Considerations:

• Resistive Factory Mounted Touchscreen (FOAC/FOBC) 4wire

• HD 15TBR 020-A1 = Desktop/Ceiling Mount Bracket

• HD VESA 15TBR-A1 = VESA bracket for complete unit

• HD TBR BPM-A1 = Backpack mount bracket (for stand-alone use)

• VSD100507-1 Split Cable RS422/484 = MALE to 2 x FEMALE 9P D-SUB

NOTE: Products with factory mounted touchscreen is not type approved

Available Options/Accessories:

• Navigator Push Function : On/Off

• Navigator Rotary Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User I/O Ports:

User Controls - FOAA / FOAC:

Behind Rubber Hatch - Front (FOAA / FOAC only):

• USB I/O : 1 x USB TYPE A

Backpack:

• USB I/O : 3 x USB 2.0 TYPE A

• PS/2 Keyboard & Mouse : 2 x PS/2 (female)

• Network LAN : 1 x RJ45 - 10/100Mbps

• Network GBLAN : 1 x RJ45 - 10/100/1000Mbps

• RGB OUT : 1 x 15Pin HD D-SUB (female)

• COM1 RS232 : 1 x D-SUB 9P (male)

• Compact Flash : 1 x CF-Slot with eject button

• If AC Power IN : 1 x Std IEC Inlet (female)

• If DC Power IN : 1 x Screw Terminals

Behind Rubber Hatch - Backpack:

• USB I/O : 1 x USB 2.0 TYPE A

Internal - Backpack:

• COM2 Internal : Serial Control Interface

• Navigator Push Function : On/Off

• Navigator -/+ Buttons Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User Controls - FOBA / FOBC:

Power Specifications:

Power Supply Options & Type Number:

• 115&230VAC - 50/60Hz : HD 15T06 FOxx + HT MMC0x-A01*

• 24 VDC : HD 15T06 FOxx + HT MMC0x-A02*

Power Consumption:

• Operating : 49W (Max) (Brightness+CPU @ 100%)

TFT Characteristics:

Global Computer Specifications:

• Installed OS : Microsoft® Windows® XP Professional w/SP2

• Flash Drive : 4GB 2.5” Flashdrive ATA-3

• Compact Flash : Type I & II Compatible (with eject button)

Additional computer specifications are explained in table below.

• TFT Technology : Color Active Matrix LCD Module a-Si Thin Film Transistor (TFT)

• TFT Size : 15.0 inch

• Pixel Number : 1024 x 768

• Pixel Pitch (RGB) : 0.297 (H) x 0.297 (V) mm

• Response Time : 30 ms (TYP) - black to white to black

• Contrast Ratio : 350:1 (TYP)

• Light Intensity : 600 cd/m2 (TYP)

• Viewable Angle : 45(Up), 55(Down), 60(Left/Right) (TYP)

• Active Display Area : 304.1 (H) x 228.1 (V) mm

• Max Colors : 16.7 millions

• Operating : Temperature -15 deg. C to +55 deg. C

- Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C

- Humidity up to 95%

• IP Rating : IP22 (FOA A/FOAC) models (flush mounted only) : IP66 (FOBA/FOBC) models (flush mounted only)

• Compass Safe Dist. : HD 15T06 FOxx + HT MMC0x-A0x Standard: TBD Steering: TBD

To prevent heat to build up inside the display we recommend installing the unit in a

Safety Considerations:

HT MMC01-A0y:*

HT MMC04-A0y:*

HT MMC03-A0y:*

• Processor : Intel®Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

• Processor : Intel®Celeron®M 600MHz, ULV, Zero-Cache

• Front Side Bus : 400MHz

• Chipset : Intel® 852GM

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE supports UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

*Format HT MMC0x-A0y: x = Processor Option, y = AC or DC Option

Processor Board / Backpack Options:

• Processor : Intel®Pentium®M 745 “Dothan”,1.8GHz,2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 1024MB (Max 1GB)

IND100129-66

Specications - HD 15T06 COxx + HT MMC0x-A0x

Console Models

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HD 15T06 COxx + HT MMC0x-A0x

T E C H N I C A L D E S C R I P T I O N M E C H A N I C A L D E S C R I P T I O N

T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S

This product have been tested / type approved by the following classification societies:

EN60945 4

(IEC945 4th)* DNV - Det Norske Veritas ABS - American Bureau of Shipping ClassNK - Nippon Kaiji Kyokai

IACS E10* BV - Bureau Veritas GL - Germanischer Lloyd LRS - Lloyd’s Register of Shipping

*Testing not actually performed, but 15 inch is covered within range by 12 and 19 inch test report.

Physical Considerations:

• 385.20 (W) x 333.20 (H) x 84.5 (D) mm (with cooler & flange)

• 15.17” (W) x 13.12” (H) x 3.33” (D) (with cooler & flange)

• Weight: 8kg (approx)

Environmental Considerations:

• Resistive Factory Mounted Touchscreen (COAC/COBC) 4wire

• HD 15TBR 020-A1 = Desktop/Ceiling Mount Bracket

• HD VESA 15TBR-A1 = VESA bracket for complete unit

• HD TBR BPM-A1 = Backpack mount bracket (for stand-alone use)

• VSD100507-1 Split Cable RS422/484 = MALE to 2 x FEMALE 9P D-SUB

NOTE: Products with factory mounted touchscreen is not type approved

Available Options/Accessories:

• Navigator Push Function : On/Off

• Navigator Rotary Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User I/O Ports:

User Controls - COAA / COAC:

Behind Rubber Hatch - Front (COAA / COAC only):

• USB I/O : 1 x USB TYPE A

Backpack:

• USB I/O : 3 x USB 2.0 TYPE A

• PS/2 Keyboard & Mouse : 2 x PS/2 (female)

• Network LAN : 1 x RJ45 - 10/100Mbps

• Network GBLAN : 1 x RJ45 - 10/100/1000Mbps

• RGB OUT : 1 x 15Pin HD D-SUB (female)

• COM1 RS232 : 1 x D-SUB 9P (male)

• Compact Flash : 1 x CF-Slot with eject button

• If AC Power IN : 1 x Std IEC Inlet (female)

• If DC Power IN : 1 x Screw Terminals

Behind Rubber Hatch - Backpack:

• USB I/O : 1 x USB 2.0 TYPE A

Internal - Backpack:

• COM2 Internal : Serial Control Interface

• Navigator Push Function : On/Off

• Navigator -/+ Buttons Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User Controls - COBA / COBC:

Power Specifications:

Power Supply Options & Type Number:

• 115&230VAC - 50/60Hz : HD 15T06 COxx + HT MMC0x-A01*

• 24 VDC : HD 15T06 COxx + HT MMC0x-A02*

Power Consumption:

• Operating : 49W (Max) (Brightness+CPU @ 100%)

TFT Characteristics:

Global Computer Specifications:

• Installed OS : Microsoft® Windows® XP Professional w/SP2

• Flash Drive : 4GB 2.5” Flashdrive ATA-3

• Compact Flash : Type I & II Compatible (with eject button)

Additional computer specifications are explained in table below.

• TFT Technology : Color Active Matrix LCD Module a-Si Thin Film Transistor (TFT)

• TFT Size : 15.0 inch

• Pixel Number : 1024 x 768

• Pixel Pitch (RGB) : 0.297 (H) x 0.297 (V) mm

• Response Time : 30 ms (TYP) - black to white to black

• Contrast Ratio : 350:1 (TYP)

• Light Intensity : 600 cd/m2 (TYP)

• Viewable Angle : 45(Up), 55(Down), 60(Left/Right) (TYP)

• Active Display Area : 304.1 (H) x 228.1 (V) mm

• Max Colors : 16.7 millions

• Operating : Temperature -15 deg. C to +55 deg. C

- Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C

- Humidity up to 95%

• IP Rating : IP22 (COAA/COAC) models (flush mounted only) : IP66 (COBA/COBC) models (flush mounted only)

• Compass Safe Dist. : HD 15T06 COxx + HT MMC0x-A0x

Standard: TBD Steering: TBD

To prevent heat to build up inside the display we recommend installing the unit in a

Safety Considerations:

HT MMC01-A0y:*

HT MMC04-A0y:*

HT MMC03-A0y:*

• Processor : Intel®Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

• Processor : Intel®Celeron®M 600MHz, ULV, Zero-Cache

• Front Side Bus : 400MHz

• Chipset : Intel® 852GM

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE supports UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

*Format HT MMC0x-A0y: x = Processor Option, y = AC or DC Option

Processor Board / Backpack Options:

• Processor : Intel®Pentium®M 745 “Dothan”,1.8GHz,2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 1024MB (Max 1GB)

IND100129-67

Specications - HD 19T03 BOxx + HT MMC0x-A0x

Bracket Models

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HD 19T03 BOxx + HT MMC0x-A0x

T E C H N I C A L D E S C R I P T I O N M E C H A N I C A L D E S C R I P T I O N

T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S

Power Specifications:

Power Supply Options & Type Number:

• 115&230VAC - 50/60Hz : HD 19T03 BOxx + HT MMC0x-A01*

• 24 VDC : HD 19T03 BOxx + HT MMC0x-A02*

Power Consumption:

• Operating : 79W (Max) (Brightness+CPU @ 100%)

This product have been tested / type approved by the following classification societies:

EN60945 4

(IEC945 4th) DNV - Det Norske Veritas ABS - American Bureau of Shipping ClassNK - Nippon Kaiji Kyokai

IACS E10 BV - Bureau Veritas GL - Germanischer Lloyd LRS - Lloyd’s Register of Shipping

TFT Characteristics:

Physical Considerations:

• 416.20 (W) x 372.20 (H) x 84.50 (D) mm (w/cooler & without bracket)

• 16.39” (W) x 14.65” (H) x 3.33” (D) (w/cooler & without bracket)

• 416.20 (W) x 363.73 (H) x 167.05 (D) mm (with bracket)

• 16.39” (W) x 14.32” (H) x 6.58” (D) (with bracket)

• Weight: 9.5kg (approx)

Global Computer Specifications:

• Installed OS : Microsoft® Windows® XP Professional w/SP2

• Flash Drive : 4GB 2.5” Flashdrive ATA-3

• Compact Flash : Type I & II Compatible (with eject button)

Additional computer specifications are explained in table below.

Environmental Considerations:

• Resistive Factory Mounted Touchscreen (BOAC/BOBC) 4wire

• HD 19TBR 020-A1 - Desktop/Ceiling Mount Bracket (included by default)

• HD TBR BPM-A1 - Backpack mount bracket (for stand-alone use)

• HD VESA 19TBR-A1 - VESA bracket for complete unit

• HD 19TBR CMB-A1 - Console Mounting Bracket for complete unit

• HD 19TBR STD-B1 -Mounting Bracket EN60945,RAL9011 for complete unit

• VSD100507-1 Split Cable RS422/484 = MALE to 2 x FEMALE 9P D-SUB

NOTE: Products with factory mounted touchscreen is not type approved

Available Options/Accessories:

• Navigator Push Function : On/Off

• Navigator Rotary Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User I/O Ports:

User Controls - BOAA / BOAC:

Behind Rubber Hatch - Front (BOAA / BOAC only):

• USB I/O : 1 x USB TYPE A

Backpack:

• USB I/O : 3 x USB 2.0 TYPE A

• PS/2 Keyboard & Mouse : 2 x PS/2 (female)

• Network LAN : 1 x RJ45 - 10/100Mbps

• Network GBLAN : 1 x RJ45 - 10/100/1000Mbps

• RGB OUT : 1 x 15Pin HD D-SUB (female)

• COM1 RS232 : 1 x D-SUB 9P (male)

• Compact Flash : 1 x CF-Slot with eject button

• If AC Power IN : 1 x Std IEC Inlet (female)

• If DC Power IN : 1 x Screw Terminals

Behind Rubber Hatch - Backpack:

• USB I/O : 1 x USB 2.0 TYPE A

Internal - Backpack:

• COM2 Internal : Serial Control Interface

• Navigator Push Function : On/Off

• Navigator -/+ Buttons Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User Controls - BOBA / BOBC:

• TFT Technology : Color Active Matrix LCD Module MVA Premium™ Technology (TFT)

• TFT Size : 19.0 inch

• Pixel Number : 1280 x 1024

• Pixel Pitch (RGB) : 0.294 (H) x 0.294 (V) mm

• Response Time : 12 ms (TYP) - black to white to black

• Contrast Ratio : 600:1 (TYP)

• Light Intensity : 450 cd/m2 (TYP)

• Viewable Angle : 89(Up/Down/Left/Right) (TYP)

• Active Display Area : 376.32 (H) x 301.056 (V) mm

• Max Colors : 16.7 millions

• Operating : Temperature -15 deg. C to +55 deg. C

- Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C

- Humidity up to 95%

• IP Rating : IP22 (BOA A/BOAC) models (flush mounted only) : IP66 (BOBA/BOBC) models (flush mounted only)

• Compass Safe Dist. : HD 19T03 BOxx + HT MMC0x-A0x Standard: 135cm Steering: 85cm

Safety Considerations:

HT MMC01-A0y:*

HT MMC04-A0y:*

HT MMC03-A0y:*

• Processor : Intel®Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

• Processor : Intel®Celeron®M 600MHz, ULV, Zero-Cache

• Front Side Bus : 400MHz

• Chipset : Intel® 852GM

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE supports UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

*Format HT MMC0x-A0y: x = Processor Option, y = AC or DC Option

Processor Board / Backpack Options:

• Processor : Intel®Pentium®M 745 “Dothan”,1.8GHz,2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 1024MB (Max 1GB)

IND100129-67

Specications - HD 19T03 FOxx + HT MMC0x-A0x

Flange Models

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HD 19T03 FOxx + HT MMC0x-A0x

T E C H N I C A L D E S C R I P T I O N M E C H A N I C A L D E S C R I P T I O N

T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S

This product have been tested / type approved by the following classification societies:

IEC 60945 4th (EN 60945:2002) DNV - Det Norske Veritas IACS E10

Physical Considerations:

• 431.20 (W) x 387.20 (H) x 84.50 (D) mm (with cooler & flange)

• 16.98” (W) x 15.24” (H) x 3.33” (D) (with cooler & flange)

• Weight: 9.5kg (approx)

Environmental Considerations:

• Resistive Factory Mounted Touchscreen (FOAC/FOBC) 4wire

• HD 19TBR 020-A1 = Desktop/Ceiling Mount Bracket

• HD VESA 19TBR-A1 - VESA bracket for complete unit

• HD TBR BPM-A1 = Backpack mount bracket (see user manual)

• VSD100507-1 Split Cable RS422/484 = MALE to 2 x FEMALE 9P D-SUB

NOTE: Products with factory mounted touchscreen is not type approved

Available Options/Accessories:

• Navigator Push Function : On/Off

• Navigator Rotary Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User I/O Ports:

User Controls - FOAA / FOAC:

Behind Rubber Hatch - Front (FOAA / FOAC only):

• USB I/O : 1 x USB TYPE A

Backpack:

• USB I/O : 3 x USB 2.0 TYPE A

• PS/2 Keyboard & Mouse : 2 x PS/2 (female)

• Network LAN : 1 x RJ45 - 10/100Mbps

• Network GBLAN : 1 x RJ45 - 10/100/1000Mbps

• RGB OUT : 1 x 15Pin HD D-SUB (female)

• COM1 RS232 : 1 x D-SUB 9P (male)

• Compact Flash : 1 x CF-Slot with eject button

• If AC Power IN : 1 x Std IEC Inlet (female)

• If DC Power IN : 1 x Screw Terminals

Behind Rubber Hatch - Backpack:

• USB I/O : 1 x USB 2.0 TYPE A

Internal - Backpack:

• COM2 Internal : Serial Control Interface

• Navigator Push Function : On/Off

• Navigator -/+ Buttons Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User Controls - FOBA / FOBC:

Power Specifications:

Power Supply Options & Type Number:

• 115&230VAC - 50/60Hz : HD 19T03 FOxx + HT MMC0x-A01*

• 24 VDC : HD 19T03 FOxx + HT MMC0x-A02*

Power Consumption:

• Operating : 79W (Max) (Brightness+CPU @ 100%)

TFT Characteristics:

Global Computer Specifications:

• Installed OS : Microsoft® Windows® XP Professional w/SP2

• Flash Drive : 4GB 2.5” Flashdrive ATA-3

• Compact Flash : Type I & II Compatible (with eject button)

Additional computer specifications are explained in table below.

HT MMC01-A0y:*

HT MMC04-A0y:*

HT MMC03-A0y:*

• Processor : Intel®Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

• Processor : Intel®Celeron®M 600MHz, ULV, Zero-Cache

• Front Side Bus : 400MHz

• Chipset : Intel® 852GM

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE supports UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

*Format HT MMC0x-A0y: x = Processor Option, y = AC or DC Option

Processor Board / Backpack Options:

• TFT Technology : Color Active Matrix LCD Module MVA Premium™ Technology (TFT)

• TFT Size : 19.0 inch

• Pixel Number : 1280 x 1024

• Pixel Pitch (RGB) : 0.294 (H) x 0.294 (V) mm

• Response Time : 12 ms (TYP) - black to white to black

• Contrast Ratio : 600:1 (TYP)

• Light Intensity : 450 cd/m2 (TYP)

• Viewable Angle : 89(Up/Down/Left/Right) (TYP)

• Active Display Area : 376.32 (H) x 301.056 (V) mm

• Max Colors : 16.7 millions

• Operating : Temperature -15 deg. C to +55 deg. C

- Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C

- Humidity up to 95%

• IP Rating : IP22 (FOA A/FOAC) models (flush mounted only) : IP66 (FOBA/FOBC) models (flush mounted only)

• Compass Safe Dist. : HD 19T03 FOxx + HT MMC0x-A0x Standard: 135cm Steering: 85cm

Safety Considerations:

• Processor : Intel®Pentium®M 745 “Dothan”,1.8GHz,2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 1024MB (Max 1GB)

IND100129-67

Specications - HD 19T03 COxx + HT MMC0x-A0x

Console Models

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HD 19T03 COxx + HT MMC0x-A0x

T E C H N I C A L D E S C R I P T I O N M E C H A N I C A L D E S C R I P T I O N

T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S

This product have been tested / type approved by the following classification societies:

EN60945 4

(IEC945 4th) DNV - Det Norske Veritas ABS - American Bureau of Shipping ClassNK - Nippon Kaiji Kyokai

IACS E10 BV - Bureau Veritas GL - Germanischer Lloyd LRS - Lloyd’s Register of Shipping

Physical Considerations:

• 457.20 (W) x 413.20 (H) x 84.50 (D) mm (with cooler & flange)

• 18.00” (W) x 16.27” (H) x 3.33” (D) (with cooler & flange)

• Weight: 9.5kg (approx)

Environmental Considerations:

• Resistive Factory Mounted Touchscreen (COAC/COBC) 4wire

• HD 19TBR 020-A1 - Desktop/Ceiling Mount Bracket

• HD VESA 19TBR-A1 - VESA bracket for complete unit

• HD TBR BPM-A1 - Backpack mount bracket (for stand-alone use)

• VSD100507-1 Split Cable RS422/484 = MALE to 2 x FEMALE 9P D-SUB

NOTE: Products with factory mounted touchscreen is not type approved

Available Options/Accessories:

• Navigator Push Function : On/Off

• Navigator Rotary Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User I/O Ports:

User Controls - COAA / COAC:

Behind Rubber Hatch - Front (COAA / COAC only):

• USB I/O : 1 x USB TYPE A

Backpack:

• USB I/O : 3 x USB 2.0 TYPE A

• PS/2 Keyboard & Mouse : 2 x PS/2 (female)

• Network LAN : 1 x RJ45 - 10/100Mbps

• Network GBLAN : 1 x RJ45 - 10/100/1000Mbps

• RGB OUT : 1 x 15Pin HD D-SUB (female)

• COM1 RS232 : 1 x D-SUB 9P (male)

• Compact Flash : 1 x CF-Slot with eject button

• If AC Power IN : 1 x Std IEC Inlet (female)

• If DC Power IN : 1 x Screw Terminals

Behind Rubber Hatch - Backpack:

• USB I/O : 1 x USB 2.0 TYPE A

Internal - Backpack:

• COM2 Internal : Serial Control Interface

• Navigator Push Function : On/Off

• Navigator -/+ Buttons Function : Brightness

• Navigator Indicators : Mode Status LEDs

• Navigator On Backpack : On/Off - Push Button Switch

User Controls - COBA / COBC:

Power Specifications:

Power Supply Options & Type Number:

• 115&230VAC - 50/60Hz : HD 19T03 COxx + HT MMC0x-A01*

• 24 VDC : HD 19T03 COxx + HT MMC0x-A02*

Power Consumption:

• Operating : 79W (Max) (Brightness+CPU @ 100%)

TFT Characteristics:

Global Computer Specifications:

• Installed OS : Microsoft® Windows® XP Professional w/SP2

• Flash Drive : 4GB 2.5” Flashdrive ATA-3

• Compact Flash : Type I & II Compatible (with eject button)

Additional computer specifications are explained in table below.

HT MMC01-A0y:*

HT MMC04-A0y:*

HT MMC03-A0y:*

• Processor : Intel®Pentium®M 1.6GHz Low Voltage, 2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

• Processor : Intel®Celeron®M 600MHz, ULV, Zero-Cache

• Front Side Bus : 400MHz

• Chipset : Intel® 852GM

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE supports UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 512MB (Max 1GB)

*Format HT MMC0x-A0y: x = Processor Option, y = AC or DC Option

Processor Board / Backpack Options:

• TFT Technology : Color Active Matrix LCD Module MVA Premium™ Technology (TFT)

• TFT Size : 19.0 inch

• Pixel Number : 1280 x 1024

• Pixel Pitch (RGB) : 0.294 (H) x 0.294 (V) mm

• Response Time : 12 ms (TYP) - black to white to black

• Contrast Ratio : 600:1 (TYP)

• Light Intensity : 450 cd/m2 (TYP)

• Viewable Angle : 89(Up/Down/Left/Right) (TYP)

• Active Display Area : 376.32 (H) x 301.056 (V) mm

• Max Colors : 16.7 millions

• Operating : Temperature -15 deg. C to +55 deg. C

- Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C

- Humidity up to 95%

• IP Rating : IP22 (COAA/COAC) models (flush mounted only) : IP66 (COBA/COBC) models (flush mounted only)

• Compass Safe Dist. : HD 19T03 COxx + HT MMC0x-A0x Standard: 135cm Steering: 85cm

To prevent heat to build up inside the display we recommend installing the unit in a

Safety Considerations:

• Processor : Intel®Pentium®M 745 “Dothan”,1.8GHz,2MB L2 Cache

• Front Side Bus : 400Mhz

• Chipset : Intel® 855GME

• VGA : Intel® Extreme Graphics2 with 2D/3D Graphics

• BIOS : Award 2Mbit Flash BIOS

• IDE Interface : Enhanced IDE UDMA 33/66/100

• Memory : 1 x DDR333Mhz ECC 1024MB (Max 1GB)

Technical Drawings

IND100132-89

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 12T04 BOxx + HT MMC0x-A0x

Plain Model

IND100132-89

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 12T04 BOxx + HT MMC0x-A0x

With Bracket

IND100132-89

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 12T04 FOxx + HT MMC0x-A0x

Flange Model

IND100132-89

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

12” Panel Mounting

Technical Drawings - HD 12T04 FOxx + HT MMC0x-A0x

IND100132-89

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 12T04 COxx + HT MMC0x-A0x

Console Model

This document is the property of Hatteland Display AS.

This document and any authorized reproduction thereof, must not be used in

any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend.

IND100132-90

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 15T06 BOxx + HT MMC0x-A0x

Plain Model

IND100132-90

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 15T06 BOxx + HT MMC0x-A0x

With Bracket

This document is the property of Hatteland Display AS.

This document and any authorized reproduction thereof, must not be used in

any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend.

IND100132-90

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 15T06 FOxx + HT MMC0x-A0x

Flange Model

IND100132-90

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

15” Panel Mounting

Technical Drawings - HD 15T06 FOxx + HT MMC0x-A0x

IND100132-90

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 15T06 COxx + HT MMC0x-A0x

Console Model

IND100132-91

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 19T03 BOxx + HT MMC0x-A0x

Plain Model

This document is the property of Hatteland Display AS.

This document and any authorized reproduction thereof, must not be used in

any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend.

IND100132-91

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 19T03 BOxx + HT MMC0x-A0x

With Bracket

IND100132-91

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 19T03 FOxx + HT MMC0x-A0x

Flange Model

IND100132-91

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

19” Panel Mounting

Technical Drawings - HD 19T03 FOxx + HT MMC0x-A0x

IND100132-91

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 19T03 COxx + HT MMC0x-A0x

Console Model

Accessories

IND100132-199

Technical Drawings - HD 12VESA TBR-A1

12” VESA Bracket

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

IND100132-102

Technical Drawings - HD xxVESA TBR-A1

15” / 19” VESA Bracket

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

IND100132-124

Available in 1,2 and 3 cut pieces.

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD xxTBR CMB-A1

Console Mounting Bracket (CMB)

Technical Drawings - HD xxTBR CMB-A1

Console Mounting Bracket (CMB)

IND100132-124

Available in 1,2 and 3 cut pieces.

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

IND100132-154

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

Technical Drawings - HD 19TBR STD-B1

Mounting Bracket (TBR) 19 inch

IND100132-101

Technical Drawings - HD TBR BPM-A1

Backpack Mount Bracket

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG ﬁle.

IND100129-77

Accessories

Specications - Serial Split Cable

DATA SHEET

DB9 Split Cable Male to Female+Female

Manufacturer : Hatteland Display AS Product : DB9 Split Cable Male to Female+Female Description : COM1 RS422/485 Serial Control Interface Accessory Part Number : VSD100507-1

Last Revised: 22 Feb 2011 Revision#: 03

The spilt cable is required for RS422/485 control of daisy-chained Series 2 Displays and Panel Computers.

Overview:

ACCESSORY

Note: All specifications are subject to change without prior notice!

Part Number Type (Connectors) Length Included in standard delivery?

VSD100507-1

DB9 Split Cable Male to Female+Female

300 +/- 20mm NO

9 Pin DSUB - MALE

9 Pin DSUB - FEMALE 9 Pin DSUB - FEMALE

Illustration:

Pin Assignments:

JACKET

ALUMINUM MYLAR

Color Codes:

1 = BLACK 2 = BROWN 3 = RED 4 = ORANGE 5 = YELLOW 6 = GREEN 7 = BLUE 8 = PURPLE 9 = GREY

INSULATION 24 or 26AWG

CONDUCTOR 24 or 26AWG (7 Strands)

DRAIN WIRE (7 Strands)

PIN (MALE) PIN (FEMALE 1) PIN (FEMALE 2)

1 < - > 1 1 2 < - > 2 2 3 < - > 3 3 4 < - > 4 4 5 < - > 5 5 6 < - > 6 6 7 < - > 7 7 8 < - > 8 8 9 < - > 9 9

Screw pin suited for both screwdriver and hand operation.

4-40 Hex Nuts

Appendixes

IND100474-1

Appendix

Usage and function of software

MMC2 Utility is a Windows program for reading the status for a complete Series 2 product (display module & backpack combined). You can also adjust brightness and set the communication mode on the COM 1 port.

When you start the program the program will gather information from the MMC Backpack and display module and show it in the main window.

This software is preinstalled by factory default, and is available in Windows® Operating System:

“Start Menu / Programs / HATTELAND / MMC2 utility”.

Input Values - Status on MMC2 and Display:

“Type nr:” : The type nr for MMC Backpack and Display attached. “MMC Serial nr 2:” : MMC Backpack serial nr. “Display Serial nr:” : Serial nr on the Display. “Elapsed Display Time:” : How many hours the Display has been powered. “Temperature in MMC Backpack:” : Current temperature inside the MMC Backpack. [Update] button : Updates status. Last update time is shown in status bar.

Communication mode on COM 1:

Shows the current communication mode on COM 1. You can set a new mode by choosing another mode in the dropdown menu list.

[Set Mode] button : Sets the mode selected from the dropdown list.

Adjust Brightness Slider:

Adjust brightness on attached Display.

Menu Options:

Exit : Close the program About : About the program Help : Same help/text as this page

MMC2 Utility - Series 2

IND100241-2

Appendix

Pin Assignments - 5P PS/2 MOUSE

Pin 1: Mouse Data

Pin 3: Ground

Pin 5: Mouse Clock

Pin 2: Not Connected

Pin 4: Vcc +5V

Pin 6: Not Connected

Pin Assignments - USB TYPE A

Pin 2: Negative Data

Pin 1: VCC +5V

Pin 3: Positive Data

Pin 4: Ground

Pin Assignments - RJ45 10/100 LAN

Use category 5 - twisted pair cable

1 2 3 4 5 6 7 8

Pin 01 - TDP Transmit Differential Pair (Positive) Pin 02 - TDN Transmit Differential Pair (Negative) Pin 03 - RDP Receive Differential Pair (Positive) Pin 04 - NC Not Connected Pin 05 - NC Not Connected Pin 06 - RDN Receive Differential Pair (Negative) Pin 07 - NC Not Connected Pin 08 - NC Not Connected

Pin Assignments - 9P Serial COM RS-232

This connector is commonly used for:

5 4 3 2 1

9 8 7 6

Pin 01 - DCD Data Carry Detect Pin 02 - SIN Serial In or Receive Data Pin 03 - SOUT Serial Out or Transmit Data Pin 04 - DTR Data Terminal Ready Pin 05 - GND Ground Pin 06 - DSR Data Set Ready Pin 07 - RTS Request To Send Pin 08 - CTS Clear To Send Pin 09 - RI Ring Indicate

Pinout Assignments - Common Connectors

Pin Assignments - RJ45 10/100/1000 GBLAN

Pin 01 - D0P Differential Pair 0 (Positive) Pin 02 - D0N Differential Pair 0 (Negative) Pin 03 - D1P Differential Pair 1 (Positive) Pin 04 - D2P Differential Pair 2 (Positive) Pin 05 - D2N Differential Pair 2 (Negative) Pin 06 - D1N Differential Pair 1 (Negative) Pin 07 - D3P Differential Pair 3 (Positive) Pin 08 - D3N Differential Pair 3 (Negative)

1 2 3 4 5 6 7 8

Note: Not all connectors may be available on your specic product. This depends on the amount of additional hardware installed from factory,

or customized solutions. These pin assignments are for the common connectors used. Connectors are seen from users Point Of View (POV).

Pin Assignments - 15P HD RGB VGA

Pin 01

Red, analog Pin 02 Green, analog Pin 03 Blue, analog Pin 04 Reserved for monitor ID bit 2 (grounded) Pin 05 Digital ground Pin 06 Analog ground red Pin 07 Analog ground green Pin 08 Analog ground blue Pin 09 +5V power supply for DDC (optional) Pin 10 Digital ground Pin 11 Reserved for monitor ID bit 0 (grounded) Pin 12 DDC serial data Pin 13 Horizontal sync or composite sync, input Pin 14 Vertical sync, input Pin 15 DDC serial clock

5 4 3 2 1

15 14 13 12 11

10 9 8 7 6

Pin Assignments - 5P PS/2 KEYBOARD

Pin 1: Keyboard Data

Pin 3: Ground

Pin 5: Keyboard Clock

Pin 2: Not Connected

Pin 4: Vcc +5V

Pin 6: Not Connected

Pin Ass. - 5P PS/2 KEYBOARD+MOUSE Combined

Pin 1: Keyboard Data

Pin 3: Ground

Pin 5: Keyboard Clock

Pin 2: Mouse Data

Pin 4: Vcc +5V

Pin 6: Mouse Clock

Pin Assignments - USB TYPE B

Pin 2: Negative Data

Pin 3: Positive Data

Pin 4: Ground

Pin 1: VCC +5V

Pin Assignments - FIREWIRE IEEE-1394

Pin 01 - VCC Power Pin 02 - GND Grounding for power and inner cable shield Pin 03 - TPB- Twisted Pair B- Receive Strobe, Transmit Data

Pin 04 - TPB+ Twisted Pair B+ Receive Strobe, Transmit Data

Pin 05 - TPA- Twisted Pair A- Transmit Strobe, Receive Data

Pin 06 - TPA+ Twisted Pair A+ Transmit Strobe, Receive Data

1 3 5

2 4 6

Pin Assignments - 5P S-VHS/S-VIDEO

Pin 1: Ground (Y)

Pin 3: Y - Intensity (luminance)

Pin 2: Ground (C)

Pin 4: C - Color (chrominance)

Pin Assignments - RCA/BNC 1P COMP. VIDEO

Ground Shield

Pin 1: Video Signal

Note: The table above lists commonly-used RS-232 signals and pin assignments, however Serial Communication for Hatteland Display products may vary from product to product to support different end user systems.

Please check additional pin assignments section in this manual for specic

RS-232/RS-422/RS-485 pin assignments for your exact product.

Pinout Assignments - Common Connectors

IND100241-2

Appendix

Pin Assignments - 25P Parallel

Pin 01 - STROBE This signal indicates to the printer that data at PD7..0 are valid. Pin 02 - DATA0 Parallel data bus from PC board to printer. The data line are able to operate in PS/2 compatible bi-directional mode. Pin 03 - DATA1 Same as Pin 02 Pin 04 - DATA2 Same as Pin 02 Pin 05 - DATA3 Same as Pin 02 Pin 06 - DATA4 Same as Pin 02 Pin 07 - DATA5 Same as Pin 02 Pin 08 - DATA6 Same as Pin 02 Pin 09 - DATA7 Same as Pin 02 Pin 10 - ACK Signal from printer indicating that the printer has received the data and is ready to accept further data. Pin 11 - BUSY Signal from printer indicating that the printer cannot accept further data. Pin 12 - PE Signal from printer indicating that the printer is out of paper. Pin 13 - SELECT Signal from printer to indicate that the printer is selected. Pin 14 - AUTO FEED This active low output causes the printer to add a line feed after each line printed. Pin 15 - ERR# Signal from printer indicating that an error has been detected. Pin 16 - INIT# This active low output initialises (resets) the printer. Pin 17 - SLIN# Signal to select the printer sent from CPU board to printer. Pin 18 - GND Ground Pin 19 - GND Ground Pin 20 - GND Ground Pin 21 - GND Ground Pin 22 - GND Ground Pin 23 - GND Ground Pin 24 - GND Ground Pin 25 - GND Ground

13 12 11 10 9 8 7 6 5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

Pin Assignments - 24P DVI-D & DVI-I

Pin 01 T.M.D.S. Data2 - (Digital - RED link 1) Pin 02 T.M.D.S. Data2 + (Digital + RED link 1) Pin 03 T.M.D.S. Data2/4 Shield Pin 04 T.M.D.S. Data4 - (Digital - GREEN link 2) Pin 05 T.M.D.S. Data4 + (Digital + GREEN link 2) Pin 06 DDC Clock Pin 07 DDC Data Pin 08 Analog Vertical Sync (DVI-I only) Pin 09 T.M.D.S. Data1 - (Digital - GREEN link 1) Pin 10 T.M.D.S. Data1 + (Digital + GREEN link 1) Pin 11 T.M.D.S. Data1/3 Shield Pin 12 T.M.D.S. Data3 - (Digital - BLUE link 2) Pin 13 T.M.D.S. Data3 + (Digital + BLUE link 2) Pin 14 +5V Power (for standby mode) Pin 15 Ground (for +5V and analog sync) Pin 16 Hot Plug Detect Pin 17 T.M.D.S. Data0 - (Digital - BLUE link 1) and digital sync. Pin 18 T.M.D.S. Data0 + (Digital + BLUE link 1) and digital sync. Pin 19 T.M.D.S. Data0/5 Shield Pin 20 T.M.D.S. Data5 - (Digital - RED link 2) Pin 21 T.M.D.S. Data5 + (Digital - RED link 2) Pin 22 T.M.D.S. Clock Shield Pin 23 T.M.D.S. Clock + (Digital clock + (Links 1 and 2) Pin 24 T.M.D.S. Clock - (Digital clock - (Links 1 and 2) Pin C1 Analog RED Pin C2 Analog GREEN Pin C3 Analog BLUE Pin C4 Analog Horizontal Sync. Pin C5 Analog Ground (return for RGB signals)

DDC = Display Data Channel /// T.M.D.S = Transition Minimized Differential Signal /// PIN C1,C2,C3,C4 = Only present on DVI-I connectors. NOTE: Connector shows a DUAL LINK design, but some units may not support it. Only products with 1920x1200 or more in resolution require / support DUAL LINK.

1 2 3 4 5 6 7 8 C1 C2

9 10 11 12 13 14 15 16 C5

17 18 19 20 21 22 23 24 C3 C4

Additional connector pinouts may be available in third party motherboard manuals, primarly for computers only. Please see manual/drivercd delivered with your product or own section in this user manual.

IND100077-46

Appendix

COMMON ERRORS:

If for some reason there should be something wrong with the picture quality or no picture present, check the symptoms carefully and try to cure it with the hints below:

NO PICTURE / LED BEHAVIOUR:

If there is no light at all in the LED at the FRONT, check power cables. If the LED in front is green then check if the brightness knob is turned to the right (max brightness). If still no picture, check if there is a VGA signal on the External VGA connector. If you have a picture on the external VGA connector please look in BIOS documentation/chapter for correct display settings in BIOS. Lack of image is most likely to be caused by incorrect connection, lack of power, or wrong BIOS settings.

NO SIGNAL OUT/Windows OS:

If the Backpack is booted into Windows without a display/monitor being recognized (cables disconnected, monitor turned off, or KVM switch set to other source), the graphic driver will disable the VGA/RGB output. This will result in no signal output from the unit when it enters Windows.

Rebooting the unit will not solve the problem.

To solve this problem:

- Wait for the unit to fully boot into Windows (check HDD activity LED, when it stops ashing, the unit is nished booting). If login procedure (username + password) is set up on the unit, this must rst be done (type in username and password “blinded”)

- Press hotkey: CTRL + ALT + F1. This will re-enable the VGA/RGB output. This solution

assumes the customer has not changed or turned off the hotkey feature within the properties for the graphic driver in Windows.

Basic Trouble-shooting

IND100077-46

Basic Trouble-shooting

Appendix

FACTORY RESET - RECOMMENDED BIOS SETTINGS:

If the processor board module or the CMOS 6V battery has been changed, the previous BIOS

settings will be lost, and needs to be recongured. Please follow these steps:

On the main menu:

- Load optimized defaults

- Set correct time and date.

Under Standard CMOS Features:

- Drive A = None

Under Advanced BIOS features:

- First BOOT device = USB-CDROM

- Second BOOT device = HDD-0

- Third BOOT device = USB-HDD

Under Advanced Chipset Features:

- Boot display = CRT+LFP

- Panel Number = LVDS on module

- Integrated LAN = Enabled

Under Integrated Peripherales:

--- Onboard device: * AC97 Audio = Disable * AC97 Modem = Disable * USB Keyboard support = Enable * USB Mouse support = Enable

--- Super IO Device * Parallel port = Normal * PWRON After PWR Fail = Former-Sts

Under Power Management Setup:

- Power supply settings = ATX

- Soft-off by PWR-BTTN = Delay 4sec.

Under PnP/PCI Congurations:

- PNP OS Installed = Yes

Press F10 and Y to save settings and exit BIOS. Your product is now set to factory specifcations.

IND100237-1

Declaration of Conformity

We, manufacturer, Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway

declare under our sole responsibility that the

JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD, HT STD, HD MMD, HM MMD, HT MMC

and HD MMC product ranges is in conformity with the following standards in accordance with the EMC Directive.

Low Voltage Directive 2006/95/EC

EN 60950

EMC Directive 2004/108/EC

EN 55022 Class A

EN 55024

Signature:........................................................

Frode Grindheim

Vice President Product Management

Nedre Vats, Norway

CE MARK FIRST AFFIXED DATE (11 March 2010)

Signature:........................................................

Arne Kristiansen

Site Manager - Test & Commission Division

Oslo, Norway

Declaration of Conformity

We, manufacturer, Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway

declare under our sole responsibility that the products listed below comply with

FCC 47 CFR Part 15, Subpart B, Class A:

JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD,

HT STD, HD MMD, HM MMD, HT MMC and HD MMC product ranges.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at his own expense.

Signature:........................................................

Frode Grindheim

Vice President Product Management

Nedre Vats, Norway

FCC MARK FIRST AFFIXED DATE (16 February 2012)

Signature:........................................................

Arne Kristiansen

Site Manager - Test & Commission Division

Oslo, Norway

Declaration of Conformity

We, manufacturer, Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway

declare under our sole responsibility that the JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD, HT STD,

HD MMD, HM MMD, HT MMC and HD MMC product ranges is in conformity with IEC 60945 4th (EN 60945:2002) and IACS E10

(where applicable)

IND100077-14

Appendix

Return of goods:

(Applies not to warranty/normal service/repair of products)

Hatteland Display referenced as “manufacturer” in this document.

Before returning goods, please contact your system supplier before sending anything directly to manufacturer. When you return products after loan, test, evaulation or products subject for credit, you must ensure that all accessories received from our warehouse is returned. This applies to cables, powermodules and additional equipment except screws or similar, user manual, datasheets or other written paper documents. Furthermore, the product must not have any minor / medium or severe scratches, chemical spills or similar on the backcover, front frame or glass.

This is needed to credit the invoice 100%. Missing parts will not be subject for credit, and you will not get total credit for returned product. You will either be charged separately or the amount is withdrawn from the credit. If you decide to ship the missing items on the after hand, you will get 100% credit for that particular invoice or items received at manufacturer incoming goods control. Please contact our service/sales department if additional questions

Return Of Goods Information

Make sure you surround the product with the following material (whenever possible):

Use the original packaging from manufacturer, rm foam material, bubble wrap, lots of PadPack paper

or foam chips/polyester wrapped in sealed plastic bags. Please make sure that the unit is protected with a surrounding plastic bag to prevent dust accumulation around the unit.

If you do not have the original packaging or are uncertain how to secure the unit properly,

please consider seeking advice from nearby shipping or transportation ofces, if in doubt!

Do not under any circumstances use loose foam chips, expanded polyester, clothes, cardboard with sharp edges/spikes, too little or nothing to secure the unit inside the box. Do not use cardboard boxes that are clearly too weak or not suitable for securing the unit properly during overseas shipment.

Handling and packing units for return/credit

To prevent damage during shipping and transportation, respect the guidelines below.

IND100077-7

Appendix

Terms

Terms Of Sale And Delivery

1) APPLICATION

The terms of sale and delivery apply for Hatteland Display.

2) PRICE

a) The price is per each, if nothing else has been stated, VAT not included. Price is based on the prices from our suppliers, current custom rates, taxes, rate of exchange and international raw material prices. We reserve ourselves the rights to adjustments in case of alternation on the above mentioned.

b) Included in the price is the supplier’s standard packing. In case of re-packing/smaller quantities we reserve ourselves the right to add an additional sum for warrantable packing according to CECC 0015 (Basic inspection for protection of electrostatic sensitive devices)

3) VALIDITY

If nothing else has been stated in our quotation, the offer is valid for 30 days from the date of quotation.

4) PACKAGE QUOTATION

A package quotation means that all the components offered, must be ordered by us. If one component or more are removed from the quotation, the prices given in the package quotation are not valid.

5) TERMS OF PAYMENT

Cash on delivery or payment in advance. Net granted for companies, schools and institutions only, according to agreement. In case of too late payment 1.5% interest/month will be charged. Seller has mortage rights in the goods delivered until the purchase price, additional interests and charges have been paid in full. Accepted bill is not considered as payment until it has been honoured in full.

6) TIME OF DELIVERY

The quoted time of delivery is based on information from our suppliers. We disclaim any responsibility for the consequences of any delay or cancellation from our suppliers. Belated delivery gives not solely the right for cancellation.

7) DELIVERY POINT OF TIME

Goods are considered delivered to customer when handed over to charterer.

8) FREIGHT / PACKING / FORWARDING FEE

Hatteland Display charge NOK 50,- in forwarding fee for orders below NOK 1000,-. Freight charge according to expenses for orders above NOK 1000,-. VAT not included.

9) COMPLAINT

By receipt customer must check goods for obvious defects which have to be claimed within 8 days from receipt. Otherwise acceptance of complaint can not be counted on.

10) WARRANTY / SERVICES

Time of warranty is calculated from our date of shipment, and applies to the extent that we are covered by our supplier’s warranty regulations. The warranty does no longer apply if: I) there has been encroached upon the goods without seller’s consent

II) terms of payment is not fullled

III) the goods have been damaged due to unskilled treatment IV) components which are sensitive for static electricity have not been unpacked and treated in a secure way. Minimum requirements: CECC 00015’s standards for handling of such components. The warranty does not include fair wear and tear.

11) RESPONSIBLITY

Seller undertake to deliver faultless and functional capable goods according to existing technical specications. Seller disclaim

responsibility for any damage or loss which directly or indirectly may be caused due to failure or defect with the delivered goods, if carelessness from the seller can be limited up to the cost of the goods. The supplier’s responsibility for defects with the supplied goods do not include secondary damage or loss.

IND100077-7

Appendix

Terms

INSTRUCTIONS FOR THE CONSIGNEE

12) CANCELLATION / RETURN

Binding sales contract is concluded when we have conrmed customer’s purchase order. Any disagreements in our order conrmation

must be reported to seller within 6 days. The agreement can not be altered without our permission, after acceptance from our supplier. If goods are wanted to be returned, a Return No must be assigned from seller. Returned goods without a Return No will not be accepted. By return of stock listed goods, 20% return fee is charged. Returned goods are shipped on customer’s account and risk.

13) LOAN, RENT and DEMO

When borrowing of goods for demo/test, the date of return must be added to the document. If no date has been stated, date of return is two weeks from the date of the document. Before return, seller must be contacted for a Return No (RMA). Goods which have been sold with an agreed right of return within stated terms, shall also have a Return No. The Return No must be obtained before the stated date of return. Returned goods without a Return No, or which have not been packed in original packing, will not be accepted.

14) LIMITATIONS

If any of our suppliers claim limited delivery terms towards us, our terms of delivery will be restricted according to those.

15) SOFTWARE

Sold or borrowed software is not allowed to be copied or spread in other ways, without a written permission.

16) RE-EXPORT

Goods delivered from seller may be subject to special rules of exportation in their supplier’s native country. Buyer is responsible to obtain necessary permissions for further export/re-sale.

17) QUESTION IN DISPUTE

To settle any dispute the Karmsund Herredsrett is approved the legal venue.

1) CONTROL

Control the goods immediately by receipt. Examine the quantity towards the invoice/packinglist/shipping documents. Look for outward defects on the packing which may indicate damage on or loss of contents. Control the container and the seals for any defects.

2) SECURING EVIDENCE

When defects on the goods have been found, evidence must be secured, and seller must be informed. Call the transporter and point out the defects. Add a description of the defects on the goods receipt, the forwarder’s copy of the way-bill or on the driving slip.

3) RESCUE

Bound the damage. Try to restrict the damage and the loss. Seller will compensate expences incurred due to reasonable security efforts in addition to damage and loss.

4) COMPLAINT

Write immediately a complaint to the transporter or his agent. Forward immediately the complaint to the transporter or his agent, and hold the transporter responsible for the defects. The complaint must be sent at the latest:

- for carriage by sea: within 3 days

- for overland / air transportation within 7 days

5) DOCUMENTATION

For any claims the following documentation is required, and must be forwared to the company or their agent: invoice, way-bill and/or bill of landing, and/or statement of arrival, inspection document, besides a copy of the letter of complaint to the transporter.

IND100351-2

Appendix

Pixel Defect Policy

PIXEL DEFECT POLICY

Dot-defects (Bright or dark spots on the panel)

Due to the effect that dot failures are part of the TFT technology such failure occurrence cannot be prevented basically. Even though dot defects usually occur during production process, new defects can appear within the lifespan of a TFT display. Neither the production at LCD-supplier nor the use of a LCD-Monitor after shipment can be inuenced by Hatteland Display. Hence Hatteland Display cannot be made responsible for such dot failures. However Hatteland Display understand and accepts the responsibility towards the customers for the delivery of new displays, therefore accepts a limitation on dot defect’s occurrence on new displays delivered to the customer.

PRINCIPLES

a. One pixel consists of 3 dots (Red, Green and Blue)

b. Dot defects are differentiated between:

• Bright dot defects: Spot on the panel appear as pixels or sub pixels that are always lit. Non-extinguishing dot.

• Dark dot defects: Spot on the panel appear as pixels or sub pixels that are always dark (off). Non-lightening dot.

c. Inspector observes the LCD from normal direction at a distance of 50cm above the worktable. Dark dots are counted under entire white screen. Bright dots are counted under entire black screen.

d. Dot failures within tolerances below do not qualify for warranty claims.

PIXEL DEFECT TOLERANCES

Bright dot

≤ 4 dots

Two adjacent bright dots * ≤ 2

Distance between 2 dot defects * ≥ 15mm

Dark dots ≤ 8

Total number of bright or dark dot defects. * ≤ 8

* 1 or 2 adjacent dot defects considered as 1 defect.

EXTRAORDINARY CIRCUMSTANCES

Possible cases which cannot be inuenced either by customer or Hatteland Display.

Examples for extraordinary circumstances:

• Allocation from LCD-Supplier

• Outstanding high number of LCD-panels with bright dots but within LCD-suppliers Specication.

• Sharply increased demand by customer

In such cases a mutual agreement is inevitable.

Examples:

• Acceptance of bright dots in “non-critical” display areas.

• Acceptance of bright dots with dened color.

Last Revised July 2007

IND100077-45

Appendix

Notes

General Notes:

- The unit is type approved according to EN60945 (1997), 4.4, equipment category b) protected from the weather.

- Use of brightness and push buttons may inhibit visibility of information at night.

- Other type approvals applies for the different products. Please see Testing & Approvals Overview section in this manual for more information.

Safety Considerations

To prevent heat to build up inside the display we recommend installing the unit in a vertical position +/- 40 degrees maximum. We also recommend adding forced cooling in applications where;

- Vertical mounting angle is above +/- 40 degrees

- Operating temperature is above 25C

- Ventilation area around unit is restricted.

Fans should be mounted to enhance natural airflow directed upwards through the unit.

Appendix

IND100077-44

Revision History

Rev. By Date Notes

1 SE 04 May 06 First release, User Manual for Display Module and MMC2 backpack.

2 SE 14 Sep 06 Revised specications and added touch screen chapter.

Revised general incorrect text where needed.

Type approval page removed, and information merged with the respective product specication pages.

3 SE 26 Jan 07 Minor text changes.

Revised OS S/N Sticker location on backpack. Moved from underside to beside JHD S/N label.

4 SE 28 Feb 07 Minor text changes, and specications updated.

Added drawings for VESA Bracket accessory. Added drawings for Backpack Mount Bracket accessory.

5 SE 15 Mar 07 Specications and technical drawing now cover all BOxx and COxx models available.

BOAA, BOBA, BOAC, BOBC (Bracket models) and COAA, COBA, COAC, COBC (Console models).

6 SE 18 Jul 07 Specications revised. Installation chapter revised.

Added Technical Drawings for Console Mounting Bracket (CMB) accessory. General revision of text elements where needed.

Prepared pages for the FOxx models (ange).

7 SE

TØ

18 Oct 07 Specications revised (ABS type approved) and Intel® Pentium®M 2.0Ghz cpu now added as option.

Revised wrong type numbers in manual for backpack from HT MMC01-xxx to HT MMC0x-A0x to reect sales

standard. Added pixel defect policy section. Revised installation chapter (cleaning of glass and installation precaution for glass edges/panel cut-out)

8 SEAK23 Nov 07 Specications revised (ClassNK type approved) where applicable.

Added note about touch screen products not type approved on specifcation pages

Added FOxx (ange) models with drawings and specications.

Revised written Type Numbers HT MMC0x-A01 to HT MMC0x-A0x where needed.

9 SE 18 Nov 08 Revised general chapter text.

Revised Contents Of Package (added Fxxx Flange information)

Added inches to all technical drawings and specications measurements

Revised installation chapter (Protective Plastic Film)

Revised specications regarding CPU options. (No 2.0GHz anymore)

10 SE 17 Dec 08 Specications revised (LRS type approved) where applicable.

11 SE 14 Jan 09 Revised COxx and FOxx drawings (TOP view and SIDE view) for 12,15 and 19 inch.

12 SEKO26 Mar 09 Revised specications regarding 2.0GHz CPU (replaced by 1.8GHz)

Added HD 19TBR STD-B1 to accessories and revised specications.

13 SEMM22 May 09 Changed location for Warranty Label.

14 ANSE07 Jan 2010 Added introduction chapter (page 9)

Revised specication pages regarding (IP66/IP22) (page 30-38)

15 DH

OJ SE

09 Dec 2010 Revised Contents of Package, added more typenumbers (page 5)

Revised Flange Mounting instructions and illustrations (page 17,42,46,51)

Revised Specications, added typenumbers, added Type Approvals, revised Flush Mount text (page 31,34,37)

16 SE 07 Mar 2011 Revised Contents of Package (Documentation and Driver DVD/User Manual) (page 5)

Revised company related (page 1, 8) Revised Accessories List for 12,15,19 (page 30,31,32,33,34,35,36,37,38) Split Bracket drawings into 2 pages. “Plain Model” / “With Bracket” for 12,15,19 inch (page 40,41,45,46,51,52) Added 12 inch VESA bracket drawing (page 56) Added Serial Split Cable accessory (page 62)

17 VM

BB SE

14 Aug 2013 Revised throughout the manual with latest company related material, prole, layout etc.

Added note and illustration of smaller serial label, page 12 Revised CE and FCC Declaration of Conformity, page 69

www.hatteland-display.com

Hatteland HD 12T04, HD 15T06SERIES, HT MMC0* A0, HD 19T03 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
