User Manual HT 216 / HT 416

Updated: 02 May 2012 Doc Id: INB100084-1 (Rev 14)

Created: 363 Approved: 6987

HT 216 xxx-Ayyy HT 416 xxx-Ayyy

xxx=standard or customized

yyy=conguration dependent

USER MANUAL

HT 216 / HT 416 - Maritime Rack Computers

Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway

Tel: (+47) 4814 2200 - mail@hatteland-display.com - www.hatteland-display.com

Please visit www.hatteland-display.com for the latest electronic version of this manual.

Aamsosen, N-5578 Nedre Vats, Norway

Information in this manual is copyrighted to the respective owners. All rights are reserved by

Hatteland Display AS. This information may not, in whole or in part, be copied, photocopied, reproduced,

translated or reduced to any electronic medium or machine-readable form without the prior written consent

of Hatteland Display AS.

The products described, or referenced, herein are copyrighted to the respective owners.

The products may not be copied or duplicated in any way. This documentation contains proprietary

information that is not to be disclosed to persons outside the user’s company without prior written consent

of Hatteland Display AS.

The copyright notice appearing above is included to provide statutory protection in the event of

unauthorized or unintentional public disclosure.

All other product names or trademarks are properties of their respective owners !

WARNING: This is a class A product. In a domestic environment this product may cause radio interference

in which case the user may be required to take adequate measures.

IND100206-22

INB100084-1 (Rev 14)

Contents

Contents .................................................................................... 3

Contents of package ..........................................................................5

General ...................................................................................... 7

About this manual ...............................................................................8

About Hatteland Display .....................................................................8

www.hatteland-display.com ................................................................ 8

Contact Information ............................................................................ 8

Computers introduction ...................................................................... 9

Basic Construction ...........................................................................10

Product Labels (Examples) .............................................................. 12

Serial Number Label Placement and Layout (external) ...............12

Operating System Serial Number Label Placement (external) ....12

Installation ............................................................................... 13

Installation and mounting of computers ............................................14

Cables ..............................................................................................15

Conguring DC power input housing connector ...........................15

Ferrites .............................................................................................15

Sliding Rails - HT 00250 OPT-A1 .....................................................16

Computer Upgrade Precaution Note ................................................ 17

Operation .........................................................................................18

Front area - HT 216 computer ......................................................18

Front area - HT 416 computer ......................................................18

Physical Connections ....................................................................... 20

Connector area - HT 216 computer .............................................20

Connector area - HT 416 computer .............................................20

Specications ......................................................................... 23

Specications - HT 216 .................................................................... 24

Specications - HT 416 .................................................................... 25

Contents

IND100206-22

INB100084-1 (Rev 14)

Technical Drawings ................................................................ 27

Technical Drawings - HT 216 ...........................................................28

Technical Drawings - HT 416 ...........................................................29

Technical Drawings - Accessories ........................................ 31

Technical Drawings - HT 00250 OPT-A1 .......................................... 32

Appendixes ............................................................................. 33

Pinout Assignments - Common Connectors .....................................34

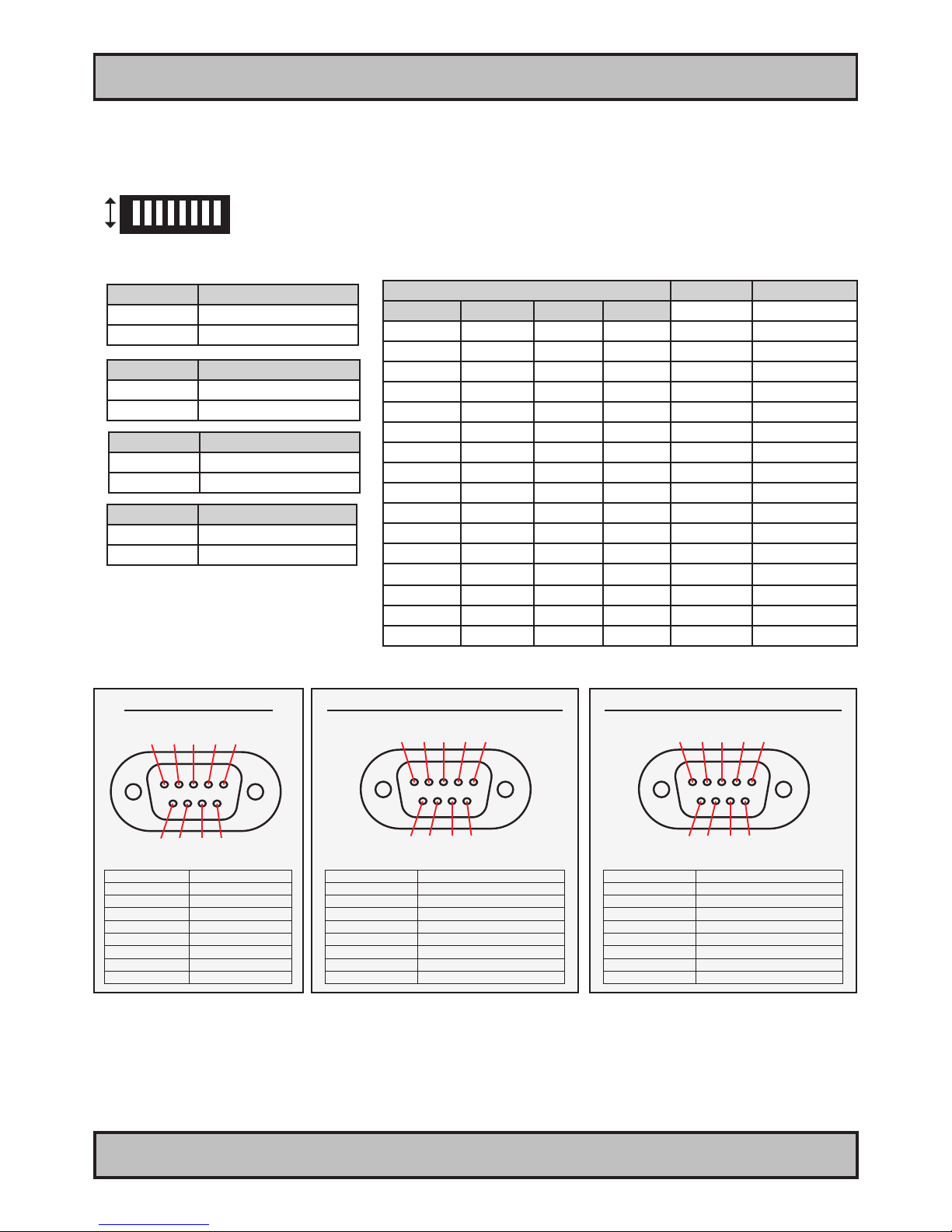

Pinout Assignments - HT 216/HT 416 Additional COM Ports ...........36

Trouble-shooting ..............................................................................37

Declaration of Conformity .................................................................38

Return Of Goods Information ........................................................... 39

Terms ................................................................................................40

Revision History ...............................................................................43

IND100207-10

INB100084-1 (Rev 14)

Item Description Illustration

FS-CABLE EU

1 pcs of power cable European Type F “Schuko” to IEC. Length 1.8m

EUR TYPE F

IEC

80099

1 pcs of power cable US Type B plug to IEC. Length 1.8m

US TYPE B

IEC

MEDIA STD01

Documentation and Driver DVD for factory installed components like mainboard, IDE, network etc.

Note: To use this DVD disc you will need an external USB CD/DVD drive or provide means of getting contents copied over via USB memory stick/network to the operating system. You can alternatively download the drivers from our website www.hatteland-display.com

Menu and Driver

browser for

Microsoft® Windows®

1 pcs of cable relief bracket including screws.

Test Reports papers: 1 pcs of Product Declaration 1 pcs of Computer Checklist 1 pcs of Burn-In Test Certificate

This product is shipped with:

Contents of package

Package may also include: (based on accessories/options ordered)

Item Description Illustration

HT 00215 OPT-A1

Recovery Kit (USB Flash) For reverting back to factory/customized installations.

Note: Only applicable for factory delivered units with HDD/SSD hardware.

HT 00250 OPT-A1

Mounting rails kit 2 x 20 inch long ball bearing sliding rails. 19 inch Rack compatible.

For computers that include 3rd party hardware; the package / accessories box may also include additional CD / HW / Information from 3rd party supplier(s).

INB100084-1 (Rev 14)

This page left intentionally blank

INB100084-1 (Rev 14)

General

Hatteland Display AS

IND100077-1

INB100084-1 (Rev 14)

General

About this manual

The manual contains electrical, mechanical and input/output signal specications. All specications in this manual,

due to manufacturing, new revisions and approvals, are subject to change without notice. However, the last update and revision of this manual are shown both on the frontpage and also in the “Revision History” chapter at the end of the manual.

Furthermore, for third party datasheet and user manuals, please see dedicated Documentation and Driver DVD delivered with the product or contact our sales/technical/helpdesk personnel for support.

About Hatteland Display

Hatteland Display is the leading technology provider of specialized display and computer products, delivering high quality, unique and customized solutions to the international maritime, naval and industrial markets.

The company represents innovation and quality to the system integrators world wide. Effective quality assurance and investment in sophisticated in-house manufacturing methods and facilities enable us to deliver Type Approved and Mil tested products. Our customer oriented approach, technical knowledge and dedication to R&D, makes us a trusted and preferred supplier of approved solutions, which are backed up by a strong service network.

www.hatteland-display.com

You will nd our website full of useful information to help you make an informed choice as to the right product for your needs. You will nd detailed product descriptions and specications for the entire range on Displays, Computers and

Panel Computers, Military solutions as well as the range of supporting accessories. The site carries a wealth of information regarding our product testing and approvals in addition to company contact information for our various

ofces around the world, the global service centers and the technical help desk, all ensuring the best possible

support wherever you, or your vessel, may be in the world.

Contact Information

Head ofce, Vats / Norway:

Hatteland Display AS

Åmsosen

N-5578 Nedre Vats, Norway

Tel: +47 4814 2200

Fax: +47 5276 5444

mail@hatteland-display.com

Sales ofce, Frankfurt / Germany:

Hatteland Display GmbH

Werner Heisenberg Strasse 12,

D-63263 Neu-Isenburg, Germany

Tel: +49 6102 370 954 Fax: +49 6102 370 968

Sales ofce, Oslo / Norway:

Solbråveien 20

N-1383 Asker

Norway

Tel: +47 4814 2200

Fax: +47 5276 5444

Sales ofce, Aix-en-Provence / France:

Hatteland Display SAS

ACTIMART, 1140 RUE AMPERE, BP 50 196

13795 AIX-EN-PROVENCE, CEDEX 3

France

Tel: +33 (0) 4 42 16 47 57 Fax: +33 (0) 4 42 16 47 00

Sales ofce, San Diego / USA:

Hatteland Display Inc.

11440 W. Bernardo Court, Suite 300

San Diego, CA 92127, USA

Tel: +1 858 753 1959 Fax: +1 858 430 2461

For an up-2-date list, please visit www.hatteland-display.com/locations

Computers

IND101057-2

INB100084-1 (Rev 14)

General

Computers introduction

Hatteland Display’s range of type-approved computers is designed to perform in harsh environments while providing the performance and flexibility you expect. We offer rack mount and black box/standalone computer solutions for every need. Our computers are used by system integrators, boat builders and end-users and can be found on all vessel types, all over the world.

If you are looking for a high quality computer for navigation, monitoring or entertainment solutions, Hatteland Display can fulfil your high expectations at a reasonable cost.

Our computer range covers all eventualities and requirements. We offer a wide range of processor choices, HDD and power options, and solid state technology, neatly engineered within industry standard form factors such as 19” rack mount, 2U, 3U and 4U.

We continually develop our computers portfolio to make the best use of emerging computer technology so you can be sure that your Hatteland Display computer offers the power needed to run modern applications, with the flexibility to be installed wherever you want, for any marine use.

Designed to perform in harsh environments...

Winner of Red Dot awards 2009 / 2007

In 2009 the Hatteland Display HT C01 standalone computer won a prestigous Red Dot Award with Honourable Mention distinction, sucessfull detail solution.

The Design Zentrum Nordrhein Westfalen in Germany has been marking outstanding international product design with its famous and highly regarded dot since 1955. The Red Dot Product Design Award is an annual international awards scheme where products from all industries are chosen for their innovative visual and industrial design.

In 2007 the Hatteland Display Series 2 Display/Panel Computers range won the Red Dot Award for the overall design and modular backpack concept, which docks into the screen at the back, comprises either the typical display connections or a fully equipped panel computer. Even the computer backpack can operate on its own as a stand-alone computer.

IND100077-89

INB100084-1 (Rev 14)

General

Basic Construction

Exploded View HT 216

General illustration

Basic Construction

IND100077-89

INB100084-1 (Rev 14)

General

Exploded View HT 416

General illustration

Product Labels (Examples)

IND100240-6

INB100084-1 (Rev 14)

General

Product Labels (Examples)

Serial Number Label Nomenclature

Product Type

Manufacturer & Country

Input Voltage & Power Rating

Manufactured Date yyyy-ww

Serial Number Label Placement and Layout (external)

Operating System Serial Number Label Placement (external)

Note: This location also apply for HT 416 units.

AA XXX AAA-Axxx-XXXXXX NOMENCLATURE - A=Letters, X=Numbers HT 216 STD-A111-000005 Example || ||| ||| |||| ||||||

|| ||| ||| |||| ¤----- Serial Number, 7 digits || ||| ||| |¤¤¤------- Conguration ID (for components like memory, storage etc.) || ||| ||| ¤---------- Power Input ID (A=90-264VAC) || ||| ||¤------------ Installed Operating System ID / No Installed OS ID || ||| ¤¤------------- Abbreviation for Standard (ST) or reserved customer ID || ||¤---------------- Chassis Revision ID || |¤----------------- Electronics / Mainboard / Technology Revision ID || ¤------------------ Chassis Form Factor (2=2U, 4=4U) ¤¤-------------------- Manufacturer ID / Product Series ID

Revision Label

Barcode 128 (SNO)

Barcode 128 (TYP+SNO)

Hardware Revision (HWcode)

Production Code

Label Size: 6cm x 2cm

Label Size: 7cm x 2.8cm

INB100084-1 (Rev 14)

Installation

IND100210-1

INB100084-1 (Rev 14)

Installation

Installation and mounting of computers

1. Units may be intended for various methods of installation or mounting (rack mounting, panel mounting,

bracket mounting, ceiling/wall mounting); for details, please see the relevant mechanical drawings.

2. Adequate ventilation is a necessary prerequisite for the life of the unit. The air inlet and outlet openings must

denitely be kept clear; coverings which restrict ventilation are not permissible. The product might be without

any ventilation aperatures which means pt.2 does not apply.

3. Exposure to direct sunlight can cause a considerable increase in the temperature of the unit, and might under certain circumstances lead to overtemperature. This point should already be taken into consideration when the bridge equipment is being planned (sun shades, distance from the windows, ventilation, etc.)

4. Space necessary for ventilation, for cable inlets, for the operating procedures and for maintenance, must be

provided.

5. To further improve the cooling of the unit we recommend installing Cooling Fans underneath blowing upwards into the unit air inlet. This may be required in high temperature applications and also when there is reason to expect temperature problems due to non-optimal way of mounting.

6. For DC powered computer units proper grounding must be achieved by connecting a wire from the unit’s ground (GND) screw (as indicated on the unit with a icon) to the grounding in your installation setup.

The wire should have a cross sectional area of at least 6mm

The GND screw is located near the other I/O

connectors. Please review the “Physical Overview” chapter for further help.

7. Expose to heavy vibration and acoustic noise might under certain circumstances affect functionality and expected lifetime. This must be considered during system assembly and installation. Mounting position must

carefully be selected to avoid any exposure of amplied vibration.

General mounting instructions

1. The useful life of the components of all Electronics Units generally decreases with increasing ambient

temperature; it is therefore advisable to install such units in air-conditioned rooms. If there are no such facilities, these rooms must at least be dry, adequately ventilated and kept at a suitable temperature in order to prevent the formation of condensation inside the unit.

2. With most Electronic Units, cooling takes place via the surface of the casing. The cooling must not be

impaired by partial covering of the unit or by installation of the unit in a conned cabinet.

3. In the area of the wheel house, the distance of each electronics unit from the magnetic standard compass or the magnetic steering compass must not be less than the permitted magnetic protection distance. This distance is measured from the centre of the magnetic system of the compass to the nearest point on the

corresponding unit concerned. The exact distance is often mentioned in the specic product specications.

4. Transportation damage, even if apparently insignicant at rst glance, must immediately be examined and be

reported to the freight carrier. The moment of setting-to-work of the equipment is too late, not only for reporting the damage but also for the supply of replacements.

5. The classication is only valid for approved mounting brackets provided by Hatteland Display. The unit shall

be mounted stand-alone without any devices or loose parts placed at or nearby the unit. Any other type of

mounting might require test and re-classication.

General Installation Recommendations

IND100210-1

INB100084-1 (Rev 14)

General Installation Recommendations

Installation

Cables

Use only high quality shielded signal cables. For RGB/DVI cables use only cables with separate coax for Red, Green and Blue.

Conguring DC power input housing connector

Note: Only applicable for certain models!

For installations that require DC power input, use the provided 2-pin DC Power Input housing with internal cable screw terminal.

1: Open the housing 2: Unmount the fasteners. (FIG 1) 3: Mount power cables to screw terminal (FIG 2). Note polarity! 4: Secure the cable tightly with fasteners (FIG 3, FIG 1) 5: Close the housing

Note: Please check polarity before connecting any cables to the screw terminal.

Ferrites

On selected products, the ferrites prevent high frequency electrical noise (radio frequency interference) from exiting or entering the equipment. To verify if your product require this, please see the “Physical Overview” chapter in this manual. The

ferrites are part of the contents of the package also specied in the

“Contents Of Package” chapter early in this manual. The ferrites

must be mounted on specic cables to fully comply with the

Type Approvals!

The ferrites should be mounted (clipped in place on the cable as shown in illustration) as close as possible to the cable connector on the rear side of the computer product. Open up the ferrite, place the cable inside as shown in FIG1, and then gently close it until a click can be heard (FIG2).

Screw terminal

FIG 1

FIG 2

FIG 3

+ -

FIG1

To computer

FIG2

To computer

IND100210-7

INB100084-1 (Rev 14)

General Installation Recommendations

Installation

Sliding Rails - HT 00250 OPT-A1

Suitable for use with 19 Inch rack mounting. Load rating up to 52kg, 9.6mm slide thickness. Lock-out. Front Disconnect. Optional enclosure mounting brackets. Note: Manufactured by 3rd party. Sliding rails representation

below are simplied in terms of visual appearance.

1: Pull out the rails to extend it fully

2: Note the locations of suitable mounting holes on the 2U/4U cabinet for the sliding rails

3: Mount the rails on left and right side of the 2U/4U cabinet. You may need to align the entire slide construction to discover the suitable mounting holes. M4 screws are suitable (included in kit).

4: Mount the additional bracket kit into your 19 Inch rack if needed. Comes complete with brackets, gaskets and mounting screws.

IND100210-4

INB100084-1 (Rev 14)

General Installation Recommendations

Installation

Computer Upgrade Precaution Note

Users who needs to open the computer to change PCI cards, install more memory, or set internal jumpers can do so without voiding the warranty. Before opening a unit’s housing to remove or touch a board, proper ESD measurements must be taken!

1. Operator should ground himself by using a wrist band.

2. The wrist band should be connected to ground via a ground cord.

3. A one megaohm resistor, installed in the wrist connection end of the ground cord, is a safety requirement.

4. Alternatively an Static-dissipative ESD work mat could be positioned at the workplace. The 3M™ 8501 Portable Field Service Kit is a good choice for this purpose.

All assisting persons who might come into contact with the endangered boards must also use the ESD equipment.

CAUTION This unit contains electrostatic sensitive devices. Observe precautions for handling.

INB100084-1 (Rev 14)

IND100133-38

Front area - HT 216 computer

The unit’s operational controls and air lter are located behind the lockable front hatch.

Air Filter

1: Showing unit with hatch closed and front lock. 2: Press gently the

front lock inwards and turn clockwise at the same time to unlock.

3: Showing unit with hatch open to reveal both user

controls and air lter. See next page for details.

Operation

Front area - HT 416 computer

The unit’s operational controls and air lter are located behind the lockable front hatch.

Air Filter

1: Showing unit with hatch closed and front lock. 2: Press gently the

front lock inwards and turn clockwise at the same time to unlock.

3: Showing unit with hatch open to reveal both user

controls and air lter. See next page for details.

Reserved

Power LED

Media Drive

Power Button

HDD LED

HDD

Reserved

Power LED

Media Drive

Power Button

HDD LED

HDD

INB100084-1 (Rev 14)

IND100133-38

Operation

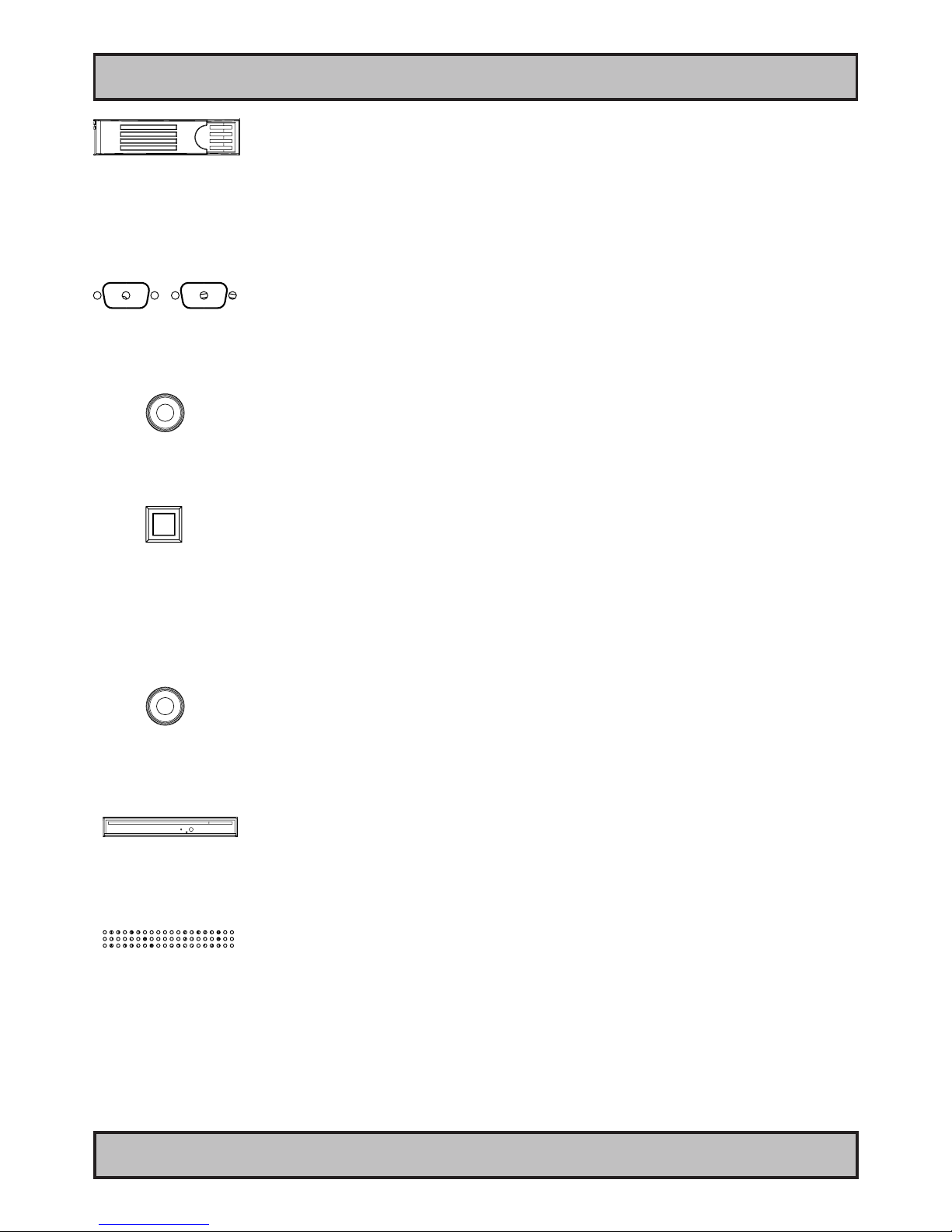

HDD TRAY 1,2,3,4:

Replaceable HDD tray bay which supports 3.5” SATA hard drives. The amount of HDD available and installed is

conguration dependent. By factory default, 1 x HDD is installed. Any HDD should not be replaced or dismounted from

the unit while the operating system is running and the computer unit is turned on. Doing so may cause loss of data or software crashes upon reboot.

RESERVED:

These D-SUB shaped blinded holes are reserved for future applications.

POWER LED:

The Power LED will illuminate static green when the computer unit is powered and turned on.

Power Button:

To turn ON the computer, press down button and release it immediately. The Power LED will illuminate green and any operating system installed will automatically boot. To turn OFF the computer, press down this button and hold it for 3 seconds. The operating system may require additionally tasks to be performed before computer shuts down and turns off the unit. You can also turn off the computer by using the operating system own “shut down” feature. Either to standby mode, hibernation or sleep is also possible from most operating systems.

HDD LED:

The HDD LED will illuminate red when there is read/write activity on any of the installed HDD in the HDD trays. When there is no HDD activity the LED will be off.

MEDIA DRIVE:

By factory default a DVD/CD-RW recorder/player is installed. The drive features an eject button, a read/write activity LED and a small hole to eject any media even if the computer unit is not powered on.

AIR FILTER:

The computer unit features an cleanable / replaceable air lter. This is located onto the front hatch as seen in the

previous page. Clean this regulary (based on environmental factors) to allow the unit to continuously cool properly and to prolong the unit’s lifetime and the components inside.

INB100084-1 (Rev 14)

IND100133-38

Physical Connections

Connector area - HT 216 computer

Note: PCI slots may provide DVI-I or other functionality not visible in the general illustration below.

Power Input

Keyboard PortMouse Port

Network GBLAN

USB 9,8,7,6,5,4,2,0

Mic In, Front Out, Line in

COM 2

PCIe X16 (add2)

LPT

VGA RGB

PCI

PCIe X4

PCI

Connector area - HT 416 computer

Note: PCI slots may provide DVI-I or other functionality not visible in the general illustration below.

COM 1

Center Out, Side Out, Rear Out

Power Input

Network GBLAN

COM 2

PCIe X16 (add2)

LPT

PCI

PCIe X4

PCI

Keyboard PortMouse Port

USB 9,8,7,6,5,4,2,0

Mic In, Front Out, Line in

VGA RGB

COM 1

Center Out, Side Out, Rear Out

Physical Connections

INB100084-1 (Rev 14)

IND100133-38

Power INPUT:

The internal AC power module supports both 115VAC/60Hz and 230/50Hz power input using a standard IEC

European power plug. See specications for more information.

LPT1 Parallel Port INPUT/OUTPUT:

Standard LPT1 Printer/Parallel (SPP/EPP/ECP) port using a D-SUB 25P Female connector. Fasten the cable to the connector using the provided screws on the cable housing itself.

Network INPUT/OUTPUT:

Supports 10/100/1000Mbps Ethernet (LAN). Suitable for twisted pair cables CAT.5E. Make sure the network cable connector ”clicks” into the RJ-45 connector.

PCIe X16 (add2) Slot:

Supports Full Height and Full Length Prole card in one available slot. Cards is normally installed from factory. Please

review the General Installation Recommendations chapter in this manual for more information. Additionally consult the 3rd party manual available on the attached documentation CD delivered with this unit.

PCI Rev2.3 Slots:

Supports Full Height and Full Length Prole card in two available slots. Cards is normally installed from factory. Please

PCIe X4 Slot:

Supports Full Height and Full Length Prole card in one available slot. Cards is normally installed from factory. Please

PS/2 Mouse and PS/2 Keyboard INPUTS:

Connect the PS/2 mouse cable to the PS/2 5P Connector (female). Connect the PS/2 keyboard cable to the PS/2 5P Connector (female).

Physical Connections

INB100084-1 (Rev 14)

IND100133-38

COM1 Serial Port INPUT/OUTPUT:

Supports RS-232 using D-SUB 9P male connector. Fasten the cable to the connector using the provided screws on the cable housing itself.

COM2 Serial Port INPUT/OUTPUT:

Supports RS-422/RS-485 (electronically isolated) using D-SUB 9P female connector. Fasten the cable to the connector using the provided screws on the cable housing itself.

RGB OUTPUT:

Will output a signal from the computer for use with external display or monitor. Connects via a High Density D-SUB 15P Female connector. Fasten the cable to the connector using the provided screws on the cable housing itself.

USB 9,8,7,6,5,4,2,0 INPUT/OUTPUT:

Supports any USB1.1 (12Mbps) or USB2.0 (480Mbps) compliant peripherals. Drivers for most USB devices are usually included in operating system or on separate installation CD’s delivered with Third Party products. USB 1.1 devices will operate in USB 1.1 mode (12 Mbps).

Audio INPUT/OUTPUT:

All connectors are 3.5” Jack Stereo. AC’97 audio support. 7.1 channel. HD Audio. It can be congured via the

operating system to act as 2-channel, 4-channel, 6-channel and 8-channel.

Port 2-channel 4-channel 6-channel 8-channel

Light Blue Line In Line In Line In Line In

Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic in Mic In Mic In Mic In

Gray - - - Side Speaker Out

Black - Rear Speaker Out Rear Speaker Out Rear Speaker Out

Yellow Orange - - Center/Subwoofer Center/Subwoofer

INB100084-1 (Rev 14)

Specications

INB100084-1 (Rev 14)

IND100129-109

Specications - HT 216

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HT 216 STx-Axxx Models

• 430.00 (W) x 80.00 (H) x 460.80 (D) mm (main chassis w/o handles etc)

• 16.93" (W) x 3.46" (H) x 18.14" (D) (main chassis w/o handles etc)

• Weight: 10 kg (approx)

• Power button, power led and HDD Led in front

• Black (EP0301-4040627) Heavy-duty steel 2U Rackmount chassis

• Easy Removable air filter and lockable front hatch door

• Supports 2 x 5¼" disk bays (one slim, one full size)

• Supports 4 x 3½" disk bays

• Supports rear cable strain reliefs with grounding thread

• Suppors rear PCI card support holder, fixed to chassis

• 5 x Internal Cooling fans such as: High & Low pressure, PSU, CPU & PCI.

• Operating : Temperature -15 deg. C to +55 deg. C Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C Humidity up to 95%

HT 216 STD-A324 with:

HT 216 STD-A228 with:

1 x Intel® Core™2 Duo Desktop CPU E6400 - 2.13GHz, 1066MHz FSB, 2MB L2 Cache 2 x 1 GB installed (Dual Channel DDR2 800/667MHz SDRAM, 240-pin DIMM) 1 x 500GB or more* 3.5" SATA, 7200 RPM, 8MB Cache 2 x Intel® 10/100/1000Mbps Ethernet (Teaming, Low Profile) - RJ45 1 x Matrox P690 LP PCIe-X16, 128MB, Max 2048x1536 @ 85Hz with 2 x 29P DVI-I* 1 x Microsoft® Windows® Embedded Enterprise (XP Professional Eng w/SP2c, 32bit)

* If 1600x1200 resolution is used, DVI signals must be set to CVT-RB (Coordinated Video Timing-Reduced Blanking) mode manually.

• System Chipset : Intel® Q965 / ICH8D0

• Graphics : Integrated VGA Chipset, Supports CRT interface 1 x HD DB15F

• Graphics Resolution : Max 2048 x 1536 @ 85Hz

• BIOS : AMI 8MB Flash

• PCI Slots : 2 x PCI Slots 32-bit, 3V and 5V Interface, Half Length and Low Profile

• PCIe-X1 Slots : 1 x PCIe X4, Half Length and Low Profile

• PCIe-X16 Slots : 1 x PCIe X16 (add2), Half Length and Low Profile (Graphic mode)

• Media Drive : 1 x Slim DVD-RW/CD-RW Dual Recorder/Player

• Parallel Port (LPT) : 1 x Bi-Directional Centronics (SPP/ECP/EPP) 1 x DB25F

• Serial Ports : 1 x RS-232 1 x DB9M

• Serial Ports : 1 x RS-232/RS-422/RS-485** (electrical isolated) 1 x DB9F ** Note: Isolated RS485, currently limited to 19200baud

• Ethernet : 2 x 10/100/1000Mbps Gigabit LAN, Realtek RTL8111B 2 x RJ-45

• USB Ports : 8 x USB 2.0 + 2 x internal USB2.0 8 x USB Type A

• Keyboard Port : Standard PS/2 mini DIN connector 1 x PS/2

• Mouse Port : Standard PS/2 mini DIN connector 1 x PS/2

• Audio : On-board Audio Controller, AC97 Codec (7.1 channels, HD Audio) Line In, Line Out, Mic In 6 x JACKS

• Speaker : On-board

• Power Manager : ACPI

T E C H N I C A L D E S C R I P T I O N

A P P R O V A L S & C E R T I F I C A T E S

This product have been tested / type approved by the following classification societies:

IEC 60945 4th (EN 60945:2002) DNV - Det Norske Veritas ABS - American Bureau of Shipping IACS E-10 BV - Bureau Veritas ClassNK - Nippon Kaiji Kyokai GL - Germanischer Lloyd LRS - Lloyd’s Register of Shipping

Physical Considerations:

Compass Safe Distance : HT 216 STx-Axxx Standard: 140cm - Steering: 80cm MTBF (Mean Time Between Failures) : 24790 hours

Environmental Considerations:

Safety Considerations:

Even although the test conditions for bridge units provide for a maximum operating temperature of 55°C, continuous operation of all electronic components should, if possible, take place at ambient temperatures of only 25°C. This is a necessary prerequisite for long life and low service costs.

M E C H A N I C A L D E S C R I P T I O N

Power Specifications:

Computer Specifications: (Standard model)

External Connector Type:

Available Models:

• HT 00215 OPT-A1 = 1 x Recovery Kit (USB Flash)

• HT 00250 OPT-A1 = 2 x 20" ball bearing sliding rail and mounting kit, for 19" Rack

• JH C01MF A-A = 1 x USB Cable 1m, Type A to Chassis mount receptacle

Available Accessories:

* Size indicated is the lowest size available/approved for current revision of data sheet. The unit will support increased disk space in future. Please contact sales for up-to-date status.

• HT 216 ST0-Axxx = No OS

• HT 216 STD-Axxx = Microsoft® Windows® Embedded Enterprise (Win XP Pro Eng w/SP2c, 32bit)

• HT 216 ST3-Axxx = Microsoft® Windows® Embedded Enterprise (Win Server 2003 Eng, 32bit)

• HT 216 ST7-Axxx = Microsoft® Windows® Embedded Enterprise (Win 7 Pro Eng, 32bit)

• HT 216 ST8-Axxx = Microsoft® Windows® Embedded Enterprise (Win Server 2008 Eng, 32bit)

Operating System Typenumbers:

Power Supply Options:

• 115&230VAC - 50/60Hz : HT 216 STx-Axxx model (400W - Autorange) STD IEC

• Power Consumption - Operating : 100W (TYP)

For a full overview of typenumbers, please review the following link: www.hatteland-display.com/pdflink/ind100780-5.php

*Please see user manual/datasheet for more information

INB100084-1 (Rev 14)

IND100129-110

Specications - HT 416

Note: All specifications are subject to change without prior notice!

PRODUCT SPECIFICATIONS - HT 416 STx-Axxx Models

• 431.00 (W) x 176.50 (H) x 443.00 (D) mm (main chassis w/o handles etc)

• 16.97" (W) x 6.95" (H) x 17.44" (D) (main chassis w/o handles etc)

• Weight: 25 kg (approx)

• Power button, power led and HDD Led in front

• Black (EP0301-4040627) Heavy-duty steel 4U Rackmount chassis

• Easy Removable air filter and lockable front hatch door

• Supports 6 x 5¼" disk bays (4 x 5¼" + 2 x slim, one used for air flow)

• Supports 4 x 3½" disk bays

• Supports rear cable strain reliefs with grounding thread

• Suppors rear PCI card support holder, fixed to chassis

• 5 x Internal Cooling fans such as: High & Low pressure, PSU, CPU & PCI.

• Operating : Temperature -15 deg. C to +55 deg. C Humidity up to 95%

• Storage : Temperature -20 deg. C to +60 deg. C Humidity up to 95%

• System Chipset : Intel® Q965 ICH8D0

• Graphics : Integrated VGA Chipset, Supports CRT interface. 1 x HD DB15F

• Graphics Resolution : Max 2048 x 1536 @ 85Hz

• BIOS : AMI 8MB Flash

• PCI Slots : 5 x PCI Slots 32-bit, 3V and 5V Interface, Full Height and Full Lenght

• PCIe-X1 Slots : 1 x PCIe X4, Full Height and Full Lengh

• PCIe-X16 Slots : 1 x PCIe X16 (add2), Full Height and Full Lengh (Graphic mode)

• Media Drive : 1 x Slim DVD-RW/CD-RW Dual Recorder/Player

• Parallel Port (LPT) : 1 x Bi-Directional Centronics (SPP/ECP/EPP) 1 x DB25F

• Serial Ports : 1 x RS-232 1 x DB9M

• Serial Ports : 1 x RS-232/RS-422/RS-485** (electrical isolated) 1 x DB9F ** Note: Isolated RS485, currently limited to 19200baud

• Ethernet : 2 x 10/100/1000Mbps Gigabit LAN, Realtek RTL8111B 2 x RJ-45

• USB Ports : 8 x USB 2.0 + 2 x internal USB2.0 8 x USB Type A

• Keyboard Port : Standard PS/2 mini DIN connector 1 x PS/2

• Mouse Port : Standard PS/2 mini DIN connector 1 x PS/2

• Audio : On-board Audio Controller, AC97 Codec (7.1 channels, HD Audio) Line In, Line Out, Mic In 6 x JACKS

• Speaker : On-board

• Power Manager : ACPI

HT 416 STD-A340 with:

HT 416 STD-A244 with:

1 x Intel® Core™2 Duo Desktop CPU E6400 - 2.13GHz, 1066MHz FSB, 2MB L2 Cache 2 x 1 GB installed (Dual Channel DDR2 800/667Mhz SDRAM, 240-pin DIMM) 1 x 500GB or more, 3.5" SATA, 7200 RPM, 8MB Cache 2 x Intel® 10/100/1000Mbps Ethernet (Teaming, Low Profile) - RJ45. 1 x Matrox P690 PCIe-X16, 128MB, Max 2048x1536 @ 85Hz with 2 x 29P DVI-I* 1 x Microsoft® Windows® Embedded Enterprise (XP Professional Eng w/SP2c, 32bit)

* If 1600x1200 resolution is used, DVI signals must be set to CVT-RB (Coordinated Video Timing-Reduced Blanking) mode manually.

• HT 00215 OPT-A1 = 1 x Recovery Kit (USB Flash)

• HT 00250 OPT-A1 = 2 x 20" ball bearing sliding rail and mounting kit for 19" Rack

• JH C01MF A-A = 1 x USB Cable 1m, Type A to Chassis mount receptacle *Please see user manual/datasheet for more information

T E C H N I C A L D E S C R I P T I O N

A P P R O V A L S & C E R T I F I C A T E S

This product have been tested / type approved by the following classification societies:

Power Specifications:

Physical Considerations:

Compass Safe Distance : HT 416 STx-Axx x Standard: 135cm - Steering: 90cm MTBF (Mean Time Between Failures) : 24790 hours

Environmental Considerations:

Safety Considerations:

M E C H A N I C A L D E S C R I P T I O N

Computer Specifications: (Standard model)

External Connector Type:

Available Models:

Available Accessories:

* Size indicated is the lowest size available/approved for current revision of data sheet. The unit will support increased disk space in future. Please contact sales for up-to-date status.

• HT 416 ST0-Axxx = No OS

• HT 416 STD-Axxx = Microsoft® Windows® Embedded Enterprise (Win XP Pro Eng w/SP2c, 32bit)

• HT 416 ST3-Axxx = Microsoft® Windows® Embedded Enterprise (Win Server 2003 Eng, 32bit)

• HT 416 ST7-Axxx = Microsoft® Windows® Embedded Enterprise (Win 7 Pro Eng, 32bit)

• HT 416 ST8-Axxx = Microsoft® Windows® Embedded Enterprise (Win Server 2008 Eng, 32bit)

Operating System Typenumbers:

Power Supply Options:

• 115&230VAC - 50/60Hz : HT 416 STx-Axxx model (400W - Autorange)

STD IEC

• Power Consumption - Operating : 100W (TYP)

For a full overview of typenumbers, please review the following link: www.hatteland-display.com/pdflink/ind100780-5.php

INB100084-1 (Rev 14)

This page left intentionally blank

INB100084-1 (Rev 14)

Technical Drawings

INB100084-1 (Rev 14)

IND100132-158

Technical Drawings - HT 216

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG le.

INB100084-1 (Rev 14)

IND100132-159

Technical Drawings - HT 416

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG le.

INB100084-1 (Rev 14)

This page left intentionally blank

INB100084-1 (Rev 14)

Technical Drawings - Accessories

INB100084-1 (Rev 14)

IND100132-198

19” Rack Sliding Rail

Technical Drawings - HT 00250 OPT-A1

This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.

Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG le.

LEFT SIDE VIEW

DIMETRIC VIEW 2U

SALES DRAWING HT 00250 OPT-A1 - Sliding Rails Mounting 2U/4U

Note: Sliding rails representation are simplified in terms of visual appearance.

Based on 3rd party original drawn manufacturer illustration.

Units: mm [inches]

123

9 10

1 1 1 2

9 10 11 12

06-01-2011

7251/363

Hatteland Display AS

Åmsosen

N-5578 Nedre Vats

Based on A001845-1

Date:

Mechanical Designer

Projection:

This document is the property of Hatteland Display AS.

This document and any authorized reproduction thereof, must not be used in

any way against the interest of Hatteland Display AS.

Any authorized reproduction, in whole or in part, must include this legend.

Revision:

Approved by:

Drawing number:

HATTELAND DISPLAY STANDARD

Material type and Quality: Surface treatment:

Sheet metal fasteners:

Welding specification

Tolerance:

Aluminium 5052; standard EN 485-2 (1 & 2)

St-37 Alu/Zink; standard EN 10215 (1)

Stainless Steel AISI 316 L; standard EN 4404

(1) TRIKATION (Zinc/Mangan Phosphatizing)

(2) Powder coating RAL 9011 EPOXY STRUCTUR

Du Pont: EP0301-4950327

PSM International or equivalent

(www.psminternational.com)

NS-EN-288-4 ISO 2768-1 middel

Created by:

4701

Date:

23-09-2004

Modified by:

7251

Date:

14-03-2008

Revision

Size: A1 Format

1:1

Colour code:

Scale:

Surface treatment:

SLIDE RAIL with marked holes (A,B,C,D)

A B C D

D C B A

RIGHT SIDE VIEW

A B C D

DIMETRIC VIEW 4U

A B C D

387,30 [15.25]

314,30 [12.37]

164,80 [6.49]

508,00 [20.00]

9,90 [0.39]

12,70 [0.50]

18,40 [0.72]

457,00 [17.99]

76,20 [3.00]

29,00 [1.14]

9,50 [0.37]

69,60 [2.74]

20,60 [0.81]

37,80 [1.49]

41,10 [1.62]

Ø4.6 (4x)

Ø4.6

Ø4.6 Ø4.6

INB100084-1 (Rev 14)

Appendixes

IND100241-2

INB100084-1 (Rev 14)

Appendix

Pin Assignments - 5P PS/2 MOUSE

Pin 1: Mouse Data

Pin 3: Ground

Pin 5: Mouse Clock

Pin 2: Not Connected

Pin 4: Vcc +5V

Pin 6: Not Connected

Pin Assignments - USB TYPE A

Pin 2: Negative Data

Pin 1: VCC +5V

Pin 3: Positive Data

Pin 4: Ground

Pin Assignments - RJ45 10/100 LAN

Use category 5 - twisted pair cable

1 2 3 4 5 6 7 8

Pin 01 - TDP Transmit Differential Pair (Positive) Pin 02 - TDN Transmit Differential Pair (Negative) Pin 03 - RDP Receive Differential Pair (Positive) Pin 04 - NC Not Connected Pin 05 - NC Not Connected Pin 06 - RDN Receive Differential Pair (Negative) Pin 07 - NC Not Connected Pin 08 - NC Not Connected

Pin Assignments - 9P Serial COM RS-232

This connector is commonly used for:

5 4 3 2 1

9 8 7 6

Pin 01 - DCD Data Carry Detect Pin 02 - SIN Serial In or Receive Data Pin 03 - SOUT Serial Out or Transmit Data Pin 04 - DTR Data Terminal Ready Pin 05 - GND Ground Pin 06 - DSR Data Set Ready Pin 07 - RTS Request To Send Pin 08 - CTS Clear To Send Pin 09 - RI Ring Indicate

Pinout Assignments - Common Connectors

Pin Assignments - RJ45 10/100/1000 GBLAN

Pin 01 - D0P Differential Pair 0 (Positive) Pin 02 - D0N Differential Pair 0 (Negative) Pin 03 - D1P Differential Pair 1 (Positive) Pin 04 - D2P Differential Pair 2 (Positive) Pin 05 - D2N Differential Pair 2 (Negative) Pin 06 - D1N Differential Pair 1 (Negative) Pin 07 - D3P Differential Pair 3 (Positive) Pin 08 - D3N Differential Pair 3 (Negative)

1 2 3 4 5 6 7 8

Note: Not all connectors may be available on your specic product. This depends on the amount of additional hardware installed from factory,

or customized solutions. These pin assignments are for the common connectors used. Connectors are seen from users Point Of View (POV).

Pin Assignments - 15P HD RGB VGA

Pin 01

Red, analog Pin 02 Green, analog Pin 03 Blue, analog Pin 04 Reserved for monitor ID bit 2 (grounded) Pin 05 Digital ground Pin 06 Analog ground red Pin 07 Analog ground green Pin 08 Analog ground blue Pin 09 +5V power supply for DDC (optional) Pin 10 Digital ground Pin 11 Reserved for monitor ID bit 0 (grounded) Pin 12 DDC serial data Pin 13 Horizontal sync or composite sync, input Pin 14 Vertical sync, input Pin 15 DDC serial clock

5 4 3 2 1

15 14 13 12 11

10 9 8 7 6

Pin Assignments - 5P PS/2 KEYBOARD

Pin 1: Keyboard Data

Pin 3: Ground

Pin 5: Keyboard Clock

Pin 2: Not Connected

Pin 4: Vcc +5V

Pin 6: Not Connected

Pin Ass. - 5P PS/2 KEYBOARD+MOUSE Combined

Pin 1: Keyboard Data

Pin 3: Ground

Pin 5: Keyboard Clock

Pin 2: Mouse Data

Pin 4: Vcc +5V

Pin 6: Mouse Clock

Pin Assignments - USB TYPE B

Pin 2: Negative Data

Pin 3: Positive Data

Pin 4: Ground

Pin 1: VCC +5V

Pin Assignments - FIREWIRE IEEE-1394

Pin 01 - VCC Power Pin 02 - GND Grounding for power and inner cable shield Pin 03 - TPB- Twisted Pair B- Receive Strobe, Transmit Data Pin 04 - TPB+ Twisted Pair B+ Receive Strobe, Transmit Data Pin 05 - TPA- Twisted Pair A- Transmit Strobe, Receive Data Pin 06 - TPA+ Twisted Pair A+ Transmit Strobe, Receive Data

1 3 5

2 4 6

Pin Assignments - 5P S-VHS/S-VIDEO

Pin 1: Ground (Y)

Pin 3: Y - Intensity (luminance)

Pin 2: Ground (C)

Pin 4: C - Color (chrominance)

Pin Assignments - RCA/BNC 1P COMP. VIDEO

Ground Shield

Pin 1: Video Signal

Note: The table above lists commonly-used RS-232 signals and pin assignments, however Serial Communication for Hatteland Display products may vary from product to product to support different end user systems. Please check additional pin assignments section in this manual for specic RS-232/RS-422/RS-485 pin assignments for your exact product.

Pinout Assignments - Common Connectors

IND100241-2

INB100084-1 (Rev 14)

Appendix

Pin Assignments - 25P Parallel

Pin 01 - STROBE This signal indicates to the printer that data at PD7..0 are valid. Pin 02 - DATA0 Parallel data bus from PC board to printer. The data line are able to operate in PS/2 compatible bi-directional mode. Pin 03 - DATA1 Same as Pin 02 Pin 04 - DATA2 Same as Pin 02 Pin 05 - DATA3 Same as Pin 02 Pin 06 - DATA4 Same as Pin 02 Pin 07 - DATA5 Same as Pin 02 Pin 08 - DATA6 Same as Pin 02 Pin 09 - DATA7 Same as Pin 02 Pin 10 - ACK Signal from printer indicating that the printer has received the data and is ready to accept further data. Pin 11 - BUSY Signal from printer indicating that the printer cannot accept further data. Pin 12 - PE Signal from printer indicating that the printer is out of paper. Pin 13 - SELECT Signal from printer to indicate that the printer is selected. Pin 14 - AUTO FEED This active low output causes the printer to add a line feed after each line printed. Pin 15 - ERR# Signal from printer indicating that an error has been detected. Pin 16 - INIT# This active low output initialises (resets) the printer. Pin 17 - SLIN# Signal to select the printer sent from CPU board to printer. Pin 18 - GND Ground Pin 19 - GND Ground Pin 20 - GND Ground Pin 21 - GND Ground Pin 22 - GND Ground Pin 23 - GND Ground Pin 24 - GND Ground Pin 25 - GND Ground

13 12 11 10 9 8 7 6 5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

Pin Assignments - 24P DVI-D & DVI-I

Pin 01 T.M.D.S. Data2 - (Digital - RED link 1) Pin 02 T.M.D.S. Data2 + (Digital + RED link 1) Pin 03 T.M.D.S. Data2/4 Shield Pin 04 T.M.D.S. Data4 - (Digital - GREEN link 2) Pin 05 T.M.D.S. Data4 + (Digital + GREEN link 2) Pin 06 DDC Clock Pin 07 DDC Data Pin 08 Analog Vertical Sync (DVI-I only) Pin 09 T.M.D.S. Data1 - (Digital - GREEN link 1) Pin 10 T.M.D.S. Data1 + (Digital + GREEN link 1) Pin 11 T.M.D.S. Data1/3 Shield Pin 12 T.M.D.S. Data3 - (Digital - BLUE link 2) Pin 13 T.M.D.S. Data3 + (Digital + BLUE link 2) Pin 14 +5V Power (for standby mode) Pin 15 Ground (for +5V and analog sync) Pin 16 Hot Plug Detect Pin 17 T.M.D.S. Data0 - (Digital - BLUE link 1) and digital sync. Pin 18 T.M.D.S. Data0 + (Digital + BLUE link 1) and digital sync. Pin 19 T.M.D.S. Data0/5 Shield Pin 20 T.M.D.S. Data5 - (Digital - RED link 2) Pin 21 T.M.D.S. Data5 + (Digital - RED link 2) Pin 22 T.M.D.S. Clock Shield Pin 23 T.M.D.S. Clock + (Digital clock + (Links 1 and 2) Pin 24 T.M.D.S. Clock - (Digital clock - (Links 1 and 2) Pin C1 Analog RED Pin C2 Analog GREEN Pin C3 Analog BLUE Pin C4 Analog Horizontal Sync. Pin C5 Analog Ground (return for RGB signals)

DDC = Display Data Channel /// T.M.D.S = Transition Minimized Differential Signal /// PIN C1,C2,C3,C4 = Only present on DVI-I connectors. NOTE: Connector shows a DUAL LINK design, but some units may not support it. Only products with 1920x1200 or more in resolution require / support DUAL LINK.

1 2 3 4 5 6 7 8 C1 C2

9 10 11 12 13 14 15 16 C5

17 18 19 20 21 22 23 24 C3 C4

Additional connector pinouts may be available in third party motherboard manuals, primarly for computers only. Please see manual/drivercd delivered with your product or own section in this user manual.

IND100241-10

INB100084-1 (Rev 14)

Appendix

9P Serial COM RS422

Pin 01 - TXD- Transmit Data Pin 02 - RXD+ Receive Data + Pin 03 - TXD+ Transmit Data + Pin 04 - RXD- Receive Data Pin 05 - GND Ground Pin 06 - N/C Not Connected Pin 07 - N/C Not Connected Pin 08 - N/C Not Connected Pin 09 - N/C Not Connected

5 4 3 2 1

9 8 7 6

Pinout Assignments - HT 216/HT 416 Additional COM Ports

9P Serial COM RS485 Full Duplex

5 4 3 2 1

9 8 7 6

The unit can be configured for RS422 / RS485 communication via a DIP switch SW1. The switches are named DIP1-8. The DIP switch is located on the communication card mounted on the motherboard which are connected to the units 9P D-SUB Comports at the rear of the unit.

12345678

OFF

SW1 DIP1 TYP

OFF RS422

ON RS485

SW1 DIP2 MODE

OFF Full duplex (4-wire mode)

ON Half duplex (2-wire mode)

SW1 DIP3 Switching Signal

OFF Timeout

ON RTS-Signal

SW1 DIP4 Termination

OFF Deactivated

ON Activated

Setting SW1 Timeout Min. Baudrate

SW1 DIP5 SW1 DIP6 SW1 DIP7 SW DIP8

OFF OFF OFF OFF 10.2ms 1200

OFF OFF OFF ON 9.6ms

OFF OFF ON OFF 9.0ms

OFF OFF ON ON 8.4ms

OFF ON OFF OFF 7.8ms

OFF ON OFF ON 7.2ms

OFF ON ON OFF 6.5ms

OFF ON ON ON 5.9ms

ON OFF OFF OFF 4.8ms 2400

ON OFF OFF ON 4.3ms

ON OFF ON OFF 3.7ms

ON OFF ON ON 3.1ms

ON ON OFF OFF 2.5ms 4800

ON ON OFF ON 1.9ms

ON ON ON OFF 1.2ms 9600

ON ON ON ON 0.6ms 19200

9P Serial COM RS485 Half Duplex

Pin 01 - Data- Data Negative Pin 02 - N/C Not Connected Pin 03 - N/C Not Connected Pin 04 - N/C Not Connected Pin 05 - GND Ground Pin 06 - Data+ Data Positive Pin 07 - N/C Not Connected Pin 08 - N/C Not Connected Pin 09 - N/C Not Connected

5 4 3 2 1

9 8 7 6

IND100077-91

INB100084-1 (Rev 14)

Appendix

Trouble-shooting

GENERAL TROUBLE-SHOOTING

CD-ROM FAILURE OR READ/DETECTION PROBLEMS?

If the product are operated/located in a area with extreme condensation, the CD/DVD-ROM drive may not work correctly due to condensation on the read head. Keep the product on for a while until it’s reached normal operating temperature, and retry accessing discs. Otherwise, consider using USB memory sticks or alternative storage devices.

NO CD-ROM AVAILABLE ON YOUR PRODUCT FOR INSTALLING DRIVERS/SOFTWARE?

Please use USB memory sticks, USB Floppy drive, USB CD-Rom Drive or alternative storage devices to transfer or install software on CD-ROM-less units.

RECOVERY/RESCUE IMAGE

IND101744-1 rev 02 - 24 Feb 2012 - 6987/6923/363

RECOVERY / RESCUE IMAGE - QUICK START

The Recovery Kit (USB Flash) will attempt to restore the HDD/SSD partition back to factory default overwriting all current data available on the HDD/SSD device. The recovery image is located either on a hidden partition image located on the computer unit (HT/HM C01 with WinXP only) or it is included as a image on the USB Flash Kit for

HT 216, HT 416, HT B17, HT B18 and HT/HM C01 (Win7 only) computer models. The recovery image  le is not

accessible from any operating system, only by the Recovery Kit (USB Flash) provided by Hatteland Display.

Note that all  les created after  rst time factory boot will be DELETED!

Restore from external USB recovery image (HT 00215 OPT-A1):

1: Insert the USB Flash media into the computer usb connector. 2: Restart the computer.

3: On the  rst screen that appear, press “Delete” or “F2” on the keyboard (depending on BIOS model) to bring up

the BIOS setup screen. 4: Select “Advanced BIOS features” or “Boot“ (depending on BIOS model). 5: Set “Harddisk boot priority” to “USB HDD” as number 1

or select "Hard Disk Drives", then modify "1 st" to "USB: ...." depending on BIOS model.

6: Press F10 and then Enter on keyboard, or “F4” to save settings (depending on BIOS model). 7: Follow the on screen instructions that will be executed from the USB Flash media, such as;

8: After the restore operation is complete, remove the USB Flash Media and restart.

9: The computer is now restored to its original factory state.

10: If rescue failed, an error message will be displayed.

IND100237-1

Declaration of Conformity

We, manufacturer, Hatteland Display AS

Åmsosen, N-5578 Nedre Vats, Norway

declare under our sole responsibility that the

JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD, HT STD, HD MMD, HM MMD, HT MMC

and HD MMC product ranges is in conformity with the following standards in accordance with the EMC Directive.

Low Voltage Directive 2006/95/EC

EN 60950

EMC Directive 2004/108/EC

EN 55022 Class A

EN 55024

Signature:........................................................

Frode Grindheim

Vice President Product Management

Nedre Vats, Norway

CE MARK FIRST AFFIXED DATE (11 March 2010)

Signature:........................................................

Arne Kristiansen

Site Manager - Test & Commission Division

Oslo, Norway

Declaration of Conformity

We, manufacturer, Hatteland Display AS

Åmsosen, N-5578 Nedre Vats, Norway

declare under our sole responsibility that the products listed below comply with

FCC 47 CFR Part 15, Subpart B, Class A:

JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD,

HT STD, HD MMD, HM MMD, HT MMC and HD MMC product ranges.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at his own expense.

Signature:........................................................

Frode Grindheim

Vice President Product Management

Nedre Vats, Norway

FCC MARK FIRST AFFIXED DATE (16 February 2012)

Signature:........................................................

Arne Kristiansen

Site Manager - Test & Commission Division

Oslo, Norway

IND100077-14

INB100084-1 (Rev 14)

Appendix

Return of goods:

(Applies not to warranty/normal service/repair of products)

Hatteland Display referenced as “manufacturer” in this document.

Before returning goods, please contact your system supplier before sending anything directly to manufacturer. When you return products after loan, test, evaulation or products subject for credit, you must ensure that all accessories received from our warehouse is returned. This applies to cables, powermodules and additional equipment except screws or similar, user manual, datasheets or other written paper documents. Furthermore, the product must not have any minor / medium or severe scratches, chemical spills or similar on the backcover, front frame or glass.

This is needed to credit the invoice 100%. Missing parts will not be subject for credit, and you will not get total credit for returned product. You will either be charged separately or the amount is withdrawn from the credit. If you decide to ship the missing items on the after hand, you will get 100% credit for that particular invoice or items received at manufacturer incoming goods control. Please contact our service/sales department if additional questions

Return Of Goods Information

Make sure you surround the product with the following material (whenever possible):

Use the original packaging from manufacturer, rm foam material, bubble wrap, lots of PadPack paper

or foam chips/polyester wrapped in sealed plastic bags. Please make sure that the unit is protected with a surrounding plastic bag to prevent dust accumulation around the unit.

If you do not have the original packaging or are uncertain how to secure the unit properly,

please consider seeking advice from nearby shipping or transportation ofces, if in doubt!

Do not under any circumstances use loose foam chips, expanded polyester, clothes, cardboard with sharp edges/spikes, too little or nothing to secure the unit inside the box. Do not use cardboard boxes that are clearly too weak or not suitable for securing the unit properly during overseas shipment.

Handling and packing units for return/credit

To prevent damage during shipping and transportation, respect the guidelines below.

IND100077-7

INB100084-1 (Rev 14)

Appendix

Terms

Terms Of Sale And Delivery

1) APPLICATION

The terms of sale and delivery apply for Hatteland Display.

2) PRICE

a) The price is per each, if nothing else has been stated, VAT not included. Price is based on the prices from our suppliers, current custom rates, taxes, rate of exchange and international raw material prices. We reserve ourselves the rights to adjustments in case of alternation on the above mentioned.

b) Included in the price is the supplier’s standard packing. In case of re-packing/smaller quantities we reserve ourselves the right to add an additional sum for warrantable packing according to CECC 0015 (Basic inspection for protection of electrostatic sensitive devices)

3) VALIDITY

If nothing else has been stated in our quotation, the offer is valid for 30 days from the date of quotation.

4) PACKAGE QUOTATION

A package quotation means that all the components offered, must be ordered by us. If one component or more are removed from the quotation, the prices given in the package quotation are not valid.

5) TERMS OF PAYMENT

Cash on delivery or payment in advance. Net granted for companies, schools and institutions only, according to agreement. In case of too late payment 1.5% interest/month will be charged. Seller has mortage rights in the goods delivered until the purchase price, additional interests and charges have been paid in full. Accepted bill is not considered as payment until it has been honoured in full.

6) TIME OF DELIVERY

The quoted time of delivery is based on information from our suppliers. We disclaim any responsibility for the consequences of any delay or cancellation from our suppliers. Belated delivery gives not solely the right for cancellation.

7) DELIVERY POINT OF TIME

Goods are considered delivered to customer when handed over to charterer.

8) FREIGHT / PACKING / FORWARDING FEE

Hatteland Display AS charge NOK 50,- in forwarding fee for orders below NOK 1000,-. Freight charge according to expenses for orders above NOK 1000,-. VAT not included.

9) COMPLAINT

By receipt customer must check goods for obvious defects which have to be claimed within 8 days from receipt. Otherwise acceptance of complaint can not be counted on.

10) GUARANTEE / SERVICES

Time of guarantee is calculated from our date of shipment, and applies to the extent that we are covered by our supplier’s guarantee regulations. The guarantee does no longer apply if: I) there has been encroached upon the goods without seller’s consent II) terms of payment is not fullled III) the goods have been damaged due to unskilled treatment IV) components which are sensitive for static electricity have not been unpacked and treated in a secure way.

Minimum requirements: CECC 00015’s standards for handling of such components. The guarantee does not include fair wear and tear.

11) RESPONSIBLITY

Seller undertake to deliver faultless and functional capable goods according to existing technical specications. Seller disclaim responsibility for any damage or loss which directly or indirectly may be caused due to failure or defect with the delivered goods, if carelessness from the seller can be limited up to the cost of the goods. The supplier’s responsibility for defects with the supplied goods do not include secondary damage or loss.

IND100077-7

INB100084-1 (Rev 14)

Appendix

Terms

INSTRUCTIONS FOR THE CONSIGNEE

12) CANCELLATION / RETURN

Binding sales contract is concluded when we have conrmed customer’s purchase order. Any disagreements in our order conrmation must be reported to seller within 6 days. The agreement can not be altered without our permission, after acceptance from our supplier. If goods are wanted to be returned, a Return No must be assigned from seller. Returned goods without a Return No will not be accepted. By return of stock listed goods, 20% return fee is charged. Returned goods are shipped on customer’s account and risk.

13) LOAN, RENT and DEMO

When borrowing of goods for demo/test, the date of return must be added to the document. If no date has been stated, date of return is two weeks from the date of the document. Before return, seller must be contacted for a Return No (RTK). Goods which have been sold with an agreed right of return within stated terms, shall also have a Return No. The Return No must be obtained before the stated date of return. Returned goods without a Return No, or which have not been packed in original packing, will not be accepted.

14) LIMITATIONS

If any of our suppliers claim limited delivery terms towards us, our terms of delivery will be restricted according to those.

15) SOFTWARE

Sold or borrowed software is not allowed to be copied or spread in other ways, without a written permission.

16) RE-EXPORT

Goods delivered from seller may be subject to special rules of exportation in their supplier’s native country. Buyer is responsible to obtain necessary permissions for further export/re-sale.

17) QUESTION IN DISPUTE

To settle any dispute the Karmsund Herredsrett is approved the legal venue.

1) CONTROL

Control the goods immediately by receipt. Examine the quantity towards the invoice/packinglist/shipping documents. Look for outward defects on the packing which may indicate damage on or loss of contents. Control the container and the seals for any defects.

2) SECURING EVIDENCE

When defects on the goods have been found, evidence must be secured, and seller must be informed. Call the transporter and point out the defects. Add a description of the defects on the goods receipt, the forwarder’s copy of the way-bill or on the driving slip.

3) RESCUE

Bound the damage. Try to restrict the damage and the loss. Seller will compensate expences incurred due to reasonable security efforts in addition to damage and loss.

4) COMPLAINT

Write immediately a complaint to the transporter or his agent. Forward immediately the complaint to the transporter or his agent, and hold the transporter responsible for the defects. The complaint must be sent at the latest:

- for carriage by sea: within 3 days

- for overland / air transportation within 7 days

5) DOCUMENTATION

For any claims the following documentation is required, and must be forwared to the company or their agent: invoice, way-bill and/or bill of landing, and/or statement of arrival, inspection document, besides a copy of the letter of complaint to the transporter.

IND100077-24

INB100084-1 (Rev 14)

Appendix

Notes

IND100077-90

INB100084-1 (Rev 14)

Please note that references to page numbers may only be valid for the latest revision.

Rev. By Date Notes

0 SEJE30 Apr 2009 Release for internal review.

1 SEJE28 May 2009 Final release v1. Added COM port pin assignments.

2 SE

09 Jul 2009 Updated specications page 22,23

3 JESE27 Aug 2009 Revised info about USB recovery image and specs.

4 JESE10 Sep 2009 Added note about HDD/SSD future sizes (page 22,23)

5 JESE17 Sep 2009 Revised PCI slots amount to 5 instead of 4 (page 23)

Added computer introduction page (page 9)

6 JE

30 Oct 2009 Minor text changes in Contents of Package (page 4)

Revised specications, add ABS Type Approval and removed LRS Type Approval (page 22,23)

7 AKSE03 Dec 2009 Added BV and Nippon to Type Approved (23,23)

8 AKSE21 Jan 2010 Added DNV Type Approved (page 22,23)

9 JE

AK SE

18 Mar 2010 Added GL Approval (page 24,25)

Added MTBF value (page 24,25)

10 AnK

07 Jan 2011 Added Installation chapter for HT 00250 OPT (page 16)

Revised specications, include HT 00250 OPT (page 24,25)

Added HT 00250 OPT-A1 Sliding Rails Accessory drawing (page 32)

11 JE

30 Mar 2011 Revised Contents of Package chapter (remove printed manual) page 5

Revised specications, added LRS type approval and Operating System ID (page 12, 28,29)

12 JE

20 Jun 2011 Revised contents of package (added available accessories) page 5

Revised specications (RS -485, 19200 baud limitation note) page 24,25

Revised Recovery Kit (USB Flash) HT 00215 OPT User Guide (page 37)

13 MM

20 Mar 2012 Revised contents of package, removed text “hidden recovery par tition” notice, page 5

Revised comports (1 male/1 female), page 22,24,25 Revised trouble-shooting text to difference between locations of Recovery Image, page 37 Added FCC notice and logo, page 38

14 JESE02 May 2012 Changed 250GB to 500GB, page 24,25,

reference to: http://www.hatteland-display.com/mails/29_2011_ecn.html

Revision History

www.hatteland-display.com

Hatteland HT 216, HT 416 User Manual User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
