USER MANUAL
Series X - Standard Display (STD) Models
HD 08T21 STD-xxx-Fxxx - 8.0 inch Standard Display
HD 13T21 STD-xxx-Fxxx - 13.3 inch Standard Display
User Manual STD Series X Compact
Updated: 09 Apr 2015 Doc Id: INB100535-2 (Rev 9)
Created: 363
Approved: 6987/6784
Please visit www.hatteland-display.com for the latest electronic version of this manual.
Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - mail@hatteland-display.com - www.hatteland-display.com
Copyright © 2015 Hatteland Display AS
Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway.
All rights are reserved by Hatteland Display AS. This information may not, in whole or in part, be
copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-
readable form without the prior written consent of Hatteland Display AS. Review also:
www.hatteland-display.com/pdf/misc/doc100703-1_permission_to_create_user_manuals.pdf
The products described, or referenced, herein are copyrighted to the respective owners.
The products may not be copied or duplicated in any way. This documentation contains proprietary
information that is not to be disclosed to persons outside the user’s company without prior written consent
of Hatteland Display AS.
The copyright notice appearing above is included to provide statutory protection in the event of
unauthorized or unintentional public disclosure.
All other product names or trademarks are properties of their respective owners !
WARNING: This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
Last revised 6 Jan 2015
Contents
Contents .......................................................................................... 3
Contents of package ....................................................................................................5
General ............................................................................................ 7
About this manual ........................................................................................................8
About Hatteland Display ...............................................................................................8
www.hatteland-display.com ..........................................................................................8
Contact Information ......................................................................................................8
Standard Display (STD) - Introduction .........................................................................9
Product Labeling ........................................................................................................10
Product Labeling ........................................................................................................12
Warranty Label ..................................................................................................... 12
Quality Control (QC) Label ................................................................................... 12

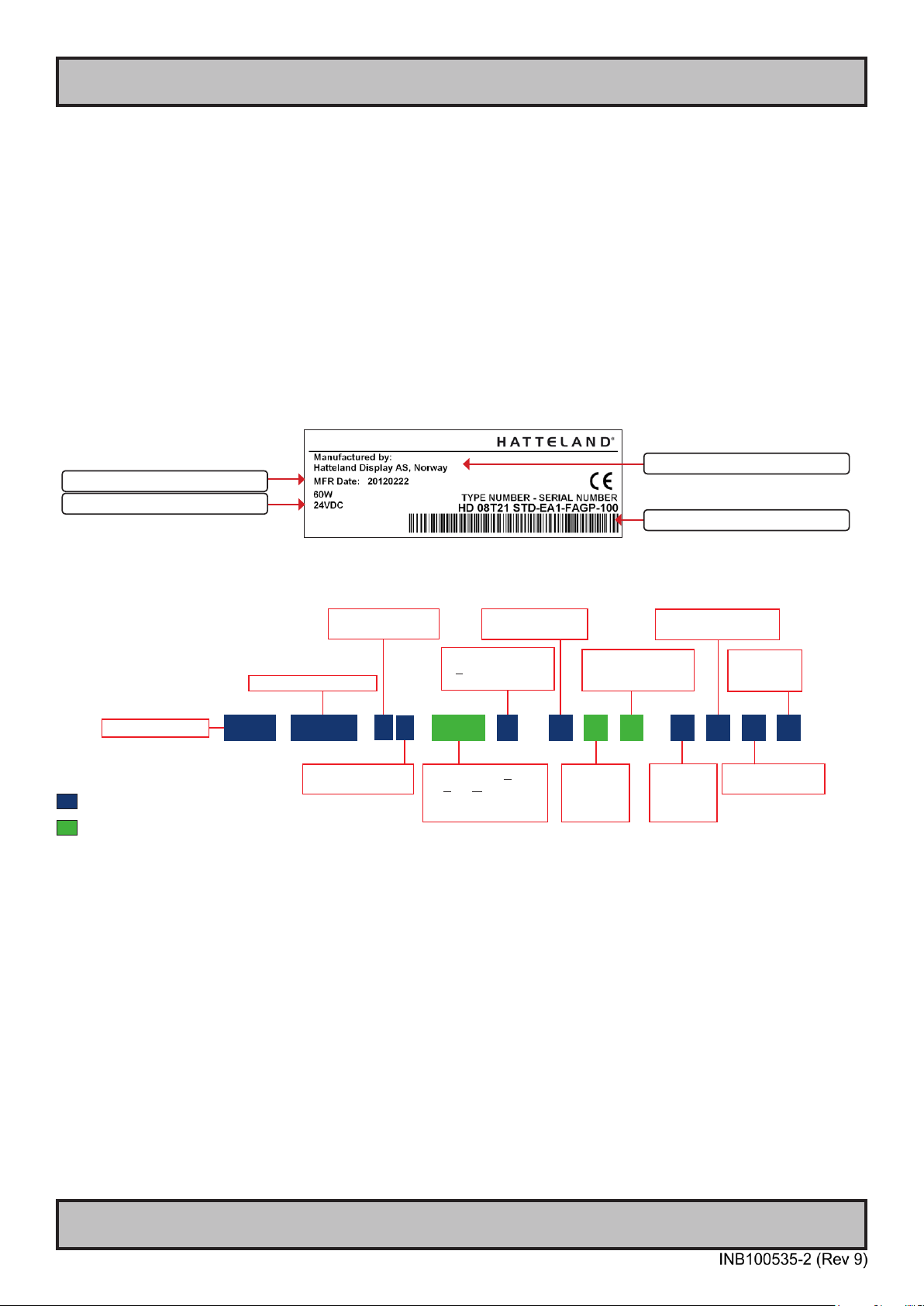

Typenumber Structure (example) ......................................................................... 12
Touch screen products ...............................................................................................13
Installation ..................................................................................... 15
General Installation Recommendations .....................................................................16
First Things First! .......................................................................................................16
Installation and mounting ...........................................................................................16
Installation limitations .................................................................................................17
Ergonomics ................................................................................................................19
Cables ........................................................................................................................19

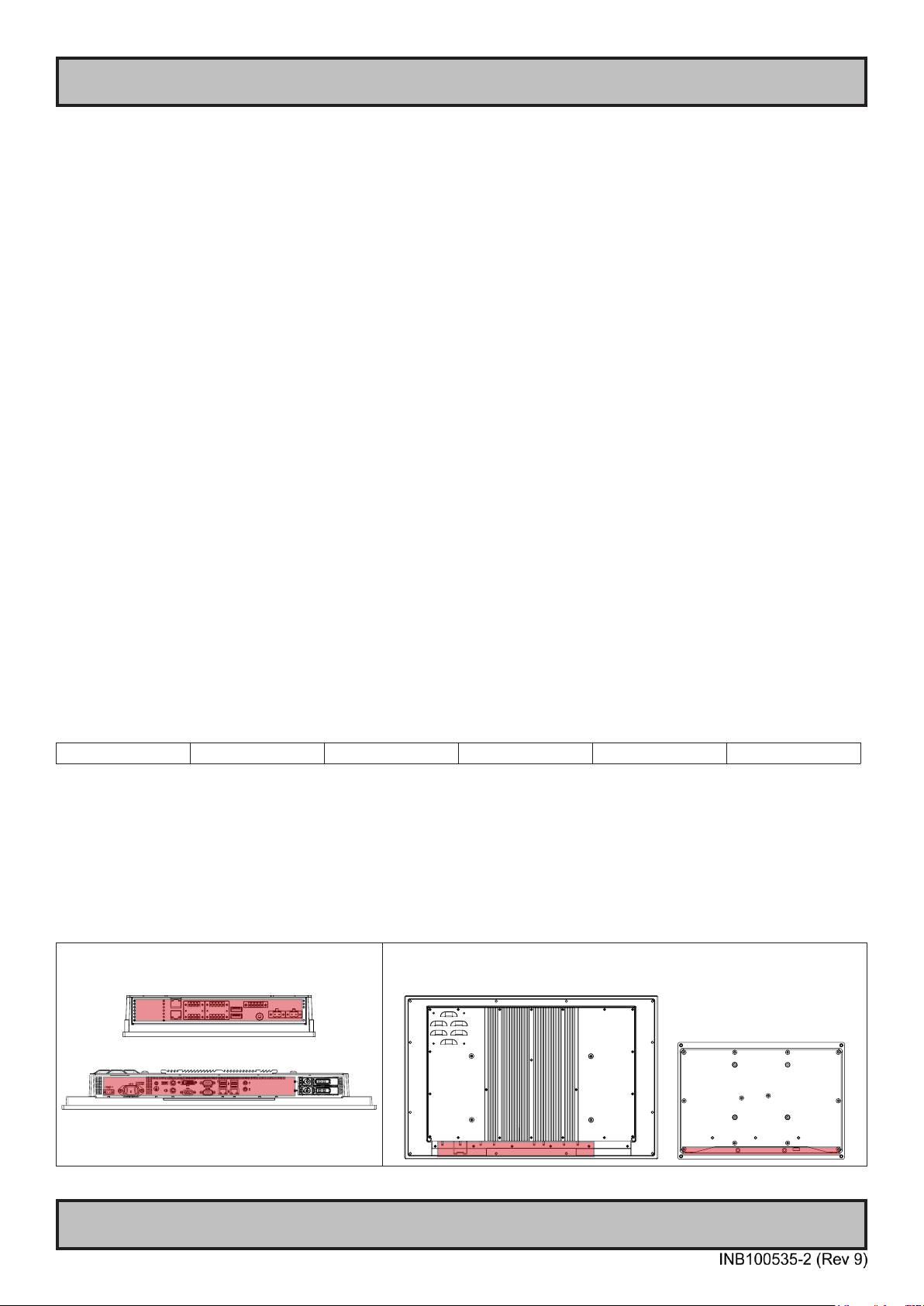

Cable Entries & Connectors (Marked area).......................................................... 19
Maximum Cable Length ........................................................................................ 20
Housing / Terminal Block Connector Overview ..........................................................21
Physical Connections .................................................................................................23
Terminal Label Markings of 8 inch unit ................................................................. 23
Connection area of 8 inch unit .............................................................................. 23
Terminal Label Markings of 13 inch unit ............................................................... 24
Connection area of 13 inch unit ............................................................................ 24
Operation ....................................................................................... 27

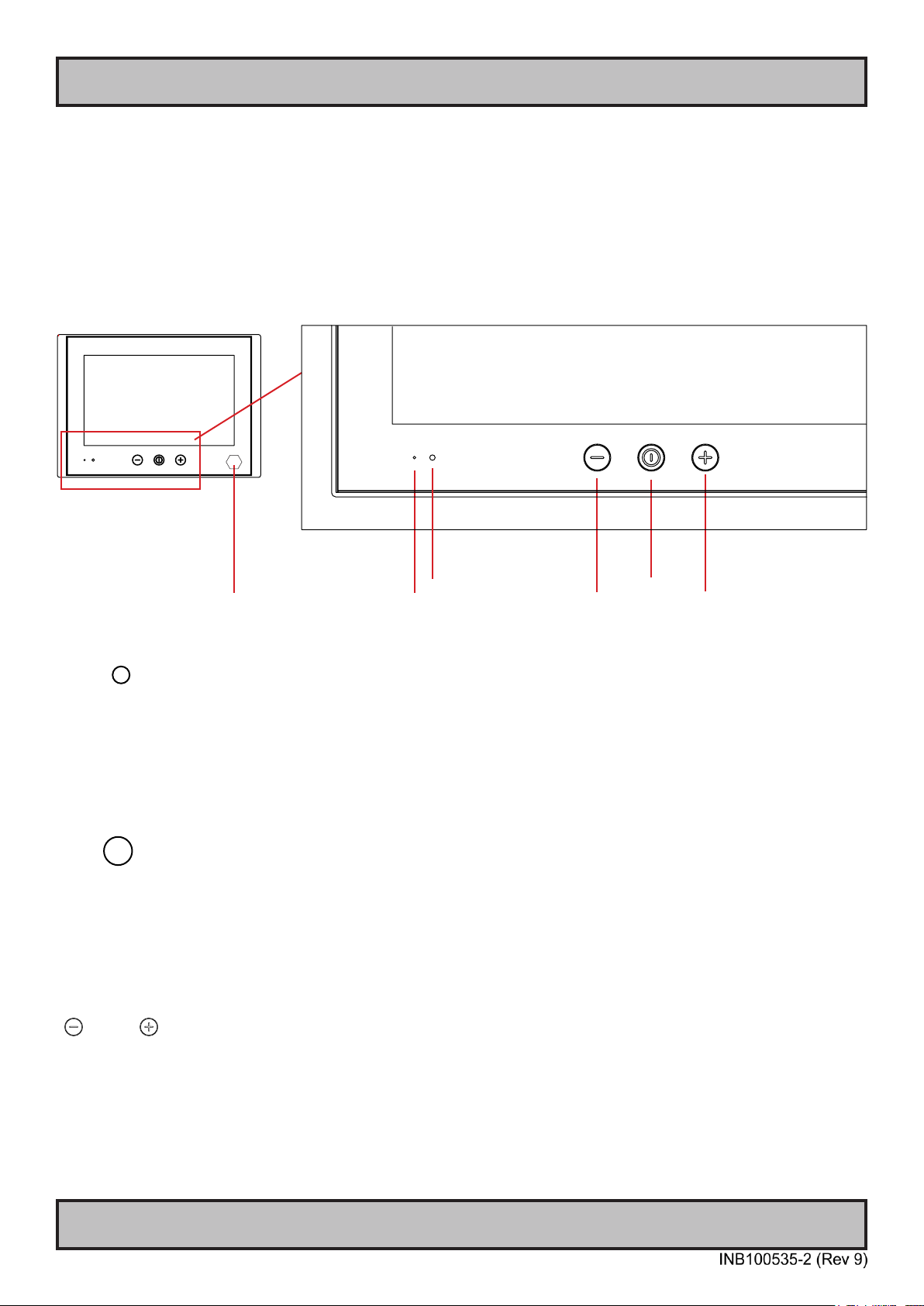

User Controls .............................................................................................................28
Specications ............................................................................... 31
Specications - HD 08T21 STD-xxx-Fxxx ..................................................................32
Specications - HD 13T21 STD-xxx-Fxxx ..................................................................33
3
IND100130-45
Contents
Technical Drawings ...................................................................... 35
Technical Drawings - HD 08T21 STD-xxx-Fxxx .........................................................36
Technical Drawings - HD 13T21 STD-xxx-Fxxx .........................................................37
Appendixes ................................................................................... 39
Pinout Assignments ....................................................................................................40
Basic Trouble-shooting ...............................................................................................41
Declaration of Conformity ...........................................................................................42
Return Of Goods Information .....................................................................................43
General Terms and Conditions ...................................................................................44
Pixel Defect Policy .....................................................................................................45
Notes ..........................................................................................................................46
Revision History .........................................................................................................48
IND100130-45
4
Contents of package
Item Description Illustration
HA-SDM-2M
DVI-4
MEDIA STD01
Terminal Block Connector Kit
1 pcs of Standard DVI Signal Cable.
DVI-D 18+1P Male to DVI-D 18+1P Male Single Link - Length 2.0m
1 pcs of DVI > RGB/VGA adapter
DVI 12+5P Male to DSUB 15P Female
Documentation and Driver DVD/CD containing the user manual, including the Touch Screen
driver for units delivered with a factory mounted touch screen. For most recent drivers, please
visit “www.hatteland-display.com/archive”
In some cases (due to revisions) a provisonal CD (PRO02-xxx) may be delivered with the unit
instead.
Product Declaration and Checklist (2 x A4 sheets).
Terminal Block Connector Kit as follows (may in some cases be already factory mounted):
2 x 2-pin Terminal Block 5.08 (Weidmüller 1944330000) for DC Power In (Dual or Single use)
Refer to “Conguring Housing / Terminal Block Connector” section for usage.
Menu browser
for Microsoft®
Windows®
Operating Systems
Note: Location of module(s) may
differ between unit sizes
Package may also include:
Item Description Illustration
USB-8
1 pcs of Touch Screen Cable USB Type A to Type A.
Length Approx 2m.
Only included in package if model is equipped with factory mounted Touch Screen
IND100131-29
5
This page left intentionally blank
6
General
7
Hatteland Display AS
About this manual
The manual contains electrical, mechanical and input/output signal specications. All specications in this manual,
due to manufacturing, new revisions and approvals, are subject to change without notice. However, the last update
and revision of this manual are shown both on the frontpage and also in the “Revision History” chapter at the end of
the manual.
Furthermore, for third party datasheet and user manuals, please see dedicated Documentation and Driver DVD
delivered with the product or contact our sales/technical/helpdesk personnel for support.
About Hatteland Display
Hatteland Display is the leading technology provider of specialized display and computer products, delivering high
quality, unique and customized solutions to the international maritime, naval and industrial markets.
The company represents innovation and quality to the system integrators world wide. Effective quality assurance and
investment in sophisticated in-house manufacturing methods and facilities enable us to deliver Type Approved and Mil
tested products. Our customer oriented approach, technical knowledge and dedication to R&D, makes us a trusted
and preferred supplier of approved solutions, which are backed up by a strong service network.
www.hatteland-display.com
You will nd our website full of useful information to help you make an informed choice as to the right product for your
needs. You will nd detailed product descriptions and specications for the entire range on Displays, Computers and
Panel Computers, Military solutions as well as the range of supporting accessories. The site carries a wealth of
information regarding our product testing and approvals in addition to company contact information for our various
ofces around the world, the global service centers and the technical help desk, all ensuring the best possible
support wherever you, or your vessel, may be in the world.
Contact Information
Head ofce, Vats / Norway:
Hatteland Display AS
Stokkastrandvegen 87B
N-5578 Nedre Vats, Norway
Sales ofce, Frankfurt / Germany:
Hatteland Display GmbH
Werner Heisenberg Strasse 12,
D-63263 Neu-Isenburg, Germany
Tel: +47 4814 2200
Fax: +47 5276 5444
mail@hatteland-display.com
Sales ofce, Oslo / Norway:
Solbråveien 20
N-1383 Asker
Norway
Tel: +47 4814 2200
Fax: +47 5276 5444
Sales ofce, Vista / USA:
Hatteland Display Inc
380 South Melrose Drive,
Suite 349
Vista, CA 92081
USA
Tel: +1 760-643-4061
Fax: +1 858-408-1834
For an up-2-date list, please visit www.hatteland-display.com/locations
General
8
Tel: +49 6102 370 954
Fax: +49 6102 370 968
Sales ofce, Aix-en-Provence / France:
Hatteland Display SAS
ACTIMART, 1140 RUE AMPERE, BP 50 196
13795 AIX-EN-PROVENCE, CEDEX 3
France
Tel: +33 (0) 4 42 16 47 57
Fax: +33 (0) 4 42 16 47 00
IND100077-1
Compact Displays Series X
Standard Display (STD) - Introduction
Series X Displays offer the ultimate in performance, convenience, state of the
art design and enduring quality for system integrators and boat builders. Series
X products offer a range of feature sets optimized for varying requirements and
applications.
The Series X display range is a flexible monitor solution designed and type
approved for the professional maritime segment, where reliability and long life time
are key pre-requisites for the industry. The product range combines stunning design
and technology with innovative features and options, making it all that the integrator
needs for top class type-approved marine systems.
The entry level STD models provide a wide choice of display size and format for
shipboard applications where simple data input (RGB & DVI) is required. Be it for
ship navigation or automation, this range with all it’s possible options provides a
robust and cost effective platform from which to display and manage data. The
models is delivered with a factory mounted Projected Capacitive Touch Screen
(Multitouch, USB interface) as standard.
Series X displays feature HATTELAND® Glass Display Control™, LED backlight
technology* and full dimming as standard, and can also accomodate and combine a
number of options such as optical bonding and sunlight readability**
* 13 inch units has traditional CCFL backlight. From April 2012 LED backlight will be introduced.
** High Bright / Sunlight Readable models pending 2012.
- MULTITOUCH
- Type Approved
- IP22 rear / IP66 front
- Superior Bonding Technology
- Module based, tailor-made systems made easy!
- Sunlight Readable / High Bright versions available
- GLASS DISPLAY CONTROL™ (GDC), Solid State Menu System
IND101057-12
General
9
Product Labeling
Introduction
This section details the locations, content details and specications for factory mounted labels for all currently
available standard Hatteland Display Standard Industrial Display (STD) models. This information will in most cases
also apply for most Customized Models as well, but may differ based on customer requirements, in that case, please
refer to the customized User Manual (paper or electronic version, dependent on customer requirements).
Label Size and Types
ID Label Layout Description Specication
Type : Serial Number Label
Name : Label B
Size : 60mm wide x 22mm high (rectangle size)
Note: Text content of label will match specications
derived from Data Sheet.
Barcode type: CODE128 (used extensively world wide in shipping and packaging
industries. The symbology was formerly dened as ISO/IEC 15417:2007.)
Type : Touch Screen Label
Name : Label B
Size : 60mm wide x 22mm high (rectangle size)
Note: Only present if Touch Screen was part of factory
option order.
Note: Content on label will vary based on Touch Screen type and/or Touch Screen
Controller. Label shown to the right is for illustration purposes only!
Type : Warranty Label
Size : 30mm wide x 23mm high (oval size)
Silver with glue on back, nontearable and made for thermal
transfer printing.
Silver with glue on back, nontearable and made for thermal
transfer printing.
Tampering proof sticker with glue
on back.
Type : Quality Control (QC) Label
Size : 30mm wide x 23mm high (oval size)
Ordinary sticker with glue on
back.
IND100077-146
10
Product Labeling
Label Locations
Number ID and coloring based on “Label Size and Types“ table from previous page. All illustrations below is seen
from rear (and side where needed) with connectors facing down. Actual labels regarding its size and text orientation
vs product size is drawn in. Due to space restrictions on selected units, some labels will be rotated 90 degrees to t
properly. The arrangement of labels may be shifted/stacked differently as it is based on factory options, such as; Touch
Screen, but they will be grouped together where possible.
Label Positions Notes Applies for Product Range
Warranty label covers both
screw and bends over edge
(rear/side). Labels placed on
rear and side.
HD 08T21 STD-xxx-Fxxx
Warranty label covers screw.
Labels placed on rear and
side.
HD 13T21 STD-xxx-Fxxx
IND100077-146
11
Product Labeling
Series X Displays - Typenumber Overview
IND100780-3 - Rev 06 - 02 Mar 2012
This document explains the type number structure for the
Hatteland Display Series X Maritime Multi Display product range.
- Example standard typenumber:
HD 19T21 MMD-MA1-FAGA
- Example standard description:
19.0” MMD ACDC Black GDC Buzzer
= Locked elements for factory standards.
= Custom/options - Can be customized by customer.
TFT Panel Size in inches
Product Range ID
PCB Electronics
Revision ID
Abbreviation for Maritime
Multi, STandard or
reserved for customer
company name ID
Product Type ID for
Display / Standard
(customer) Range ID
HD
19T
2
MMD
-
M
Power Input ID
A
Frame Color
or reserved
for customer
specifi c ID
1
Standard ID or
reserved for
customer specifi c ID
F
-
Frame or
Mechanical
Design ID
A
Optical Enhancement ID
G
User Control
Functionality ID
A
Touch Screen
Technology ID
TFT Panel Generation
Revision ID
1
Series X Panel Computers - Typenumber Overview
IND100780-4 - Rev 05 - 11 Jun 2013
This document explains the type number structure for the
Hatteland Display Series X Maritime Multi Computer product range.
- Example standard typenumber
HD 19T21 MMC-M1A-AAAA
- Example standard description
19.0” MMC IntelGM45 C2D 2.26GHz 2GBRAM 8GBSSD-M OSNone ACDC Black GDC
= Locked elements for factory standards.
= Custom/options - Can be customized by customer.
Warranty Label
If you are to perform service on a unit still under warranty, any warranty will be void if this label show signs of removal
attempts (re-gluing) or removed completely. This label is located on the back of the product and covers a key screw.
This is to aid service departments to determine if there has been any unauthorized service on a unit still under
warranty.
Quality Control (QC) Label
This label indicates that the unit is produced, tested and packed according to manufacturer’s QA specications. It will
include a Personal ID and signature by the personnell responsible for approving the unit in production, test and
warehouse departments.
Serial Number Label Layout (example)
Manufacturer and Country
Manufactured Date yyyymmdd
Input Voltages & Power Rating
Barcode (TYP+SNO)
Typenumber Structure (example)
General
IND100077-121
12
Touch screen products
Introduction to products with touch screen
Nearly all of our Series X products with touch screen uses Projected Capacitive Touch screen (PCTS), widely used with
great success on mobile phones and typical pad devices. PCTS can be equally effective also for marine applications.
One of the advantages of PCTS is that it has features seen in both resistive and surface capacitive touch screen
technologies.
Multitouch is dened as the ability to recognize two or more simultaneous touch points. Using projected capacitive
technology lets us create a more intuitive form of human-device interaction. Touch interface gestures, supported by
projected capacitive sensors, can simplify the interface and provide an intuitive user experience that goes beyond the
typical "button replacement" found in most simple touch interfaces.
Please review the appropriate Product Data Sheet (in this manual) to determine if PCTS are supported.
The technical benets of PCT are:
- Very good optical performance (same as surface capacitive)
- Environmentally strong, the touch sensor is inside the product (better than both surface capacitive and resistive)
- Supports Multitouch (Newer Operating System (OS) required/dependent, see next page for info, section "*Note")
- Strong against rain / drip
- Excellent readability - light transmission of up to 91% through a standard sensor
- Stability - no drift, therefore no recalibration is required
- Pointing device - works with gloved and ungloved finger
- Resistance to contamination - by harsh cleaning fluids and other noxious substances
- Communicates via USB to external computer or internally
Main usability, performance and integration characteristics are:

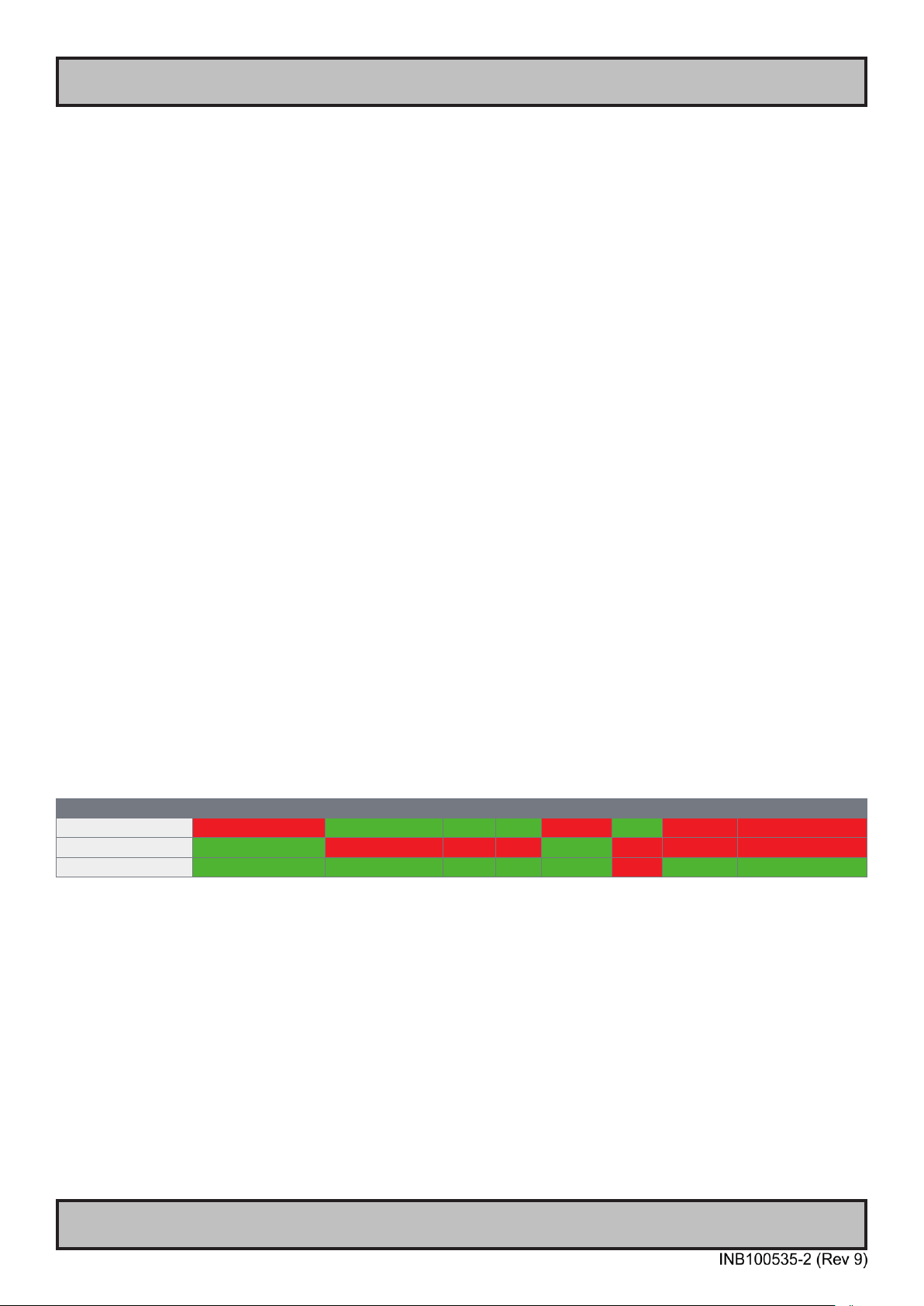

Technology Optical Performance Stable Calibration Gloves Water Durability Price Multitouch Frameless Design
Analog Resisitive
Surface Capacitive
Projected Capacitive*
*Used for all Hatteland Display standard Series X Touch Screen products.
Note: 26 inch and/or customized solutions may use "Analog" or "Surface" resistive/capactive technology instead, please review datasheet.
-- + ++ ++ - ++ - -
++ - -- - + - - -
++ ++ + + ++ - ++ ++
Touchscreen
IND100110-12
13
Touch screen products
Touch Screen Drivers and Documentation
All units are shipped with a Documentation and Drivers DVD or CD which
contains suitable drivers* for touch screens. (Named MEDIA STD01).
You can also visit our website www.hatteland-display.com to view the same
list (or even recently new added products) for our models with touch screen.
Before using the touch screen, it should be calibrated for your system.
Please install the 3rd party software* and use the Calibrate function.
For additional touch controller/screen documentation and updated drivers*, please
visit the 3rd party manufacturer website as found in the Touch Screen Wizard CD
menu.
*Note:
Newer Operating Systems (OS), from year 2011 and above, does not specically require additional 3rd party drivers in order to operate the touch
screen and support “Multitouch”. For example; Microsoft® Windows® 7 and above comes with default factory installed Windows HID drivers fully
supporting “Multitouch”. You may choose to install 3rd party drivers for example during trouble-shooting situations or to review features of the 3rd
party software. Hatteland Display suggests that you should use factory default Microsoft® Windows® 7 HID touch drivers in any case possible.
For older Operating Systems (like Microsoft® Windows® XP and older), before year 2011, the OS does not/may not support “Multitouch” technology
and the touch screen will just operate as a ordinary single-point touch screen. Additionally to get touch screen working at all in older OS, you need
to install 3rd party drivers.
Note that the lack of “Multitouch” support is not dependent on hardware or software/rmware for the controller, but rather dependent on important
core functions in the Operating System which is outside control of the 3rd party software.
Touch screen
IND100110-13
14
Installation
15
General Installation Recommendations
CORRECT
HANDLING !
WRONG
HANDLING !
Do not stress the corners, nor place
it on a coarse and/or dirty surface
Place horizontally on a smooth and
clean surface
Place horizontally on a smooth and
clean surface
Do not stress the corners, nor place
it on a coarse and/or dirty surface
Applies for non-bonded
product only.
If exposed to humidity
in combination with
temperature variations,
product might show
condensation on the
glass (inside and
outside).
Inside condensation can
be removed by power
on the product and set
brightness to 100%.
During minutes the
internal temperature
rise will remove
condensation.
Humidity
Exposure
Notice!
To prevent damage to chassis and glass, please review the
illustrations below before handling units.
IND100148-5 - Rev 03
ATTENTION!
First Things First!
Installation and mounting
1. Most of our products are intended for various methods of installation or mounting (panel mounting, bracket
mounting, ceiling/wall, console mounting etc.); for details, please see the relevant mechanical drawings.
2. Adequate ventilation is a necessary prerequisite for the life of the product. The air inlet and outlet openings must
denitely be kept clear; coverings which restrict ventilation are not permissible.
3. Generally, do not install the unit in a horizontal position (laying down), as this will cause heat to build up inside the
unit which will damage the LCD Panel. To prevent this problem we recommend installing the unit in a vertical
position (±30 degrees) to improve the airow through the unit.
4. To further improve the thermal situation we recommend to use forced air passing by the product. In some cases,
convection based cooling can create “heat zones” around the product. This may be required in high temperature
applications and also when there is reason to expect temperature problems due to non-optimal way of mounting.
5. Exposure to extreme direct sunlight can cause a considerable increase in the temperature of the unit, and might
under certain circumstances lead to overtemperature. This point should already be taken into consideration when
the bridge equipment is being planned (sun shades, distance from the windows, ventilation, etc.)
6. Space necessary for ventilation, for cable inlets, for the operating procedures and for maintenance, must be
provided.
Installation
IND100078-29
16
General Installation Recommendations
7. If the push buttons of the product are not illuminated, an external, dimmable illumination (IEC 60945 Ed. 4, 4.2.2.3,
e.g. Goose neck light) is required for navigational use. The illumination shall be dazzle-free and adjustable to
extinction.
8. Information about necessary pull-relievers for cables is indicated in the Physical Connection section of this manual.
Attention must be paid to this information so that cable breaks will not occur, e.g. during service work.
9. Do not paint the product. The surface treatment inuences on the excess heat transfer. Painting, labels or other
surface treatments that differ from the factory default, might cause overheating.
10. Expose to heavy vibration and acoustic noise might under certain circumstances affect functionality and expected
lifetime. This must be considered during system assembly and installation. Mounting position must carefully be
selected to avoid any exposure of amplied vibration.
Installation limitations
Due to environmental factors, please review the points noted below.
A: Overheat prevention:
For Maritime Multi Computer (MMC, Panel Computers) it is advised that you do not mount the unit in a
vertical angle lower than ±30 degrees, as noted in point 3 (previous section), i.e. at mounting of the unit.
This is to prevent both overheating the unit as well as ensure proper cooling airow to sustain long-life and
stable operation. Panel Computer units generate more heat than regular Display units naturally because of
CPU and mainboard chips.
It should be noted that 24” and 26” MMC units have internal fans providing additional cooling airow of
their own, whilst smaller units (typically 8” to 19”) has no internal fans. In such cases, the ±30 vertical angle
may in certain situations allow for lower angle mounting provided that the console casing has adequate
cooling (see point D), however this is suggested as a trouble-shooting tip during installation or during short-
term observer use if found suitable. It should not be considered as a dentive trusted solution.
B: Glass Display Control™ (GDC) front glass touch buttons:
As this uses Projected Capacitive technology (instead of conventional hard physical buttons and knobs),
the touch controller can react and are sensitive to raindrops (for outdoor installations). To ensure that
raindrops do not stay on the unit’s at glass surface, please do not mount the unit in a vertical angle lower
than ±30 degrees, i.e. at mounting of the unit. This is to prevent accidental touches that are similar to a
human nger (cover area for a x period of seconds) as well as make sure the raindrops are “moving” and
slides down off the glass surface.
For Maritime Multi Display / Industrial Standard Display (MMD/STD) units (not Panel Computer units) the
angle could potentionally be lower as the On Screen Display (OSD) menu offers a “OSD Key Outdoor”
function with 5 seconds delay before activation on front glass functions. Please review the “OSD Menu
Functions” to learn more. In certain situations this might help, but is only suggested as a trouble-shooting tip
during installation or during short-term observer use if found suitable. It should not be considered as a
dentive trusted solution.
C: Projected Capacitive Technology (PCTouch) MULTITOUCH and in general Touch Screen glass:
For all units with a factory mounted touch screen and for outdoor use especially, please review point B above
regarding staying raindrops. Only solution to this situation is not to mount the unit in a vertical angle lower
than ±30 degrees, i.e. at mounting of the unit to ensure touch screen is not activated and accidentally
automatically chooses functions in your running chart, radar or other software installed.
IND100078-29
Installation
17
General Installation Recommendations
D: General rule for console mounted units:
To ensure proper cooling airow, long-life and stable operation for all units, please make sure that the
console casing have either fans or decent ventilation holes to prevent overheating inside the console due to
the combined temperature of both Display or Panel Computer units together with other electronic instruments.
A general rule is to make sure the console casing is capable of expelling “worst case scenario” in respect of
the “Max Power Consumption” of all devices installed. Please review also point 2, 5, 6 and 9 (previous
section) for additional information and installation tips.
Note that 24” and 26” Panel Computer units have their own internal fans. See point A for more information.
General mounting instructions
1. The useful life of the components of all Electronics Units generally decreases with increasing ambient temperature;
it is therefore advisable to install such units in air-conditioned rooms. If there are no such facilities these rooms
must at least be dry, adequately ventilated and kept at a suitable temperature in order to prevent the formation of
condensation inside the display unit.
2. With most Electronic Units, cooling takes place via the surface of the casing. The cooling must not be impaired by
partial covering of the unit or by installation of the unit in a conned cabinet.
3. In the area of the wheel house, the distance of each electronics unit from the magnetic standard compass or the
magnetic steering compass must not be less than the permitted magnetic protection distance. This distance is
measured from the centre of the magnetic system of the compass to the nearest point on the corresponding unit
concerned.
4. Units which are to be used on the bridge wing must be installed inside the “wing control console” protected against
the weather. In order to avoid misting of the viewing screen, a 25 ... 50 W console-heating (power depending on the
volume) is recommended.
5. When selecting the site of a display unit, the maximum cable lengths have to be considered.
6. When a product is being installed, the surface base or bulkhead must be checked to ensure that it is at in order to
avoid twisting of the unit when the xing screws are tightened, because such twisting would impair mechanical
functions. Any unevenness should be compensated for by means of spacing-washers.
7. This Product shall be grounded to protective Earth. For AC Power cables this is done trough the ground wire in the
connector, for DC input the ground bolt shall be used. A shorter and thicker cable gives better grounding. A 6mm²
is Recommended, but a 4mm² or even 2.5mm² can be used for this purpose
8. Transportation damage, even if apparently insignicant at rst glance, must immediately be examined and be
reported to the freight carrier. The moment of setting-to-work of the equipment is too late, not only for reporting the
damage but also for the supply of replacements.
9. The classication is only valid for approved mounting brackets provided by Hatteland Display. The unit shall be
mounted stand-alone without any devices or loose parts placed at or nearby the unit. Any other type of mounting
might require test and re-classication.
IND100078-29
Installation
18
General Installation Recommendations
Ergonomics
1. The front surface of the display glass has an anti-reective (AR) coating which can be scratched and damaged with
improper cleaning. It is recommended to use only 90+% pure Isopropyl alcohol (Isopropanol) and a soft fabric
cloth for this rst cleaning. Fold a cloth into a small pad, dampen the cloth with alcohol, and wipe the glass from
one edge to the other in one direction with one continuous motion. The product glass will require cleaning as
needed. The soft cloth & alcohol wipe is recommended to clean ngerprints and oils off the glass. Water stains
(including coffee, tea & coke) should be rst cleaned off the glass with a soft fabric cloth wet with water,
immediately followed with wiping using an alcohol wetted cloth.
2. Adjust the unit height so that the top of the screen is at or below eye level. Your eyes should look slightly
downwards when viewing the middle of the screen.
3. Adjust screen inclination to remain gaze angle to the centre of the screen approximately perpendicular to the line of
gaze.
4. When products are to be operated both from a sitting position and from a standing position, a screen inclination of
about 30° to 40° (from a vertical plane) has turned out to be favourable.
5. The brightness of displays is limited. Sunlight passing directly through the bridge windows - or its reection - which
falls upon the screen workplaces must be reduced by suitable means (negatively inclined window surfaces,
venetian blinds, distance from the windows, dark colouring of the deckhead). However, units can be offered with
optical enhanced technology and/or High Bright panels to reduce reections and are viewable in direct sun light,
but as a general rule the units at the bridge wing area is recommended to be installed or mounted by suitable
alignment or bulkhead / deckhead mounting in such a way that reections of light from the front pane of the display
are not directed into the observer’s viewing direction.
6. The use of ordinary commercial lter plates or lter lms is not permitted for items of equipment that require
approval (by optical effects, “aids” of that kind can suppress small radar targets, for example).
7. For ECDIS applications, the minimum recommended viewing distance are as follows:
(IEC62288, Part 7.5 Screen resolution)
17 inch = 907mm 19 inch = 1010mm 24 inch = 951mm 26 inch = 985mm
Cables
Use only high quality shielded signal cables.
Cable Entries & Connectors (Marked area)
Illustration below for smallest/largest sizes only.
Bottom View Back View
IND100078-29
Installation
19
General Installation Recommendations
Maximum Cable Length
Any cable should generally be kept as short as possible to provide a high quality input/output. The maximum signal
cable length will depend on the signal resolution and frequency, but also on the quality of the signal output from the
computer/radar.
IND100078-29
Installation
20
General Installation Recommendations
5-pin Phoenix 1827732
MC 1,5/ 5-STF-3,81
Screwdriver: SZS 0,4X2,5mm
VDE, slot-headed.
Tightening torque min. 0.22 Nm.
Tightening torque max 0.25 Nm.
• RS-422 / RS-485 / SCOM (Serial Remote Control) / Buzzer
• RS-422 / RS-485 NMEA (PCA100293-1)
• Digital Input/Output (HT 00268 OPT-A1)
Identi ed on Hatteland Display product data sheet as:
“Terminal Block 3.81”
└ Reference: http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?reloadFrame=true&UID=1827732
2-pin Phoenix 1961986
MSTB 2,5/ 2-STF-5,08 BK
Screwdriver: SZS 0,6x3,5, slot-
headed.
Tightening torque min. 0.5 Nm.
Tightening torque max 0.6 Nm.
• DC Power IN (24VDC) - Single Input
Identi ed on Hatteland Display product data sheet as:
“Terminal Block 5.08”
└ Reference: http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?reloadFrame=true&UID=1961986
4-pin Weidmüller 1792970000
BCZ 3.81/04/180F SN BK BX
Screwdriver: 0.4x2.5mm DIN 5264.
Tightening torque min.. 0.2 Nm.
Tightening torque max. 0.25 Nm.
• CAN Interface (HT 00254 OPT-A1)
Identi ed on Hatteland Display product data sheet as:
“Terminal Block 3.81”
└ Reference: http://catalog.weidmueller.com/catalog/Start.do?localeId=en&ObjectID=1792970000
Housing / Terminal Block Connector Overview
Housing / Terminal Block connectors are available in different sizes (example 2-pin, 4-pin, 5-pin) which plugs into the
connector area of the unit. They are mounted by factory default and delivered with the unit. The housing / terminal
block connectors have steering rails, which ensures that it can not be mounted wrong. The color of these connectors
may vary between black, green and orange depending on manufacturer. You may use approved equivalents of these
connectors, but note that warranty will be void if any damage would occur to either the unit’s original PCB terminal
socket connector or inside the unit (electronic components, boards etc.). The table below is applicable for any Series
X products, such as Display and Panel Computers, including newer type of Stand-Alone Computers.
Illustration Pins Manufacturer Details Connector used for module
Installation
IND100210-14
21
General Installation Recommendations
If your installation require additional cable fasteners support, please visit and purchase directly from manufacturer:
Illustrations below are approximate, actual Housing and Hood may deviate slightly, but function remains the same.
Phoenix Cable Housing - Illustration Weidmüller Cover Hood - Illustration
Phoenix 1803934 - KGG-MSTB 2,5/ 2 (2-pin)
Phoenix 1834372 - KGG-MC 1,5/ 5 (5-pin)
For Phoenix 2-pin and 5-pin:
https://www.phoenixcontact.com/online/portal/us?uri=pxc-oc-itemdetail:pid=1803934&library=usen&pcck=P-11-02-01&tab=1
https://www.phoenixcontact.com/online/portal/us?uri=pxc-oc-itemdetail:pid=1834372&library=usen&pcck=P-11-02-01&tab=1
For Weidmüller 4-pin and 5-pin
http://catalog.weidmueller.com/procat/Product.jsp;jsessionid=B040D5EB6832629E567C884809FDF6C1?productId=(%5b1005290000%5d)
http://catalog.weidmueller.com/procat/Product.jsp;jsessionid=D399022A1B3211C0146BCBE716D93211?productId=(%5b1005300000%5d)
Weidmüller 1005290000 - BCZ 3.81 AH04 BK BX (4-pin)
Weidmüller 1005300000 - BCZ 3.81 AH05 BK BX (5-pin)
Conguring Housing / Terminal Block connectors
Below is a brief illustration that might be useful during conguration and installation of such connectors. You will need
suitable pre-congured cable(s) and tools to congure the connector(s) and cable(s) that are present in your
installation environment. Below is a sample procedure for a 2-pin DC power connector. The procedure is the same for
other connectors of this type as listed in table above. Unit used as illustration below is for reference only.
FIG 3
FIG 1
FIG 2
FIG 4
FIG 1: Unscrew (from top) or make sure that the screw terminal (square area) are fully open, so you can secure the
inserted cables correctly to the loose housing connector (it may already be plugged into the unit as per factory
installation).
FIG 2: Insert cables* (from front) and screw / secure the cables by turning the screw on top of the housing to secure
the cables properly. Check that the cables is rmly in place and do not appear loose or falls out when pulling gently.
*Note: Required polarization verication (for instance -/+ for DC power input) should conform with the markings on
the connector area of the unit. Ignoring the markings on the unit or its add-on modules might damage the unit and/or
external equipment in which end, warranty will be void.
FIG 3: Plug the housing into the appropriate connector area of the unit (glass should be facing down) and check again
that the cables secured conforms with the markings on the connector area of the unit. Finalize the installation by
fasten the screws located in front on each side of the housing connector (FIG 4).
Installation
IND100210-14
22
Physical Connections
Terminal Label Markings of 8 inch unit
1
2
1
2
USB Touch
Connection area of 8 inch unit
DVI-I In
Grounding Screw
2 x DC Power Inputs
IND100133-50
23
Physical Connections
Terminal Label Markings of 13 inch unit
1
2
1
2
Connection area of 13 inch unit
DVI-I In
Grounding Screw
2 x DC Power InputsUSB Touch
IND100133-50
24
Physical Connections
USB TOUCH:
Connect a TYPE B USB Cable between this connector and your PC. Suitable drivers to install and calibrate the
touchscreen are available on the separate installation media delivered with the unit. Port is USB2.0 (<5m).
DVI-I IN:
Connect your DVI cable to the DVI-I 29P Connector (female). The DVI-I connector can function as regular RGB IN by
using a DVI-I > RGB/VGA adapter. Secure the DVI cable to the hex spacers provided on the unit and make sure you
do not bend any of the pins inside the connector. Connect the other end of the cable to the DVI connector on your
equipment and secure it.
Important note for DVI signal detection:
Please note that for the operating system to detect DVI signals correctly, the DVI cable MUST be connected physically
to the unit during boot up otherwise you may experience a black image. Furthermore certain graphics drivers may
need to refresh their device list (often done manually by user - detect devices), while in some cases the Plug-n-Play
will automatically detect the DVI signal correctly. Please consult your local technician if you have this behaviour of
detection problems when using DVI. In all cases the problem can be solved in the operating system, and this is not a
malfunction in the graphic controller for display units.
POWER INPUTS:
Connect your DC power cables to the 2-pin Terminal Block 5.08 connector. The internal DC power module supports
24VDC. The unit offer both Primary and Secondary power inputs for secure operation of the unit as well as; galvanic
isolated and automatic switch between power source. For more information, please review “Housing / Terminal Block
Connector Overview” and “Pinout Assignments” sections in this manual.
GROUNDING SCREW:
Please review “General Installation Chapter”, pt. 7 for more information.
IND100133-50
25
This page left intentionally blank
26
Operation
27
User Controls
USER CONTROLS OVERVIEW
The units are designed by using Glass Display Control™ (GDC) touch technology to allow interactivity adjusting
brilliance (brightness) and control power on / off with the use of illuminated symbols. Note that these symbols are
only visible (backlight illuminated) when suitable power is connected. There is no physical moving knobs, potmeters,
wheels or push buttons available as everything is touch surface controlled by Projected Capacitive technology, that
allows a human nger (including several types of gloves) to control the unit.
Note: Illustration below shows 13 inch unit, but same functions applies for both 8 and 13 inch units.
Programmable Alarm LED Power On/Off
Buzzer (not visible)
Light Sensor:
Used to sense level of ambient light in the surrounding environment. The sensor data can be read by suitable software
through the Hatteland Display SCOM functionality of the unit and thus can be used to control brightness remotely.
Note: This sensor is barely visible for the eye and has no illumination behind to indicate it’s position. Further, by
touching or covering this area will naturally make the sensor data inaccurate.
Programmable Alarm LED:
Used to indicate an Alarm or similar functionality. The logic to this LED can be programmed through customized API
which gives access to controlling its function and for instance setup blinking patterns. Note: This LED (when not
activated) is barely visible for the eye and has no illumination behind to indicate it’s position. Further, by touching this
area no action will be performed or has been assigned.
Brightness Adjust:
Brilliance / Brightness adjustment of the displayed image is adjusted by touching the (-) or (+) illuminated symbols.
Both symbols are visible as long as the unit is powered (cable connected). These buttons has extended functionality,
please review “API” section in next page.
Light Sensor Brightness Adjust - Brightness Adjust +
IND100064-43
Operation
28
User Controls
API / SMBUS / Touch Keypad Access
Extended functionality for Brightness (-/+) and Power ON/OFF touch symbols
As referenced in the “User Controls Overview” chapter in this manual, you can access and interpret actual touches
detected on the 3 front symbols (Brightness and Power ON/OFF) through the Touch Screen driver installed for the
unit via its HID interfacing protocol.
Visible Symbol Symbol ID Response Hex ID Default Operation
B1 0x81 Button pressed down detection
0x80 Button press release detection
+ 0x00 Decrease Brilliance / Brightness was detected
B2 0x81 Button pressed down detection
0x80 Button press release detection
+ 0x01 Power ON/OFF was detected
B3 0x81 Button pressed down detection
0x80 Button press release detection
+ 0x02 Increase Brilliance / Brightness was detected
For installation, implementation, usage and example code, review the document via our website:
http://www.hatteland-display.com/pdf/misc/doc101699-1_touch_keypad_access.pdf
and download the drivers package from (includes .dll and demo executable):
http://www.hatteland-display.com/drivers/touch_keypad_package.zip
or download the entire drivers package for MMC units:
http://www.hatteland-display.com/support_hardware_drivers_panel_computers_seriesx.php
or access both document and driver package as described above from:
“Drivers and Documentation DVD” (MEDIA STD-008 or higher) that are included in the shipment contents.
Please review to “Installing API Drivers” section as explained on the previous pages if you are unsure how to nd
document and drivers on the DVD media. The les you need are found in the “Demo and .dll for Touch Keypad
Access” menu button option.
Power ON/OFF:
Touching this symbol will either turn on or off the unit. When unit is on (power cable connected), the symbol is
not illuminated until the unit has been turned on once, then symbols will illuminate in white color. When unit is off
(power cable still connected) after it was previously turned on, the symbol is illuminated in white color (you can even
use the (-) and (+) to adjust the intensity of the illuminated symbols when in this state). When no power cable is
connected, no symbols will be illuminated.
This button has extended functionality, please review “API” section below
Buzzer:
The location of the Buzzer is not visible for the eye. Please review the “User Controls - Advanced Usage” section
available on the next page (specically “Watchdog and ALARM Control” in the linked DOC101681-1 document) on
how to implement the Buzzer in your own applications and systems.
IND100064-43
Operation
29
User Controls
USER CONTROLS - ADVANCED USAGE
The functions described above can also be accessed via the DDC (Display Data Channel) provided over the DVI-I
port and through it you can access all frontal symbols (including Light Sensor, Alarm LED, Buzzer) and their
functionality to allow extended usage for your 8 and 13 inch Display units - all controlled by your software.
Implementation:
The easiest/quickest way to implement control of the DDC in a Microsoft® Windows® environment application is to
use a library designed for this task. An example of such a library is the
WinI2C-DDC - http://www.nicomsoft.com/products/i2c
Similar solutions might be available for Linux, but that is outside the scope of this user manual.
“WinI2C/DDC is a professional tool that allows you to control display devices in the Windows environment via the
DDC/CI protocol. It allows you to send DDC/CI commands via the standard video cable (VGA or DVI) and control all
display devices that support the DDC/CI protocol: CRT/LCD monitors, projectors, plasma panels, etc.”
Documentation - DOC101681-1:
A complete and extensive documentation is available on the Documentation and Driver (MEDIA STD01) DVD that
follows the product (contents of package). Due to revisions made to the DVD, the document is not available on
revisions prior to “STD01-007 - August 2013”. In any case, we have also provided the same document for download
through our website: http://www.hatteland-display.com/pdf/misc/doc101681-1_8_and_13inch_dis_ddc_control.pdf
IND100064-43
Operation
30
Specications
31
Specications - HD 08T21 STD-xxx-Fxxx
SPECIFICATIONS
Note: All specifi cations are subject to change without prior notice!
Please visit www.hatteland-display.com for the latest electronic version.
• 8.0 inch TFT Liquid Crystal Display module
• Widescreen, Aspect Ratio 5:3
• LED Backlight Technology
• TTL Interface
• a-si TFT Active Matrix
• Digital separate synchronization
• Composite synchronization
• Synchronization on green
• Auto detects on chosen source
• Video Signal : Analog RGB 0,7Vp-p
: Input Impedance 75 Ohm
Synchronization Range:
• Horizontal : 24 kHz to 81 kHz
• Vertical : 50 Hz to 75 Hz*
* 60Hz is recommended for optimal picture quality
• 236.00 (W) x 166.00 (H) x 51.00 (D) mm
• 9.29" (W) x 6.54" (H) x 2.01" (D)
• 4 x M4 VESA mounting 75x75mm, Max 8mm deep
• Built-in Console mounting 4 x M5x15mm screws
• Weight: TBD kg (approx)
• Operating : Temperature -15 deg. C to +55 deg. C
- Humidity up to 95%
• Storage : Temperature -20 deg. C to +60 deg. C
- Humidity up to 95%
• IP Rating : Protection: IP66 front - IP22 rear (EN60529)
Resolutions:
• WVGA : 640 x 480, 720 x 400, 800 x 480*
* Recommended for optimal picture quality
Power Supply:
• 2 x 24VDC : Model HD 08T21 STD-Exx-Fxxx
Dual input, galvanic isolated, automatic switch between power source
Power Consumption:
• Operating : 20W (typ) - 30W (max)
• DVI-I Signal IN : 1 x 29p DVI Female or RGB IN with adapter
• Touchscreen : 1 x USB TYPE B Connector (female)
• DC Power IN : 2 x 2-pin Terminal Block 5.08
Behind front bezel - Glass Display Control™ (GDC) IP66:
• Power On/Off, Brightness Control (-/+), Light Sensor (not visible),
• Programmable Alarm LED, Buzzer (not visible)
• Native Resolution : 800 x 480 (WVGA)
• Pixel Pitch (RGB) : 0.2168 (H) x 0.2168 (V) mm
• Response Time : 5/11ms (typical) (Tr/Tf)
• Contrast Ratio : 600:1 (typical)
• Light Intensity Standard : 600 cd/m
2
(typical)
• Viewable Angle : 70 deg (H) 60 deg (V) (typical)
• Active Display Area : 173.4 (H) x 104.4 (V) mm
• Max Colors : 16.7 million
TFT Technology:
Synchronization:
Physical Considerations:
Environmental Considerations:
Safety Considerations:
Even although the test conditions for bridge units provide for a maximum
operating temperature of 55°C, continuous operation of all electronic
components should, if possible, take place at ambient temperatures of only
25°C. This is a necessary prerequisite for long life and low service costs.
Supported Signals:
Power Specifications:
T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S
This product have been tested / type approved by the following classification societies:
IEC 60945 4th (EN 60945:2002) IACS E10 ClassNK - Nippon Kaiji Kyokai GL - Germanischer Lloyd
DNV - Det Norske Veritas ABS - American Bureau of Shipping BV - Bureau Veritas LRS - Loyd’s Register of Shipping
EU RO MR - Mutual Recognition CCS - China Classification Society
Signal Terminals:
User Controls:
Compass Safe Distance: HD 08T21 STD-xxx-Fxxx Standard: 45cm Steering: 30cm
TFT Characteristics:
• HD 08T21 STD-EA1-FAGP = Dual DC, GDC, Buzzer, PCTouch
• HD 08T21 STD-EA1-FOGP = Dual DC, Optical Bonding Technology, GDC, Buzzer, PCTouch
Available Standard Models:
• Optical Bonding Technology
Factory Mounted Options:
For a full overview of typenumbers, please review the following link:
www.hatteland-display.com/pdflink/ind100780-3.php
• Projected Capacitive Touch Screen (Multitouch, USB interface)
Factory Defaults:
IND100129-152
32
Specications - HD 13T21 STD-xxx-Fxxx
SPECIFICATIONS
Note: All specifi cations are subject to change without prior notice!
Please visit www.hatteland-display.com for the latest electronic version.
• 13.3 inch TFT Liquid Crystal Display module
• Widescreen, Aspect Ratio 16:10
• a-si TFT Active Matrix
• LED or CCFL Backlight Technology
• Digital separate synchronization
• Composite synchronization
• Synchronization on green
• Auto detects on chosen source
• Video Signal : Analog RGB 0,7Vp-p
: Input Impedance 75 Ohm
Synchronization Range:
• Horizontal : 24 kHz to 81 kHz
• Vertical : 50 Hz to 75 Hz*
* 60Hz is recommended for optimal picture quality
• 355.00 (W) x 248.50 (H) x 58.00 (D) mm
• 13.98" (W) x 9.78" (H) x 2.28" (D)
• Compatible VESA mounting 75mm, 4xM4 VESA mounting, Max 8mm deep
• Built-in Console mounting 4 x M5x15mm screws
• Weight: 3.0kg / 6.6lbs
• Operating : Temperature -15 deg. C to +55 deg. C
- Humidity up to 95%
• Storage : Temperature -20 deg. C to +60 deg. C
- Humidity up to 95%
• IP Rating : Protection: IP66 front - IP22 rear (EN60529)
Safety Considerations:
Even although the test conditions for bridge units provide for a maximum
operating temperature of 55°C, continuous operation of all electronic
components should, if possible, take place at ambient temperatures of only
25°C. This is a necessary prerequisite for long life and low service costs.
Resolutions:
• WVGA : 640 x 480 (including 720 x 400)
• WSVGA : 800 x 600
• WXGA : 1024 x 768, 1280 x 800*
* Recommended for optimal picture quality
Power Supply:
• 2 x 24VDC : Model HD 13T21 STD-Exx-Fxxx
Dual input, galvanic isolated, automatic switch between power source
Power Consumption:
• Operating : 20W (typ) - 30W (max)
• DVI-I Signal IN : 1 x 29p DVI Female (or as RGB IN with adapter)
• Touchscreen : 1 x USB TYPE B Connector (female)
• DC Power IN : 2 x 2-pin Terminal Block 5.08
Behind front bezel - Glass Display Control™ (GDC) IP66:
• Power On/Off, Brightness Control (-/+), Light Sensor (not visible)
• Programmable Alarm LED, Buzzer (not visible)
• Native Resolution : 1280 x 800 (WXGA)
• Pixel Pitch (RGB) : 0.2235 (H) x 0.2235 (V) mm
• Response Time : 6/10ms (typical) (Tr/Tf)
• Contrast Ratio : 800:1 (typical)
• Light Intensity (LED) : 500 cd/m2 (typical)
• Light Intensity (CCFL) : 400 cd/m2 (typical)
• Viewable Angle : 70 deg (H) 60 deg (V) (typical)
• Active Display Area : 286.08 (H) x 178.8 (V) mm
• Max Colors : 16.7 million
TFT Technology:
Synchronization:
Physical Considerations:
Environmental Considerations:
Supported Signals:
Power Specifications:
T E S T I N G / A P P R O V A L S & C E R T I F I C A T E S
This product have been tested / type approved by the following classification societies:
IEC 60945 4th (EN 60945:2002) IACS E10 ClassNK - Nippon Kaiji Kyokai GL - Germanischer Lloyd
DNV - Det Norske Veritas ABS - American Bureau of Shipping BV - Bureau Veritas LRS - Loyd’s Register of Shipping
EU RO MR - Mutual Recognition CCS - China Classification Society
Signal Terminals:
User Controls:
TFT Characteristics:
Compass Safe Distance: HD 13T21 STD-xxx-Fxxx Standard: 45cm Steering: 30cm
• Optical Bonding Technology
Factory Mounted Options:
• HD 13T21 STD-EA1-FAGP = Dual DC, GDC, Buzzer, PCTouch
• HD 13T21 STD-EA1-FOGP = Dual DC, Optical Bonding Technology, GDC, Buzzer, PCTouch
Available Standard Models:
For a full overview of typenumbers, please review the following link:
www.hatteland-display.com/pdflink/ind100780-3.php
• Projected Capacitive Touch Screen (Multitouch, USB interface)
Factory Defaults:
IND100129-153
33
This page left intentionally blank
34
Technical Drawings
35
Technical Drawings - HD 08T21 STD-xxx-Fxxx
Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG file.
Standard Version
IND100132-235
36
This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.
Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.
Technical Drawings - HD 13T21 STD-xxx-Fxxx
Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG file.
Standard Version
IND100132-236
37
This document is the property of Hatteland Display AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Display AS.
Any authorized reproduction, in whole or in part, must include this legend. Hatteland Display Proprietary information. Not to be distributed to any third party without written permission.
This page left intentionally blank
38
Appendixes
39
Pinout Assignments
All pin out assignments are seen from users Point of View (POV) while looking straight at the connector.
4 pin USB TYPE B
Pin 2: Negative Data
Pin 3: Positive Data
1 pin RCA/BNC COMP. VIDEO
Pin 1: Video Signal
2 pin DC Power Input, Phoenix
Pin 2: Negative - Pin 1: Positive +
Pin 1: VCC +5V
Pin 4: Ground
Ground Shield
18/24/24+5 pin DVI-D, DVI-I, Single Link, Dual Link Combined
1 2 3 4 5 6 7 8 C1 C2
9 10 11 12 13 14 15 16 C5
17 18 19 20 21 22 23 24 C3 C4
PIN 01 T.M.D.S. Data2 - (Digital - RED link 1)
PIN 02 T.M.D.S. Data2 + (Digital + RED link 1)
PIN 03 T.M.D.S. Data2/4 Shield
PIN 04 T.M.D.S. Data4 - (Digital - GREEN link 2)
PIN 05 T.M.D.S. Data4 + (Digital + GREEN link 2)
PIN 06 DDC Clock
PIN 07 DDC Data
PIN 08 Analog Vertical Sync (DVI-I only)
PIN 09 T.M.D.S. Data1 - (Digital - GREEN link 1)
PIN 10 T.M.D.S. Data1 + (Digital + GREEN link 1)
PIN 11 T.M.D.S. Data1/3 Shield
PIN 12 T.M.D.S. Data3 - (Digital - BLUE link 2)
PIN 13 T.M.D.S. Data3 + (Digital + BLUE link 2)
PIN 14 +5V Power (for standby mode)
PIN 15 Ground (for +5V and analog sync)
PIN 16 Hot Plug Detect
PIN 17 T.M.D.S. Data0 - (Digital - BLUE link 1) and digital sync.
PIN 18 T.M.D.S. Data0 + (Digital + BLUE link 1) and digital sync.
PIN 19 T.M.D.S. Data0/5 Shield
PIN 20 T.M.D.S. Data5 - (Digital - RED link 2)
PIN 21 T.M.D.S. Data5 + (Digital - RED link 2)
PIN 22 T.M.D.S. Clock Shield
PIN 23 T.M.D.S. Clock + (Digital clock + (Links 1 and 2)
PIN 24 T.M.D.S. Clock - (Digital clock - (Links 1 and 2)
PIN C1 Analog RED
PIN C2 Analog GREEN
PIN C3 Analog BLUE
PIN C4 Analog Horizontal Sync.
PIN C5 Analog Ground (return for RGB signals)
DDC = Display Data Channel.
.M.D.S = Transition Minimized Differential Signal
PIN C1,C2,C3,C4 = Only present on DVI-I connectors.
NOTE: Connector shows a DUAL LINK design, but some units may not support it.
Only units with 1920x1200 or more in resolution require / support DUAL LINK.
IND100241-12
Appendix
40
Basic Trouble-shooting
GENERAL ISSUES FOR TFT PANEL BASED PRODUCTS
Note: Applies for a range of various products. This is only meant as a general guide.
NO PICTURE / LED BEHAVIOUR:
If there is no light at all in the LED at the FRONT, check power cables. If the LED in front is green then check if the
brightness is set/adjusted to max brightness. Lack of image is most likely to be caused by incorrect connection, lack of
power or wrong BIOS settings.
SCROLLING / UNSTABLE IMAGE:
Signal cable may not be completely connected to computer or TFT display. Check the pin assignments and signal
timings of the display and your video card with respect to recommended timing and pin assignments. Make sure that
the video card is compatible and that it is properly seated / installed on the computer.
DISPLAY AREA IS NOT CENTERED / SIZED CORRECTLY
Make sure that a supported video mode has been selected on the display, or on the video card / system. If it is
impossible to position the image correctly, i.e. the image adjustment controls will not move the image far enough, then
test it again using another graphics card for the PC system. This situation may occur with a custom graphics card that
is not close to standard timings or if something is in the graphics line that may be affecting the signal, such as a signal
splitter (please note that normally a signal splitter will not have any adverse effect). If it is impossible to change to the
correct resolution/color depth, check if you have the right graphics driver installed in your system.
IMAGE APPEARANCE:
A faulty TFT panel can have black lines, pixel errors, failed sections, ickering or ashing image. Incorrect graphic
card refresh rate, resolution or interlaced mode will probably cause the image to be the wrong size, it may scroll,
icker badly or possibly even no image is present. Sparkling on the display may be a faulty TFT panel signal cable,
and it needs service attention.
RGB Signal Only: Horizontal interference can usually be corrected by adjusting the PHASE (OSD menu).
Vertical interference can usually be corrected by adjusting the FREQUENCY (OSD menu).
DEW CONDENSATION BEHIND GLASS:
Note that this problem will not occur on bonded products. For non-bonded products, do the following:
Power on the TFT product and set brightness to 100%. Turn off any automatic screensavers on PC or similar. During
minutes the dew will be gone. To speed up the process, use a fan heater for a reasonable time. Do not overheat the
unit.
GENERAL ISSUES FOR COMPUTER BASED PRODUCTS
Note: Applies for a range of various products. This is only meant as a general guide.
CD-ROM FAILURE OR READ/DETECTION PROBLEMS:
If the product are operated/located in a area with extreme condensation, the CD/DVD drive may not work correctly
due to condensation on the read head. Keep the product on for a while until it’s reached normal operating
temperature, and retry accessing discs. Otherwise, consider using USB memory sticks or alternative storage devices.
NO CD-ROM AVAILABLE ON YOUR PRODUCT FOR INSTALLING DRIVERS/SOFTWARE:
Please use USB memory sticks, USB Floppy drive, USB CD-Rom Drive or alternative storage devices to
transfer/install software on CD-ROM-less units.
IND100077-8
Appendix
41
Declaration of Conformity
We, manufacturer, Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway
declare under our sole responsibility that the
JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD, HT STD, HD MMD, HM MMD, HT MMC, HD MMC
and HT/HM (computers) product ranges is in conformity with the following standards in accordance with the EMC Directive.
Low Voltage Directive 2006/95/EC
EN 60950:2006/A2:2013
EMC Directive 2004/108/EC
EN 55022:2010 / AC:2011 Class A
EN 55024:2010
Signature:........................................................
Frode Grindheim
Vice President Product Management
Nedre Vats, Norway
CE MARK FIRST AFFIXED DATE (11 March 2010)
Signature:........................................................
Arne Kristiansen
Site Manager - Test & Commission Division
Oslo, Norway
Declaration of Conformity
We, manufacturer, Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway
declare under our sole responsibility that the JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD, HT STD,
HD MMD, HM MMD, HT MMC, HD MMC and HT/HM (computers) product ranges is in conformity with
IEC 60945 4th (EN 60945:2002) and IACS E10 (where applicable)
Declaration of Conformity
We, manufacturer, Hatteland Display AS, Stokkastrandvegen 87B, N-5578 Nedre Vats, Norway
declare under our sole responsibility that the products listed below comply with
FCC 47 CFR Part 15, Subpart B, Class A:
JH MMD, JH MMC, JH STD, JH MIL, HM NMD, HM MIL, HM CMD, HT STD, HD MMD,
HM MMD, HT MMC, HD MMC and HT/HM (computers) product ranges
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
Signature:........................................................
Vice President Product Management
IND100237-1
cause harmful interference in which case the user will be required to correct the interference at his own expense.
Frode Grindheim
Nedre Vats, Norway
FCC MARK FIRST AFFIXED DATE (16 February 2012)
This document was last approved, reviewed and found valid on 06 Jan 2015 by the signed participants as stated above.
Signature:........................................................
Arne Kristiansen
Site Manager - Test & Commission Division
Oslo, Norway
Return Of Goods Information
Return of goods:
(Applies not to warranty/normal service/repair of products)
Hatteland Display referenced as “manufacturer” in this document.
Before returning goods, please contact your system supplier before sending anything directly to manufacturer. When
you return products after loan, test, evaulation or products subject for credit, you must ensure that all accessories
received from our warehouse is returned. This applies to cables, powermodules and additional equipment except
screws or similar, user manual, datasheets or other written paper documents. Furthermore, the product must not have
any minor / medium or severe scratches, chemical spills or similar on the backcover, front frame or glass.
This is needed to credit the invoice 100%. Missing parts will not be subject for credit, and you will not get total credit
for returned product. You will either be charged separately or the amount is withdrawn from the credit. If you decide to
ship the missing items on the after hand, you will get 100% credit for that particular invoice or items received at
manufacturer incoming goods control. Please contact our service/sales department if additional questions or review
the following links at bottom of page for more information online.
Handling and packing units for return/credit
To prevent damage during shipping and transportation, respect the guidelines below.
Make sure you surround the product with the following material (whenever possible):
Use the original packaging from manufacturer, rm foam material, bubble wrap, lots of PadPack paper
or foam chips/polyester wrapped in sealed plastic bags. Please make sure that the unit is protected
with a surrounding plastic bag to prevent dust accumulation around the unit.
If you do not have the original packaging or are uncertain how to secure the unit properly,
please consider seeking advice from nearby shipping or transportation ofces, if in doubt!
Do not under any circumstances use loose foam chips, expanded polyester, clothes, cardboard with
sharp edges/spikes, too little or nothing to secure the unit inside the box. Do not use cardboard
boxes that are clearly too weak or not suitable for securing the unit properly during overseas shipment.
Reference Links:
http://lcm.hatteland-display.com/CustomerRMA/CustomerRMA.aspx
http://www.hatteland-display.com/rma_procedure.php
http://www.hatteland-display.com/terms
IND100077-14
Appendix
43
General Terms and Conditions
As of January 2015, Hatteland Display AS’ “Terms of Sales and Delivery” and “Warranty Terms” has been substituted
by the updated ”General terms and conditions for sale of goods and performance of additional services” (the “General
Terms and Conditions”).
Further, from January 2015 onward, the previous “Terms of Sales and Delivery” and “Warranty Terms”, as well as
other standard terms and conditions, policies and instructions issued by Hatteland Display AS, will be removed from
the User Manuals.
Instead, the updated General Terms and Conditions and the other standard terms and conditions, policies and
instructions issued by Hatteland Display AS will be available via our website only.
Please visit http://www.hatteland-display.com/terms to review the latest revision of this documentation.
INSTRUCTIONS FOR THE CONSIGNEE
1) CONTROL
Control the goods immediately by receipt. Examine the quantity towards the invoice/packinglist/shipping documents. Look for outward
defects on the packing which may indicate damage on or loss of contents. Control the container and the seals for any defects.
2) SECURING EVIDENCE
When defects on the goods have been found, evidence must be secured, and seller must be informed. Call the transporter and point out the
defects. Add a description of the defects on the goods receipt, the forwarder’s copy of the way-bill or on the driving slip.
3) RESCUE
Bound the damage. Try to restrict the damage and the loss. Seller will compensate expences incurred due to reasonable security efforts in
addition to damage and loss.
4) COMPLAINT
Write immediately a complaint to the transporter or his agent. Forward immediately the complaint to the transporter or his agent, and hold
the transporter responsible for the defects. The complaint must be sent at the latest:
- for carriage by sea: within 3 days
- for overland / air transportation within 7 days
5) DOCUMENTATION
For any claims the following documentation is required, and must be forwared to the company or their agent: invoice, way-bill and/or bill of
landing, and/or statement of arrival, inspection document, besides a copy of the letter of complaint to the transporter.
IND100077-7
Appendix
44
Pixel Defect Policy
PIXEL DEFECT POLICY
Dot-defects (Bright or dark spots on the panel)
Due to the effect that dot failures are part of the TFT technology such failure occurrence cannot be prevented basically. Even though
dot defects usually occur during production process, new defects can appear within the lifespan of a TFT display. Neither the production
at LCD-supplier nor the use of a LCD-Monitor after shipment can be inuenced by Hatteland Display. Hence Hatteland Display cannot be
made responsible for such dot failures. However Hatteland Display understand and accepts the responsibility towards the customers for
the delivery of new displays, therefore accepts a limitation on dot defect’s occurrence on new displays delivered to the customer.
PRINCIPLES
a. One pixel consists of 3 dots (Red, Green and Blue)
b. Dot defects are differentiated between:
• Bright dot defects: Spot on the panel appear as pixels or sub pixels that are always lit. Non-extinguishing dot.
• Dark dot defects: Spot on the panel appear as pixels or sub pixels that are always dark (off). Non-lightening dot.
c. Inspector observes the LCD from normal direction at a distance of 50cm above the worktable. Dark dots are counted
under entire white screen. Bright dots are counted under entire black screen.
d. Dot failures within tolerances below do not qualify for warranty claims.
PIXEL DEFECT TOLERANCES
Bright dot
≤ 4 dots
Two adjacent bright dots * ≤ 2
Distance between 2 dot defects * ≥ 15mm
Dark dots ≤ 8
Total number of bright or dark dot defects. * ≤ 8
* 1 or 2 adjacent dot defects considered as 1 defect.
EXTRAORDINARY CIRCUMSTANCES
Possible cases which cannot be inuenced either by customer or Hatteland Display.
Examples for extraordinary circumstances:
• Allocation from LCD-Supplier
• Outstanding high number of LCD-panels with bright dots but within LCD-suppliers Specication.
• Sharply increased demand by customer
In such cases a mutual agreement is inevitable.
Examples:
• Acceptance of bright dots in “non-critical” display areas.
• Acceptance of bright dots with dened color.
Last Revised July 2007
IND100351-2
Appendix
45
Notes
General Notes:
- The unit is type approved according to EN60945 4th, 4.4, equipment category b) protected from the weather.
- Other type approvals applies for the different products.
Please see the appropriate “Specications” page in this manual for more information.
- Use of brillance and Glass Display Control™ (touch key functions) may inhibit visibility of information at night.
Note for units equipped with an PCTS (Projected Capacitive) Touch Screen:
Reference to Engineering Change Notication June 2013: http://www.hatteland-display.com/mails/10_2013_ecn.html
Touch Screen Firmware V1001 (12 inch) and V1000 (15,17,19,24):
For Maritime Multi Display (MMD) / Industrial Standard Display (STD) units the touch screen signals are routed through
the display unit via the USB port and can not be controlled / detect status by the unit itself in any way. It means that even
if the unit was turned off by the front bezel Power ON/OFF function, the touch screen is still active and it will still send
touch screen signals through the pipeline.
This can be an issue to consider when you are cleaning the front glass. In order to avoid sending touch screen signals,
you have to either physically cut power to the unit, making sure that no lights illuminate, or disconnect the USB cable
physically from either computer or display unit. You may also disable the touch screen functionality from within the
Operating System (OS) or via customized functions from within applications running on the external computer you have
connected.
Touch Screen Firmware V1002 (12 inch) and V1001 (15,17,19,24,26):
Issue described above has been solved. For Maritime Multi Display (MMD) / Industrial Standard Display (STD) units
regarding cleaning of front glass, you have to be aware that in order to avoid sending touch screen signals to a
connected computer, you have to turn off the Display unit (via its front Power Symbol) and clean the front glass.
When done cleaning, simply turn on the Display again and Touch Screen controller is automatically re-activated.
To learn more about how to properly clean glass surfaces, review the “Ergonomics” section in the “General Installation
Recommendations” chapter earlier in this manual.
IND100077-112
Appendix
46
User Notes
IND100077-24
Appendix
47
Revision History
Rev. By Date Notes
00 -1 SE 22 Feb 2012 Release for internal review.
01 AK
PM
SE
02 AK
SE
03 BU
JE
AK
SE
04 AK
SE
05 AK
JE
WJ
SE
06 AK
WJ
JE
SE
07 VM
JE
SE
08 PG
SE
09 MJLSE09 Apr 2015 Revised Grounding, General Mounting Instructions chapter, point 7, page 18,25
07 Mar 2012 First ofcial release.
17 Aug 2012 Revised type approvals and removed MTBF data, page 22,23
04 Oct 2013 Revised Contents of Package (connectors), page 5
Revised Product Labeling chapter, ref: QAR/117540, page 10,11
Added General Touch Screen Info and labels page 12
Added note for PCTS (Projected Capacitive) Touch Screen, page 13
Added section “Installation limitations”, page 17
Revised point 7 in General mounting instructions, grounding, page 18
Added point 1. to Ergonomics section, cleaning, page 19
Added Housing Connector overview, page 21,22
Revised description of illuminated symbols and power on/off, page 28
Revised 13 inch specications (LED and CCFL), page 33
18 Oct 2013 Revised Housing Connector overview, page 21,22
06 Nov 2013 Added information for ”DDC” usage and link to document, page 29
18 Feb 2014 Added information for Touch Keypad API access and information, page 29
30 May 2014 Revised User Controls chapter regarding Buzzer functionality (ref: QAR/122773), page 28-30
16 Feb 2015 General maintenance update regarding minor text changes throughout the manual.
Revised ”Return of goods information”, page 43
Revised ”General Terms and Conditions”, page 44
IND100077-120
Appendix
48
Revision History
IND100077-120
Appendix
49
www.hatteland-display.com
Loading...
