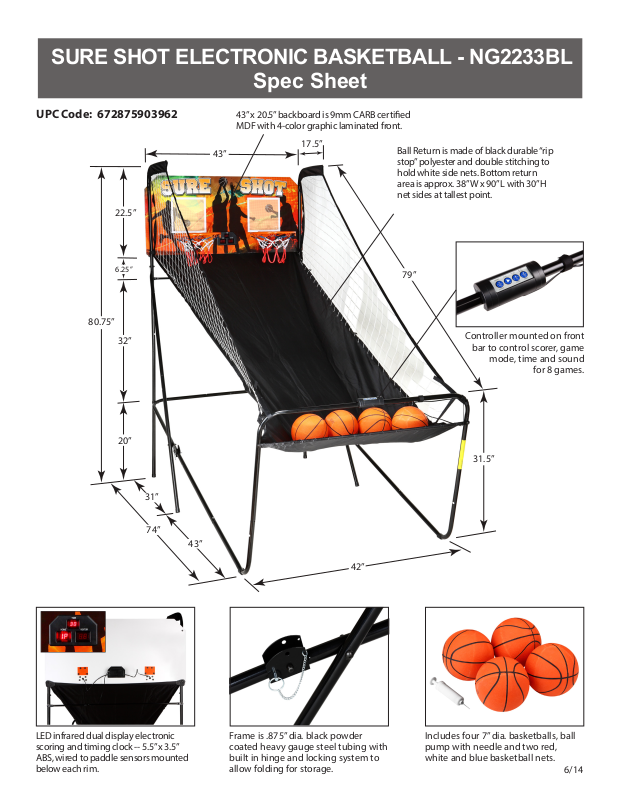

SURE SHOT ELECTRONIC BASKETBALL - NG2233BL
Spec Sheet
UPC Code: 672875903962
43” x 20.5” backboard is 9mm CARB certied
MDF with 4-color graphic laminated front.
80.75”
22.5”
6.25”
32”
43”
17.5”
Ball Return is made of black durable “rip
stop” polyester and double stitching to
hold white side nets. Bottom return
area is approx. 38” W x 90” L with 30” H
net sides at tallest point.
79”
Controller mounted on front
bar to control scorer, game
mode, time and sound
for 8 games.
20”
31”
74”
31.5”
81”
43”
42”
LED infrared dual display electronic
scoring and timing clock -- 5.5” x 3.5”
ABS, wired to paddle sensors mounted
below each rim.
Frame is .875” dia. black powder
coated heavy gauge steel tubing with
built in hinge and locking system to
allow folding for storage.
Includes four 7” dia. basketballs, ball
pump with needle and two red,
white and blue basketball nets.
6/14
PARTS
SURE SHOT ELECTRONIC BASKETBALL - NG2233BL
Spec Sheet
20
14
21
1
Backboard
21
1
Front
2
2
15
TIME
VISITOR
HOME
1
2
17
Control Wire
14
Electronic Scorer
Sensor Wire
Sensor Wire
31
17
Backboard
18
Back
11
35
16
5
34
3
8
9
10
9
12
7
4
6
8
10
NGP6021
1
NGP6020
2 3 4
x2 x2 x1 x1
Ø22x580x440mm Steel
Ø22x755x580mm Steel
9
Tube 1
NGP6024
Tube 5
NGP6028
6 7 85
x1 x2 x2
Ø22x755x580mm Steel
10 11
Tube 2
Ø22x685mm Steel
NGP6025
x1
Tube 6
NGP6029
x2 x2 x1 x2
Tube 9 Tube 10
Ø22x740mm Steel
NGP6032
13 14 15
Ø22x540x385mm Steel
NGP6033
x4 x1 x2 x1
Basketball
7" Dia. Rubber
Electronic Scorer
5.5” x 3.5” ABS
NGP6022
Tube 3
Ø22x890mm Steel
NGP6026
Tube 7
Ø22x830mm Steel
NGP6030
Tube 11
Ø22x1065x520mm Steel
NGP6034
Switch Sensor
9.5” x 2” x 2” ABS
NGP6023
Tube 4
Ø22x890mm Steel
NGP6027
Tube 8
Ø22x835mm Steel
12
NGP6031
Tube 12
Ø12.7x1070mm Steel
NGP6035
16
Control Box with Wire
4.75” x 2.25” x 1.5” ABS
6/14
SURE SHOT ELECTRONIC BASKETBALL - NG2233BL
Spec Sheet
17
NGP6036 NGP6038 NGP6039NGP6037
18 19 20
x2
12” dia. x1/2” Solid Steel
NGP6040 NGP6041* NGP6041*NGP6041*
21
Rim
22
x1
Backboard
43” x 20.5” x 3/8” MDF
NGP6041* NGP6041* NGP6041*NGP6041*
25
26
x4
M6 x 42mm Bolt
NGP6041* NGP6042 NGP6041*NGP6041*
29
30
x4
3.5 x 10mm Bolt
33
34
Rim Support Plate
3” x 2.5” Steel
M6 Washer
M6 x 48mm Bolt
4 x 28mm Bolt
NGP6043 NGP6044NGP6041*
x2 x1
Inflation Pump with Needle
1.25” dia. x 6” ABS
23
x64
M6 x 20mm Bolt
x16
27
x4
31
M6 x 35mm Bolt
TIME
HOME
VISITOR
x2
Electronic Scorer Face Plate
5.5” x3.5” ABS
35
x2
x1
1/4” dia. x 1/2” ABS
24
M6 x 30mm Bolt
28
32
x2
End Cap
x6
x32
M6 Nut
x1
Wrench
x1
Allen Key
*Items included in Hardware Pack, NGP6041
PRE-INSTALLED PARTS
A1 A2
x2 x2
Net
12” dia. x 8” H Nylon Rope
Self-Stick Strap
3/4” x 5.5” Velcro
Spring Lock
x2
Ball Return Net
39” x 90” x 30” Polyester & Nylon
A3
x9
Plastic Pole Insert
7/8” dia. ABS
x1
A4
x2
Lock Pin
1/4” dia. x 1.75” Shiny Steel
6/14
