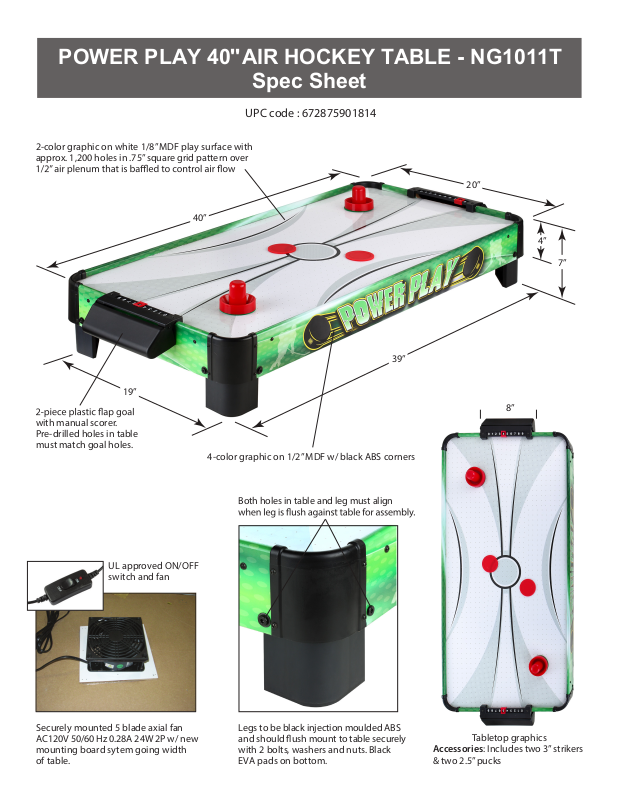

POWER PLAY 40'' AIR HOCKEY TABLE - NG1011T
Spec Sheet
UPC code : 672875901814
2-color graphic on white 1/8” MDF play surface with
approx. 1,200 holes in .75” square grid pattern over
40”
19”
with manual scorer.
Pre-drilled holes in table
must match goal holes.
4-color graphic on 1/2” MDF w/ black ABS corners
20”
4”
7”
39”
8”
Both holes in table and leg must align
UL approved ON/OFF
switch and fan
Securely mounted 5 blade axial fan
AC120V 50/60 Hz 0.28A 24W 2P w/ new
mounting board sytem going width
of table.
Legs to be black injection moulded ABS
and should ush mount to table securely
with 2 bolts, washers and nuts. Black
EVA pads on bottom.
Tabletop graphics
Accessories: Includes two 3” strikers
& two 2.5” pucks
Page 2
POWER PLAY 40''AIR HOCKEY TABLE - NG1011T
HARDWARE PACK - NGP50694
#5
#4
#2
#4
#9
#11
#5
#10
#5
Spec Sheet
#1
#4
#6
#3
#8
#7
#6
PARTS
#1
NGP50704 NGP50674 NGP50684 NGP5070 NGP5071
40” x 20” x 4”
1/2” MDF
TABLE BODY
1 pc
#4
BOLT
8 pcs
#2
5.25” x 3” x 3”
ABS Plastic
LEG
4 pcs
#5
FLAT WASHER
8 pcs
#3
8” x 3.25” x 2.5”
ABS Plastic
GOAL
2 pcs
#6
1/2” SCREW
4 pcs
#7
2.875” Dia. ABS
Plastic w/ Felt Pad
STRIKER
2 pcs
#9
HEX WRENCH
1 pc
#8
2.5” Dia. x 1/8”
ABS Plastic
#11
PUCK
2 pcs
6mm NUT
8 pc
#10 NGP50801
5 Blade Axial Fan
Pre-installed on
Table Body
BLOWER MOTOR
1 pcs
ADDITIONAL EQUIPMENT
REQUIRED:
PHILLIPS HEAD
SCREWDRIVER
