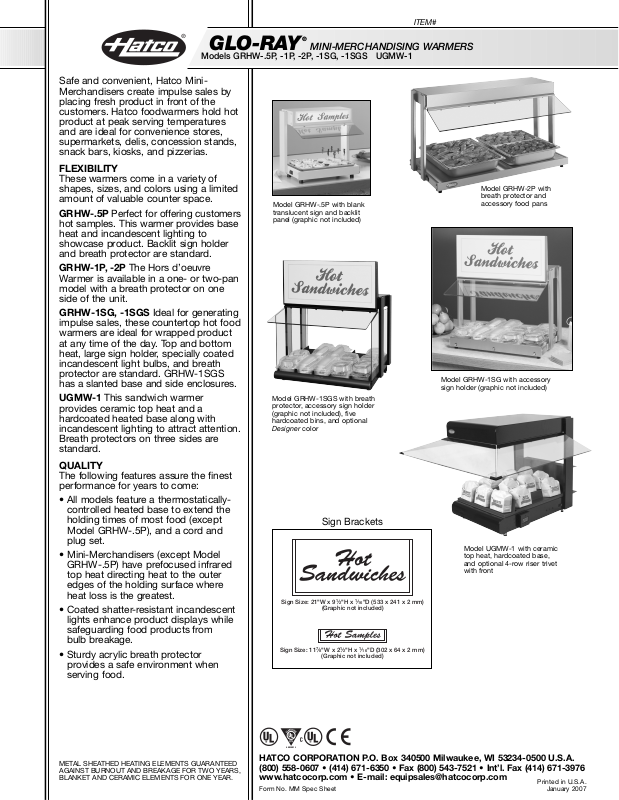

Form No. MM Spec Sheet

GLO-RAY

®

MINI-MERCHANDISING WARMERS

Models GRHW-.5P, -1P, -2P, -1SG, -1SGS UGMW-1

Safe and convenient, Hatco Mini­Merchandisers create impulse sales by
placing fresh product in front of the
customers. Hatco foodwarmers hold hot
product at peak serving temperatures
and are ideal for convenience stores,
supermarkets, delis, concession stands,
snack bars, kiosks, and pizzerias.

FLEXIBILITY

These warmers come in a variety of
shapes, sizes, and colors using a limited
amount of valuable counter space.

GRHW-.5P Perfect for offering customers
hot samples. This warmer provides base
heat and incandescent lighting to
showcase product. Backlit sign holder
and breath protector are standard.

GRHW-1P, -2P

The Hors d’oeuvre
Warmer is available in a one- or two-pan
model with a breath protector on one
side of the unit.

GRHW-1SG, -1SGS Ideal for generating
impulse sales, these countertop hot food
warmers are ideal for wrapped product
at any time of the day. Top and bottom
heat, large sign holder, specially coated
incandescent light bulbs, and breath
protector are standard. GRHW-1SGS
has a slanted base and side enclosures.

UGMW-1

This sandwich warmer
provides ceramic top heat and a
hardcoated heated base along with
incandescent lighting to attract attention.
Breath protectors on three sides are
standard.

QUALITY

The following features assure the finest
performance for years to come:

• All models feature a thermostatically-

controlled heated base to extend the
holding times of most food (except
Model GRHW-.5P), and a cord and
plug set.

• Mini-Merchandisers (except Model

GRHW-.5P) have prefocused infrared
top heat directing heat to the outer
edges of the holding surface where
heat loss is the greatest.

• Coated shatter-resistant incandescent

lights enhance product displays while
safeguarding food products from
bulb breakage.

• Sturdy acrylic breath protector

provides a safe environment when
serving food.

METAL SHEATHED HEATING ELEMENTS GUARANTEED
AGAINST BURNOUT AND BREAKAGE FOR TWO YEARS,
BLANKET AND CERAMIC ELEMENTS FOR ONE YEAR.

Model GRHW-1SG with accessory
sign holder (graphic not included)

Model GRHW-1SGS with breath
protector, accessory sign holder
(graphic not included), five
hardcoated bins, and optional
Designer color

Model UGMW-1 with ceramic
top heat, hardcoated base,
and optional 4-row riser trivet
with front

Model GRHW-.5P with blank
translucent sign and backlit
panel (graphic not included)

Sign Brackets

Model GRHW-2P with
breath protector and
accessory food pans

Printed in U.S.A.

January 2007

Sign Size: 21"W x 91⁄2"H x 1⁄16"D (533 x 241 x 2 mm)

Sign Size: 11

(Graphic not included)

7

⁄8"W x 21⁄2"H x 1⁄16"D (302 x 64 x 2 mm)

(Graphic not included)

ITEM#

Model GRHW-.5P Model GRHW-1SG

Model GRHW-1SGS

Model UGMW-1

DIMENSIONS

GRHW-.5P: 131/8"W x 91/2"D (including breath protector)

x 12

1

/4"H* (333 x 241 x 311 mm). Base Depth: 73/4"D (197 mm).

Sign Dimensions: 11

7

/8"W x 21/2"H x 1/16"D (302 x 64 x 2 mm).

GRHW-1P: 221/4"W x 191/8"D (including breath protector)

x 17

3

/4"H* (565 x 486 x 451 mm). Base Depth: 133/4"D (349 mm).

GRHW-2P: 431/4"W x 191/8"D x (including breath protector) x 203/4"H

(including 4" (102 mm) legs) (1099 x 486 x 527 mm).
Base Depth: 13

3

/4"D (349 mm).

GRHW-1SG: 221/4"W x 191/8"D x 247/8"H* (including

breath protector and sign holder) (565 x 486 x 632 mm).
Base Depth: 13

3

/4"D (349 mm).

Sign Dimensions: 21"W x 9

1

/2"H x 1/16"D (533 x 241 x 2 mm).

GRHW-1SGS: 221/4"W x 191/8"D x 247/8"H (including

breath protector and sign holder) (565 x 486 x 632 mm).
Base Depth: 14

5

/8"D (371 mm).

Sign Dimensions: 21"W x 9

1

/2"H x 1/16"D (533 x 241 x 2 mm).

UGMW-1: 281/8"W x 311/2"D (including breath protectors) x 21"H

(714 x 800 x 533 mm).
Base Dimensions: 14"W x 20

7

/8"D (356 x 530 mm).

* Add 3" (76 mm) to height when using 4" (102 mm) legs.

VOLTAGE

120 volts, single phase only (uses NEMA 5-15P, GRHW-2P,

uses NEMA 5-20P for Canada).

Export voltages available.

CORD LOCATION

GRHW-.5P: Back base.
GRHW-1P, -2P, -1SG, -1SGS: Base end plate, same side as switch.
UGMW-1: Back center of base.

PLUG CONFIGURATIONS

PRODUCT SPECS

Mini-Merchandiser

The heated Mini-Merchandiser shall be a Glo-Ray®Model ....as

manufactured by the Hatco Corporation, Milwaukee, WI
53234 U.S.A.

With 24/7 service (U.S. and Canada only), the warmer shall

be rated at ....watts, ....volts, and be ....inches (millimeters) in

overall width. It shall consist of a thermostatically-controlled
heated base, infrared heat from above (except GRHW-.5P),
breath protector, and incandescent display lights.

The infrared heating element shall be tubular metal sheathed
and the warmer shall have a cord with plug attached.

GLO-RAY

®

MINI-MERCHANDISING WARMERS

Models GRHW-.5P, -1P, -2P, -1SG, -1SGS UGMW-1

SPECIFICATIONS

Model Volts Watts Amps Shipping Weight

GRHW-.5P 120 155 1.3 12 lbs. ( 5 kg)
GRHW-1P 120 820 6.8 33 lbs. (15 kg)
GRHW-2P

†

120 1640 13.7 60 lbs. (27 kg)
GRHW-1SG 120 820 6.8 37 lbs. (17 kg)
GRHW-1SGS 120 820 6.8 37 lbs. (17 kg)
UGMW-1 120 1070 8.9 54 lbs. (25 kg)

HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • [phone] • [phone]
Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-mail: [e-mail]

Printed in U.S.A.

Form No. MM Spec Sheet January 2007

CEE 7/7 SchukoNEMA 5-20PNEMA 5-15P

BS-1363

OPTIONS (NOT FOR RETROFIT)

❑ Designer Colors: Warm Red, Black, Gray Granite,

White Granite, Navy Blue, Hunter Green

❑

Hardcoated Surface (

GRHW-1P, -2P, -1SG, -1SGS only)

❑ Infinite Control (GRHW-1P, -2P, -1SG, -1SGS only)
❑ Halogen Bulb in lieu of Standard Display Light
❑

Hardcoated Four Row Riser Trivet with Front (

UGMW-1 only)

ACCESSORIES

❑ 4" (102 mm) Adjustable Legs (GRHW-.5P, -1P, -2P, -1SG only)
❑ Hardcoated Tray (GRHW-.5P only)
❑ Hardcoated Bin (GRHW-1SG, -1SGS only)
❑ 4-Sided Sign Holder (GRHW-1SG only)
❑ Plastic Food Pans
❑ Plastic Pan Lids

†

NSF requires units over 36" (914 mm) in width or weighing more than
80 lbs. (36 kg) to be either sealed, or raised on the installation surface
with the 4" (102 mm) legs included.

Models GRHW-1P, -2P

51⁄8"

(130 mm)

21⁄2"
(64 mm)

115⁄32"

131⁄8"

(333 mm)

FRONT VIEW

(37 mm)

(241 mm)

221⁄4" (565 mm)

FRONT VIEW

121⁄4"

(311 mm)

73⁄4"

(197 mm)

91⁄2"

SIDE VIEW

247⁄8"

(632 mm)

(565 or 1099 mm)

FRONT VIEW

145⁄8" (371 mm)

191⁄8" (486 mm)

SIDE VIEW

221⁄4" or 431⁄4"

173⁄4" or 203⁄4"
(451 or 527 mm)

3"

(76 mm)

191⁄8" (486 mm)

SIDE VIEW

133⁄4" (349 mm)

221⁄4" (565 mm)

FRONT VIEW

281⁄8" (714 mm) 311⁄2" (800 mm)

21"

(533 mm)

151⁄8" (384 mm)

FRONT VIEW

223⁄8" (568 mm)

SIDE VIEW

247⁄8"

(632 mm)

133⁄4" (349 mm)

191⁄8" (486 mm)

SIDE VIEW
