Hatco SRG-1 Installation Manual

Page 1
™
Portable Shelves and Buffet Warmers
SRB, SRBW, SRG, and SRGBW Series
Installation and Operating Manual
I&W #07.05.204.00
Do not operate this equipment unless you have read and understood the contents of this manual! Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information concerning the maintenance, use, and operation of this product. If you’re unable to understand the contents of this manual, please bring it to the attention of your supervisor. Keep this manual in a safe location for future reference.
No opere este equipo al menos que haya leído y comprendido el contenido de este manual! Cualquier falla en el seguimiento de las instrucciones contenidas en este manual puede resultar en un serio lesión o muerte. Este manual contiene importante información sobre seguridad concerniente al mantenimiento, uso y operación de este producto. Si usted no puede entender el contenido de este manual por favor pregunte a su supervisor. Almacenar este manual en una localización segura para la referencia futura.
© 2008 Hatco Corporation
Page 2
CONTENTS
NOTICE
CAUTION
WAR
NING
Important Owner Information...............................i
Introduction ...........................................................i
Important Safety Information ..............................1
Model Description ................................................2
Specifications.......................................................3
Plug Configurations .........................................3
Electrical Rating Chart.....................................3
Dimensions — SRB and SRBW Models .........4
Dimensions — SRG and SRGBW Models......4
Installation ............................................................5
General............................................................5
Operation ..............................................................6
General............................................................6
Maintenance .........................................................8
Troubleshooting Guide........................................9
Accessories........................................................10
Hatco Limited Warranty.....................................11
Authorized Parts Distributors ...........Back Cover
IMPORTANT OWNER INFORMATION
Record the model number, serial number (located on the bottom of the unit), voltage, and purchase date of your Serv-Rite™ unit in the spaces below. Please have this information available when calling Hatco for service assistance.
Model No. ________________________________
Serial No. ________________________________
Voltage __________________________________
Business 8:00 a.m. to 5:00 p.m. Hours: Central Standard Time
Telephone: (800) 558-0607; (414) 671-6350
Fax: (800) 690-2966 (Parts and Service)
Changing the Setpoint Temperature................7
Locking/Unlocking the Digital Temperature
Control...........................................................7
General............................................................8
Cleaning...........................................................8
Replacing the Heat Lamps ..............................8
(Summer Hours: June to September – 8:00 a.m. to 5:00 p.m. C.S.T. Monday through Thursday 8:00 a.m. to 2:30 p.m. C.S.T. Friday)
(414) 671-3976 (International)
Date of Purchase __________________________
INTRODUCTION
Hatco Serv-Rite Portable Shelves and Buffet Warmers are designed to keep prepared foods at optimum serving temperatures without affecting quality. They are perfect for self-serve buffet areas and customer serving points. All Serv-Rite warmers feature a thermostatically-controlled heated shelf. Some models feature an overhead halogen heat lamp as well.
Hatco Serv-Rite Portable Shelves and Buffet Warmers are products of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance, and optimum performance. Every unit is inspected and tested thoroughly prior to shipment.
This manual provides the installation, safety, and operating instructions for Hatco Serv-Rite warmers. Hatco recommends all installation, operating, and safety instructions appearing in this manual be read prior to installation or operation of the Serv-Rite warmer.
24 Hour 7 Day Parts and Service Assistance available in the United States and Canada by calling (800) 558-0607.
Additional information can be found by visiting our web site at www.hatcocorp.com.
Safety information that appears in this manual is identified by the following signal word panels:
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
i
Form No. SRM-0608
Page 3
IMPORTANT SAFETY INFORMATION
WARNING
NOTICE
CAUTION
WARNING
Read the following important safety information before using this equipment to avoid serious injury or death and to avoid damage to equipment or property.
ELECTRIC SHOCK HAZARD:
• Plug unit into a properly grounded electrical outlet of the correct voltage, size, and plug configuration. If the plug and receptacle do not match, contact a qualified electrician to determine and install the proper voltage and size electrical outlet.
• Unplug the power cord or turn the power OFF at the fused disconnect switch/circuit breaker and allow the unit to cool before performing any maintenance or cleaning.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Unit is not weatherproof. Locate the unit indoors where the ambient air temperature is a minimum of 70°F (21°C).
• Do not pull unit by power cord.
• Discontinue use if power cord is frayed or worn.
• Do not attempt to repair or replace a damaged power cord. The cord must be replaced by Hatco, an Authorized Hatco Service Agent, or a person with similar qualifications.
• Do not steam clean or use excessive water on the unit.
• This unit is not “jet-proof” construction. Do not use jet-clean spray to clean this unit.
• Do not clean the unit when it is energized or hot.
• Do not allow liquids to spill into the unit.
• Do not fill SRB and SRBW models with water. They are dry heat units only, not steam table units.
• Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.
FIRE HAZARD: Locate the unit a minimum of 1″ (25 mm) from combustible walls and materials. If safe distances are not maintained, combustion or discoloration could occur.
Use only low pressure halogen light/heat lamps that meet or exceed National Sanitation Foundation (NSF) standards and are specifically designed for food holding areas.
Make sure food product has been heated to the proper food-safe temperature before placing on the unit. Failure to heat food product properly may result in serious health risks. This unit is for holding preheated food product only.
This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414-671-6350; fax 800-690-2966; or International fax 414-671-3976.
BURN HAZARD: Some exterior surfaces on the unit will get hot. Use caution when touching these areas.
Locate the unit at the proper counter height in an area that is convenient for use. The location should be level to prevent the unit or its contents from falling accidentally and strong enough to support the weight of the unit and contents.
Do not lay unit on the side with the control panel or damage to the unit could occur.
Use non-abrasive cleaners only. Abrasive cleaners could scratch the finish of the unit, marring its appearance and making it susceptible to soil accumulation.
Do not slide pans across glass surface, use rough-bottomed pans, or drop anything on glass surface. Scratching or breakage may occur. Damage to glass surface or breakage of glass caused by misuse is not covered under warranty.
Do not place anything on top of the glass sneeze guard. It is not designed to be a weight-bearing component.
Do not attempt to install the glass sneeze guard alone. Installation of the glass sneeze guard is a two-person job.
Form No. SRM-0608
1
Page 4
MODEL DESCRIPTION
All Models
All Hatco Serv-Rite™ Portable Shelves and Buffet Warmers are ideal for self-serve buffet areas and customer serving points. Each is equipped with a removable utensil tray and is designed to hold hot food at safe serving temperatures. They feature a thermostatically-controlled heated shelf, durable stainless steel construction, sturdy polished aluminum extrusions, and a 6′ (1829 mm) power cord with plug.
Model SRB-1
The Serv-Rite Base (SRB) is a portable heated shelf. It is designed to hold either one full-size, two half-size, or three third-size steam table pans up to 2-1/2″ (64 mm) deep. The SRB-1 is shipped from the factory fully assembled and ready for use.
Model SRG-1
The Serv-Rite Glass Shelf (SRG) is a portable heated glass shelf. The SRG-1 is shipped from the factory fully assembled and ready for use.
Figure 3. Model SRG-1
Model SRGBW-1
The Serv-Rite Glass Shelf Buffet Warmer (SRGBW) is a heated glass shelf with overhead halogen heat lamps and a glass sneeze guard. The SRGBW-1 requires installation of the glass sneeze guard before it is ready for use.
Figure 1. Model SRB-1
Model SRBW-1
The Serv-Rite Buffet Warmer (SRBW) is a heated shelf with overhead halogen heat lamps and a glass sneeze guard. It is designed to hold either one full­size, two half-size, or three third-size steam table pans up to 2-1/2″ (64 mm) deep. The SRBW-1 requires installation of the glass sneeze guard before it is ready for use.
Figure 4. Model SRGBW-1
Figure 2. Model SRBW-1
2
Form No. SRM-0608
Page 5
WARNING
NEMA 5-15P
CEE 7/7 Schuko
BS-1363
SPECIFICATIONS
Plug Configurations
Units are supplied from the factory with an electrical cord and plug installed. Plugs are supplied according to the application (see Figure 5).
ELECTRIC SHOCK HAZARD: Plug unit into a properly grounded electrical outlet of the correct voltage, size, and plug configuration. If the plug and receptacle do not match, contact a qualified electrician to determine and install the proper voltage and size electrical outlet.
NOTE: Receptacle not supplied by Hatco.
Electrical Rating Chart
Model Voltage Watts Amps Plug Configuration Shipping Weight
SRB-1 120 500 4.2 Nema 5-15P 42 lbs. (19 kg)
230 (CE) 500 2.2 CEE 7/7 Schuko 42 lbs. (19 kg) 230 (CE) 500 2.2 BS-1363 42 lbs. (19 kg)
Figure 5. Plug Configurations
SRBW-1 120 1100 9.2 Nema 5-15P 68 lbs. (31 kg)
230 (CE) 1100 4.8 CEE 7/7 Schuko 68 lbs. (31 kg) 230 (CE) 1100 4.8 BS-1363 68 lbs. (31 kg)
SRG-1 120 350 2.9 Nema 5-15P 35 lbs. (16 kg)
230 (CE) 350 1.5 CEE 7/7 Schuko 35 lbs. (16 kg) 230 (CE) 350 1.5 BS-1363 35 lbs. (16 kg)
SRGBW-1 120 950 7.9 Nema 5-15P 61 lbs. (28 kg)
230 (CE) 950 4.1 CEE 7/7 Schuko 61 lbs. (28 kg) 230 (CE) 950 4.1 BS-1363 61 lbs. (28 kg)
The shaded areas contain electrical information for Export models only.
Form No. SRM-0608
3
Page 6
A
E
D
F C
Front View Side View
AB
E
D
F C
Front View Side View
A
E
D
F C
Front View Side View
Top View
G
H
A
E
D
B
F C
Front View
Side View
Top View
G
H
Sneeze guard and lamp assembly in Top View removed for clarity.
SPECIFICATIONS
Dimensions — SRB and SRBW Models
Width Top Bottom Height Footprint Footprint
Model (A) Depth (B) Depth (C) (D) Width (E) Depth (F)
SRB-1 31-3/4" ----- 22-1/8" 5-3/8" 28-1/2" 13"
(806 mm) ----- (562 mm) (137 mm) (724 mm) (330 mm)
SRBW-1 32-5/8" 26" 22-1/8" 23-7/8" 28-1/2" 13"
(829 mm) (660 mm) (562 mm) (606 mm) (724 mm) (330 mm)

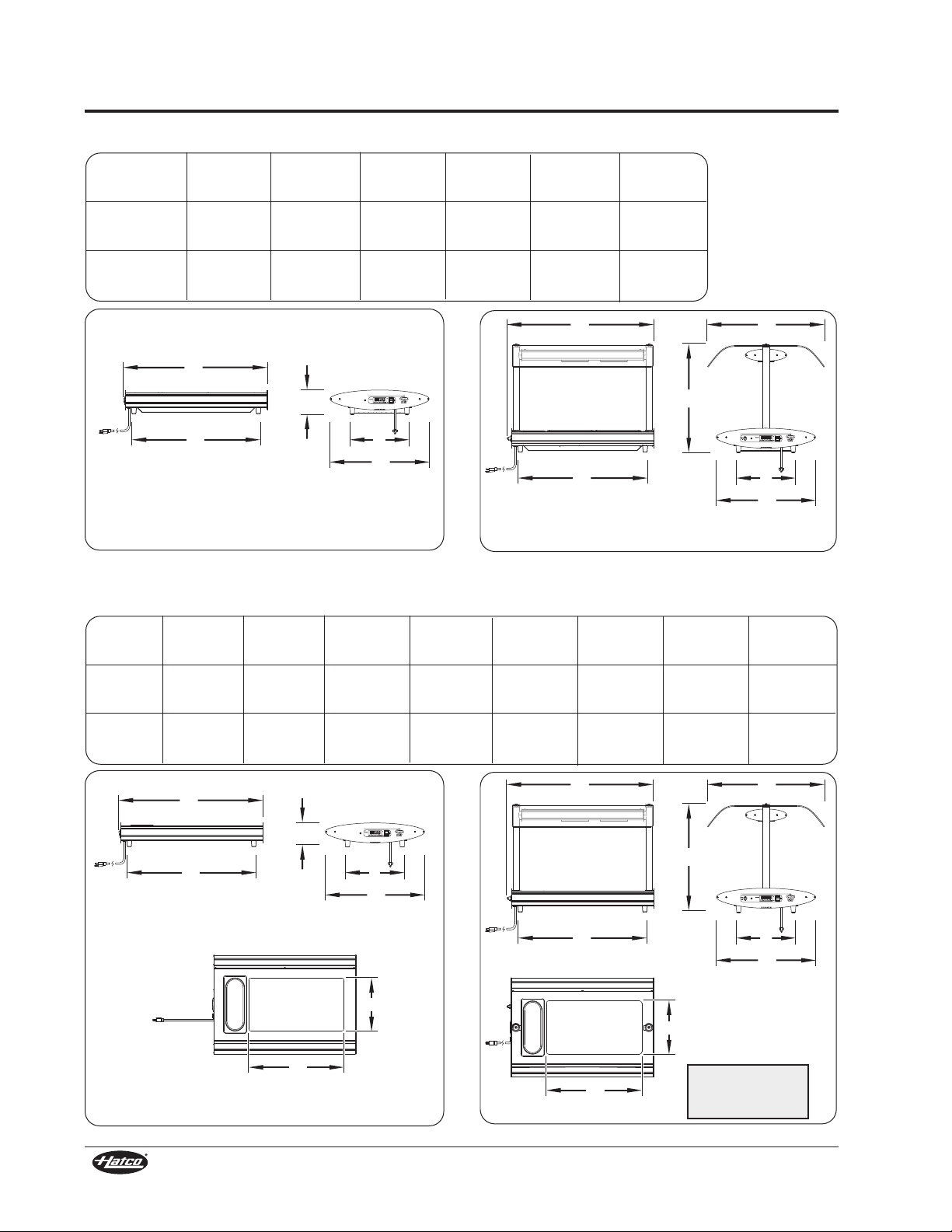

Figure 6. SRB-1 Dimensions
Figure 7. SRBW-1 Dimensions
Dimensions — SRG and SRGBW Models
Width Top Bottom Height Footprint Footprint Surface Surface
Model (A) Depth (B) Depth (C) (D) Width (E) Depth (F) Width (G) Depth (H)
SRG-1 31-3/4" ----- 22-1/8" 5-3/8" 28-1/2" 13" 21-1/8" 11-3/4"
(806 mm) ----- (562 mm) (137 mm) (724 mm) (330 mm) (537 mm) (298 mm)
SRGBW-1 32-3/4" 26" 22-1/8" 23-7/8" 28-1/2" 13" 21-1/8" 11-3/4"
(832 mm) (660 mm) (562 mm) (606 mm) (724 mm) (330 mm) (537 mm) (298 mm)
Figure 8. SRG-1 Dimensions
Figure 9. SRGBW-1 Dimensions
4
Form No. SRM-0608
Page 7
General
NOTICE
WARNING
Cap Screw
Top Plastic
Cap
Bottom
Plastic
Cap
Support
Post
Glass
Sneeze
Guard
Serv-Rite™ SRBW-1 and SRGBW-1 models are shipped with most components pre-assembled. The glass sneeze guard must be installed on location. Serv-Rite SRB-1 and SRG-1 models are shipped fully assembled and ready for use. Care should be taken when unpacking the shipping carton to avoid damage to the unit and components enclosed.
ELECTRIC SHOCK HAZARD: Unit is not weatherproof. Locate the unit indoors where the ambient air temperature is a minimum of 70°F (21°C).
FIRE HAZARD: Locate the unit a minimum of 1″ (25 mm) from combustible walls and materials. If safe distances are not maintained, combustion or discoloration could occur.
1. Remove the unit from the carton.
2. Remove the information packet.
NOTE: To prevent delay in obtaining warranty
coverage, fill out and mail in the warranty card to Hatco.
3. Remove tape and protective packaging from all
surfaces of unit.
4. For SRBW-1 and SRGBW-1 models, install the
glass sneeze guard. The glass sneeze guard is installed between two plastic caps at each support post for protection (see Figure 10).
INSTALLATION

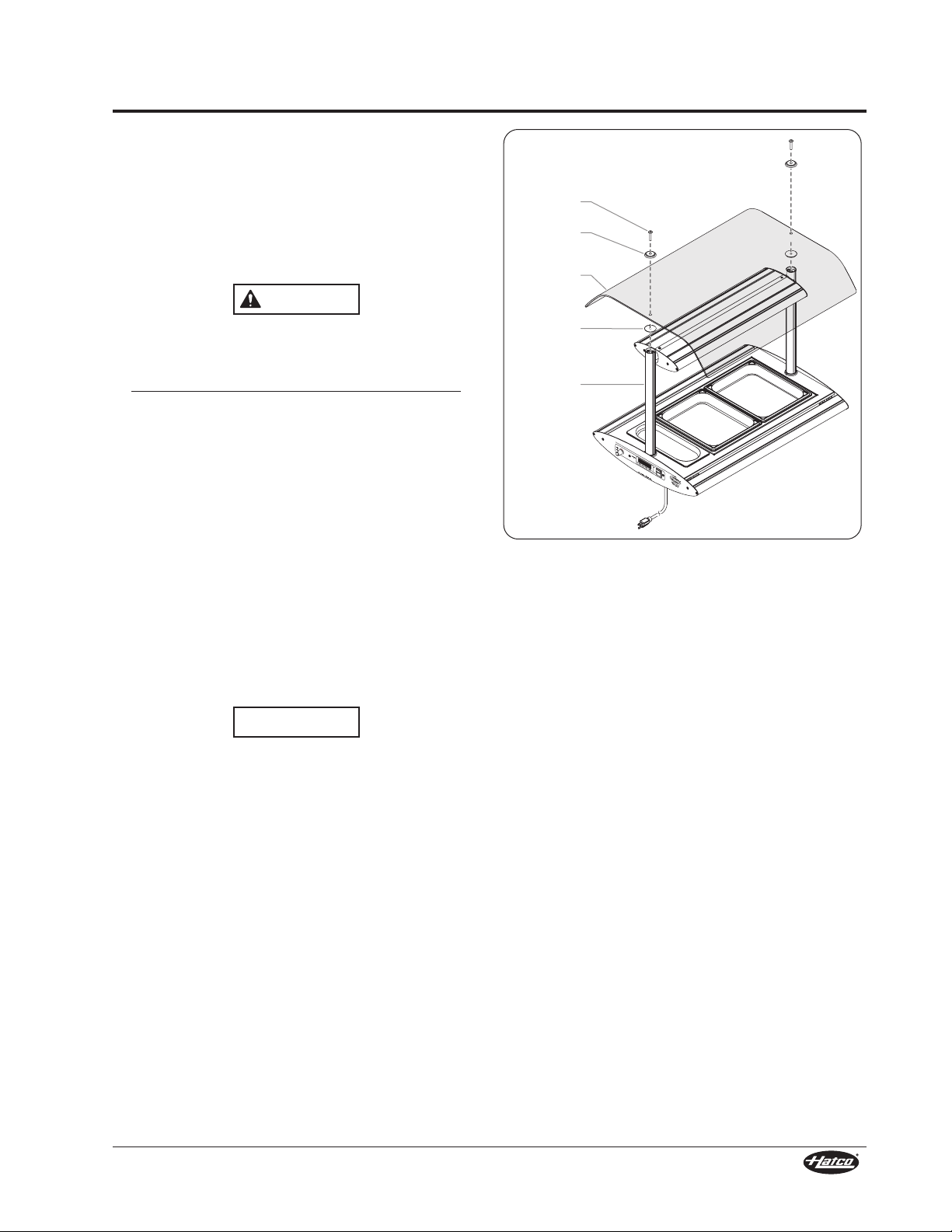

Figure 10. Glass Sneeze Guard Installation
5. Place the unit in the desired location.
• Make sure the unit is at the proper counter height in an area convenient for use.
• Make sure the countertop is level and strong enough to support the weight of the unit and food product.
• Make sure all the feet on the bottom of the unit are positioned securely on the countertop.
Do not attempt to install the glass sneeze guard alone. Installation of the glass sneeze guard is a two-person job.
a. Place a plastic cap with the flat side facing up
on each of the support posts.
b. Carefully place the glass sneeze guard on top
of the support posts and plastic caps. Make sure the holes in the glass sneeze guard are aligned with the holes in the plastic caps.
c. Place a plastic cap with the flat side facing
down over each of the holes on the glass sneeze guard. Make sure to align the holes in the plastic caps with the holes in the glass sneeze guard.
d. Insert a cap screw through the top plastic
caps, glass sneeze guard, bottom plastic caps, and into the support posts.
e. Tighten each cap screw until secure. NOTICE:
Do not over-tighten the cap screws.
Form No. SRM-0608
5
Page 8
OPERATION
WARNING
NOTICE
Down Arrow
Key
Up Arrow Key
“out 1”
Fahrenheit Symbol
SET
Key
CAUTION
Model SRBW-1 Model SRG-1
Heated
Glass Shelf
Removable
Utensil Tray
Control
Panel
Glass
Sneeze
Guard
Overhead Heat Lamps
General
Use the following procedures to operate Serv-Rite™ Portable Shelves and Buffet Warmers.
Read all safety messages in the IMPORTANT SAFETY INFORMATION section before operating this equipment.
ELECTRIC SHOCK HAZARD: Do not fill SRB and SRBW models with water. They are dry heat units only, not steam table units.
Do not place anything on top of the glass sneeze guard. It is not designed to be a weight-bearing component.
Do not slide pans across glass surface, use rough-bottomed pans, or drop anything on glass surface. Scratching or breakage may occur. Damage to glass surface or breakage of glass caused by misuse is not covered under warranty.
Startup
1. Plug the unit into a properly grounded electrical outlet of the correct voltage, size, and plug configuration. See the SPECIFICATIONS section for details.
2. Move the Power ON/OFF switch to the ON position.
•The digital temperature controller will energize and the current temperature of the heated shelf will appear on the display.
• The phrase “out 1” will appear in the upper left corner of the display to show that the base is in heat mode.
• For SRBW-1 and SRGBW-1 models; the overhead heat lamps will turn on if the LIGHTS control knob was left at a specific setting the last time the unit was on.
BURN HAZARD: Some exterior surfaces on the unit will get hot. Use caution when touching these areas.
3. Press and release the SET key on the digital temperature controller to verify the setpoint temperature.
• The setpoint temperature will be shown for 15 seconds. After 15 seconds, the display will revert to the current temperature of the heated shelf. To change the setpoint temperature, refer to “Changing the Setpoint Temperature” in this section.

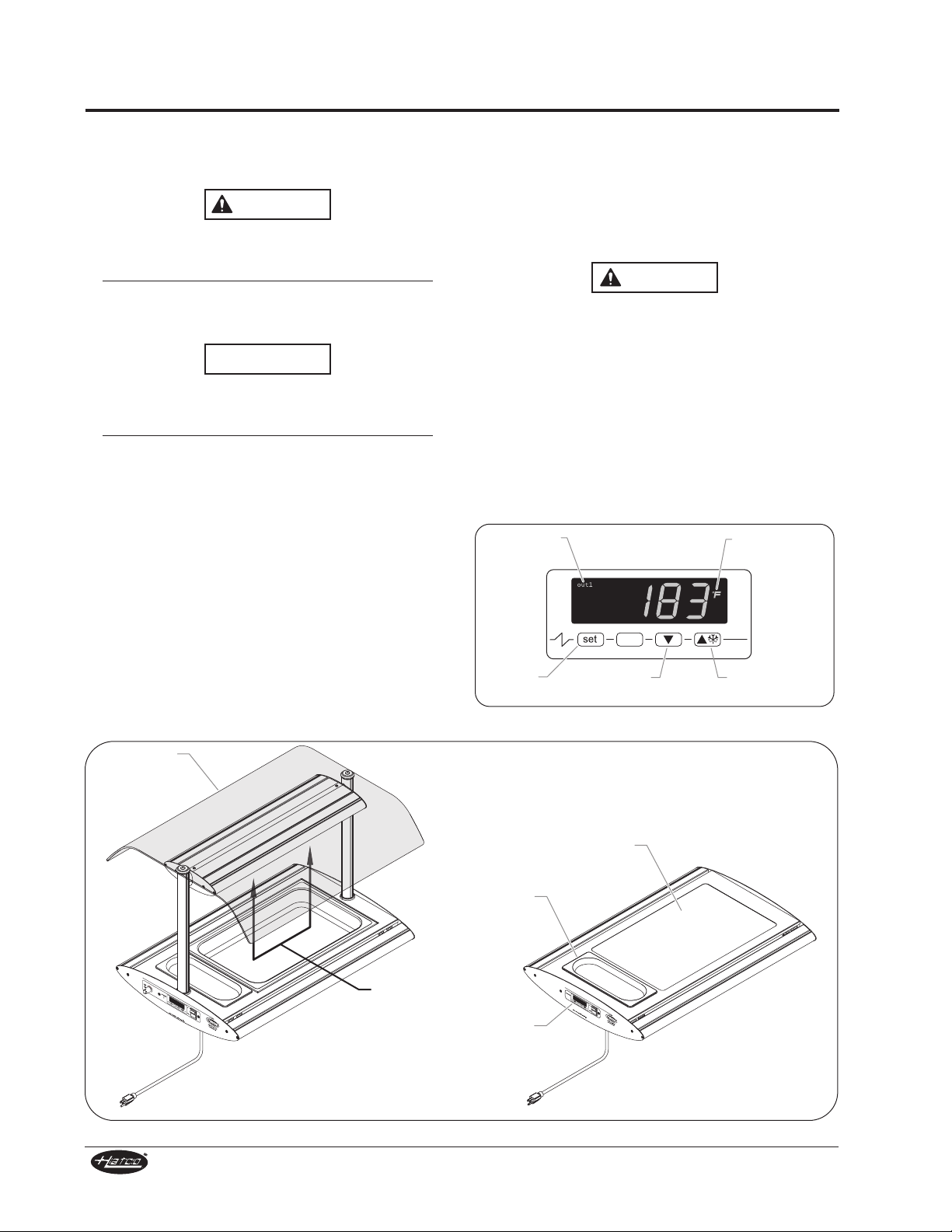

Figure 12. Digital Temperature Controller
Figure 11. Serv-Rite Components
6
Form No. SRM-0608
Page 9
OPERATION

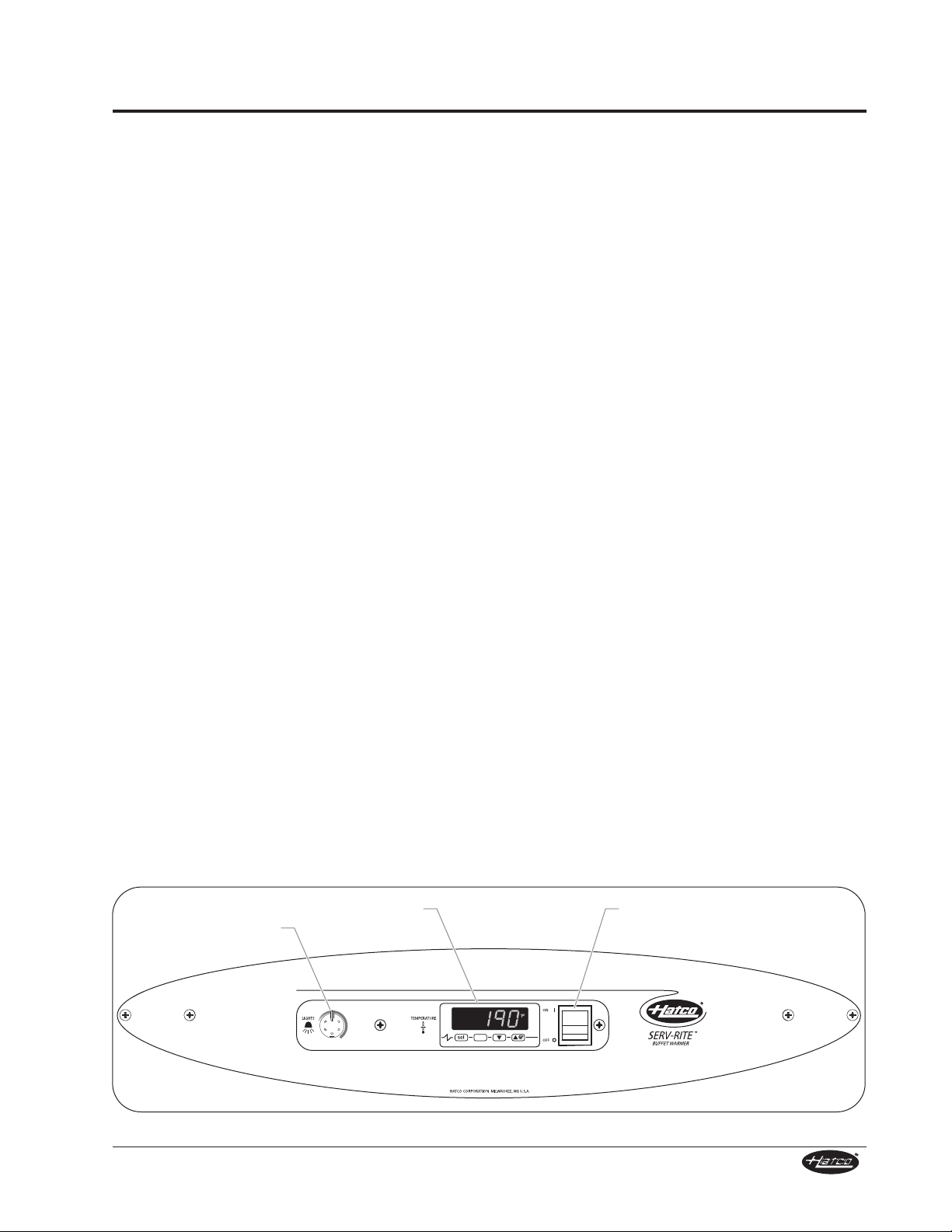

Digital Temperature
Controller
LIGHTS
Control Knob
Power ON/OFF Switch
NOTE: The digital temperature controller is pre-set
to a setpoint temperature of 190°F (88°C) at the factory. Once the setpoint temperature is changed, the new setpoint temperature will remain in memory until it is changed again. The Serv-Rite™ heated shelf has a maximum setpoint temperature of 240°F (116°C).
4. For SRBW-1 and SRGBW-1 models; turn on the overhead heat lamps and adjust to the desired temperature setting.
a. Turn the LIGHTS control knob clockwise out of
the “off” position.
b. Adjust the temperature of the overhead heat
lamps. Turning the LIGHTS control knob clockwise will increase the temperature and light intensity. Turning the LIGHTS control knob counterclockwise will decrease the temperature and light intensity.
NOTE: For SRGBW-1 models; heat generated by
the overhead heat lamps is absorbed by the glass surface of the heated shelf during the preheat cycle. This causes the temperature shown on the display to rise past the setpoint temperature. The display will return gradually to the setpoint temperature once a pan or food product is placed on the glass surface.
5. Allow the unit 30 minutes to reach operating temperature before placing preheated food product.
Shutdown
1. Move the Power ON/OFF switch to the OFF position. The digital temperature controller, heated shelf, and overhead heat lamps (SRBW-1 and SRGBW-1 models only) will shut off.
NOTE: For SRBW-1 and SRGBW-1 models, if the
overhead heat lamps are left on when the Power ON/OFF switch is moved to the OFF position, they will shut off as well. The lamps will turn on immediately the next time the Power ON/OFF switch is moved to the ON position.
3. Unplug the power cord and allow the unit to cool before performing any cleaning or maintenance.
Changing the Setpoint Temperature
Use the following procedure to change the setpoint temperature of the heated shelf.
1. Press and release the SET key. The current setpoint temperature will be shown on the display and ”out 1” will flash in the upper left corner.
2. Press the Up Arrow key or Down Arrow key within 15 seconds to change the setpoint temperature. If no key is pressed within 15 seconds, the display will revert to the current temperature of the heated shelf
3. Press the SET key or wait 15 seconds to lock in the new setpoint temperature.
Locking/Unlocking the Digital Temperature Controller
The keys on the digital temperature controller can be locked to prevent unauthorized changes to the settings.
To lock the keys of the digital temperature controller:
• Press and hold both the SET key and Down Arrow key at the same time for over two seconds. The message “Loc” will appear on the display.
To unlock the keys of the digital temperature controller:
Form No. SRM-0608
• Press and hold both the SET key and Down Arrow key at the same time until the message “UnL” appears on the display.
Figure 13. SRBW-1 and SRGBW-1 Control Panel
7
Page 10
MAINTENANCE
WARNING
NOTICE
Tray Holder
Perforated
Element Cover
Utensil
Tray
General
Serv-Rite™ Portable Shelves and Buffet Warmers are designed for maximum durability and performance with minimum maintenance.
ELECTRIC SHOCK HAZARD:
• Turn the power switch OFF, unplug the power cord, and allow the unit to cool before performing any maintenance or cleaning.
• DO NOT submerge or saturate with water. Unit is not waterproof. Do not operate if unit has been submerged or saturated with water.
• Do not steam clean or use excessive water on the unit.
• Do not clean the unit when it is energized or hot.
This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 800-558-0607 or 414­671-6350; fax 800-690-2966; or International fax 414-671-3976.
Cleaning
To preserve the finish of the unit as well as maintain performance, it is recommended that the unit be cleaned daily.
1. Turn off the unit, unplug the power cord, and allow the unit to cool.
2. Remove and wash the utensil tray.
3. Remove and wash steam table pans and tray holder (SRB-1 and SRBW-1 models only).
4. Wipe down all stainless steel and polished aluminum surfaces using a damp cloth. A non­abrasive, cream cleaner may be used for difficult stains.
a. For SRB-1 and SRBW-1 models, make sure
to wipe out the interior of the unit, including underneath the perforated element cover.

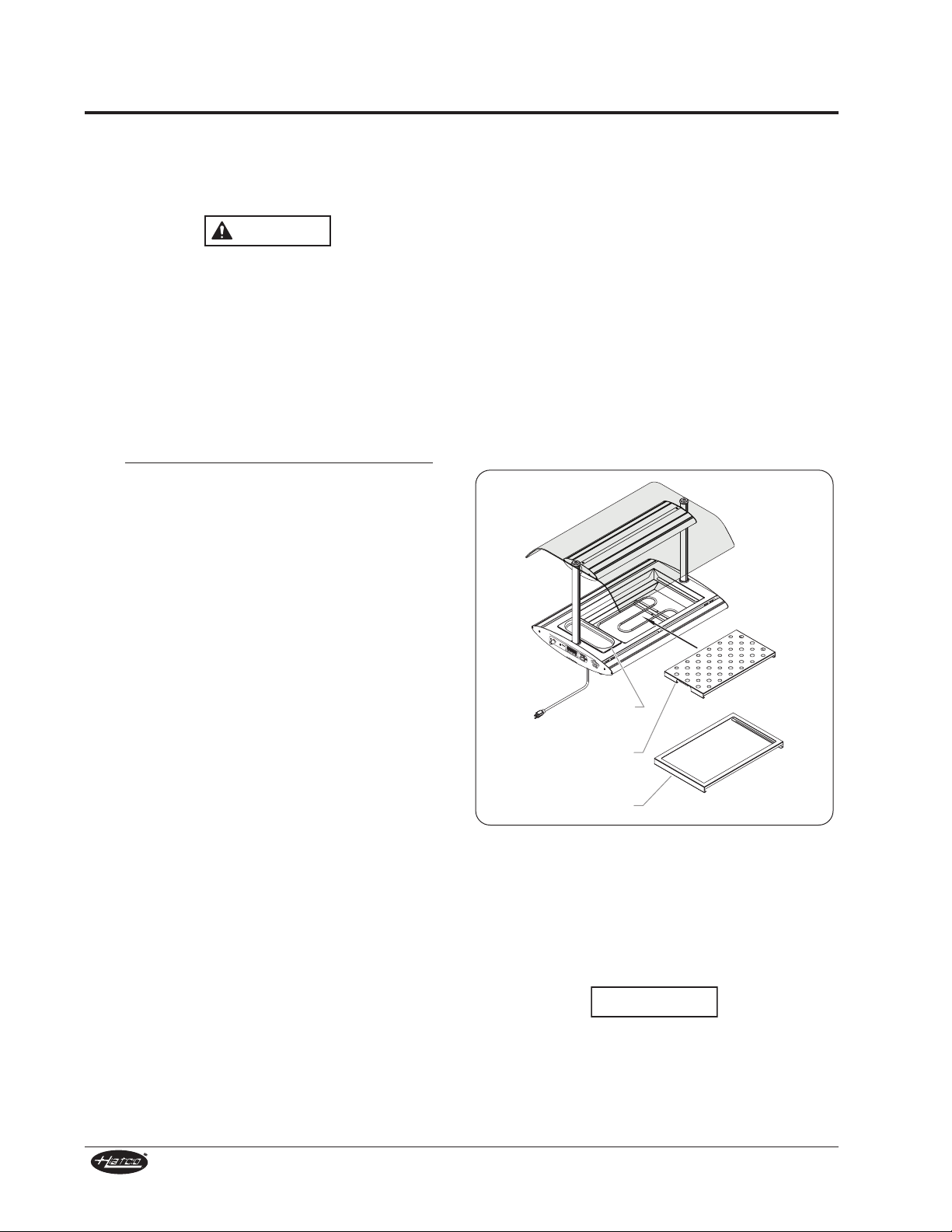

Figure 14. Cleaning Inside an SRBW-1 Model
5. For SRBW-1 and SRGBW-1 models, clean the glass sneeze guard using a standard glass cleaner.
6. For SRG-1 and SRGBW-1 models, clean the heated glass surface using a standard ceramic glass stove top cleaner.
Submerging or saturating the unit with water will damage the unit and void the product warranty.
8
Form No. SRM-0608
Page 11
MAINTENANCE
NOTICE
WARNING
Lamp
Cover
Lamp
Lamp
Holder
Screw
Replacing the Heat Lamps
Use the following procedure to change the halogen heat lamps in SRBW-1 and SRGBW-1 models.
Use only Genuine Hatco Replacement Parts when service is required. Failure to use Genuine Hatco Replacement Parts will void all warranties and may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn. Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment.
Use only low pressure halogen light/heat lamps that meet or exceed National Sanitation Foundation (NSF) standards and are specifically designed for food holding areas.
NOTE: Hatco halogen heat lamps meet NSF
standards for food holding and display areas. For 120V applications use Hatco part number 02.30.117.00. For 220, 230, and 240V applications use Hatco part number
02.30.126.00.
4. While wearing gloves or using other protection, install the new heat lamp into the lamp holder.
a. Grasp the new heat lamp and carefully push
one end into the spring steel contact in one side of the lamp holder.
b. Lift the other end of the lamp into position
against the spring steel contact on the opposite side of the lamp holder (opposing pressure from the spring steel contacts will hold the lamp securely in the lamp holder).
5. Position the lamp cover with glass shield over the heat lamp and secure using the two screws.
1. Turn off the unit, unplug the power cord, and allow the unit to cool.
2. Holding one hand under the lamp cover, use a screwdriver to remove the two screws that secure the lamp cover in position.
NOTE: The glass shield inside the lamp cover is
loose and will drop down with the lamp cover. Make sure to support the lamp cover with one hand during removal of the screws.
Do not touch the halogen heat lamps with bare skin. Oils from the skin will cause premature failure of the lamps.
3. While wearing gloves or using other protection, remove the old heat lamp from the lamp holder. The heat lamps are held in position with spring steel contacts on each side of the lamp holder. To remove:
a. Grasp the old heat lamp and carefully push it
into one of the spring steel contacts in the lamp holder to release it from the opposite side spring steel contact.
b. Pull the free end of the lamp down and remove
the lamp from the lamp holder.

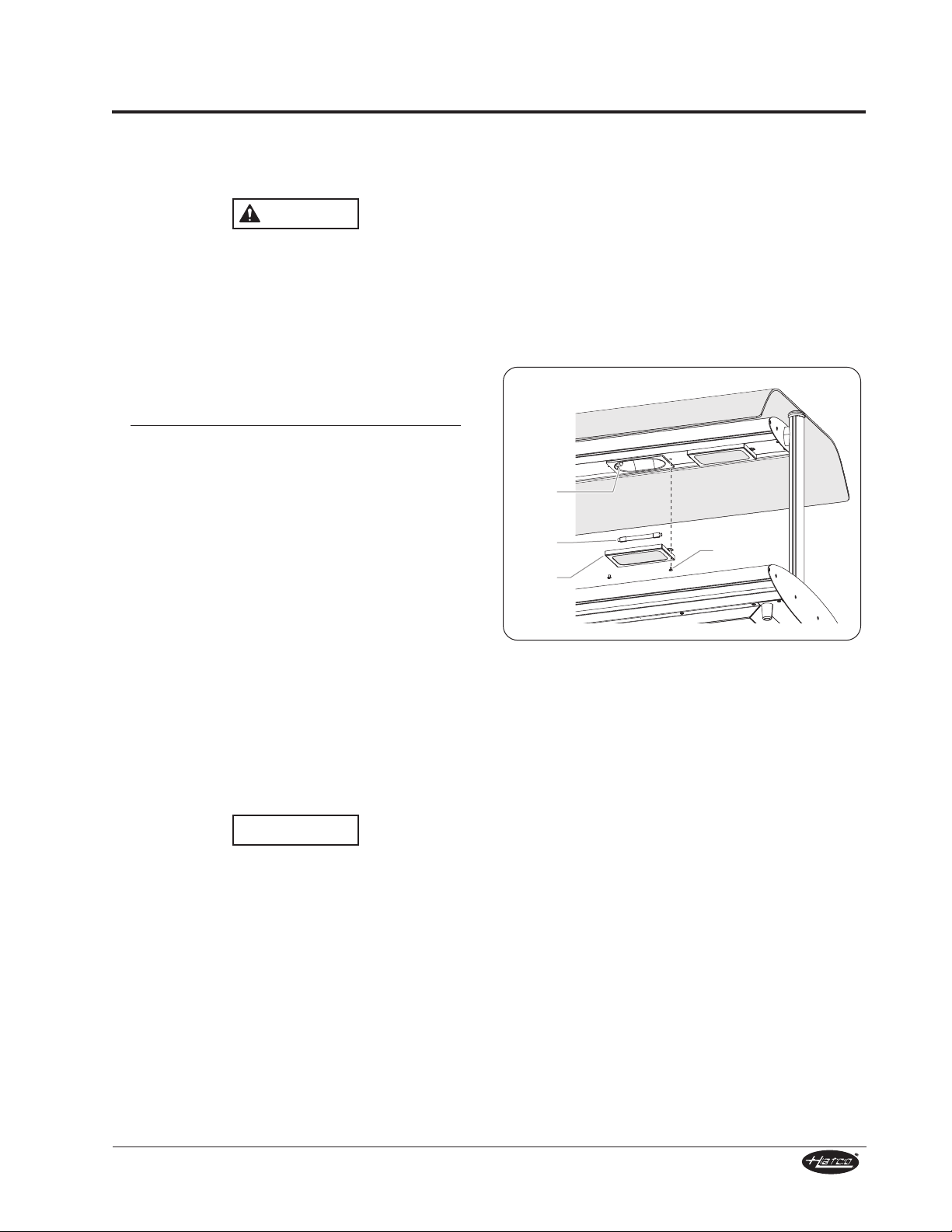

Figure 15. Replacing a Heat Lamp
Form No. SRM-0608
9
Page 12
TROUBLESHOOTING GUIDE
WARNING
WARNING
This unit must be serviced by qualified personnel only. Service by unqualified personnel may lead to electric shock or burn.
ELECTRIC SHOCK HAZARD: Turn the power switch OFF, unplug the power cord, and allow the unit to cool before performing any maintenance or cleaning.
Symptom Probable Cause Corrective Action
Unit too hot. Base setpoint temperature too
high.
For SRBW-1 and SRGBW-1 models: Overhead heat lamps set too high.
For SRGBW-1 model: Pan(s) or food product not in position on heated glass shelf.
Unit plugged into incorrect power supply.
Digital temperature controller defective.
Unit not hot enough.
Base setpoint temperature too low.
Change the base setpoint temperature on the digital temperature controller to a lower setting.
Turn the LIGHTS control knob counterclockwise to a lower setting.
Place pans or food product on heated glass shelf to prevent overhead heat lamps from over-heating glass shelf.
Verify with qualified personnel that power supply matches unit specification.
Contact Authorized Service Agent or Hatco for assistance.
Change the base setpoint temperature on the digital temperature controller to a higher setting.
Unit not working at all.
For SRBW-1 and SRGBW-1 models: Overhead heat lamps set too low or burned out.
Location of unit is susceptible to air currents (air conditioning ducts or exhaust fans).
Unit not plugged in. Plug unit into proper power supply.
Unit not turned on. Move Power ON/OFF switch to the ON
Power ON/OFF switch defective.
Digital temperature controller defective.
Base heating element burned out.
Turn the LIGHTS control knob clockwise to a higher setting or replace heat lamp(s).
Block air currents or relocate unit.
position.
Contact Authorized Service Agent or Hatco for assistance.
Contact Authorized Service Agent or Hatco for assistance.
Contact Authorized Service Agent or Hatco for assistance.
10
Form No. SRM-0608
Page 13
Carving Station
Carving Pan
Tray Holder
Drip Pan
Carving Pan
The carving station accessory is available for SRBW-1 models. It consists of a carving pan and a drip pan. Use the following procedure to install the carving station.
1. Remove any pans that are currently in the unit.
2. Remove the carving pan tray holder from the unit.
3. Slide the drip pan into the guides on the carving pan tray holder.
4. Replace the carving pan tray holder with drip pan into the unit.
5. Set the carving pan into the carving pan tray holder.
ACCESSORIES

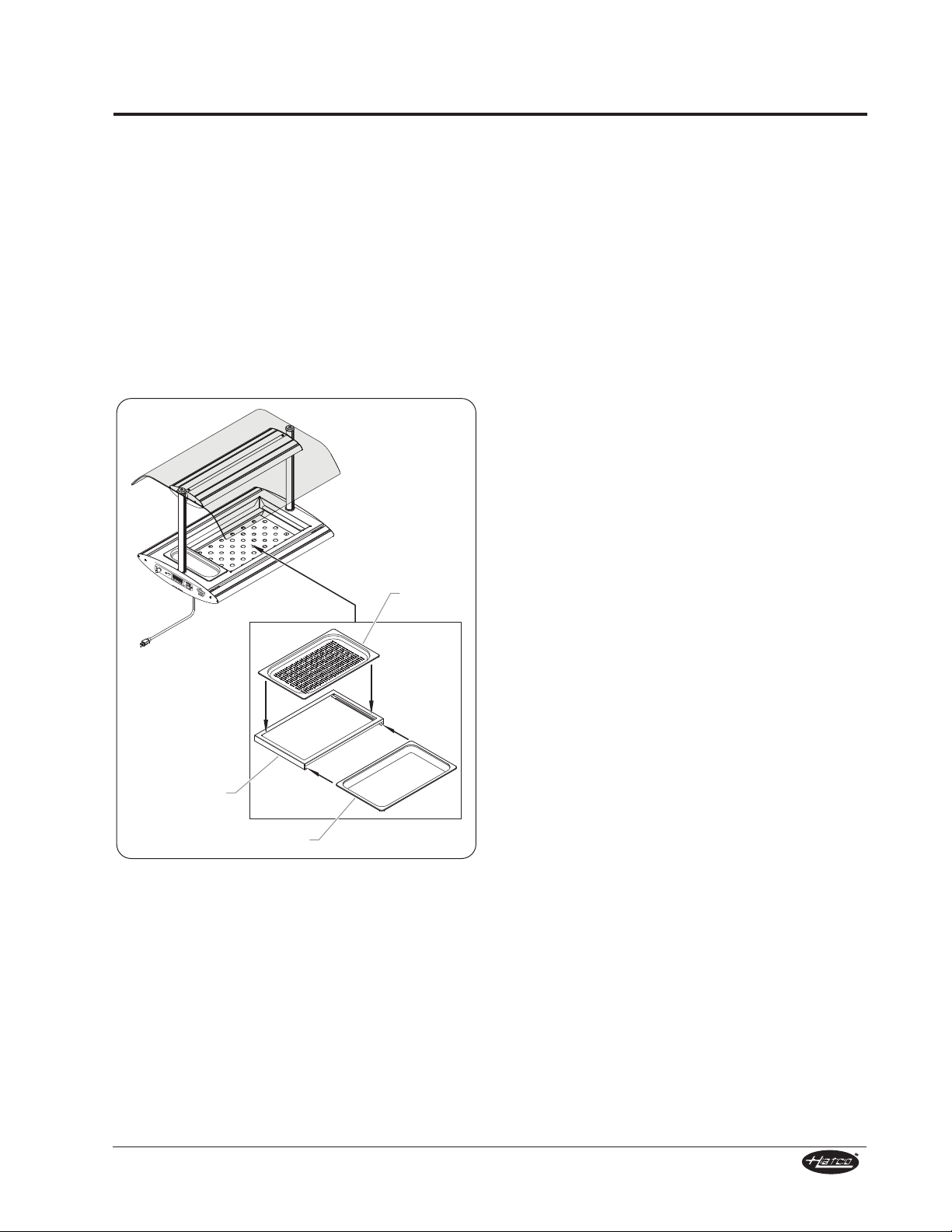

Figure 16. Carving Station
Form No. SRM-0608
11
Page 14
HATCO LIMITED WARRANTY
1. PRODUCT WARRANTY
Hatco warrants the products that it manufactures (the “Products”) to be free from defects in materials and workmanship, under normal use and service, for a period of one (1) year from the date of purchase when installed and maintained in accordance with Hatco’s written instructions or 18 months from the date of shipment from Hatco. Buyer must establish the Product’s purchase date by returning Hatco’s Warranty Registration Card or by other means satisfactory to Hatco in its sole discretion.
Hatco warrants the following Product components to be free from defects in materials and workmanship from the date of purchase (subject to the foregoing conditions) for the period(s) of time and on the conditions listed below:
a) One (1) Year Parts and Labor PLUS One
(1) Additional Year Parts-Only Warranty:
Conveyor Toaster Elements (metal sheathed) Drawer Warmer Elements (metal sheathed) Drawer Warmer Drawer Rollers and Slides Food Warmer Elements (metal sheathed) Display Warmer Elements (metal sheathed air heating) Holding Cabinet Elements (metal sheathed air heating) Built-In Heated Well Elements (metal sheathed)
b) One (1) Year Parts and Labor PLUS Four
(4) Years Parts-Only Warranty on pro-rated terms that Hatco will explain at Buyer’s request:
3CS and FR Tanks
c) One (1) Year Parts and Labor PLUS Nine
(9) Years Parts-Only Warranty on:
Electric Booster Heater Tanks Gas Booster Heater Tanks
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR PATENT OR OTHER INTELLECTUAL PROPERTY RIGHT INFRINGEMENT. Without limiting the generality of the foregoing, SUCH WARRANTIES DO NOT COVER: Coated incandescent light bulbs, fluorescent lights, decorative heat lamp bulbs, coated halogen light bulbs, halogen heat lamp bulbs, heated glass shelves, glass components, Product failure in booster tank, fin tube heat exchanger, or other water heating equipment caused by liming, sediment buildup, chemical attack or freezing, Product misuse, tampering or misapplication, improper installation, or application of improper voltage.
2. LIMITATION OF REMEDIES AND DAMAGES
Hatco’s liability and Buyer’s exclusive remedy hereunder will be limited solely, at Hatco’s option, to repair or replacement by a Hatco-authorized service agency (other than where Buyer is located outside of the United States, Canada, United Kingdom or Australia in which case Hatco’s liability and Buyer’s exclusive remedy hereunder will be limited solely to replacement of part under warranty) with respect to any claim made within the applicable warranty period referred to above. Hatco reserves the right to accept or reject any such claim in whole or in part. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer’s sole expense. HATCO WILL NOT BE LIABLE, UNDER ANY CIRCUMSTANCES, FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING BUT NOT LIMITED TO LABOR COSTS OR LOST PROFITS RESULTING FROM THE USE OF OR INABILITY TO USE THE PRODUCTS OR FROM THE PRODUCTS BEING INCORPORATED IN OR BECOMING A COMPONENT OF ANY OTHER PRODUCT OR GOODS.
12
Form No. SRM-0608
Page 15
HATCO CORPORATION
P.O. Box 340500
Milwaukee, WI 53234-0500 U.S.A.
(800) 558-0607 (414) 671-6350
Parts and Service Fax (800) 690-2966
International Fax (414) 671-3976
www.hatcocorp.com
HATCO AUTHORIZED PARTS DISTRIBUTORS
ALABAMA
Jones McLeod Appl. Svc. Birmingham 205-251-0159
ARIZONA
Auth. Comm. Food Equip. Phoenix 602-234-2443
Byassee Equipment Co. Phoenix 602-252-0402
CALIFORNIA
Industrial Electric Commercial Parts & Service, Inc. Huntington Beach 714-379-7100
Chapman Appl. Service San Diego 619-298-7106
P & D Appliance Commercial Parts & Service, Inc. S. San Francisco 650-635-1900
COLORADO
Hawkins Commercial Appliance Englewood 303-781-5548
FLORIDA
Whaley Foodservice Repair Jacksonville 904-725-7800
Nass Service Co., Inc. Orlando 407-425-2681
B.G.S.I. Pompano Beach 954-971-0456
Comm. Appliance Service Tampa 813-663-0313
GEORGIA
TWC Services Smyrna 770-438-9797
Heritage Service Group Norcross 866-388-9837
Southeastern Rest. Svc. Norcross 770-446-6177
HAWAII
Burney’s Comm. Service, Inc. Honolulu 808-848-1466
Food Equip Parts & Service Honolulu 808-847-4871
ILLINOIS
Parts Town Lombard 708-865-7278
Eichenauer Elec. Service Decatur 217-429-4229
Midwest Elec. Appl. Service Elmhurst 630-279-8000
Cone’s Repair Service Moline 309-797-5323
INDIANA
GCS Service Indianapolis 317-545-9655
IOWA
Electric Motor Service Co. Davenport 319-323-1823
Goodwin Tucker Group Des Moines 515-262-9308
KENTUCKY
Certified Service Center Lexington 859-254-8854
Certified Service Center Louisville 502-964-7007
LOUISIANA
Chandlers Parts & Service Baton Rouge 225-272-6620
MARYLAND
Electric Motor Service Baltimore 410-467-8080
GCS Service Silver Spring 301-585-7550
MASSACHUSETTS
Ace Service Co., Inc. Needham 781-449-4220
MICHIGAN
Commercial Kitchen Service Bay City 517-893-4561
Bildons Appliance Service Detroit 248-478-3320
Midwest Food Equip. Service Grandville 616-261-2000
MINNESOTA
GCS Service Minneapolis 800-822-2303
MISSOURI
General Parts Kansas City 816-421-5400
Commercial Kitchen Services St. Louis 314-890-0700
Kaemmerlen Parts & Service St. Louis 314-535-2222
NEBRASKA
Anderson Electric Omaha 402-341-1414
NEVADA
Burney’s Commercial Las Vegas 702-736-0006
Hi. Tech Commercial Service N. Las Vegas 702-649-4616
NEW JERSEY
Jay Hill Repair Fairfield 973-575-9145
Service Plus Flanders 973-691-6300
NEW YORK
Acme American Repairs, Inc. Brooklyn 718-456-6544
Alpro Service Co. Brooklyn 718-386-2515
Appliance Installation Buffalo 716-884-7425
Northern Parts Dist. Plattsburgh 518-563-3200
J.B. Brady, Inc. Syracuse 315-422-9271
NORTH CAROLINA
Authorized Appliance Charlotte 704-377-4501
OHIO
Akron/Canton Comm. Svc. Inc. Akron 330-753-6635
Certified Service Center Cincinnati 513-772-6600
Commercial Parts and Service Columbus 614-221-0057
Electrical Appl. Repair Service Independence 216-459-8700
E. A. Wichman Co. Toledo 419-385-9121
OKLAHOMA
Hagar Rest. Service, Inc. Oklahoma City 405-235-2184
Krueger, Inc. Oklahoma City 405-528-8883
OREGON
Ron’s Service, Inc. Portland 503-624-0890
PENNSYLVANIA
Elmer Schultz Services Philadelphia 215-627-5401
FAST Comm. Appl. Service Philadelphia 215-288-4800
Appliance Installation & Service Pittsburgh 412-809-0244
K & D Service Co. Harrisburg 717-236-9039
Electric Repair Co. Reading 610-376-5444
RHODE ISLAND
Marshall Electric Co. Providence 401-331-1163
SOUTH CAROLINA
Whaley Foodservice Repair W. Columbia 803-791-4420
TENNESSEE
Camp Electric Memphis 901-527-7543
TEXAS
GCS Service Fort Worth 800-433-1804
Armstrong Repair Service Houston 713-666-7100
Cooking Equipment Specialist Mesquite 972-686-6666
Commercial Kitchen Repair Co. San Antonio 210-735-2811
UTAH
La Monica’s Rest. Equip. Service Murray 801-263-3221
VIRGINIA
Daubers Norfolk 757-855-4097
Daubers Springfield 703-866-3600
WASHINGTON
3 Wire/Restaurant Appliance Seattle 866-770-2022
WISCONSIN
A.S.C., Inc. Madison 608-246-3160
A.S.C., Inc. Milwaukee 414-543-6460
CANADA
ALBERTA
Key Food Equipment Service Edmonton 780-438-1690
BRITISH COLUMBIA
Key Food Equipment Service Vancouver 604-433-4484
MANITOBA
Air Rite, Inc. Winnepeg 204-895-2300
NEW BRUNSWICK
EMR Services, Ltd. Moncton 506-855-4228
ONTARIO
R.G. Henderson Ltd. Toronto 416-422-5580
Choquette CKS Ottawa 613-739-8458
QUÉBEC
Choquette CKS Montreal 514-722-2000
Choquette CKS Québec City 418-681-3944
UNITED KINGDOM
Marren Group Northants +44(0)1933 666233
Printed in U.S.A. June 2008 Part No. 07.04.435.00 Form No. SRM-0608
Loading...
