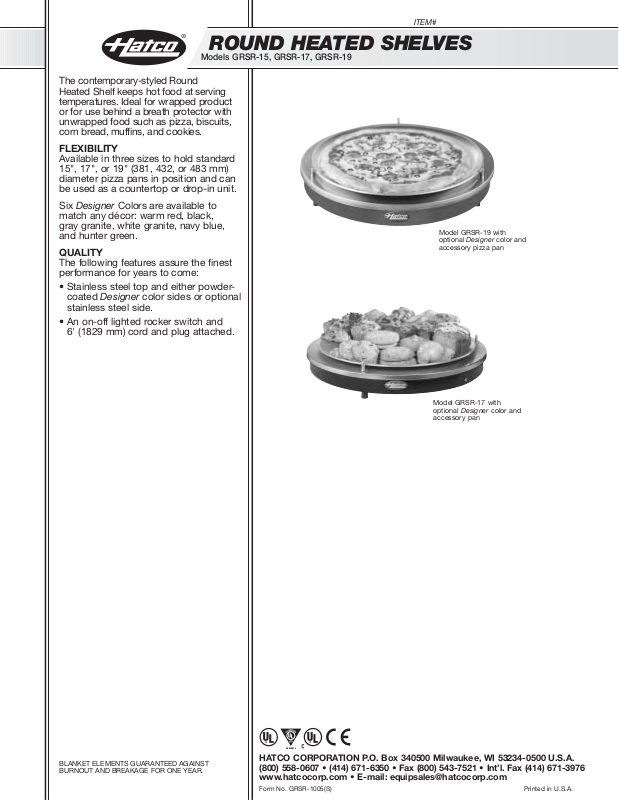

ROUND HEATED SHELVES
Models GRSR-15, GRSR-17, GRSR-19
The contemporary-styled Round
Heated Shelf keeps hot food at serving
temperatures. Ideal for wrapped product
or for use behind a breath protector with
unwrapped food such as pizza, biscuits,
corn bread, muffins, and cookies.
FLEXIBILITY
Available in three sizes to hold standard
15", 17", or 19" (381, 432, or 483 mm)
diameter pizza pans in position and can
be used as a countertop or drop-in unit.
Six Designer Colors are available to
match any décor: warm red, black,
gray granite, white granite, navy blue,
and hunter green.
QUALITY
The following features assure the finest
performance for years to come:
• Stainless steel top and either powder-
coated Designer color sides or optional
stainless steel side.
• An on-off lighted rocker switch and
6' (1829 mm) cord and plug attached.
BLANKET ELEMENTS GUARANTEED AGAINST
BURNOUT AND BREAKAGE FOR ONE YEAR.
Model GRSR-19 with
optional Designer color and
accessory pizza pan
Model GRSR-17 with
optional Designer color and
accessory pan
ANSI/NSF 4
ITEM#
ROUND HEATED SHELVES
Models GRSR-15, GRSR-17, GRSR-19
HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • (800) 558-0607 • (414) 671-6350
Fax (800) 543-7521 • Int’l. Fax (414) 671-3976 • www.hatcocorp.com • E-mail: equipsales@hatcocorp.com
Form No. GRSR-1005(S) Printed in U.S.A.
DIMENSIONS
Countertop Models: 163⁄4", 183⁄4", or 203⁄4" Dia. x 37⁄8"H
(425, 476, or 527 x 98 mm).
Cutout Dimensions: 16
1
⁄8", 181⁄8", or 201⁄8" Dia. x 53⁄8" below
counter surface (410, 460, or 511 x 137 mm).
VOLTAGE
120 volts, single phase only (uses NEMA 5-15P).
Export voltages available.
CORD LOCATION
Underneath.
PLUG CONFIGURATIONS
SPECIFICATIONS
Maximum Shipping
Model
▲
Pan Size Volts Watts Amps Weight
GRSR-15 15" (381 mm) 120 220 1.8 17 lbs. ( 8 kg)
GRSR-17 17" (432 mm) 120 320 2.7 19 lbs. ( 9 kg)
GRSR-19 19" (483 mm) 120 420 3.5 21 lbs. (10 kg)
▲
When no color is specified, unit side will be black.
OPTIONS (NOT FOR RETROFIT)
❑ Designer Colors Side: Warm Red, Black, Gray Granite,
White Granite, Navy Blue, Hunter Green
❑ Stainless Steel Side
ACCESSORIES
❑ 14" (356 mm) Perforated Pizza Pan
❑ 15" (381 mm) Perforated Pizza Pan
❑ 16" (406 mm) Perforated Pizza Pan
❑ 18" (457 mm) Perforated Pizza Pan
PRODUCT SPECS
Round Heated Shelf
The Round Heated Shelf shall be a Glo-Ray®Model ....
as manufactured by the Hatco Corporation, Milwaukee,
WI 53234 U.S.A.
The Shelf shall be rated at ....watts, ....volts, and be ....
inches (millimeters) in overall diameter. It shall consist of
a heated base and a 6' (1829 mm) cord with plug attached.
BS-1363CEE 7/7 SchukoNEMA 5-15P
163⁄4"
, 183⁄4", or 203⁄4
(425, 476, or 527 mm)
Diameter
"
Cutout Opening
1
16
⁄8"
, 181⁄8", or 201⁄8
(410, 460, or 511 mm)
Diameter
"
37⁄8"
(98 mm)
SIDE VIEW
Counter Top Model
TOP VIEW
Below Counter
Surface
53⁄8
"
(137 mm)
SIDE VIEW
Drop-in Model
TOP VIEW
