Hatco GR3RH-24 Installation Manual

GLO-RAY

Heated Glass Overshelves

GR3R Series

UL Recognized

Installation &

Operating Manual

I&W #07.05.206.00

This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in serious injury. If you’re unable to understand the contents of this manual, please bring it to the attention of your supervisor. Do not operate this equipment unless you have read and understood the contents of this manual.

Este manual contiene importante información sobre seguridad concerniente al mantenimiento, uso y operación de este producto. Cualquier falla en el seguimiento de las instrucciones contenidas en este manual puede resultar en un serio daño. Si usted no puede entender el contenido de este manual por favor pregunte a su supervisor. No opere este equipo al menos que haya leído y comprendido el contenido de este manual.

Form No. GR3RM-0408

CONTENTS

INTRODUCTION

Hatco Glo-Ray UL Recognized Heated Glass Overshelves are perfect for keeping prepared foods hot at kitchen work areas, waitress pickup stations, buffet lines or other customer serving points.

The Heated Glass Overshelf features a unique patented glass shelf that keeps food below the glass at optimum serving temperatures while maintaining product quality. Additionally, the top of the heated glass overshelf is ideal for holding wrapped or boxed food short term when serving temperatures are not critical.

This manual provides the installation, safety and operating instructions for the Heated Glass Overshelves. We recommend all installation, operating and safety information appearing in this manual be read prior to installation or operation of

your Hatco Heated Glass Overshelf. Safety information that appear in this manual after a warning symbol and the words WARNING or

CAUTION printed in bold face are very important.

WARNING means there is the possibility of

serious personal injury or death to yourself or others. CAUTION means there is the possibility of minor or moderate injury. NOTICE signifies the possibility of equipment or property damage only.

Hatco Glo-Ray UL Recognized Heated Glass Overshelves are a product of extensive research and field testing. The materials used were selected for maximum durability, attractive appearance and optimum performance. Every unit is thoroughly inspected and tested prior to shipment.

Important Owner Information...............................i

Introduction ...........................................................i

Important Safety Information ..............................1

Model Description................................................3

All Models........................................................3

GR3R Models..................................................3

GR3RH Models...............................................3

Model Designation...............................................3

Specifications.......................................................4

Electrical Requirements..................................4

Electrical Rating Charts...................................4

Dimensions ....................................................4

Installation............................................................5

Unpacking .......................................................5

Location...........................................................5

Mounting the Unit............................................5

Remote Mounted Control Box.........................6

Operation..............................................................7

Ground Fault Circuit Interrupt .........................7

Circuit Breaker ................................................7

Maintenance .........................................................8

Cleaning..........................................................8

Hatco Limited Warranty.......................................9

Authorized Parts Distributors............Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number (identification decal located on the end of the unit), voltage and purchase date of your Glo-Ray

Heated Glass Overshelf in the spaces below. Please have this information available when contacting Hatco for service assistance.

Model No. ________________________________ Serial No. ________________________________ Voltage __________________________________ Date of Purchase __________________________

Business 8:00 a.m. to 5:00 p.m. Hours: Central Standard Time

(Summer Hours: June to September – 8:00 a.m. to 5:00 p.m. C.S.T. Monday through Thursday

8:00 a.m. to 2:30 p.m. C.S.T. Friday) Telephone: (800) 558-0607; (414) 671-6350 Fax: (800) 690-2966 (Parts & Service)

(414) 671-3976 (International)

Additional information can be found by visiting our web site at www.hatcocorp.com

24-Hour 7-Day Parts & Service Assistance available in the United States and Canada by calling (800) 558-0607.

Form No. GR3RM-0408

IMPORTANT SAFETY INFORMATION

This product has no “user” serviceable parts. To avoid damage to the unit or injury to personnel, use only Authorized Hatco Service Agents and Genuine Hatco Replacement Parts when service is required.

If service is required on this unit, contact your Authorized Hatco Service Agent, or contact the Hatco Service Department at 800-5580607 or 414-671-6350; fax 800-690-2966 or International fax 414-671-3976.

Genuine Hatco Replacement Parts are specified to operate safely in the environments in which they are used. Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn.

CAUTIONS

To avoid any injury or damage locate the unit at the proper counter height, in an area that is convenient for use. The location should be level to prevent the unit or its contents from accidentally falling, and strong enough to support the weight of the unit and food displayed.

Unit is not weatherproof. For safe and proper operation locate the unit indoors

where the ambient air temperature is constant and is a minimum of 70°F (21°C).

To avoid any injury or burns, do not come in contact with the underside of the Heated Glass Overshelf while unit is in operation.

All electrical connections must be in accordance with local electrical codes and any other applicable codes. Connections should be made by a qualified, licensed electrician.

WARNINGS

Important Agency Information - The GR3R Series is a UL Recognized Component. Conditions of acceptability mentioned in the UL report must be adhered to during installation. Complete UL approval of this component is the responsibility of the installer/fabricator and not the Hatco Corporation.

To avoid any injury, turn the power switch OFF, and allow to cool completely before performing any cleaning or maintenance.

To avoid any injury, do not allow liquids to spill onto the Heated Glass Overshelf.

Some exterior surfaces on the unit will get hot. Use caution when touching these areas to avoid injury.

To avoid any injury, do not clean Heated Glass Overshelf when unit is energized or hot.

Unit is not waterproof. To avoid electrical shock or personal injury DO NOT submerge in water. Do not operate if it has been submerged in water.

To avoid electrical shock or personal injury, do not steam clean or use excessive water on the unit.

For safe and proper operation, the unit must be located a reasonable distance from combustible walls and materials. If safe distances are not maintained, discoloration or combustion could occur.

For safe and proper operation do not place food product directly onto glass surface. Food product must be wrapped or boxed.

For safe and proper operation, the top side of the shelf is intended for short term holding of food for which serving temperature is not critical.

IMPORTANT! Read the following important safety information to avoid personal injury or death, and to avoid damage to the equipment or property.

Form No. GR3RM-0408

IMPORTANT SAFETY INFORMATION

NOTICES

Use only non-abrasive cleaners. Abrasive cleaners could scratch the finish marring its appearance and making it susceptible to dirt accumulation.

Do not allow the glass shelf to overheat. Overheating may cause the food containers to melt or soften.

Use of excessive force when tightening mounting screws may damage unit.

Do not use food pans, ceramic dishes, or abrasive materials on Heated Glass Overshelves. Food pans, ceramic dishes, and abrasive materials may scratch the glass shelf marring its appearance and making it susceptible to dirt accumulation. It is recommended that glass overshelves be used for food products contained in disposable paper or plastic containers or wrapping.

Damage to countertop material such as Corian

and similar products caused by heat generated from Hatco equipment is not covered under the Hatco warranty. Recommended for use over metallic counters. For other surfaces, verify that the material is suitable for temperature up to 180°F (82°C).

IMPORTANT! Read the following important safety information to avoid personal injury or death, and to avoid damage to the equipment or property.

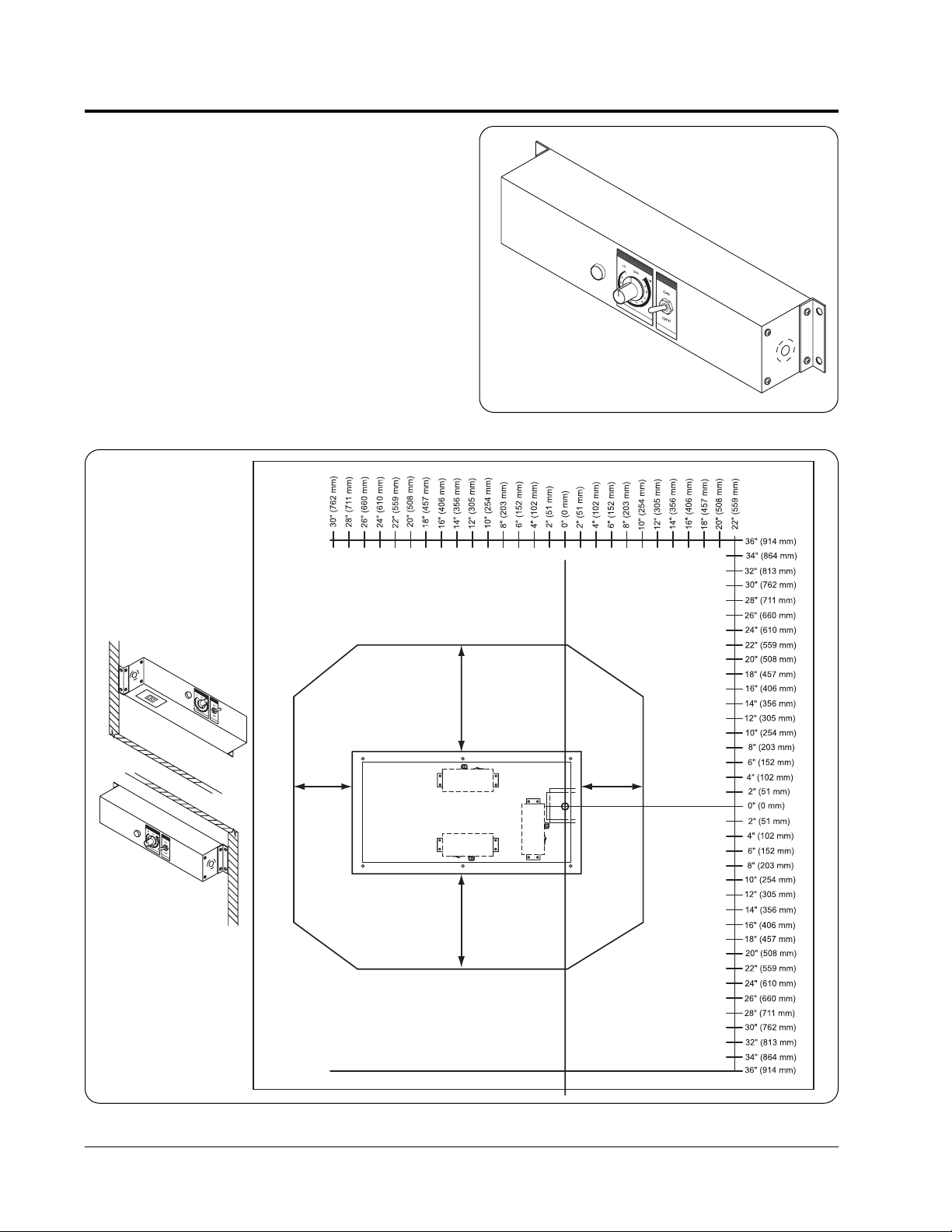

The Remote Mounted Control Box, when supplied, must be installed outside of the heat zone. Locating the control box inside the heat zone will cause the switches to overheat, malfunction, and fail. See Figure 5 for minimum mounting distances.

Only soft cleaning cloths, mild soap and water should be used to clean breath protector(s). Breath protector(s) are made of shatterproof polycarbonate and will scratch or crack if proper care is not taken.
