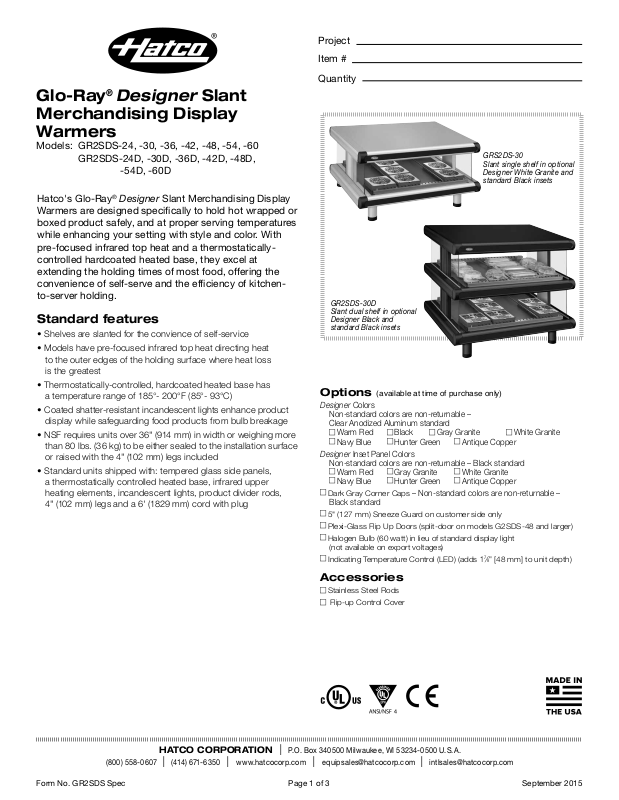

Glo-Ray® Designer Slant Merchandising Display Warmers

Models: GR2SDS-24, -30, -36, -42, -48, -54, -60 GR2SDS-24D, -30D, -36D, -42D, -48D,

-54D, -60D

Hatco's Glo-Ray Warmers are designed specically to hold hot wrapped or boxed product safely, and at proper serving temperatures while enhancing your setting with style and color. With pre-focused infrared top heat and a thermostaticallycontrolled hardcoated heated base, they excel at extending the holding times of most food, offering the convenience of self-serve and the efciency of kitchento-server holding.

Standard features

• Shelves are slanted for the convience of self-service

• Models have pre-focused infrared top heat directing heat to the outer edges of the holding surface where heat loss is the greatest

• Thermostatically-controlled, hardcoated heated base has a temperature range of 185°- 200°F (85°- 93°C)

• Coated shatter-resistant incandescent lights enhance product display while safeguarding food products from bulb breakage

• NSF requires units over 36" (914 mm) in width or weighing more than 80 lbs. (36 kg) to be either sealed to the installation surface or raised with the 4" (102 mm) legs included

• Standard units shipped with: tempered glass side panels, a thermostatically controlled heated base, infrared upper heating elements, incandescent lights, product divider rods, 4" (102 mm) legs and a 6' (1829 mm) cord with plug

Designer Slant Merchandising Display

Project

Item #

Quantity

GRS2DS-30 Slant single shelf in optional Designer White Granite and standard Black insets

GR2SDS-30D Slant dual shelf in optional Designer Black and standard Black insets

Options

Designer Colors

Non-standard colors are non-returnable – Clear Anodized Aluminum standard

Warm Red cBlack

Navy Blue

Designer Inset Panel Colors

Non-standard colors are non-returnable – Black standard

Warm Red cGray Granite

Navy Blue

Dark Gray Corner Caps –

Black standard

5" (127 mm) Sneeze Guard on customer side only

Plexi-Glass Flip Up Doors (split-door on models G2SDS-48 and larger)

Halogen Bulb (60 watt) in lieu of standard display light

(not available on export voltages)

Indicating Temperature Control (LED) (adds

(available at time of purchase only)

Hunter Green cAntique Copper

Gray Granite

White Granite

Non-standard colors are non-returnable –

1 7⁄8"

White Granite

[48 mm] to unit depth)

Accessories

Stainless Steel Rods

Flip-up Control Cover

HATCO CORPORATION

(800) 558-0607

Form No. GR2SDS Spec Page 1 of 3 September 2015

(414) 671- 6 3 50

www.hatcocorp.com

P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.

[email protected]

Page 2

Glo-Ray® Designer Slant Merchandising Display Warmers

GR2SDS-24D, -30D, -36D, -42D, -48D, -54D, -60D

slan t single shelf slan t dual she lf

Models: GR2SDS-24, -30, -36, -42, -48, -54, -60

30.25" to 66.25" (768 to 1683 mm)

23.88" to 59.88"

(606 to 1521 mm)

26.64" (677 mm)

30.25" to 66.25" (768 to 1683 mm)

23.87" to 59.87"

(606 to 1521 mm)

FRONT VIEW

7.83"

(199 mm)

22.7"

(576 mm)

26.64" (677 mm)

22" (559 mm)

SIDE VIEW

SPECIFICATIONS Single Shelf — SLANT MERCHANDISING DISPLAY WARMERS

Model No. of Bulbs,

Divider Rods

GR2SDS-24

GR2SDS-30

GR2SDS-36

GR2SDS-42

GR2SDS-48

GR2SDS-54

GR2SDS-60

Shipping weight includes packaging.

▲

Canada, use NEMA 5-20P.

2, 5

2, 6

2, 7

4, 8

4, 9

4, 10

6, 12

Dimensions

(W x D x H) includes legs

30.25" x 26.64" x 22.7" (768 x 677 x 576 mm)

36.25" x 26.64" x 22.7" (921 x 677 x 576 mm)

42.25" x 26.64" x 22.7"

(1073 x 677 x 576 mm)

48.25" x 26.64" x 22.7"

(1226 x 677 x 576 mm)

54.25" x 26.64" x 22.7"

(1378 x 677 x 576 mm)

60.25" x 26.64" x 22.7"

(1530 x 677 x 576 mm)

66.25" x 26.64" x 22.7"

(1683 x 677 x 576 mm)

Usable Heated Shelf Space

(W x D)

23.87" x 22"

(606 x 559 mm)

29.87" x 22"

(759 x 559 mm)

35.87" x 22"

(911 x 559 mm)

41.87" x 22"

(1064 x 559 mm)

47.87" x 22"

(1216 x 559 mm)

53.87" x 22"

(1368 x 559 mm))

59.87" x 22"

(1521 x 559 mm)

Average Chute Width

3.73" (95 mm)

4.02" (102 mm)

4.23" (107 mm)

4.40" (111 mm)

4.54" (115 mm)

4.65" (118 mm)

4.36" (110 mm)

22" (559 mm)

SIDE VIEW

FRONT VIEW

7.93"

(201 mm)

33.86"

(860 mm)

The shaded areas contain electrical

information for International models

Volts Watts Amps Plug

120 820 6.8 NEMA 5-15P 102 lbs. (46 kg) 220 800 3.6 CEE 7/7 Schuko 240 820 3.4 BS-1363 220-230 (CE) 800-875 3.6-3.8 CEE 7/7 Schuko 230-240 (CE) 753-820 3.3-3.4 BS-1363 120 1020 8.5 NEMA 5-15P 110 lbs. (50 kg) 220 1000 4.5 CEE 7/7 Schuko 240 1020 4.3 BS-1363 220-230 (CE) 1000-1093 4.5-4.8 CEE 7/7 Schuko 230-240 (CE) 937-1020 4.1-4.3 BS-1363 120 1220 10.2 NEMA 5-15P 136 lbs. (62 kg) 220 1200 5.5 CEE 7/7 Schuko 240 1220 5.1 BS-1363 220-230 (CE) 1200-1312 5.5-5.7 CEE 7/7 Schuko 230-240 (CE) 1120-1220 4.9-5.1 BS-1363 120 1490 12.4 220 1450 6.6 CEE 7/7 Schuko 240 1490 6.2 BS-1363 220-230 (CE) 1450-1585 6.6-6.9 CEE 7/7 Schuko 230-240 (CE) 1368-1490 6.0-6.2 BS-1363 120 1690 14.1 220 1650 7.5 CEE 7/7 Schuko 240 1690 7.1 BS-1363 220-230 (CE) 1650-1804 7.5-7.8 CEE 7/7 Schuko 230-240 (CE) 1552-1690 6.8-7.1 BS-1363 120 1890 15.8 NEMA 5-20P 182 lbs. (83 kg) 220 1850 8.4 CEE 7/7 Schuko 240 1890 7.9 BS-1363 220-230 (CE) 1850-2022 8.4-8.8 CEE 7/7 Schuko 230-240 (CE) 1736-1890 7.6-7.9 BS-1363 120 2210 18.4 NEMA 5-30P 202 lbs. (92 kg) 220 2150 9.8 CEE 7/7 Schuko 240 2210 9.2 BS-1363 220-230 (CE) 2150-2350 9.8-10.2 CEE 7/7 Schuko 230-240 (CE) 2030-2210 8.8-9.2 BS-1363

NEMA 5-15P

▲

Ship Weight*

102 lbs. (46 kg)

110 lbs. (50 kg)

136 lbs. (62 kg)

155 lbs. (70 kg)

164 lbs. (75 kg)

182 lbs. (83 kg)

202 lbs. (92 kg)

HATCO CORPORATION

(800) 558-0607

Form No. GR2SDS Spec Sheet Page 2 of 3 September 2015

(414) 671- 6 3 50

www.hatcocorp.com

P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.

[email protected]

Page 3

Glo-Ray® Designer Slant Merchandising Display Warmers

GR2SDS-24D, -30D, -36D, -42D, -48D, -54D, -60D

Models: GR2SDS-24, -30, -36, -42, -48, -54, -60

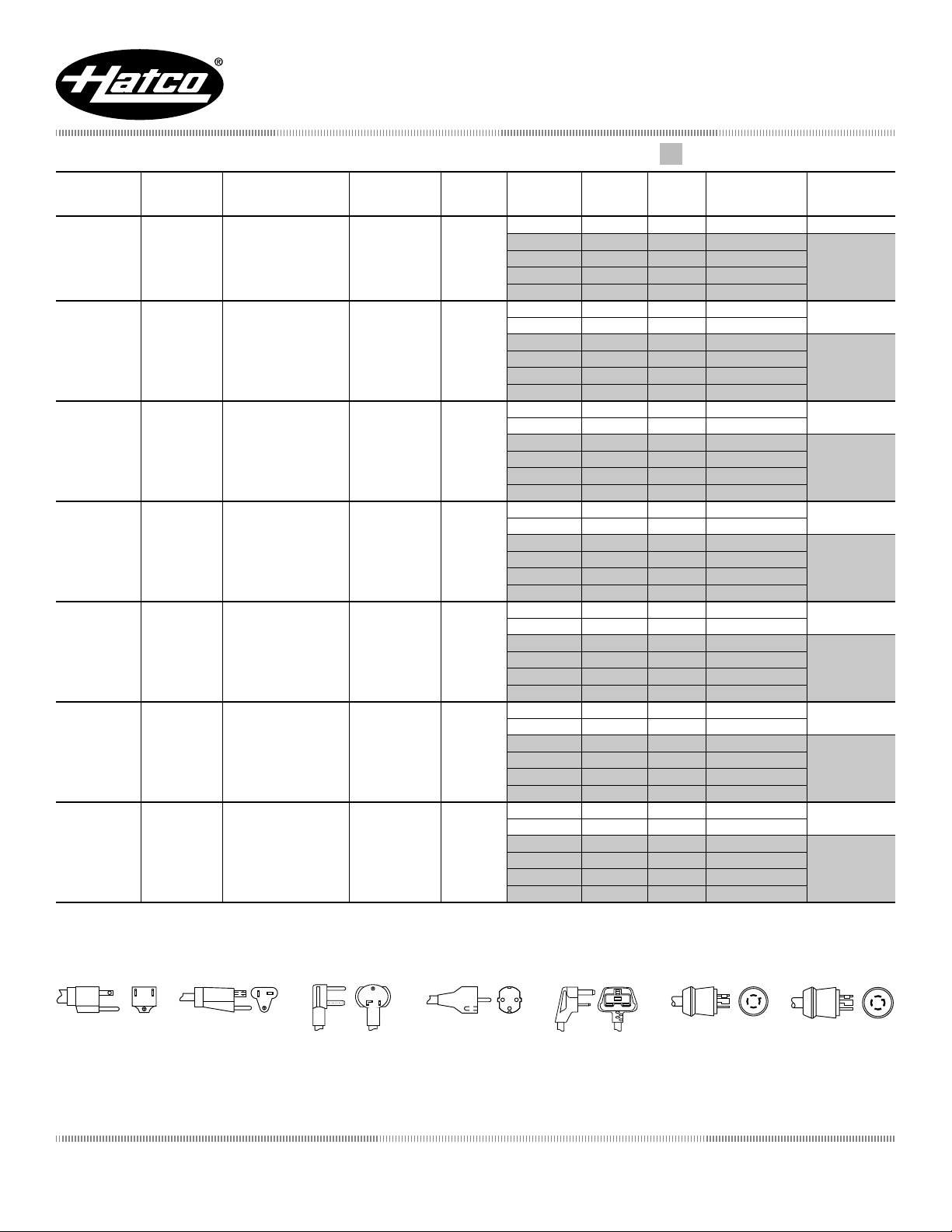

SPECIFICATIONS Dual Shelf — SLANT MERCHANDISING DISPLAY WARMERS

Model No. of Bulbs,

Divider Rods

GR2SDS-24D

GR2SDS-30D

GR2SDS-36D

GR2SDS-42D

GR2SDS-48D

GR2SDH-54D

GR2SDS-60D

Shipping weight includes packaging.

▲

Canada, use NEMA 5-20P.

4, 10

4, 12

4, 14

8, 16

8, 18

8, 20

12, 24

PLUG CONFIGURATIONS

Dimensions

(W x D x H) includes legs

30.25" x 26.64" x 33.84" (768 x 677 x 859 mm)

36.25" x 26.64" x 33.84" (921 x 677 x 859 mm)

42.25" x 26.64" x 33.84"

(1073 x 677 x 859 mm)

48.25" x 26.64" x 33.84"

(1226 x 677 x 859 mm)

54.25" x 26.64" x 33.84"

(1378 x 677 x 859 mm)

60.25" x 26.64" x 33.84"

(1530 x 677 x 859 mm)

66.25" x 26.64" x 33.84"

(1683 x 677 x 859 mm)

NEMA 5-30P

Usable Heated Shelf Space

(W x D)

23.87" x 22"

(606 x 559 mm)

29.87" x 22"

(759 x 559 mm)

35.87" x 22"

(911 x 559 mm)

41.87" x 22"

(1064 x 559 mm)

47.87" x 22"

(1216 x 559 mm)

53.87" x 22"

(1368 x 559 mm)

59.87" x 22"

(1521 x 559 mm)

Average Chute Width

3.73" (95 mm)

4.02" (102 mm)

4.23" (107 mm)

4.40" (111 mm)

4.54" (115 mm)

4.65" (118 mm)

4.36" (110 mm)

CORD LOCATION

Back of unit, top right side.

CEE 7/7 SchukoNE M A 5-15P BS -1363NEMA 5 -20P NE M A L-14 -20P

The shaded areas contain electrical

information for International models

Volts Watts Amps Plug

120 1640 13.7 220 1600 7.3 CEE 7/7 Schuko 240 1640 6.8 BS-1363 220-230 (CE) 1600-1749 7.3-7.6 CEE 7/7 Schuko 230-240 (CE) 1506-1640 6.6-6.8 BS-1363 120/208 2040 8.5 NEMA L14-20P 120/240 2040 8.5 NEMA L14-20P 220 2000 9.1 CEE 7/7 Schuko 240 2040 8.5 BS-1363 220-230 (CE) 2000-2186 9.1-9.5 CEE 7/7 Schuko 230-240 (CE) 1874-2040 8.2-8.5 BS-1363 120/208 2440 10.2 NEMA L14-20P 120/240 2440 10.2 NEMA L14-20P 220 2400 10.9 CEE 7/7 Schuko 240 2440 10.2 BS-1363 220-230 (CE) 2400-2623 10.9-11.4 CEE 7/7 Schuko 230-240 (CE) 2241-2440 9.7-10.2 BS-1363 120/208 2980 12.4 NEMA L14-20P 120/240 2980 12.4 NEMA L14-20P 220 2900 13.2 CEE 7/7 Schuko 240 2980 12.4 BS-1363 220-230 (CE) 2900-3170 13.2-13.8 CEE 7/7 Schuko 230-240 (CE) 2737-2980 11.9-12.4 BS-1363 120/208 3380 14.1 NEMA L14-20P 120/240 3380 14.1 NEMA L14-20P 220 3300 15.0 CEE 7/7 Schuko 240 3380 14.1 Cord without Plug 220-230 (CE) 3300-3607 15.0-15.7 CEE 7/7 Schuko 230-240 (CE) 3104-3380 13.5-14.1 Cord without Plug 120/208 3780 15.8 NEMA L14-20P 120/240 3780 15.8 NEMA L14-20P 220 3700 16.8 Cord without Plug 240 3780 15.8 Cord without Plug 220-230 (CE) 3700-4044 16.8-17.6 Cord without Plug 230-240 (CE) 3472-3780 15.1-15.8 Cord without Plug 120/208 4420 18.4 NEMA L14-30P 120/240 4420 18.4 NEMA L14-30P 220 4300 19.6 Cord without Plug 240 4420 18.4 Cord without Plug 220-230 (CE) 4300-4700 19.6-20.4 Cord without Plug 230-240 (CE) 4049-4420 17.6-18.4 Cord without Plug

NEMA 5-15P

▲

Ship Weight*

160 lbs. (73 kg)

184 lbs. (84 kg)

200 lbs. (91 kg)

218 lbs. (99 kg)

255 lbs. (116 kg)

265 lbs. (120 kg)

296 lbs. (135 kg)

NE M A L-14 - 3 0 P

PRODUCT SPECS Glo-Ray® Desinger Slant Merchandising Warmers

The Designer Merchandising Warmer shall be a Glo-Ray® Model ... as manufactured by the Hatco Corporation, Milwaukee, WI 53234 U.S.A.

The warmer shall be rated at ... watts, ... volts, and be ... inches (millimeters) in overall width. It shall consist of a thermostatically-controlled hardcoated heated base, infrared heat from above, full view tempered glass sides, adjustable divider rods, Designer

HATCO CORPORATION

(800) 558-0607

Form No. GR2SDS Spec Sheet Page 3 of 3 September 2015

(414) 671- 6 3 50

www.hatcocorp.com

color inser panels and incandescent display lights. The infrared heating element shall be tubular metal sheathed and the warmer shall have a 6' (1829 mm) cord with plug attached

. Accessories shall include control covers, and additional stainless steel dividers rods. Warranty consists of 24/7 parts and service assistance (US and Canada only).
