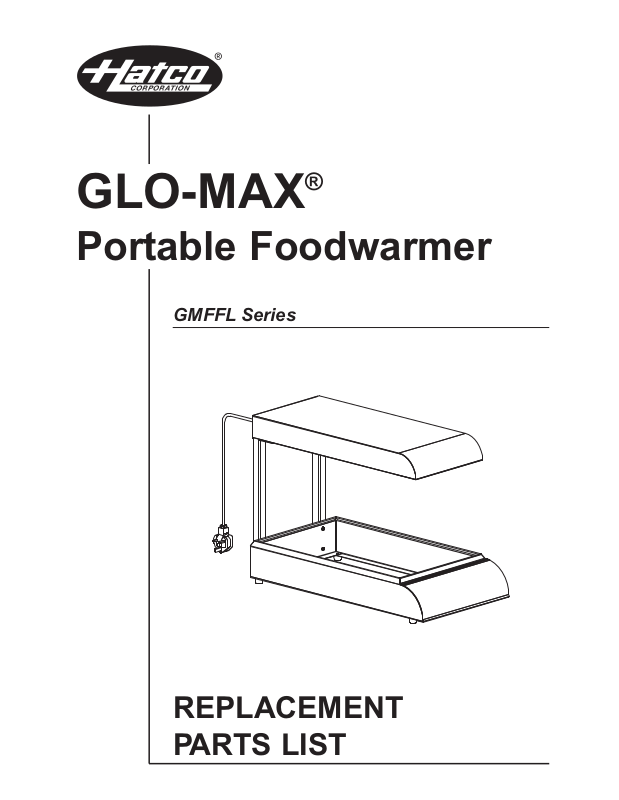

GLO-MAX
Portable Foodwarmer
GMFFL Series
REPLACEMENT
PARTS LIST
Page 2
9
13
12
10
15
16
17
14
11
2
1
3
7
8
4
5
6
HATCO GLO-MAX
GMFFL
=Glo
=Max
=French
G
F
M
=Fry
=Light
L
F
CAUTION
®
Model Designation
PORTABLE FOODWARMER
GMFFL SERIES
Use of replacement parts other than those
supplied by Hatco Corporation may result
in damage to the unit or injury to personnel.
2
Form No. GMFFLRP-0608
Page 3
PARTS COMMON TO ALL GMFFL MODELS
Item Description Part No. Qty.
1 Heat Barrier Plate, Rear X04.08.540.00 1
2 End Cover, Rear X04.08.541.00 1
3 Strain Relief, Power Cord X02.20.345.00 1
4 Support Tube X04.08.542.00 2
5 Cap, Post X05.30.127.00 2
6 Foot X05.30.118.00 4
PARTS SPECIFIC TO MODEL GMFFL
Item Description 100V 120V 230V CE
12 On/Off Rocker Switch -- -- -- -- -- --
Power Cord/Plug, 10A, 250, Shuko -- -- -- -- -- --
13
Power Cord/Plug, 6A, 250V, UK
(not shown) -- -- -- -- -- --
14 Light Bulb (Qty. 2) -- -- -- -- -- -- 02.30.058.00
Lamp Socket (Qty. 2) -- -- -- -- -- --
15
16 Heating Element, 500 watts -- -- -- -- -- -17 Guard, Heating Element -- -- -- -- -- --
Shaded area reflects export models only.
Item Description Part No. Qty.
7 Base Assembly X04.08.535.00 1
8 Sign Cover X04.08.538.00 1
9 Top Housing Assembly X04.08.539.00 1
10 End Cover, Front X04.08.536.00 1
11 Heat Barrier Plate, Front X04.08.537.00 1
X02.19.195.00
02.18.077.00
02.18.066.00
X02.30.113.00
X02.08.628.00
X04.37.129.00
Form No. GMFFLRP-0608
3
