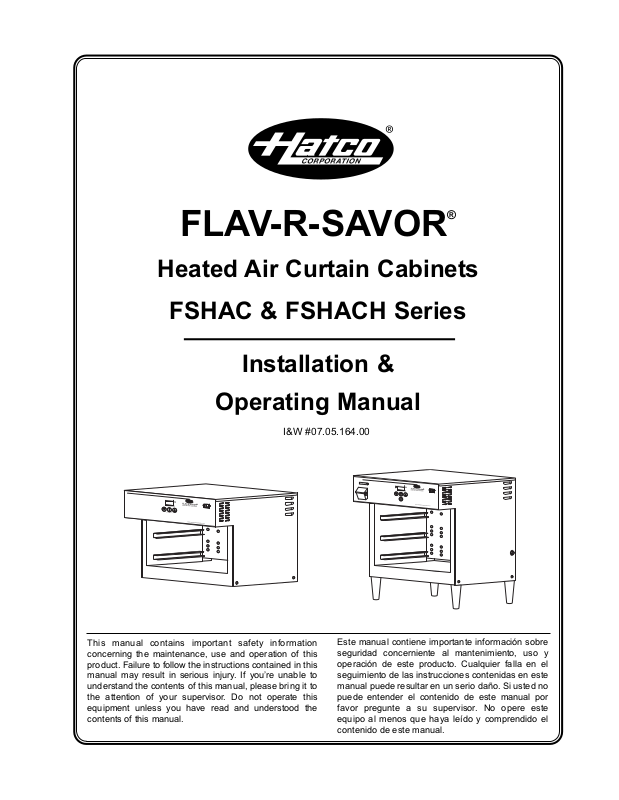

Hatco FSHACH-2PT Owner’s Manual

FLAV-R-SAVOR

®

Heated Air Curtain Cabinets

FSHAC & FSHACH Series

Installation &

Operating Manual

I&W #07.05.164.00

This manual contains important safety information
concerning the maintenance, use and operation of this
product. Failure to follow the instructions contained in this
manual may result in serious injury. If you’re unable to
understand the contents of this manual, please bring it to
the attention of your supervisor. Do not operate this
equipment unless you have read and understood the
contents of this manual.

Este manual contiene importante información sobre
seguridad concerniente al mantenimiento, uso y
operación de este producto. Cualquier falla en el
seguimiento de las instrucciones contenidas en este
manual puede resultar en un serio daño. Si usted no
puede entender el contenido de este manual por
favor pregunte a su supervisor. No opere este
equipo al menos que haya leído y comprendido el
contenido de este manual.

This manual provides the installation, safety and
operating instructions for the Flav-R-Savor Heated
Air Curtain Cabinets. We recommend all installation,
operating and safety instructions appearing in this
manual be read prior to installation or operation of
your Hatco Cabinet. Safety instructions that appear
in this manual after a warning symbol and the
words WARNING or CAUTION printed in bold face
are very important. WARNING means there is
the possibility of serious personal injury or death to
yourself or others. CAUTION means there is the
possibility of minor or moderate injury. CAUTION
without the symbol signifies the possibility of
equipment or property damage only.

Your Hatco Flav-R-Savor Heated Air Curtain
Cabinet is a product of extensive research and field
testing. The materials used were selected for
maximum durability, attractive appearance and
optimum performance. Every unit is thoroughly
inspected and tested prior to shipment.

Form No. FSHACM-0106

i

CONTENTS

INTRODUCTION

Hatco Flav-R-Savor®Heated Air Curtain Cabinets
are designed to hold prepared foods for prolonged
periods of time while maintaining that “just-made”
quality.

Hatco Heated Air Curtain Cabinets force warm air
through ducts down the cabinet opening, creating
and maintaining ideal holding temperatures without
the use of doors. The heated air is slowly drawn to
the back of the cabinet, warming the food as it flows
to the perforations on the back cabinet wall. The
Heated Air Curtain allows for immediate access to
food products, as well as the best environment for
wrapped, and other sheet pan foods.

Flav-R-Savor® Humidified Heated Air Curtain is
used to control moisturized heat maintaining serving
temperatures and textures longer than conventional
dry holding equipment.

Important Owner Information ............................i

Introduction.........................................................i

Important Safety Information ...........................1

Model Description .............................................2

All Models .....................................................2

Specifications ....................................................3

Plug Configuration ........................................3

Electrical Rating Chart..................................3

Dimensions ...................................................4

Installation..........................................................6

Unpacking.....................................................6

Location ........................................................6

Record the model number, serial number (located
on the top of the unit), voltage and purchase date of
your Flav-R-Savor

®

Heated Air Curtain Cabinet in
the spaces below. Please have this information
available when contacting Hatco for service
assistance.

Model No. ________________________________

Serial No. ________________________________

Voltage __________________________________

Date of Purchase __________________________

IMPORTANT OWNER INFORMATION

Business 8:00 a.m. to 5:00 p.m.
Hours: Central Standard Time

(Summer Hours: June to September –
8:00 a.m. to 5:00 p.m. C.D.T.
Monday through Thursday
8:00 a.m. to 2:30 p.m. C.D.T. Friday)

Telephone: [phone]

Fax: [phone] (Parts & Service)

[phone] (International)

Additional information can be found by visiting our
web site at www.hatcocorp.com.

24 Hour 7 Day Parts & Service
Assistance available in the
United States and Canada
by calling [phone].

Leg Assembly ...............................................6

Plumbing ......................................................7

Operation............................................................8

Maintenance.....................................................10

General .......................................................10

Cleaning......................................................10

Filter Cartridge Replacement......................10

Draining The Reservoir ...............................11

Removing Lime & Mineral Deposits ...........11

Accessories .....................................................12

Hatco Limited Warranty..................................13

Authorized Parts Distributors..........Back Cover

Form No. FSHACM-0106

1

IMPORTANT SAFETY INFORMATION

WARNINGS

This product has no “user” serviceable parts.
To avoid damage to the unit or injury to
personnel, use only Authorized Hatco Service
Agents and Genuine Hatco Parts when
service is required.

If service is required on this unit, contact your
Authorized Hatco Service Agent, or contact
the Hatco Service Department at 800-558­0607 or 414-671-6350; fax [phone] or
International fax [phone].

For proper plumbing installation conforming
to local plumbing codes, consult a licensed
plumbing contractor.

CAUTIONS

To avoid any injury or damage locate the
Cabinet at the proper counter height, in an
area that is convenient for use. The location
should be level to prevent the unit or its
contents from accidentally falling, and strong
enough to support the weight of the unit and
food.

The unit (humidified units only, FSHACH-2
and FSHACH-3) must be transported in an
upright position. If laid on its side, the water
must be drained from the unit.

The National Sanitation Foundation (NSF)
requires that units over 36" (914 mm) in
length or weighing more than 80 lbs. (36 kg)
to be either sealed or raised on the
installation surface. If this unit cannot be
sealed at the point of use, 4" (102 mm) legs
are included to allow for proper cleaning
access below unit.

Unit is not weatherproof. For safe and proper
operation the unit must be located indoors
where the ambient air temperature is a
minimum of 70°F (21°C) and a maximum of
85°F (29°C).

To assure proper operation and to avoid
damage to the unit, the incoming water
supply pressure must be at least 35 psi
(241 kPa) and not to exceed 80 psi (552 kPa).

To assure proper operation and to avoid
damage to the unit, the incoming water
supply temperature must not exceed 140°F
(60°C).

IMPORTANT! Read the following important safety instructions to avoid personal injury or
death, and to avoid damage to the equipment or property.

WARNINGS

Plug unit into a properly grounded electrical
outlet of the correct voltage, size and plug
configuration. If the plug and receptacle do
not match, contact a qualified electrician to
determine the proper voltage and size and
install the proper electrical outlet.

To avoid any injury, turn the power switch
OFF, unplug the unit from the power source
and allow to cool completely before
performing any maintenance or cleaning.

For safe and proper operation, the unit must
be located a reasonable distance from
combustible walls and materials. If safe
distances are not maintained, discoloration or
combustion could occur.

To avoid electrical shock or personal injury,
do not steam clean or use excessive water on
the unit.

Some exterior surfaces on the unit will get
hot. Use caution when touching these areas
to avoid injury.

Unit is not waterproof. DO NOT submerge in
water. Do not operate if it has been
submerged in water.

Do not lay unit on the side with the control
panel or damage to the unit could occur.

To avoid any injury, turn the power OFF to the
unit and allow to cool before draining.

To prevent any injury or damage to the unit do
not pull unit by power cord.

To prevent any injury, discontinue use if
power cord is frayed or worn.

Genuine Hatco Replacement Parts are
specified to operate safely in the
environments in which they are used. Some
aftermarket or generic replacement parts do
not have the characteristics that will allow
them to operate safely in Hatco equipment. It
is essential to use Hatco Replacement Parts
when repairing Hatco equipment. Failure to
use Hatco Replacement Parts may subject
operators of the equipment to hazardous
electrical voltage, resulting in electrical shock
or burn.

Form No. FSHACM-0106

2

IMPORTANT SAFETY INFORMATION

MODEL DESCRIPTION

ALL MODELS

Flav-R-Savor®Heated Air Curtain Cabinets consist
of an easy to clean stainless steel front panel and
black powdercoat painted body. Features include
easy-to-use digital controls, a lighted On/Off switch,
a metal sheath heating element and 6'
(1829 mm) power cord with plug.

MODELS FSHAC-2 AND FSHAC-3

The FSHAC non-humidified Heated Air Curtain
Cabinet is available in two-pan or three-pan models,
holding half-sized sheet pans. The FSHAC-2 (two­pan model) comes equipped with four rubber feet.
The FSHAC-3 (three-pan model) comes equipped
with 4" (102 mm) legs, which require assembly to
the unit before operation. Models may be ordered
with the optional single base mounting kit allowing
for two units to be mounted back-to-back.
Temperature range of this unit is 80°-175°F
(27°-79°C).

MODELS FSHACH-2 AND FSHACH-3

The FSHACH humidified Heated Air Curtain Cabinet
is available in two-pan or three-pan models, holding
half-sized sheet pans. Humidified units are available
in auto-fill or manual fill versions, both having the
capacity to hold 2-1/4 gallons (9 liters). The
FSHACH-2 (two-pan model) comes equipped with
four rubber feet. The FSHACH-3 (three-pan model)
comes equipped with 4" (102 mm) legs which
require assembly to the unit before operation.
Models may be ordered with the optional single
base mounting kit allowing for two units to be
mounted back-to-back. Temperature range of this
unit is 80°-175°F (27°-79°C).

Figure 2. Model FSHACH-3

Figure 1. Model FSHAC-2

CAUTIONS

Use only non-abrasive cleaners. Abrasive
cleaners could scratch the finish of your unit
marring its appearance and making it
susceptible to soil accumulation.

To assure proper operation and extend the
life of humidified models utilizing the auto-fill
system, the water filter cartridge must be
installed in the water supply line.

Do not use de-ionized water. De-ionized water
will greatly shorten the life of the water
heating elements and plumbing components.

Water Quality Requirements - Incoming water
in excess of 3.0 grains of hardness per gallon
(GPG) (.75 grains of hardness per liter) must
be treated and softened before being used.
Water containing over 3.0 GPG (.75 GPL) will
decrease the efficiency and reduce the
operating life of the unit.

Do not over tighten plumbing connections.
Over tightening may cause leaks.

Form No. FSHACM-0106

3

MODEL DESCRIPTION

SPECIFICATIONS

ELECTRICAL RATING CHART

Model Voltage Hertz Watts Amps Plug Configuration Shipping Weight

FSHAC-2 120/208 60 1877 9.0 NEMA L14-20P 80 lbs. (36 kg)

FSHAC-3 120/208 60 1877 9.0 NEMA L14-20P 100 lbs. (45 kg)

FSHACH-2 120/208 60 2950 14.2 NEMA L14-20P 80 lbs. (36 kg)

FSHACH-3 120/208 60 2950 14.2 NEMA L14-20P 100 lbs. (45 kg)

FSHAC-2PT 120/208 60 3152 15.2 NEMA L14-20P 120 lbs. (55 kg)

FSHACH-2PT 120/208 60 4952 23.8 NEMA L14-30P 120 lbs. (55 kg)

NOTE: Shipping weight includes packaging.

PLUG CONFIGURATION

Units are supplied from the factory with an electrical
cord and plug installed. Plugs are supplied
according to the applications. (See Figure 3.)

WARNING
Plug unit into a properly grounded electrical
outlet of the correct voltage, size and plug
configuration. If the plug and receptacle do not
match, contact a qualified electrician to
determine the proper voltage and size and install
the proper electrical outlet.

Figure 3. Plug Configurations

MODEL FSHAC-2PT

The FSHAC-2PT is a pass-through style unit which
allows for food product access from either side. The
unit is non-humidified and is capable of holding two
full size sheet pans. The temperature range of this
unit is 80°-200°F (27°-93°C).

MODEL FSHACH-2PT

The FSHACH-2PT is a pass-through style unit
which allows for food product access from either
side. The unit is humidified and is available in auto­fill or manual fill versions, both having the capacity
to hold 3 gallons (11 liters). The unit is capable of
holding two full size sheet pans. The temperature
range of this unit is 80°-200°F (27°-93°C).

NEMA 14L-20P NEMA 14L-30P

CAUTION
The National Sanitation Foundation (NSF)
requires that units over 36" (914 mm) in length
or weighing more than 80 lbs. (36 kg) to be either
sealed or raised on the installation surface. If
this unit cannot be sealed at the point of use, 4"
(102 mm) legs are included to allow for proper
cleaning access below unit.
