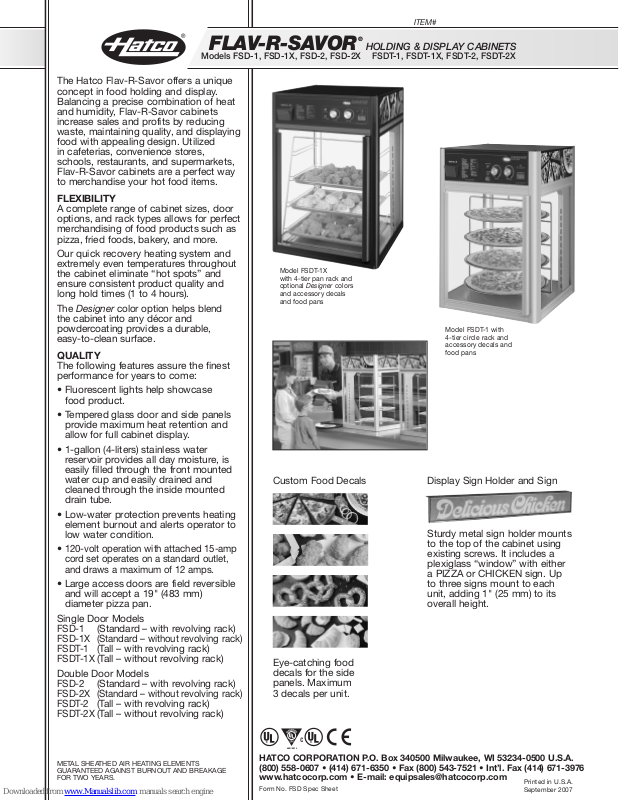

Hatco FSDT-1, FSD-1X, FSDT-1X, FSDT-2, FSDT-2X Specifications

FLAV-R-SAVOR

ANSI/NSF 4

Models FSD-1, FSD-1X, FSD-2, FSD-2X FSDT-1, FSDT-1X, FSDT-2, FSDT-2X

The Hatco Flav-R-Savor offers a unique
concept in food holding and display.
Balancing a precise combination of heat
and humidity, Flav-R-Savor cabinets
increase sales and profits by reducing
waste, maintaining quality, and displaying
food with appealing design. Utilized
in cafeterias, convenience stores,
schools, restaurants, and supermarkets,
Flav-R-Savor cabinets are a perfect way
to merchandise your hot food items.

FLEXIBILITY

A complete range of cabinet sizes, door
options, and rack types allows for perfect
merchandising of food products such as
pizza, fried foods, bakery, and more.

Our quick recovery heating system and
extremely even temperatures throughout
the cabinet eliminate “hot spots” and
ensure consistent product quality and
long hold times (1 to 4 hours).

The Designer color option helps blend
the

cabinet into any décor and
powdercoating provides a durable,
easy-to-clean surface.

QUALITY

The following features assure the finest
performance for years to come:

• Fluorescent lights help showcase

food product.

• Tempered glass door and side panels

provide maximum heat retention and
allow for full cabinet display.

• 1-gallon (4-liters) stainless water

reservoir provides all day moisture, is
easily filled through the front mounted
water cup and easily drained and
cleaned through the inside mounted
drain tube.

• Low-water protection prevents heating

element burnout and alerts operator to
low water condition.

•

120-volt operation with attached 15-amp
cord set operates on a standard outlet,
and draws a maximum of 12 amps.

• Large access doors are field reversible

and will accept a 19" (483 mm)
diameter pizza pan.

Single Door Models
FSD-1
FSD-1X
FSDT-1
FSDT-1X

Double Door Models
FSD-2
FSD-2X
FSDT-2
FSDT-2X

(Standard – with revolving rack)
(Standard – without revolving rack)
(Tall – with revolving rack)
(Tall – without revolving rack)

(Standard – with revolving rack)
(Standard – without revolving rack)
(Tall – with revolving rack)
(Tall – without revolving rack)

®

Model FSDT-1X

ith 4-tier pan rack and

w

ptional Designer colors

o
and accessory decals
and food pans

Custom Food Decals

Eye-catching food
decals for the side
panels. Maximum
3 decals per unit.

ITEM#

HOLDING & DISPLAY CABINETS

odel FSDT-1 with

M
4-tier circle rack and
accessory decals and
food pans

Display Sign Holder and Sign

Sturdy metal sign holder mounts
to the top of the cabinet using
existing screws. It includes a
plexiglass “window” with either
a PIZZA or CHICKEN sign. Up
to three signs mount to each
unit, adding 1" (25 mm) to its
overall height.

METAL SHEATHED AIR HEATING ELEMENTS
GUARANTEED AGAINST BURNOUT AND BREAKAGE
FOR TWO YEARS.

HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
[phone] • [phone] • Fax [phone] • Int’l. Fax [phone]
www.hatcocorp.com • E-mail: [e-mail]

Form No. FSD Spec Sheet

Printed in U.S.A.
September 2007

FLAV-R-SAVOR

221⁄2" (572 mm)

24" (610 mm)

M

odels -2 & -2X only

251⁄8" (638 mm)

M

odels FSD

27

1

⁄2"

(699 mm)

*

Models FSDT

32

1

⁄2"

(

826 mm)

*

S

IDE VIEW

FRONT VIEW

odels FSD-1, FSD-1X, FSD-2, FSD-2X FSDT-1, FSDT-1X, FSDT-2, FSDT-2X

M

DIMENSIONS

FSD-1, -1X: 221⁄2"W x 24"D x 271⁄2"H* (572 x 610 x 699 mm).
FSDT-1, -1X: 22

SD-2, -2X: 22

F
FSDT-2, -2X: 22
Cabinet Openings: FSD – 19"W x 18

* Add 1" (25 mm) to height for display sign.

VOLTAGE

120 volts, 60 Hz, 1440 watts,

12.0 amps standard uses
NEMA 5-15P. Export voltages
available.

SPECIFICATIONS

Standard Models

Model* Type Rack Style

FSD-1 1 Door 3-Tier Circle Rack w/Motor 113 lbs. (51 kg)
FSD-1X 1 Door 3-Tier Pan Rack w/o Motor 111 lbs. (50 kg)
FSD-2 2 Doors 3-Tier Circle Rack w/Motor 114 lbs. (52 kg)
FSD-2X 2 Doors 3-Tier Pan Rack w/o Motor 112 lbs. (51 kg)

Tall Models

Model* Type Rack Style

FSDT-1 1 Door 4-Tier Circle Rack w/Motor 120 lbs. (54 kg)
FSDT-1X 1 Door 4-Tier Pan Rack w/o Motor 118 lbs. (54 kg)
FSDT-2 2 Doors 4-Tier Circle Rack w/Motor 122 lbs. (55 kg)
FSDT-2X 2 Doors 4-Tier Pan Rack w/o Motor 120 lbs. (54 kg)

* Models FSD-1, FSD-2, FSDT-1, and FSDT-2 include rack display motor. Models with “X”

designator do not have revolving display.

†

Rack shown is included with unit. Other racks available, see

†

†

Display Rack Selection

Shipping Weight

Shipping Weight

1

⁄2"W x 24"D x 321⁄2"H* (572 x 610 x 826 mm).

1

W x 25

⁄2"

1

⁄2"W x 251/8"D x 321⁄2"H* (572 x 638 x 826 mm).

FSDT – 19"W x 23

.

ITEM#

®

HOLDING & DISPLAY CABINETS

1

/8"

D x 27

1

H* (572 x 638 x 699 mm).

⁄2"

5

⁄8"H (483 x 473 mm).

3

⁄4"H (483 x 603 mm).

CORD LOCATION

Facing controls, right-hand side panel,
lower right corner.

PLUG CONFIGURATIONS

EMA 5-15P

N

EE 7/ 7 Schuko

C

WATER QUALITY REQUIREMENTS

Water supply in excess of 3.0 grains of hardness per
gallon (GPG) (.75 grains of hardness per liter) must
be treated and softened before being used. Water
containing over 3.0 GPG (.75 GPL) will decrease the
efficiency and reduce the operating life of the unit.

Note: Product failure caused by liming or sediment

buildup is not covered under warranty.

S-1363

B

OPTIONS (NOT FOR RETROFIT)

❑ Designer Colors: Warm Red, Black, Gray Granite,

White Granite, Navy Blue, Hunter Green

❑ Three Sided Sign Holder

ACCESSORIES

❑ Racks – FSD ONLY

5-Shelf Multi-Purpose Rack Model FSD5SMP
3-Tier Circle Rack Model FSD3TCR
3-Tier Pan Rack Model FSD3TPR

❑ Racks – FSDT ONLY

7-Shelf Multi-Purpose Rack Model FSDT7SMP
4-Tier Circle Rack Model FSDT4TCR
5-Tier Circle Rack Model FSDT5TCR
4-Tier Pan Rack Model FSDT4TPR
3-Shelf Angle Rack Model FSDT3SAR
5-Shelf Angle Rack Model FSDT5SAR
3-Tier Pretzel Tree Model FSDT3TPT

❑ Merchandising Display Sign Holder with Acrylic Window
❑ Merchandising Display Sign: Pizza or Chicken
❑ Food Graphic Adhesive Decals (3 per set): Pizza,

Chicken, Pretzel, or Croissants/Biscuits

❑ 4" (102 mm) Adjustable Legs
❑ Perforated Pizza Pans – 14", 15", 16",

or 18" (356, 381, 406, 457 mm) Diameter

❑ Half-size Sheet Pan
❑ Motorless Rack Coupling (For -X Models only)

PRODUCT SPECS

Holding and Display Cabinet

The humidity controlled Holding and Display Cabinet shall be
a Flav-R-Savor
manufactured by the Hatco Corporation, Milwaukee, WI 53234 U.S.A.

With 24/7 parts and service assistance (U.S. and Canada only),
the

cabinet shall have ....door(s), tempered glass sides, stationary

HATCO CORPORATION P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A. • [phone] • [phone]

®

Model ...., rated at ....volts and ....watts, as

Fax [phone] • Int’l. Fax [phone] • www.hatcocorp.com • E-Mail: [e-mail]

Form No. FSD Spec Sheet

Display Rack Selection

3-Tier Circle Rack
Model FSD3TCR

Rack Opening:

5

/8" (117 mm)

4

4-Tier Circle Rack
Model FSDT4TCR

Rack Opening:

5

/8" (117 mm)

4

5-Tier Circle Rack
Model FSDT5TCR

Rack Opening:

5

/8" (92 mm).

3

3-Tier Pan Rack*
Model FSD3TPR

Rack Opening:

1

3

/2" (89 mm)

4-Tier Pan Rack*
Model FSDT4TPR

Rack Opening:

1

/2" (89 mm)

3

* Accommodates half-size

sheet pans (not included).

rack (or revolving display), and fluorescent display lights. It shall include
a water reservoir, humidity selector switch, temperature selector dial,
on-off switch, indicating lights, and a 6' (1829 mm) cord with
plug attached.

Accessories shall include adjustable legs, display racks, pans,
merchandising display sign(s), and food graphic decals.

5-Shelf Multi-Purpose Rack
Model FSD5SMP

Rack Opening:

1

/2" (64 mm)

2

7-Shelf Multi-Purpose Rack
Model FSDT7SMP

Rack Opening:

1

/2" (64 mm)

2

3-Shelf Angle Rack
Model FSDT3SAR

Rack Opening:

1

/2" (89 mm)

3
Rack shelves slant at
15° angle

5-Shelf Angle Rack
Model FSDT5SAR

Rack Opening:

1

/2" (64 mm)

2

3-Tier Pretzel Tree
Model FSDT3TPT

Rack Opening:

7

/8" (149 mm)

5

Printed in U.S.A.
September 2007
