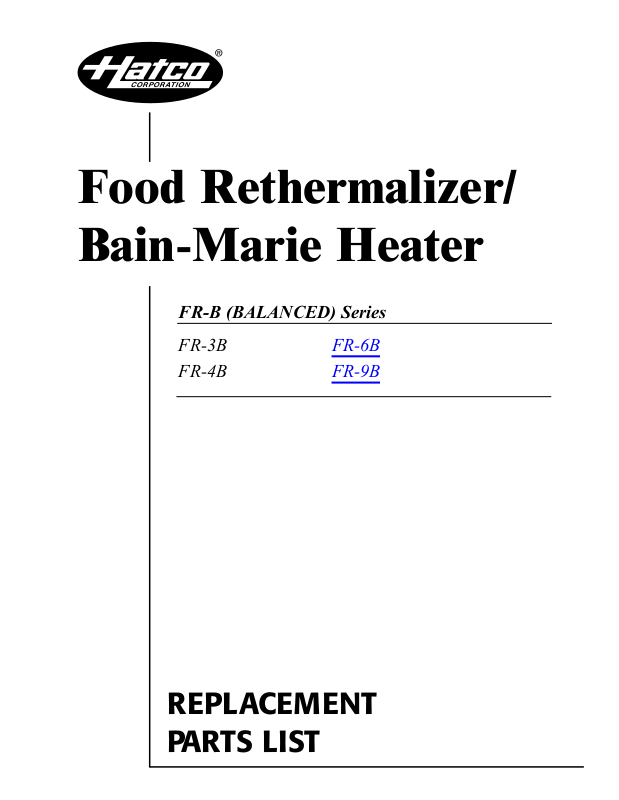

Hatco FR-4B Parts List
Food Rethermalizer/
Bain-Marie Heater
REPLACEMENT
PARTS LIST
FR-3B
FR-4B
FR-6B
FR-9B
FR-B (BALANCED) Series
Form No. FR-BRP-0601 2 Printed in U.S.A.
CAUTION - Use of
replacement parts other
than those supplied by
Hatco Corporation may
result in damage to the
unit or injury to personnel.
HATCO FR-BALANCED SERIES
Food Rethermalizer/Bain-Marie Heater
Model Designation
FR-XB
F=Food
R=Rethermalizer
X=Kilowatts
B=Balanced 3 Phase
21
22
20
15
30
28
10
39
38
26
3
4
2
6
7
35
37
34
5
36
27
29
25
14
13
11,12
9
8
16
17
23
31
31
1
19
18
32, 33
24
Form No. FR-BRP-0601 3 Printed in U.S.A.
1 Water Tank R01.04.006.00 1
2 Contactor 02.01.016.00 1
3 Control, Thermostat
192°F (89°C) 02.16.016.00 1
4 Knob, Thermostat Control 05.30.021.00 1
5 High Limit, Thermostat
210°F (99°C) 02.16.025A.00 1
6 On/Off Power Switch R02.19.008A.00 1
7 Rubber Boot, Toggle Switch 02.20.040.00 1
8 Control, Low Water Cut Off,
(optional) 02.01.002.00 1
9 Probe, Low Water Cut Off,
(optional) 02.40.001.00 1
10 Indicator Light, Green 02.19.150.00 1
11 Ball Valve, Thread Fitting
(old style) 03.02.001.00 1
12 Ball Valve, Sweat Fitting
(new style) 03.02.002.00 1
13 Handle, Sump Drain 03.02.001B.00 1
14 Drain Cap,
Heating Compartment R03.40.014.00 1
15 Rubber Stopper 05.06.026.00 1
16 Flush Hose With Adapter 05.06.010.00 1
17 Adapter for Hose 05.06.007.00 1
PARTS COMMON TO ALL FR-B MODELS
18 Mounting Bolts, Elements 05.04.062.00 12
19 Gasket, Element 05.06.005.00 3
20 Sink Strainer Assembly Kit R05.30.009.00 2
21 Strainer Gasket Kit R00.05.0002.00 1†
22 Brass Locknut 05.30.009A.00 2
23 Jacket, Painted 04.06.089.00 1
Jacket, S.S.* 04.06.090.00 1
24 Rear Plate, Painted 04.06.022.00 1
Rear Plate, S.S.* 04.06.004A.00 1
25 Base, Painted 04.06.113.00 1
Base, S.S.* 04.06.114.00 1
26 Base Front, Painted 04.06.081.00 1
Base Front, S.S.* 04.06.082.00 1
27 Bottom Cover, Painted 04.06.016.00 1
Bottom Cover, S.S.* 04.06.018.00 1
28 Front Cover For Two
Indicator Lights, S.S. 04.06.073.00 1
Front Cover For Three
Indicator Lights, S.S.* 04.06.074.00 1
29 Drain Screen Plug, 1" (3 cm) 02.20.026.00 1
30 Union Gasket 05.06.009.00 2
31 Grommets, Black Molded
Rubber 05.06.008.00 2
ITEM DESCRIPTION PART NO. QTY.
ITEM DESCRIPTION PART NO. QTY.
Note: S.S. is an abbreviation for stainless steel.
* Not shown.
† Includes all gaskets for both strainers.
