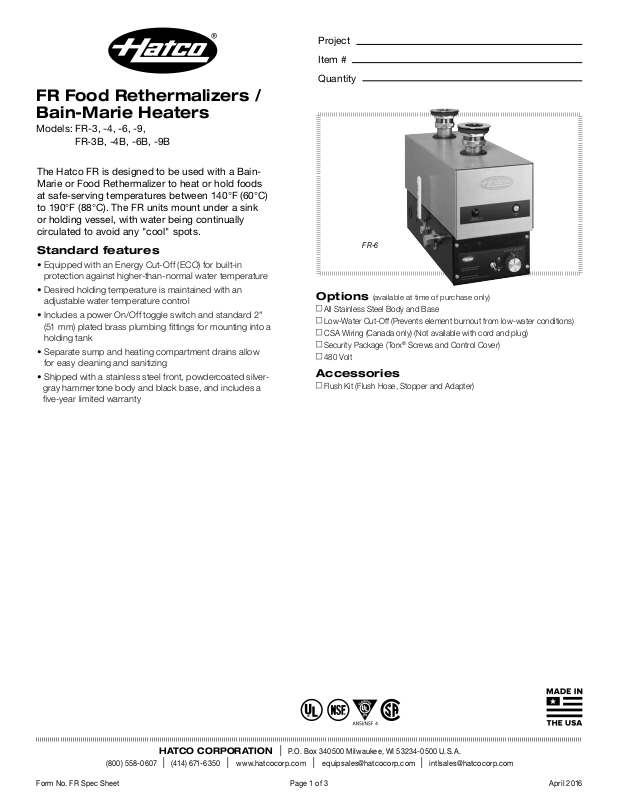

Hatco FR-3B User Manual

FR Food Rethermalizers /
Bain-Marie Heaters

Models: FR-3, -4, -6, -9,
FR-3B, -4B, -6B, -9B

The Hatco FR is designed to be used with a Bain­Marie or Food Rethermalizer to heat or hold foods
at safe-serving temperatures between 140°F (60°C)
to 190°F (88°C). The FR units mount under a sink
or holding vessel, with water being continually
circulated to avoid any "cool" spots.

Standard features

• Equipped with an Energy Cut-Off (ECO) for built-in
protection against higher-than-normal water temperature

• Desired holding temperature is maintained with an
adjustable water temperature control

• Includes a power On/Off toggle switch and standard 2"
(51 mm) plated brass plumbing ttings for mounting into a
holding tank

• Separate sump and heating compartment drains allow
for easy cleaning and sanitizing

• Shipped with a stainless steel front, powdercoated silver-

gray hammertone body and black base, and includes a
ve-year limited warranty

Project

Item #

Quantity

FR-6

Options (available at time of purchase only)

c

All Stainless Steel Body and Base

c

Low-Water Cut-Off (Prevents element burnout from low-water conditions)

c

CSA Wiring (Canada only) (Not available with cord and plug)

c

Security Package (Torx® Screws and Control Cover)

c

480 Volt

Accessories

c

Flush Kit (Flush Hose, Stopper and Adapter)

HATCO CORPORATION

[phone]

Form No. FR Spec Sheet Page 1 of 3 April 2016

(414) 671- 6 350

l

l

www.hatcocorp.com

l

P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.

l

[e-mail]

[e-mail]

l

FR Food Rethermalizers / Bain-Marie Heaters

SIDE VIEW REAR VIEW

A

B C D

E

9.38"

(238 mm)

F

4" (102 mm)

3

⁄4"
Conduit
K.O.

3

⁄4" hose
connection
to drain

1"

(25 mm)

12.25"

(311 mm)

2.88" (73 mm)

Models: FR-3, -4, -6, -9, FR-3B, -4B, -6B, -9B

Dimensions

Model A B C D E F

FR-3, -4, -6, -9 (1- or 3-Phase)

FR 480V• (Bal. 3-Phase)

FR-3B, -4B, -6B, -9B (1- or 3-Phase)

•

FR 480V Models with Balanced 3-Phase require a Transformer and Low-Water Cut-Off.

16.88" (429 mm) 5.5" (140 mm) 8.5" (216 mm) 2.88" (73 mm) 6.75" (171 mm)

17.13" (435 mm) 4.63" (117 mm) 8.5" (216 mm) 4" (102 mm) 8" (203 mm)

17.13" (435 mm) 4.63" (117 mm) 8.5" (216 mm) 4" (102 mm) 8" (203 mm)

3.38" (86 mm)

4" (102 mm)

4" (102 mm)

SIZING INFORMATION

For a Bain-Marie or Steam Table: MINIMUM 750 WATTS PER SQUARE FOOT
(0.8 WATTS PER SQUARE CM) of vessel top.

For a Food Rethermalizer: MINIMUM 2000 WATTS PER SQUARE FOOT (2.2
WATTS PER SQUARE CM) of vessel top.

Use one FR for a Bain-Marie up to 6' (1829 mm) long. Over 6', minimum two
required.

MUST BE INSTALLED WITH A PERFORATED WATER BAFFLE. This baffle is
not supplied with heater. The FR should be positioned with no more than 3’
(914 mm) on either side when mounted in holding vessel. Consult factory or
installation manual for fabricating details.

Baffle

FR

FOOD RETHERMALIZING REQUIREMENTS

NSF Standard 4 has added performance requirements for food rethermalizing. The
requirements mirror the requirements for food rethermalizing in the FDA Food Code.
The basic requirement is that food reaches a temperature of 165°F (74°C) in a time
period of two hours or less.

Appliances that are manufactured for the purpose of rethermalizing food will need to
meet these performance requirements in order to be listed to NSF Standard 4.

The Hatco FR sesries heating unit is specifically made to be used for food
rethermalizing, however, the heating unit is designed to be incorporated into a hot
water bath rethermalizer. Hatco does not supply the vessel that contains the water,
nor the system which determines how food is placed and held in the vessel. The
Hatco FR2 unit simply attaches to the bottom of the vessel and supplies hot water
to the vessel.

Hatco does supply sizing recommendations to enable the appliance manufacturer
to correctly size the FR unit to the vessel. However, there are variables in the way
that the vessel is manufactured that affect its ability to pass the NSF performance
requirements. The Hatco FR unit is UL Classified on NSF 4 for construction only.
Due to the fact that the FR2is only a portion of a larger system, it is impossible to do
performance testing until the FR2 unit is incorporated onto the water vessel.

The result is that it is the responsibility of the vessel manufacturer to have the entire
rethermalizing appliance tested and listed in accordance with NSF Standard 4.

HATCO CORPORATION

[phone]

(414) 671- 6 350

l

l

P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.

l

www.hatcocorp.com

l

WATER QUALITY REQUIREMENTS

Incoming water in excess of 3.0 grains of hardness per gallon (GPG) (.75 grains of
hardness per liter) must be treated and softened before being supplied to hot water
dispenser(s). Water containing over 3.0 GPG (.75 GPL) will decrease efciency and
reduce the operating life of the unit.

Note: Product failure caused by liming or sediment buildup is not covered

under warranty.

[e-mail]

[e-mail]

l

Form No. FR Spec Sheet Page 2 of 3 April 2016

FR Food Rethermalizers / Bain-Marie Heaters

Models: FR-3, -4, -6, -9, FR-3B, -4B, -6B, -9B

SPECIFICATIONS
FR Food Rethermalizers / Bain-Marie Heaters

Model

FR-3

FR-4

FR-6

FR-9

Voltage

50/60Hz

208

240

480

220-230

230-240

208

240

480

415

208

240

480

220-230

230-240

208

240

480

415

208

240

480

208

240

480

kW Phase Amps

3.0 Single

2.5-2.8

2.8-3.0 12-12.5 12 20

4.5 Single

4.5

6.0 Single

5.0-5.5

5.5-6.0 24-25 8 40

6.0

6.0

9.0 Single

9.0

11.5-12 14 15

Single

w

Three

Single

Three

Three

Three

23-24 10 30

w

w

w

Wiring
Sizing
AWG

14.4

12.5

6.3 14 15

22

18.8

9.4 14 15

9.4 14 15

29

25

12.5 12 20

25 8 40

21.7 10 30

10.8 14 15

14 12 20

43.3 4 60

37.5 6 50

18.8 10 30

37.5 6 50

32.5 8 40

16.2 12 20

Fuse or

Circuit

נ

Breaker

12 20

10 30

8 40

◊

Ship

Weight*

24 lbs.
(11 kg)

24 lbs.
(11 kg)

24 lbs.
(11 kg)

24 lbs.
(11 kg)

27 lbs.
(12 kg)

27 lbs.
(12 kg)

27 lbs.
(12 kg)

27 lbs.
(12 kg)

27 lbs.
(12 kg)

27 lbs.
(12 kg)

The shaded areas contain electrical information for International models only

Model

FR-3B

FR-4B

FR-6B

FR-9B

◊

Wire size is based on THHN wire for branch circuit protection at 0.91 derate factor.
Circuit breakers and fused disconnects are to be mounted remote and wired by
contractor. Sizes are based on the 2002 NEC table 310-16. Conduit size based on
conductors plus ground wire sizing per Table C1 from Appendix C.

†

Based upon THHN wire rated 90ºC.

*

Shipping weight includes packaging.

w

Open Delta–standard construction (Amperage higher than Balanced 3-phase).

Voltage

50/60Hz

208

240

480

220-230

380-400

400-415

208

240

480

208

240

480

380

220-230

208

240

480

380

440

380-400

400-415

kW Phase Amps

Three

3.0
(Bal.)

3.4

4.5

6.0

6.0

9.0

9.0

Three

(Bal.)

Three

(Bal.)

Three

(Bal.)

Three

(Bal.)

Three

(Bal.)

Three

(Bal.)

2.3-2.5 3.4-3.5

2.5-2.7 3.5-3.7

5.0-5.5 13.2-13.8

7.6-8.3 11.5-11.9

8.3-9.0 11.9-12.5

8.8-9.2

12.5 12 20

10.8

18.8 10 30

14.4 12 20

10.2 14 15

21.7 30

10.8 14 15

12.9

11.8

Wiring
Sizing
AWG

8.3

7.2

3.6

5.4

7.2 14 15

25

Fuse or

Circuit

נ

Breaker

14 15

14 15

14 15

12

10

12

14 15

12

20

40

20

20

◊

Ship

Weight*

30 lbs.
(14 kg)

30 lbs.
(14 kg)

30 lbs.
(14 kg)

30 lbs.
(14 kg)

30 lbs.
(14 kg)

30 lbs.
(14 kg)

30 lbs.
(14 kg)

PLUG CONFIGURATIONS

NEMA 6 -20P

(Available for FR-3 only)

NEMA 6-30P

(Available for FR-4 only)

PRODUCT SPECS
FR Food Rethermalizers / Bain-Marie Heaters

The electric heater designed to hold foods in the bain-marie or heat and hold frozen
foods in a food reconstitutor shall be a Hatco Model ... as manufactured by the Hatco
Corporation, Milwaukee, WI 53234 U.S.A.

The Hatco Model FR shall be rated at ... kW, ... volts, ... phase. The heater shall be
complete with all internal plumbing and wiring ready for external installation to the
bottom of the holding vessel.

The heater tank shall be of stainless steel construction and dual reservoir design; one
reservoir to contain a permanently submerged heating element, the other to trap and
collect soil which can be emptied easily by a convenient drain.

HATCO CORPORATION

[phone]

Form No. FR Spec Sheet Page 3 of 3 April 2016

(414) 671- 6 350

l

l

www.hatcocorp.com

l

The heater shall be equipped with an external thermostat adjustment calibrated
from 140°F (60°C) to 190°F (88°C) to control the water temperatures and an
overtemperature device to protect the unit from overheating. There shall also be an
indicator light to signal when water is up to temperature and another to indicate power
is on.

The heater shall consist of stainless steel front and silver-gray hammertone body (or
stainless steel body and base).

Warranty consists of 24/7 parts and service assistance (US and Canada only).
