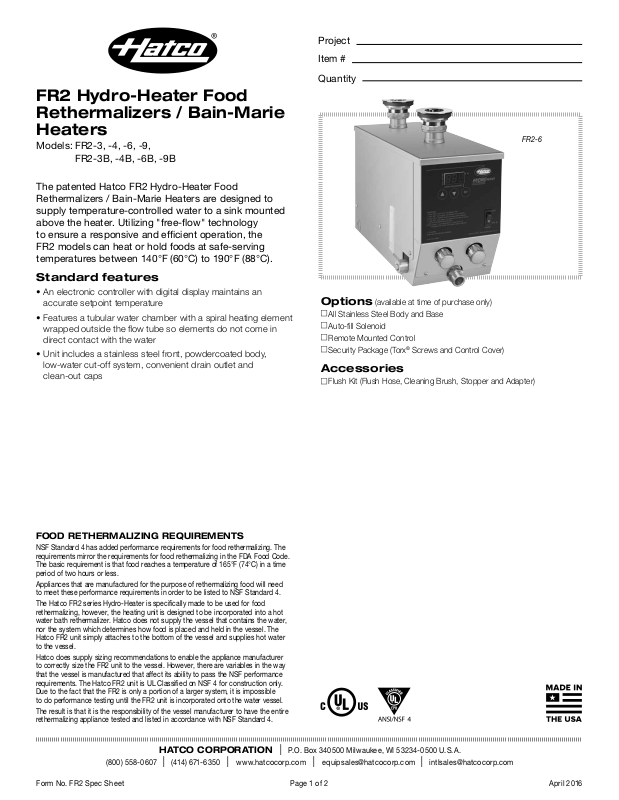

Hatco FR2-9 User Manual

FR2 Hydro-Heater Food
Rethermalizers / Bain-Marie
Heaters

Models: FR2-3, -4, -6, -9,
FR2-3B, -4B, -6B, -9B

The patented Hatco FR2 Hydro-Heater Food
Rethermalizers / Bain-Marie Heaters are designed to
supply temperature-controlled water to a sink mounted
above the heater. Utilizing "free-ow" technology
to ensure a responsive and efcient operation, the
FR2 models can heat or hold foods at safe-serving
temperatures between 140°F (60°C) to 190°F (88°C).

Standard features

• An electronic controller with digital display maintains an
accurate setpoint temperature

• Features a tubular water chamber with a spiral heating element
wrapped outside the ow tube so elements do not come in
direct contact with the water

• Unit includes a stainless steel front, powdercoated body,
low-water cut-off system, convenient drain outlet and
clean-out caps

Project

Item #

Quantity

FR2-6

Options

c

All Stainless Steel Body and Base

c

Auto-fill Solenoid

c

Remote Mounted Control

c

Security Package (Torx® Screws and Control Cover)

(available at time of purchase only)

Accessories

c

Flush Kit (Flush Hose, Cleaning Brush, Stopper and Adapter)

FOOD RETHERMALIZING REQUIREMENTS

NSF Standard 4 has added performance requirements for food rethermalizing. The
requirements mirror the requirements for food rethermalizing in the FDA Food Code.
The basic requirement is that food reaches a temperature of 165°F (74°C) in a time
period of two hours or less.

Appliances that are manufactured for the purpose of rethermalizing food will need
to meet these performance requirements in order to be listed to NSF Standard 4.

The Hatco FR2 series Hydro-Heater is specifically made to be used for food
rethermalizing, however, the heating unit is designed to be incorporated into a hot
water bath rethermalizer. Hatco does not supply the vessel that contains the water,
nor the system which determines how food is placed and held in the vessel. The
Hatco FR2 unit simply attaches to the bottom of the vessel and supplies hot water
to the vessel.

Hatco does supply sizing recommendations to enable the appliance manufacturer
to correctly size the FR2 unit to the vessel. However, there are variables in the way
that the vessel is manufactured that affect its ability to pass the NSF performance
requirements. The Hatco FR2 unit is UL Classified on NSF 4 for construction only.
Due to the fact that the FR2 is only a portion of a larger system, it is impossible
to do performance testing until the FR2 unit is incorporated onto the water vessel.

The result is that it is the responsibility of the vessel manufacturer to have the entire
rethermalizing appliance tested and listed in accordance with NSF Standard 4.

HATCO CORPORATION

[phone]

Form No. FR2 Spec Sheet Page 1 of 2 April 2016

(414) 671- 6 3 50

l

l

www.hatcocorp.com

l

P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.

l

[e-mail]

[e-mail]

l

¾" hose

connection

to drain

FR2 Hydro-Heater Food Rethermalizers
/ Bain-Marie Heaters

Models: FR2-3, -4, -6, -9, FR2-3B, -4B, -6B, -9B

17.06" (433 mm)

5.5"

(140 mm) 8.5" (216 mm)

½" & ¾"

Conduit K.O.

3.06"

(78 mm)

12.36"

(314 mm)

2.63"

(67 mm)

9.74"

(247 mm)

6.75"

(171 mm)

3.38" (86 mm)

½" &

¾"

Conduit K.O.

1"

(25 mm)

SIZING INFORMATION

For a Bain-Marie or Steam Table: MINIMUM 750 WATTS PER
SQUARE FOOT (0.8 WATTS PER SQUARE CM) of vessel top.

For a Food Rethermalizer: MINIMUM 2000 WATTS PER
SQUARE FOOT (2.2 WATTS PER SQUARE CM) of vessel top.

Use one FR2 for a Bain-Marie up to 6' (1829 mm) long. Over
6', minimum two required.

MUST BE INSTALLED WITH A PERFORATED WATER
BAFFLE. This baffle is not supplied with heater. The FR2
should be positioned with no more than 3’ (914 mm) on
either side when mounted in holding vessel. Consult factory
or installation manual for fabricating details.

SIDE VIEW

REAR VIEW

SPECIFICATIONS
FR2 Hydro-Heater Food Rethermalizers / Bain-Marie Heaters

Model

FR2-3

FR2-4

FR2-6

FR2-3B

FR2-4B

FR2-6B

FR2-9B

◊

Wire size is based on THHN copper wire for branch circuit protection at 0.91 derate factor. Circuit breakers and fused disconnects are to be mounted remote and wired by

contractor. Sizes are based on the 2002 NEC table 310-16. Conduit size based on conductors plus ground wire sizing per Table C1 from Appendix C.

†

Based upon THHN wire rated 90ºC.

*

Shipping weight includes packaging.

Dimensions

(Width x Depth x Height)

7.75" x 17.06" x 12.36"
(197 x 433 x 314 mm)

Voltage Hertz kW Phase Amps Wiring Sizing AWG◊†Fuse or Circuit Breaker†Ship Weight*

208

240 12.5

208

240 16.7

208

240 25

208

240 7.3

208

240 9.6
208

240 14.5

208
240 21.7

50/60

3.0

4.0

6.0

3.0

4.0

6.0

9.0

Single

Three
(Bal.)

14.4

19.2

28.8

8.4

11.2

16.7

25

12

10

14

12

10

20

24 lbs. (11 kg)

30

40 27 lbs. (12 kg)

15 24 lbs. (11 kg)

30

20

40
30

27 lbs. (12 kg)

WATER QUALITY REQUIREMENTS

Incoming water in excess of 3.0 grains of hardness per gallon (GPG) (.75 grains of
hardness per liter) must be treated and softened before being supplied to hot water
dispenser(s). Water containing over 3.0 GPG (.75 GPL) will decrease efciency and
reduce the operating life of the unit.

Note: Product failure caused by liming or sediment buildup is not covered

under warranty.

PLUG CONFIGURATIONS

NEMA 6 -20P

(Available for FR2-3 only)

NEMA 6-30P

(Available for FR2-4 only)

PRODUCT SPECS
FR2 Hydro-Heater Food Rethermalizers / Bain-Marie Heaters

The electric heater designed to hold foods in the bain-marie or heat and hold frozen
foods in a food reconstitutor shall be a Hydro-Heater Model ... as manufactured by
the Hatco Corporation, Milwaukee, WI 53234 U.S.A.

The Hatco patented Hydro-Heater Model FR2 shall be rated at ... kW, ... volts, ...
phase. The heater shall be complete with all internal plumbing and wiring ready for
external installation to the bottom of the holding vessel.

The heater shall consist of 1 to 3 stainless steel tubes wrapped with external heating
elements. Each tube may be accessed for cleaning purposes. The unit may be
emptied easily by a convenient drain.

HATCO CORPORATION

[phone]

Form No. FR2 Spec Sheet Page 2 of 2 April 2016

(414) 671- 6 3 50

l

l

www.hatcocorp.com

l

The heater shall be equipped with an electronic temperature controller adjustable
from 140°F to 190°F (60° to 88°C),an on-off switch, a low-water cut-off, and a digital
temperature display.

The heater shall consist of powdercoated black hammertone front and body (or
optional stainless steel body and base).

Warranty consists of 24/7 parts and service assistance (US and Canada only).
