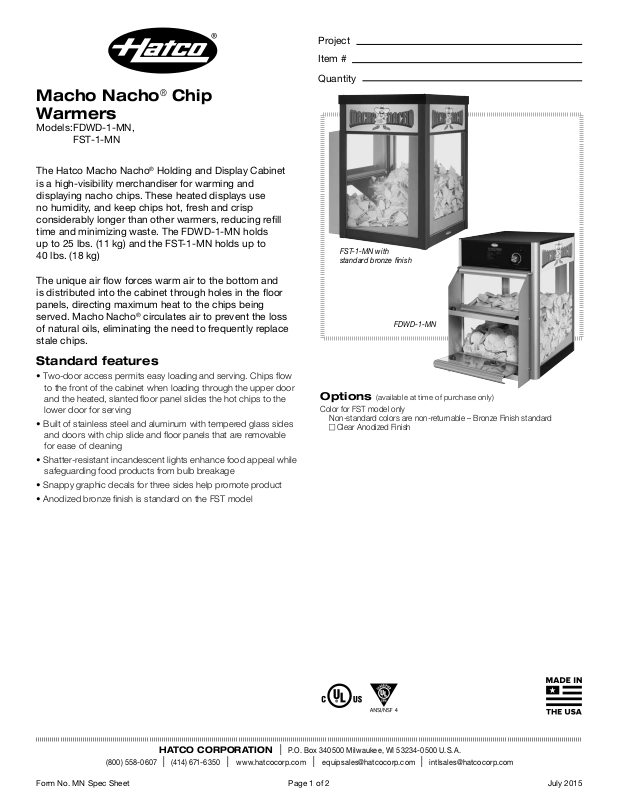

Hatco FDWD-1-MN User Manual
Macho Nacho® Chip
Warmers
Models: FDWD-1-MN,
FST-1-MN
®
The Hatco Macho Nacho
is a high-visibility merchandiser for warming and
displaying nacho chips. These heated displays use
no humidity, and keep chips hot, fresh and crisp
considerably longer than other warmers, reducing rell
time and minimizing waste. The FDWD-1-MN holds
up to 25 lbs. (11 kg) and the FST-1-MN holds up to
40 lbs. (18 kg)
The unique air ow forces warm air to the bottom and
is distributed into the cabinet through holes in the oor
panels, directing maximum heat to the chips being
served. Macho Nacho® circulates air to prevent the loss
of natural oils, eliminating the need to frequently replace
stale chips.
Holding and Display Cabinet
Project
Item #
Quantity
FST-1-MN with
standard bronze finish
FDWD-1-MN
Standard features
• Two-door access permits easy loading and serving. Chips ow
to the front of the cabinet when loading through the upper door
and the heated, slanted oor panel slides the hot chips to the
lower door for serving
• Built of stainless steel and aluminum with tempered glass sides
and doors with chip slide and oor panels that are removable
for ease of cleaning
• Shatter-resistant incandescent lights enhance food appeal while
safeguarding food products from bulb breakage
• Snappy graphic decals for three sides help promote product
• Anodized bronze nish is standard on the FST model
Options (available at time of purchase only)
Color for FST model only
Non-standard colors are non-returnable – Bronze Finish standard
c
Clear Anodized Finish
HATCO CORPORATION
(800) 558-0607
Form No. MN Spec Sheet Page 1 of 2 July 2015
(414) 671- 6 3 50
l
l
www.hatcocorp.com
l
P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
l
equipsales@hatcocorp.com
intlsales@hatcocorp.com
l
Macho Nacho® Chip Warmer
(831 mm)
FDWD-1-MN, FST-1-MN
FDWD-1-MN FST-1-MN
19.97" (507 mm)
9.17"
(233 mm)
16.37"
(416 mm)
19.39" (492 mm)
9.06"
(230 mm)
23.94"
(608 mm)
FRONT VIEW SIDE VIEW
28.77"
(731 mm)
(474 mm)
22.91" (582 mm)
FRONT VIEW SIDE VIEW
SPECIFICATIONS
Chip Warmers - Non-Humidied
Model Description Dimensions
(W x D x H)
FDWD-1-MN
FST-1-MN
2 Doors
2 Doors
19.39" x 23.94" x 28.77"
(492 x 608 x 729 mm)
22.91" x 27" x 32.72"
(582 x 686 x 831 mm)
Cabinet Opening (W x H) Volts Watts Amps Plug Ship Weight*
Upper Door: 16.37" x 9.17"
(416 x 233 mm)
Lower Door: 16.37" x 9.06"
(416 x 230 mm)
Upper Door: 18.65" x 11.24"
(474 x 285 mm)
Lower Door: 18.65" x 9.92"
(474 x 252 mm)
120 1080 9.0 NEMA 5-15P 101 lbs. (46 kg)
220 950 4.3 CEE 7/7 Schuko
240 1129 4.7 AS 3112, BS-1363
120 1245 10.4 NEMA 5-15P 132 lbs. (60 kg)
220 1219 5.6 CEE 7/7 Schuko
240 1252 5.2 BS-1363
18.65"
22.81"
(579 mm)
11.24"
(285 mm)
9.92"
(252 mm)
27" (686 mm)
The shaded areas contain electrical
32.72"
information for International models
101 lbs. (46 kg)
132 lbs. (60 kg)
Shipping weight includes packaging.
*
CORD LOCATION
Facing controls, left-hand side panel, bottom right corner.
PLUG CONFIGURATIONS
CEE 7/7 SchukoNE M A 5-15P AS 3112 BS -1363
PRODUCT SPECS
Chip Warmer
The Holding and Display Cabinet shall be a Flav-R-Fresh® (or Flav-R-Savor®) Macho
®
Nacho
Model ... as manufactured by the Hatco Corporation, Milwaukee, WI 53234
U.S.A.
The Chip Warmer Cabinet shall be rated at ... volts and ... watts and be ... inches
(millimeters) in overall width.
It shall consist of two doors, tempered glass sides and doors, incandescent display
lights, and merchandising graphics. A 6' (1829 mm) cord with plug shall be attached.
Warranty consists of 24/7 parts and service assistance (US and Canada only).
