Hastech HW098 Users Manual

Anker® Ultra-Slim 2.4G Wireless Keyboard and receiver

Welcome Guide

FCC ID:2AC9LHW098

Package Contents

Anker Ultra-Slim 2.4G Wireless Keyboard
USB wireless receiver
Welcome Guide

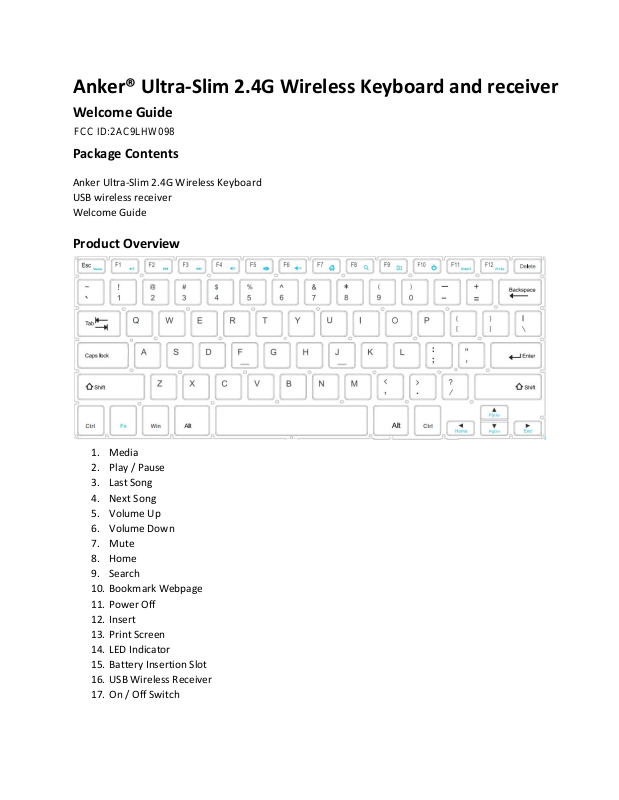

Product Overview

1. Media

2. Play / Pause

3. Last Song

4. Next Song

5. Volume Up

6. Volume Down

7. Mute

8. Home

9. Search

10. Bookmark Webpage

11. Power Off

12. Insert

13. Print Screen

14. LED Indicator

15. Battery Insertion Slot

16. USB Wireless Receiver

17. On / Off Switch

Specifications

Wireless Specification 2.4G wireless

Product Dimensions

Product Weight

285 × 122 × 19mm / 11.2 ×

4.8 × 0.7in (L × W × H)

189g / 6.7 oz

Operating Range Up to 10 meters / 33 feet

Modulation System MSK

Battery Type 2 AAA batteries

Working Temperature -10°C to +55°C

Key Life 3 million clicks

System Requirements

Windows 8 / Windows 7 /
Windows Vista / Windows
XP

Setup Instructions

1. Open the battery cover on the back of the keyboard and take it off.

2. Insert two AAA batteries (not included).

3. Take out the USB wireless receiver from the battery slot and plug it into your computer’s USB
port.

4. Replace the battery cover and you are ready to begin typing.

Replacing Batteries

When the batteries are running low, the LED indicator will turn red and begin to flash. Replace the
AAA batteries to continue typing.

Troubleshooting

If you have any problems using the keyboard, or you’re using a new Anker receiver, try the following
steps to pair the keyboard and receiver together again:

1. Unplug the USB receiver and then plug it back into the computer USB port.

2. Press the ESC and Q keys at the same time. The LED indicator will flash rapidly for about 5 seconds
and then go off. The receiver is now successfully paired to your keyboard.
