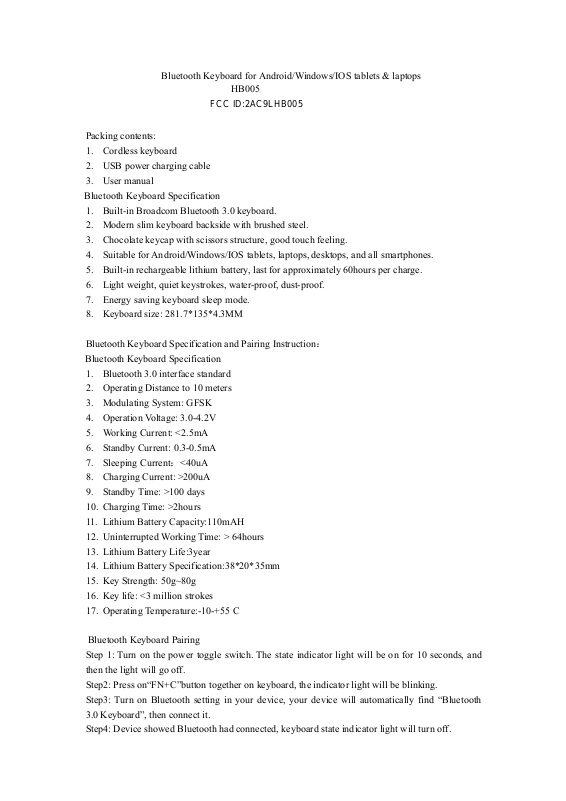

Hastech HB005 Users Manual

Bluetooth Keyboard for Android/Windows/IOS tablets & laptops

1. Cordless keyboard

2. USB power charging cable

3. User manual

1. Built-in Broadcom Bluetooth 3.0 keyboard.

2. Modern slim keyboard backside with brushed steel.

3. Chocolate keycap with scissors structure, good touch feeling.

4. Suitable for Android/Windows/IOS tablets, laptops, desktops, and all smartphones.

5. Built-in rechargeable lithium battery, last for approximately 60hours per charge.

6. Light weight, quiet keystrokes, water-proof, dust-proof.

7. Energy saving keyboard sleep mode.

8. Keyboard size: 281.7*135*4.3MM

1. Bluetooth 3.0 interface standard

2. Operating Distance to 10 meters

3. Modulating System: GFSK

4. Operation Voltage: 3.0-4.2V

5. Working Current: <2.5mA

6. Standby Current: 0.3-0.5mA

7. Sleeping Current：<40uA

8. Charging Current: >200uA

9. Standby Time: >100 days

10. Charging Time: >2hours

11. Lithium Battery Capacity:110mAH

12. Uninterrupted Working Time: > 64hours

13. Lithium Battery Life:3year

14. Lithium Battery Specification:38*20*35mm

15. Key Strength: 50g~80g

16. Key life: <3 million strokes

17. Operating Temperature:-10-+55 C

HB005

FCC ID:2AC9LHB005

Packing contents:

Bluetooth Keyboard Specification

Bluetooth Keyboard Specification and Pairing Instruction：

Bluetooth Keyboard Specification

Bluetooth Keyboard Pairing

Step 1: Turn on the power toggle switch. The state indicator light will be on for 10 seconds, and

then the light will go off.

Step2: Press on“FN+C”button together on keyboard, the indicator light will be blinking.

Step3: Turn on Bluetooth setting in your device, your device will automatically find “Bluetooth

3.0 Keyboard”, then connect it.

Step4: Device showed Bluetooth had connected, keyboard state indicator light will turn off.

Special Note:

1.Keep the item away from sharp objects.

2.Do not place heavy object on top of the keyboard.

3.Do not Microwave the item.

4.Do not force or distorted the keyboard

5.Keep away from oil.chemical or any other organic liquid.

1.Make sure the power switch is on.

2.Make sure the keyboard is within the operating distance.

3.Make sure the battery is charged.

4.Make sure your device Bluetooth setting is on.

5.Make sure wireless keyboard is connected to your device.

6.Make sure wireless keyboard has been paired with your device.

1.Make sure the USB power cable is connected properly to the keyboard and the power source.

2.Make sure the wall charger is plug into the power outlet.

For other Bluetooth enabled device, please verify the Bluetooth Standard&compatibility before

attempting to connect to the keyboard.

Battery

The long-lasting rechargeable battery can service you for several weeks

With no memory effect, the lithium battery can be charged at any time.

In order to extend service life, we recommend you turn the keyboard off when there is long time

with no interactive.

Charging

When the battery power is low, the [power] indicator light will start blinking,it is time to recharge

the keyboard.

Step1: Connect USB-B of the native USB power cable to the keyboard charging interface.

Step2: Connect USB-A to the power adapter or computer's USB interface.

Step3: the red indicator light will stay on when the keyboard is charging. Once it finished charging

the indicator light will turn green color.

Energy Saving Sleep Mode

The keyboard will kick into sleep mode when it is inactive for 10 minutes and the keyboard

[power] indicator or light will go off. To activate from sleep mode, just press any key and wait

3seconds, the keyboard will come back on.

Safety Caution

Cleaning

Clean the silicone keyboard with water, alcohol or alcohol based disinfectant

Troubleshooting

A, Unable to connect

B. Unable to Charge Keyboard
