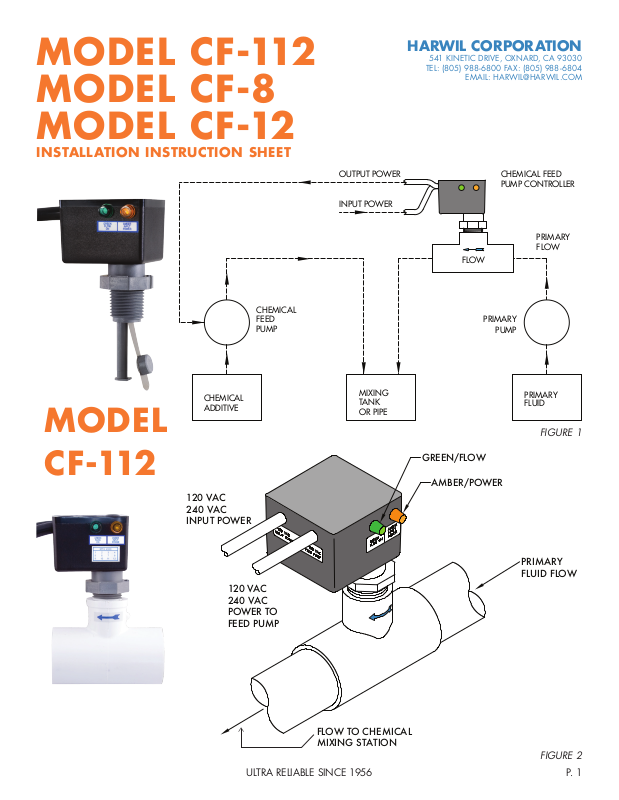

Page 1
Model CF-112
Model CF-8
Model CF-12
INSTAllATIoN INSTRUCTIoN SHeeT
HARWIl CoRPoRATIoN
541 KINETIC DRIVE, OXNARD, CA 93030
TEL: (805) 988-6800 FAX: (805) 988-6804
EMAIL: [email protected]
Model
C F -112
CHEMICAL
ADDITIVE
120 VAC
240 VAC
INPUT POWER
CHEMICAL
FEED
PUMP
OUTPUT POWER
INPUT POWER
MIXING
TANK
OR PIPE
CHEMICAL FEED
PUMP CONTROLLER
PRIMARY
FLOW
FLOW
PRIMARY
PUMP
PRIMARY
FLUID
figure 1
GREEN/FLOW
AMBER/POWER
PRIMARY
FLUID FLOW
120 VAC
240 VAC
POWER TO
FEED PUMP
FLOW TO CHEMICAL
MIXING STATION
Ultra reliable since 1956 P. 1
figure 2
Page 2
Model CF-8/1 oR 2G
SWITCHed
oUTleT
Model CF-12/1 oR 2G
SWITCHed
oUTleT
Ultra reliable since 1956P. 2
Page 3
HARWIl CoRPoRATIoN
541 KINETIC DRIVE, OXNARD, CA 93030
TEL: (805) 988-6800 FAX: (805) 988-6804
EMAIL: [email protected]
INSTAllATIoN ANd oPeRATING INSTRUCTIoNS
1. Inspect the shipping container and its contents for damage. Read this instruction sheet in detail, noting input
and output power cord labels in addition to the primary ow direction arrows.
2. Thread the module into the side of the supplied tee (see note). All male threads supplied by Harwil are
delivered with several layers of Teon-coated tape. New tape should be applied each time the thread is
used. “Paste” type thread-sealing is not recommended.
3. Insert the mating threads with care in order to insure that the threads match without cross threading and
the delicate ow-sensing metal blade does not touch any interior surfaces during insertion and tightening.
Touching the blade can change its uid ow sensing ON/OFF set points.
4. Tighten the thread until a rm coupling is established and all ow arrows are aligned.
CAUTION: ALWAYS TIGHTEN THE FLOW SWITCH USING A WRENCH APPLIED TO THE SWITCH HEX BODY.
NEVER TURN THE BLACK BOX. GREY OUTLET BOXES CAN BE TURNED BY HAND, NO MORE THAN 180°.
5. If plastic tees have been provided with the CF-112, CF-8 or CF-12 module, insert the preassembled tee into
the primary ow line. Avoid touching the ow sensing blade manually or with glue.
6. Connect the external 120 VAC/240 VAC input power to the CF-112, CF-8 or CF-12 120 VAC/240 VAC input
power cable in accordance with the schedule below.
7. Connect the CF-112, CF-8 or CF-12 output chemical feed pump power cable to the input 120 VAC/240 VAC
power connection on the chemical feed pump in accordance with the schedule below.
8. Turn on primary ow and check for chemical feed pump operation.
9. If the feed pump fails to operate, check the ow rate of the primary line to insure the CF-112, CF-8 or CF-12
has enough ow to activate the internal ow switch.
WIRING
120 VAC
BLACK – POWER
WHITE – COMMON
GREEN – GROUND
240 VAC
BLACK – POWER 1
RED – POWER 2
GREEN – GROUND
Ultra reliable since 1956 P. 3
Page 4
CeRTIFICATe oF CoNFoRMANCe
All HARWIL Corporation (“HARWIL”) products are manufactured using new materials and components.
Our products meet the applicable performance and materials specications indicated in our current Specications Sheets and Parts Lists. HARWIL endeavors to obtain its materials and components from American
Companies.
doMINANCe oF HARWIl lIMITed eXPReSS WARRANTY
HARWIL warrants that all HARWIL products will be free from defects in material and workmanship for a
period of one year from the date of original shipment. This warranty shall be limited to the replacement
and reconditioning of our products and parts. HARWIL reserves the right and sole discretion to modify or
change the composition, design and appearance of its products at anytime.
This warranty shall be in lieu of all warranties of merchantability and of all warranties of tness for a particular purpose relating to harwil products and parts. Buyer’s sole remedy hereunto shall be replacement
or reconditioning as set forth herein.
HARWIL shall incur no obligations hereunder and no liability in the event of (a) buyer not fullling its responsibilities, including as set forth herein; (b) neglect, alteration or improper product use, including use
with non-compatible devices or chemicals; or (c) repair by other than HARWIL. ANY LAWSUIT RELATING
TO THIS WARRANTY MUST BE COMMENCED WITHIN ONE YEAR OF THE DATE IT ACCRUES.
Each user of our product should make appropriate analysis and tests to determine the suitability of the
product for the intended use prior to purchase. HARWIL provides no warranty and assumes no responsibil-
ity for corrosive attack on any material, component or design features associated with any of its products.
Corrosion resistance information listed in HARWIL specication sheets, installation sheets and product brochures is solely for general background information. This table has been compiled from literature published
by various material suppliers and by equipment manufacturers who use these materials in their products.
Inasmuch as these data are based on tests by entities over which HARWIL has no control, HARWIL does not
guarantee or accept responsibility for the accuracy of such tests. When using the table, please remember
that in any given case several factors such as concentration, temperature, degrees of agitation and pres-
ence of impurities inuence the rate of corrosion. The guide is intended, in a general way, to rate materials
for resistance to chemicals which contain their usual impurities and for types of equipment in common use.
Ratings should be used only as a general guide to rst approximation of your material requirements rather
than as the nal answer.
• When in doubt, test materials before installation.
• After installation, follow up with preventative maintenance and periodic inspection.
