Hartzell 03P-12-3 Click Here for the Hartzell Series 03P Spec Sheet

HARTZELL

Hartzell Fan, Inc., Piqua, Ohio 45356

www.hartzellfan.com

Bulletin A-147-P May 2009

®

Backward Curved Centrifugal Fans

Series 03 Series 03P Series 03U Series 13 Series 03S Series 03Q Series 03F Series 11

H

T

I

H

W

O

T

L

I

U

B

H

A

R

T

P

I

Q

U

N

O

R

C

N

I

,

Z

N

E

A

F

L

A

S

U

A

,

O

I

O

H

This bulletin lists Hartzell’s complete line of Series 03 Backward Curved Centrifugal Fans and accessories. More than 70 Hartzell offices can provide specific performance and installation data to meet your requirements. Call your Hartzell representative for assistance. Visit our website (www.hartzellfan.com) or call toll-free (1-800-336-3267) for the name of your Hartzell representative.

Hartzell Model Code Explanation ........................Page 2

Pictorial Table of Contents ....................................Page 3

Hartzell Backward Curved Centrifugal Fans ......Page 4

Temperature & Altitude Corrections ....................Page 5

Centrifugal Fan Classifications

and Mounting Arrangements ............................Page 6

Material Specifications ..........................................Page 7

Series 03U Backward Curved Utility Set..............Page 8

Series 03- Backward Curved Centrifugal Fan ....Page 9

Dimensions – Series 03- ..............................Pages 10-11

Series 03P Packaged Centrifugal Fan ................Page 12

Dimensions – Series 03P ....................................Page 13

Series 03- Direct Drive – Dim. & Rating Table ..Page 14

Rating Tables Series 03-, Series 03P ..........Pages 15-27

Series 13 – Backward Curved

Centrifugal Fan, DWDI ......................................Page 28

Dimensions – Series 13, DWDI............................Page 29

Construction Option – Series 03S......................Page 30

Construction Option – Series 03Q ....................Page 31

Construction Options – Series 03F, Series 11 ..Page 32

Specifications ......................................................Page 33

Options and Accessories ............................Pages 34-35

Index

Motor Horsepower

Horsepower

1/41/31/23

/4 111/2 23571/2 10 15 20 25 30 40 50 60 75 100 125 150 200

Code Letter D E F G H I J K L M N O P Q R S T U V W X Y Z

18.4 BHP, with outlet velocity of 2,712 FPM. Standard construction. Open, protected motor enclosure. Motor horsepower required is 20; therefore, horsepower code is “P.” Motor RPM required is 1750; therefore, motor RPM code is “3.”

A 03- 9 -27 2 B C 1 0 0 S T O P P 3

Type

A – Production Item S – Stock Item

Q – Special Quote Product Series Arrangement (centrifugals only) Size (nominal wheel diameter, inches) Class Wheel Code Wheel Width (entries represent percents) Material of Construction Motor Enclosure Motor Horsepower Motor RPM/ Phase

Motor RPM

3 Phase

2 = 3450 3 = 1750 4 = 1140 5 = 870 6 = 690

Hartzell Model Code Explanation

2

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Certified Ratings for Air and Sound Performance

Hartzell Fan, Inc. certifies that the Backward Curved Centrifugal Fans, Series 03, and Series 03P with type BC wheels shown on pages 14 through 27, and Backward Curved Utility Set, Series 03U with type BU wheels shown on page 8, are licensed to bear the AMCA seal for air and sound performance. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Sound performance data is available upon request. Please contact the factory and ask for Engineering Publication #SD-147 for the Series 03 and 03P and Engineering Publication #SD-03U for Series 03U.

Hartzell Fan, Inc. certifies that the Series 03 Backward Curved Centrifugal Fan, shown on page 16, is authorized to bear CE Marking in accordance with Machinery Safety Directive 98/37/EC of the European Union. Reference Technical File E.S. 13.2.1.

Example:

Assume a required performance of 12,000 CFM at 7" S.P.W.G., at standard conditions is required. Reading Rating Table on page 19, we find Series 03 Backward Curved Centrifugal Fan Arrangement 9, 27 inch wheel diameter with 100% wheel width. Class II construction. 12,000 CFM at 7" S.P., 1,635 RPM,

Certificates of Design Assessment are issued by the American Bureau of Shipping. The assessment is a representation by the Bureau as to

the degree of compliance the design

exhibits with applicable sections of the Rules. The certificates, by itself, do not reflect that the products

are Type Approved.

Backward Curved Centrifugal Fans

3

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Series 03U

Backward Curved

Utility Set

Page 8

Series 03 – Type BA &BC

Backward Curved

Centrifugals

Page 9

Series 03, Arrg. 1

Backward Curved

Centrifugals

Page 9

Series 03P

Packaged Centrifugals

Page 12

Series 03

Direct Drive Centrifugals

Page 14

Series 13

Double Width Centrifugal Fan

Page 28

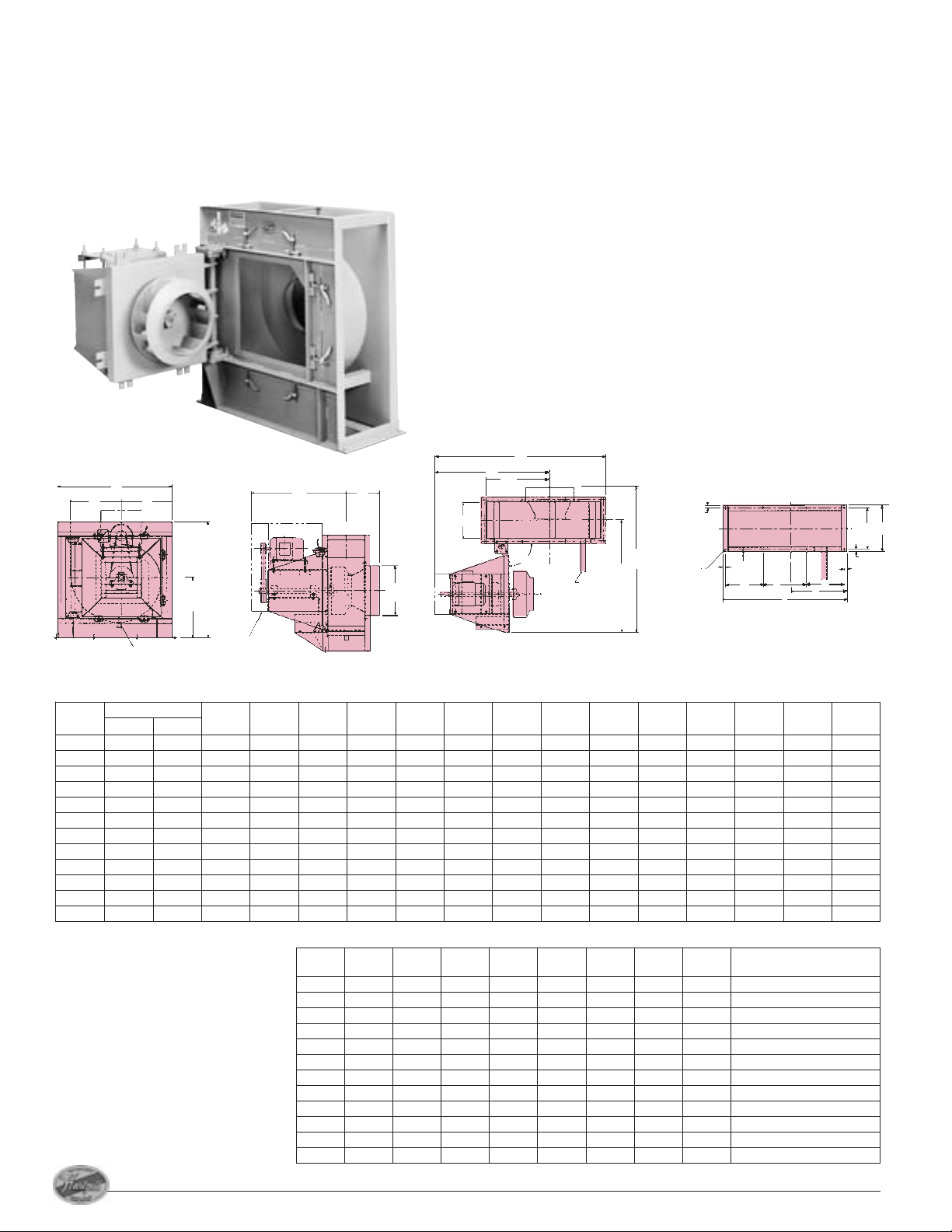

Series 03S

Swing Out Type

Page 30

Series 03Q

Square Type Fans

Page 31

Series 03F, Series 11

Flange Mount and Plug Fans

Page 32

4

www.hartzellfan.com

1 (800) 336-3267

Bulletin A-147-P

General Construction Features

®

The Hartzell backward curved centrifugal fans are designed to provide maximum performance and efficiency for clean air applications. These blowers are available in direct drive and belt drive configurations in a variety of arrangements and construction to meet your requirements. Air delivery ranges from 500 CFM to 186,000 CFM (depending on series), with static pressure capabilities to 14" and higher.

The Hartzell Type BC and BA (airfoil) wheels have non-overloading horsepower characteristics. Efficient airflow is provided over a broad range of pressures (maximum total efficiencies exceeding 80%). Designed for quiet operation, the Hartzell backward curved centrifugal blowers provide lower sound levels in the highest efficiency ranges.

Standard Construction – Our standard construction is built for reliable service in standard applications with continuously welded hot rolled steel housings. Bearing base/motor pedestal is constructed of hot rolled steel and structural steel. Standard construction also includes precision balancing and shafts, long life bearings and drives, industrial duty enamel finish, motor out of the airstream, easy installation, maintenance and system access.

Stock – Many sizes of the Series 03P and Series 03U are available from stock.

Your Special Features and Options – Hartzell Fan has a wide range of designs, configurations, performances, sizes, materials, finishes, and motors in-stock and from production to fit your ventilation requirements. Construction is available for high temperature, spark resistance, leak resistant, and special materials. Accessories including guards, companion flanges, dampers, louvers, inlet bells, sub-bases, vibration isolators, lifting lugs, and sound mufflers are available.

Series, Sizes, Classes, Arrangements, and Features

Series 03 – Backward Curved Centrifugal Fans (SWSI), incorporate Heavy

Industrial Duty Construction and are available in single width, single inlet wheel diameter sizes 12" – 60", in Class I, II, or III, Arrangements 1, 3, 4, 8, 9, 9M, or

10. See page 9 for details. Series 03P – Backward Curved Centrifugal Fans, Packaged, incorporate

Industrial Duty Construction and are available in wheel diameter sizes 12"– 36", (SWSI), Class II, Arrangement 10 packaged with guards and covers. See page 12 for details.

Series 03U – Backward Curved Utility Set is designed for General Industrial Service with value, application, and performance range taken together and is available in wheel diameter sizes 10"– 30" (SWSI), Arrangement 10. Applications are limited by selection point and motor horsepower, see page 8 for details.

Series 13 – Backward Curved Centrifugal Fans (DWDI), incorporate Heavy Industrial Duty Construction and are available in double width, double inlet wheel diameter sizes 10" – 60", in Class I, II, or III, Arrangements 1 or 3. See page 28 for details.

Series 03S, Series 03Q, Series 03F, Series 11 – Hartzell fan offers backward curved centrifugal fans in a variety of configurations to meet your requirements. See pages 30 – 32 for additional details on these series.

Type BC Wheel

The Hartzell backward curved centrifugal Type BC wheels have single thickness airfoil blades. The heavy-duty steel construction is reinforced depending on size and class of construction. The wheel’s inlet rim is a tapered spun orifice. The inlet rim is overlapped by the fan’s spun inlet cone with closely held tolerances to ensure maximum performance and efficiency.

Type BA Wheel (Airfoil)

The Hartzell backward curved centrifugal Type BA wheels have double thickness hollow airfoil blades. These blades are die formed in a true airfoil shape. The backplate and inlets on the Type BA wheels are the same configuration as the Type BC.

Wheel Design

The wheels are individually precision balanced prior to assembly. Below illustrates the dynamic balance operation on a Hartzell Series 03 Type BC wheel. Equipment at this Hartzell Quality Assurance Station balances in two places.

Series 03-

Shown with

optional equipment

Type BC Wheel

Type BA Wheel

ABS Certificate

of Design Assessment

Received

5

Bulletin A-147-P

Centrifugal Fan Arrangements

Arrangement 1

Unit furnished with shaft and bearings, less motor and drive. Designed to be driven by a separately mounted motor. Impeller is overhung – two bearings on base. Temperature limitations:Standard fan to 300°F, heat fan to 800°F.

Motor Position Designation

Motor position designation is necessary when ordering the following for Arrangement 1 fans –

1 – V Belt Drive. 2 – Vibration Bases. 3 – Belt Guards.

Note: Location of motor is determined by facing the drive side of the fan and designating the motor position by letters W, X, Y, or Z.

Z

W

Y

X

Arrangement 10

Series 03, 03P, 03U – Belt drive configuration with motor mounted inside base. Packaged unit, wheel is overhung. Temperature limitations: Standard fan to 250°F, heat fan to 600°F.

www.hartzellfan.com

1 (800) 336-3267

®

FAN CLASS PERFORMANCE RANGE* TABLE SHADING

I 5" @ 2300 FPM To 21/2" @ 3200 FPM

II 81/2" @ 3000 FPM To 41/4" @ 4175 FPM

III 131/2" @ 3780 FPM To 63/4" @ 5260 FPM

* At standard air conditions (70˚F., 29.92 in. HG barometric pressure, .075 lbs./ft.3).

Static pressure shown in inches of water; outlet velocity shown in feet per minute.

Hartzell Series 03 Backward Curved Centrifugal Fans are designed and classified to perform within the centrifugal fan classification parameters established by AMCA Standard No. 2408; AMCA

Publication 99. Hartzell Series 03 Backward Curved Centrifugal Fans are available in Class I, II and III construction. These parameters are explained in the following table.

Hartzell Centrifugal Fan Classifications

..............................

....................................

Arrangement 9

Series 03Q – Belt drive configuration with motor mounted and fan housing. Bearings are out of airstream, (Arrangement

2), wheel is overhung, motor base permits easy adjustment of belt tension. See page 31 for motor positions. Temperature limitations: Standard fan to 200° F.

Arr. 4 Flange Mount

Series 03F – Direct drive unit for mounting on fan inlet flange, wheel is overhung and attached to the shaft of the electric motor. No bearings on fan. Temperature limitations: Standard fan to 200° F.

Arrangement 3

Series 03 – Unit furnished with shaft and bearings, for belt drive configuration. One bearing on each side and supported by fan housing. Temperature limitations: Standard fan to 150° F.

Arrangement 3

Series 13 – Double Width, Double Inlet Unit furnished with shaft and bearings, for belt drive configuration. One bearing on each side and supported by fan housing. Temperature limitations: Standard to 200° F.

Arrangement 8

Direct Coupled configuration with motor mounted to common fan base. Impeller is overhung and supported by two bearings on fan base. Temperature Limitations: 800°F.

..............................................

Arrangement 9

Series 03 – Belt drive configuration with motor mounted on outside of bearing base support. Packaged unit, wheel is overhung, slide rail motor base permits easy adjustment of belt tension. Available on either left or right hand side of base (when facing drive end of shaft). Temperature limitations: Standard fan to 300°F, heat fan to 800°F.

.................................................

.......................................

Arrangement 4

Direct drive packaged unit, wheel is overhung and attached to the shaft of the electric motor. No bearings on fan. Temperature limitations: Standard fan to 200°F.

...........

Adapted from AMCA Standard 99-2404-03,

Drive Arrangements for Centrifugal Fans

, and AMCA Standard 99-2407-03,

Motor Positions for Belt or Chain Drive Centrifugal Fans

, with written

permission from Air Movement and Control Association International, Inc.

6

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Alt. ➁

(Ft.) 0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000

Factor 1.00 1.04 1.08 1.12 1.16 1.20 1.25 1.30 1.35 1.40 1.46 1.51 1.57

Temp. ➀

(°F) -25 0 25 50 70 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800

Factor 0.82 0.87 0.91 0.96 1.00 1.06 1.15 1.25 1.34 1.43 1.53 1.62 1.72 1.81 1.91 2.00 2.09 2.19 2.29 2.38

Temperature/Altitude Applications

When a fan operates in ambient conditions, generally it is handling standard air at 70°, 29.92" barometric pressure, weighing

0.075 lbs./cu. ft. For an application where the fan operates at other than ambient conditions (temperature, altitude, or both), correction factors must be applied to the selection of the fan. In addition, the standard construction of the fan must be modified. These modifications are explained on page 7 and illustrated as options on page 34-35.

Correction factors for temperatures and altitudes are provided in Table 1. When a fan operates at other than ambient conditions, the correction factors in Table 1 will be required to correct static pressure and horsepower.

Table 2 shows the maximum safe operating speeds for each size fan wheel, at each class of construction. In addition, this table also shows the maximum safe operating temperature for each fan arrangement.

At high temperatures, these maximum safe operating speeds should be derated. Deration varies according to material of construction. Table 3 provides maximum safe speed correction factors by temperature and material construction.

An example on the use of these tables appears at the bottom of this page.

Table 1 Altitude/Temperature Correction Factors

Above table has inverted values. Actual density is the reciprocal of the above values. ① At sea level. ➁ At 70°F. For corrections involving both temperature and altitude, correction factors should be multiplied. Example: 150°F at 7000 ft. Temperature factor 1.15 x altitude factor 1.30 = 1.50 combined correction factor.

Use of Altitude – Temperature Correction Table

First select size, RPM and BHP of the blower needed. If temperature or altitude is involved, correct to standard air.

Example: Assume the required performance to be 24,000 CFM at 6.7" SP, 150°F and 7000 feet altitude.

1.Temperature factor 1.15 x altitude factor 1.30 = 1.50 combine correction factor.

2.6.7" SP x 1.50 = 10" SP for 70°F at sea level.

3. A Series 03, Class III, 36" belt drive backward curved centrifugal, selected from the rating tables (page 22) for the new condition shows 24,000 CFM at 10" SP, 1,476 RPM and 48.6 BHP.

4.Correct the horsepower and static pressure in item 3 to nonstandard performance by dividing by factor: 10" SP divided by 1.50 = 6.7" SP; 48.6 BHP divided by 1.50 = 32.4 BHP.

5.Check the maximum safe speed. Maximum speed at 70°F for fan size 36", Class III is 1740 RPM. Using the maximum safe speed factor table and interpolating at 150°F for aluminum construction yields a safe speed factor of .985. The maximum safe speed is 1740 x .985 = 1714 RPM; thus operation at 1,476 RPM at 150°F is satisfactory.

6.Final performance of the unit at the assumed conditions: 24,000 CFM at 6.7" SP, 1,476 RPM, 32.4 BHP at 150°F and 7000 feet altitude.

7.Size motor for cold startups and use a special high altitude motor if altitude exceeds 3300 feet.

Table 2 Maximum Safe Speeds @ 70°F

Table 3 Maximum Safe Speed Correction Factors*

Maximum Speed (RPM)

Size Class I Class II Class III

12 3430 4365 5610 15 2730 3480 4470 18 2270 2890 3715 22 1855 2365 3040 24 1705 2170 2790 27 1520 1935 2490 30 1400 1780 2290 33 1275 1620 2085 36 1165 1485 1910 40 1045 1330 1710 44 945 1200 1545 49 855 1090 1405 54 775 985 1265 60 700 890 1145

NOTE: Maximum safe speeds are usually different than AMCA defined limits (see page 3). Tabular performance table shadings reflect AMCA limits. Hartzell Fanselect (Computer Fan Selection Software) reflects maximum RPM’s shown in Table 2.

Temperature °F.

Material Spark

Code Resistance Material of Construction

0°F. 70°F. 200°F. 300°F. 400°F. 500°F. 600°F. 700°F. 800°F.

ST None Steel Wheel & Housing 1.000 1.000 1.000 0.966 0.930 0.890 0.860 0.820 0.77

AA AMCA “A”

Aluminum Wheel,

Aluminum Housing

0.966 0.948 0.837 0.733 – – – – –

AB AMCA “B”

Aluminum Wheel,

Steel Housing

0.966 0.948 0.837 0.733 – – – – –

AC AMCA “C”

Steel Wheel & Housing

Aluminum Buffer

1.000 1.000 1.000 0.966 0.930 0.890 0.860 0.820 0.77

CT None Corten Wheel, Steel Housing 1.000 1.000 1.000 1.000 1.000 1.000 1.000 1.000 0.96

S4 None 304SS Wheel & Housing 1.000 1.000 1.000 0.938 0.896 0.852 0.830 0.806 0.792

S6 None 316SS Wheel & Housing 1.000 1.000 1.000 0.987 0.950 0.913 0.894 0.876 0.861

4L None 304LSS Wheel & Housing 1.000 1.000 1.000 0.938 0.896 0.852 0.830 0.806 0.792

6L None 316LSS Wheel & Housing 1.000 1.000 1.000 0.987 0.950 0.913 0.894 0.876 0.861

*NOTES: To correct maximum operating speeds (Table 2) for high temperatures,

multiply those speeds by correction factor from Table 3. See also: Arrangement & Accessory Maximum Temperatures and High Temperature modifications shown on page 7.

7

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Material Specifications/Weight

Housing (Thickness) Shaft & *Maximum BC Wheel BA Wheel

.

Installation Weights

Bearings Motor Frame

Flanges

(Lbs.)

Size & Type Arr. #4 Arr. #9

(Lb.- (Lb.-

(Less Motor)

Class Size

Side

①①

Arr. #1 &

& #10

Ft.

2

) (Lbs.) Ft.2) (Lbs.)

Scroll Side Angle Inlet Outlet #9 & #10 TEFC TEFC WR2Wgt. WR2Wgt. Arr.#1 Arr.#4

Arr.#9& #10

12 12GA 12GA –– 2 x 1/4 11/2 x 7GA 1 P3U-216 184T 182T 2.8 16.0 183 159 193 15 12GA 12GA –– 2 x 1/4 11/2 x 7GA 13/16 P3U-219 256T 184T 6.0 23.9 256 263 269 18 12GA 12GA –– 2 x 1/4 11/2 x 7GA 13/16 P3U-219 286T 184T 12.0 37.7 12.5 39.2 377 390 390

22 12GA 10GA –– 2 x 1/4 11/2 x 7GA 17/16 P3U-223 286T 213T 28.0 61.4 29.1 63.9 562 566 580 24 12GA 10GA –– 2 x 1/4 11/2 x 7GA 17/16 P3U-223 286T 215T 50.0 89.2 52.0 92.8 699 667 717 27 12GA 10GA –– 2 x 1/4 11/2 x 7GA 111/16 P3U-227 286T 254T 81.0 112 84.2 116.5 838 794 856

I

30 12GA 10GA –– 2 x 1/4 11/2 x 7GA 115/16 P3U-231 326T 254T 112 138 116.5 143.5 1053 1007 1077 33 12GA 10GA –– 21/2 x 1/4 11/2 x 7GA 115/16 P3U-231 365T 254T 173 196 179.9 203.8 1286 1242 1310 36 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 23/16 P3U-235 –– 256T 277 250 288.1 260.0 1787 –– 1811

40 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 23/16 P3U-235 –– 284T 438 312 455.5 324.5 2152 –– 2179 44 10GA 10GA 3 x 3 x5/16 21/2 x 3/8 2 x 7GA 27/16 P3U-239 –– 286T 651 377 677.0 392.1 2654 –– 2681 49 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 27/16 PB-22439 –– 324T 1233 583 1282.3 606.3 3160 –– 3187

54 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 21/2 x 1/4 27/16 PB-22439 –– 364T 1290 720 1340 760 3550 –– 3580 60 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 21/2 x 1/4 211/16 PB-22443 –– 364T 2300 920 2390 990 3940 –– 3970

12 12GA 12GA –– 2 x 1/4 11/2 x 7GA 13/16 P3U-219 184T 184T 2.8 16.0 189 159 202 15 12GA 12GA –– 2 x 1/4 11/2 x 7GA 17/16 P3U-223 256T 215T 6.0 23.9 262 261 275 18 12GA 12GA –– 2 x 1/4 11/2 x 7GA 111/16 P3U-227 286T 254T 12.0 37.7 12.5 39.2 377 387 390

22 12GA 10GA –– 2 x 1/4 11/2 x 7GA 111/16 P3U-227 286T 256T 28.0 61.4 29.1 63.9 572 566 595 24 12GA 10GA –– 2 x 1/4 11/2 x 7GA 115/16 P3U-231 286T 284T 50.0 89.2 52.0 92.8 719 669 742 27 12GA 10GA –– 2 x 1/4 11/2 x 7GA 23/16 P3U-235 286T 286T 81.0 112 84.2 116.5 858 765 881

II

30 12GA 10GA –– 2 x 1/4 11/2 x 7GA 115/16 PB-22431 326T 286T 122 148 126.9 153.9 1071 1019 1095 33 12GA 10GA –– 21/2 x 1/4 11/2 x 7GA 23/16 PB-22435 365T 324T 189 208 196.6 216.3 1294 1241 1318 36 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 23/16 PB-22435 –– 326T 299 268 311.0 278.7 1854 –– 1880

40 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 27/16 PB-22439 –– 364T 472 335 490.9 348.4 2219 –– 2246 44 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 27/16 PB-22439 –– 365T 700 405 728.0 421.2 2727 –– 2754 49 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 215/16 PB-22447 –– 365T 1310 616 1362.4 640.6 3281 –– 3308

54 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 2 1/2 x 1/4 215/16 PB-22447 –– *405T* 1410 800 1470 850 3770 –– 3800 60 10GA 10GA 3 x 3 x 5/16 21/2 x 3/8 2 1/2 x 1/4 33/16 PB-22451 –– *405T* 2500 1050 2610 1110 3940 –– 3970

12 10GA 10GA –– 2 x 1/4 11/2 x 7GA 111/16 P3U-227 184T 184T 3.0 17.2 200 160 213 15 10GA 10GA –– 2 x 1/4 11/2 x 7GA 111/16 P3U-227 256T 215T 6.0 26.3 286 277 301 18 10GA 10GA –– 2 x 1/4 11/2 x 7GA 115/16 P3U-231 286T 256T 12.0 40.1 12.5 41.7 420 408 435

22 10GA 10GA –– 2 x 1/4 11/2 x 7GA 115/16 PB-22431 286T 256T 30.0 67.4 31.2 70.1 613 591 636 24 10GA 10GA –– 2 x 1/4 11/2 x 7GA 115/16 PB-22431 286T 286T 53.0 95.2 55.1 99.0 744 694 769 27 10GA 10GA –– 2 x 1/4 11/2 x 7GA 23/16 PB-22435 286T 286T 87.0 120 90.5 124.8 904 799 929

III

30 10GA 10GA –– 2 x 1/4 11/2 x 7GA 211/16 PB-22443 326T 286T 122 148 126.9 153.9 1134 1015 1160 33 17GA 17GA –– 21/2 x 1/4 11/2 x 7GA 215/16 PB-22447 365T 326T 189 208 196.6 216.3 1471 1409 1497 36 17GA 17 GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 215/16 PB-22447 –– 326T 299 268 311.0 278.7 2017 –– 2043

40 17GA 17GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 215/16 PB-22447 –– 364T 472 335 490.9 348.4 2421 –– 2453 44 17GA 17GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 215/16 PB-22447 –– 365T 700 405 728.0 421.2 2869 –– 2901 49 17GA 17GA 3 x 3 x 5/16 21/2 x 3/8 2 x 7GA 215/16 PB-22447 –– 365T 1310 616 1362.4 640.6 3636 –– 3668

54 17GA 17GA 3 x 3 x 5/16 21/2 x 3/8 21/2 x 1/4 33/16 PB-22451 –– *405T* 1410 800 1470 850 4100 –– 4140 60 17GA 17GA 3 x 3 x 5/16 21/2 x 3/8 21/2 x 1/4 37/16 PB-22455 –– *405T* 2500 1050 2610 1110 4800 –– 4840

① Inlet and outlet flanges are optional, with or without holes. *Arrangement #10 maximum frame size is 365T. Motor frames exceeding these values must be Arrangement 9M,

Arrangement 1, or Arrangement 8. For other Arrangement maximum motor frame size and dimensions please contact factory. Dimensions and specifications are subject to change. Certified prints are available.

Material Specifications – Gauge – All Sizes

Maximum Design

Temperature High Temperature Modifications Required

70 - 300° F Standard Construction, none required.

301 - 600° F Heat Slinger (must be supplied with heat slinger

guard or shaft guard), high temperature shaft seal, high temperature paint, special bearing lubricant, fiberglass gasket material, motor heat shield on arrangement 9 or 10.

601 - 800° F In addition to above, bearing heat shield.

801 - 1000° F Contact Factory

**Use in conjunction with Arrangement & Accessory Maximum Temperatures table.

Arrangement & Accessory Maximum Temperatures*

Maximum

Description Temperature

Arrangement 1, 8, & 9 800° F

Arrangement 3 150° F

Arrangement 4 200° F

Arrangement 10 600° F

Aluminum Spark Resistant Construction 350° F

Weather Cover Arrangement 9 500° F

Weather Cover Arrangement 10, Arrangement 9M 250° F

*Use in conjunction with High Temperature Modifications table.

NOTE: High temperature applications require air density correction and fan accessory items. See pages 6 and 34-35.

High Temperature Modifications**

Max Fan CFM @ S.P. Ship Weight

Size Model Max Motor RPM Less Motor

BHP Frame Range

1

⁄2" 1" 2" 3" 4" and Acc.

10 03U0-10-BU100BN---- 11/2 145T 1375-3500 520-1755 515-1690 520-1495 520-1300 585-1105 137 12 03U0-12-BU100BN---- 2 145T 1100-2835 700-2440 700-2440 780-2175 960-1910 1045-1475 147 13 03U0-13-BU100BN---- 2 145T 985-2570 850-3050 850-3000 950-2650 1050-2350 1250-1800 153 15 03U0-15-BU100BN---- 3 182T 900-2265 1095-3700 1095-3700 1235-3560 1510-3014 1780-2465 194 16 03U0-16-BU100BN---- 3 182T 810-2100 1250-4600 1260-4400 1400-4100 1750-3500 2050-2850 218 18 03U0-18-BU100BN---- 5 184T 800-1885 1590-5950 1590-5950 1785-5550 2180-4960 2580-3970 256 20 03U0-20-BU100BN---- 5 184T 650-1740 1850-6950 1850-6950 2100-6250 2550-5550 3000-4400 287 22 03U0-22-BU100BN---- 71/2 184T 700-1535 2375-8900 2375-8900 2670-8300 3265-7120 3855-5930 319 24 03U0-24-BU100BN---- 71/2 213T 600-1410 2810-10550 2810-10550 3160-10200 3870-9140 4570-7380 351 27 03U0-27-BU100BN---- 10 215T 500-1260 3540-13270 3540-13270 3890-12830 4870-11500 5750-9290 497 30 03U0-30-BU100BN---- 10 215T 415-1150 4200-15600 4200-15600 4700-15150 5750-13550 6800-10950 555

Sound and Air Performance Data is available in Hartzell ESP (Electronic Support Package). Please visit www.hartzellfan.com to request a copy. Performance certified is for Installation Type D: Ducted Inlet/Ducted Outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtences (accessories). Shaded units are available from stock. To complete model code, add class of construction, motor enclosure code, motor horsepower code and motor speed code. Refer to page 2 for more information.

Bulletin A-147-P

8

www.hartzellfan.com

1 (800) 336-3267

®

Application Range – Series 03U

Principal Dimensions (Inches)

Clockwise Rotation Shown. Counterclockwise Opposite.

HOUSING

C

L

OUTSIDE

O.D.

OUTSIDE

/2

REF.

PLAN VIEW

HOUSING

L

C

L

C

-REQ'D.

-DIA.,

Fan Discharges

FAN SIZE A B C D R S U X BB CC FF

10 181/16 113/8 121/4 101/16 111/16 113/8 211/4 273/16*35

1

/8 85/16 101/4

12 181/16 131/4 141/4 1111/16 1213/16 131/4 211/4 289/16*36

1

/2 911/16 1015/16

13 181/16 149/16 153/4 127/8 141/8 145/8 211/4 291/2*37

7

/16 1011/16 117/16

15 23 1619/32 169/16 1411/16 161/16 165/8 221/4 311/16*38

15

/16 121/8 123/16

16 23 1713/16 173/4 153/4 171/4 177/8 221/4 3115/16*3913/16 1215/16 129/16 18 23 20 187/8 1711/16 193/8 201/16 221/4 331/2 413/8 141/2 133/8 20 29 215/8 207/16 191/8 207/8 2111/16 221/4 343/4 425/8 153/4 14 22 29 243/8 22 219/16 235/8 241/2 221/4 363/4 445/8 1713/16 15 24 29 269/16 239/16 237/16 2511/16 2611/16 221/4 385/16 463/16 193/8 1513/16 27 36 293/4 253/4 265/16 287/8 297/8 331/2 4315/16 511/2 2111/16 1615/16 30 36 325/16 271/2 289/16 315/16 323/8 331/2 451/2 533/8 239/16 177/8

Dimensions and specifications are subject to change. Certified prints are available.

*PLAN VIEW NOTES

An inlet support and the dimensions indicated by an asterisk (*) are not standard for sizes 10-16 except when vibration isolators are specified. All dimensions listed for 18 thru 30 are standard with or without vibration isolators.

Series 03U Backward Curved Utility Set

The Hartzell Series 03U Backward Curved Utility Set with single thickness airfoil blades has been designed for clean air applications. The wheel’s inlet rim is a tapered spun orifice. The inlet rim is overlapped by the fan’s spun inlet cone with closely held tolerances to provide maximum performance and efficiency. The Series 03U Utility Set, like all Hartzell products, is test run and balanced prior to shipment. In addition, the wheels are individually precision balanced prior to assembly.

Features

•

Sizes – 10", 12", 13", 15", 16", 18", 20", 22", 24", 27" and 30" wheel diameters. SWSI only.

•

Arrangement 10 packaged unit only.

•

Temperature Limitations – suitable for temperatures up to 200°F.

•

Performance – 530 CFM to 15,600 CFM; static pressures to 4" W.G.

•

Rotation and Discharge – Clockwise or counterclockwise rotation in all eight discharge positions. Drawings and dimensions on page 4. Rotatable housing.

•

Wheels – Type “BU” non-overloading backward curved, aluminum with single thickness airfoil blades.

•

Drive Assembly – Belts are oil, heat and static resistant type. Shafts are turned, ground and polished, keyed at both ends.

•

Easy installation and maintenance – Motor, drive and bearings are readily accessible for ease in wiring, installation, adjustment and lubrication.

•

AMCA Type “B” spark resistant construction – Units are built to meet AMCA Type “B” construction as standard. AMCA Type “A” construction is available as an option.

•

Fan inlets and outlets – Straight inlet and outlet connections are provided for easy “slip-fit” connection to ducting. Optional drilled or undrilled outlet flanges are available.

•

Neoprene shaft seal standard on all sizes.

•

Options and Accessories – See page 34-35.

Hartzell Fan, Inc. certifies that the Backward Curved Utility Set, Series 03U with type BU wheels shown here in a licensed to bear the AMCA seal for air and sound performance. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Sound and Air Performance Data is available in Hartzell ESP (Electronic Support Package). Please visit www.hartzellfan.com to request a copy.

S

t

o

c

k

M

o

d

e

l

s

A

v

a

i

l

a

b

l

e

i

n

H

a

r

t

z

e

l

’

s

H

R

S

P

r

o

g

r

a

m

ABS Certificate

of Design Assessment

Received

Refer to sales drawings for

additional dimensions.

D

B

A

TOP

HORIZONTAL

C

B

A

G

C

D

E

A

TOP ANGULAR

*

A

DOWN 45∞

F

G

E

H

B

D

A

DOWN

*

BLAST

H

B

A

CLOCKWISE

J

E

G

A

*

DOWN 45∞

J

E

G

D

A

COUNTERCLOCKWISE

F

C

D

H

K

H

K

A

BOTTOM

HORIZONTAL

D

A

J

BOTTOM ANGULARBOTTOM ANGULAR

UP 45∞

C

G

J

AA

G

A

F

B

H

C

A

UP

BLAST UP 45∞

B

H

C

F

A

TOP ANGULAR

A

E

J

E

F

Series 03 Backward Curved Centrifugal Fan Type BA and Type BC

The Hartzell Series 03 Backward Curved Centrifugal Fans are designed to provide maximum performance and efficiency. These versatile and dependable units are suited for handling clean air and industrial fumes. These blowers are available in direct drive and belt drive configurations.

The Hartzell Type BC and BA (airfoil) wheels have non-overloading horsepower characteristics. Efficient airflow is provided over a broad range of pressures (maximum total efficiencies exceeding 80%). Designed for quiet operation, the Hartzell backward curved centrifugal fans provide lower sound levels in the highest efficiency ranges. Accurate and reliable air performance and sound power rating, in eight octave bands, in accordance with industry standards, tests, and procedures is available. Air delivery ranges from 700 CFM to 104,000 CFM; static pressure capabilities to 14” and higher.

Features

•

Sizes, Classes, and Arrangements – available in single width, single inlet wheel diameter sizes 12" - 60", in C lass I, II, or III, Belt Drive Arrangements #1, #9, #9M, and #10, Direct Drive Arr. #4 and Direct Coupled Arr. #8. Contact Factory for others.

•

Rotation and Discharge Positions – Available in both clockwise and counterclockwise rotations and in standard discharge positions. Housing discharge position can be changed on fan sizes 12" through 33". Size 36" through 60" are fixed position and are non-rotatable.

•

Standard Construction – The Hartzell Series 03 Backward Curved Centrifugal Fans, (SWSI), incorporate Heavy Industrial Duty Construction - Designed for Heavyweight Service with ruggedness, use, long life, reliability, and performance taken together. Housings are continuously welded rolled steel and bearing base/motor pedestal bases are built of heavy gauge hot rolled steel and structural steel. See material specification tables for construction details.

•

Fan Inlets and Outlets – Straight inlet and outlet connections are provided for easy “slip-fit” connection to ducting. Optional continuously welded flanges are available.

•

Wheels – Type BC wheels have single thickness airfoil blades, and Type BA wheels have double thickness hollow airfoil blades. The heavy-duty steel construction is reinforced depending on size and class of construction. The wheel’s inlet rim is a tapered spun orifice. The inlet rim is overlapped by the fan’s spun inlet cone with closely held tolerances to ensure maximum performance and efficiency.

•

Balancing – Fans are electronically statically and dynamically balanced to the requirements of Fan Application Category BV-3 of AMCA/ANSI Std. 204-96 and whenever possible receive an Operational Test and Inspection prior to shipment.

•

Bearings – Fan Bearings are heavy-duty, self-aligning, shielded and mechanically sealed, ball or roller type, in cast iron or malleable pillow block housings. Bearings are selected for minimum L-50 Life of 250,000 hours at maximum catalog speed, horsepower, and static pressure. Lubrication fittings are extended as standard for easy relubrication.

•

Shafts and Drives – Shafts are turned, ground, polished, keyed at both ends, and sized to operate well below critical speed. V-Belt Drives are oversized for long life and continuous duty and are fixed pitch as standard option. Variable pitch drives are available upon request. Belts are oil, heat, and static resistant type.

•

Standard Finish – Standard fans and accessories are pretreated and painted with blue industrial duty air dry enamel. Alternate coatings are available for high temperature and corrosive environments.

•

Motor Out of the Airstream – Exterior motor mounting for easy electrical connection, adjustment of belts, and lubrication is standard. An adjustable motor slide base in belt drive models is standard. Motors can be furnished as TEFC, ODP, Mill and Chemical Duty, or to specifications upon request. Motor HP and frame size limits are identified in Dimensions and Material Specifications table.

•

High Temperature Fans and Systems – Standard construction operates to 300°F (except Arrangement 4). Construction is available for operation up to 800°F in most arrangements. (See Pages 6-7).

•

Spark Resistant Construction – AMCA Type A, B, and C is available, Membrane Type shaft seal is standard with AMCA Spark Resistant Construction. Explosion Proof Motors are also available.

•

Special Materials of Construction – Alternate materials of construction; stainless steel, aluminum, fiberglass housing, and other materials are available upon request.

•

Your Special Features and Options – Hartzell Fan has a wide range of designs, configurations, performances, sizes, materials, finishes, and motors in-stock and from production to fit your ventilation requirements. Accessories including guards, companion flanges, dampers, louvers, inlet bells, sub-bases, vibration isolators, lifting lugs, leak resistant construction, and sound mufflers are available.

9

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Hartzell Fan, Inc. certifies that the Backward Curved Centrifugal Fan, Series 03 with type BC wheels shown herein is licensed to bear the AMCA seal for air and sound performance. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Sound performance data is available upon request. Please contact the factory and ask for Engineering Publication #SD-147.

Hartzell Fan, Inc. certifies that the Backward Curved Centrifugal Fans, Series 03, shown herein, is authorized to bear CE Marking in accordance with Machinery Safety Directive 98/37/EC of the European Union. Reference Technical File E.S. 13.2.1.

Type BC –

SWSI Backward Curved Wheel

Type BA –

SWSI Backward Curved

Airfoil Wheel

ABS Certificate

of Design Assessment

Received

SERIES 03 Sizes 12 BC Through 33 BC, Rotatable Housing

Standard Construction – Classes I, II and III, Maximum Temperature – 800°F. Clockwise Shown. Counterclockwise Opposite.

Fan Discharges

Dimensions – Arrangements 1, 9, or 10

Principal Dimensions (Inches) – Sizes 12" – 33"

J

F

E

H

B

C

J

C

B

A

K

A

E

G

A

D

C

A

B

C

D

A

H

B

H

C

A

J

F

A

E

G

F

A

E

G

F

A

B

H

D

A

B

H

D

A

J

K

A

E

G

C

D

A

H

G

F

J

A

G

F

J

A

CLOCKWISE

TOP TOP ANGULAR DOWN BOTTOM BOTTOM BOTTOM UP TOP

HORIZONTAL DOWN BLAST ANGULAR DOWN HORIZONTAL ANGULAR UP BLAST ANGULAR UP

COUNTERCLOCKWISE

FAN

ABCDEFGHJKLMN

SIZE

12 181/2 135/16 141/4 113/4 129/16 191/2 11 101/4 91/2 1 *183/4 71/4 1 15 211/2 1611/16 169/16 143/4 153/4 231/2 1313/16 1213/16 117/8 2 *203/4 81/2 1 18 241/4 20 187/8 1711/16 187/8 271/2 169/16 153/8 141/4 31/4 273/4 113/16

15

/16 22 30 247/16 22 215/8 231/16 327/8 203/16 1813/16 173/8 27/8 281/8 111/4 1 24 3315/16 265/8 239/16 231/2 251/16 351/2 22 207/16 1815/16 19/16 30 12 1 27 325/8 2913/16 253/4 263/8 281/8 395/16 245/8 2215/16 213/16 611/16 331/8 133/16 1 30 37 323/8 271/2 289/16 301/2 425/16 2611/16 2413/16 2215/16 55/16 433/4 1613/16 21/8 33 40 359/16 30 317/16 331/2 463/8 293/8 275/16 251/4 63/8 471/4 181/16 21/8

FAN

P R S T U V W X Y Z AA BB CC DD EE FF

SIZE

12 81/8 1215/16 133/8 161/4 181/411/16 x11/16 4 *285/16 123/4 – *135/16 365/16 93/4 113/16 *1 11/4 15 91/8 163/16 163/4 181/4 201/411/16 x11/16 4 *3311/16 153/4 – *1511/16 4111/16 125/32 129/16 *1 11/4 18 1211/16 191/2 201/16 253/8 271/411/16 x11/16 8403/4 183/4 93/8 193/4 491/4 1419/32 135/8 11

1

/4

22 1211/16 233/4 241/2 253/8 273/811/16 x11/16 8433/4 201/4 101/8 211/4 521/4 177/8 151/4 11

1

/4 24 1211/16 2513/16 2611/16 253/8 273/811/16 x11/16 8475/8 221/2 111/4 227/8 565/8 197/16 16 1 11/4 27 11 2815/16 301/16 22 2411/16 x11/16 84915/16 221/2 111/4 253/16 6115/16 213/4 173/16 111/4 30 167/8 313/8 327/16 333/4 3813/16 x 11/4 9565/16 223/4 113/8 301/16 641/8 239/16 183/32 11/2 2 33 167/8 341/2 3511/16 333/4 3813/16 x 11/4 96113/16 253/4 127/8 329/16 7015/16 261/32 195/16 11/2 2

*PLAN VIEW NOTES: An inlet support and the dimensions indicated by an asterisk (*) are not standard for sizes 12-15 except when vibration isolators are specified. All dimensions listed for 18 thru 33 are standard with or without vibration isolators.

Dimensions and specifications are subject to change. Certified prints are available.

NOTE: For bottom angular down, top angular down, and/or down blast, contact factory when discharge flanges are required.

10

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

C 4

MAX.

BB

REF.

ARRANGEMENT #1 IS LESS MOTOR AND DRIVES

S

OUTSIDE

ARRANGEMENT #10 MOTOR POSITION

FF

N

REF.

U

T

ARRANGEMENT #9 MOTOR POSITION

X

Y

ZZ

PLAN VIEW

P

C

L

V

-SLOT

W

-REQ'D.

M

AA

C

L

HOUSING

EE

P

REF.

L

T

C 4

CC

OUTSIDE

C

L

HOUSING

DD

R

O.D. SLEEVE

A

FAN

BCDE FGHJ KLM

SIZE

TAD/TH TAU/UB BAU/ BH/DB

36 42 42 42 383/4 38 345/16 369/16 545/16 321/32 2913/16 279/16 125/16 503/4 191/8 40 47 47 47 433/8 413/4 385/16 407/8 603/16 3513/16 335/16 3013/16 133/16 551/4 2013/16 44 511/4 511/4 511/4 4715/16 441/32 423/8 451/8 651/16 395/8 3613/16 34 1313/16 595/8 227/16 49 56 56 56 523/4 481/32 465/8 4911/16 711/4 439/16 401/2 377/16 151/4 641/2 243/16 54 473/4 541/4 61 6015/16 531/16 5111/16 551/16 787/8 485/16 4415/16 411/2 --- 691/2 27 60 521/2 60 671/2 671/8 58 5/8 571/8 607/8 871/4 533/8 495/8 457/8 --- 751/2 291/4

SERIES 03Sizes 36 Through 60

Standard Construction – Classes I, II and III, Maximum Temperature – 800°F. Clockwise Shown. Counterclockwise Opposite.

Dimensions – Arrangements 1, 9, or 10

Principal Dimensions (Inches) – Sizes 36" – 60"

11

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

FAN

N P R S T U V W X Y Z AA BB CC DD EE* FF

SIZE

36 21/8 167/8 375/8 3815/16 333/4 3813/16 X 11/4 964253/4 127/8 343/4 735/16 281/4 201/4 --- 11/2 40 2 22 421/8 431/2 44 4813/16 X 11/4 9695/16 273/4 137/8 381/16 785/8 319/16 2115/16 --- 11/2 44 2 22 465/8 481/16 44 4813/16 X 11/4 9725/8 273/4 137/8 413/8 827/16 341/8 235/8 --- 11/2 49 2 22 513/16 527/8 44 4813/16 X 11/4 9761/8 273/4 137/8 447/8 8615/16 383/8 253/8 --- 11/2 54 2 27 563/4 585/8 54 58

13

/16 9855/16 32 16 4915/16 971/16 429/16 273/8 913/4 13/8

60 2 27 623/4 6413/16 54 58

13

/16 9893/4 32 16 543/8 1011/2 47 295/8 1013/8 13/8

NOTE: *For top angular up discharge only 54" and 60", dimension is for location of removable split scroll to allow for shipping. Assembly required in field. Dimensions and specifications are subject to change. Certified prints are available.

Fan Discharges

J

F

E

H

B

C

J

C

B

A

K

A

E

G

A

D

C

A

B

C

D

A

H

B

H

C

A

J

F

A

E

G

F

A

E

G

F

A

B

H

D

A

B

H

D

A

J

K

A

E

G

C

D

A

H

G

F

J

A

G

F

J

A

CLOCKWISE

TOP TOP ANGULAR DOWN BOTTOM BOTTOM BOTTOM UP TOP

HORIZONTAL DOWN BLAST ANGULAR DOWN HORIZONTAL ANGULAR UP BLAST ANGULAR UP

COUNTERCLOCKWISE

NOTE: For bottom angular down, top angular down, and/or down blast, contact factory when discharge flanges are required.

MC 8 MC 8MC 8

X

EE

ARRANGEMENT #10 MOTOR POSITION

S

OUTSIDE

ARRANGEMENT #9 MOTOR POSITION

REF.

Y

PLAN VIEW

P

U

T

V

-SLOT

W

-REQ'D.

AA

M

ZZN

C

L

HOUSING

P

FF

REF.

L

T

BB

MAX.

CC

OUTSIDE

DD

R

O.D.

SLEEVE

12

Bulletin A-147-P

Series 03P Backward Curved Centrifugal Fan, Packaged

www.hartzellfan.com

1 (800) 336-3267

®

Type BC Wheel

Type BA Wheel also available

Series 03P – Backward Curved Centrifugal Fans, Packaged, is built for reliable service in standard applications and is designed to provide maximum performance and efficiency in a compact, packaged, Class II design. These versatile and dependable units are suited for handling clean air and industrial fumes, and incorporate Industrial Duty Construction.

Developed to perform throughout the entire Class II Performance Range, the Series 03P utilize the Hartzell Type BC And BA (airfoil) wheels and have non-overloading horsepower characteristics. Efficient airflow is provided over a broad range of pressures (maximum total efficiencies exceeding 80%). Designed for quiet operation, the Series 03P provides lower sound levels in the highest efficiency ranges.

Sizes and Performance – wheel diameter sizes 12" – 36", (SWSI), Class II, Arrangement 10. Air delivery ranges from 700 CFM to 35,000 CFM; static pressure

capabilities to 10" W.G.

Features

•

Construction – Housings are continuously welded rolled steel and bearing base/motor pedestal bases are built of heavy gauge hot rolled steel. Base is sized to accept maximum motor frame size required for Class II operation. See material specification tables construction details.

•

Rotation and Discharge Positions – Available in both clockwise and counterclockwise rotations and in all standard discharge positions. Housing discharge position can be changed on all sizes.

•

Stock – Most sizes of the Series 03P are available from stock.

•

Standard Shaft Seal – A shaft seal is placed where the shaft leaves the housing to minimize leakage. Seal is not gas tight.

•

Bearings – Bearings are heavy duty, self-aligning, ball or roller type, in cast iron pillow block housings, selected for long life at maximum class II construction limits, and include extended lubrication fittings as standard.

•

Shafts and Drives – Shafts are turned, ground, polished, keyed at both ends, and sized to operate well below critical speed.V-Belt Drives are oversized for long life and continuous duty and are fixed pitch as standard option. Variable pitch drives for sizes 24" through 36" are available upon request. Belts are oil, heat, and static resistant type. Weather cover is standard.

•

Balancing – Fans are electronically statically and dynamically balanced to the requirements of Fan Application Category BV-3 of AMCA ANSI Std. 204-96 and whenever possible receive an Operational Test and Inspection prior to shipment.

•

Fan Inlets and Outlets – Straight inlet and outlet connections are provided for easy “slip-fit” connection to ducting. Optional continuously welded flanges are available. Flange bolt holes are optional.

•

Motor Out of the Airstream – Exterior motor mounting for easy electrical connection, adjustment of belts, and lubrication of Drip Proof Protected motor on an adjustable motor pivot base is standard. Motors can be furnished as TEFC, Mill and Chemical Duty, or to specifications upon request. Motor HP and frame size limits are identified in Dimensions and Material Specifications table.

•

Easy Installation and Maintenance – Motor, drives and bearings are readily accessible for ease in wiring, installation, adjustment, and lubrication.

•

Standard Finish – Standard fans and accessories are pretreated and painted with blue industrial duty air dry enamel. Alternate coatings are available for high temperature and corrosive environments.

•

High Temperature Fans and Systems – Standard construction operates to 250°F. Construction is available for operation up to 600°F with high temperature options. (See Pages 6-7).

•

Spark Resistant Construction – AMCA Type A, B, and C is available, Membrane Type shaft seal is standard with AMCA Spark Resistant Construction. Explosion Proof Motors are also available.

•

Options and Accessories – Accessories including companion flanges, dampers, louvers, inlet bells, sub-bases, vibration isolators, lifting lugs, leak resistant construction, and sound mufflers are available. See pages 34 and 35.

Hartzell Fan, Inc. certifies that the Backward Curved Centrifugal Fan, Packaged, Series 03P, with type BC wheels shown herein is licensed to bear the AMCA seal for air and sound performance. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Sound performance data is available upon request. Please contact the factory and ask for Engineering Publication #SD-147.

Series 03P

Shown with optional equipment

ABS Certificate

of Design Assessment

Received

Principal Dimensions (Inches) – Sizes 12" – 33"

CLOCKWISE

TOP TOP ANGULAR DOWN BOTTOM BOTTOM UP TOP BOTTOM

HORIZONTAL DOWN BLAST HORIZONTAL ANGULAR UP BLAST ANGULAR UP ANGULAR DOWN

COUNTERCLOCKWISE

Fan Discharges

Dimensions – Arrangement 10

NOTE: For bottom angular down, top angular down, and/or down blast, contact factory when discharge flanges are required.

HOUSING FLANGES* SHAFTS AND BEARINGS BC WHEEL BA WHEEL

MAX

FAN DRIVE WHEEL (LB.-FT._) (LBS.) (LB.-FT._) (LBS.) FRAME INST

SIZE SCROLL SIDE INLET OUTLET SIZE SIDE SIDE WR_ WGT. WR_ WGT. SIZE WGT

12 12GA 12GA 2 x

1

/4 11/2 x 7GA 17/16 P3-U223 P3-U223 2.8 16 --- --- 215T 249

15 12GA 12GA 2 x

1

/4 11/2 x 7GA 17/16 P3-U223 P3-U223 6 23.9 --- --- 215T 295

18 12GA 12GA 2 x

1

/4 11/2 x 7GA 111/16 P3-U227 P3-U227 12 37.7 12.5 39.2 254T 403

22 12GA 10GA 2 x

1

/4 11/2 x 7GA 111/16 P3-U227 P3-U227 28 61.4 29.1 63.9 256T 546

24 12GA 10GA 2 x

1

/4 11/2 x 7GA 111/16 P3-U227 P3-U227 50 89.2 52 92.8 256T 631

27 12GA 10GA 2 x

1

/4 11/2 x 7GA 115/16 P3-U231 P3-U231 81 112 84.2 116.5 286T 845

30 12GA 10GA 2 x

1

/4 11/2 x 7GA 23/16 P-B22435 P3-U235 122 148 126.9 153.9 324T 1002

33 12GA 10GA 2

1

/2 x 1/4 11/2 x 7GA 23/16 P3-U235 P3-U235 189 208 196.6 216.3 324T 1173

36 10GA 10GA 2

1

/2 x 1/4 2 x 7GA 23/16 P3-U235 P3-U235 299 268 311 278.7 326T 1464

*Inlet and outlet flanges are optional, with or without holes. Dimensions and specifications are subject to change. Certified prints are available.

Series 03P – Material Specifications

13

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

SERIES 03P Sizes 12 Through 36

Standard Construction – Class II, Standard Maximum Temperature – 250°F. Maximum Temperature – 600°F. Clockwise Shown. Counterclockwise Opposite.

FAN Max Mtr

A B C D H R S BB CC DD

SIZE Frame

12 17 135/16 141/4 113/4 101/4 1215/16 137/16 403/4 93/4 111/8 215T 15 17 1611/16 169/16 143/4 1213/16 163/16 163/4 431/4 121/4 123/8 215T 18 20 20 187/8 1711/16 153/8 197/16 201/8 501/4 145/8 139/16 254T 22 243/4 247/16 22 215/8 1813/16 233/4 249/16 537/16 1713/16 155/32 256T 24 27 265/8 239/16 231/2 207/16 2513/16 2611/16 55 193/8 16 256T 27 281/2 2913/16 253/4 263/8 2215/16 2815/16 2915/16 6113/16 213/4 173/16 286T 30 301/2 325/8 271/2 289/16 2413/16 313/8 321/2 671/16 239/16 181/8 324T 33 37 359/16 30 317/16 275/16 347/16 3511/16 697/16 2515/16 195/16 324T 36 37 383/4 38 345/16 2913/16 3711/16 3815/16 713/4 281/4 207/16 326T

1. Clockwise rotation shown, counter clockwise rotation is opposite as shown.

2. Scrolls are rotatable. BH and BAU rotations require a 3" tall height adjusting sub-base. B.A.D. requires special consideration. Contact factory.

Refer to sales drawings for

additional dimensions.

DD

BB

REF.

CC

OUTSIDE

R

O.D.

REF.

S

OUTSIDE

HEIGHT ADJUSTING SUB-BASE (SEE NOTE #2)

N

REF.

U

X

YAA

ZZ M

P

PLAN VIEW

C

L

-SLOTS

V

W

-REQ'D.

C

L

HOUSING

1"2"

MAX.

P

L

TT

D

C

B

D

C

B

A

G

F

E

AA

G

F

E

A

H

D

A

C

H

D

C

A

B

C

D

H

A

C

D

H

A

F

G

J

B

H

C

A

F

G

J

A

B

H

C

A

J

F

AA

J

F

A

E

J

E

G

A

K

J

E

G

A

K

Rating Table – Series 03 – Direct Drive Centrifugal, A03-4-_ _ _BC100ST_ _ _ _

FRAME SIZE

WT.#

FAN

ABCDWXAABBCC LESS

SIZE

MIN. MAX.

MOTOR

12 16 131/4 141/4 113/4 303/16 107/8 133/8 93/4 1215/16 56 184T 160 15 183/4 165/8 169/16 143/4 395/8 121/16 1613/16 123/16 163/16 143T 256T 277 18 22 20 187/8 1711/16 449/16 135/16 201/8 149/16 191/2 143T 286T 408 22 263/4 247/16 22 219/16 477/8 1415/16 249/16 177/8 233/4 213T 286T 591 24 281/2 269/16 239/16 231/2 497/16 1511/16 263/4 197/16 2513/16 213T 286T 694 27 321/4 2913/16 253/4 263/8 513/4 167/8 2915/16 213/4 2815/16 213T 286T 799 30 343/4 323/8 271/2 285/8 561/4 1713/16 321/2 235/8 313/8 254T 326T 1019 33 38 355/8 30 311/2 607/8 19 3513/16 2515/16 341/2 254T 365T 1409

NOTE: Dimensions and specifications are subject to change. Certified prints are available. Inlet support leg is optional on sizes 12 and 15. Weight is approximate.

Series 03, Direct Drive Centrifugal, Arrg. 4

Series 03

Arrangement 4 Construction

Principal Dimensions (Inches) – Sizes 12" – 33"

14

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Applications – Compact direct drive applications handling clean air and

industrial fumes requiring performance from 750 CFM to 24,000 CFM and pressures to 10"SP at temperatures not exceeding 200°F, designed for foot mounting in horizontal position. Available in sizes 12" to 33", in clockwise or counterclockwise rotations, and in all standard discharge positions. Housing discharge position can be changed on all sizes.

Housings – Are continuously welded heavy gauge, hot rolled steel with Internal cone designed to ensure maximum efficiency with minimal turbulence and finished

with blue industrial duty enamel. Wheels – Centrifugal wheels are Type BC or Type BA (airfoil) and have non-

overloading horsepower characteristics. Efficient airflow is provided over a broad range. Fans are electronically statically and dynamically balanced to BV-3 and receive an Operational Test and Inspection prior to shipment. Type BC performance is shown below.

Motor Out of the Airstream – Exterior motor mounting for easy electrical connection and lubrication of motor is standard. Motors can be furnished as Drip Proof Protected, TEFC, Mill and Chemical Duty, or to specifications upon request. Motors supplied with re-lubricable bearings include extended lubrication tubes when required for access as standard. Fractional HP and small motors are supplied with permanently lubricated bearings for maintenance free installation.

Fan Inlets and Outlets – Straight inlet and outlet connections are standard. Optional continuously welded flanges are available. Flange bolt holes are optional.

Special Features and Options – Accessories including guards, companion flanges, dampers, louvers, inlet bells, sub-bases, vibration isolators, lifting lugs, special coatings, Spark Resistant Construction, leak resistant construction, and sound mufflers are available. See pages 34 and 35.

Hartzell Fan, Inc. certifies that the Backward Curved Centrifugal Fan, Series 03 with type BC wheels shown herein is licensed to bear the AMCA seal for air and sound performance. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Sound performance data is available upon request. Please contact the factory and ask for Engineering Publication #SD-147.

Fan (Motor)

Peak Fan

Cubic Feet Per Minute vs. Static Pressure

Size Model

HP RPM

BHP

0''

1

/2'' 1'' 11/2'' 2'' 21/2'' 3'' 4'' 5'' 6'' 7'' 8'' 9'' 10''

12

03-4-121BC100ST_ _ F3

1

/2 1750 0.39 1700 1482 1285 970

03-4-121BC100ST_ _ K2 3 3450 2.95 3351 3217 3102 3003 2912 2819 2719 2508 2239 1851

15

03-4-151BC100ST_ _ I3 1

1

/2 1750 1.22 3620 3366 3084 2759 2391 1875

03-4-152BC100ST_ _ N2 10 3450 9.35 7136 7012 6885 6755 6621 6484 6342 6045 5725 5376 4987 4634 4154 3535

03-4-181BC100ST_ _ G4

3

/4 1160 0.83 4070 3681 3216 2513

18 03-4-181BC100ST_ _ K3 3 1750 2.86 6139 5891 5629 5337 5035 4682 4224 2829

03-4-183BC100ST_ _ P2 20 3450 21.9 10780 10468 10162 9854 9508 9108

22

03-4-221BC100ST_ _ J4 2 1160 2.28 7444 6980 6455 5876 5072 3863

03-4-221BC100ST_ _ M3 71/2 1750 7.83 11230 10929 10617 10294 9946 9568 9203 8285 7095 5131

24

03-4-241BC100ST_ _ L4 5 1160 3.83 10023 9499 8923 8358 7633 6669 5430

03-4-242BC100ST_ _ O3 15 1750 13.1 15121 14768 14425 14072 13673 13299 12933 12095 10959 9641 7809

03-4-271BC100ST_ _ K5 3 870 2.87 10613 9818 8961 7852 6311

27 03-4-271BC100ST_ _ M4 71/2 1160 6.80 14150 13560 12940 12302 11643 10809 9745 6796

03-4-272BC100ST_ _ Q3 25 1750 23.3 21348 20952 20562 20179 19769 19319 18894 18066 17112 15890 14447 12869 10534

03-4-301BC100ST_ _ L5 5 870 4.33 13592 12741 11808 10795 9329 7389

30 03-4-301BC100ST_ _ N4 10 1160 10.3 18123 17479 16835 16113 15440 14682 13733 11328 7209

03-4-302BC100ST_ _ S3 40 1750 35.3 27341 26910 26484 26069 25648 25182 24692 23793 22866 21795 20465 18913 17270 15175

03-4-331BC100ST_ _ M5 71/2 870 6.87 18169 17258 16256 15192 13964 12332 10607

33 03-4-331BC100ST_ _ O4 15 1160 16.3 24225 23554 22851 22105 21323 20528 19692 17619 15008 10630

03-4-333BC100ST_ _ U3 60 1750 55.9 34257 33765 32746 31698 30634 29507 28217 26745 25020

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

ABS Certificate

of Design Assessment

Received

DC

B

A

ARRANGEMENT #4 MOTOR POSITION

W

X

BB

3-1/8

OUTSIDE

(ADD WHEN MTR. COVER

AA

OUTSIDE

LIFTING TAGS STANDARD

FORK LIFT SLOTS ON 24 & UP

IS SPECIFIED)

OPTIONAL DRAIN

CC

OUTSIDE

15

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Performance Data

Size 12 A03-_-12_BC100_ _ _ _ _ _ or A03PO-122BC100_ _ _ _ _ _

Wheel Diameter – 12.25 in. Outlet Area – 0.87 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Size 15 A03-_-15_BC100_ _ _ _ _ _ or A03PO-152BC100_ _ _ _ _ _

Wheel Diameter – 15.375 in. Outlet Area – 1.371 sq. ft.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1000 729 818 0.12 1065 0.23

1500 1094 978 0.21 1178 0.37 1367 0.52 1525 0.69 1669 0.86 1806 1.06

2000 1459 1165 0.35 1343 0.55 1492 0.75 1636 0.96 1779 1.17 1904 1.39 2021 1.61 2131 1.84

2500 1823 1370 0.55 1520 0.79 1661 1.04 1787 1.30 1899 1.55 2016 1.81 2132 2.07 2244 2.34

3000 2188 1587 0.83 1716 1.10 1838 1.39 1957 1.70 2068 2.01 2168 2.32 2260 2.62 2356 2.92

3500 2553 1810 1.21 1923 1.52 2032 1.84 2136 2.18 2237 2.53 2337 2.90 2431 3.27 2515 3.62

4000 2918 2038 1.70 2138 2.05 2235 2.41 2329 2.78 2421 3.17 2510 3.57 2599 3.98 2685 4.40

4500 3282 2268 2.31 2358 2.70 2446 3.10 2532 3.51 2615 3.94 2697 4.37 2777 4.81 2856 5.26

5000 3647 2501 3.07 2583 3.50 2663 3.94 2741 4.39 2818 4.85 2893 5.32 2967 5.80 3040 6.28

5500 4012 2735 4.00 2810 4.46 2883 4.94 2955 5.43 3026 5.92 3096 6.43 3165 6.94 3232 7.47

6000 4376 2971 5.09 3040 5.60 3107 6.11 3174 6.64 3240 7.17 3305 7.72 3369 8.27 3432 8.83

6500 4741 3207 6.38 3271 6.93 3334 7.48 3396 8.05 3457 8.62 3518 9.20 3578 9.79 3637 10.4

7000 5106 3445 7.88 3504 8.46 3562 9.06 3620 9.66 3678 10.3 3734 10.9 3791 11.5 3846 12.1

7500 5470 3682 9.59 3738 10.2 3793 10.9 3847 11.5 3901 12.1 3954 12.8 4007 13.5 4060 14.1

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2400 1751 2417 2.76 2600 3.31 2775 3.91

2800 2042 2510 3.28 2687 3.88 2851 4.50 3008 5.14 3307 6.55

3200 2334 2595 3.85 2776 4.53 2943 5.21 3095 5.90 3377 7.34 3643 8.90 3897 10.6

3600 2626 2706 4.49 2866 5.23 3029 5.99 3186 6.76 3465 8.31 3719 9.91 3959 11.6 4191 13.4

4000 2918 2842 5.23 2983 6.02 3125 6.84 3272 7.67 3557 9.38 3809 11.1 4041 12.9 4262 14.7

4400 3209 2978 6.01 3120 6.91 3249 7.79 3375 8.67 3641 10.5 3900 12.4 4132 14.3 4348 16.2

4800 3501 3113 6.84 3255 7.85 3386 8.84 3506 9.80 3740 11.7 3985 13.7 4222 15.8 4440 17.8

5200 3793 3254 7.77 3390 8.84 3521 9.93 3644 11.0 3864 13.1 4082 15.2 4307 17.4

5600 4085 3403 8.81 3530 9.92 3656 11.1 3778 12.3 4000 14.6 4200 16.8 4404 19.1

6000 4376 3556 9.97 3677 11.1 3795 12.3 3913 13.6 4137 16.1 4335 18.5

6400 4668 3713 11.3 3828 12.5 3941 13.7 4052 15.0 4271 17.7 4474 20.4

6800 4960 3874 12.7 3984 14.0 4092 15.3 4198 16.6 4406 19.4

7200 5252 4038 14.2 4143 15.6 4246 17.0 4348 18.4

7600 5543 4205 15.9 4305 17.3 4404 18.8 4502 20.2

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

600 690 1033 0.08 1338 0.15

900 1034 1231 0.13 1490 0.23 1712 0.33 1912 0.45 2097 0.57 2270 0.69

1200 1379 1488 0.23 1682 0.32 1875 0.45 2067 0.60 2230 0.74 2386 0.89 2534 1.05 2676 1.20

1500 1724 1767 0.39 1931 0.49 2084 0.62 2233 0.76 2395 0.94 2549 1.13 2684 1.31 2811 1.49

1800 2069 2056 0.62 2197 0.74 2333 0.87 2461 1.02 2585 1.18 2711 1.36 2847 1.58 2981 1.81

2100 2414 2349 0.93 2479 1.08 2597 1.22 2713 1.37 2824 1.54 2931 1.72 3036 1.91 3144 2.12

2400 2759 2642 1.32 2767 1.52 2873 1.67 2976 1.83 3078 2.00 3177 2.19 3271 2.39 3364 2.60

2700 3103 2938 1.80 3058 2.06 3158 2.24 3250 2.41 3342 2.59 3433 2.79 3522 2.99 3608 3.21

3000 3448 3235 2.39 3351 2.70 3447 2.94 3534 3.13 3617 3.32 3699 3.52 3782 3.74 3862 3.96

3300 3793 3533 3.10 3644 3.46 3739 3.76 3822 3.99 3900 4.20 3975 4.41 4050 4.63 4125 4.86

3600 4138 3833 3.94 3939 4.36 4032 4.71 4112 4.99 4187 5.24 4258 5.47 4326 5.70 4395 5.93

3900 4483 4134 4.92 4235 5.39 4324 5.80 4405 6.15 4476 6.43 4544 6.69 4610 6.94 4673 7.19

4200 4828 4436 6.05 4532 6.58 4618 7.04 4697 7.45 4768 7.79 4834 8.09 4897 8.37 4957 8.64

4500 5172 4738 7.35 4831 7.93 4914 8.45 4990 8.91 5061 9.32 5125 9.67 5186 9.98 5244 10.3

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1500 1724 3057 1.86 3289 2.25 3508 2.64 3716 3.05

1750 2011 3184 2.18 3399 2.60 3606 3.04 3805 3.49 4178 4.42 4526 5.38

2000 2299 3326 2.51 3535 2.99 3727 3.47 3915 3.97 4271 4.98 4605 6.03 4921 7.11

2250 2586 3456 2.82 3673 3.39 3870 3.94 4048 4.48 4384 5.58 4704 6.71 5007 7.88 5297 9.08

2500 2874 3622 3.24 3806 3.77 4002 4.38 4192 5.02 4517 6.22 4819 7.44 5111 8.69 5391 9.97

2750 3161 3814 3.79 3976 4.29 4141 4.85 4319 5.51 4660 6.90 4954 8.21 5230 9.54 5499 10.9

3000 3448 4019 4.43 4168 4.94 4317 5.49 4466 6.08 4790 7.51 5098 9.03 5368 10.5 5622 11.9

3250 3736 4229 5.18 4372 5.70 4510 6.26 4647 6.85 4927 8.17 5229 9.77 5512 11.4

3500 4023 4445 6.05 4582 6.58 4714 7.15 4842 7.75 5096 9.03 5362 10.5 5642 12.3

3750 4310 4666 7.04 4796 7.59 4923 8.16 5046 8.77 5285 10.1 5522 11.5

4000 4598 4891 8.16 5015 8.73 5137 9.31 5255 9.93 5483 11.2

4250 4885 5122 9.44 5238 10.0 5355 10.6 5469 11.2

4500 5172 5357 10.9 5466 11.4 5577 12.0

4750 5460 5594 12.4

16

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 18.5 in. Outlet Area – 1.984 sq. ft.

Performance Data

Size 18 A03-_-18_BC100_ _ _ _ _ _ or A03PO-182BC100_ _ _ _ _ _

Size 18 A03-_-18_BA100_ _ _ _ _ _ or A03PO-182BA100_ _ _ _ _ _

Wheel Diameter – 18.5 in. Outlet Area – 1.984 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1400 706 663 0.15 874 0.31

2100 1058 784 0.26 954 0.46 1110 0.66 1247 0.90 1371 1.17 1486 1.46

2800 1411 942 0.44 1076 0.66 1205 0.93 1326 1.20 1443 1.48 1551 1.78 1652 2.10 1747 2.45

3500 1764 1114 0.71 1223 0.97 1331 1.26 1438 1.59 1536 1.93 1633 2.27 1729 2.60 1821 2.95

4200 2117 1295 1.06 1391 1.40 1479 1.72 1568 2.06 1659 2.44 1746 2.84 1827 3.25 1908 3.66

4900 2470 1481 1.57 1563 1.95 1644 2.33 1719 2.69 1795 3.08 1873 3.51 1951 3.96 2025 4.43

5600 2823 1671 2.24 1742 2.62 1814 3.09 1885 3.52 1950 3.93 2016 4.36 2083 4.82 2152 5.32

6300 3175 1862 3.10 1927 3.47 1990 3.98 2054 4.50 2117 4.98 2175 5.44 2233 5.91 2292 6.41

7000 3528 2055 4.16 2114 4.55 2171 5.05 2228 5.65 2286 6.20 2343 6.74 2395 7.25 2447 7.76

7700 3881 2249 5.45 2303 5.87 2355 6.33 2407 6.95 2459 7.61 2512 8.23 2564 8.82 2612 9.39

8400 4234 2445 6.98 2494 7.44 2542 7.92 2590 8.50 2637 9.20 2685 9.92 2733 10.6 2781 11.2

9100 4587 2640 8.79 2686 9.29 2731 9.79 2775 10.3 2819 11.0 2863 11.8 2907 12.6 2952 13.3

9800 4940 2836 10.9 2879 11.4 2921 12.0 2962 12.5 3003 13.2 3044 13.9 3085 14.8 3125 15.6

10500 5292 3034 13.3 3073 13.9 3112 14.5 3151 15.0 3190 15.7 3228 16.4 3266 17.2 3304 18.1

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3500 1764 1990 3.72 2147 4.56 2294 5.46 2433 6.41

4000 2016 2045 4.22 2198 5.07 2340 5.99 2475 6.97 2726 9.07

4500 2268 2106 4.85 2254 5.72 2394 6.64 2525 7.64 2770 9.78 2996 12.1 3208 14.6

5000 2520 2181 5.52 2317 6.49 2451 7.45 2581 8.43 2819 10.6 3041 13.0 3248 15.5 3444 18.2

5500 2772 2268 6.22 2393 7.29 2516 8.36 2639 9.42 2875 11.6 3091 14.0 3294 16.6 3486 19.3

6000 3024 2357 6.99 2480 8.14 2594 9.30 2707 10.5 2932 12.8 3147 15.2 3345 17.8 3533 20.6

6500 3276 2451 7.86 2569 9.05 2682 10.3 2788 11.6 2997 14.1 3203 16.6 3401 19.2 3585 22.0

7000 3528 2553 8.86 2662 10.1 2772 11.4 2876 12.7 3072 15.4 3266 18.1 3457 20.8 3642 23.6

7500 3780 2662 10.0 2761 11.2 2863 12.5 2966 13.9 3157 16.8 3338 19.7 3520 22.6 3698 25.5

8000 4032 2776 11.3 2868 12.5 2962 13.9 3058 15.3 3247 18.3 3421 21.4 3590 24.5

8500 4284 2895 12.8 2980 14.0 3067 15.4 3155 16.8 3337 19.8 3509 23.1 3671 26.4

9000 4536 3015 14.4 3097 15.7 3178 17.0 3260 18.5 3429 21.5 3600 24.9

9500 4788 3136 16.1 3216 17.5 3293 18.9 3370 20.3 3527 23.4 3690 26.8

10000 5040 3257 17.9 3337 19.5 3411 20.9 3484 22.4 3632 25.5

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

1400 706 690 0.16 915 0.33

2100 1058 807 0.27 995 0.48 1154 0.69 1303 0.96 1439 1.25

2800 1411 961 0.44 1109 0.70 1256 1.00 1381 1.25 1500 1.53 1615 1.86 1725 2.22 1830 2.61

3500 1764 1128 0.69 1255 0.99 1371 1.33 1491 1.70 1603 2.06 1702 2.37 1797 2.69 1892 3.07

4200 2117 1307 1.04 1415 1.40 1518 1.76 1615 2.16 1713 2.60 1813 3.05 1906 3.48 1991 3.85

4900 2470 1491 1.50 1583 1.92 1676 2.33 1764 2.76 1848 3.22 1930 3.71 2016 4.23 2101 4.76

5600 2823 1678 2.10 1761 2.56 1841 3.05 1922 3.52 1999 4.01 2073 4.53 2145 5.06 2217 5.62

6300 3175 1868 2.86 1943 3.36 2014 3.91 2086 4.45 2158 4.98 2227 5.53 2293 6.10 2358 6.69

7000 3528 2059 3.81 2128 4.34 2193 4.93 2257 5.55 2322 6.14 2387 6.73 2449 7.33 2510 7.95

7700 3881 2251 4.95 2315 5.52 2376 6.15 2434 6.81 2492 7.50 2551 8.15 2610 8.79 2668 9.44

8400 4234 2444 6.32 2503 6.92 2560 7.58 2615 8.29 2668 9.02 2721 9.77 2775 10.5 2829 11.2

9100 4587 2638 7.93 2693 8.57 2746 9.26 2798 10.00 2848 10.8 2897 11.6 2946 12.4 2996 13.2

9800 4940 2833 9.80 2884 10.5 2934 11.2 2983 12.0 3030 12.8 3076 13.6 3122 14.5 3167 15.4

10500 5292 3028 12.0 3076 12.7 3123 13.4 3169 14.2 3214 15.1 3258 16.0 3301 16.9 3343 17.81

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3500 1764 2075 3.92 2246 4.85 2407 5.83

4000 2016 2125 4.38 2288 5.31 2443 6.34 2591 7.42 2862 9.62

4500 2268 2195 5.07 2342 5.91 2489 6.92 2631 8.02 2898 10.4 3145 12.9

5000 2520 2275 5.90 2415 6.80 2548 7.69 2682 8.76 2939 11.2 3180 13.8 3407 16.6

5500 2772 2352 6.68 2496 7.80 2624 8.79 2747 9.77 2988 12.1 3221 14.7 3443 17.6 3653 20.6

6000 3024 2433 7.44 2573 8.74 2705 9.98 2825 11.1 3049 13.2 3270 15.8 3485 18.7 3690 21.8

6500 3276 2525 8.29 2653 9.64 2782 11.0 2906 12.4 3125 14.8 3330 17.1 3535 20.0 3733 23.1

7000 3528 2628 9.26 2743 10.6 2862 12.1 2982 13.6 3206 16.4 3404 18.9 3594 21.5

7500 3780 2735 10.3 2843 11.8 2951 13.2 3062 14.8 3284 18.1 3484 20.9 3668 23.6

8000 4032 2845 11.5 2949 13.0 3050 14.5 3151 16.1 3361 19.6 3566 23.0 3747 25.9

8500 4284 2958 12.9 3058 14.4 3155 16.0 3250 17.6 3443 21.1 3641 24.8

9000 4536 3073 14.4 3169 15.9 3263 17.5 3354 19.2 3534 22.7 3720 26.6

9500 4788 3189 16.0 3283 17.6 3374 19.3 3462 21.0 3633 24.6

10000 5040 3307 17.7 3398 19.4 3486 21.1 3572 22.9 3737 26.6

Bulletin A-147-P

17

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 22.625 in. Outlet Area – 2.967 sq. ft.

Performance Data

Size 22 A03-_-22_BC100_ _ _ _ _ _ or A03PO-222BC100_ _ _ _ _ _

Size 22 A03-_-22_BA100_ _ _ _ _ _ or A03PO-222BA100_ _ _ _ _ _

Wheel Diameter – 22.625 in. Outlet Area – 2.967 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2000 674 536 0.21 710 0.44

3000 1011 626 0.36 769 0.65 899 0.95 1012 1.30 1115 1.70

4000 1348 746 0.60 861 0.93 968 1.32 1071 1.70 1168 2.11 1257 2.56 1341 3.04 1420 3.55

5000 1685 879 0.96 971 1.33 1064 1.76 1153 2.24 1236 2.73 1319 3.21 1399 3.69 1474 4.22

6000 2022 1018 1.43 1100 1.91 1175 2.36 1252 2.86 1329 3.43 1400 4.01 1469 4.59 1539 5.17

7000 2359 1163 2.08 1233 2.64 1301 3.18 1365 3.70 1431 4.27 1498 4.91 1563 5.57 1624 6.25

8000 2696 1310 2.96 1371 3.53 1433 4.19 1492 4.79 1547 5.38 1604 6.02 1663 6.71 1722 7.45

9000 3033 1459 4.08 1514 4.64 1568 5.40 1624 6.11 1675 6.77 1724 7.44 1775 8.14 1826 8.88

10000 3370 1610 5.47 1659 6.03 1708 6.80 1757 7.64 1807 8.42 1853 9.17 1898 9.90 1943 10.7

11000 3707 1761 7.15 1806 7.75 1851 8.48 1895 9.40 1940 10.3 1985 11.2 2028 12.0 2069 12.8

12000 4044 1913 9.16 1955 9.81 1996 10.5 2037 11.4 2077 12.4 2119 13.4 2160 14.4 2200 15.3

13000 4382 2066 11.5 2105 12.2 2143 13.0 2181 13.8 2218 14.9 2255 16.0 2294 17.0 2332 18.1

14000 4719 2219 14.3 2255 15.0 2291 15.8 2326 16.6 2361 17.6 2396 18.8 2430 20.0 2466 21.1

15000 5056 2372 17.4 2406 18.3 2439 19.1 2473 19.9 2506 20.8 2538 22.0 2570 23.3 2603 24.6

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4800 1618 1603 5.20 1734 6.44 1857 7.76

5600 1887 1649 5.91 1775 7.17 1893 8.53 2005 9.97

6400 2157 1699 6.83 1823 8.09 1937 9.48 2046 11.0 2248 14.1 2436 17.6

7200 2427 1759 7.88 1874 9.27 1986 10.7 2093 12.1 2290 15.4 2472 18.9 2643 22.7 2805 26.7

8000 2696 1832 8.98 1936 10.5 2040 12.1 2143 13.6 2337 16.9 2514 20.5 2681 24.3 2839 28.4

8800 2966 1911 10.2 2011 11.9 2105 13.6 2200 15.3 2386 18.7 2562 22.3 2725 26.2 2879 30.3

9600 3236 1991 11.5 2089 13.3 2181 15.1 2268 17.0 2441 20.7 2611 24.4 2773 28.3 2924 32.5

10400 3505 2079 13.1 2169 14.9 2259 16.8 2345 18.8 2506 22.9 2666 26.9 2823 30.9 2973 35.1

11200 3775 2174 14.9 2256 16.7 2340 18.7 2423 20.8 2580 25.1 2728 29.5 2877 33.8 3023 38.1

12000 4044 2274 17.0 2349 18.9 2426 20.8 2504 22.9 2659 27.4 2801 32.1 2939 36.7

12800 4314 2378 19.4 2448 21.3 2518 23.2 2590 25.3 2737 29.9 2878 34.8 3010 39.8

13600 4584 2484 22.0 2550 24.0 2616 26.0 2682 28.1 2819 32.7 2957 37.7

14400 4853 2589 24.7 2655 26.9 2717 29.0 2779 31.2 2906 35.8 3036 40.9

15200 5123 2696 27.8 2761 30.1 2821 32.3 2880 34.6 2998 39.2

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2000 674 557 0.22 745 0.47

3000 1011 645 0.38 802 0.67 936 1.00 1060 1.39 1170 1.80

4000 1348 762 0.60 888 0.99 1010 1.40 1114 1.76 1215 2.20 1312 2.70 1403 3.23 1489 3.79

5000 1685 891 0.94 998 1.38 1098 1.87 1200 2.41 1290 2.88 1372 3.32 1454 3.83 1534 4.41

6000 2022 1029 1.40 1121 1.91 1208 2.44 1290 3.03 1376 3.67 1459 4.31 1533 4.86 1603 5.40

7000 2359 1172 2.00 1251 2.61 1329 3.20 1403 3.83 1474 4.50 1546 5.22 1619 5.97 1691 6.72

8000 2696 1317 2.79 1387 3.47 1456 4.15 1524 4.83 1589 5.55 1652 6.30 1713 7.09 1777 7.93

9000 3033 1465 3.79 1528 4.52 1589 5.31 1651 6.07 1711 6.83 1769 7.63 1825 8.46 1880 9.33

10000 3370 1613 5.02 1672 5.80 1727 6.66 1782 7.54 1838 8.37 1892 9.22 1945 10.1 1996 11.0

11000 3707 1763 6.52 1817 7.35 1869 8.26 1918 9.22 1968 10.2 2019 11.1 2069 12.0 2117 13.0

12000 4044 1913 8.31 1964 9.18 2012 10.1 2058 11.2 2104 12.2 2149 13.3 2196 14.3 2242 15.3

13000 4382 2065 10.4 2111 11.3 2157 12.3 2200 13.4 2243 14.5 2284 15.7 2327 16.8 2370 17.9

14000 4719 2216 12.9 2260 13.8 2303 14.9 2344 16.0 2384 17.2 2423 18.4 2462 19.7 2501 20.9

15000 5056 2369 15.7 2410 16.7 2450 17.8 2489 19.0 2527 20.2 2564 21.5 2600 22.8 2636 24.1

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4800 1618 1677 5.53 1820 6.88

5600 1887 1715 6.17 1852 7.58 1982 9.08 2104 10.7

6400 2157 1767 7.06 1894 8.42 2017 9.94 2136 11.6 2358 15.1

7200 2427 1835 8.35 1951 9.63 2064 11.0 2176 12.7 2390 16.3 2590 20.2 2774 24.2

8000 2696 1905 9.65 2020 11.2 2126 12.6 2228 14.1 2430 17.6 2623 21.6 2806 25.9 2979 30.4

8800 2966 1973 10.9 2089 12.8 2197 14.5 2295 16.1 2480 19.3 2664 23.2 2841 27.5 3010 32.2

9600 3236 2052 12.2 2158 14.2 2265 16.3 2366 18.2 2545 21.7 2714 25.2 2883 29.5 3046 34.2

10400 3505 2141 13.7 2235 15.8 2334 18.0 2433 20.2 2615 24.4 2778 28.1 2934 31.9

11200 3775 2234 15.4 2323 17.5 2411 19.8 2502 22.1 2684 27.0 2847 31.2 2998 35.2

12000 4044 2330 17.4 2415 19.6 2498 21.8 2580 24.2 2751 29.3 2918 34.5 3067 38.9

12800 4314 2429 19.5 2511 21.8 2590 24.1 2667 26.6 2824 31.8 2985 37.3

13600 4584 2530 21.9 2609 24.3 2685 26.7 2759 29.2 2904 34.5 3054 40.2

14400 4853 2632 24.6 2709 27.0 2782 29.5 2853 32.1 2992 37.5

15200 5123 2736 27.4 2810 30.0 2881 32.6 2950 35.2

18

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 24.625 in. Outlet Area – 3.516 sq. ft.

Performance Data

Size 24 A03-_-24_BC100_ _ _ _ _ _ or A03PO-242BC100_ _ _ _ _ _

Size 24 A03-_-24_BA100_ _ _ _ _ _ or A03PO-242BA100_ _ _ _ _ _

Wheel Diameter – 24.625 in. Outlet Area – 3.516 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2400 683 482 0.26 639 0.49

3600 1024 563 0.44 693 0.79 809 1.09 912 1.45 1004 1.86

4800 1365 667 0.71 775 1.14 874 1.60 965 2.05 1052 2.43 1132 2.88 1207 3.37 1279 3.90

6000 1706 788 1.13 871 1.59 958 2.16 1040 2.71 1115 3.32 1188 3.88 1259 4.36 1327 4.85

7200 2048 913 1.71 984 2.25 1054 2.82 1127 3.50 1197 4.18 1263 4.85 1326 5.59 1386 6.31

8400 2389 1040 2.46 1106 3.13 1164 3.75 1224 4.42 1286 5.19 1349 6.02 1408 6.79 1465 7.57

9600 2730 1171 3.47 1230 4.23 1283 4.94 1335 5.66 1387 6.42 1441 7.26 1496 8.19 1550 9.13

10800 3072 1304 4.74 1356 5.54 1407 6.41 1453 7.20 1498 8.01 1545 8.86 1592 9.76 1641 10.8

12000 3413 1438 6.31 1484 7.15 1532 8.13 1576 9.06 1617 9.93 1658 10.8 1699 11.8 1742 12.7

13200 3754 1573 8.20 1615 9.12 1657 10.1 1701 11.2 1740 12.2 1777 13.2 1814 14.1 1851 15.2

14400 4096 1708 10.5 1747 11.5 1785 12.5 1826 13.7 1865 14.8 1900 15.9 1934 16.9 1968 18.0

15600 4437 1844 13.1 1881 14.2 1916 15.3 1952 16.5 1989 17.8 2024 19.0 2057 20.2 2088 21.3

16800 4778 1980 16.2 2015 17.4 2048 18.5 2080 19.7 2114 21.1 2149 22.5 2181 23.8 2211 25.1

18000 5119 2117 19.7 2150 21.0 2180 22.2 2210 23.5 2241 24.8 2274 26.3 2306 27.8 2336 29.3

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6300 1792 1466 6.30 1581 7.58 1690 8.98 1792 10.5

7200 2048 1506 7.49 1619 8.69 1724 10.1 1823 11.6 2009 14.9

8100 2304 1553 8.89 1660 10.3 1763 11.5 1860 13.0 2040 16.3 2207 19.9 2364 23.8

9000 2560 1611 10.0 1709 11.9 1806 13.5 1900 14.9 2077 18.0 2240 21.6 2393 25.6 2537 29.8

9900 2816 1673 11.4 1767 13.3 1857 15.3 1945 17.2 2117 20.3 2277 23.8 2426 27.7 2568 32.0

10800 3072 1738 12.9 1830 14.9 1916 16.9 1999 19.1 2160 23.2 2317 26.5 2464 30.3 2603 34.5

11700 3328 1805 14.4 1895 16.6 1979 18.8 2059 21.0 2211 25.8 2360 30.0 2505 33.6 2641 37.6

12600 3584 1877 16.0 1961 18.4 2044 20.9 2122 23.2 2270 28.1 2409 33.2 2547 37.6 2682 41.5

13500 3840 1955 18.0 2032 20.4 2110 23.0 2187 25.6 2331 30.6 2466 36.0 2595 41.4 2724 46.1

14400 4096 2036 20.2 2107 22.6 2180 25.2 2253 28.0 2395 33.5 2527 38.8 2652 44.7 2773 50.5

15300 4352 2122 22.7 2187 25.1 2254 27.7 2323 30.5 2460 36.5 2589 42.1 2712 47.9

16200 4608 2210 25.5 2271 28.0 2333 30.6 2396 33.3 2527 39.5 2654 45.7 2774 51.6

17100 4863 2300 28.5 2357 31.1 2415 33.7 2474 36.5 2596 42.6 2720 49.3

18000 5119 2392 31.9 2446 34.5 2500 37.2 2556 40.0 2670 46.1 2787 52.9

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

2400 683 499 0.25 679 0.53

3600 1024 575 0.41 716 0.75 846 1.14 965 1.58 1068 2.02

4800 1365 678 0.67 791 1.08 898 1.52 999 1.99 1097 2.52 1190 3.09 1277 3.68 1358 4.27

6000 1706 795 1.05 888 1.52 978 2.04 1065 2.59 1148 3.15 1229 3.73 1308 4.38 1386 5.05

7200 2048 920 1.59 997 2.12 1074 2.69 1150 3.32 1224 3.98 1295 4.63 1364 5.30 1432 6.00

8400 2389 1049 2.32 1115 2.90 1182 3.54 1248 4.22 1313 4.94 1377 5.69 1440 6.46 1501 7.22

9600 2730 1181 3.25 1239 3.91 1297 4.60 1356 5.35 1413 6.12 1470 6.93 1527 7.77 1583 8.64

10800 3072 1315 4.43 1367 5.19 1418 5.91 1470 6.72 1522 7.56 1573 8.42 1624 9.32 1675 10.3

12000 3413 1450 5.87 1497 6.73 1543 7.54 1590 8.37 1636 9.28 1683 10.2 1729 11.2 1775 12.1

13200 3754 1585 7.61 1629 8.56 1671 9.48 1713 10.4 1755 11.3 1798 12.3 1840 13.3 1882 14.4

14400 4096 1721 9.69 1762 10.7 1801 11.8 1840 12.7 1878 13.7 1917 14.7 1956 15.8 1995 16.9

15600 4437 1858 12.1 1896 13.2 1933 14.4 1968 15.5 2004 16.5 2039 17.5 2075 18.7 2111 19.8

16800 4778 1995 15.0 2031 16.1 2065 17.4 2099 18.6 2132 19.7 2165 20.8 2197 21.9 2231 23.2

18000 5119 2133 18.2 2166 19.5 2199 20.8 2230 22.1 2261 23.4 2292 24.5 2323 25.7 2353 26.9

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6300 1792 1538 6.73 1672 8.27 1795 9.83 1907 11.4

7200 2048 1565 7.50 1693 9.14 1814 10.9 1930 12.6 2136 16.2

8100 2304 1603 8.44 1722 10.1 1838 11.9 1949 13.8 2158 17.7 2346 21.7

9000 2560 1654 9.57 1763 11.3 1869 13.1 1975 15.0 2178 19.2 2367 23.6 2541 28.0 2699 32.5

9900 2816 1711 10.8 1814 12.6 1914 14.5 2011 16.4 2203 20.7 2387 25.3 2560 30.1 2724 35.0

10800 3072 1774 12.2 1871 14.1 1966 16.1 2058 18.2 2236 22.4 2412 27.1 2581 32.1 2741 37.3

11700 3328 1843 13.7 1934 15.8 2024 17.9 2111 20.0 2280 24.5 2444 29.1 2606 34.3 2763 39.6

12600 3584 1915 15.3 2002 17.5 2086 19.8 2170 22.1 2331 26.7 2487 31.5 2639 36.6 2789 42.1

13500 3840 1992 17.1 2073 19.4 2153 21.8 2233 24.2 2387 29.2 2536 34.2 2680 39.4

14400 4096 2072 19.2 2148 21.6 2224 24.0 2300 26.6 2447 31.8 2590 37.0 2728 42.4

15300 4352 2155 21.5 2227 23.9 2299 26.4 2370 29.1 2511 34.5 2648 40.1 2781 45.7

16200 4608 2240 23.9 2308 26.5 2377 29.1 2445 31.8 2579 37.5 2711 43.3

17100 4863 2327 26.6 2392 29.3 2457 32.0 2522 34.8 2650 40.6 2776 46.7

18000 5119 2416 29.6 2478 32.4 2540 35.2 2601 38.0 2724 44.0

19

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 27.625 in. Outlet Area – 4.425 sq. ft.

Performance Data

Size 27 A03-_-27_BC100_ _ _ _ _ _ or A03PO-272BC100_ _ _ _ _ _

Size 27 A03-_-27_BA100_ _ _ _ _ _ or A03PO-272BA100_ _ _ _ _ _

Wheel Diameter – 27.625 in. Outlet Area – 4.425 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3000 678 445 0.31 605 0.67

4500 1017 511 0.52 637 0.94 754 1.43 860 1.98 952 2.53

6000 1356 601 0.83 703 1.35 799 1.90 889 2.49 977 3.16 1060 3.87 1138 4.60 1210 5.35

7500 1695 705 1.30 788 1.89 869 2.54 947 3.23 1022 3.93 1094 4.67 1165 5.47 1234 6.33

9000 2034 815 1.97 885 2.63 954 3.35 1022 4.14 1088 4.96 1152 5.78 1214 6.62 1274 7.49

10500 2373 930 2.87 989 3.59 1049 4.40 1108 5.25 1166 6.16 1224 7.10 1280 8.06 1334 9.01

12000 2712 1047 4.02 1099 4.84 1151 5.71 1203 6.65 1255 7.62 1306 8.63 1357 9.69 1407 10.8

13500 3051 1165 5.47 1212 6.42 1257 7.33 1304 8.35 1350 9.40 1396 10.5 1442 11.6 1488 12.8

15000 3390 1284 7.25 1327 8.33 1368 9.33 1410 10.4 1452 11.5 1493 12.7 1535 13.9 1576 15.1

16500 3729 1404 9.40 1443 10.6 1481 11.7 1519 12.8 1557 14.0 1595 15.3 1633 16.5 1671 17.8

18000 4068 1524 12.0 1561 13.3 1596 14.6 1631 15.7 1665 16.9 1700 18.3 1735 19.6 1770 21.0

19500 4407 1645 15.0 1680 16.4 1712 17.8 1745 19.1 1776 20.4 1808 21.7 1840 23.2 1873 24.6

21000 4746 1767 18.5 1799 20.0 1830 21.5 1860 23.0 1889 24.4 1919 25.8 1948 27.2 1978 28.7

22500 5085 1889 22.5 1919 24.1 1948 25.7 1976 27.3 2004 28.9 2032 30.4 2059 31.9 2087 33.4

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

7200 1627 1360 7.88 1479 9.67

8400 1898 1380 8.85 1498 10.9 1608 12.9 1709 15.0

9600 2169 1409 9.95 1520 12.1 1626 14.3 1728 16.6 1915 21.4

10800 2441 1452 11.4 1553 13.5 1652 15.7 1749 18.2 1933 23.3 2103 28.6 2255 34.0

12000 2712 1504 13.0 1598 15.2 1689 17.5 1778 19.9 1954 25.2 2120 30.9 2276 36.8 2420 42.8

13200 2983 1562 14.7 1650 17.1 1735 19.6 1819 22.1 1982 27.4 2142 33.3 2294 39.5 2438 45.9

14400 3254 1625 16.6 1708 19.2 1789 21.9 1868 24.5 2021 30.0 2170 35.9 2316 42.3 2457 49.0

15600 3525 1692 18.8 1770 21.5 1847 24.4 1922 27.2 2067 33.0 2207 39.0 2345 45.4 2481 52.3

16800 3797 1764 21.2 1837 24.0 1909 27.0 1981 30.1 2119 36.2 2253 42.4 2383 48.9 2510 55.8

18000 4068 1839 23.9 1908 26.8 1976 29.9 2043 33.1 2176 39.7 2303 46.2 2427 53.0

19200 4339 1917 26.9 1982 29.9 2046 33.1 2110 36.4 2236 43.3 2358 50.3 2477 57.3

20400 4610 1997 30.2 2058 33.4 2119 36.7 2180 40.1 2299 47.2 2417 54.6

21600 4881 2080 33.8 2138 37.1 2195 40.5 2253 44.1 2367 51.4 2479 59.1

22800 5153 2164 37.7 2219 41.3 2274 44.8 2328 48.4 2437 56.0

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

3000 678 429 0.32 569 0.61

4500 1017 501 0.55 617 0.98 721 1.36 812 1.81 895 2.33

6000 1356 592 0.88 689 1.42 777 2.00 858 2.56 936 3.03 1008 3.60 1075 4.22 1139 4.88

7500 1695 699 1.40 773 1.98 852 2.69 925 3.38 992 4.14 1057 4.84 1121 5.43 1181 6.05

9000 2034 809 2.12 873 2.79 935 3.51 1001 4.36 1064 5.21 1123 6.05 1179 6.98 1233 7.87

10500 2373 922 3.05 980 3.88 1033 4.66 1087 5.50 1143 6.47 1199 7.50 1252 8.47 1302 9.44

12000 2712 1038 4.29 1091 5.24 1138 6.13 1184 7.03 1231 7.99 1280 9.04 1329 10.2 1378 11.4

13500 3051 1155 5.85 1202 6.86 1248 7.95 1289 8.93 1329 9.94 1371 11.0 1414 12.1 1458 13.4

15000 3390 1274 7.79 1315 8.85 1358 10.1 1397 11.2 1434 12.3 1471 13.4 1508 14.6 1546 15.8

16500 3729 1393 10.1 1431 11.3 1469 12.5 1508 13.9 1543 15.1 1576 16.3 1609 17.6 1643 18.8

18000 4068 1513 12.9 1548 14.2 1582 15.4 1618 16.9 1653 18.4 1684 19.7 1715 21.0 1745 22.4

19500 4407 1633 16.2 1666 17.5 1697 18.9 1730 20.4 1763 22.0 1795 23.6 1824 25.0 1852 26.4

21000 4746 1754 20.0 1785 21.4 1814 22.9 1843 24.4 1874 26.1 1905 27.9 1934 29.5 1961 31.1

22500 5085 1875 24.3 1904 25.9 1932 27.5 1959 29.0 1987 30.7 2016 32.6 2044 34.5 2071 36.3

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

7200 1627 1286 7.23 1391 8.84

8400 1898 1321 8.47 1423 10.1 1518 11.8 1608 13.7

9600 2169 1361 10.3 1460 11.8 1553 13.5 1640 15.4 1803 19.5 1954 24.0

10800 2441 1411 12.0 1502 14.1 1591 15.8 1677 17.5 1836 21.6 1983 26.2 2120 31.1

12000 2712 1469 13.6 1554 16.0 1635 18.4 1717 20.5 1873 24.3 2016 28.8 2150 33.7 2278 39.1

13200 2983 1529 15.5 1612 18.0 1689 20.6 1764 23.3 1912 27.9 2053 32.1 2184 37.0 2309 42.3

14400 3254 1592 17.5 1672 20.3 1748 22.9 1820 25.7 1957 31.6 2092 36.5 2222 40.9 2344 46.2

15600 3525 1658 19.7 1735 22.7 1808 25.7 1879 28.5 2011 34.7 2137 40.9 2261 46.1 2382 50.9

16800 3797 1730 22.2 1800 25.2 1871 28.5 1940 31.7 2069 37.9 2189 44.7 2306 51.4 2422 57.0

18000 4068 1807 25.1 1871 28.1 1936 31.4 2002 34.9 2128 41.7 2247 48.4 2358 55.8 2467 63.0

19200 4339 1888 28.4 1946 31.5 2006 34.7 2067 38.2 2190 45.7 2305 52.8 2415 60.1

20400 4610 1971 32.1 2025 35.2 2080 38.5 2137 41.9 2253 49.7 2366 57.5 2473 65.0

21600 4881 2056 36.2 2107 39.4 2158 42.7 2211 46.2 2319 53.9 2429 62.4

22800 5153 2143 40.7 2191 44.0 2239 47.4 2288 51.0 2389 58.6 2493 67.2

20

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 30.0 in. Outlet Area – 5.218 sq. ft.

Performance Data

Size 30 A03-_-30_BC100_ _ _ _ _ _ or A03PO-302BC100_ _ _ _ _ _

Size 30 A03-_-30_BA100_ _ _ _ _ _ or A03PO-302BA100_ _ _ _ _ _

Wheel Diameter – 30.0 in. Outlet Area – 5.218 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4000 767 422 0.42 562 0.86

6000 1150 501 0.74 608 1.28 706 1.87 800 2.55 886 3.29 963 4.03

8000 1533 603 1.24 687 1.90 768 2.62 844 3.36 917 4.15 990 5.02 1059 5.95 1125 6.91

10000 1916 715 2.02 783 2.77 850 3.60 916 4.49 979 5.40 1040 6.33 1100 7.29 1158 8.30

12000 2300 833 3.13 890 3.96 946 4.90 1002 5.88 1057 6.93 1112 8.02 1164 9.11 1216 10.2

14000 2683 954 4.62 1003 5.57 1051 6.59 1100 7.68 1148 8.82 1196 10.0 1243 11.2 1289 12.5

16000 3066 1077 6.54 1120 7.67 1162 8.74 1205 9.94 1248 11.2 1290 12.5 1332 13.8 1373 15.2

18000 3450 1202 8.96 1240 10.3 1278 11.5 1315 12.7 1353 14.1 1391 15.5 1429 16.9 1466 18.3

20000 3833 1327 12.0 1362 13.4 1396 14.8 1430 16.1 1464 17.5 1498 19.0 1532 20.6 1566 22.1

22000 4216 1452 15.6 1485 17.2 1516 18.8 1547 20.2 1578 21.7 1609 23.2 1640 24.9 1671 26.6

24000 4599 1579 19.9 1609 21.6 1638 23.4 1666 25.1 1695 26.7 1723 28.2 1751 29.9 1779 31.7

26000 4983 1705 25.0 1733 26.8 1761 28.7 1787 30.6 1813 32.4 1839 34.1 1865 35.8 1891 37.6

28000 5366 1832 30.9 1858 32.9 1884 34.9 1909 36.9 1933 38.9 1958 40.9 1982 42.7 2006 44.5

30000 5749 1959 37.7 1984 39.8 2008 42.0 2032 44.1 2055 46.3 2077 48.5 2100 50.5 2122 52.4

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

9000 1725 1258 9.70 1369 11.9 1468 14.1

10500 2012 1281 11.0 1387 13.4 1487 15.9 1582 18.5 1751 23.7

12000 2300 1316 12.5 1413 15.0 1508 17.6 1600 20.4 1771 26.3 1926 32.2

13500 2587 1362 14.4 1451 16.9 1538 19.6 1624 22.5 1790 28.7 1944 35.2 2088 42.0 2218 48.6

15000 2875 1416 16.5 1499 19.3 1580 22.1 1659 25.0 1814 31.3 1963 38.1 2105 45.3 2239 52.7

16500 3162 1476 18.8 1554 21.8 1630 24.8 1704 27.9 1848 34.3 1989 41.3 2125 48.7 2256 56.6

18000 3450 1540 21.4 1613 24.6 1685 27.9 1755 31.2 1891 37.9 2022 44.9 2151 52.4 2278 60.5

19500 3737 1609 24.3 1678 27.7 1745 31.1 1812 34.7 1940 41.8 2065 49.1 2185 56.7 2305 64.8

21000 4025 1682 27.6 1746 31.1 1809 34.7 1872 38.4 1995 46.1 2113 53.8 2228 61.7

22500 4312 1758 31.3 1818 34.9 1877 38.7 1937 42.5 2053 50.6 2166 58.8 2276 67.1

24000 4599 1836 35.4 1893 39.2 1949 43.0 2005 47.1 2115 55.4 2223 64.2

25500 4887 1916 39.9 1970 43.9 2023 47.9 2076 52.0 2180 60.7 2284 69.8

27000 5174 1998 44.9 2049 49.0 2099 53.2 2149 57.5 2249 66.4

28500 5462 2082 50.4 2130 54.7 2178 59.1 2226 63.5

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

4000 767 410 0.44 534 0.80 636 1.25

6000 1150 491 0.77 592 1.34 681 1.90 763 2.40 837 3.01 906 3.68

8000 1533 596 1.33 673 1.99 750 2.75 820 3.54 886 4.29 951 4.90 1011 5.62 1068 6.40

10000 1916 710 2.18 771 2.93 833 3.77 897 4.74 956 5.66 1011 6.66 1065 7.67 1118 8.52

12000 2300 826 3.33 881 4.27 931 5.17 982 6.16 1036 7.30 1088 8.45 1138 9.56 1185 10.7

14000 2683 946 4.92 996 6.03 1039 7.06 1082 8.12 1126 9.25 1172 10.5 1218 11.9 1262 13.2

16000 3066 1069 7.00 1111 8.19 1154 9.48 1191 10.6 1228 11.8 1267 13.1 1306 14.4 1346 15.9

18000 3450 1192 9.64 1229 10.9 1268 12.4 1305 13.8 1338 15.1 1371 16.4 1405 17.8 1439 19.3

20000 3833 1317 12.9 1350 14.3 1384 15.8 1420 17.5 1451 19.0 1481 20.4 1511 21.9 1541 23.4

22000 4216 1442 16.8 1473 18.4 1503 19.9 1535 21.7 1567 23.5 1595 25.2 1622 26.8 1650 28.4

24000 4599 1567 21.5 1596 23.2 1624 24.9 1652 26.6 1681 28.6 1710 30.6 1737 32.4 1762 34.2

26000 4983 1693 27.1 1720 28.9 1746 30.7 1771 32.5 1798 34.5 1825 36.7 1852 38.9 1876 40.8

28000 5366 1819 33.5 1844 35.5 1869 37.4 1892 39.3 1916 41.3 1941 43.6 1967 45.9 1991 48.3

30000 5749 1945 40.9 1969 43.0 1992 45.1 2015 47.1 2037 49.2 2059 51.4 2083 53.9 2106 56.4

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

9000 1725 1195 9.00 1291 10.9 1381 13.0

10500 2012 1232 10.8 1324 12.6 1411 14.7 1493 16.9 1646 21.8

12000 2300 1274 13.2 1362 15.2 1447 17.0 1526 19.2 1674 24.1 1811 29.5

13500 2587 1328 15.1 1408 17.9 1486 20.3 1563 22.5 1708 27.1 1842 32.4 1967 38.3 2085 44.6

15000 2875 1385 17.4 1462 20.2 1535 23.3 1606 26.2 1746 31.1 1876 36.2 1998 42.0 2114 48.3

16500 3162 1446 19.9 1520 23.0 1591 26.0 1658 29.4 1787 35.8 1914 41.1 2034 46.6 2147 52.8

18000 3450 1509 22.4 1581 26.0 1649 29.4 1714 32.7 1837 39.9 1955 46.8 2072 52.6 2184 58.3

19500 3737 1578 25.5 1644 29.0 1710 32.9 1773 36.6 1893 43.8 2005 51.8 2114 59.3 2222 65.6

21000 4025 1652 29.1 1712 32.5 1773 36.4 1834 40.6 1951 48.4 2060 56.4 2163 65.0 2264 73.2

22500 4312 1730 33.1 1785 36.7 1840 40.5 1898 44.7 2011 53.5 2117 61.7 2218 70.4 2314 79.6

24000 4599 1811 37.7 1861 41.4 1913 45.2 1965 49.3 2072 58.4 2177 67.6 2275 76.5

25500 4887 1894 42.8 1941 46.6 1989 50.5 2037 54.6 2137 63.7 2238 73.7

27000 5174 1979 48.4 2023 52.4 2068 56.4 2113 60.6 2205 69.6 2300 79.7

28500 5462 2065 54.6 2107 58.7 2149 62.9 2191 67.2 2277 76.3

21

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 33.0 in. Outlet Area – 6.314 sq. ft.

Performance Data

Size 33 A03-_-33_BC100_ _ _ _ _ _ or A03PO-332BC100_ _ _ _ _ _

Size 33 A03-_-33_BA100_ _ _ _ _ _ or A03PO-332BA100_ _ _ _ _ _

Wheel Diameter – 33.0 in. Outlet Area – 6.314 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6000 950 403 0.68 499 1.18 588 1.79 669 2.46

8000 1267 472 1.08 556 1.79 629 2.46 696 3.14 763 3.95 825 4.82 885 5.73 942 6.68

10000 1584 552 1.68 620 2.47 687 3.38 749 4.30 803 5.04 856 5.88 911 6.88 963 7.92

12000 1901 637 2.49 694 3.41 750 4.39 806 5.46 861 6.63 910 7.64 954 8.53 998 9.46

14000 2217 724 3.57 775 4.65 823 5.72 871 6.87 919 8.10 967 9.43 1013 10.8 1055 12.0

16000 2534 813 4.97 859 6.18 903 7.41 944 8.64 986 9.95 1028 11.3 1070 12.8 1112 14.3

18000 2851 904 6.74 945 8.07 985 9.46 1023 10.8 1060 12.2 1097 13.7 1135 15.2 1172 16.8

20000 3168 995 8.91 1033 10.4 1069 11.9 1105 13.4 1139 14.9 1172 16.5 1205 18.1 1239 19.8

22000 3484 1088 11.5 1122 13.1 1155 14.7 1188 16.4 1220 18.1 1251 19.8 1281 21.5 1311 23.2

24000 3801 1181 14.7 1212 16.3 1243 18.1 1274 19.9 1304 21.8 1333 23.6 1361 25.5 1389 27.3

26000 4118 1274 18.3 1303 20.1 1332 22.0 1360 24.0 1388 26.0 1416 28.0 1443 30.0 1469 31.9

28000 4435 1368 22.6 1395 24.5 1421 26.5 1448 28.6 1474 30.7 1500 32.9 1526 35.0 1551 37.2

30000 4751 1462 27.5 1487 29.6 1512 31.7 1537 33.8 1561 36.1 1586 38.4 1610 40.7 1634 43.0

32000 5068 1556 33.1 1580 35.3 1603 37.5 1626 39.8 1650 42.1 1673 44.5 1696 47.0 1718 49.5

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

10500 1663 1067 10.5 1159 12.9 1245 15.4

12000 1901 1089 11.8 1176 14.3 1258 16.9 1337 19.7

13500 2138 1118 13.3 1199 15.9 1278 18.7 1353 21.5 1496 27.6 1629 34.1

15000 2376 1160 15.6 1230 17.9 1303 20.6 1375 23.6 1511 29.9 1640 36.7 1762 43.8

16500 2613 1204 18.1 1272 20.7 1337 23.1 1402 25.9 1533 32.5 1657 39.5 1774 46.9 1887 54.6

18000 2851 1246 20.2 1317 23.7 1380 26.5 1439 29.1 1558 35.3 1678 42.6 1792 50.2 1901 58.1

19500 3088 1291 22.4 1359 26.2 1424 29.9 1483 33.0 1592 38.9 1703 45.9 1813 53.8 1919 62.0

21000 3326 1339 25.0 1403 28.8 1466 32.9 1527 36.9 1634 43.5 1735 49.8 1838 57.6 1941 66.2

22500 3564 1390 27.9 1450 31.8 1510 35.9 1569 40.2 1679 48.5 1775 55.2 1869 62.1 1966 70.6

24000 3801 1444 31.1 1500 35.1 1557 39.3 1612 43.7 1722 53.0 1819 61.2 1909 68.3 1997 75.7

25500 4039 1501 34.7 1553 38.8 1606 43.1 1659 47.6 1764 57.2 1864 67.1 1953 75.1 2036 82.6

27000 4276 1559 38.6 1608 42.8 1658 47.3 1708 51.9 1808 61.6 1906 72.1 1998 82.1 2080 90.4

28500 4514 1619 42.9 1666 47.3 1712 51.8 1760 56.6 1855 66.5 1948 77.1 2040 88.3

30000 4751 1680 47.6 1725 52.2 1769 56.8 1814 61.7 1904 71.8 1993 82.6 2082 94.1

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

6000 950 410 0.64 510 1.18 610 1.83 698 2.57

8000 1267 486 1.04 563 1.66 638 2.36 715 3.16 789 4.03 858 4.96 924 5.98 983 7.01

10000 1584 571 1.64 635 2.36 696 3.14 756 3.98 816 4.90 878 5.91 939 6.97 997 8.09

12000 1901 660 2.46 715 3.31 768 4.19 819 5.12 869 6.10 918 7.13 969 8.24 1021 9.42

14000 2217 752 3.53 801 4.54 847 5.53 892 6.56 937 7.64 980 8.76 1023 9.91 1064 11.1

16000 2534 844 4.90 890 6.08 931 7.22 972 8.35 1011 9.52 1050 10.7 1088 12.0 1126 13.3

18000 2851 937 6.61 980 7.96 1019 9.26 1055 10.5 1091 11.8 1126 13.1 1161 14.5 1195 15.9

20000 3168 1030 8.70 1072 10.2 1108 11.7 1141 13.1 1174 14.5 1206 16.0 1238 17.4 1270 18.9

22000 3484 1124 11.2 1164 12.9 1199 14.6 1230 16.1 1260 17.7 1290 19.3 1320 20.8 1348 22.4

24000 3801 1218 14.2 1257 16.1 1290 17.9 1320 19.6 1349 21.4 1376 23.1 1404 24.8 1431 26.5

26000 4118 1313 17.7 1350 19.7 1383 21.7 1411 23.7 1439 25.5 1465 27.4 1490 29.3 1515 31.1

28000 4435 1408 21.7 1443 24.0 1475 26.1 1503 28.2 1529 30.3 1554 32.3 1578 34.3 1602 36.3

30000 4751 1503 26.3 1537 28.8 1567 31.1 1596 33.4 1621 35.6 1645 37.8 1668 40.0 1690 42.1

32000 5068 1598 31.5 1631 34.2 1660 36.7 1688 39.2 1713 41.6 1736 44.0 1758 46.3 1780 48.6

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

10500 1663 1109 10.8 1210 13.4

12000 1901 1122 11.9 1219 14.6 1310 17.5 1396 20.6

13500 2138 1143 13.2 1233 16.1 1321 19.0 1405 22.1 1561 28.9

15000 2376 1173 14.8 1255 17.6 1337 20.7 1418 23.9 1570 30.8 1712 38.3 1840 46.0

16500 2613 1215 16.6 1287 19.5 1361 22.6 1436 26.0 1583 33.0 1720 40.5 1850 48.7 1971 57.2

18000 2851 1263 18.7 1329 21.7 1394 24.9 1463 28.2 1600 35.5 1733 43.3 1860 51.5 1980 60.2

19500 3088 1314 21.1 1376 24.2 1437 27.5 1497 30.9 1623 38.2 1749 46.2 1872 54.7 1990 63.5

21000 3326 1368 23.7 1427 27.0 1484 30.4 1541 33.9 1654 41.3 1772 49.4 1889 58.1 2003 67.2

22500 3564 1425 26.7 1480 30.1 1535 33.6 1589 37.3 1694 44.8 1801 53.0 1911 61.8 2020 71.1

24000 3801 1484 29.9 1536 33.5 1588 37.2 1639 41.0 1739 48.8 1837 57.0 1939 65.9 2042 75.4

25500 4039 1544 33.5 1594 37.2 1643 41.0 1692 45.0 1787 53.1 1880 61.6 1973 70.5 2069 80.0

27000 4276 1607 37.5 1654 41.3 1700 45.3 1747 49.3 1838 57.8 1927 66.5 2015 75.6 2103 85.2

28500 4514 1670 41.8 1715 45.8 1760 49.9 1804 54.1 1891 62.8 1977 71.9 2061 81.2

30000 4751 1734 46.4 1778 50.7 1820 54.9 1862 59.3 1946 68.2 2028 77.6

22

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 36.0 in. Outlet Area – 7.514 sq. ft.

Performance Data

Size 36 A03-_-36_BC100_ _ _ _ _ _ or A03PO-362BC100_ _ _ _ _ _

Size 36 A03-_-36_BA100_ _ _ _ _ _ or A03PO-362BA100_ _ _ _ _ _

Wheel Diameter – 36.0 in. Outlet Area – 7.514 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

5000 665 323 0.49 433 1.03

7500 998 378 0.87 465 1.51 543 2.22 615 3.03 682 3.92

10000 1331 447 1.41 520 2.27 587 3.17 645 3.94 705 4.92 761 5.96 815 7.07 866 8.22

12500 1664 526 2.22 584 3.19 643 4.28 700 5.49 749 6.48 795 7.42 843 8.57 890 9.85

15000 1996 608 3.32 658 4.47 707 5.66 756 6.96 805 8.39 851 9.82 891 11.0 930 12.1

17500 2329 692 4.79 738 6.14 780 7.47 821 8.87 864 10.4 905 11.9 947 13.7 986 15.3

20000 2662 779 6.71 819 8.21 858 9.75 894 11.3 930 12.9 967 14.6 1004 16.3 1040 18.1

22500 2994 866 9.13 903 10.8 938 12.5 971 14.2 1004 15.9 1036 17.7 1069 19.6 1102 21.5

25000 3327 955 12.1 988 13.9 1020 15.8 1051 17.7 1081 19.6 1110 21.5 1139 23.5 1169 25.5

27500 3660 1044 15.7 1074 17.7 1103 19.7 1132 21.8 1161 23.9 1188 26.0 1215 28.1 1241 30.2

30000 3993 1134 20.0 1161 22.1 1188 24.3 1215 26.5 1242 28.9 1268 31.2 1293 33.5 1317 35.7

32500 4325 1224 25.1 1249 27.3 1274 29.6 1299 32.0 1324 34.5 1348 37.0 1372 39.6 1395 42.0

35000 4658 1315 30.9 1338 33.3 1361 35.8 1385 38.3 1408 41.0 1430 43.6 1453 46.4 1475 49.1

37500 4991 1405 37.7 1427 40.2 1449 42.8 1471 45.5 1492 48.3 1514 51.1 1535 54.0 1556 56.9

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 1863 995 13.8 1075 16.7 1151 19.8 1224 23.1

16000 2129 1024 15.8 1098 18.8 1170 22.1 1240 25.5 1370 32.8

18000 2396 1067 18.8 1131 21.5 1196 24.7 1262 28.3 1387 35.9 1505 43.9 1616 52.4

20000 2662 1112 22.0 1175 25.3 1233 28.3 1291 31.5 1410 39.4 1522 47.7 1629 56.5 1732 65.8

22000 2928 1155 24.8 1220 29.1 1278 32.9 1332 36.1 1437 43.2 1545 51.9 1648 61.1 1747 70.6

24000 3194 1202 28.0 1263 32.5 1323 37.2 1377 41.4 1476 48.6 1573 56.5 1672 66.0 1767 75.9

26000 3460 1254 31.7 1310 36.2 1366 41.1 1421 46.2 1521 55.1 1611 62.8 1700 71.5 1792 81.6

28000 3726 1308 35.8 1361 40.5 1413 45.5 1465 50.6 1566 61.5 1655 70.5 1738 78.8 1821 88.0

30000 3993 1365 40.4 1414 45.3 1463 50.4 1512 55.7 1609 67.1 1701 78.6 1782 87.7 1859 96.6

32000 4259 1425 45.6 1470 50.6 1516 55.9 1563 61.4 1654 72.9 1744 85.4 1828 97.1 1903 107

34000 4525 1487 51.3 1529 56.6 1572 62.0 1615 67.6 1702 79.4 1788 92.0 1872 105

36000 4791 1549 57.6 1590 63.1 1630 68.7 1671 74.4 1753 86.6 1834 99.4 1915 113

38000 5057 1613 64.5 1652 70.2 1690 76.0 1728 82.0 1806 94.4 1883 108

40000 5323 1677 71.9 1715 78.0 1752 84.1 1788 90.2 1861 103

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

5000 665 330 0.49 452 1.08

7500 998 385 0.82 473 1.47 561 2.26 641 3.15 712 4.12

10000 1331 461 1.37 529 2.12 593 2.96 660 3.93 727 4.99 790 6.11 849 7.32 904 8.61

12500 1664 544 2.17 600 3.06 654 4.02 706 5.05 758 6.15 812 7.36 866 8.64 918 10.00

15000 1996 630 3.27 679 4.35 725 5.42 771 6.57 815 7.77 858 9.02 901 10.3 946 11.8

17500 2329 719 4.74 763 6.00 803 7.25 843 8.50 882 9.83 920 11.2 958 12.6 995 14.1

20000 2662 808 6.60 849 8.08 885 9.51 921 10.9 956 12.4 990 13.9 1024 15.4 1057 17.0

22500 2994 897 8.93 937 10.6 971 12.3 1003 13.9 1034 15.5 1065 17.1 1096 18.7 1126 20.4

25000 3327 987 11.8 1025 13.7 1057 15.6 1087 17.4 1116 19.1 1144 20.9 1172 22.7 1200 24.5

27500 3660 1078 15.2 1114 17.4 1145 19.4 1173 21.4 1200 23.4 1226 25.4 1252 27.3 1278 29.3

30000 3993 1169 19.3 1204 21.7 1234 24.0 1261 26.2 1286 28.4 1310 30.5 1334 32.6 1358 34.8

32500 4325 1260 24.1 1293 26.7 1323 29.2 1349 31.6 1373 34.0 1396 36.4 1419 38.7 1441 41.0

35000 4658 1352 29.6 1383 32.5 1412 35.2 1438 37.9 1461 40.5 1483 43.0 1504 45.5 1525 48.0

37500 4991 1444 35.9 1474 39.0 1501 42.0 1526 44.9 1549 47.7 1571 50.5 1591 53.2 1611 55.9

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 1863 1027 14.0 1116 17.2 1200 20.6 1278 24.2

16000 2129 1047 15.7 1130 19.0 1211 22.6 1287 26.2 1431 34.3

18000 2396 1078 17.7 1153 21.2 1228 24.8 1301 28.7 1440 36.8 1570 45.7 1688 55.0

20000 2662 1122 20.3 1187 23.7 1253 27.5 1321 31.4 1453 39.9 1579 48.9 1698 58.5 1809 68.9

22000 2928 1172 23.2 1232 26.8 1290 30.6 1350 34.6 1473 43.3 1593 52.6 1708 62.5 1817 72.7

24000 3194 1226 26.5 1282 30.3 1336 34.2 1390 38.3 1500 47.1 1612 56.7 1722 66.8 1829 77.5

26000 3460 1283 30.2 1335 34.2 1387 38.3 1437 42.6 1535 51.5 1638 61.2 1742 71.6 1844 82.6

28000 3726 1343 34.3 1392 38.5 1440 42.9 1488 47.3 1581 56.5 1673 66.3 1768 76.9 1865 88.0

30000 3993 1405 39.0 1451 43.4 1496 47.9 1541 52.6 1630 62.2 1716 72.2 1802 82.8 1891 94.1

32000 4259 1468 44.2 1512 48.8 1555 53.5 1597 58.3 1681 68.3 1764 78.7 1844 89.5 1925 101

34000 4525 1533 49.9 1575 54.8 1615 59.6 1656 64.6 1736 75.0 1814 85.8 1891 97.0

36000 4791 1599 56.2 1639 61.3 1678 66.4 1716 71.6 1792 82.3 1867 93.5

38000 5057 1667 63.0 1705 68.4 1742 73.8 1779 79.2 1851 90.3 1923 102

40000 5323 1735 70.4 1771 76.1 1807 81.8 1842 87.5 1911 98.9

23

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 40.25 in. Outlet Area – 9.393 sq. ft.

Performance Data

Size 40 A03-_-40_BC100_ _ _ _ _ _

Size 40 A03-_-40_BA100_ _ _ _ _ _

Wheel Diameter – 40.25 in. Outlet Area – 9.393 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

9000 958 332 1.03 410 1.78 483 2.68 548 3.68

12000 1278 389 1.63 457 2.69 517 3.71 572 4.70 626 5.92 677 7.21 726 8.57 772 9.99

15000 1597 456 2.54 510 3.72 565 5.07 616 6.47 660 7.60 703 8.83 748 10.3 790 11.9

18000 1916 526 3.78 572 5.16 618 6.62 663 8.22 708 9.97 748 11.5 785 12.9 821 14.2

21000 2236 598 5.42 640 7.03 679 8.64 718 10.4 757 12.2 795 14.2 833 16.2 868 18.0

24000 2555 672 7.55 709 9.37 744 11.2 778 13.1 812 15.0 847 17.1 881 19.2 915 21.5

27000 2874 747 10.2 780 12.2 813 14.3 844 16.4 874 18.5 904 20.6 934 22.9 965 25.3

30000 3194 822 13.6 853 15.7 883 18.0 911 20.3 939 22.6 966 24.9 993 27.3 1021 29.8

33000 3513 899 17.6 926 19.9 954 22.4 981 24.9 1007 27.5 1032 30.0 1056 32.5 1081 35.1

36000 3833 976 22.3 1001 24.8 1026 27.5 1051 30.2 1076 33.0 1099 35.8 1122 38.5 1145 41.3

39000 4152 1053 27.9 1076 30.6 1100 33.4 1123 36.4 1146 39.3 1168 42.4 1190 45.4 1211 48.3

42000 4471 1130 34.4 1152 37.3 1174 40.3 1196 43.4 1217 46.6 1238 49.8 1259 53.1 1279 56.3

45000 4791 1208 41.9 1229 45.0 1249 48.1 1269 51.4 1289 54.7 1309 58.2 1329 61.6 1348 65.1

48000 5110 1286 50.4 1305 53.7 1324 57.0 1343 60.4 1362 63.9 1381 67.6 1400 71.2 1418 74.9

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

17500 1863 890 17.2 961 20.9 1030 24.8 1095 28.9

20000 2129 916 19.7 982 23.5 1047 27.7 1109 31.9 1226 41.0

22500 2395 954 23.6 1011 26.9 1070 30.9 1129 35.4 1240 44.8 1346 54.9 1445 65.5

25000 2662 994 27.6 1051 31.7 1103 35.4 1155 39.4 1261 49.2 1361 59.6 1457 70.7 1549 82.2

27500 2928 1033 31.0 1091 36.4 1143 41.1 1191 45.2 1286 54.0 1382 64.9 1474 76.3 1563 88.3

30000 3194 1075 35.0 1130 40.6 1183 46.5 1232 51.8 1320 60.8 1407 70.7 1495 82.5 1581 94.9

32500 3460 1121 39.6 1172 45.3 1222 51.3 1271 57.7 1360 68.9 1440 78.5 1521 89.3 1602 102

35000 3726 1170 44.7 1217 50.6 1264 56.8 1310 63.3 1401 76.9 1480 88.2 1554 98.5 1629 110

37500 3992 1221 50.5 1265 56.6 1309 63.0 1353 69.6 1439 83.9 1521 98.2 1594 110 1663 121

40000 4258 1275 57.0 1315 63.3 1356 69.9 1398 76.7 1479 91.1 1560 107 1635 121 1702 134

42500 4525 1330 64.1 1368 70.7 1406 77.4 1445 84.5 1522 99.3 1599 115 1674 132

45000 4791 1386 72.0 1422 78.9 1458 85.8 1494 93.0 1568 108 1640 124 1713 141

47500 5057 1443 80.6 1478 87.8 1512 95.1 1546 102 1615 118 1684 134

50000 5323 1500 89.8 1534 97.5 1567 105 1599 113 1664 129

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

9000 958 337 0.96 419 1.77 500 2.74 573 3.85

12000 1278 400 1.58 463 2.50 524 3.54 587 4.73 647 6.04 704 7.42 758 8.94 807 10.5

15000 1597 471 2.48 523 3.56 573 4.73 621 5.98 671 7.36 721 8.85 770 10.4 818 12.1

18000 1916 545 3.72 590 5.01 633 6.31 675 7.71 715 9.18 755 10.7 796 12.4 838 14.1

21000 2236 621 5.36 661 6.87 699 8.37 735 9.89 771 11.5 807 13.2 841 14.9 875 16.7

24000 2555 697 7.45 734 9.21 768 10.9 801 12.6 833 14.4 865 16.2 896 18.1 927 20.0

27000 2874 774 10.0 809 12.1 840 14.0 870 15.9 899 17.9 928 19.8 956 21.8 984 23.9

30000 3194 851 13.2 885 15.5 915 17.7 942 19.9 969 22.0 995 24.1 1021 26.3 1046 28.5

33000 3513 928 17.0 962 19.6 990 22.1 1015 24.5 1040 26.8 1064 29.2 1088 31.5 1112 33.9

36000 3833 1006 21.6 1038 24.4 1065 27.2 1090 29.8 1113 32.4 1135 34.9 1158 37.5 1180 40.1

39000 4152 1085 26.9 1115 30.0 1142 33.0 1165 35.9 1187 38.7 1209 41.5 1229 44.3 1250 47.1

42000 4471 1163 33.0 1192 36.4 1218 39.7 1241 42.9 1262 45.9 1283 49.0 1302 52.0 1322 55.0

45000 4791 1242 40.0 1270 43.7 1295 47.3 1318 50.7 1338 54.1 1358 57.3 1376 60.6 1395 63.8

48000 5110 1321 48.0 1347 52.0 1371 55.9 1394 59.6 1414 63.2 1433 66.7 1451 70.2 1469 73.7

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

17500 1863 918 17.5 998 21.5 1073 25.7 1143 30.3

20000 2129 936 19.6 1011 23.8 1083 28.2 1152 32.8 1280 42.8

22500 2395 964 22.2 1031 26.5 1098 31.0 1164 35.9 1288 46.0 1404 57.2 1509 68.8

25000 2662 1004 25.3 1061 29.6 1121 34.3 1181 39.3 1300 49.9 1412 61.1 1518 73.2 1618 86.1

27500 2928 1049 29.0 1102 33.5 1154 38.2 1208 43.2 1317 54.1 1425 65.8 1528 78.1 1625 90.9

30000 3194 1097 33.1 1146 37.8 1195 42.8 1243 47.9 1341 58.8 1442 70.8 1541 83.6 1636 96.9

32500 3460 1148 37.7 1194 42.7 1240 47.9 1285 53.2 1373 64.3 1465 76.5 1558 89.5 1650 103

35000 3726 1201 42.9 1245 48.2 1288 53.6 1330 59.1 1414 70.7 1496 82.9 1582 96.1 1668 110

37500 3992 1256 48.8 1297 54.2 1338 59.9 1378 65.7 1458 77.7 1535 90.2 1612 103 1692 118

40000 4258 1313 55.3 1352 61.0 1391 66.8 1429 72.9 1504 85.4 1577 98.4 1649 112 1722 126

42500 4525 1371 62.4 1408 68.5 1445 74.6 1481 80.8 1552 93.8 1623 107 1691 121

45000 4791 1431 70.2 1466 76.6 1501 83.0 1535 89.5 1603 103 1670 117

47500 5057 1491 78.8 1525 85.5 1558 92.2 1591 99.0 1655 113 1720 127

50000 5323 1552 88.0 1584 95.1 1616 102 1648 109 1709 124

24

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 44.5 in. Outlet Area – 11.481 sq. ft.

Performance Data

Size 44 A03-_-44_BC100_ _ _ _ _ _

Size 44 A03-_-44_BA100_ _ _ _ _ _

Wheel Diameter – 44.5 in. Outlet Area – 11.481 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

8000 697 265 0.80 352 1.62

12000 1045 313 1.42 382 2.48 443 3.54 500 4.81 554 6.18

16000 1394 373 2.35 430 3.69 484 5.20 529 6.40 575 7.84 620 9.48 662 11.2 703 13.0

20000 1742 441 3.74 486 5.28 532 6.99 576 8.90 617 10.6 653 12.1 689 13.8 726 15.7

24000 2090 511 5.65 551 7.49 588 9.36 626 11.4 664 13.6 700 15.9 734 18.0 765 19.8

28000 2439 583 8.21 618 10.3 651 12.5 683 14.7 716 17.0 748 19.5 780 22.1 812 24.8

32000 2787 657 11.5 688 13.9 718 16.4 747 18.8 775 21.3 803 24.0 831 26.7 860 29.5

36000 3136 731 15.8 759 18.4 787 21.1 813 23.9 838 26.6 863 29.4 888 32.3 914 35.3

40000 3484 807 21.0 832 23.8 857 26.8 881 29.9 905 33.0 928 36.0 950 39.1 972 42.2

44000 3832 882 27.3 905 30.4 928 33.6 951 36.9 973 40.3 994 43.7 1015 47.1 1036 50.4

48000 4181 959 34.8 980 38.1 1001 41.6 1021 45.2 1042 48.8 1062 52.6 1082 56.2 1101 59.9

52000 4529 1035 43.6 1055 47.2 1074 50.9 1093 54.7 1112 58.6 1131 62.6 1150 66.7 1168 70.7

56000 4878 1112 53.9 1130 57.7 1148 61.6 1166 65.7 1184 69.8 1202 74.1 1219 78.4 1237 82.7

60000 5226 1189 65.7 1206 69.8 1223 73.9 1239 78.2 1256 82.6 1273 87.1 1289 91.6 1306 96.3

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

21000 1829 802 20.7 868 25.2 930 29.9 989 34.8

24000 2090 824 23.6 885 28.3 944 33.3 1001 38.4 1107 49.4

27000 2352 857 28.0 910 32.0 964 37.0 1018 42.5 1119 54.0 1215 66.2 1306 79.1

30000 2613 893 32.9 944 37.6 991 42.1 1040 47.1 1137 59.1 1228 71.8 1316 85.2 1399 99.2

33000 2874 927 37.1 980 43.5 1026 48.8 1070 53.7 1158 64.7 1246 78.0 1330 91.8 1411 106

36000 3136 964 41.7 1014 48.5 1062 55.5 1106 61.5 1186 72.2 1267 84.7 1348 99.2 1426 114

39000 3397 1004 47.0 1051 53.9 1097 61.3 1141 68.9 1221 81.8 1295 93.4 1370 107 1445 123

42000 3658 1047 53.0 1090 60.1 1133 67.6 1176 75.6 1258 91.8 1329 105 1397 117 1467 132

45000 3920 1091 59.7 1132 67.1 1172 74.9 1213 82.9 1292 100 1366 117 1431 130 1495 144

48000 4181 1139 67.3 1176 74.9 1214 82.9 1252 91.2 1327 109 1401 127 1468 144 1529 159

51000 4442 1187 75.6 1222 83.5 1258 91.7 1293 100 1365 118 1435 137 1503 157

54000 4703 1237 84.8 1270 93.0 1303 101 1337 110 1404 129 1471 148 1537 169

57000 4965 1287 94.7 1319 103 1351 112 1382 121 1446 140 1510 160

60000 5226 1338 106 1369 115 1399 124 1429 133 1489 152 1550 173

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

8000 697 270 0.78 367 1.69

12000 1045 320 1.35 387 2.36 456 3.58 520 4.94 578 6.47

16000 1394 385 2.29 438 3.48 488 4.80 539 6.27 591 7.91 641 9.67 688 11.5 733 13.5

20000 1742 456 3.67 500 5.09 542 6.60 583 8.21 623 9.91 664 11.8 705 13.8 747 15.9

24000 2090 530 5.57 568 7.30 604 9.01 639 10.8 674 12.7 708 14.7 741 16.7 774 18.9

28000 2439 605 8.10 640 10.1 672 12.1 702 14.1 733 16.2 762 18.4 792 20.6 821 22.9

32000 2787 681 11.3 714 13.7 742 16.0 770 18.3 797 20.6 823 22.9 850 25.3 876 27.8

36000 3136 757 15.4 788 18.2 815 20.8 840 23.3 864 25.9 888 28.5 912 31.0 936 33.7

40000 3484 833 20.4 863 23.5 889 26.5 912 29.3 934 32.2 957 35.0 978 37.9 1000 40.7

44000 3832 910 26.4 939 29.9 964 33.2 986 36.4 1007 39.6 1027 42.7 1047 45.8 1067 48.9

48000 4181 987 33.5 1015 37.4 1039 41.1 1060 44.6 1080 48.1 1099 51.5 1118 55.0 1136 58.4

52000 4529 1065 41.8 1091 46.1 1114 50.1 1135 54.1 1154 57.9 1172 61.6 1190 65.4 1207 69.1

56000 4878 1143 51.5 1167 56.1 1190 60.5 1210 64.8 1229 69.0 1246 73.1 1263 77.1 1280 81.2

60000 5226 1221 62.5 1244 67.5 1266 72.4 1286 77.0 1304 81.6 1321 86.0 1337 90.4 1353 94.7

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

21000 1829 829 21.1 901 25.9 970 31.1 1033 36.6

24000 2090 844 23.6 912 28.6 978 34.0 1040 39.5 1156 51.8

27000 2352 867 26.6 929 31.8 990 37.3 1050 43.2 1163 55.5 1269 69.2

30000 2613 901 30.2 954 35.5 1010 41.2 1065 47.2 1174 60.1 1276 73.7 1372 88.6 1462 104

33000 2874 940 34.5 989 39.9 1037 45.7 1087 51.8 1188 65.0 1286 79.2 1380 94.1 1469 110

36000 3136 982 39.3 1028 45.0 1072 51.0 1116 57.2 1208 70.6 1300 85.2 1391 101 1478 117

39000 3397 1027 44.7 1070 50.7 1112 57.0 1153 63.4 1235 76.9 1320 91.8 1405 108 1489 124

42000 3658 1074 50.8 1114 57.1 1154 63.6 1193 70.4 1269 84.3 1345 99.2 1425 115 1504 132

45000 3920 1123 57.6 1160 64.2 1198 71.0 1235 78.0 1307 92.6 1378 108 1450 124 1524 141

48000 4181 1173 65.2 1208 72.1 1244 79.1 1279 86.4 1348 102 1415 117 1481 134 1549 151

51000 4442 1224 73.5 1258 80.8 1291 88.1 1325 95.7 1390 111 1455 128 1518 145

54000 4703 1276 82.6 1309 90.3 1341 98.0 1372 106 1435 122 1496 139 1557 156

57000 4965 1329 92.6 1360 101 1391 109 1421 117 1481 134 1540 151

60000 5226 1383 103 1413 112 1442 120 1471 129 1528 146

25

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 49.0 in. Outlet Area – 13.921 sq. ft.

Performance Data

Size 49 A03-_-49_BC100_ _ _ _ _ _

Size 49 A03-_-49_BA100_ _ _ _ _ _

Wheel Diameter – 49.0 in. Outlet Area – 13.921 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

10000 718 243 1.02 320 2.01

15000 1078 289 1.81 351 3.15 404 4.41 456 5.97 504 7.66 549 9.45

20000 1437 346 3.03 396 4.68 445 6.59 486 8.13 526 9.80 566 11.8 604 13.9 641 16.1

25000 1796 410 4.84 450 6.77 490 8.87 530 11.2 567 13.5 600 15.4 631 17.3 663 19.6

30000 2155 476 7.36 511 9.66 544 12.0 578 14.5 611 17.2 644 20.1 675 22.9 702 25.2

35000 2514 544 10.7 575 13.4 604 16.1 633 18.8 661 21.7 690 24.7 718 27.9 746 31.3

40000 2873 613 15.2 641 18.1 667 21.2 693 24.2 717 27.3 742 30.6 767 33.9 792 37.4

45000 3233 683 20.8 708 24.0 732 27.4 756 30.9 778 34.3 800 37.8 822 41.3 844 45.0

50000 3592 754 27.7 776 31.2 798 34.9 820 38.7 841 42.6 861 46.4 881 50.2 901 54.1

55000 3951 825 36.0 845 39.8 865 43.8 885 48.0 905 52.3 924 56.5 942 60.7 961 64.9

60000 4310 896 46.0 915 50.1 933 54.4 952 58.9 970 63.4 988 68.1 1006 72.7 1022 77.3

65000 4669 968 57.7 985 62.2 1002 66.7 1019 71.5 1036 76.3 1053 81.3 1070 86.3 1086 91.4

70000 5028 1040 71.3 1056 76.1 1072 81.0 1088 86.0 1103 91.1 1119 96.4 1135 102 1150 107

75000 5388 1112 87.0 1127 92.1 1142 97.2 1157 103 1171 108 1186 114 1201 119 1215 125

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

24000 1724 722 23.8 783 29.2 840 34.8

28000 2011 742 27.4 799 33.1 853 39.0 905 45.2 1003 58.4

32000 2299 772 32.7 821 37.8 871 43.9 921 50.5 1014 64.3 1102 79.0

36000 2586 808 39.3 854 44.8 897 50.2 942 56.5 1030 71.0 1114 86.3 1194 103 1270 119

40000 2873 842 44.9 890 52.7 932 59.1 972 65.0 1051 78.4 1131 94.5 1208 111 1281 129

44000 3161 879 51.1 924 59.4 968 68.0 1008 75.5 1080 88.6 1153 104 1226 121 1296 139

48000 3448 919 58.3 961 66.8 1002 75.8 1043 85.2 1116 102 1182 116 1248 132 1315 151

52000 3735 962 66.5 1001 75.3 1039 84.5 1077 94.1 1152 114 1217 131 1278 147 1339 164

56000 4023 1008 75.9 1044 85.0 1079 94.5 1115 104 1186 126 1253 147 1313 165 1370 181

60000 4310 1056 86.4 1088 95.8 1122 106 1155 116 1222 137 1287 161 1350 183 1405 202

64000 4597 1105 98.1 1136 108 1166 118 1198 129 1260 151 1322 174 1384 199

68000 4885 1155 111 1184 121 1213 132 1242 143 1301 165 1360 189

72000 5172 1205 125 1234 136 1261 147 1289 158 1344 182 1400 206

76000 5459 1257 141 1284 152 1311 164 1337 175 1388 199

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

10000 718 247 0.98 333 2.08

15000 1078 295 1.72 355 2.96 416 4.45 473 6.13 526 7.99

20000 1437 357 2.95 404 4.42 449 6.05 493 7.85 539 9.85 584 12.0 627 14.3 667 16.6

25000 1796 425 4.76 463 6.54 501 8.40 537 10.4 572 12.5 608 14.7 644 17.2 681 19.7

30000 2155 494 7.27 528 9.43 560 11.6 591 13.8 621 16.1 651 18.5 681 21.1 710 23.7

35000 2514 564 10.6 595 13.2 624 15.7 651 18.1 678 20.7 704 23.4 730 26.1 756 29.0

40000 2873 635 14.9 665 17.9 690 20.8 715 23.6 739 26.4 762 29.3 785 32.3 808 35.4

45000 3233 706 20.2 735 23.7 759 27.0 781 30.2 803 33.4 824 36.6 845 39.8 866 43.1

50000 3592 778 26.8 805 30.7 828 34.5 849 38.1 869 41.7 888 45.2 908 48.8 927 52.3

55000 3951 850 34.7 876 39.1 898 43.3 918 47.3 937 51.3 955 55.3 973 59.2 990 63.1

60000 4310 923 44.2 947 49.0 969 53.7 988 58.1 1006 62.5 1023 66.8 1039 71.1 1056 75.4

65000 4669 995 55.2 1019 60.5 1039 65.7 1058 70.6 1075 75.4 1092 80.1 1107 84.8 1123 89.4

70000 5028 1068 68.0 1090 73.8 1110 79.4 1129 84.8 1146 90.1 1161 95.2 1176 100 1191 105

75000 5388 1141 82.7 1162 89.0 1182 95.0 1199 101 1216 107 1231 112 1246 118 1260 123

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

24000 1724 749 24.4 816 30.3 878 36.5

28000 2011 761 27.6 825 33.7 885 40.1 943 46.8 1047 61.3

32000 2299 783 31.4 840 37.7 897 44.4 952 51.5 1055 66.2 1151 82.7

36000 2586 815 36.1 864 42.5 915 49.4 966 56.7 1065 72.3 1158 88.7 1246 107 1326 125

40000 2873 854 41.8 898 48.4 941 55.3 987 62.8 1079 78.8 1168 96.0 1253 114 1334 133

44000 3161 896 48.2 937 55.2 977 62.5 1017 70.0 1099 86.3 1182 104 1264 123 1343 142

48000 3448 941 55.6 979 63.0 1017 70.6 1054 78.5 1127 94.9 1203 113 1279 132 1354 153

52000 3735 988 63.9 1024 71.7 1059 79.7 1094 88.0 1162 105 1230 123 1300 143 1370 163

56000 4023 1037 73.4 1071 81.5 1104 89.9 1137 98.5 1202 116 1264 135 1327 155 1392 176

60000 4310 1088 83.9 1120 92.5 1151 101 1182 110 1243 129 1303 148 1361 168

64000 4597 1140 95.6 1170 105 1199 114 1228 123 1286 143 1343 163 1399 184

68000 4885 1192 108 1221 118 1249 128 1277 137 1332 158 1386 179

72000 5172 1246 123 1273 133 1300 143 1327 153 1379 174

76000 5459 1301 138 1326 149 1352 160 1378 170

26

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter – 54.25 in. Outlet Area – 17.026 sq. ft.

Performance Data

Size 54 A03-_-54_BC100_ _ _ _ _ _

Size 54 A03-_-54_BA100_ _ _ _ _ _

Wheel Diameter – 54.25 in. Outlet Area – 17.026 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

12000 705 218 1.37 287 2.60

18000 1057 260 2.39 315 4.19 365 5.84 410 7.73 451 9.85 489 12.0

24000 1410 312 3.97 357 6.16 398 8.57 437 10.9 475 13.1 511 15.4 543 18.0 574 20.8

30000 1762 369 6.36 406 8.90 442 11.7 475 14.6 507 17.7 538 20.7 569 23.4 599 26.1

36000 2114 428 9.72 460 12.6 491 15.8 521 19.1 550 22.5 577 26.2 603 29.8 629 33.5

42000 2467 490 14.3 517 17.6 544 21.1 570 24.7 596 28.6 621 32.5 646 36.6 669 40.8

48000 2819 552 20.1 577 23.9 600 27.8 624 31.8 647 36.0 670 40.3 692 44.7 714 49.3

54000 3172 615 27.6 637 31.8 659 36.0 680 40.4 700 45.0 721 49.6 741 54.4 761 59.4

60000 3524 679 36.8 699 41.4 718 46.1 738 50.9 756 55.8 775 60.8 793 65.9 812 71.2

66000 3877 743 47.9 761 52.9 779 58.0 797 63.3 814 68.6 831 74.0 848 79.5 865 85.1

72000 4229 808 61.1 824 66.6 841 72.2 857 77.8 873 83.5 889 89.3 905 95.2 920 101

78000 4581 872 76.7 888 82.6 903 88.6 918 94.7 933 101 948 107 962 113 977 120

84000 4934 937 94.7 951 101 966 108 980 114 994 121 1007 127 1021 134 1035 141

90000 5286 1002 116 1015 122 1029 129 1042 136 1055 143 1068 150 1081 157 1094 164

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

30000 1762 655 32.0 706 38.8 754 46.0 800 53.2

35000 2056 676 38.6 727 45.1 773 52.4 816 60.3 898 77.0 977 93.2

40000 2349 702 46.5 749 53.8 794 61.1 837 68.5 916 85.9 989 105 1059 124 1128 142

45000 2643 734 54.0 776 63.2 818 71.8 859 80.0 937 96.4 1008 116 1075 136 1139 158

50000 2937 770 62.2 809 72.3 847 82.5 885 92.5 959 111 1030 129 1095 150 1156 172

55000 3230 808 71.5 846 82.2 881 93.3 916 104 984 126 1052 147 1116 167 1177 188

60000 3524 848 82.1 884 93.4 918 105 951 117 1014 142 1077 165 1139 187 1198 209

65000 3818 890 94.1 923 106 956 118 988 131 1048 157 1107 183 1164 209 1221 233

70000 4111 933 108 965 120 996 133 1026 146 1084 173 1140 202 1194 230 1247 258

75000 4405 978 123 1008 136 1037 149 1066 163 1122 191 1175 221 1227 252 1277 282

80000 4699 1024 140 1052 153 1079 167 1107 182 1161 211 1213 242 1262 274

85000 4993 1071 158 1097 173 1123 187 1149 202 1201 233 1251 265

90000 5286 1119 179 1144 194 1169 209 1193 225 1242 257

95000 5580 1167 202 1191 217 1215 233 1238 249

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

12000 705 237 1.41 313 2.67

18000 1057 280 2.38 341 4.28 395 6.00 445 7.89 492 10.2 534 12.5

24000 1410 338 3.98 383 6.14 430 8.68 474 11.2 514 13.5 551 15.7 589 18.4 625 21.3

30000 1762 403 6.45 437 8.87 475 11.6 512 14.7 549 18.0 584 21.2 617 24.1 648 26.8

36000 2114 470 9.90 500 12.7 529 15.7 559 19.0 591 22.5 622 26.3 653 30.3 683 34.3

42000 2467 538 14.5 566 17.8 590 21.1 614 24.6 641 28.4 668 32.4 694 36.6 721 41.1

48000 2819 605 20.4 632 24.3 655 28.1 676 31.9 697 35.8 720 40.1 743 44.5 767 49.2

54000 3172 672 27.7 700 32.3 721 36.6 740 40.8 759 45.1 778 49.5 798 54.2 818 59.1

60000 3524 740 36.7 767 42.0 788 46.9 806 51.6 824 56.3 841 61.0 857 65.8 875 70.9

66000 3877 808 47.6 834 53.5 856 59.1 873 64.3 890 69.5 905 74.6 921 79.8 936 85.1

72000 4229 877 60.5 902 67.1 923 73.3 940 79.2 956 84.8 971 90.5 986 96.1 1000 102

78000 4581 945 75.6 969 82.9 990 89.8 1008 96.4 1023 103 1038 109 1052 115 1065 121

84000 4934 1014 93.1 1037 101 1057 109 1075 116 1091 123 1105 129 1118 136 1131 143

90000 5286 1083 113 1105 122 1125 130 1142 138 1158 146 1172 153 1185 160 1198 167

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

30000 1762 708 32.7 767 39.8 823 47.4 874 55.3

35000 2056 732 39.7 785 46.3 836 53.4 887 61.8 982 79.6

40000 2349 762 47.6 812 55.4 859 62.8 904 70.3 994 87.8 1080 108 1158 129

45000 2643 793 54.5 842 64.5 887 73.8 930 82.2 1012 99.0 1092 118 1170 140 1244 163

50000 2937 828 62.1 873 72.9 917 83.9 960 94.9 1038 114 1112 133 1184 153 1256 176

55000 3230 868 71.3 909 82.2 950 93.9 991 106 1068 130 1139 151 1206 171 1271 192

60000 3524 912 81.7 949 93.1 987 105 1024 118 1098 144 1169 170 1233 192

65000 3818 958 93.7 992 105 1027 118 1061 131 1131 158 1198 187 1263 215

70000 4111 1007 107 1038 120 1070 132 1102 146 1166 173 1230 204

75000 4405 1059 123 1086 135 1116 149 1145 162 1205 191 1265 222

80000 4699 1112 140 1137 153 1163 167 1191 181 1247 210

85000 4993 1167 160 1190 173 1213 187 1239 201

90000 5286 1221 181 1244 195 1266 210

95000 5580 1277 205

27

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Wheel Diameter –60.0 in. Outlet Area – 20.826 sq. ft.

Performance Data

Size 60 A03-_-60_BC100_ _ _ _ _ _

Size 60 A03-_-60_BA100_ _ _ _ _ _

Wheel Diameter –60.0 in. Outlet Area – 20.826 sq. ft.

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories). Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page 2 for additional

model code information.

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 672 195 1.57 258 3.06

21000 1008 230 2.71 280 4.80 327 6.73 368 9.08 405 11.6

28000 1344 273 4.43 315 7.03 353 9.87 390 12.5 425 15.1 457 18.0 487 21.2 516 24.5

35000 1681 321 7.01 356 10.0 390 13.3 421 16.8 451 20.4 480 23.7 509 26.8 536 30.0

42000 2017 372 10.6 402 14.1 431 17.8 459 21.7 486 25.8 511 30.1 536 34.4 561 38.4

49000 2353 425 15.5 451 19.4 476 23.5 501 27.8 525 32.4 549 37.1 571 42.0 593 46.9

56000 2689 478 21.8 501 26.2 524 30.7 546 35.5 568 40.4 589 45.5 610 50.8 630 56.2

63000 3025 533 29.7 553 34.6 573 39.6 593 44.8 613 50.2 632 55.7 651 61.4 670 67.2

70000 3361 587 39.5 606 44.9 624 50.4 643 56.1 660 61.8 678 67.8 695 73.9 713 80.1

77000 3697 642 51.3 660 57.2 676 63.2 693 69.4 709 75.6 726 82.0 742 88.5 757 95.1

84000 4033 698 65.4 714 71.8 729 78.3 745 85.0 760 91.7 775 98.5 789 105 804 113

91000 4370 754 82.0 768 88.9 783 95.9 797 103 811 110 825 118 839 125 852 132

98000 4706 809 101 823 109 836 116 850 124 863 131 876 139 889 147 902 155

105000 5042 865 123 878 131 890 139 903 147 915 156 928 164 940 172 952 181

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

36000 1729 590 38.5 636 46.8 680 55.4 722 63.9

42000 2017 609 46.1 654 53.8 696 62.9 736 72.6 811 92.8

48000 2305 631 55.4 674 64.2 715 72.9 754 81.9 826 103 892 126 956 149

54000 2593 659 64.4 697 75.4 736 85.5 773 95.3 844 115 909 139 969 164 1027 190

60000 2881 690 74.0 726 86.2 761 98.5 795 110 863 132 927 154 986 180 1042 207

66000 3169 724 84.9 758 97.9 790 111 822 125 885 151 946 175 1005 199 1060 225

72000 3457 759 97.4 791 111 822 125 852 140 911 169 968 197 1025 223 1079 249

78000 3745 795 111 826 126 856 140 885 156 940 187 993 219 1047 249 1099 277

84000 4033 833 127 862 142 890 158 918 174 971 207 1022 241 1072 275 1121 307

90000 4322 873 145 900 160 927 177 953 193 1005 228 1053 263 1101 300

96000 4610 913 164 939 181 964 198 989 215 1039 251 1086 288 1131 327

102000 4898 955 186 979 203 1003 221 1027 239 1074 276 1120 315

108000 5186 997 210 1020 228 1043 246 1065 265 1110 304

114000 5474 1040 236 1062 255 1083 274 1105 294

Outlet STATIC PRESSURE

Velocity

1

⁄2'' 1'' 11⁄2'' 2'' 21⁄2'' 3'' 31⁄2'' 4''

CFM FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

14000 672 211 1.61 282 3.15

21000 1008 247 2.70 304 4.94 353 6.90 400 9.30 443 12.0

28000 1344 295 4.43 339 7.02 383 10.1 423 12.9 459 15.5 495 18.3 530 21.7 563 25.2

35000 1681 351 7.09 383 9.97 419 13.3 454 17.0 489 20.8 521 24.3 551 27.6 579 30.8

42000 2017 408 10.8 436 14.1 464 17.7 493 21.6 523 25.9 552 30.5 581 35.1 608 39.5

49000 2353 466 15.7 492 19.6 515 23.5 539 27.7 564 32.2 589 37.0 615 42.1 640 47.5

56000 2689 524 22.0 549 26.6 570 31.0 590 35.4 611 40.2 633 45.3 655 50.7 677 56.2

63000 3025 582 29.9 607 35.2 627 40.2 645 45.1 662 50.1 681 55.5 700 61.1 720 66.9

70000 3361 641 39.6 665 45.7 684 51.2 701 56.7 718 62.2 733 67.8 750 73.6 767 79.8

77000 3697 700 51.2 723 58.0 742 64.4 759 70.4 774 76.4 789 82.5 803 88.6 817 94.9

84000 4033 758 64.9 781 72.6 801 79.8 817 86.4 831 93.0 845 99.6 859 106 872 113

91000 4370 818 81.1 840 89.5 858 97.4 875 105 889 112 902 119 915 126 927 133

98000 4706 877 99.7 898 109 916 118 933 126 947 134 960 142 972 149 984 157

105000 5042 936 121 957 131 975 141 991 150 1005 158 1018 167 1030 175 1041 183

5'' 6'' 7'' 8'' 10'' 12'' 14'' 16''

CFM OV FPM RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP RPM BHP

36000 1729 638 39.3 693 48.0 743 57.3 788 66.7

42000 2017 659 47.4 707 55.2 754 64.3 801 74.4 886 96.2

48000 2305 685 56.9 730 66.0 773 74.9 814 84.0 897 106 974 130 1044 155

54000 2593 712 65.2 756 77.1 798 87.9 837 98.0 911 118 985 142 1056 169 1123 197

60000 2881 743 74.1 784 87.2 824 100 863 113 934 136 1001 158 1068 183 1133 212

66000 3169 777 84.7 815 98.0 853 112 890 127 960 155 1024 180 1086 204 1146 230

72000 3457 815 96.9 850 111 884 125 919 141 986 172 1050 202 1109 229

78000 3745 856 111 887 125 919 140 951 156 1015 189 1077 224 1135 256

84000 4033 898 127 927 141 957 157 986 173 1046 207 1105 244

90000 4322 944 145 969 160 997 176 1024 192 1079 227 1135 265

96000 4610 991 165 1014 180 1039 197 1064 214 1116 250

102000 4898 1039 188 1061 204 1082 220 1106 238 1154 275

108000 5186 1087 212 1108 229 1129 246 1149 264

114000 5474 1136 240 1156 257

Performance certified for installation Type D: ducted inlet/ducted outlet. Power ratings (BHP) do not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories) in the airstream. Performance data is based on standard air conditions (0.075 lb/cu. ft.). To complete model code, add motor enclosure code. Refer to page

2 for additional model code information.

28

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Series 13, Backward Curved Centrifugal Fan, DWDI

The Hartzell Series 13 Double Width, Double Inlet (DWDI) centrifugal blowers have been designed to provide maximum performance and efficiency. For clean air applications, these blowers are available in belt drive configuration. Air delivery ranges from 1200 CFM to 186,000 CFM; static pressure capabilities to 14". Efficient air flow is provided over a broad range of pressures (maximum total efficiencies exceeding 80%). Designed for quiet operation, the Hartzell “Double Width, Double Inlet” centrifugal provides lower sound levels in the highest efficiency ranges.

Features

Sizes – 10" to 60" wheel diameters, Double Width, Double Inlet

construction (DWDI). For Single Width, Single Inlet see Page 9. Arrangements – Series 13 blowers are available in Arrangement

3 as standard with or without a sub-base for motor mounting. Rotation and Discharge – Clockwise and counterclockwise

rotations are available in four discharge positions. Dimensional drawings are shown on Page 29.

Motors – Are available to your specifications, mounted and test run at the factory prior to shipment.

Bearings – Heavy-duty, pillow block bearings. Minimum L-10 bearing life of 50,000 hours. For size and type, please contact factory.

Drive Assembly (Belt Drive Fans) – Belts are oil, heat and static resistant type, oversized for continuous duty. Shafts are turned, stepped, polished, and keyed at the drive end.

Easy Installation and Maintenance – Motor, drive and bearings are readily accessible for ease in wiring, installation, adjustment and lubrication.

Fan Inlets and Outlets – Open non-ducted inlet is standard. “Slip-fit” outlet connections are provided for easy connection to ducting. Optional outlet flanges are available.

Hartzell Fan, Inc. certifies that the Series 13, Backward Curved Centrifugal Fans, air and sound performance ratings shown herein are reliable and accurate and in accordance with industry standards.The ratings shown are based on tests and procedures performed in accordance with AMCA Standard 210, Standard 300, and Standard 301.

Sound Performance data is available upon request. Please contact the factory and ask for Engineering Publication SD-149. Sound and Air Performance data is available in ESP.

Housings – Heavy-duty carbon steel housings, supported and braced with plate and structural steel are provided as standard construction. Housing sizes 12" through 27" are rotatable; larger sizes have fixed construction.

Lifting Lugs – For ease of handling and installation, lifting tabs, or lugs, are provided as standard features.

Surface Coatings – Standard finish is an industrial grade enamel. Other special coatings are available upon request.

Accessories – See Page 34.

Series 13

Shown with optional equipment

Type BC

DWDI

Wheel

Type BA

DWDI

Wheel

Type BI

DWDI

Wheel

CFM Range at Static Pressure

Model 2" S.P. 3" S.P. 4" S.P. 6" S.P. 8" S.P. 10" S.P. 12" S.P. 14" S.P.

13-3-10_BC100ST _ _ _ _ 1,200 - 3,800 1,200 - 3,800 1,430 - 3,800 2,150 - 5,230 2,150 - 5,230 2,150 - 4,760 2,390 - 4,280 2,620 - 3,800 13-3-12_BC100ST _ _ _ _ 1,630 - 5,180 1,630 - 5,180 1,950 - 5,180 2,920 - 7,130 2,920 - 6,480 3,250 - 5,830 3,250 - 5,180 3,570 - 0,000 13-3-13_BC100ST _ _ _ _ 1,970 - 6,280 1,970 - 6,280 2,360 - 6,280 3,540 - 9,430 3,540 - 9,430 3,940 - 8,640 3,940 - 7,860 4,330 - 7,070 13-3-15_BC100ST _ _ _ _ 2,550 - 8,150 3,060 - 8,150 3,570 - 8,150 4,600 - 12,200 4,600 - 12,200 5,100 - 12,200 5,700 - 12,200 6,200 - 11,200 13-3-16_BC100ST _ _ _ _ 2,940 - 9,400 3,530 - 9,400 4,120 - 9,400 5,300 - 14,100 5,300 - 14,100 5,900 - 14,100 6,500 - 14,100 7,100 - 12,900 13-3-18_BC100ST _ _ _ _ 3,700 - 11,800 4,500 - 11,800 5,200 - 11,800 6,700 - 17,700 6,700 - 17,700 7,400 - 16,200 8,200 - 14,700 8,900 - 13,300 13-3-20_BC100ST _ _ _ _ 4,400 - 13,800 5,200 - 13,800 6,100 - 13,800 7,800 - 20,700 7,800 - 20,700 8,700 - 19,000 9,600 - 15,500 10,400 - 0,000 13-3-22_BC100ST _ _ _ _ 5,600 - 17,600 6,700 - 17,600 7,800 - 17,600 10,000 - 26,500 11,100 - 26,500 12,200 - 26,500 13,300 - 24,300 15,500 - 19,900 13-3-24_BC100ST _ _ _ _ 6,600 - 20,900 7,900 - 20,900 9,200 - 20,900 11,800 - 31,400 13,100 - 31,400 14,500 - 28,800 15,800 - 26,100 18,400 - 23,500 13-3-27_BC100ST _ _ _ _ 9,900 - 26,300 11,600 - 26,300 13,200 - 26,300 14,900 - 39,500 18,200 - 39,500 19,800 - 39,500 21,500 - 36,200 23,100 - 29,600 13-3-30_BC100ST _ _ _ _ 11,700 - 31,000 13,600 - 31,000 15,600 - 31,000 17,500 - 46,600 21,400 - 46,600 23,400 - 46,600 25,300 - 42,700 27,200 - 34,900 13-3-33_BC100ST _ _ _ _ 16,500 - 37,500 21,200 - 37,500 23,500 - 37,500 28,200 - 56,300 32,900 - 56,300 35,300 - 56,300 42,300 - 51,600 42,300 - 42,200 13-3-36_BC100ST _ _ _ _ 19,600 - 44,700 25,200 - 44,700 28,000 - 44,700 33,600 - 67,000 39,200 - 67,000 42,000 - 67,000 50,300 - 61,400 50,300 - 50,200 13-3-40_BC100ST _ _ _ _ 24,500 - 55,900 31,500 - 55,900 35,000 - 55,900 42,000 - 83,800 49,000 - 83,800 52,500 - 83,800 63,000 - 76,800 63,000 - 62,900 13-3-44_BC100ST _ _ _ _ 29,900 - 68,300 38,500 - 68,300 42,800 - 68,300 51,300 - 102,400 59,800 - 102,400 64,100 - 102,400 76,900 - 93,900 76,900 - 76,800 13-3-49_BC100ST _ _ _ _ 31,100 - 82,800 41,500 - 82,800 46,600 - 82,800 57,000 - 124,200 62,200 - 124,200 72,500 - 124,200 77,700 - 113,800 82,900 - 93,100 13-3-54_BC100ST _ _ _ _ 38,100 - 101,400 50,800 - 101,400 57,100 - 101,400 69,800 - 152,100 76,100 - 152,100 88,800 - 152,100 95,200 - 139,500 101,500 - 114,100 13-3-60_BC100ST _ _ _ _ 46,600 - 124,100 62,100 - 124,100 69,900 - 124,100 85,400 - 186,200 93,200 - 186,200 108,700 - 186,200 116,500 - 170,700 124,200 - 139,700

Rating Table – Series 13, DWDI, Wheel Type BC and Type BI shown Type BA available

H

T

I

H

W

O

N

T

L

O

I

R

U

B

H

C

A

N

R

I

T

,

Z

N

E

A

F

L

P

I

A

Q

S

U

A

,

O

I

O

H

29

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Dimensions – Series 13, DWDI

Arrangement 3 – Standard Construction – Classes I, II, III, Maximum Temperature – 200°F. Clockwise Rotation Shown. Counterclockwise Opposite.

A

Fan Top Down Bottom B C D H L M N P T

Size Horiz. Blast Upblast Horiz.

10 105/8 127/32 141/4 141/4 113/8 123/16 101/16 83/4 15.471 11.545 18.851 235/8 193/4 12 12 141/4 161/4 161/4 131/4 141/4 1111/16 103/16 18.022 13.424 21.372 261/8 161/4 13 131/8 1511/16 171/2 171/2 149/16 1511/16 127/8 113/16 19.793 14.766 23.173 277/8 193/4 15 131/2 169/16 191/2 191/2 169/16 169/16 145/8 123/4 22.494 16.780 24.861 311/2 181/4 16 151/2 173/4 203/4 203/4 1713/16 173/4 153/4 1311/16 24.145 17.988 27.525 331/8 201/4 18 171/4 187/8 13 13 1915/16 187/8 175/8 155/16 27.055 20.136 30.406 361/2 253/8 20 181/2 207/16 141/2 141/2 215/8 203/8 191/8 165/8 29.261 21.747 31.620 383/4 201/4 22 203/4 22 271/2 271/2 243/8 22 219/16 183/4 33.043 24.566 36.409 423/4 253/8 24 223/8 239/16 291/2 291/2 269/16 239/16 237/16 203/8 35.924 26.713 38.431 46 253/8 27 247/8 253/4 323/4 323/4 293/4 253/4 265/16 227/8 40.246 29.934 43.610 50 22 30 257/8 257/8 31 35 325/16 257/8 289/16 2413/16 43.667 32.486 46.608 553/4 333/4 33 30 281/32 34 38 359/16 281/32 317/16 275/16 48.079 35.798 50.989 593/4 333/4 36 311/2 333/16 37 42 3813/16 333/16 345/16 2913/16 52.401 39.018 55.311 647/8 333/4 40 341/4 361/2 46 46 433/8 361/2 385/16 335/16 58.573 43.582 61.483 741/8 44 44 37 391/16 45 51 477/8 391/16 423/8 3613/16 64.696 48.147 67.606 781/2 44 49 421/2 3825/32 50 56 523/4 3825/32 465/8 401/2 71.199 52.977 74.039 871/8 44 54 467/8 45 55 61 583/8 45 5111/16 447/8 78.742 58.613 81.902 95 54 60 511/2 453/4 60 68 649/16 453/4 571/8 491/2 87.109 64.788 90.269 1031/2 54

NOTE: Dimensions and specifications are subject to change. Certified prints are available.

Principal Dimensions (Inches)

Sizes 10-27 Rotatable Housing

Sizes 30-60 Fixed Housing

Consider discharge location and motor height when specifying.

NOTE: For downblast, contact factory.

CLOCKWISE

TOP DOWN B OTTOM UP

HORIZONTAL BLAST HORIZONTAL BLAST

COUNTERCLOCKWISE

Fan Discharges

L

C

A

T

n

T

M

2 X 2 FLANGE

(OPTIONAL)

OUTSIDE

A

N

P

C

2 1/2

T/2

T

2 X 2 FLANGE

(OPTIONAL)

M

OUTSIDE

P

L

N

D

C

B

A

D

C

B

H

B

D

A

H

B

D

AA

C

D

H

A

C

D

H

A

B

C

A

C

A

H

B

H

"W" MOTOR POSITION

"Z" MOTOR POSITION

NP

C

L

R

OUTSIDE

DRIVE GUARD (OPTIONAL)

Construction Options – Series 03S

Principal Dimensions

A

FAN

BCD E F GH J K LMN P Q

SIZE UB, TH BH, DB

12 185/8 185/8 371/4 371/4 131/8 185/8 5513/16 357/16

1

/2 91/2 133/4 321/4 431/4 293/16 11

1

/2

15 203/4 191/8 397/8 397/8 161/2 203/4 58 357/16

1

/2 1115/16 163/16 331/2 453/4 305/16 121/4 1

18 241/2 24 481/2 481/2 197/8 241/2 721/16 4513/161/2 143/8 185/8 443/4 581/4 367/8 137/16

1

/2 22 285/8 267/8 551/2 551/2 241/4 285/8 763/16 4513/165/8 179/16 2113/16 463/8 613/8 387/16 15 1 24 251/2 291/4 543/4 543/4 267/16 251/2 731/16 4513/165/8 191/8 233/8 473/16 63 391/4 1513/161/2 27 321/4 323/4 65 65 295/8 321/4 953/16 601/4

5

/8 217/16 273/4 651/2 821/2 469/16 17 11/4

30 325/8 353/8 68 68 321/4 325/8 951/2 601/4

3

/4 235/16 295/16 667/16 845/16 471/2 1715/16 11/8

33 325/8 385/8 711/4 711/4 357/16 325/8 951/2 601/4

3

/4 2511/16 3115/16 679/16 863/4 483/4 191/8 15/16

36 403/16 4113/16 82 82 385/8 403/16 1031/8 601/4

3

/4 28 341/4 683/4 89 4913/16 201/4 13/16

40 457/8 463/8 921/4 921/4 431/4 457/8 119 703/8

3

/4 315/16 3711/16 79 1007/8 573/8 2115/16 11/4

44 465/16 5015/16 971/4 971/4 473/4 465/16 1193/8 703/8

3

/4 349/16 4015/16 805/8 1041/4 591/16 235/8 11/4

49 503/16 5513/16 106 106 525/8 503/16 1241/4 713/8

3

/4 381/8 447/16 843/8 1093/4 6013/16 253/8 11/4

Specifications and dimensions are subject to change. Certified prints are available.

Do not attempt to open door unless fan is securely fastened to sufficient foundation and power is locked out.

Construction Features

•

Sizes – 12" - 49" wheel diameters . . . Type BC.

•

Sizes – 18" - 49" wheel diameters . . . Type BA.

•

Rotation – Clockwise or counterclockwise in four discharge positions (TH, BH, UB, DB).

•

Construction – Heavy gauge hot rolled steel. Also available in stainless or aluminum.

•

Finish – Industrial grade enamel. Other special coatings available.

•

Performance – Refer to rating tables in this bulletin.

•

Options & Accessories –

Food grade welding Inlet flanges Bolted access door Drive guard Weather guard Inlet guard AMCA non-sparking construction Drain connection

SERIES 03S – Backward Curved Centrifugal

Fan, Swingout Type, Single Width Arrangement 9 Maximum Temperature – 300°F. 600°F available with heat slinger and guard

FAN MAXIMUM MOTOR

RSTVWXYZ

SIZE FRAME SIZE

12 1215/16 403/4 123/4

1

/2 13 133/4 203/8 13 215T 15 163/16 433/8 143/161/2 14 143/8 221/2 14 215T 18 191/2 52 175/8

1

/2 17 17 261/4 17 256T 22 233/4 59 1913/161/2 19 20 303/8 19 256T 24 2513/16 581/4 223/8

1

/2 20 171/4 271/4 20 256T 27 2815/16 703/8 251/4 11/4 18 317/8 3415/16 18 364T - 365T ODP ONLY 30 313/8 733/8 271/16 11/4 23 247/8 355/16 23 364T - 365T ODP ONLY 33 341/2 765/8 295/16 11/4 23 281/8 355/16 23 364T - 365T ODP ONLY 36 3711/16 873/8 317/8 11/4 26 327/8 427/8 26 364T - 365T ODP ONLY 40 421/8 975/8 353/16 11/4 28 391/8 489/16 28 364T - 365T ODP ONLY 44 4617/32 1025/8 387/16 11/4 32 361/8 49 32 364T - 365T ODP ONLY 49 513/16 1113/8 42 11/4 32 447/8 527/8 32 364T - 365T ODP ONLY

C

L

DRAIN (OPTIONAL)

INSIDE

C

L

C

B

D

A

C

L

E

REF.

F

M

L

G

J

REF.

INSIDE

MAX. REF.

27" THRU 60" ONLY

90° SWING

MIN.

D

PLAN VIEW OF SWING OUT FAN IN OPEN POSITION

WHEEL

C

L

K

T

C

L

V

Q

V

W

Z

Y

H

DIA.

8 PLACES

S

X

C

L

Q

FOUNDATION PLAN

C

L

SCROLL

NOTE: CLOCKWISE SHOWN, COUNTER-CLOCKWISE OPPOSITE.

30

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Construction Features

•

Sizes – 12" - 49" wheel diameters . . . Type BC.

•

Sizes – 18" - 49" wheel diameters . . . Type BA.

•

Rotation – Clockwise or counterclockwise in four discharge positions.

•

Construction – Heavy gauge hot rolled steel. Also available in stainless or aluminum.

•

Finish – Industrial grade enamel. Other special coatings available.

•

Performance – Refer to rating tables in this bulletin. – Add 3% to RPM/6% to BHP.

•

Options & Accessories –

Food grade welding Drive guard Inlet flanges Weather cover Inlet adapters Inlet guard Bolted access door AMCA non-sparking construction

SERIES 03Q – Backward Curved

Centrifugal Fan, Square Type, Single Width Arrangement 2, Belt Drive (Shown) Maximum Temperature – 200°F. Contact factory for high temperature applications.

Principal Dimensions

FAN

MAXIMUM

ABCDE FGH JKLMNPRT

SIZE FRAME

10 111/16 111/4 109/16 2313/16 1119/32 231/4 1215/16 149/16 15/8 211/2

3

/4 16

9

/16 4111/2 184T

12 1215/16 133/16 1115/16 271/2 131/4 269/16 1413/16 1515/16 15/8 211/2

3

/4 16

9

/16 4129/32 184T

13 141/8 141/2 133/16 303/16 147/16 287/8 161/8 173/16 15/8 211/2

3

/4 16

9

/16 41213/16 184T

15 163/16 161/2 147/8 3213/16 161/4 327/16 181/8 187/8 15/8 211/2

3

/4 16

9

/16 4133/4 215T

16 171/4 173/4 1515/16 351/16 175/16 349/16 193/8 1915/16 15/8 211/2

3

/4 16

9

/16 4143/16 184T

18 191/2 197/8 175/8 381/16 193/16 383/8 211/2 215/8 15/8 211/2

3

/4 16

9

/16 4151/8 256T

20 207/8 211/2 20 411/16 205/8 411/4 231/8 24 15/8 211/2

3

/4 16

9

/16 4161/4 256T

22 233/4 245/16 22 451/8 231/8 461/4 2515/16 26 15/8 223/4 16

9

/16 4175/16 256T

24 2513/16 261/2 237/8 489/16 25 501/16 281/8 277/8 15/8 223/4 16

9

/16 45/8 181/4 286T

27 2815/16 2911/16 27 535/8 277/8 553/4 315/16 31 15/8 223/4 16

9

/16 45/8 1913/16 286T

30 313/8 323/16 293/8 579/16 301/16 601/8 3313/16 333/8 15/8 233/4 16

11

/16 45/8 211/16 286T

33 341/2 357/16 321/4 6215/16 3215/16 657/8 371/16 361/4 15/8 233/4 16

11

/16 51/4 221/2 326T

36 375/8 3811/16 35 7313/16 3511/16 715/8 405/16 39 15/8 243/4 32

13

/16 55/8 237/8 326T

40 421/8 431/4 391/4 819/16 3911/16 7911/16 447/8 431/4 15/8 243/4 32

13

/16 55/8 26 364T

44 465/8 4713/16 435/8 877/8 437/8 873/4 497/16 475/8 15/8 253/4 32

13

/16 55/8 283/16 365T

49 513/16 525/8 48 961/8 481/8 961/4 541/4 52 15/8 253/4 32

13

/16 55/8 303/8 365T

Note: Typical dimensions for Class I fan shown. Dimensions are subject to change. Certified prints are available.

CLOCKWISE

COUNTERCLOCKWISE

TOP HORIZONTAL

BOTTOM HORIZONTAL

DOWNBLAST

UPBLAST

31

www.hartzellfan.com

1 (800) 336-3267

®

Construction Options – Series 03Q

INSIDE DISCHARGE

F

G

B

J

D

E

L

TYP.

INSIDE

DISCHARGE

M

A

T

P

CK H

R

N

DIA.

O.D. INLET

– HOLES

REF.

BOLTED ACCESS DOOR (OPTIONAL)

Bulletin A-147-P

ABS Certificate

of Design Assessment

Received

Construction Features

Self-contained, Arrangement 4 (direct drive) fan/motor package. Specifically designed to be used as the primary air moving device in other apparatus in a flange mounted configuration. Typical applications include dust, fume and material collection equipment, and electric motor, switchgear or component cooling.

•

Sizes – Available in 12", 15", 18", 22", 24", 27", 30" and 33" wheel diameters.

•

Rotation – Clockwise and counterclockwise.

•

Construction – Continuously welded hot-rolled steel scroll and continuously welded steel inlet and outlet flanges. Motor base constructed of heavy gauge hot rolled steel. Supplied with inlet mounting adapter as standard.

Construction Features

Plug fans are typically applied in a plenum as the fan enclosure, to be used as primary air circulators in ovens, paint booths, evaporators, kilns, or other types of industrial dryers. The plug fan’s self-contained mounting panel, with or without insulated plug, accommodates ease of installation to a properly supported plenum wall. Plug fans afford efficient air circulation with remote drive in an easy to install and maintain configuration.

•

Sizes – 12" - 60" wheel diameters.

•

Rotation – Clockwise or counterclockwise.

•

Construction – Heavy-duty steel, continuously welded and finished with an industrial grade coating.

Construction Options

32

www.hartzellfan.com

1 (800) 336-3267

®

SERIES 03F –

Backward Curved Centrifugal Fan, Flange Mounted Type, Single Width Arrangement 4 Maximum Temperature – 200°F.

SERIES 11 –

PLUG FANS Arrangements 9 and 4 Class I, II and III Maximum Temperature – 800°F

FAN

ABCDEHXBBCC

SIZE

12 131/16 131/4 141/4 113/4 101/4 1615/16 11 913/16 1215/16 15 203/4 165/8 169/16 143/4 123/4 193/16 121/4 121/4 1613/16 18 231/16 20 187/8 1711/16 153/8 231/2 131/2 1411/16 191/2 22 231/16 247/16 22 219/16 183/4 275/16 15 177/8 233/4 24 231/16 269/16 239/16 231/2 207/16 291/8 1513/16 197/16 2513/16 27 231/16 2913/16 253/4 263/8 227/8 32 17 213/4 2815/16 30 257/16 323/8 271/2 285/8 2413/16 357/16 1715/16 235/8 313/8 33 281/4 355/8 30 311/2 273/8 399/16 191/8 26 341/2

NOTE: Counterclockwise rotation shown. Clockwise rotation opposite. For vertical installation only. For horizontal installation contact factory. Dimensions and specifications are subject to change. Certified prints are available.

FAN Ma x

ABCDDpHJK

Weight

SIZE Motor

12 21 5 193/16 103/4 143/4 815/16 95/8 16 215T 205 15 '' '' '' 131/32 171/32 117/32 '' '' 215T 205 18 31 6 231/2 1523/32 1923/32 131/2 113/4 251/2 256T 422 22 '' '' '' 1823/32 2223/32 161/2 '' '' 256T 453 24 '' '' '' 203/16 243/16 1731/32 '' '' 256T 485 27 48 8 2711/16 223/8 263/8 203/16 191/2 371/2 364T 940 30 '' '' '' 24 28 2125/32 '' '' 364T 933 33 '' '' '' 2611/16 3011/16 2331/32 '' '' 364T 1004 36 '' '' '' 29 33 269/32 '' '' 364T 1110 40 561/2 12 299/16 321/8 361/8 2913/32 191/2 501/2 364T 1363 44 '' '' '' 351/4 391/4 321/2 '' '' 364T 1443 49 '' '' '' 3815/32 4215/32 3523/32 '' '' 364T 1685 54 72 12 3715/16 421/16 461/16 395/16 311/2 611/2 364T 2805 60 '' '' '' 4611/32 5011/32 4319/32 '' '' 364T 3091

NOTE: Weight is less motor and options. Dimension “D” applies without insulating plug. Dimensions are subject to change. Certified prints are available.

Principal Dimensions

Bulletin A-147-P

ABS Certificate

of Design Assessment

Received

Refer to sales

drawings for

additional

dimensions.

Refer to sales

drawings for

additional

dimensions.

NOTE:

MOTOR IN VERTICAL POSITION ONLY.

A

REF.

BB

K

OUTSIDE

X

CC

OUTSIDE

COUNTERCLOCKWISE ROTATION SHOWN, CLOCKWISE OPPOSITE

J

AA

OUTSIDE

C

D

AA

EB

SECTION

A-A

REQ'D

DD

DIA.

F

BOLT CIRCLE

G

33

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Specifications

Backward Curved Centrifugal Fan, SWSI (Belt Drive)

The belt drive Backward Curved Centrifugal Fan, Single Width shall be manufactured by Hartzell Fan, Inc.

®

, Series 03, ARRG.

1, 9, 9M, or 10, Class I, II, or III.

Wheels available are the backward curved (BC, 12" – 60") or the airfoil (BA, 18" – 60"). Rotation as determined by the drive side of the fan, shall be clockwise or counterclockwise.

Fan housing, for sizes 12" through 33", shall be field rotatable and the discharge shall be any of the eight AMCA standard positions. Sizes 36" through 60" shall be a fixed construction for the rotation and discharge specified. The fan shall be packaged, completely assembled and ready to install, except for ARRG.1, which is less motor and drive.

The fan housing and base shall be a heavy gauge commercial quality carbon steel suitable for temperatures up to 300°F and with modifications up to 800°F (ARRG. 10 limited 250°F to 600°F). The housing and wheels shall be continuously welded in compliance with AWS D1.1 standard.

The wheels shall be commercial quality carbon steel with single thickness airfoil blades or double thickness hollow airfoil blades and have non-overloading horsepower characteristics. The wheel shall be mounted to the fan shaft with a split taper bushing.

The shafts shall be ground and polished. The fan bearings shall be heavy duty, self-aligning ball or roller type (depending on fan size, motor HP, and performance) relubricatable for continuous service. They shall have a minimum L10 life of 50,000 hours. The belts shall be an oil, heat, and static-resistant type, oversized for continuous duty.

Lifting lugs are a standard feature, for ease of handling and installation.

The fan assembly shall be dynamically balanced at the Hartzell factory prior to shipping. Fans shall be balanced in accordance with AMCA Standard 204-96, fan application category BV-3 (comparable to Grade G6.3).

Fans shall be manufactured in accordance with Hartzell's standard quality assurance procedures.

The fan performance shall be based on tests conducted in Hartzell's AMCA accredited laboratory in accordance with the latest revision of AMCA Standard 210 for air performance and AMCA Standard 300 for sound and published in accordance with AMCA Publication 211 (Air) and AMCA Publication 311 (Sound). Fans shall be licensed to bear the AMCA Certified Sound and Air Performance Rating Seal for the BC wheel only.

Backward Curved Centrifugal Fan, SWSI (Direct Drive)

The Direct Drive Backward Curved Centrifugal fan shall be manufactured by Hartzell Fan, Inc., Piqua, Ohio. Series 03 ___ (Arrangement 4) ____ (Size), ____ (Class I, II, or III), SWSI.

The fan shall have a capacity of _______ CFM at _________ inch(es) static pressure, standard air.The fan shall be supplied with a _____ horsepower, _____ RPM, industrial continuous duty (or alternate electrical specification) _______ (ODP, TEFC explosion proof) motor to operate on ______ volts, ________ cycles, ________ phase.

Rotation as determined by the drive side of the fan shall be _____ (clockwise or counterclockwise). Discharge shall be _____ (any of the eight AMCA standard positions). The fan shall be packaged, completely assembled, inspected for adherence to specifications and test run at the factory, and ready to install.

The fan housing and base shall be a heavy gauge commercial quality carbon steel suitable for temperatures of up to 200°F. The housing and wheel shall be continuously welded in compliance with AWSD1.1 and D1.2 standards.

The wheels shall be commercial quality, carbon steel, with __________ (single thickness, Type BC or airfoil, Type BA backward curved blades), having non-overloading horsepower characteristics.

Lifting lugs shall be supplied as a standard design feature for ease of handling and installation.

The fan assembly shall be dynamically balanced at the Hartzell factory prior to shipping. All fans shall meet the balance requirements of the Acoustical Society of America Standard ASASTD2-1975 (ANSI S2 19-1975), Grade G6.3.

Fans shall be manufactured in accordance with Hartzell standard, published quality assurance procedures and shipped complete with installation, operation, and maintenance instructions.

The fan performance shall be based on tests conducted in Hartzell's AMCA accredited laboratory in accordance with the latest revision of AMCA Standard 210 for air performance and AMCA Standard 300 for sound and published in accordance with AMCA Publication 211 (Air) and AMCA Publication 311 (Sound). Fans shall be licensed to bear the AMCA Certified Sound and Air Performance Rating Seal for the BC wheel only.

34

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

Options and Accessories

Drain Pipe Coupling

A standard pipe coupling welded to housing at its lowest point; female pipe has threaded plug.

Access Door

For maintenance and clean-out of internal fan housing. Bolted and gasketed. A hinged, quick release type also available for Class I only.

Vibration Isolator

Rubber-in-shear or spring-type isolators are available.

Combination Drive Guard and Weather Cover

Covers motor and shaft sheaves as well as belts. Combines guarding of the drive as well as protection from the weather.

Shaft Guard Arrangement 9 or 1

Belt Drive Guard Arrangement 9

Arrangement 9

Arrangement 4

Drive Guards

Encloses the drive assembly while permitting circulation of ambient air. Standard features include: tach opening, belt tension openings and adjustable length.

Inlet and Outlet Guards

Spiral ring guard offers protection on inlet side and a wire mesh guard can be furnished for the outlet side.

Flanged Inlet and Outlet

Welded flanges. Drilled flanges can be furnished, if specified.

Neoprene Shaft Seal and Slinger

Shaft seal limits contaminants from the airstream passing through shaft hole in the housing. Seals are not gas tight. A neoprene shaft seal and slinger are required when stainless steel shaft and hardware are specified. For temperatures to 300°F.

Inlet Guard

Outlet Guard

Discharge Backdraft Damper

Automatic gravity operated backdraft damper eliminates backflow of air when fan is not operating. Class I only.

Arrangements

Arrangement 8 and other arrangements not shown are available, (see page 6). Contact factory.

Arrangement 1 Sub-Base

Common structural support for Arrangement 1 fan and motor. Specify motor mounting position (See page 3).

Arrangement 9M Motor Base

Accommodates a larger frame size motor than the standard Arrangement 9 base.

Heat Fan Accessories – Series 03

Heat Slinger

Draws cool air over inboard bearing and reduces heat conduction from wheel through shaft. Heat slinger guard included.

Motor Heat Shield (Arr. 9 Fans)

Aluminum plate attached to base between fan scroll and motor assists in heat deflection and dissipation. Aluminum shaft plate is standard on all Series 03 blowers.

High Temperature Shaft Seal

Shaft seal encased between housing drive side and metal retaining plate. Required for temperatures from 300°F to 800°F.

CAUTION: The drive assembly or the periphery of the wheel of a fan less than seven (7) feet above the floor or working level must be guarded to be in accordance with OSHA regulations.

35

Bulletin A-147-P

www.hartzellfan.com

1 (800) 336-3267

®

10.0

5.0

1.0

.50

.10

.05

.01

Pressure drop in inches of water.

10 50 100 500 1000 5000 10000

Face velocity in feet per minute.

1

/

4

o

p

e

n

(

2

1

/

2

°

r

o

t

a

t

i

o

n

)

1

/

2

o

p

e

n

(

4

5

°

r

o

t

a

t

i

o

n

)

3

/

4

o

p

e

n

(

6

7

1

/

2

°

r

o

t

a

t

i

o

n

)

F

u

l

o

p

e

n

(

9

0

°

r

o

t

a

t

i

o

n

)

Typical performance curve for parallel

blade dampers.

10.0

5.0

1.0

.50

.10

.05

.01

Pressure drop in inches of water.

10 50 100 500 1000 5000 10000

Face velocity in feet per minute.

1

/

4

o

p

e

n

(

2

1

/

2

°

r

o

t

a

t

i

o

n

)

1

/

2

o

p

e

n

(

4

5

°

r

o

t

a

t

i

o

n

)

3

/

4

o

p

e

n

(

6

7

1

/

2

°

r

o

t

a

t

i

o

n

)

F

u

l

o

p

e

n

(

9

0

°

r

o

t

a

t

i

o

n

)

Typical performance curve for opposed

blade dampers.

Corrosive Applications

Protective Coatings

An epoxy coating is available for mildly corrosive atmospheres. The finish is chemical, moisture and abrasion resistant, providing a very tough and durable coating. Surfaces are phosphatized prior to coating. Finish air dries to 6 mils. Temperatures range up to 250°F.

Inorganic zinc coating is also available. This finish is a very hard coating with exceptional abrasion resistance. Offers excellent weathering characteristics and resistance to alcohols, solvents, and petroleum products. Also, resistant to temperatures up to 600°F. Surfaces are sandblasted prior to application. Finish air dries to 2

1

/2 mil thickness.

Fiberglass Units

Where extreme corrosive fumes are encountered, Hartzell Fiberglass Backward Curved Blowers, Series 41, give unsurpassed resistance to a wide variety of corrosive elements at a cost substantially below that of corrosive resistant metals. Size range of 12" to 60" wheel diameter. For complete details on Hartzell Fiberglass Centrifugal Fans, See Bulletin A-160.

Spark Resistant Construction

For safely handling fumes and vapors, Hartzell offers three types of spark resistant construction. Types A, B, and C as outlined in AMCA Standard 99-0401-86.

Type A – All aluminum fan housing, inlet cone and wheel with a

ground and polished steel shaft covered with an aluminum sleeve. Temperature limitation of 350°F, with high temperature construction. Material Code AA.

Type B – Aluminum wheel and aluminum wear plate where the

shaft passes through the housing. Temperature limitation of 350°F, with high temperature construction. Material Code AB.

Type C – Aluminum inlet cone and aluminum wear plate where

the shaft passes through the housing. Temperature limitation of 350°F, with high temperature construction. Material Code AC.

NOTES: No bearings, drive components, or electrical devices

shall be placed in the air or gas stream. The user shall electrostatically ground all fan parts. The use of the above standard in no way implies a

guarantee of safety for any level of spark resistance. Spark resistant construction also does not protect against any airstream material that may be present in a system which might cause ignition of explosive gases.

Split Housing

Heavy-Duty Control Dampers

Inlet Control Damper

Increases the efficiency of the blower and permits control of air volume.

Outlet Dampers

Dampers are mounted directly on the blower outlet to control the volume of air delivered to the system. Opposed and parallel blades are available constructed of standard gauge steel and available with a variety of finishes.

Parallel Blade Type

Best suited for applications requiring accurate air volume in a range from wide open to 75% of wide open. Usually used for balancing the system or for modulated control when pressure drop is variable.

Opposed Blade Type

Best suited for control over a broad range of air volume with more precise control.

Both types of outlet control dampers are available in three classifications:

Classification:

Class I – Maximum static pressure: 5" SP

Maximum velocity: 3900 FPM

Class II – Maximum static pressure: 8-1/2" SP

Maximum velocity: 5100 FPM

Class III – Maximum static pressure: 20" SP

Maximum velocity: 6000 FPM

NOTE: Class III dampers must be used on installation with

temperatures above 250°F.

Type 1 – Available on top angular up, down blast, bottom horizontal, upblast, bottom angular down fans. Allows removal of section without disturbing inlet.

Type 2 – Available top horizontal, top angular down and bottom angular up fans. Allows removal of pie-shaped section without disturbing inlet or outlet.

SAFETY ACCESSORIES, APPLICATION AND USE WARNING

The safe application and use of equipment supplied by Hartzell Fan, Inc. is the responsibility of the installer, the user, the owner, and the employer. Since the application and use of its equipment can vary greatly, Hartzell Fan, Inc. offers various product types, optional safety accessories, and sound performance data per laboratory tests. Hartzell Fan, Inc. sells its equipment with and without safety accessories, and accordingly, it can supply such safety accessories only upon receipt of an order. The need for safety accessories will frequently depend upon the type of system, fan location and operating procedures being employed. The proper protective safety accessories to meet company standards, local codes, and the requirements of the Occupation Safety and Health Act must be determined by the user since safety requirements vary depending on the location and use of the equipment. If applicable local conditions, standards, codes or OSHA rules require the addition of the safety accessories, the user should specify and obtain the required safety accessories from Hartzell Fan, Inc. and should not allow the operation of the equipment without them.

Owners, employers, users and installers should read “RECOMMENDED SAFETY PRACTICES FOR USERS AND INSTALLERS OF INDUSTRIAL AND COMMERCIAL FANS” published by the Air Movement and Control Association International, Inc., 30 West University Drive, Arlington Heights, Illinois 60004. A copy of this publication is enclosed with each fan shipped from Hartzell Fan, Inc., and is available upon request at Hartzell’s office in Piqua, Ohio 45356.

Please contact Hartzell Fan, Inc. or your local Hartzell representative for more information on product types, safety accessories, and sound performance estimates. Remember, the selection of safety accessories and the safe application and use of equipment supplied by Hartzell Fan, Inc. is your responsibility.

Series 41

Arrangement 9

Hartzell Warranty

Rev. Warranty 5/1/11

LIMITED WARRANTIES

Hartzell represents to Buyer that any goods to be delivered hereunder will be produced in compliance with the requirements of the Fair Labor Standards Act of 1938 as amended.

Hartzell also warrants to Buyer its goods to be free from defects in workmanship and material under normal use and service for one (1) year after tender of delivery by Hartzell, plus six months allowance for shipment to approved stocking dealers and distributors. No warranty extends to future performance of goods and any claims for breach of warranty or otherwise accrues upon tender of delivery.

The foregoing constitute Hartzell’s sole and exclusive warranties and are in lieu of all other warranties, whether written, oral, express, implied or statutory.

LIMITATION OF LIABILITY FOR BREACH OF WARRANTY

Hartzell’s obligation for any breach of warranty is limited to repairing or replacing, at its option, without cost to Buyer at its factory any goods which shall, within such a warranty period, be returned to it with transportation charges prepaid, and which its examination shall disclose to its satisfaction to have been defective. Any request for repair or replacement should be directed to Hartzell Fan, Inc., P.O. Box 919, Piqua, Ohio 45356. Hartzell will not pay for any repairs made outside its factory without its prior written consent. This does not apply to any such Hartzell goods which have failed as a result of faulty installation or abuse, or incorrect electrical connections or alterations, made by others, or use under abnormal operating conditions or misapplication of the goods.

LIMITATION OF LIABILITY

To the extent the above limitation of liability for breach of warranty is not applicable, the liability of Hartzell on any claim of any kind, including negligence, for any loss or damage arising out of or connected with, or resulting from the sale and purchase of the goods or services covered by these Terms and Conditions of Sale or from the performance or breach of any contract pertaining to such sale or purchase or from the design manufacture, sale, delivery, resale, installation, technical direction installation, inspection repair, operation or use of any goods or services covered by these Terms and Conditions shall, in no case exceed the price allocable to the goods or services which gave rise to the claim and shall terminate one year after tender of delivery of said goods or services, plus six months allowance for shipment to approved stocking dealers and distributors. In no event will Hartzell be responsible or liable for any labor or other incidental costs associated with the removal or replacement of defective products or materials.

In no event whether as a result of breach of contract, or warranty or alleged negligence, defects, incorrect advice or other causes, shall Hartzell be liable for special or consequential damages, including, but not limited to, loss of profits or revenue, loss of use of the equipment or any associated equipment, cost of substitute equipment, facilities or services, down time costs, or claims of customers of the Buyer for such damages. Hartzell neither assumes nor authorizes any person to assume for it any other liability in connection with the sale of its goods or services.

NO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS

HARTZELL DOES NOT WARRANT THAT SAID GOODS ARE OF MERCHANTABLE QUALITY OR THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE. THERE IS NO IMPLIED WARRANTY OF MERCHANTABILITY AND THERE IS NO IMPLIED WARRANTY OF FITNESS.

www.hartzellfan.com

Propeller Fans

Vaneaxial Blowers

Heating Equipment –

Gas & Steam

Hartzell Fan, Inc., Piqua, Ohio 45356 • Plants in Piqua, Ohio and Portland, Indiana.

Cooling Tower &

Heat Exchanger Fans

Cool Blast & Utility Fans

Fiberglass

Axial Flow Fans

Duct Fans

Steel Centrifugal Blowers

Fiberglass Centrifugal

Blowers

Duct Axial Fans

Roof Ventilators –

Steel & Fiberglass

Marine –

Mine Duty Blowers

Litho in U.S.A. A-147-P 5/09

Hartzell 03P-12-3 Click Here for the Hartzell Series 03P Spec Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
