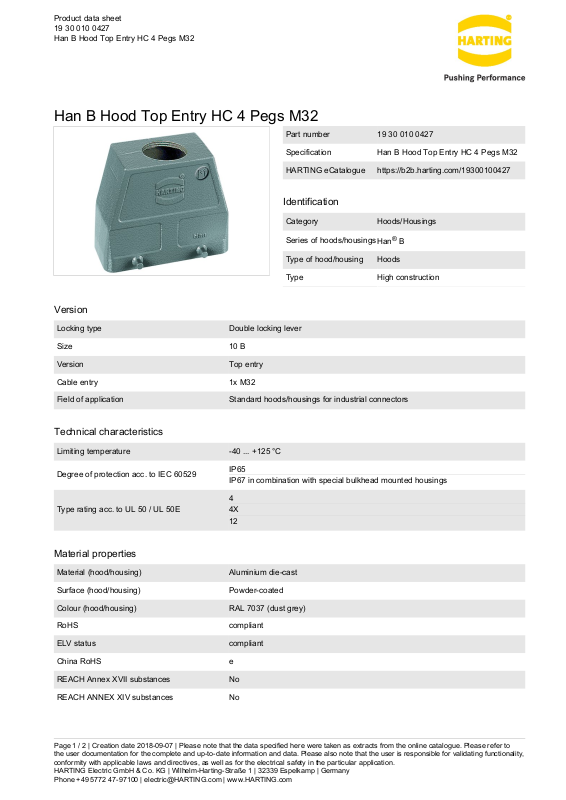

Product data sheet
19 30 010 0427
Han B Hood Top Entry HC 4 Pegs M32

Han B Hood Top Entry HC 4 Pegs M32

Part number 19 30 010 0427

Specification Han B Hood Top Entry HC 4 Pegs M32

HARTING eCatalogue https://b2b.harting.com/19300100427

Identification

Category Hoods/Housings

Series of hoods/housings

Type of hood/housing Hoods

Type High construction

Han® B

Version

Locking type Double locking lever

Size 10 B

Version Top entry

Cable entry 1x M32

Field of application Standard hoods/housings for industrial connectors

Technical characteristics

Limiting temperature -40 ... +125 °C

Degree of protection acc. to IEC 60529

Type rating acc. to UL 50 / UL 50E

IP65
IP67in combination with special bulkhead mounted housings

4
4X
12

Material properties

Material (hood/housing) Aluminium die-cast

Surface (hood/housing) Powder-coated

Colour (hood/housing) RAL 7037 (dust grey)

RoHS compliant

ELV status compliant

China RoHS e

REACH Annex XVII substances No

REACH ANNEX XIV substances No

Page1/2 | Creation date2018-09-07 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany
Phone [phone] | [email protected] | www.HARTING.com

Product data sheet
19 30 010 0427
Han B Hood Top Entry HC 4 Pegs M32

Material properties

REACH SVHC substances No

Specifications and approvals

Approvals DNV GL

UL / CSA

UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076

Commercial data

Packaging size 1

Net weight 160.1g

Country of origin Germany

Customs tariff number 85389099
