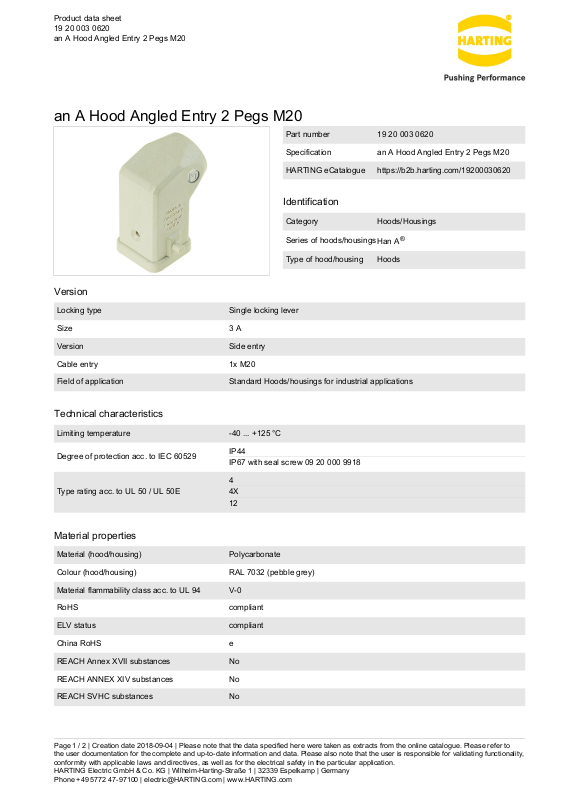

Product data sheet
19 20 003 0620
an A Hood Angled Entry 2 Pegs M20

an A Hood Angled Entry 2 Pegs M20

Part number 19 20 003 0620

Specification an A Hood Angled Entry 2 Pegs M20

HARTING eCatalogue https://b2b.harting.com/19200030620

Identification

Category Hoods/Housings

Series of hoods/housings

Type of hood/housing Hoods

Han A

®

Version

Locking type Single locking lever

Size 3 A

Version Side entry

Cable entry 1x M20

Field of application Standard Hoods/housings for industrial applications

Technical characteristics

Limiting temperature -40 ... +125 °C

Degree of protection acc. to IEC 60529

Type rating acc. to UL 50 / UL 50E

IP44
IP67with seal screw 09 20 000 9918

4
4X
12

Material properties

Material (hood/housing) Polycarbonate

Colour (hood/housing) RAL 7032 (pebble grey)

Material flammability class acc. to UL94 V-0

RoHS compliant

ELV status compliant

China RoHS e

REACH Annex XVII substances No

REACH ANNEX XIV substances No

REACH SVHC substances No

Page1/2 | Creation date2018-09-04 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany
Phone [phone] | [email protected] | www.HARTING.com

Product data sheet
19 20 003 0620
an A Hood Angled Entry 2 Pegs M20

Specifications and approvals

Approvals DNV GL

UL / CSA

UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076

Commercial data

Packaging size 10

Net weight 12.62g

Country of origin Romania

Customs tariff number 85389099
