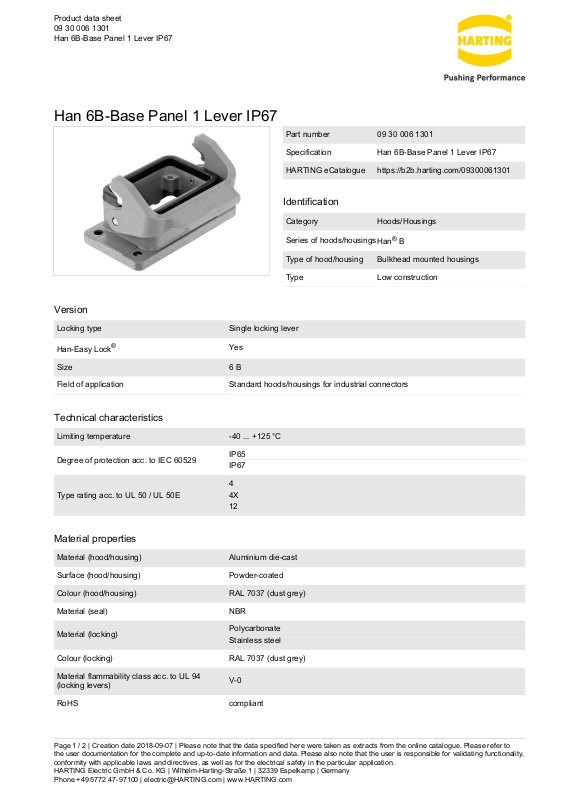

HARTING 09300061301 Datasheet

Product data sheet
09 30 006 1301
Han 6B-Base Panel 1 Lever IP67

Han 6B-Base Panel 1 Lever IP67

Part number 09 30 006 1301

Specification Han 6B-Base Panel 1 Lever IP67

HARTING eCatalogue https://b2b.harting.com/09300061301

Identification

Category Hoods/Housings

Series of hoods/housings

Type of hood/housing Bulkhead mounted housings

Type Low construction

Han® B

Version

Locking type Single locking lever

Han-Easy Lock

Size 6 B

Field of application Standard hoods/housings for industrial connectors

®

Yes

Technical characteristics

Limiting temperature -40 ... +125 °C

Degree of protection acc. to IEC 60529

Type rating acc. to UL 50 / UL 50E

IP65
IP67

4
4X
12

Material properties

Material (hood/housing) Aluminium die-cast

Surface (hood/housing) Powder-coated

Colour (hood/housing) RAL 7037 (dust grey)

Material (seal) NBR

Material (locking)

Colour (locking) RAL 7037 (dust grey)

Material flammability class acc. to UL 94
(locking levers)

RoHS compliant

Page1/2 | Creation date2018-09-07 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany
Phone [phone] | [email protected] | www.HARTING.com

Polycarbonate
Stainless steel

V-0

Product data sheet
09 30 006 1301
Han 6B-Base Panel 1 Lever IP67

Material properties

ELV status compliant

China RoHS e

REACH Annex XVII substances No

REACH ANNEX XIV substances No

REACH SVHC substances No

Specifications and approvals

Approvals DNV GL

UL / CSA

UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076

Commercial data

Packaging size 1

Net weight 97.9g

Country of origin China

Customs tariff number 8538900000
