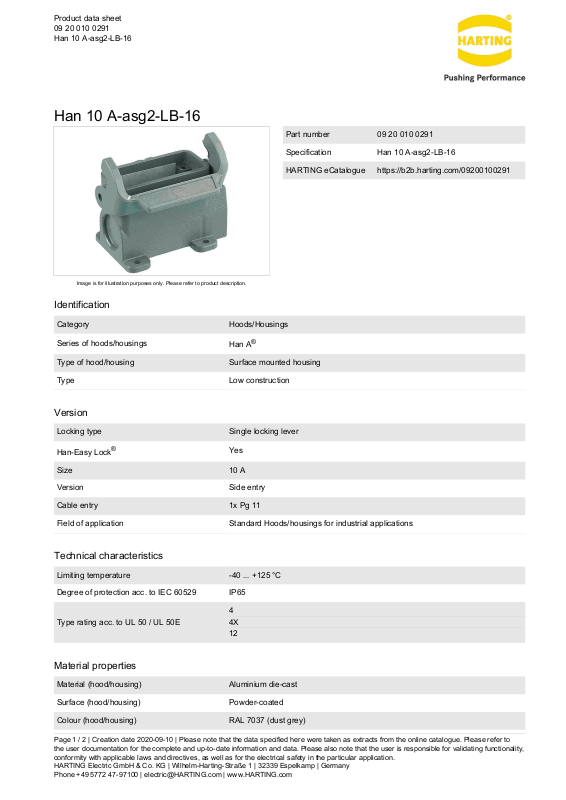

Page 1
Product data sheet
09 20 010 0291
Han 10 A-asg2-LB-16
Han 10 A-asg2-LB-16
Image is for illustration purposes only. Please refer to product description.
Part number 09 20 010 0291
Specification Han 10 A-asg2-LB-16
HARTING eCatalogue https://b2b.harting.com/09200100291
Identification
Category Hoods/Housings
Series of hoods/housings
Type of hood/housing Surface mounted housing
Type Low construction
Han A
®
Version
Locking type Single locking lever
Han-Easy Lock
Size 10 A
Version Side entry
Cable entry 1x Pg 11
Field of application Standard Hoods/housings for industrial applications
®
Yes
Technical characteristics
Limiting temperature -40...+125°C
Degree of protection acc. to IEC 60529 IP65
4
Type rating acc. to UL 50 / UL 50E
4X
12
Material properties
Material (hood/housing) Aluminium die-cast
Surface (hood/housing) Powder-coated
Colour (hood/housing) RAL 7037 (dust grey)
Page1/2 | Creation date2020-09-10 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany
Phone +49 5772 47-97100 | [email protected] | www.HARTING.com
Page 2
Product data sheet
09 20 010 0291
Han 10 A-asg2-LB-16
Material properties
Material (locking)
Colour (locking) RAL 7037 (dust grey)
Material flammability class acc. to UL 94
(locking levers)
RoHS compliant with exemption
RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
ELV status compliant with exemption
China RoHS 50
REACH Annex XVII substances No
REACH ANNEX XIV substances No
REACH SVHC substances Yes
REACH SVHC substances
Polycarbonate (PC)
Stainless steel
V-0
Lead
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Specifications and approvals
Approvals DNV GL
UL / CSA
CE
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076
Yes
Commercial data
Packaging size 1
Net weight 157.56g
Country of origin Germany
European customs tariff number 85389099
eCl@ss 27440202 Shell for industrial connectors
Page2/2 | Creation date2020-09-10 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to the
user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany
Phone +49 5772 47-97100 | [email protected] | www.HARTING.com
