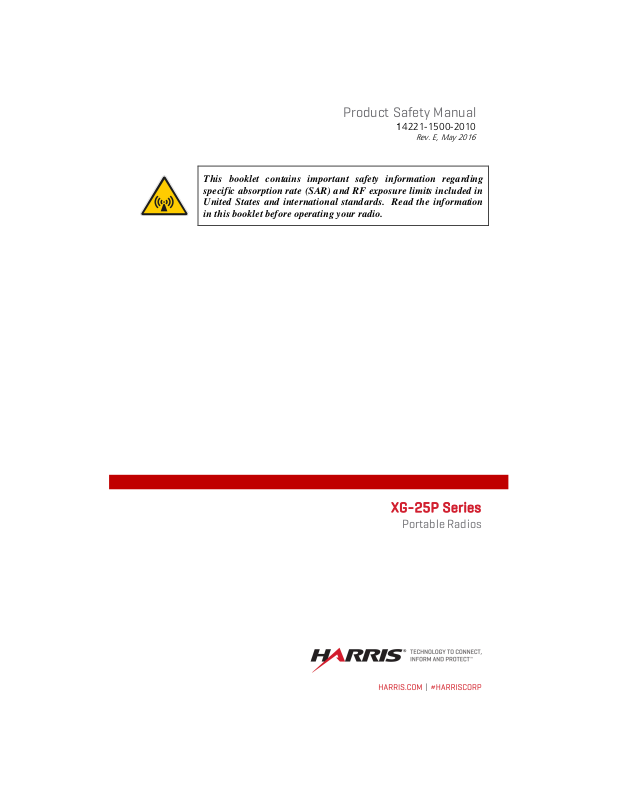

Product Safety Manual
Rev. E, May 2016
This booklet contains important safety information regarding
14221-1500-2010
specific absorption rate (SAR) and RF exposure limits included in
United States and international standards. Read the information
in this booklet before operating your radio.
XG-25P Series
Portable Radios
REV
DATE
DESCRIPTION
-
Dec/11
Initial release
A
Oct/12
Added 700/800 MHz.
B
Sep/13
Added UHF-L and French translations. Updated warranty.
C
Jul/14
Added CE information. Add STORING LI-ION BATTERY
PACKS. Updated layout.
D
Aug/15
Added HAZLOC information.
E
May/16
Updated front and back cover.
