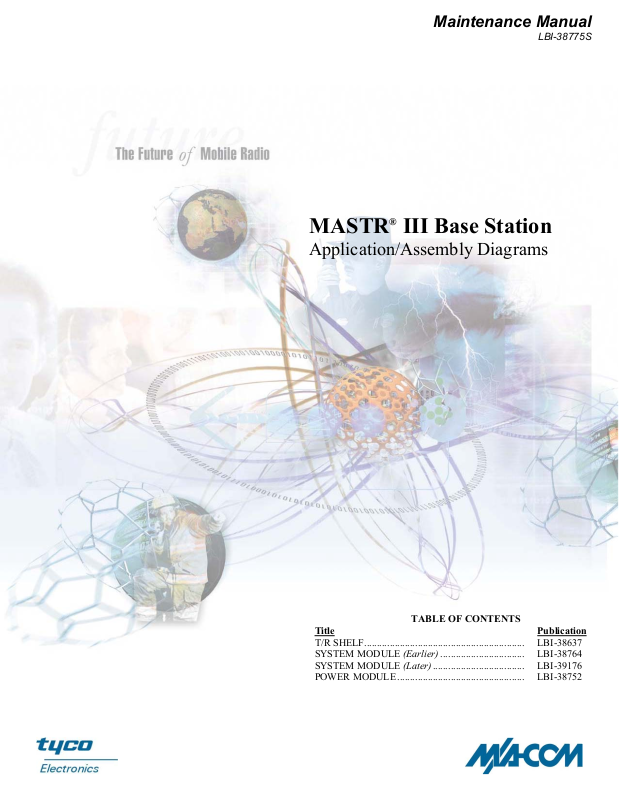

HARRIS TR-0028-E, TR-0027-E, TR-0025-E, TR-0026-E, TR-0024-E User Manual

...
Maintenance Manual
LBI-38775S
MASTR® III Base Station
Application/Assembly Diagrams
TABLE OF CONTENTS
Title Publication
TABLE OF CONTENTS
TABLE OF CONTENTS
SAFETY INFORMATION ..............................................................................................................................................3
INTRODUCTION ............................................................................................................................................................ 4
APPLICATIONS.............................................................................................................................................................. 5
APPLICATION ASSEMBLY DIAGRAMS....................................................................................................................7
37" INDOOR CABINET 19D902845P1...................................................................................................................... 7
T/R SHELF, SQUELCH OPERATED RELAY, DATA MODULE, AMPLIFIER MODULE & TRANSMIT
ONLY STATION 19D902845P2, P7, P14, P19 & P32 ...................................................................................13
COAX SWITCH ASSEMBLY 19D902845P3...........................................................................................................15
37" INDOOR CABINET WITH DUPLEXER SHELF 19D902845P4...................................................................... 16

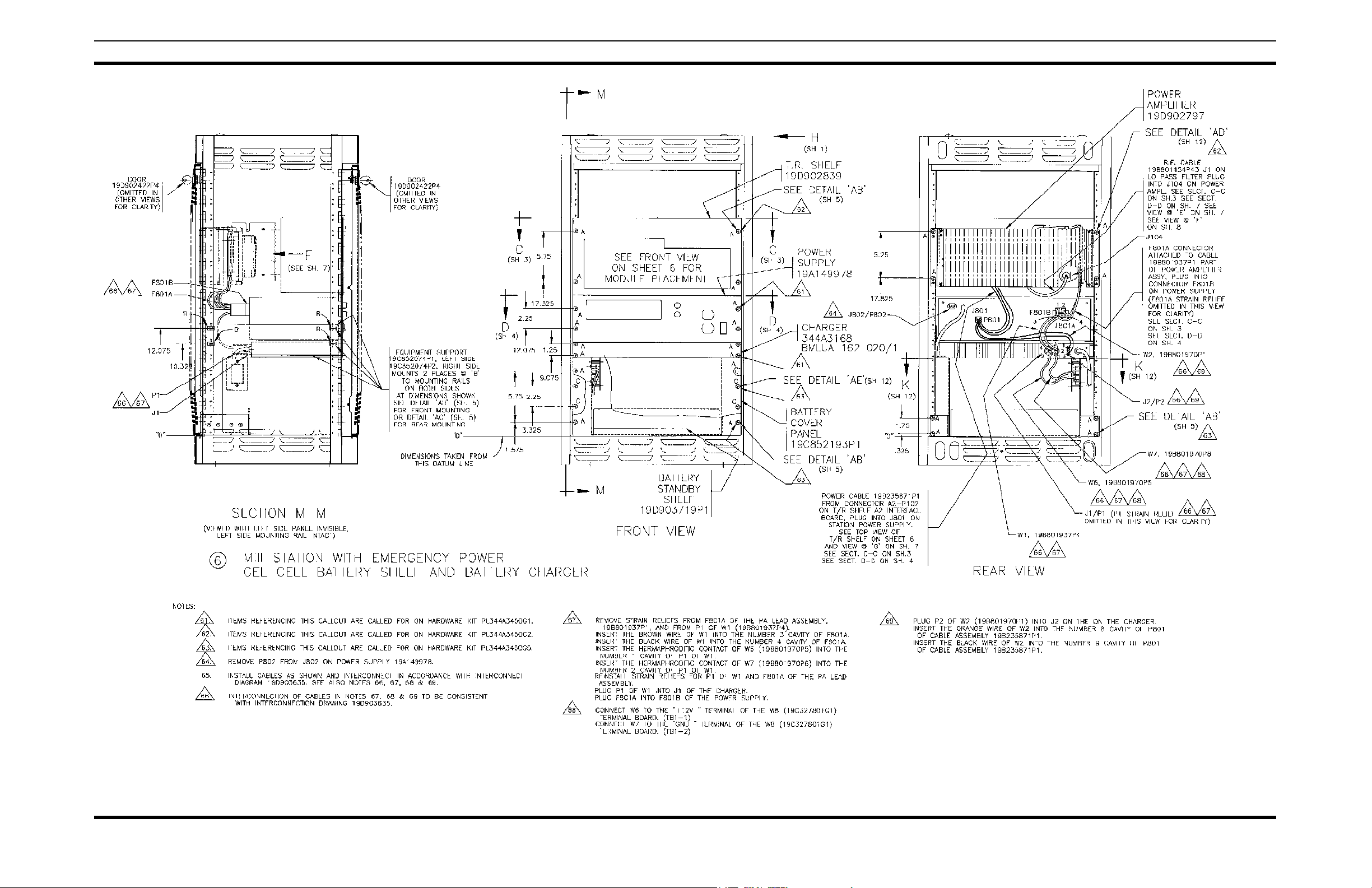

37" INDOOR CABINET WITH AUTOMOBILE BATTERY EMERGENCY POWER 19D902845P5.................17
37" INDOOR CABINET WITH GEL CELL BATTERY EMERGENCY POWER 19D902845P6 ......................... 18
69" INDOOR CABINET WITH ONE STATION 19D902845P21............................................................................20

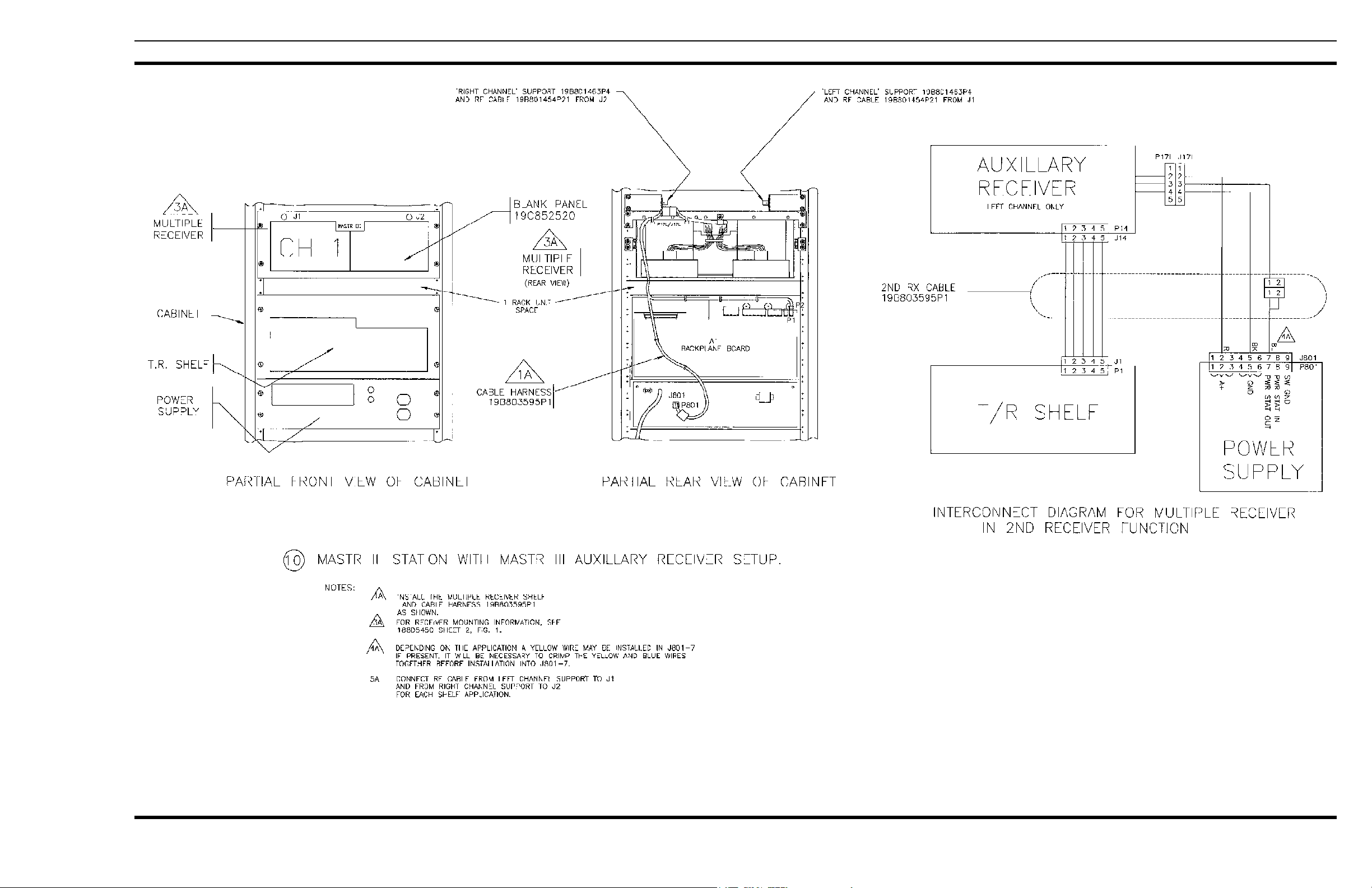

MASTR III STATION WITH MASTR II AUXILIARY RECEIVER 19D902845P8 ..............................................24
MASTR III TX P.A. aa57-HRB 10426 ......................................................................................................................25
MASTR III STATION WITH MASTR III MULTIPLE RECEIVER 19D902845P10.............................................. 27
69" INDOOR CABINET WITH GETC SHELF 19D902845P9 ................................................................................28

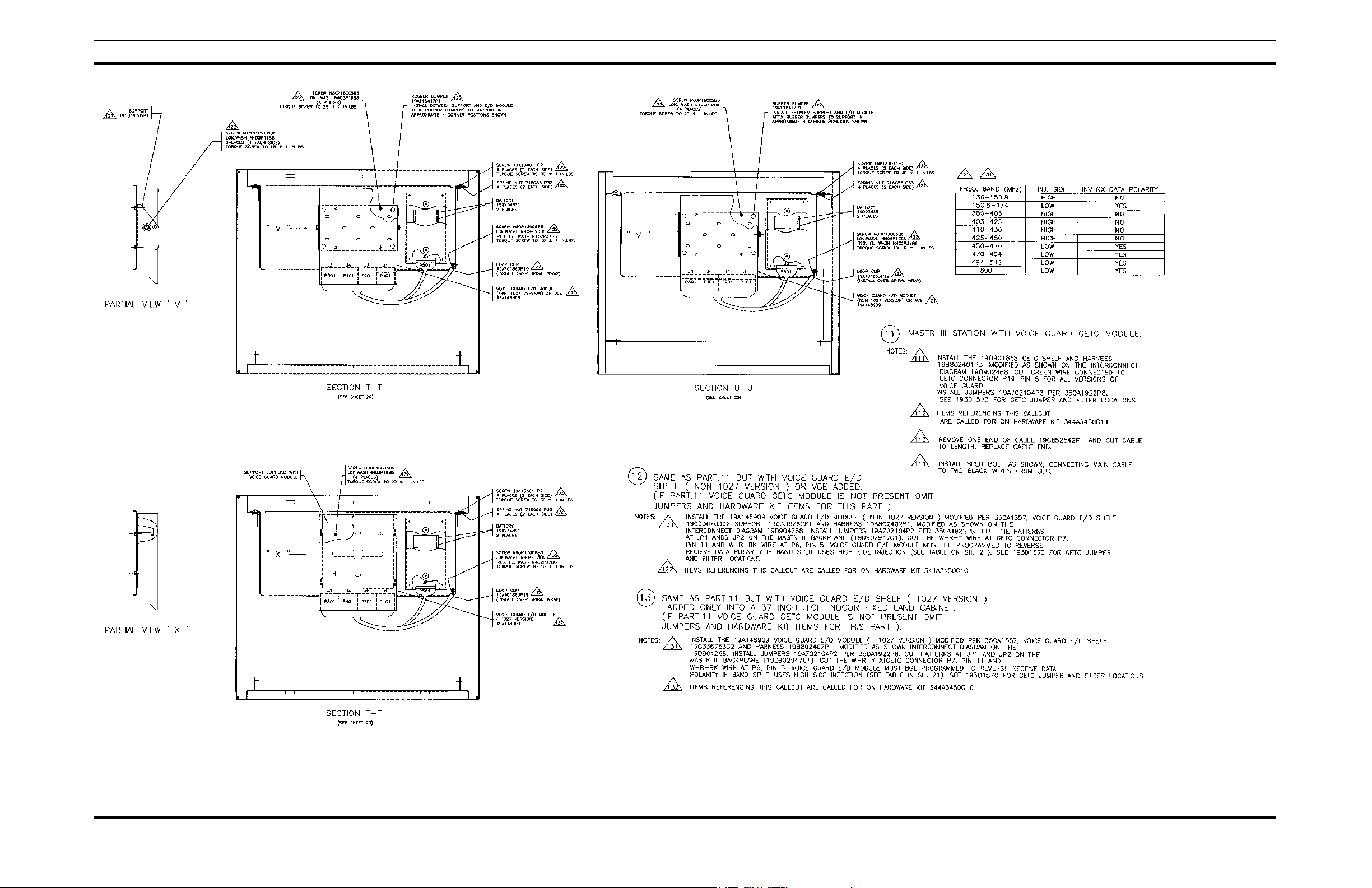

MASTR III BASE STATION WITH VOICE GUARD GETC MODULE 19D902845P11-P13..............................29
EDACS CABINET WITH ONE STATION 19D902845P15.....................................................................................31
EDACS CABINET WITH MULTI-STATIONS 19D902845P16..............................................................................32

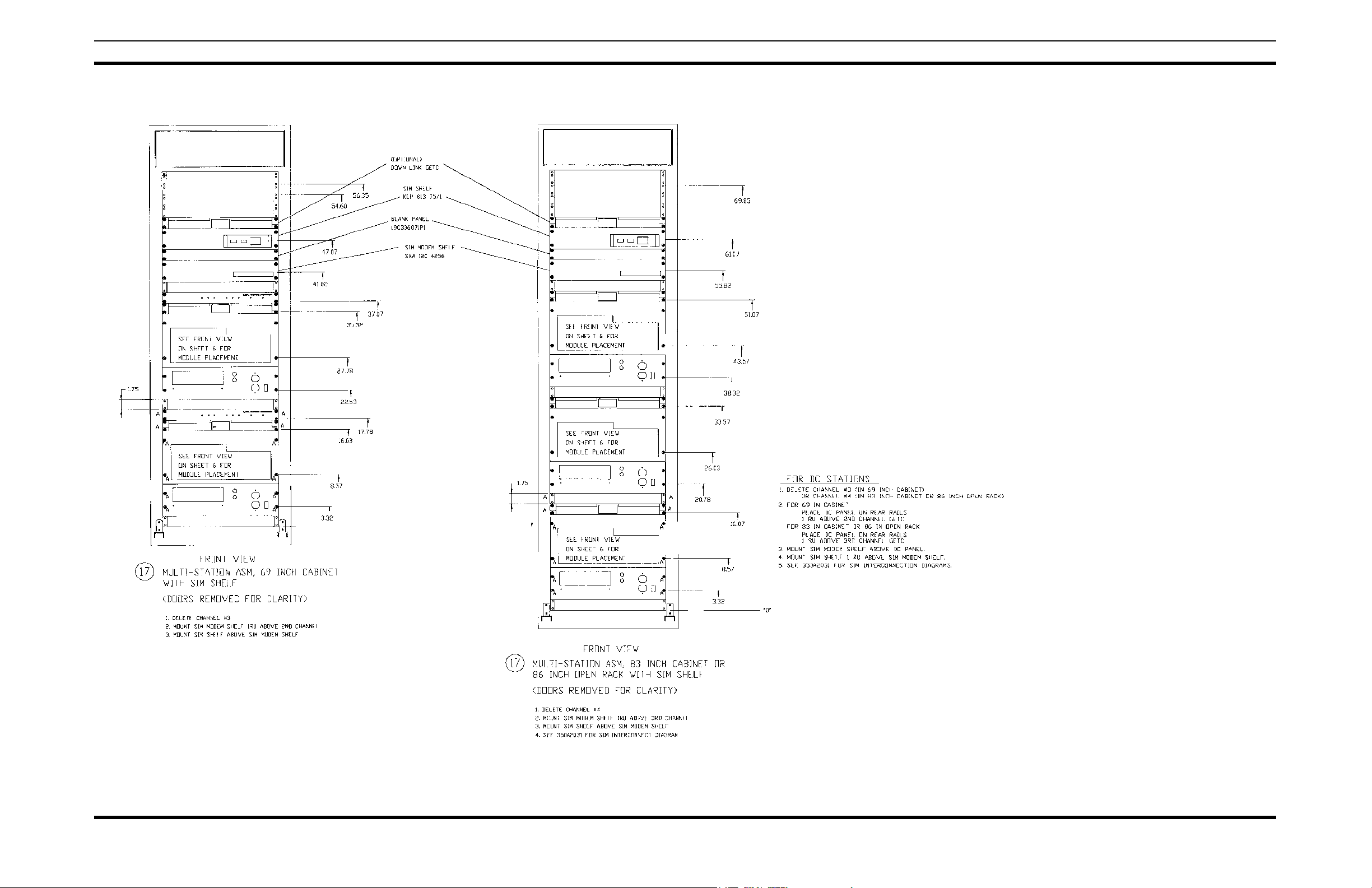

EDACS MULTI-STATION CABINET WITH SIM SHELF 19D902845P17...........................................................34

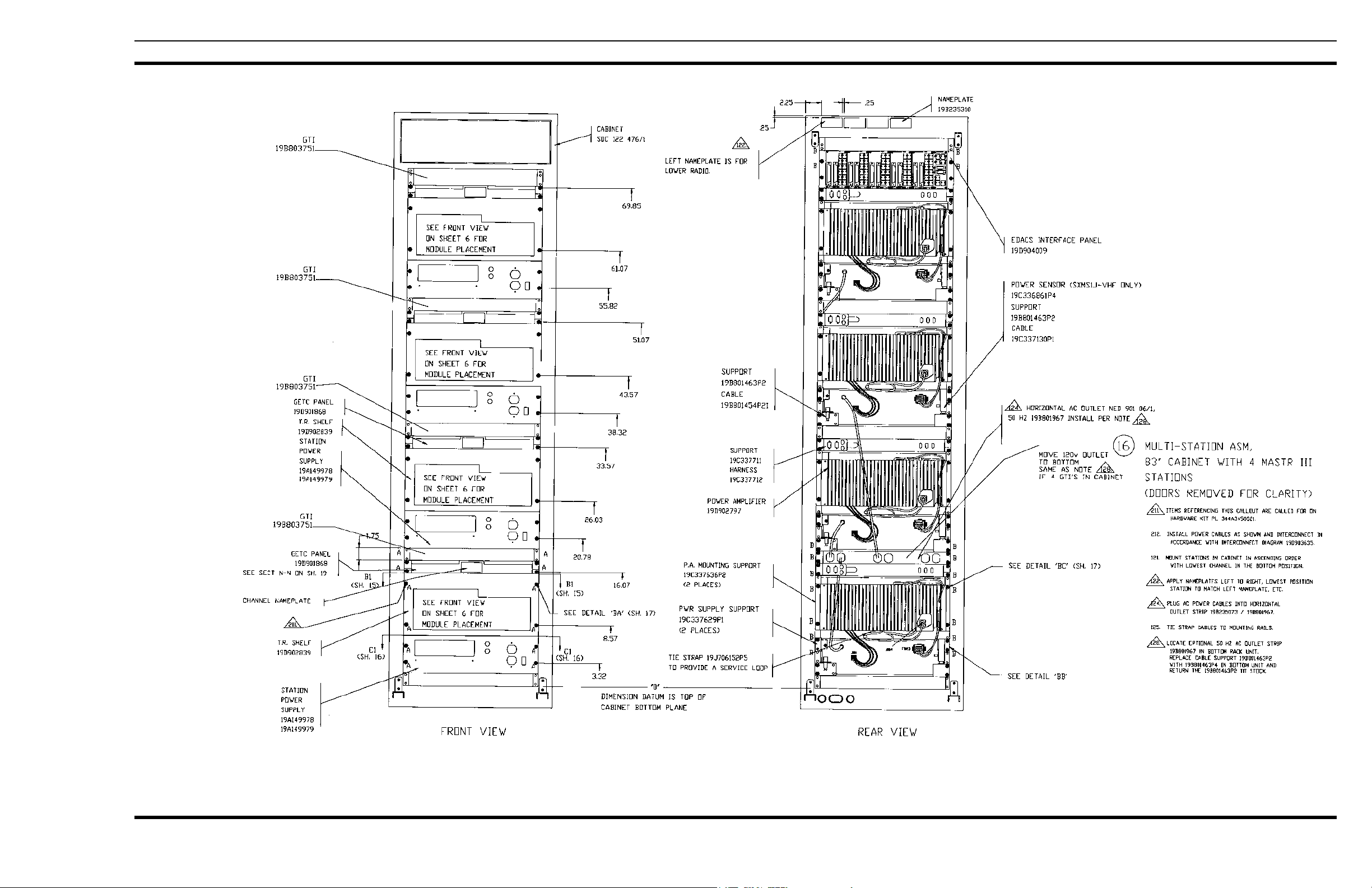

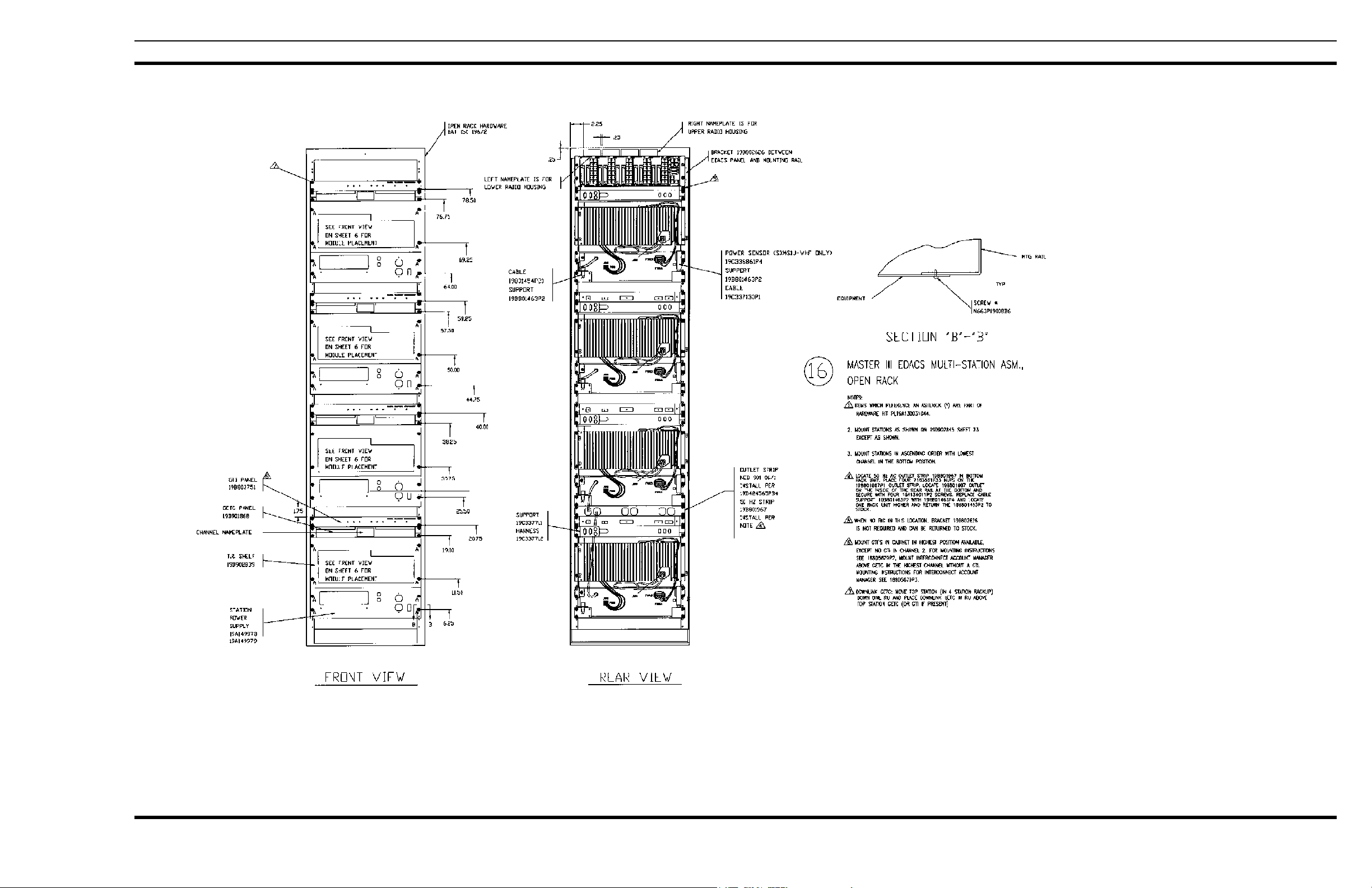

MULTI-STATION ASSEMBLY 19D902845P16 ..................................................................................................... 35
EXTERNAL REFERENCE OSCILLATOR/DISTRIBUTION AMPLIFIER OPTION 19D902845P18..................36
RS-232 SIMULCAST GETC 19D902845P22 ...........................................................................................................37

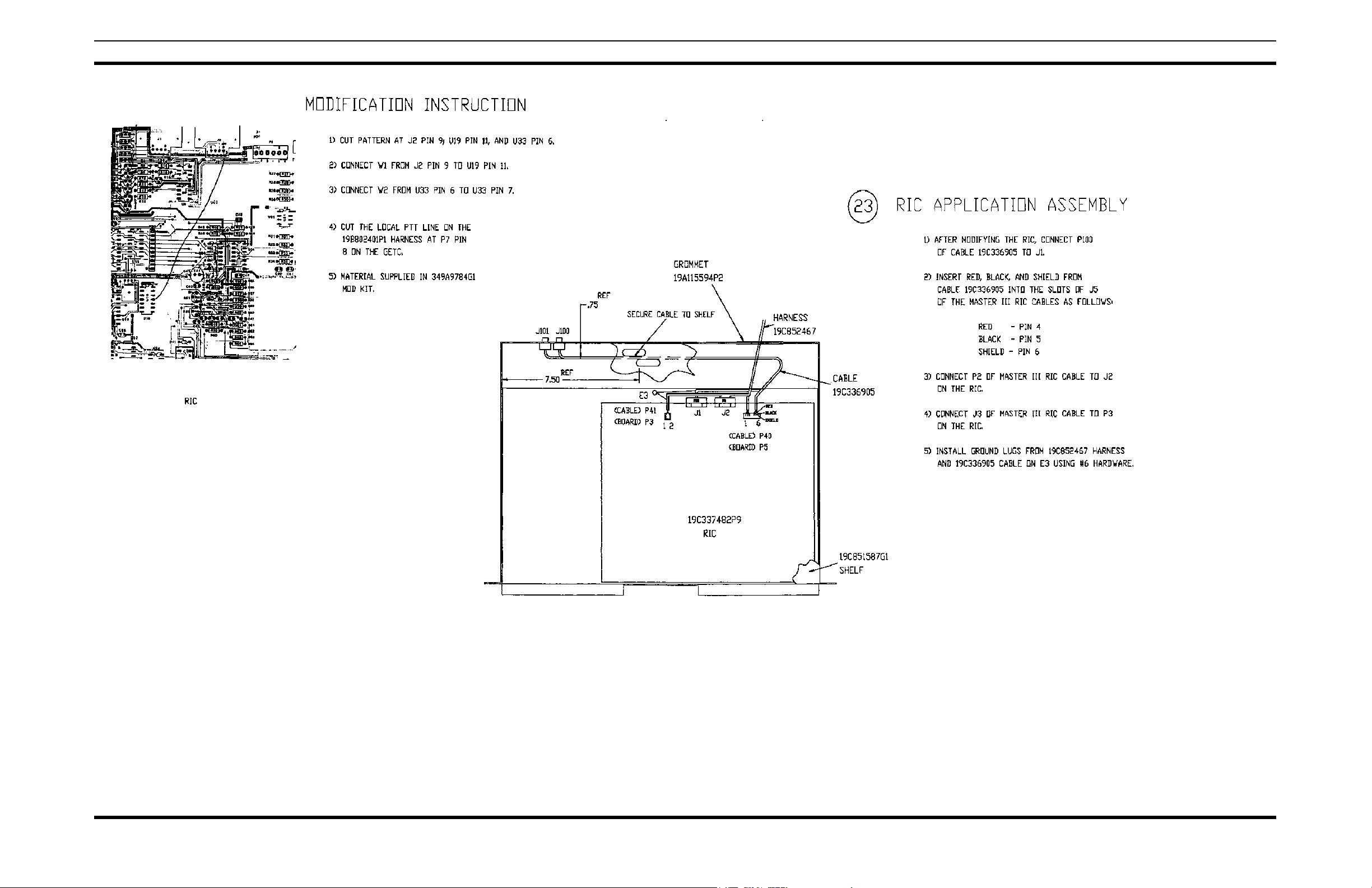

RIC EQUIPMENT 19D902845P23............................................................................................................................38
STATION RECEIVER VOTING FOR RS-232 19D902845P24...............................................................................39
EDACS SIMULCAST STATION 19D902845P22 & P33 ........................................................................................40
45" WEATHER PROOF CABINET 19D902845P25 ................................................................................................41
MODEM VOTING & CNI INSTALLATION 19D902845P26 & P27......................................................................42
3 EDACS ADVANTAGE STATIONS 19D902845P29............................................................................................ 43
3/5 CHANNEL EDACS SYSTEM - COMBINER/MULTICOUPLER CHANNEL 4 & 5 19D902845P28 &
P30 .................................................................................................................................................................... 44
3/4 CHANNEL EDACS SYSTEM - COMBINER AND MULTICOUPLER 19D902845P33.................................45
GPS SIMULCAST STATION GETC 19D902845P33 .............................................................................................. 46

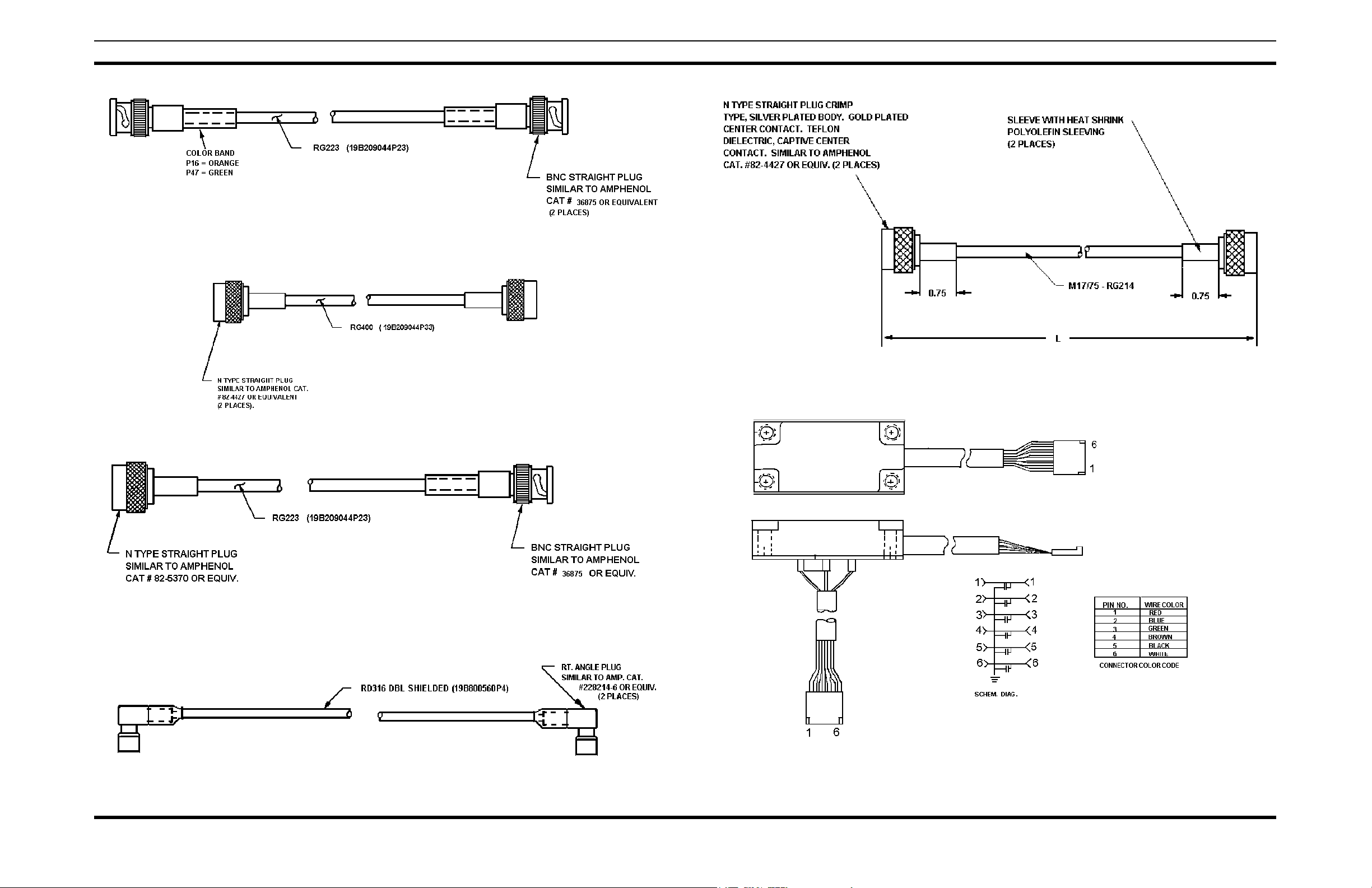

HARNESS 19C337792P1 ..............................................................................................................................................47
19B801454P16 & P17 ................................................................................................................................................48
19B801454P17 & P18 ................................................................................................................................................48
19B801454P19 & P20 ................................................................................................................................................48
19B801454P24 ...........................................................................................................................................................48

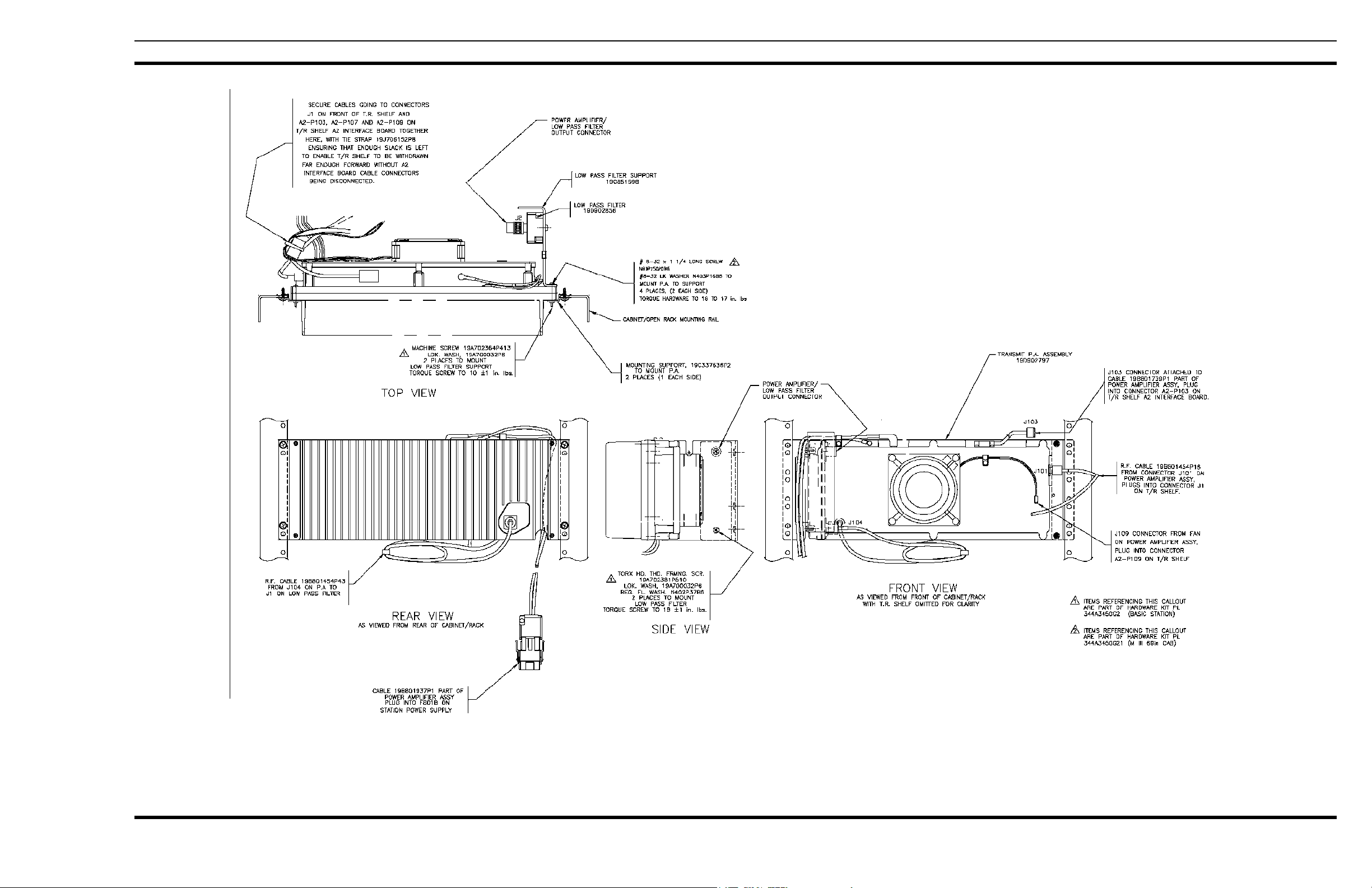

CONTROL CABLE ASSEMBLY (PART OF POWER AMPLIFIER) 19B801739P1............................................. 48
POWER CABLE (PART OF POWER AMPLIFIER) 19B801937P1........................................................................ 49
19B235871P1 .............................................................................................................................................................49
344A3052P1 ...............................................................................................................................................................49

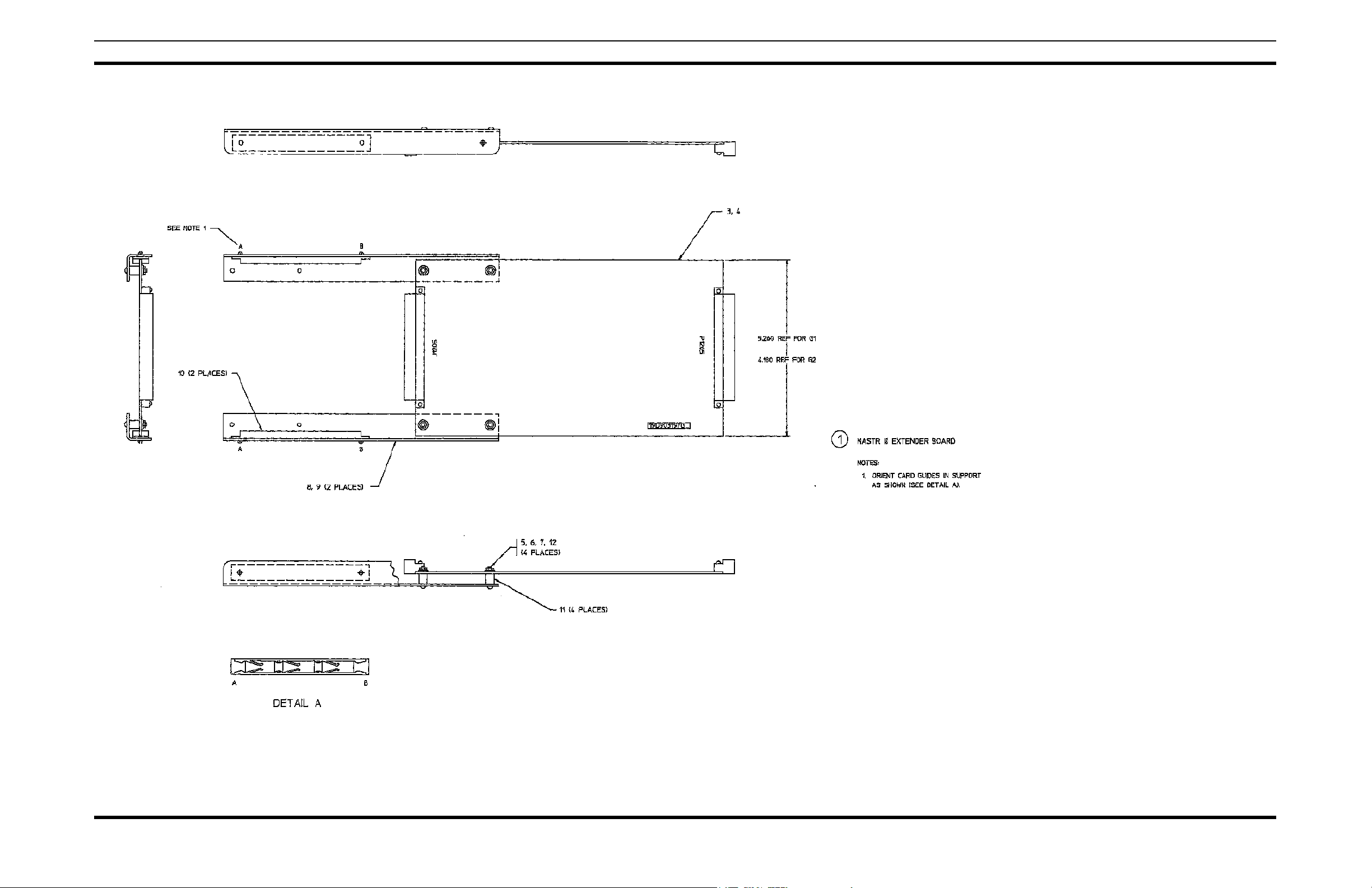

CONTROL EXTENDER BOARD 188D5338G1..........................................................................................................50
RF EXTENDER BOARD 188D5338G2........................................................................................................................ 50

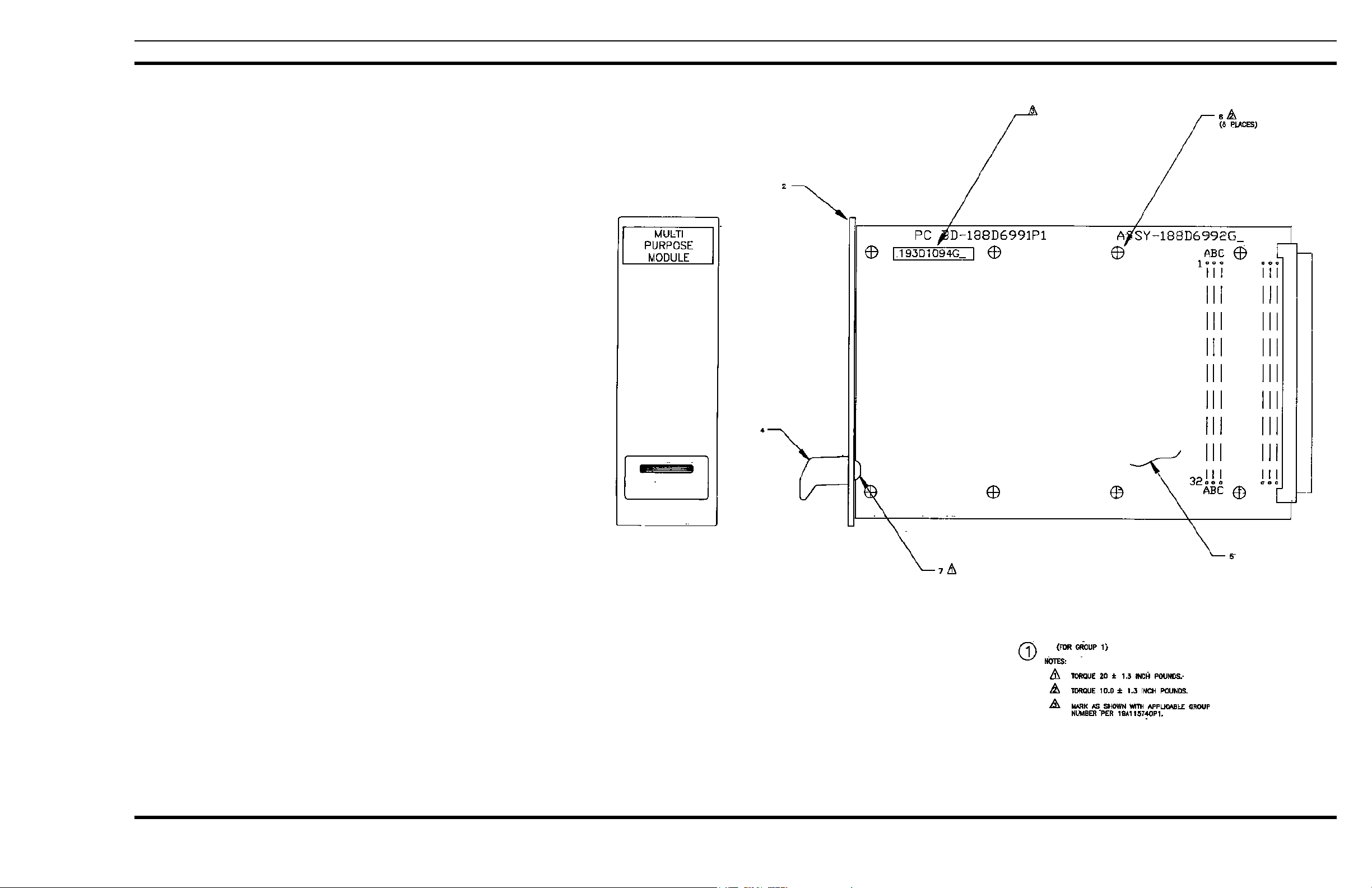

MULTI PURPOSE MODULE 193D1094G1.................................................................................................................51

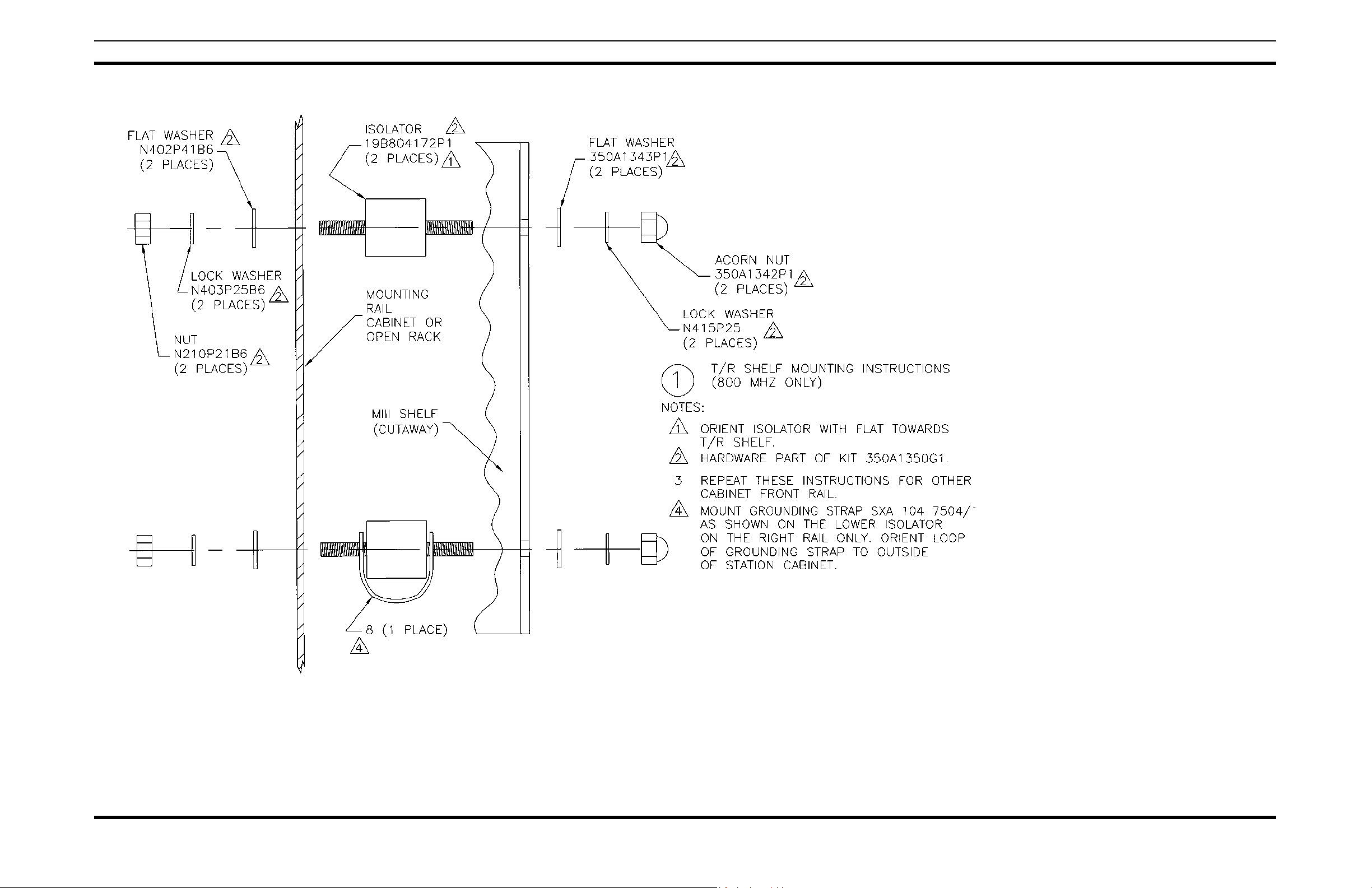

GROUNDING STRAP INSTALLATION INSTRUCTIONS .......................................................................................52
Page
This manual is published by M/A-COM Private Radio Systems, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-COM Private Radio Systems, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM Private Radio Systems, Inc.
Copyright 1992-2002, M/A-COM Private Ra dio Sys tems, Inc. All rights reserved.
2 LBI-38775S
INTRODUCTION & APPLICATIONS
SAFETY INFORMATION
The means of disconnecting power from a station cabinet is the cabinet power supply plug.
•
When conducting repair/maintenance, disconnect the cabinet power supply plug from the AC source.
•
In European applications, equipment must be installed in a closed cabinet.
•
Only replace components with components specified by M/A-COM Private Radio Systems.
•
The ESD symbol calls attention to procedures, practices, or the like, which could expose equipment to the effects of Electro-Static Discharge. Proper precautions must be taken to prevent ESD when handling circuit modules.
CAUTION – This radio contains components that can be damaged by the effects of Electrostatic Discharge (ESD). Be sure to use proper precautions when disassembling this equipment.
ESD CAUTION:
When operating the MASTR III System module, ESD precautions must be observed to insure that the unit continues to function correctly. Due to ESD sensitive components, an ESD event could cause the MASTR III to operate improperly. To prevent this from occurring, ESD precautions are required. These precautions would include but are not limited to:
The use of an ESD wrist strap connected to any attachable metallic surface on the rack chassis, housing
•
the MASTR III equipment. The ESD caution is being provided to avoid inducing an equipment malfunction by an ESD event. If an ESD induced malfunction occurs, there will be no permanent damage to the unit, but manual reset will be necessary.
LBI-38775S 3
INTRODUCTION & APPLICATIONS
INTRODUCTION
This manual (LBI-38775) contains information for the MASTR III Base Station, including application information, cable diagrams and parts list for the cabinet hardware. For additional information refer to the following manuals:
MANUAL NUMBER
LBI-38636 Installation
AE/LZT 123 3242/1 Installation
LBI-38754 VHF RF Package Information on the VHF equipment.
LBI-38675 UHF RF Package Information on the UHF equipment.
LBI-39025 800 MHz RF
LBI-38983 Antenna System Information on typical antenna system
LBI-38812
LBI-38894 GETC Information on the GETC equipment
LBI-38625 Charger/Emergency
LBI-38805 RF Test Fixture Information on the RF Test Fixture
TITLE COMMENTS
How to install including Interconnection Diagrams.
Installation, Configuration and Checkout for EDACS Basic or Level 1 Systems.
Information on the 800 MHz equipment.
Package
installations.
EDACS Interface Panels
power
Information on the panel used in EDACS applications.
Information on the battery charger and emergency power equipment.
4 LBI-38775S
APPLICATIONS
INTRODUCTION & APPLICATIONS
OPTION NUMBER
SXCAIS 19D902845P1 Installation of One MASTR III Station in
SXRB1J 19D902845P2 Installation of R/R Shelf for MASTR III
SXSU3A 19D902845P3 Installation of Coax Switch.
SXDU1J 19D902845P4 Installation UHF (150-162 MHz )
SXDU1K Installation UHF (152-174 MHz )
SXDU1M
SXCH1L/M 19D902845P5 Installation of Battery Charger with
SXCH1R SXCH3A
SXSU3D 19D902845P7 Installation of SOR (Squelch Operated
SXMK3C 19D902845P8 Installation of MASTR II Auxiliary
SXCP5T SXMD3J
SXMIL3S 19D902845P10 Installation of MASTR III auxiliary
SXVG3E SXVG3F
SXVV1N SXVV1M SXVV1S SXVW1J
SXVG3C SXVG3D
SXDE5B 19D902845P14 Installation of Transmit Data Board.
SXAP3K 19D902845P16
APPLICATION ASSEMBLY
19D902845P6 Installation of Battery Charger with Gel
19D902845P9
19D902845P11 Installation of GETC Shelf for an E/E
19D902845P12 Installation of E/D Module (non-1027
19D902845P13 Installation of E/D module (1027
DESCRIPTION
a 37" Indoor Cabinet
Station.
Duplexer
Duplexer
Installation UHF (450-470 MHz ) Duplexer
Automobile Battery Emergency Power in a 37" Indoor Cabinet.
Cell Battery Emergency Power in a 37" Indoor cabinet.
Relay) Kit.
Receiver in a 37" or 69" Cabinet.
Installation of GETC Shelf in a 69" Indoor Cabinet.
Receiver in a 37" or 69" Cabinet
Voice Guard/Aegis Repeater and Remote/Repeater in a 37" or 69" Indoor Cabinet.
version) in a 37" or 69" Indoor Cabinet (Aegis Remote/Remote/Repeat MASTR III).
version) in a 37" or 69" Indoor Cabinet (Remote E/D & Remote/Repeat).
Installation of Multi-Stations in a 69" or 83" Indoor Cabinet or Open Rail Rack.
LBI-38775S 5
INTRODUCTION & APPLICATIONS
OPTION NUMBER
SXMD3M 19D902845P22 Installation for Simulcast Stations.
SXMD1S 19D902845P23 Installation and Modifications Instruction
SXVT1B 19D902845P24 Modification for Station Receiver Voting
SXCA1X 19D902845P25 Installation in 45" Weatherproof Cabinet.
SXVT1L 19D902845P26 Modem Voting Installation.
SXCP5T 19D902845P27 CNI Installation.
SXFN1A 2-Speed Fan (110 VAC).
SXFA1L 2-Speed Fan (230 VAC).
SXCY1S 19D902845P17 MASTR III with SIM Shelf.
APPLICATION ASSEMBLY
19D902845P21 Installation in 69" Indoor Cabinet or
19D902845P18
DESCRIPTION
Open Rail Rack.
for RIC Telephone Interconnect.
for RS-232.
MASTR III Reference Oscillator/Distribution Amplifier.
6 LBI-38775S
APPLICATION ASSEMBLY DIAGRAM
37" INDOOR CABINET
19D902845P1
(19D902845, Sh. 1, Rev. 12)
LBI-38775S 7

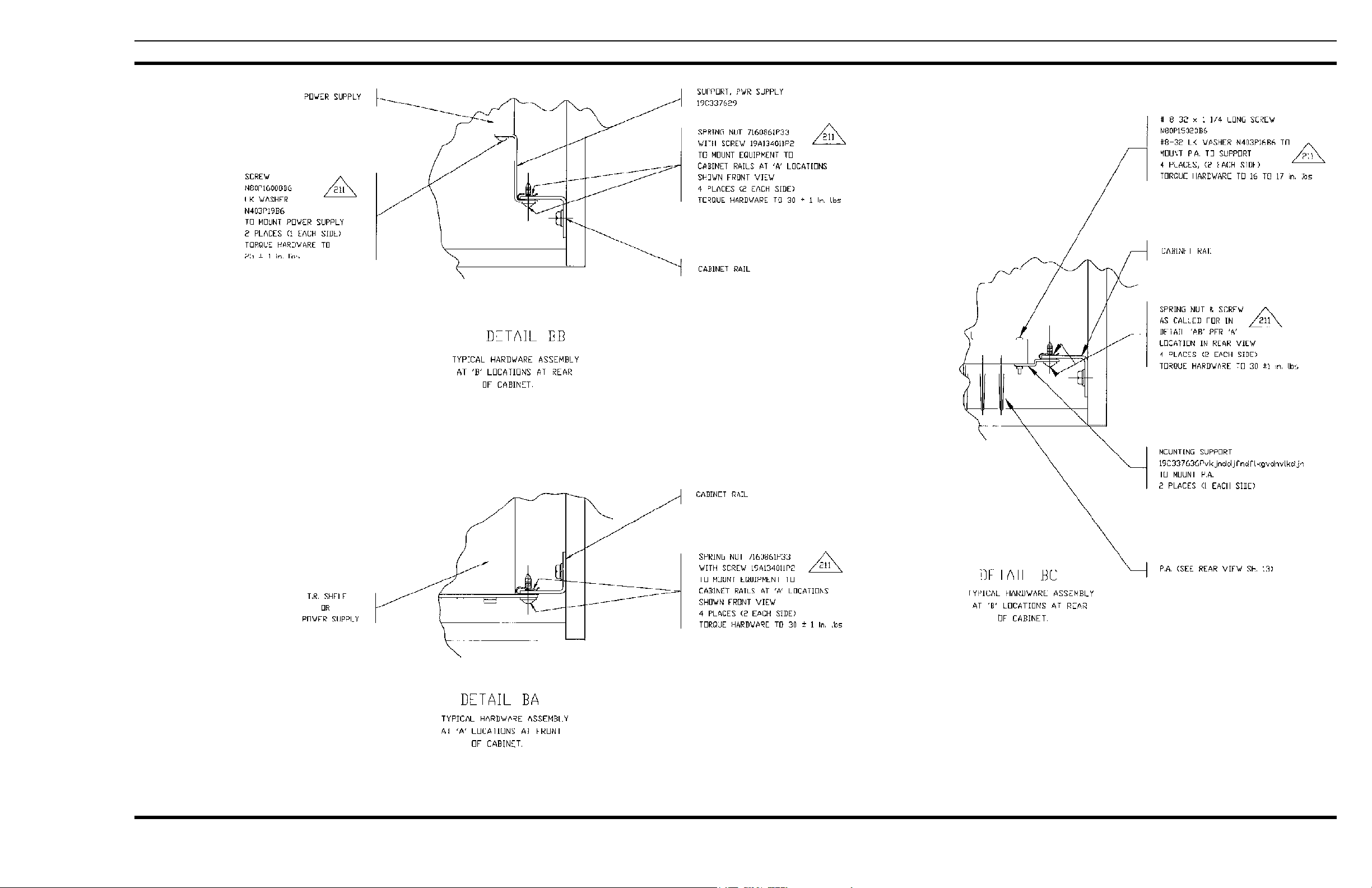

APPLICATION ASSEMBLY DIAGRAM
37" INDOOR CABINET 19D902845P1
(19D902845, Sh. 2, Rev. 3)
8 LBI-38775S
APPLICATION ASSEMBLY DIAGRAM
37" INDOOR CABINET
19D902845P1
(19D902845, Sh. 3, Rev. 7)
LBI-38775S 9
APPLICATION ASSEMBLY DIAGRAM
37" INDOOR CABINET 19D902845P1
(19D902845, Sh. 3A, Rev. 4)
10 LBI-38775S
APPLICATION ASSEMBLY DIAGRAM
37" INDOOR CABINET
19D902845P1
(19D902845, Sh. 4, Rev. 2)
LBI-38775S 11
APPLICATION ASSEMBLY DIAGRAM
37" INDOOR CABINET 19D902845P1
(19D902845, Sh. 5, Rev. 5)
12 LBI-38775S
APPLICATION ASSEMBLY DIAGRAM
T/R SHELF, SQUELCH OPERATED RELAY, DATA MODULE, AMPLIFIER MODULE & TRANSMIT ONLY STATION
19D902845P2, P7, P14, P19 & P32
(19D902845, Sh. 6, Rev. 12)
LBI-38775S 13
APPLICATION ASSEMBLY DIAGRAM
T/R SHELF, SQUELCH OPERATED RELAY, DATA MODULE, AMPLIFIER MODULE & TRANSMIT ONLY STATION 19D902845P2, P7, P14, P19 & P32
(19D902845, Sh. 7, Rev. 7)
14 LBI-38775S
APPLICATION ASSEMBLY DIAGRAM
COAX SWITCH ASSEMBLY 19D902845P3
(19D902845, Sh. 8, Rev. 8)
LBI-38775S 15
APPLICATION ASSEMBLY DIAGRAM
37" INDOOR CABINET WITH DUPLEXER SHELF 19D902845P4
(19D902845,Sh. 9, Rev. 4)
16 LBI-38775S
APPLICATION ASSEMBLY DIAGRAM
37" INDOOR CABINET WITH AUTOMOBILE BATTERY EMERGENCY POWER
19D902845P5
(19D902845, Sh. 10, Rev. 3)
LBI-38775S 17
