HARRIS TR-0005-A Users Manual

Page 1
MM-101031V1-A1
Installation Manual
P
ANTHER
TM
300M
Mobile Radio
Page 2
NOTICE!
Repairs made to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations, or substitution of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturer’s warranty.
NOTICE!
The software contained in this device is copyrighted by Com-Net Ericsson Critical Radio Systems, Inc. Unpublished rights are reserved under the copyright laws of the United States.
This manual is published by Com-Net Ericsson Critical Radio Systems, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Com-Net Ericsson Critical Radio Systems, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Com-Net Ericsson Critical Radio Systems, Inc.
2
Page 3
TABLE OF CONTENTS
SAFETY INFORMATION.........................................................................4
MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMITS................... 5
Determining MPE Radius ......................................................................5
SAFETY TRAINING INFORMATION ...................................................6
INTRODUCTION.......................................................................................8
UNPACK AND CHECK THE EQUIPMENT..........................................8
Options And Accessories .......................................................................9
INSTALLATION ......................................................................................10
STEP 1 - PLAN THE INSTALLATION .............................................10
STEP 2 - LOCATE THE TOOLS REQUIRED...................................10
STEP 3 – EQUIPMENT PREPARATION ..........................................13
Mounting.......................................................................................13
STEP 4 – PROGRAM THE RADIO....................................................17
STEP 5 – INSTALL CABLES.............................................................18
Power Cable ..................................................................................18
Connect To Ignition Sense ............................................................19
Radio Mounting Procedures..........................................................21
STEP 7 – INSTALL OPTIONS AND ACCESSORIES ......................22
Radio Option Cable.......................................................................22
External Speaker ...........................................................................25
Alarm (Horn) Relay Kit ................................................................28
Microphone Hanger/Hook Switch Mounting................................30
Antenna .........................................................................................30
Noise Suppression Kit...................................................................31
FIGURES
Figure 1 – Typical Front Mount Connection Diagram............................... 12
Figure 2 – Removing Top Cover................................................................ 14
Figure 3 – Factory Default Internal Speaker Jumper Setting (Enabled)..... 15
Figure 4 – Factory Default Settings for Jumper JP600............................... 16
Figure 5 – Removing Plastic Cover............................................................ 17
Figure 6 – Power Cable RPM 113 7674/10................................................ 19

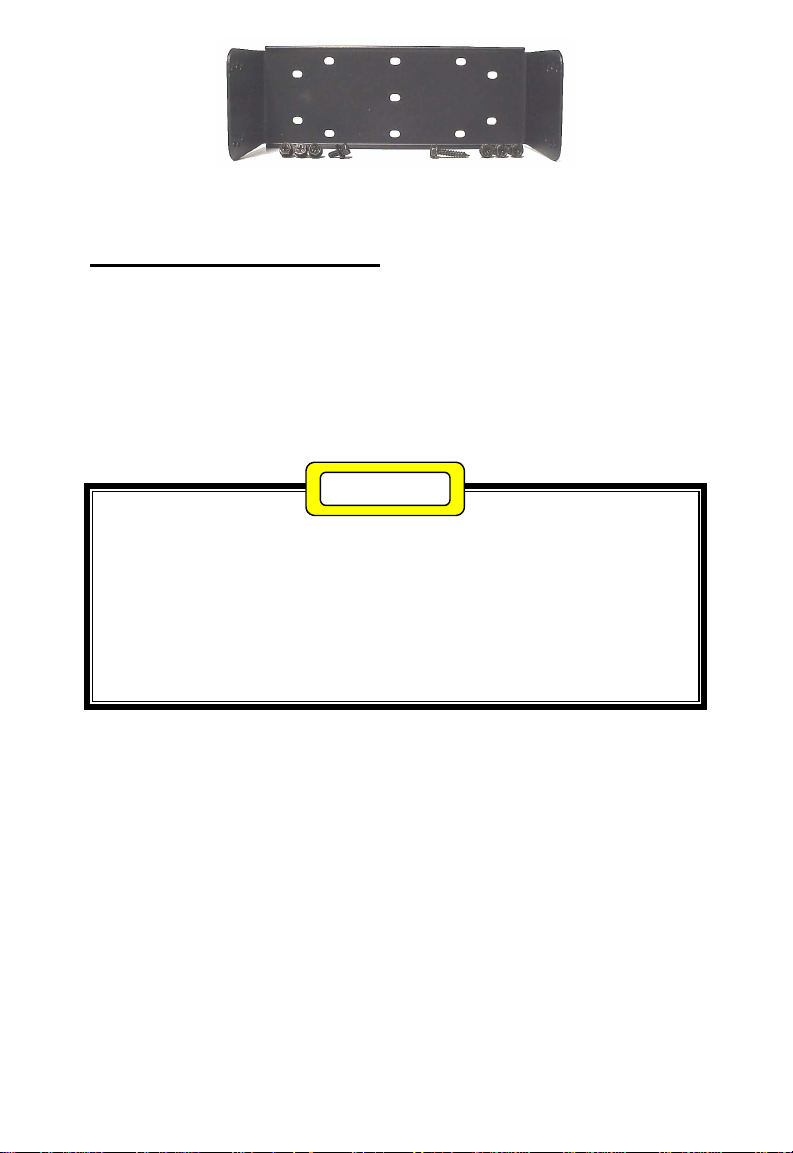

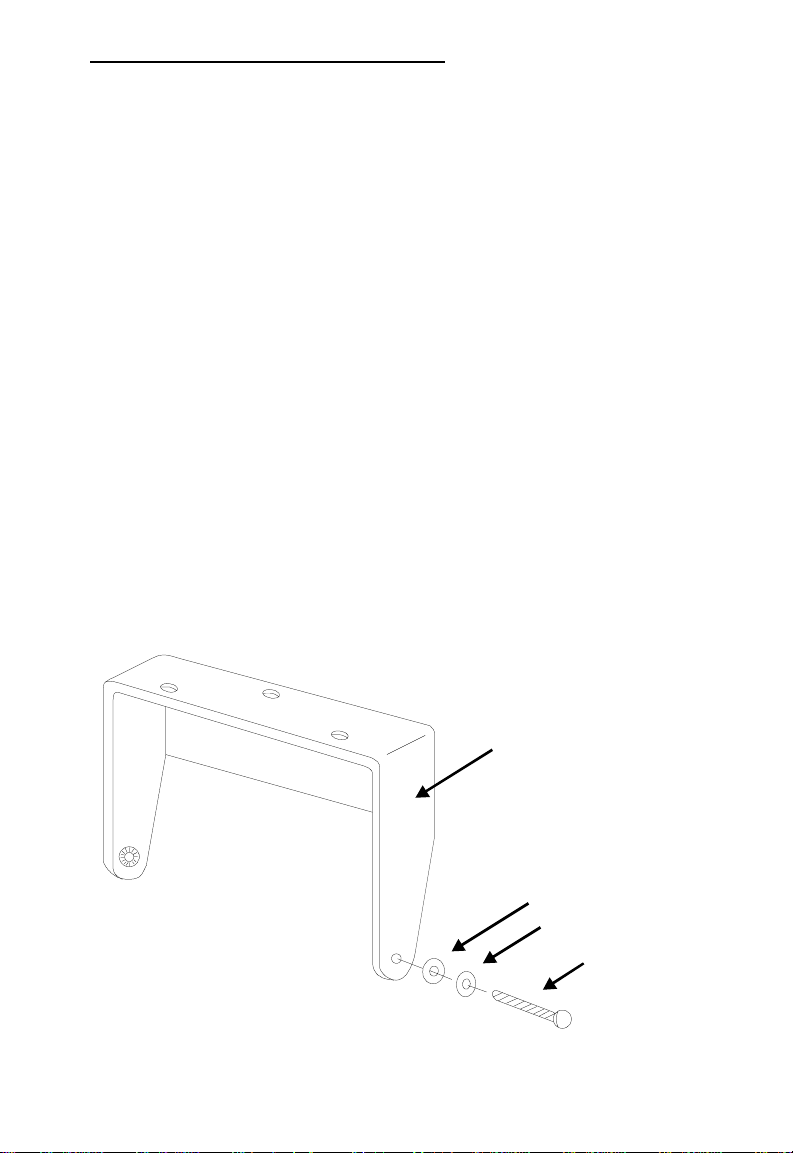

Figure 7 – Radio Mounting Hardware........................................................ 21
Figure 8 - Mounting the External Speaker ................................................. 25

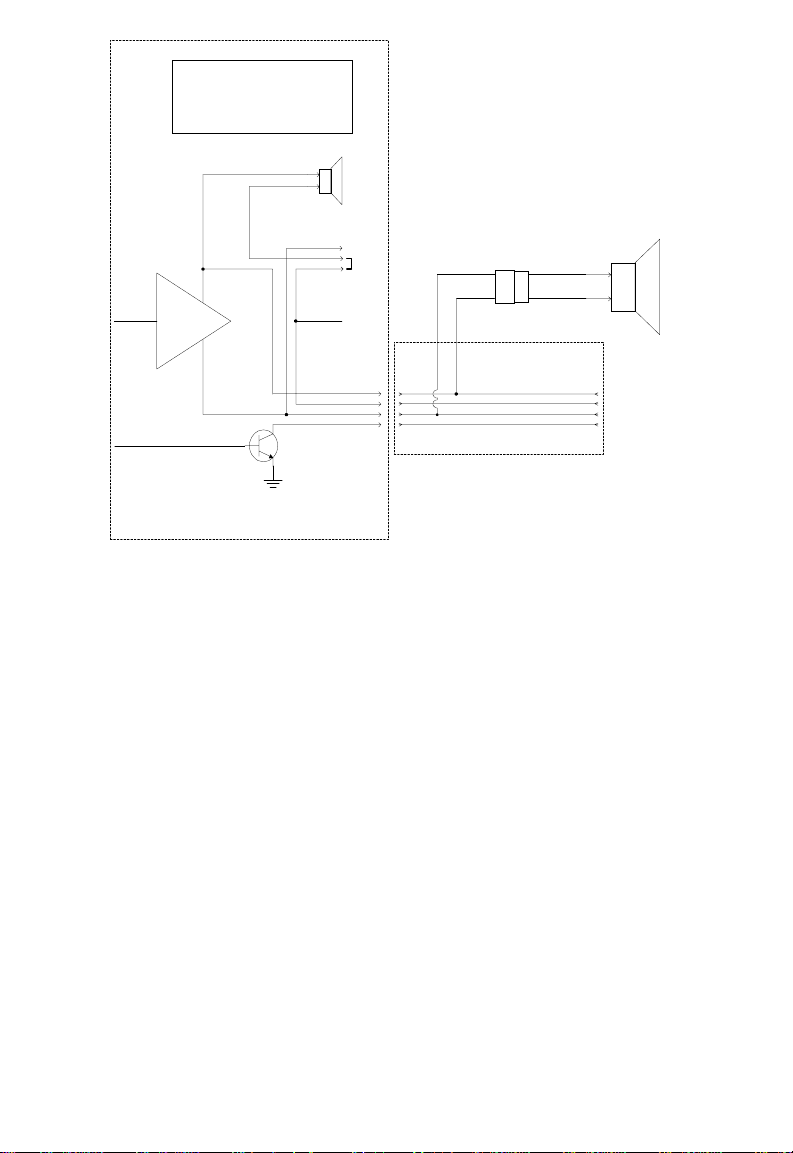

Figure 9 – External Speaker Option ........................................................... 26

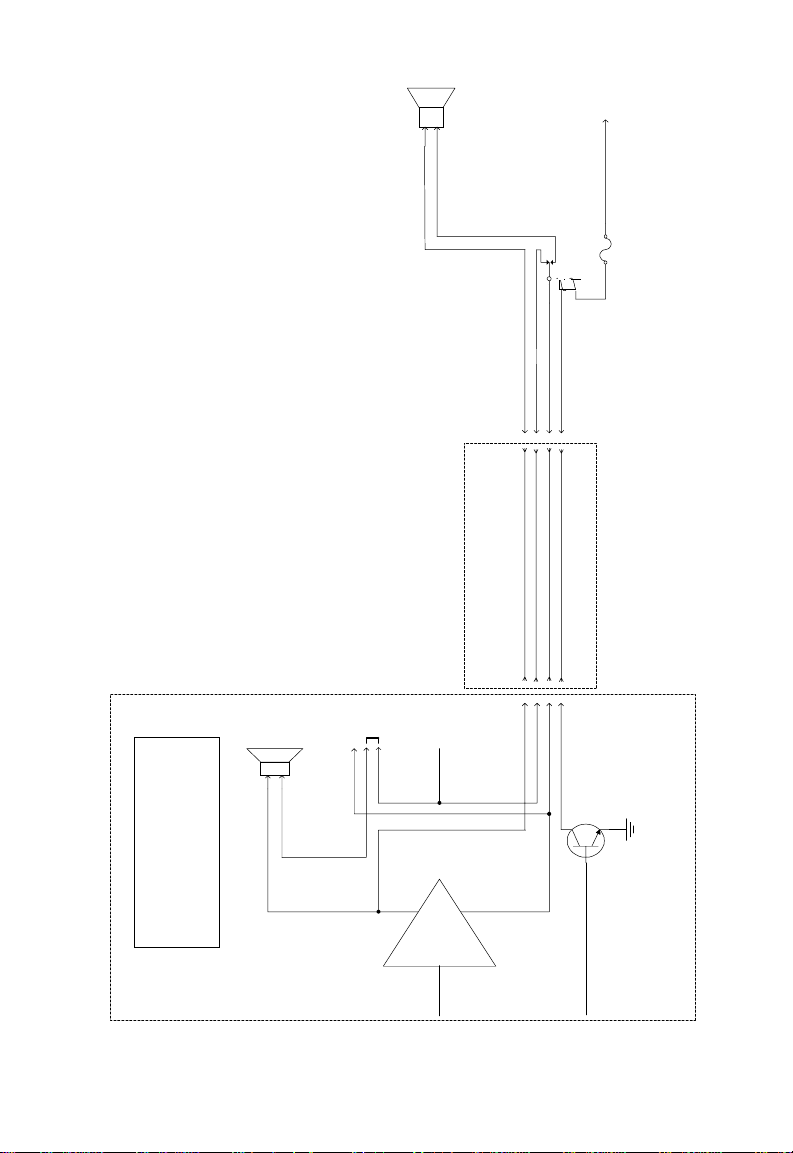

Figure 10 – Internal/External Speaker Relay.............................................. 27
Figure 11 - External Car Alert.................................................................... 29
Figure 12 - External Alarm Relay .............................................................. 29
Figure 13 – Ignition Sense Option.............................................................. 30
TABLES
Table 1 - P
Table 2 – Radio Option Connector P3 Interface Description ..................... 23
ANTHER
300M Mobile Radio Options and Accessories.............. 9
3
Page 4

SAFETY INFORMATION

The operator of any mobile radio should be aware of certain hazards common to the operation of vehicular radio transmissions.
several possible hazards is given:
1. Explosive Atmospheres - Just as it is dangerous to fuel a vehicle with
the motor running, similar hazards exist when operating a mobile radio, be sure to turn the radio off while fueling the vehicle. Do not carry containers of fuel in the trunk of the vehicle if the radio is mounted in the trunk.
2. Interference to Vehicular Electronics Systems - Electronic fuel
injection systems, electronic anti-skid braking systems, electronic cruise control systems, etc., are typical electronic systems that may malfunction due to the lack of protection from radio frequency energy present when transmitting. If the vehicle contains such equipment, consult the dealer and enlist their aid in determining the expected performance of electronic circuits when the radio is transmitting.
3. Dynamite Blasting Caps - Dynamite blasting caps may be caused to
explode by operating a radio within 500 feet of the blasting caps.
Always obey the "Turn Off Two-Way Radios" signs posted where
dynamite is being used.
When transporting blasting caps in your vehicle:
a. Carry the blasting caps in a closed metal box with a soft lining.
A list of
b. Leave the radio OFF whenever the blasting caps are being put into
or removed from the vehicle.
4. Radio Frequency Energy - To prevent burns or related physical injury
from radio frequency energy, do not operate the transmitter when anyone outside of the vehicle is within two feet of the antenna.
5. Liquefied Petroleum (LP) Gas Powered Vehicles - Mobile radio
installations in vehicles powered by liquefied petroleum gas with the LP gas container in the trunk or other sealed-off space within the interior of the vehicle must conform to the National Fire Protection Association standard (NFPA) 58 requiring:
a. The space containing the radio equipment shall be isolated by a
seal from the space containing the LP gas container and its fittings.
b. Outside filling connections shall be used for the LP gas container.
c. The LP gas container shall be vented to the outside of the vehicle.
4
Page 5
MAXIMUM PERMISSIBLE EXPOSURE (MPE)
LIMITS
Do not transmit with this radio and antenna when persons are within the
MPE Radius of the antenna, unless such persons (such as the driver or radio operator) are shielded from the antenna field by a grounded metallic barrier (such as the user’s vehicle rooftop). The MPE Radius is the minimum distance from the antenna axis that persons should maintain in order to avoid RF exposure higher than the allowable MPE level set by the FCC for Occupational/Controlled Exposure, as specified in 47 CFR 1.1310. See “Determining MPE Radius” for your specific application.
FAILURE TO OBSERVE THESE LIMITS MAY ALLOW THOSE WITHIN THE M PE RADIUS TO EXPERIENCE RF RADIATION ABSORPTION WHICH EXCEEDS THE FCC MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMIT FOR
WARNING

DETERMINING MPE RADIUS

The tables on the following page lists the MPE Radius for ranges of power within which this radio is intended to operate (20, 30, or 40 Watts) and for antennas having gains of 0-3 dBd (1/4 λ, quarter-wave monopole = 0 dBd).
OCCUPATIONAL/CONTROLLED EXPOSURE.
Use the following procedure to determine the MPE radius for a specific application:
1. Refer to the UHF table detailing the FCC limits for Occupational/
Controlled RF exposure.
2. Choose the row containing the power level going into the antenna.
3. Read the MPE Radius in the position intersecting the corresponding
power gain. (NOTE: For power gain ratings not appearing in the tables, select the next highest listed number in each case.)
If the power level is not known (the level is set in personality programming), assume the maximum of 40 watts. If the gain rating of the antenna is not known, consult the antenna provider.
5
Page 6
MPE Radii for Occupation/Controlled RF Exposure:
UHF Band (450-488 MHz
Power2Power (Watts) (Watts)
20 21.9 42 16 47 18 53 21 59 23
30 30.0
40 43.8 59 23 66 26 74 29 83 33
3
0 1 2 3
cm in cm in cm in cm in
5
51 20 57 23 64 25 72 28
dBd Antenna Gain
1
)
4

SAFETY TRAINING INFORMATION

Your Com-Net Ericsson P
ANTHER
300M mobile radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only”
WARNING
meaning it must be used only in the course of employment by individuals aware of the hazards and the ways to minimize
such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment.
This radio has been examined and complies with the FCC RF exposure limits for “Occupational Use Only” when persons are beyond the MPE radius of the antenna. In addition, your Com-Net Ericsson radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans:
FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.
1
Numbers are calculated for 450 MHz, giving the largest (worst-case) MPE radii.
2
Rated RF Power delivered to antenna: radio output less cable and mismatch losses.
3
Actual measured RF power delivered to antenna: radio output less cable and mismatch losses.
4
Gains are compared to an ideal, ¼-wave monopole (1/2-wave dipole). Add 2.15 dB for comparison with an ideal isotropic source (0 dBd = 2.15 dBi).
5
The 30 Watts Rated Power is set to an actual measured 30.0 Watts to meet the Industry
Canada requirement of 30.0 Watts ±1.0 dB.
6
Page 7
American National Standards Institute (C95.1 – 1992), IEEE
Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
American National Standards Institute (C95.3 – 1992), IEEE
Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave.
To ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for Occupational use, always adhere to the following guidelines:
CAUTION
DO NOT operate the radio without a proper antenna attached, as
this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna for installation on a vehicle is a 0 – 3 dBd gain antenna.
7
Page 8

INTRODUCTION

ANTHER
The P front mount radio. This manual provides the mobile installation instructions and includes the instructions to install the external horn or external speaker options.
TM
300M mobile radio is designed for installation as a

UNPACK AND CHECK THE EQUIPMENT

Carefully unpack the equipment and verify the items listed below are included in the shipping container. If damage has occurred to the equipment during shipment, file a claim with the carrier immediately. Table 1 on page 9 provides a complete list of the options and accessories available for the P radio.
ANTHER
300M mobile
ANTHER
P
!
300M Radios Are Shipped With The Following:
P
ANTHER
300M
Mobile Radio .....................KRD 103 154/(1-7)
! Power Cable ................................................RPM 113 7674/10
! Mounting Bracket and Hardware Kit..........
! Operator's Manual.......................................MM-101030V1
! Installation Manual .....................................MM-101031V1
8
Page 9

OPTIONS AND ACCESSORIES

The following table lists the options and accessories available for the
ANTHER
P
300M Mobile Radio.
Table 1 - P
Microphone, Standard KRY 101 1654/1 KAMC7J
Microphone, DTMF
Microphone Hanger 344A4678P1 KAMN1A
External Speaker (4 ohm, 10W) 19A149590P11 KALS1H
Option Cable RPM 113 7674/1 KACJ7G
External Relay Kit 19A705499P1 KASU1C
Noise Suppression Kit 19A148539G1 KAPD1A
Power Cable RPM 113 7674/10 KACJ7H
Audio Test Cable RPM 113 2472/48
Audio Test Box TQ0613
Conventional ProGrammer SoftwareorAE/LZY 213 766/5 TQ3389 R9A
ProGrammer Software AE/LZY 213 766/1 TQ3385 R9A
Radio Programming Interface Cable RPM 113 2472/47 TQ3393
ANTHER
DESCRIPTION PART NUMBER OPTION
300M Mobile Radio Options and Accessories
NUMBER
KRY 101 1654/10 KAMC7K
or later
or later
Copy CatTM Cable, 300M-to-300M RPM 113 2472/42 TQ3394
Copy CatTM Cable, 300M-to-300P RPM 113 2472/41 TQ3395
9
Page 10

INSTALLATION

STEP 1 - PLAN THE INSTALLATION

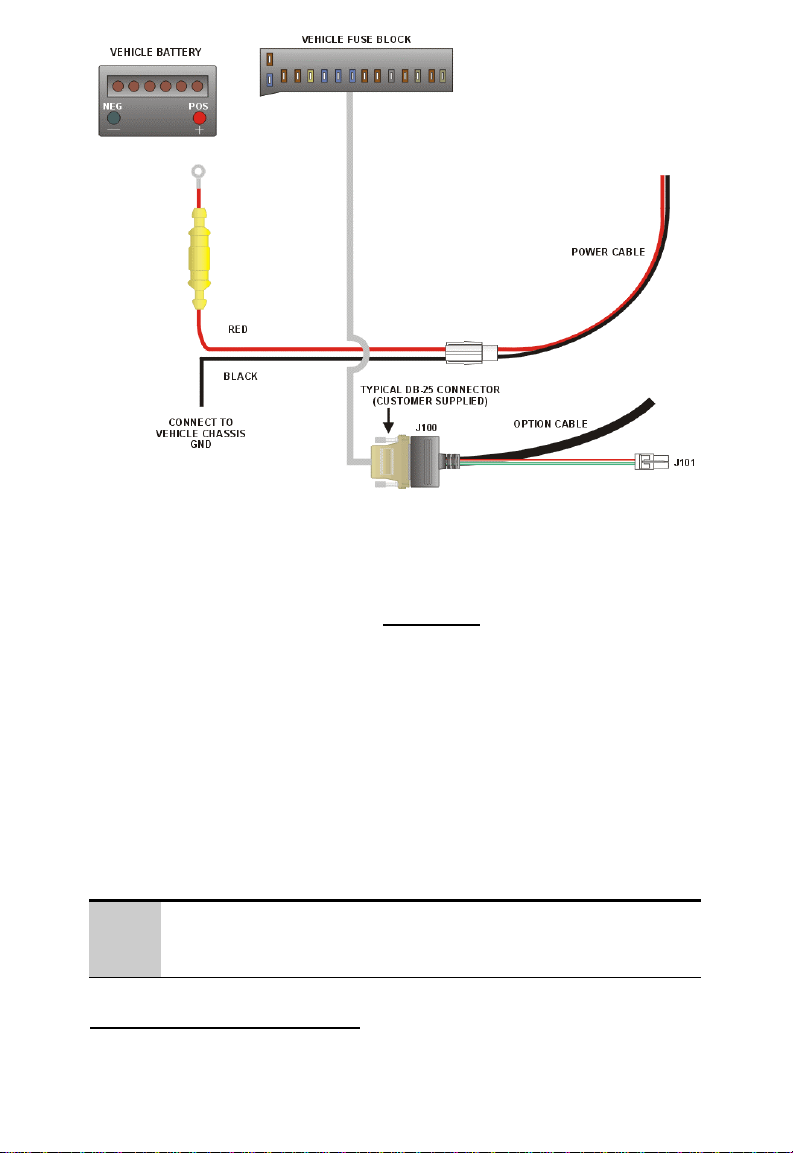

Figure 1 shows an example of a typical connection diagram. Before beginning, plan the radio installation carefully so that it will:
" Be safe for the operator and passengers, " Be convenient for the operator to use, " Be neat in appearance, " Be protected from water damage, " Be easy to service, " Be out of the way of auto mechanics, " Be out of the way of passengers, and " Allow for good air flow around the unit’s cooling fins.
For passenger safety, mount the radio securely so the unit will not break loose in the event of a collision. This is especially important in station wagons, vans and similar type installations where a loose radio could be extremely dangerous to the vehicle occupants.
The procedures in this section provide a guideline for installing the mobile radio. In some applications, it may be necessary to deviate slightly from the recommended procedure and the order in which the equipment is installed.
To assure the feasibility of the cable routes you plan to use, it is suggested that you run the cables before installing the radio. Be sure to leave some slack in each cable so that the radio may be pulled out for servicing with the power applied.
It is recommended the unit be installed by one of the many Com-Net Ericsson Authorized Service Centers located throughout the United States. Personnel at these centers are experienced in installations of this type and can provide a safe, neat, and functional installation.

STEP 2 - LOCATE THE TOOLS REQUIRED

The following tools are required to install the P Mobile Radio:
!
Electric drill for drilling mounting holes
10
ANTHER
300M
Page 11
!
Drills and circle cutters as follows:
No. 31 (1/8-inch) drill
1/2-inch drill or circle cutter
3/4-inch circle cutter, hole saw or socket punch
!
Phillips and flat-blade screwdrivers
!
No. 10 Torx driver
Torx is a registered trademark of CAMCAR Division TEXTRON, Inc.
11
Page 12
12

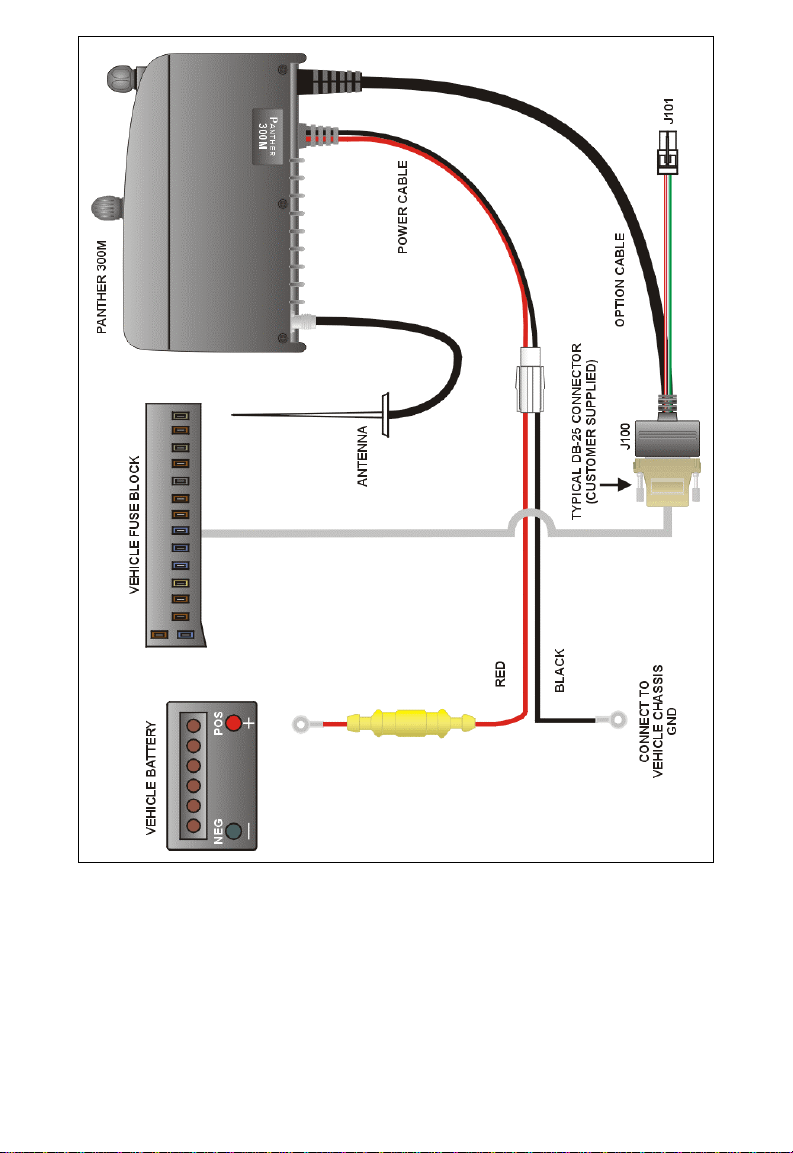

Figure 1 – Typical Connection Diagram
Page 13
STEP 3 – EQUIPMENT PREPARATION Mounting
This section describes the radio preparation for installation. In most applications, the following procedures should be completed before the radio is mounted. Depending upon the mounting location, these procedures could become very difficult after the radio is mounted. The preparation list includes:
!
Configuring the Internal Speaker Jumper
!
Configuring the Ignition Sense Line Jumper
!
Connecting the Option Cable to the Radio
Read through the procedures provided in this section. If you are satisfied with the default factory jumper settings and your installation does not require an option cable, skip this section and go to
– PROGRAM THE RADIO
on page 17.
Removing the Top Cover and Shield
The top cover and shield must be removed to change the Internal Speaker jumper (JP701) or the ignition sense line jumper (JP600), to connect the option cable to the radio.
STEP 4

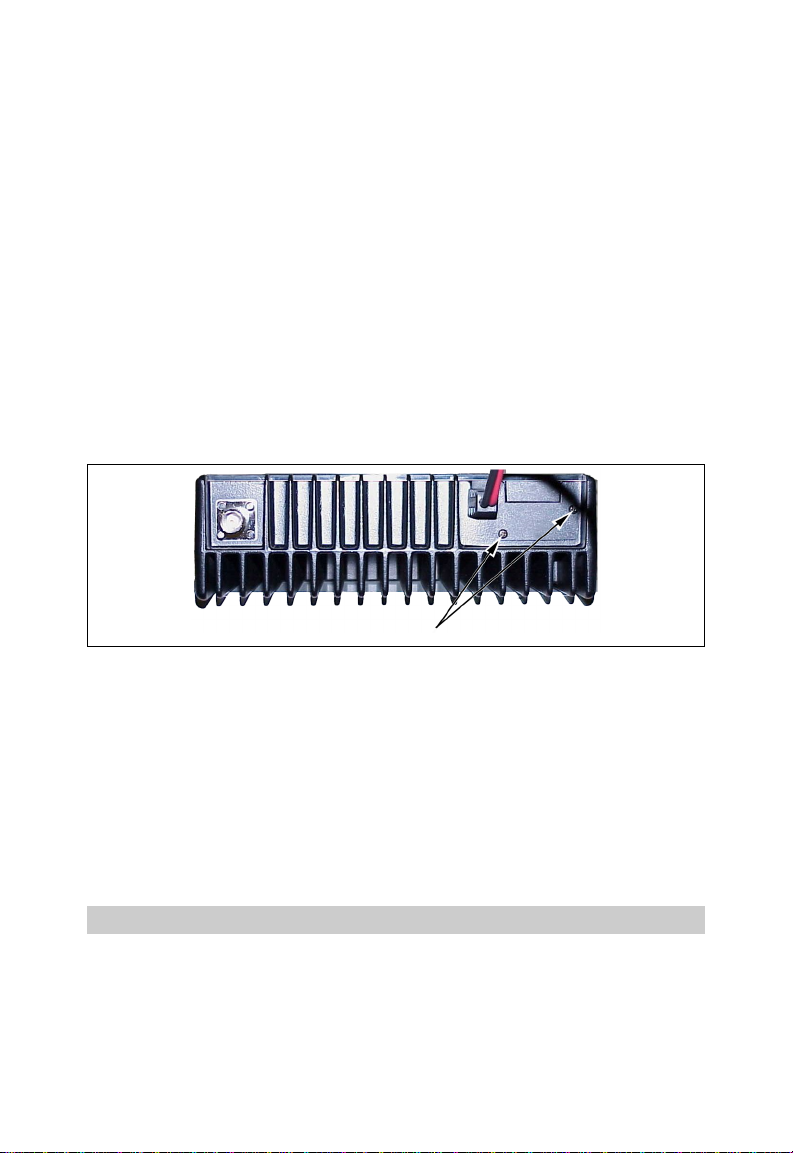

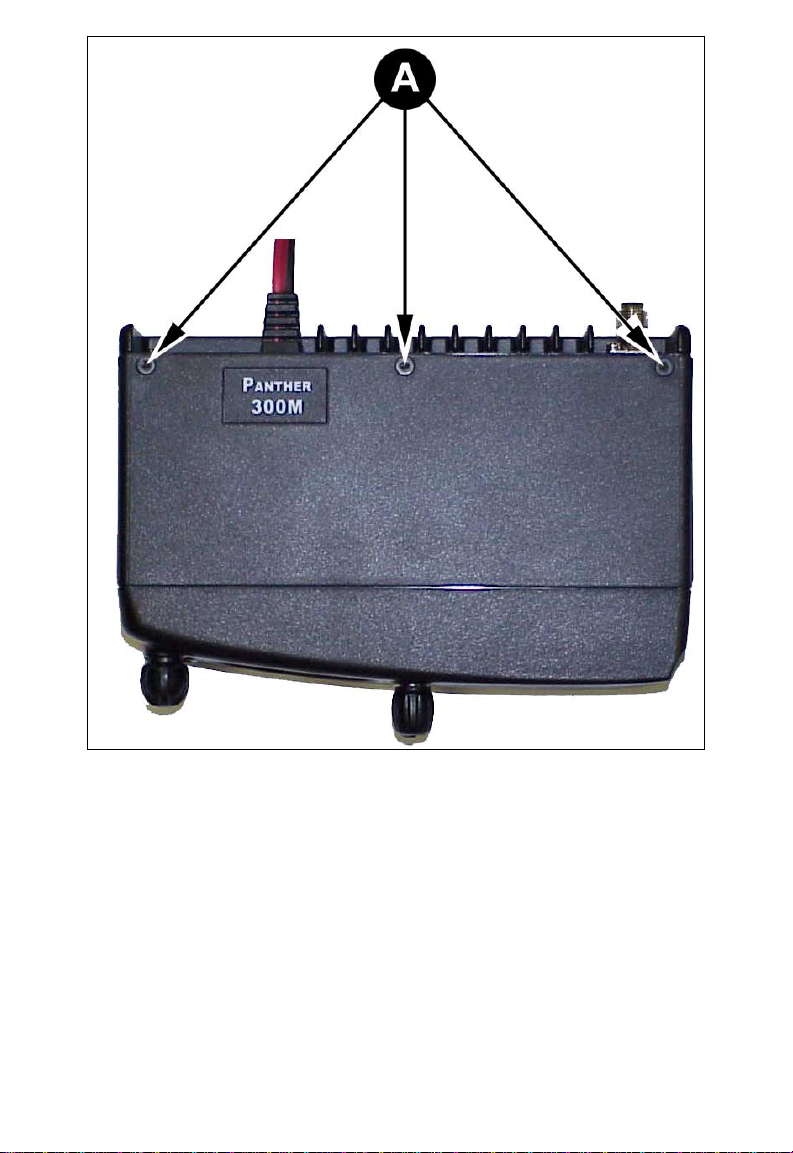

1. The top cover is secured with three screws from the bottom of the radio. Using a No. 10 Torx driver, loosen the three screws
! on the top of the radio as shown in Figure 2.
2. Remove the two control knobs from the front of the radio.
3. Pry the cover loose from the two tabs on the bottom of the radio.
4. Remove the top cover by lifting the back and sliding it forward
away from the chassis.
13
Page 14
14
Figure 2 – Removing Top Cover
Page 15

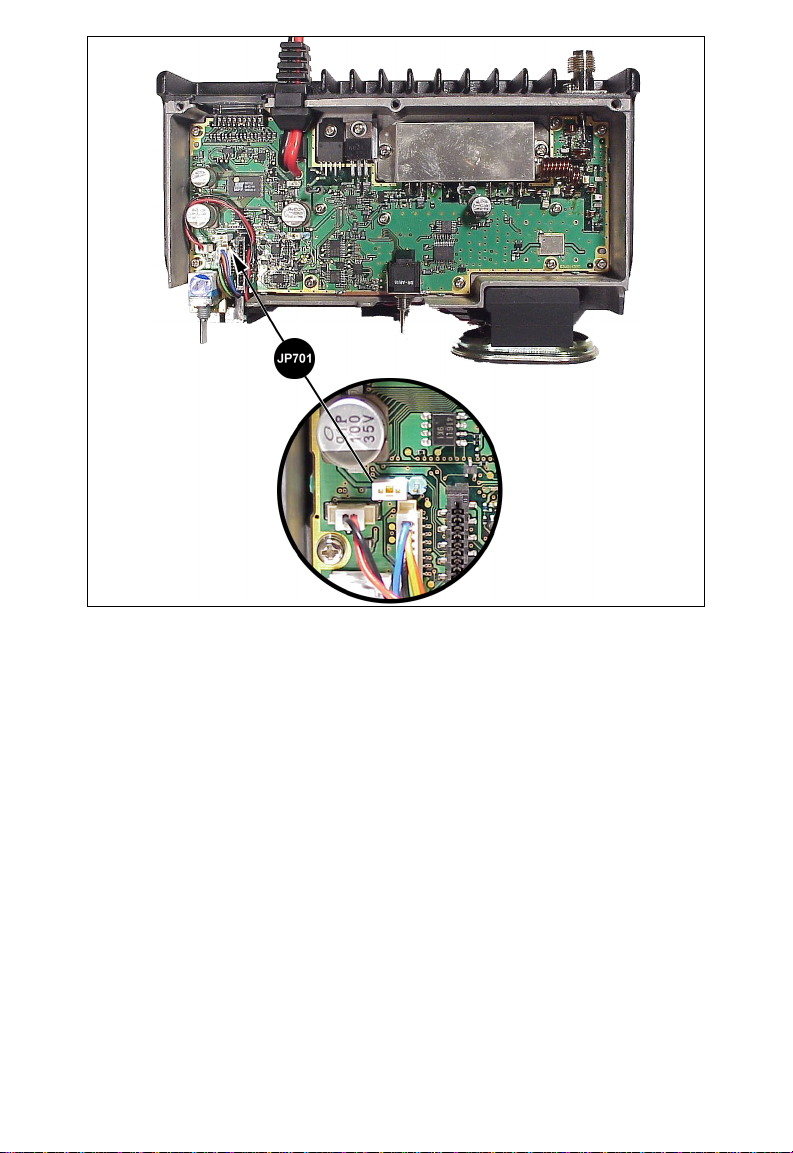

Figure 3 – Factory Default Internal Speaker Jumper Setting (Enabled)
Configure the Internal Radio Speaker Jumper (JP701)
The P
ANTHER
300M radio is shipped from the factory with the
internal radio speaker jumper (JP701) set to 1-2 as shown in Figure
3. This setting enables the internal radio speaker. Set the jumper to
2-3 if 1) only the External Speaker is to be enabled or 2) the Internal/External Speaker option is to be enabled.

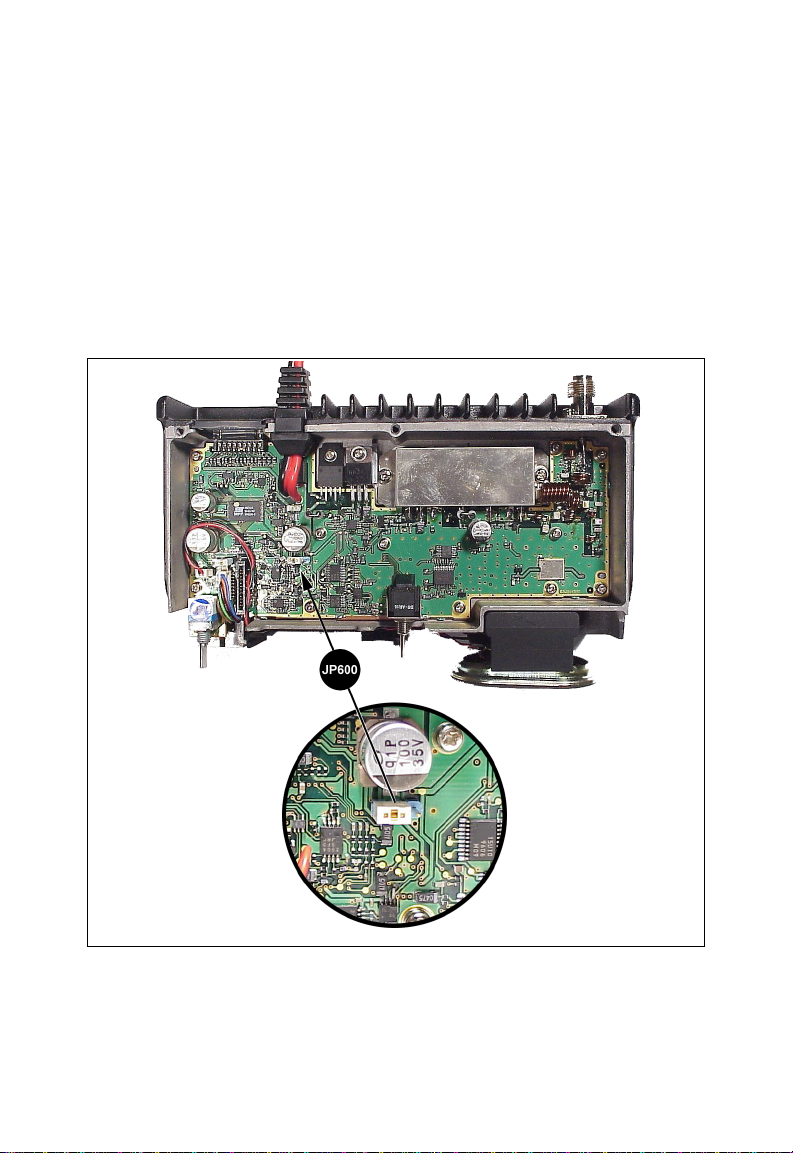

Configure Ignition Sense Jumper (JP600)
The Ignition Sense line is used to enable or disable transmit or car horn alert option through the vehicle ignition switch. If the Ignition Sense option is desired, Ignition Sense jumper JP600 must be set to 2-3. The P
ANTHER
300M radio is shipped from the factory with the Ignition Sense jumper (JP600) set to 1-2 as shown in Figure 4. This default setting disables the Ignition Sense option. If your installation will not take advantage of the Ignition Sense line, skip this section and proceed to the next section.
15
Page 16
To use the Ignition Sense line in any application, the option cable must be wired accordingly, see the section
on page 19.
Sense
Connect To Ignition
There are three parameters that define how the Ignition Sense feature will operate - a jumper on the radio (as described above), and two programmable parameters in the personality.
The programmable parameters enable/disable Transmission and/or Horn Alert with respect to the vehicle ignition switch. For more information on the personality parameters, see the On-Line Help in Conventional ProGrammer (TQ-3389 R9A or later) or ProGrammer (TQ-3385 R9A or later).
16
Figure 4 – Factory Default Settings For Jumper JP600
Page 17
Connect Option Cable
This section applies to installations that require an option cable. The option cable (RPM 113 7674/1) is required if you are installing:
!
External Speaker
!
Car Horn Alert
!
External Modulation
!
Internal/External Speaker Option
!
Ignition Sense
!
External Demodulation
To connect the option cable to the radio:
1. Remove the two Phillips screws holding the plastic cover in
place, from the back of the radio, see Figure 5.
Figure 5 – Removing Plastic Cover
2. Insert the option cable through the hole left by removing the
plastic cover. This will allow the connector to fit through the hole in the back of the radio.
3. Plug the option cable connector into J3 on the radio circuit
board.
4. Finally attach cable with the two Phillips screws.

STEP 4 – PROGRAM THE RADIO

All radios must be programmed with a radio personality. There are many parameters in the P setup and defined for the radio to operate appropriately for each application. Conventional ProGrammer (TQ-3389 R9A or later) or ProGrammer (TQ-3385 R9A or later) is the software used to create
ANTHER
300M mobile radio that need to be
17
Page 18
the personality for the P
ANTHER
300M radio. The radio personality is a computer file that defines all the operating parameters for the radio. For more information on programming the P
ANTHER
300M radio, see the On-Line Help provided with Conventional ProGrammer (TQ-3389 R9A or later) or ProGrammer (TQ-3385 R9A or later). Typically, the radio is programmed before it is installed in a vehicle.

STEP 5 – INSTALL CABLES

ANTHER
The P
300M Mobile Radio is installed as a front mount radio. The location of the mount, the application and the options to be installed should be considered when planning the cable runs. The cable diagram in Figure 1 should be referenced throughout the installation process.

Power Cable

The power cable RPM 113 7674/10 consists of a two-wire cable, see Figure 6. The red fused lead supplies power to the radio directly from the vehicle battery. Ignition Sense lead, through the separate option cable, is used by the radio electronics to determine when the ignition switch is turned on. The black lead is the radio ground connection.
To install the power cable:
1. Remove the fuse from the power cable.
2. When the power cable is wired directly to the vehicle’s battery it
is necessary to route the red power lead through the vehicle’s firewall. If an existing hole is not conveniently located in the firewall, drill a 1/2-inch hole in the firewall for the cable run and insert a rubber grommet. This grommet is required to prevent lead chaffing. Additional grommets may be required if the leads must pass through shields or guards in the engine compartment.
18
Page 19
Figure 6 – Power Cable RPM 113 7674/10
Route the lead away from high heat sources in the engine compartment that may cause lead damage and introduce a fire
hazard. In addition, the lead should not be routed near electrical
noise sources such as electronic ignition modules or cruise control modules.
3. Secure the cable at several locations within the engine
compartment to prevent possible damage to the cable.
4. Connect the BLACK lead to the vehicle chassis. Connect the
lead as close to the radio as possible. DO NOT connect the BLACK lead to the “NEG” or “-“ battery post. Connect the RED lead to the positive (“POS” or “+”) battery post. See Figure 6.
#
The power source must have a minimum current supply capability of 13 amps.

Connect To Ignition Sense

The ignition sense line is used to enable or disable transmit or the Car Horn Alert option through the vehicle ignition switch. For a
19
Page 20
detailed description on how to configure the Ignition Sense line, see the section
Configure Ignition Sense Jumper
on page 15. Regardless of how the ignition sense line is configured, the option cable must be wired as described below for the feature to work.
Connect Pin 13 of the option cable to an ignition “ON” sense point (preferably an “Accessory” point in the vehicle fuse panel) that is switched on when the vehicle ignition switch is in the ACCESSORY and RUN positions. This lead should be connected so the vehicle fuse protection is used. See Figure 6.
#
cable is user-supplied.
CAUTION
The “Accessory” point should drop to ZERO volts when cr anking the engine and return to +12 volts after t he eng ine is s tarte d. If a point is chosen that drops to a voltage between zero and +12 volts, the radio may execute a power-up cycle several times during start up. It is recommended that the terminal be measured with a volt meter to be sure it shuts off (goes to zer o volts) during the cranking of the engine.
Certain problems may be encountered when accessory equipment is connected to the ignition or accessory lin es of the vehicle, where these l ines may h ave lar ge filter cap acitors a nd a leakage path present. If the radio does not turn off within a reasonable amount of t ime after th e ign ition is turne d off, first try a different accessor y or ignition A+ pick up point in the vehicle. Many vehicles have more th an on e circ uit that is s witched by the ignition switch, and one may be available that does not have large filter capacitors or a leakage path present.
If a different pickup point cannot be fou nd, then add a 470- ohm, 1-watt resistor from the ignition A+ pick point to gro und. This wil l discharge the capacitor(s ) or reduc e t he leak a ge v o lta ge t o a low value. Current drain through this resistor will be minimal (less than 0.03A) when the ignition is switc hed on.
The DB-25 male connector that connects to the option
20
Page 21
Figure 7 – Radio Mounting Hardware

Radio Mounting Procedures

The following procedures are used to mount the radio in front mount applications.
1. Using the bracket as a template, mark and drill the mounting
holes using a No. 31 (1/8) drill bit. Be sure to leave enough room at the rear of the radio unit for the cable connections and air flow.
CAUTION
Be careful to avoid damaging some vital part (fuel tank, transmission housi ng, etc.) of the veh icle when drilli ng mounting holes. Always check to see how far the mounting screws will extend below the mounting surface before installing.
If pilot holes must be drilled, remove all metal shavings from drilling holes before installing screws.
2. Mount bracket with four 3/4" sheet metal screws provided (use
1-1/2" screws if needed).
3. Place radio into mounting bracket and secure with the four M4 x
10 mm Phillip’s screws, M4 flat washers and M4 lock washers supplied. The radio can be fastened in any of three different positions: parallel to the mounting surface or tilted slightly from the parallel position.
4. Connect antenna coaxial cable to antenna connector (TNC).
5. Insert power cable into power connector on rear of radio unit and
push until the connectors snap together.
6. Recheck all connections and then reinsert fuses into the fuse
assemblies on the power cable.
21
Page 22
STEP 7 – INSTALL OPTIONS AND ACCESSORIES Radio Option Cable
The radio option cable (RPM 113 7674/1) is required if you are installing:
!
External Speaker
!
Car Horn Alert
!
External Modulation
The section
STEP 3 – EQUIPMENT PREPARATION,
!
Internal/External Speaker Option
!
Ignition Sense
!
External Demodulation
on page 13, describes how to connect the option cable to the radio. The other end of the option cable consists of a standard female DB-25 connector, which is used to connect to the optional accessories listed above. Table 2 provides a description for each input and output on the radio option connector J603.
22
Page 23
Table 2 – Radio Option Connector P3 Interface Description
DB-25
Pin No
Pin No
(P3)
I/O Description
(J100)
21---
52I
63O
18 4 O
19 5 I
76I
20 7 O
88I
21 9 I
910O
22 11 --­10 12 I
23 13 O
11 14
Ground:
! Audio Ground
Internal Speaker Input #1:
! 5W across Internal Speaker
Audio Amp Output #1:
! Vo 6.6 VDC
Audio Amp Output #2 to Internal or External Speaker
! Vo ≈ 6.6 VDC; 10W maximum across External
Speaker
External Mic Input:
! 300-3000 Hz
!
Input level @ 1kHz for 60% of RSD: 82 ± 28 mV
(if external audio source has Ro=600Ω)
!
Input level @ 1kHz for 60% of RSD: 41 ± 14 m V
(if external audio source has Ro<1Ω)
External Mod Input:
!
5-10,000 Hz (3 db BW)
! Modulation-Sensitivity: 4.2 kHz/Vrms ± 3dB
Switched DC Output:
!
Icc=500 mA Max
Push To Tal k:
!
TX ON: Low
! TX OFF: Open
Mic Hookswitch:
!
“Disable” or “Enable” is selected by PC Programmer
! Hookswitch ON: Low
!
Hookswitch OFF: Open
Rx Discriminator Detect Audio:
! 20-4,000 Hz (3 dB Bandwidth)
!
75 m V
Ground Internal Mic Mute:
!
Mute ON: Low
! Mute OFF: Open
Radio UnSquelch:
!
Squelch Open: Low
!
Squelch Close: High
! RL = 4. 7 kohms
Spare
±3 dB into a 10K ohm load
RMS
RMS
RMS
23
Page 24
Table 2 - Radio Option Connector P3 Interface Description Con’t
DB-25
Pin No
Pin No
(P3)
(J100)
24 15 O
12 16 I
25 17 O
13 18 I
I/O Description
(1) HORN CONTROL At Signaling Mode
Display In Menu Action
On Enable Off Disable
! When select “ON”(enable) and a correct T99 Individual
Call is received, the output of pin 15 is “low.”
! Horn Alarm ON : Low
!
Horn Alarm OFF: Open
(2) SPEAKER SELECT INTERNAL/EXTERNAL
! Enabling or disabling of the Internal/External Speaker
option is done by proper setting of an internal jumper in the mobile radio.
! Internal: Low ! External: Open ! For relay control Io_max = 150mA ! **“HORN CONTROL” or “SPEAKER SELECT” is
selected by PC ProGrammer.
Note: Internal and external speaker do not operate
simultaneously.
Data Communication Input (Test Mode)
! TTL Level
Data Communication Output (Test Mode)
!
TTL Level
Ignition Sense
! 13.6VDC
!
Io_max = 100 mA
NOTE
Internal Mic Mute (DB25-10) must be grounded when applying audio to external Mic Input (DB25-19). External Mic Input (DB25-19) has t he same audio c har acterist ics as the Front Panel Mic Jack. External Mod Input (DB25-7) has no pre-emphasis or modulation limiting.
24
Page 25

External Speaker – 19A149590P11

The external speaker kit includes a 4-ohm, 10 Watt rated speaker and a radio option cable. To connect an external speaker, the radio option cable (RPM 113 7674/1) must be installed and connected to the radio.
1. Mount the speaker so it is directed to the operator but does not
interfere with the operator’s vision. It also should not present a hazard in the event of an accident. The speaker may be mounted on the lower edge of the instrument panel, the firewall, or above the windshield in some trucks.
2. Use the mounting bracket as a template for locating the
mounting holes, and mount the speaker as shown in Figure 8.
3. Refer to Figure 9 for instructions on connecting the External
Speaker option and Figure 10 for instructions on connecting the Internal/External Speaker option.
Figure 8 -
MOUNTING BRACKET
FLAT WASHER
LOCK WASHER
MACHINE SCREW
Mounting the External Speaker
25
Page 26
AUDIO IN
RADIO AUDIO
AMP
uP PORT
JUMPER POSITIONS
1-2 USED WHEN THERE IS NO
EXTERNAL SPEAKER OPTION
2-3 USED WHEN THERE IS AN
EXTERNAL SPEAKER OPTION
SPKR 2
INTERNAL SPEAKER
SPKR 1 1
SPKR 2
-
+
SPKR 1
OPEN COLLECTOR
TRANSIS TOR
3 PIN
JUMPER
INT SPKR 1
300M RADIO
8 OHM
5 WATT
2 3
SPKR 2 4
INT SPKR 1 2
SPKR 1 3
HORN/SPKR 15
PANTHER 300M EXTERNAL
SPEAKER OPTION
WHEN THE EXTERNAL SPEAKER OPTION IS APPLIED, AUDIO FROM THE SPEAKER AMP LEAVES THE RADIO ON OPTION CONNECTOR PINS 3 AND 4 AND GOES TO J101. THE EXTERNAL SPEAKER'S CABLE IS CONNECTED TO J101.
INT
EXT
P3 J100
4 2
3 15
RADIO
CONNECTOR
J101
RPM 113 7674/1 OPTION CABLE
SPKR 1
SPKR 2
DB 25
CONNECTOR
4 OHM
10 WATT
18
5 6
24
26
Figure 9 –
External Speaker Option
Page 27
SPEAKER OPTION
4 OHM
10 WATT
SPKR 2
SPEAKER
EXTERNAL
EXT SPEAKER AUDIO
NO
AUDIO OUT (SPK R_1 S IDE OF A UD IO AMP)
AUDIO OUT (SPKR_ 2 S IDE OF A UDIO A MP)
INTERNAL AU DIO BACK INTO RAD IO
5
6
18
OR
IGNITION A+
BATTERY A+
1A
NO
COM
RELAY CONTROL LINE
24
FUSE
SPDT RELAY
SPEAKER RELAY
(19A149299P1)
(LOW FOR EXTERNAL SPEAKER)
(THIS SCHEMATIC ALSO APPLIES TO PUBLIC ADDRESS)
PANTHER 300M INTERNAL/EXTER NAL
RPM 113 7674/1
OPTION CABLE
DB 25
CONNECTOR
RADIO
423
SPKR 2 4
JUMPER
P3 J100
INT SPKR 1
-
+
WHEN THE INTERNAL/EXTERNAL SPEAKER OR PUBLIC ADDRESS OPTIONS ARE APPLIED. AUDIO FROM THE SPEAKER AMP
LEAVES THE RADIO ON OPTION CONNECTOR PIN 3 AND GOES TO THE COMMON SIDE OF AN SPDT RELAY.
WHEN INTERNAL SPEAKER IS SELECTED, THE RELAY FLOATS. THE NORMALLY CLOSED RELAY CONTACT APPLIES AUDIO
BACK INTO THE RADIO TO THE INTERNAL SPEAKER ON OPTION CONNECTOR PIN 2. (IT IS ASSUMED THE INTERNAL 3-PIN
JUMPER IS ON PINS 2 & 3.)
WHEN THE EXTERNAL SPEAKER IS SELECTED, THE RELAY IS ENGAGED. AUDIO IS APPLIED TO THE NORMALLY OPEN
CONTACT THAT THEN CONNECTS TO THE EXTERNAL SPEAKER.
ONLY THE SPKR_1 SIDE OF THE AUDIO AMP'S OUTPUT IS SWITCHED. THE SPKR_2 SIDE OF THE AUDIO AMP IS
CONNECTED TO BOTH SPEAKERS.
OUR SPEAKER RELAY KIT INCLUDES THE 19A149299P1 RELAY, WIRE, AND A FUSE. THE CUSTOMER IS RESPONSIBLE FOR
INSTALLING AND PROVIDING POWER TO THE RELAY.
INT
8 OHM
5 WATT
EXTERNAL SPEAKER OPTION
EXTERNAL SPEAKER OPTION
1-2 USED WHEN THERE IS NO INTERNAL/
2-3 USED WHEN THERE IS AN INTERNAL/
JUMPER POSITIONS
SPKR 2
EXT
3
2
SPEAKER
INTERNAL
3 PIN
SPKR 1 1
SPKR 2
CONNECTOR
15
SPKR 1 3
INT SPKR 1 2
HORN/SPKR 15
TRANSISTOR
OPEN COLLECTOR
SPKR 1
300M RADIO
AMP
RADIO AUDIO
uP PORT
Figure 10 – Internal/
AUDIO IN
External Speaker Relay
27
Page 28

Alarm (Horn) Relay Kit - 19A705499P1

To connect the alarm relay kit, the radio option cable (RPM 113 7674/1) must be installed and connected to the radio. The alarm relay kit option consists of the following items:
!
Relay (19A149299P1)
!
Fuse holder
!
Fuse, 1 amp, 250 volt
!
4 feet red wire, AWG #18 with Ring Tongue Terminal for 3/ 8 stud
!
6 feet black wire, AWG #18 with Molex #39- 00- 0060 terminal
!
(5) Insulated 1/ 4 inch spade tab receptacles
!
Ring Tongue Terminal for 3/ 8 inch stud
!
#8 x 3/ 4 long Type A sheet metal screw
!
Nut Plate for #8 screw
To install the Alarm (Horn) Relay Kit
1. Fasten the relay in the desired location, close to the voltage
source, using one #8 x 3/ 4 inch self- tapping screw.
2. Crimp an insulated 1/ 4 inch spade tab receptacle to one end of
the #18 red wire.
3. Connect the receptacle to relay lug #86. Cut the red lead so the
fuse assembly is close to the voltage source. Install the fuse holder. Attach the other end of the fuse lead to the voltage source with appropriate hardware. See Figure 12.
4. From the radio option cable, take the green/white wire and crimp
an insulated 1/ 4 inch spade tab receptacle. Connect the receptacle to relay lug #85.
5. Connect the horn or light circuit to lugs #30 and #87 (not 87a)
using the insulated 1/ 4 inch spade tab receptacles.
#
28
The relay contact make/ break current and voltage rating is 30 amps at 16 volts.
Page 29
PIN 15
ON
OPTION CABLE RPM 113 7674/1
P3
18 PIN CONNECTOR
J100
PIN 24
(FEMALE)
DB-25 CONNECTOR
DB-25 CONNECTOR (MALE)
TO BE SUPPLIED BY CUSTOMER
FUSE
(1A)
BATTERY A+
Figure 11 - External Car Alert
87
COM
RELAY
19A149299P1
NO
85
86
To Horn Circuit
30
To Horn Circuit
BATTERY A+
FUSE (1A)
86
87a
30
87
85
TO HORN CIRCUIT
Figure 12 - External Alarm Relay
TO RADIO OPTION CAB LE
GREEN/WHITE WIRE
29
Page 30
OPTION CABLE RPM 113 7674/1
PIN 18
IGNITION
SENSE
P3
18 PIN CONNECTOR
J100
PIN 13
(FEMALE)
DB-25 CONNECTO R
DB-25 CONNECTO R ( MALE )
TO BE SUPPLIED BY CUSTOMER
FUSE 1A (OPTIONAL)
VEHICLE FUSE BLOCK

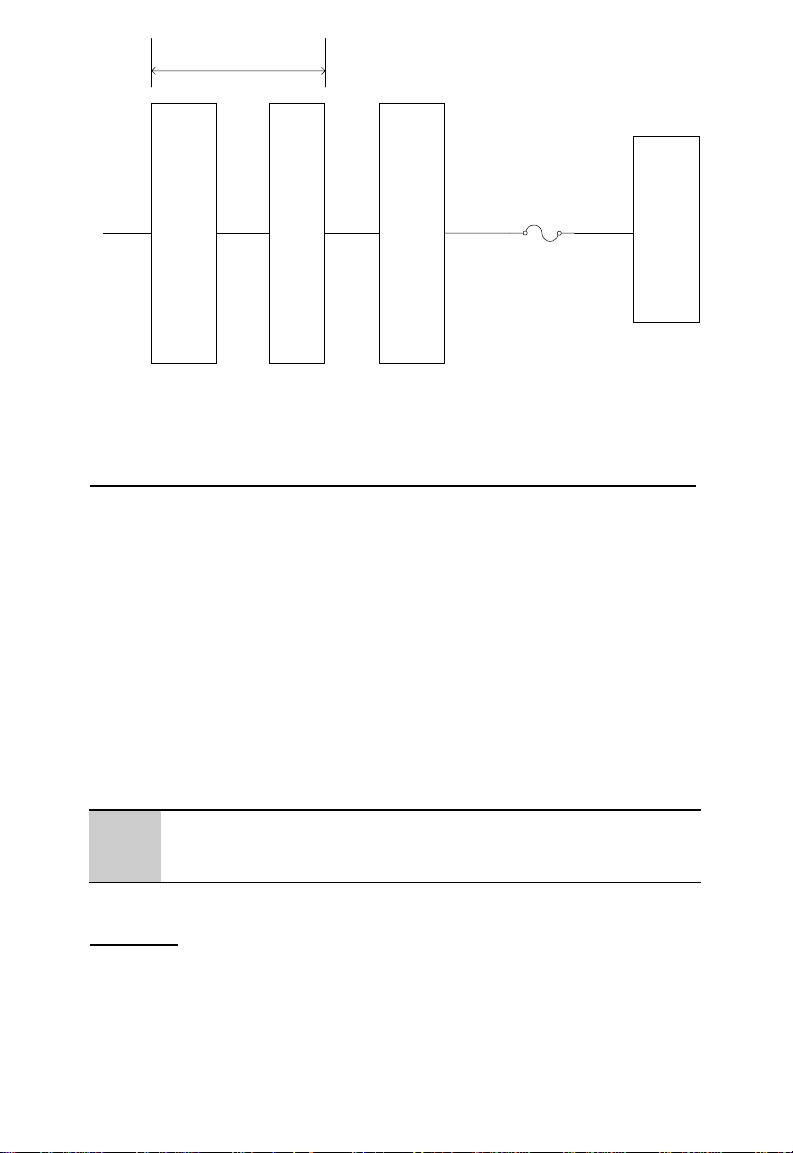

Figure 13 – Ignition Sense Option

Microphone Hanger/Hook Switch Mounting – 344A4678P1

The microphone hanger or Hook Switch should be mounted in a location convenient to the operator where it will not interfere with the safe operation of the vehicle or be a hazard to the vehicle passengers. The hanger or hook switch is designed to mount with the open end of the mounting button slot pointed upward.
1. Use the hanger or Hook Switch as a template to mark and drill
the mounting holes. Mount the hanger or hook switch with the self-tapping screws provided.
2. Connect microphone connector to connector on control unit and
secure with captive screw.
#
Do not torque microphone connector screw greater than 2 in­lb. Alternatively, finger tight plus 1/4 turn is acceptable.

Antenna

Installation instructions for the antenna are packaged with the antenna. The antenna must be installed in accordance with good engineering practice for optimum results.
30
Page 31
A permanent mount type of antenna should be located in the center of the roof or center of rear deck. Glass mounted antennas should be kept as high as possible in the top center of the rear window. Some states have laws restricting vision-obstructing items from the windows. Be familiar with local laws before installing glass mount antennas.
Try to route the cable away from locations where it will be exposed to heat, sharp edges or mechanical damage, and where it will be out of the way of the driver, passengers or vehicles mechanics. Wherever possible, existing holes in the trunk wall, and the channels above or beneath doors and window columns should be utilized.
Avoid routing the antenna cable near any electronic modules or along side any vehicle wiring.
Connect the antenna cable to the TNC connector on the radio being careful not to twist the cable.

Noise Suppression Kit - Option KMPD1A (19A148539G1)

Refer to the noise suppression kit option installation manual that is included with this option.
31
Page 32
Com-Net Ericsson Critical Radio Systems, Inc.
P.O. Box 2000 Lynchburg, Virginia 24501 1-800-528-7711 (Outside USA, 804-592-7711) Printed in U.S.A.
Loading...
