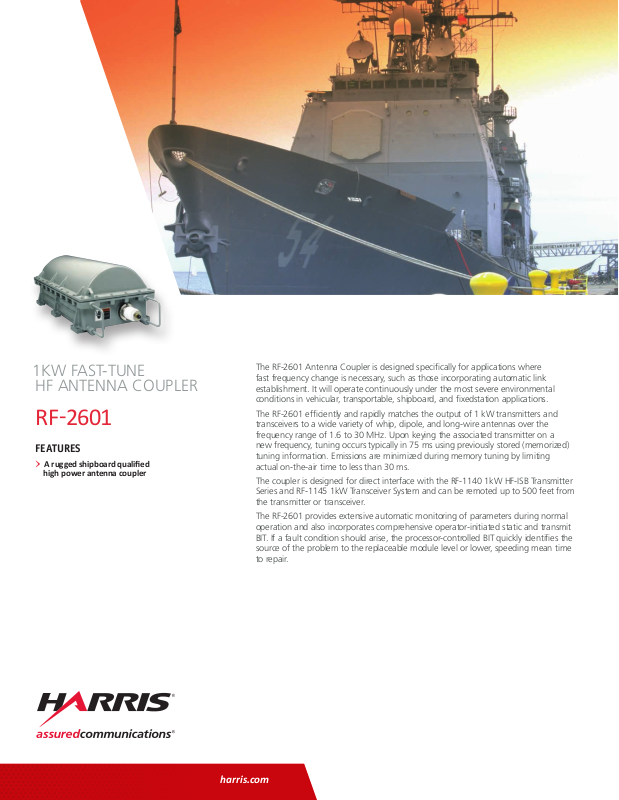

1KW FAST-TUNE
HF ANTENNA COUPLER
RF-2601
FEATURES

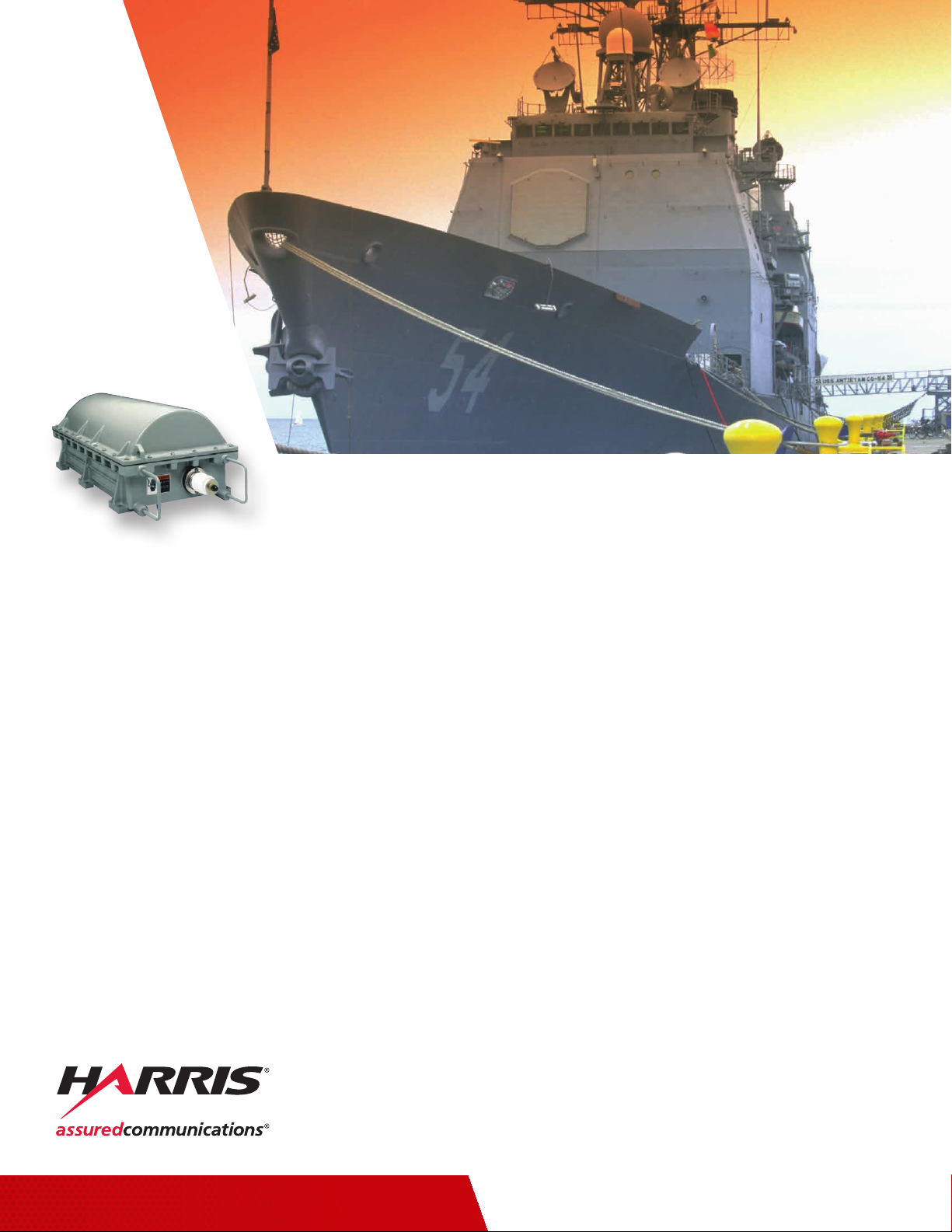

> A rugged shipboard qualied
high power antenna coupler
The RF-2601 Antenna Coupler is designed specically for applications where
fast frequency change is necessary, such as those incorporating automatic link
establishment. It will operate continuously under the most severe environmental
conditions in vehicular, transportable, shipboard, and xedstation applications.
The RF-2601 efciently and rapidly matches the output of 1 kW transmitters and
transceivers to a wide variety of whip, dipole, and long-wire antennas over the
frequency range of 1.6 to 30 MHz. Upon keying the associated transmitter on a
new frequency, tuning occurs typically in 75 ms using previously stored (memorized)
tuning information. Emissions are minimized during memory tuning by limiting
actual on-the-air time to less than 30 ms.
The coupler is designed for direct interface with the RF-1140 1kW HF-ISB Transmitter
Series and RF-1145 1kW Transceiver System and can be remoted up to 500 feet from
the transmitter or transceiver.
The RF-2601 provides extensive automatic monitoring of parameters during normal
operation and also incorporates comprehensive operator-initiated static and transmit
BIT. If a fault condition should arise, the processor-controlled BIT quickly identies the
source of the problem to the replaceable module level or lower, speeding mean time
to repair.
harris.com
Page 2
SPECIFICATIONS FOR: RF-2601
SPECIFICATIONS
Coupler Unit: 30L x 15W x 10.7H in
Dimensions
Weight
(76.2L x 38.1W x 27.2H cm)
Control Unit: 1.75H x 19W x 8.75D in
(4.4H x 48.3W x 22.2D cm)
Coupler Unit: 86 lb maximum (39 kg)
Control Unit: 10 lb (4.5 kg)
ENVIRONMENTAL
Temperature
Humidity
Vibration
Shock
Altitude
Salt Fog MIL-STD-810D; Method 509.2, Proc. I
Dust
Rain MIL-STD-810D; Method 506.2, Proc.I (blowing rain).
MIL-STD-810D; Method 501.2 Proc I and II (storage at
+71°C and operation at +65°C). Method 502.2, Proc. I
and II (storage at –62°C and operation at –54°C).
MIL-STD-810D; Method 507.2, Proc.II,
(0 to 100% relative humidity).
MIL-STD-810C; Method 514, Procedure VIII, curve Y
except 5 to 55 Hz and 0.15 inches dbl. ampl. or 2.5G,
whichever is less. MIL-STD-167-1; Type I for shipboard
equipment.
MIL-S-901; Grade A, Class I (solid mount), Lightweight,
type A.
MIL-STD-810D; Method 500.2, Proc. I and II, (storage
and operation to 15,000 ft.).
MIL-STD-810D; Method 510.2, Proc.I and II (blowing
dust and sand).
INSTALLATION
Power Supply 115/230 VAC ±10%, 50/60 Hz single phase
Power Consumption
145 watts maximum. Primary power derived from
transmitter/transceiver.
ELECTRICAL
Frequency Range 1.6 to 30 MHz
RF Power
Tuning Capability
Tuning Accuracy VSWR of 1.2:1 typical
Tuning Time
Tune Power Requirements 25 to 280 watts
Circuit Protection
Coupler Bypass
Remote Capability
2 to 30 MHz: 1 kW PEP/Average;
1.6 to 2 MHz: 1 kW PEP/500 watts Average
1.6 to 30 MHz: 35 foot whip, long wire, dipole, and
broadband antennas; (The RF-625A Long-Wire Adapter
is necessary for use with long-wires and dipoles.) 2.0
to 30 MHz: 16 to 24 foot mobile and shelter-mounted
whips.
Memory: 75 milliseconds to 125 milliseconds;
Learn: 2-3 seconds typical, 10 seconds maximum.
Protection from high VSWR, high temperature, low
pressurization, RF over-voltage, control line lightning
surges, RF path lightning surges.
Automatically in fault mode; Manually, with RF-2602
Status Monitor.
Up to 500 feet separation between transmitter and
coupler with the use of 1/2 inch or 7/8 inch foam
dielectric coaxial cable. Up to 250 feet with the use
of RG-213/U Coaxial Cable.
OPTIONAL ACCESSORIES FOR RF-2601
RF-2601AC
RF-625A
RF-628
RF-636
Similar to RF-2601, except RF-2602 Status
Monitor is deleted.
Long-Wire Adapter. Permits RF-2601 to tune
long-wire antennas.
Dry Nitrogen Kit. For inert gas pressurization of the
RF-2601 Antenna Coupler. Includes 20 cubic feet
drynitrogen-filled cylinder, regulator, and 10 foot hose
sufficient to pressurize the RF-2601 up to 12 times.
Dry Air Pump. Hand pump recommended for
pressurization of the RF-2601 when dry-nitrogen
pressurization equipment is not available. Includes
hose. Desiccant condition shown by color indicator
on pump body.
