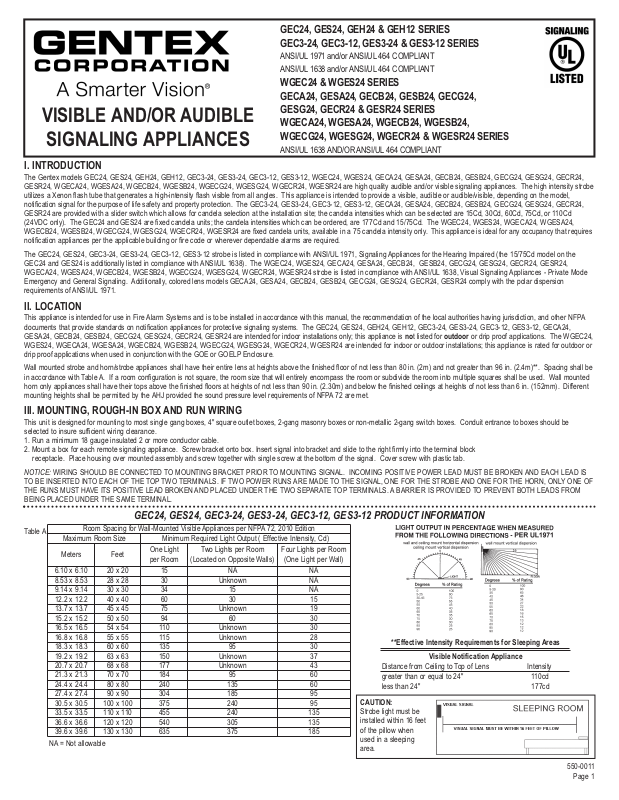

GEC24, GES24, GEH24 & GEH12 SERIES
GEC3-24, GEC3-12, GES3-24 & GES3-12 SERIES
ANSI/UL 1971 and/or ANSI/UL 464 COMPLIANT
ANSI/UL 1638 and/or ANSI/UL 464 COMPLIANT
WGEC24 & WGES24 SERIES
GECA24, GESA24, GECB24, GESB24, GECG24,
GESG24, GECR24 & GESR24 SERIES
VISIBLE AND/OR AUDIBLE
SIGNALING APPLIANCES
WGECA24, WGESA24, WGECB24, WGESB24,
WGECG24, WGESG24, WGECR24 & WGESR24 SERIES
ANSI/UL 1638AND/OR ANSI/UL 464 COMPLIANT
I. INTRODUCTION
The Gentex models GEC24, GES24, GEH24, GEH12, GEC3-24, GES3-24, GEC3-12, GES3-12, WGEC24, WGES24, GECA24, GESA24, GECB24, GESB24, GECG24, GESG24, GECR24,
GESR24, WGECA24, WGESA24, WGECB24, WGESB24, WGECG24, WGESG24, WGECR24, WGESR24 are high quality audible and/or visible signaling appliances. The high intensity strobe
utilizes a Xenon flash tube that generates a high-intensity flash visible from all angles. This appliance is intended to provide a visible, audible or audible/visible, depending on the model,
notification signal for the purpose of life safety and property protection. The GEC3-24, GES3-24, GEC3-12, GES3-12, GECA24, GESA24, GECB24, GESB24, GECG24, GESG24, GECR24,
GESR24 are provided with a slider switch which allows for candela selection at the installation site; the candela intensities which can be selected are 15Cd, 30Cd, 60Cd, 75Cd, or 110Cd
(24VDC only). The GEC24 and GES24 are fixed candela units; the candela intensities which can be ordered, are 177Cd and 15/75Cd. The WGEC24, WGES24, WGECA24, WGESA24,
WGECB24, WGESB24, WGECG24, WGESG24, WGECR24, WGESR24 are fixed candela units, available in a 75 candela intensity only. This appliance is ideal for any occupancy that requires
notification appliances per the applicable building or fire code or wherever dependable alarms are required.
The GEC24, GES24, GEC3-24, GES3-24, GEC3-12, GES3-12 strobe is listed in compliance with ANSI/UL 1971, Signaling Appliances for the Hearing Impaired (the 15/75Cd model on the
GEC24 and GES24 is additionally listed in compliance with ANSI/UL 1638). The WGEC24, WGES24, GECA24, GESA24, GECB24, GESB24, GECG24, GESG24, GECR24, GESR24,
WGECA24, WGESA24, WGECB24, WGESB24, WGECG24, WGESG24, WGECR24, WGESR24 strobe is listed in compliance with ANSI/UL 1638, Visual Signaling Appliances - Private Mode
Emergency and General Signaling. Additionally, colored lens models GECA24, GESA24, GECB24, GESB24, GECG24, GESG24, GECR24, GESR24 comply with the polar dispersion
requirements of ANSI/UL 1971.
II. LOCATION
This appliance is intended for use in Fire Alarm Systems and is to be installed in accordance with this manual, the recommendation of the local authorities having jurisdiction, and other NFPA
documents that provide standards on notification appliances for protective signaling systems. The GEC24, GES24, GEH24, GEH12, GEC3-24, GES3-24, GEC3-12, GES3-12, GECA24,
GESA24, GECB24, GESB24, GECG24, GESG24, GECR24, GESR24 are intended for indoor installations only; this appliance is not listed for outdoor or drip proof applications. The WGEC24,
WGES24, WGECA24, WGESA24, WGECB24, WGESB24, WGECG24, WGESG24, WGECR24, WGESR24 are intended for indoor or outdoor installations; this appliance is rated for outdoor or
drip proof applications when used in conjunction with the GOE or GOELP Enclosure.
Wall mounted strobe and horn/strobe appliances shall have their entire lens at heights above the finished floor of not less than 80 in. (2m) and not greater than 96 in. (2.4m)**. Spacing shall be
in accordance with Table A. If a room configuration is not square, the room size that will entirely encompass the room or subdivide the room into multiple squares shall be used. Wall mounted
horn only appliances shall have their tops above the finished floors at heights of not less than 90 in. (2.30m) and below the finished ceilings at heights of not less than 6 in. (152mm). Different
mounting heights shall be permitted by the AHJ provided the sound pressure level requirements of NFPA 72 are met.
III. MOUNTING, ROUGH-IN BOX AND RUN WIRING
This unit is designed for mounting to most single gang boxes, 4" square outlet boxes, 2-gang masonry boxes or non-metallic 2-gang switch boxes. Conduit entrance to boxes should be
selected to insure sufficient wiring clearance.
1. Run a minimum 18 gauge insulated 2 or more conductor cable.
2. Mount a box for each remote signaling appliance. Screw bracket onto box. Insert signal into bracket and slide to the right firmly into the terminal block
receptacle. Place housing over mounted assembly and screw together with single screw at the bottom of the signal. Cover screw with plastic tab.
NOTICE: WIRING SHOULD BE CONNECTED TO MOUNTING BRACKET PRIOR TO MOUNTING SIGNAL. INCOMING POSITIVE POWER LEAD MUST BE BROKEN AND EACH LEAD IS
TO BE INSERTED INTO EACH OF THE TOP TWO TERMINALS. IF TWO POWER RUNS ARE MADE TO THE SIGNAL, ONE FOR THE STROBE AND ONE FOR THE HORN, ONLY ONE OF
THE RUNS MUST HAVE ITS POSITIVE LEAD BROKEN AND PLACED UNDER THE TWO SEPARATE TOP TERMINALS. A BARRIER IS PROVIDED TO PREVENT BOTH LEADS FROM
BEING PLACED UNDER THE SAME TERMINAL.
GEC24, GES24, GEC3-24, GES3-24, GEC3-12, GES3-12 PRODUCT INFORMATION
Table A
NA = Not allowable
Room Spacing for Wall-Mounted Visible Appliances per NFPA 72, 2010 Edition
Maximum Room Size Minimum Required Light Output ( Effective Intensity, Cd)
Meters Feet
6.10 x 6.10 20 x 20 15 NA NA
8.53 x 8.53 28 x 28 30 Unknown NA
9.14 x 9.14 30 x 30 34 15 NA
12.2 x 12.2 40 x 40 60 30 15
13.7 x 13.7 45 x 45 75 Unknown 19
15.2 x 15.2 50 x 50 94 60 30
16.5 x 16.5 54 x 54 110 Unknown 30
16.8 x 16.8 55 x 55 115 Unknown 28
18.3 x 18.3 60 x 60 135 95 30
19.2 x 19.2 63 x 63 150 Unknown 37
20.7 x 20.7 68 x 68 177 Unknown 43
21.3 x 21.3 70 x 70 184 95 60
24.4 x 24.4 80 x 80 240 135 60
27.4 x 27.4 90 x 90 304 185 95
30.5 x 30.5 100 x 100 375 240 95
33.5 x 33.5 110 x 110 455 240 135
36.6 x 36.6 120 x 120 540 305 135
39.6 x 39.6 130 x 130 635 375 185
One Light
per Room
Two Lights per Room
(Located on Opposite Walls)
Four Lights per Room
(One Light per Wall)
**Effective Intensity Requirements for Sleeping Areas
Visible Notification Appliance
Distance from Ceiling to Top of Lens Intensity
greater than or equal to 24" 110cd
less than 24" 177cd
CAUTION:
Strobe light must be
installed within 16 feet
of the pillow when
used in a sleeping
area.
550-0011
Page 1
Strobe light can not be seen when objects such as doors, furniture or walls block strobe light.
NOTICE:
THE VISUAL SIGNAL MUST BE IN THE DIRECT VIEWING AREA OF THE OCCUPANT IN ORDER TO BE SEEN.
VISUAL SIGNALS FOR THE HEARING IMPAIRED ARE ONLY ONE METHOD OF ALERTING THE HEARING IMPAIRED. VISUAL SIGNALS MAY NOT BE THE PREFERRED METHOD
FOR NOTIFYING ALL HEARING IMPAIRED INDIVIDUALS.
THE STROBE LIGHT MUST BE SEEN BY THE SLEEPING PERSON. IF THE PERSON HAS HEAD TURNED OR OTHERWISE UNABLE TO BE ALERTED BY VISUAL, THE STROBE
WILL NOT BE EFFECTIVE.
24VDC CLEAR Lens Indoor Strobe Current Ratings
GEC24 and
GES24 Series
Available Candela
NOTICE: DC VOLTAGE RANGE LIMITS: 16-33V. FWR VOLTAGE RANGE LIMITS: 16-33V. THIS PRODUCT WAS ONLY TESTED TO THE STATED VOLTAGE RANGE(S); DO NOT APPLY 80% AND 110% OF THIS RANGE FOR SYSTEM
PERATION.
O
1
hen using products manufactured after 7-1-10, these values are to be used when calculating current draws.
W
GEC3-24 and
GES3-24 Series
Available Candela
Strobe
Candela
Regulated 24VDC
Max. Operating
Current(mA)
15 42 77
15/75 67 113
30 58 102
60 97 161
75 116 225
110 161 256
177 213 341
Regulated 24VFWR
Max. Operating
Current (mA)
1
12VDC CLEAR Lens Strobe Current Ratings
Use with GEC3-12 and GES3-12 Products
Candela
Regulated 12VDC
Max. Operating
Current (mA)
Regulated 12VFWR
Max. Operating
Current (mA)
15 92 145
30 141 224
60 260 459
75 312 460
1
WGEC24, WGES24, WGECA24, WGESA24, WGECB24, WGESB24, WGECG24, WGESG24, WGECR24, WGESR24 PRODUCT INFORMATION
Models Color Lens
WGECA24, WGESA24 Amber
WGECB24, WGESB24 Blue
WGECG24, WGESG24 Green
WGECR24, WGESR24 Red
24VDC BLUE, GREEN & RED Lens Outdoor
Strobe Current Ratings
Use with WGECB24, WGESB24, WGECG24,
WGESG24, WGECR24, WGESR24 Products
Candela
Regulated 24VDC
Max. Operating
Current (mA)
Regulated 24VFWR
Max. Operating
Current (mA)
1
75 164 278
NOTICE: DC VOLTAGE RANGE LIMITS: 16-33V. FWR VOLTAGE RANGE LIMITS: 16-33V. THIS PRODUCT WAS ONLY TESTED TO THE
STATED VOLTAGE RANGE(S); DO NOT APPLY 80% AND 110% OF THIS RANGE FOR SYSTEM OPERATION.
1
When using products manufactured after 7-1-10, these values are to be used when calculating current draws.
24VDC CLEAR & AMBER Lens Outdoor
Strobe Current Ratings
Use with WGEC24, WGES24,
WGECA24, WGESA24 Products
Candela
Regulated 24VDC
Max. Operating
Current (mA)
Regulated 24VFWR
Max. Operating
Current (mA)
75 170 263
1
GECA24, GESA24, GECB24, GESB24, GECG24, GESG24, GECR24, GESR24 PRODUCT INFORMATION
BLUE, GREEN & RED Lens Indoor
Strobe Current Ratings
Use with GECB24, GESB24, GECG24,
GESG24, GECR24, GESR24 Products
Candela
Regulated 24VDC
Max. Operating
Current (mA)
Regulated 24VFWR
Max. Operating
Current (mA)
15 105 164
30 130 196
60 203 325
75 243 355
110 310 491
1
Models Color Lens
GECA24, GESA24 Amber
GECB24, GESB24 Blue
GECG24, GESG24 Green
GECR24, GESR24 Red
AMBER Lens Indoor Strobe Current Ratings
Use with GECA24 and GESA24 Products
Candela
Regulated 24VDC
Max. Operating
Current (mA)
Regulated 24VFWR
Max. Operating
Current (mA)
1
15 47 82
30 64 112
60 113 178
75 145 213
110 178 259
NOTICE: DC VOLTAGE RANGE LIMITS: 16-33V. FWR VOLTAGE RANGE LIMITS: 16-33V. THIS PRODUCT WAS ONLY TESTED TO THE
STATED VOLTAGE RANGE(S); DO NOT APPLY 80% AND 110% OF THIS RANGE FOR SYSTEM OPERATION.
1
When using products manufactured after 7-1-10, these values are to be used when calculating current draws.
HORN DECIBEL AND CURRENT RATINGS PRODUCT INFORMATION
Horn Decibel Levels
Horn Mode
Minimum SPL
at 10Ft. Per
ANSI/UL 464
(HIGH)
Minimum SPL
at 10Ft. Per
ANSI/UL 464
(LOW)
Temp 3 2400Hz 78 dBA 71* dBA 28 48
Temp 3 Mechanical 76 dBA 70* dBA 25 44
Temp 3 Chime 70* dBA 66* dBA 15 30
Continuous 2400Hz 81 dBA 74* dBA 28 48
Continuous Mechanical 80 dBA 72* dBA 25 44
Continuous Chime 70* dBA 66* dBA 15 30
Whoop 82 dBA 69* dBA 56 62
NOTICE:
THE THREE PULSE TEMPORAL PATTERN IS TO BE USED FOR EVACUATION USE ONLY.
THE SOUND OUTPUT FOR THE TEMPORAL 3 TONE IS RATED LOWER SINCE THE TIME THE HORN IS OFF IS AVERAGED INTO THE SOUND OUT PUT RATING. WHILE THE HORN IS PRODUCING A TONE
IN THE TEMPORAL 3 MODE ITS SOUND PRESSURE IS THE SAME AS THE CONTINUOUS MODE. UNITS HAVE BEEN TESTED TO 0°C, 49°C AND 93% HUMIDITY.
* Operating the horn in this mode at this voltage will result in not meeting the minimum ANSI/UL 464 sound level required for public mode fire protection service.
These settings are acceptable only for private mode fire alarm signaling use. Use the high dBA setting for public mode applications (the chime tone is always private mode).
Horn Current Ratings Over
Input Voltage Range of 16-33V
Regulated 24VDC
Max. Operating
Current (mA)
HIGH Setting
Regulated 24VFWR
Max. Operating
Current (mA)
HIGH Setting
Horn Decibel Levels
Horn Mode
Minimum SPL
at 10Ft. Per
ANSI/UL 464
(HIGH)
Minimum SPL
at 10Ft. Per
ANSI/UL 464
(LOW)
Temp 3 2400Hz 76 dBA 69* dBA 29 48
Temp 3 Mechanical 75 dBA 68* dBA 26 45
Temp 3 Chime 62* dBA 60* dBA 13 24
Continuous 2400Hz 79 dBA 74* dBA 29 48
Continuous Mechanical 78 dBA 72* dBA 26 45
Continuous Chime 63* dBA 61* dBA 13 24
Whoop 78 dBA 71* dBA 55 61
Horn Current Ratings Over
Input Voltage Range of 8-17.5V
Regulated 12VDC
Max. Operating
Current (mA)
HIGH Setting
Regulated 12VFWR
Max. Operating
Current (mA)
HIGH Setting
550-0011
Page 2
IV. WIRING
Wiring for synchronized strobes and horns.
Using this method you may:
Use only two wires to synchronize the temporal horn and strobe with the ability to mute the horn (place
switches 1 and 2 in the ON position on the GEC24, GEC3-24, GEC3-12, WGEC24, GECA24, GECB24,
GECG24, GECR24, WGECA24, WGECB24, WGECG24, WGECR24).
Mute the horn only when the temporal horn option has been selected.
Use the Gentex synchronization protocol to provide synchronization and mute the horn, if available.
Wiring for synchronized parallel (unison) horn/strobe operation.
Using this method you may:
Use four wires where two wires are used to power and synchronize the strobe and two additional wires
are used to power and synchronize the horn (place switches 1 and 2 in the OFF position on the GEC24,
GEC3-24, GEC3-12, WGEC24, GECA24, GECB24, GECG24, GECR24, WGECA24, WGECB24,
WGECG24, WGECR24).
Choose either continuous horn and allow the FACP to control the horn or choose temporal horn and synchronize the horns with the Gentex synchronization protocol.
Use the Gentex synchronization protocol to provide synchronization and mute the horn, if available.
NOTICE:
FOR THIS OPTION, SWITCHES 1 AND 2 ON THE GEC24, GEC3-24, GEC3-12, WGEC24, GECA24, GECB24, GECG24, GECR24, WGECA24, WGECB24, WGEC24, WGECR24 MUST
BE IN THE OFF POSITION TO ISOLATE POWER TO THE AUDIBLE AND VISIBLE PORTION OF THE CIRCUIT.
ALL STROBES ARE DESIGNED TO FLASH AS SPECIFIED WITH CONTINUOUS APPLIED VOLTAGE. THIS APPLIANCE IS NOT RECOMMENDED FOR USE ON CODED OR PULSING
SIGNALING CIRCUITS. HOWEVER, USE OF THE AVSM CONTROL MODULE IS PERMITTED TO SYNCHRONIZE THE STROBE AND/OR MUTE THE HORN.
REFERENCE AVSM CONTROL MODULE MANUAL (550-0284, DATED 2-1-03) FOR SYNCHRONIZATION MODULE WIRING DIAGRAMS. AVSM MANUAL CAN BE OBTAINED AT
HTTP://WWW.GENTEX.COM OR CALL GENTEX CORPORATION AT 1-800-436-8391.
Conventional Method:
You may connect both the strobe and the horn directly from a source of rated power without the use of a control module. However, the horns and strobe lights will NOT be synchronized. Place
switches 1 and 2 in the ON position on the GEC24, GEC3-24, GEC3-12, WGEC24, GECA24, GECB24, GECG24, GECR24, WGECA24, WGECB24, WGECG24, WGECR24 to power both the
audible and visible from a single pair of power wires. If you wish to power the horn and strobe from independent sources of power, place switches 1 and 2 in the OFF position on the GEC24,
GEC3-24, GEC3-12, WGEC24, GECA24, GECB24, GECG24, GECR24, WGECA24, WGECB24, WGECG24, WGECR24 and connect power to the appropriate terminals.
CAUTION: When using only a single power source to
energize the strobe and horn (switches 1 and 2 in the ON
position), the in/out wiring must be under the S+ and Sterminals only. Failure to do so may result in damage to your
signal. For the horn only (GEH24 and GEH12) and strobe only
(GES24, GES3-24, GES3-12, WGES24, GESA24, GESB24,
GESG24, GESR24, WGESA24, WGESB24, WGESG24,
WGESR24), only the top three terminals are to be used.
SWITCH POSITION
TONE 3 4 5
Mechanical Temporal 3 ON ON ON
Mechanical - Continuous OFF ON ON
2400Hz - Temporal 3 ON OFF ON
2400Hz - Continuous OFF OFF ON
Chime - Temporal 3 ON ON OFF
Chime - Continuous OFF ON OFF
Whoop ON OFF OFF
Whoop OFF OFF OFF
NOTICE:
SWITCH POSITIONS 1 AND 2 IN THE OFF POSITION TO
SELECT ISOLATED HORN AND STROBE POWER INPUTS
SWITCH POSITION 6 ON = HIGH DBA
SWITCH POSITION 6 OFF = LOW DBA
Gentex Super-Slide®Mounting Bracket:
Allows the installer to pre-wire the system, test for system
supervision, remove the signal head until occupancy,
switch out Gentex signals without changing mounting
brackets and has locking edge connector for snap-in-place
installation.
Gentex Checkmate®Instant Voltage Verification:
It is often necessary to confirm the voltage drop along a
line of devices. The access holes are provided in the back
of the terminal block to allow the voltage to be measured
directly without removing the device. Typically this would
be done at the end of the line to confirm design criteria.
Most measurements will be taken using the S+ and Slocations although access is provided to other locations.
NOTICE: CARE SHOULD BE TAKEN TO NOT SHORT
THE TEST PROBES.
CAUTION: A jumper card is provided to test for correct
wiring in the supervisory mode only. DO NOT pass alarm
current through the jumper.
550-0011
Page 3
Candela selection
slider switch. Depress
center and slide switch to
desired brightness level.
Break off pin and insert into
hole at the bottom of the
selector to lock candela
setting. Signal must be
removed from bracket and
pin pushed forward from
backside out of hole to
change candela.
To remove bezel, grip both
sides of bezel and pull in a
downward and outward
motion.
FOR MODELS: GEC3-24, GES3-24, GEC3-12, GES3-12, GECA24,
GESA24, GECB24, GESB24, GECG24, GESG24, GECR24, GESR24 ONLY
FOR MODELS: GEC24, GES24, GEH24, GEH12, GEC3-24,
GES3-24, GEC3-12, GES3-12, GECA24, GESA24, GECB24, GESB24,
GECG24, GESG24, GECR24, GESR24 ONLY
THIS APPLIANCE WILL NOT OPERATE WITHOUT ELECTRICAL POWER. AS FIRES FREQUENTLY CAUSE POWER INTERRUPTIONS,
GENTEX SUGGESTS YOU DISCUSS FURTHER SAFEGUARDS WITH YOUR LOCAL FIRE PROTECTION SPECIALIST.
V. CHECKOUT AND TROUBLESHOOTING
1. Supply power to the system control panel. The auxiliary signaling appliances in the system should not be activated.
2. If the signal is activated:
Check all smoke and fire detectors in the system to make sure they have not been activated.
Check all wiring connections to make sure the signal detection circuits are not reversed or shorted together. Check wire color codes and traces.
Verify that the jumpers and switches are properly set on both the control module and signal appliance. If the jumper on the AVSM is removed, the horns will not produce any sound unless
there is an input to the H+ and H- terminals on the control module.
3. To test the signal appliances, trip the auxiliary panel or activate the alarm circuit at the main control panel or activate one of the fire detection units in the system. All auxiliary signals should
be activated.
4. An operational test on this product should be conducted in accordance with National Standards or at a minimum annually and more often if dictated by local and state codes or authorities
having jurisdiction.
NOTICE: THESE TESTING PROCEDURES AND TROUBLESHOOTING INSTRUCTIONS ARE GENERALIZED. PLEASE REFER TO THE SYSTEM CONTROL PANEL OPERATING
INSTRUCTIONS FOR PROPER OPERATION OF THE PANEL AND FIRE DETECTION SYSTEM.
SIGNALING APPLIANCE LIMITATION:
Your horn and horn/strobe meet or exceed the current audibility requirements of ANSI/UL 464. However, if the appliance is located outside a bedroom it may not wake up a sound sleeper,
especially if the room door is closed or only partially open.
VI. TO RETURN AN APPLIANCE
Should you experience problems with your appliance, proceed as follows:
1. Turn off electrical power to the auxiliary alarm circuit.
2. Remove the bezel, nameplate, then mounting screw and slide signal off from bracket
3. Replace unit that was removed to restore wiring supervision and to eliminate system trouble alert.
4. Carefully pack the defective unit (the manufacturer cannot be responsible for consequential damage due to shipping or mis-handling). Include a return address and complete details as to
the nature of the difficulties being experienced and date of installation.
5. Return to: Gentex Corporation, 10985 Chicago Dr., Zeeland MI 49464. Prior to returning, call Gentex at 1-800-436-8391 or e-mail FP_RMA@gentex.com to obtain a RMA Number from our
Customer Service Department.
For a period of 36 months from the date of purchase or a maximum of 42 months from the date of manufacture, Gentex warrants to you the original purchaser that your appliance will be free from defects in
workmanship, materials and construction under normal use and service. If a defect in workmanship, materials and construction should cause your appliance to become inoperative within the warranty period,
Gentex will repair your appliance or furnish you with a new or rebuilt appliance without charge to you except for postage required to return the appliance to us. Gentex will not reimburse you for repairs or
replacement parts provided by other parties. Your repaired or replacement appliance will be returned to you free of charge and it will be covered under the warranty for the balance of the warranty period.
The warranty is void if our inspection of your appliance shows that the damage or failure was caused by abuse, misuse, abnormal usage, faulty installation, improper maintenance or repairs other than those
performed by us.
ANY WARRANTIES IMPLIED UNDER ANY STATE LAW INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE APPLY ONLY FOR THE
WARRANTY PERIOD SPECIFIED ABOVE. PLEASE NOTE THAT SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS. SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU. GENTEX WILL NOT BE LIABLE FOR ANY LOSS, DAMAGE, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND ARISING IN CONNECTION WITH THE SALE, USE
OR REPAIR OF THIS APPLIANCE. THE MAXIMUM LIABILITY OF GENTEX SHALL NOT IN ANY CASE EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE APPLIANCE. PLEASE NOTE THAT
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
If a defect in workmanship, materials or construction should cause your appliance to become inoperable within the warranty period, you must return the appliance to Gentex postage prepaid. You must
prove to the satisfaction of Gentex the date of purchase of your appliance. Warranty service may only be performed by Gentex personnel at Gentex's facilities in Zeeland, Michigan. You must also pack the
appliance to minimize the risk of it being damaged in transit. You must also enclose a return address. Appliances returned for warranty service should be sent to: Gentex Corporation, 10985 Chicago Dr.,
Zeeland MI 49464. If we receive an appliance in a damaged condition as the result of shipping, we will notify you and you must seek a claim with the shipper.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Important Notice:
These materials have been prepared by Gentex Corporation ("Gentex") for informational purposes only, are necessarily summary, and are not purported to serve as legal advice and should not be used as such. Gentex makes no representations and warranties, express or implied, that these materials are
complete and accurate, up-to-date, or in compliance with all relevant local, state and federal laws, regulations and rules. The materials do not address all legal considerations as there is inevitable uncertainty regarding interpretation of laws, regulations and rules and the application of such laws, regulations and
rules to particular fact patterns. Each person's activities can differently affect the obligations that exist under applicable laws, regulations or rules. Therefore, these materials should be used only for informational purposes and should not be used as a substitute for seeking professional legal advice. Gentex will not
be responsible for any action or failure to act in reliance upon the information contained in this material.
GENTEX CORPORATION
LIMITED WARRANTY
550-0011-AAD
10985 CHICAGO DRIVE, ZEELAND, MI 49464
02/01/10
PHONE: 1-800-436-8391
www.gentex.com
Page 4
Loading...
