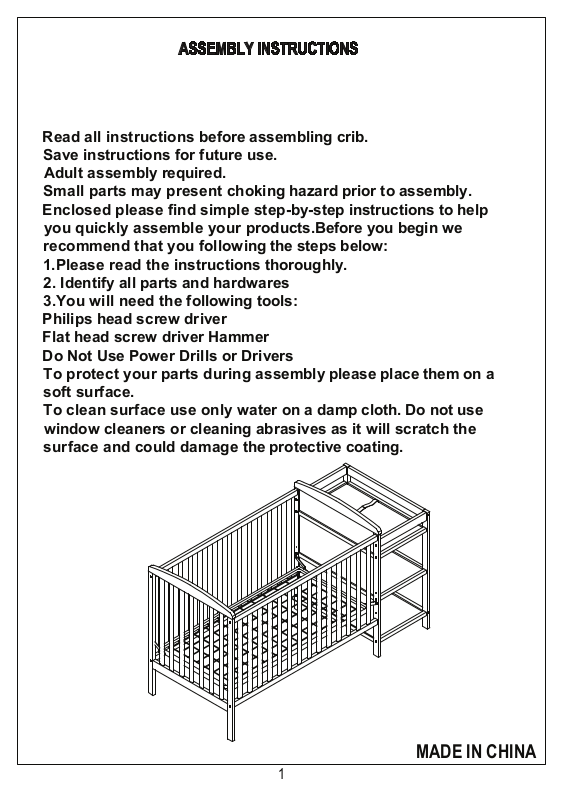

Read all instructions before assembling crib.
Save instructions for future use.
Adult assembly required.
Small parts may present choking hazard prior to assembly.
Enclosed please find simple step-by-step instructions to help
you quickly assemble your products.Before you begin we
recommend that you following the steps below:
1.Please read the instructions thoroughl
2. Identify all parts and hardwares
3.You will need the following tools:
Philips head screw driver
Flat head screw driver Hammer
Do Not Use Power Drills or Drivers
To protect your parts during assembly please place them on a
soft surface.
To clean surface use only water on a damp cloth. Do not use
window cleaners or cleaning abrasives as it will scratch the
surface and could damage the protective coating.
y.
MADE IN CHINA
2
· FAILURE TO FOLLOW THESE WARNINGS AND THE ASSEMBLY INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR DEATH.
· READ ALL INSTRUCTIONS BEFORE ASSEMBLING CRIB.
FOR FUTURE USE.
ANY MATTRESS USDED IN THIS CRIB MUST BE AT LEAST 51-5/8 INCHES BY
27-1/4 INCHES WITH A THICKNESS NOT EXCEEDING 6 INCHES.
· CHECK THIS PRODUCT FOR DAMAGED HARDWARE,LOOSE JOINTS,MISSING
PARTS OR SHARP EDGES BEFORE AND AFTER ASSEMBLY.A FREQUENT
CHECK SHOULD BE MADE DURING USE.DO NOT USE CRIB IF ANY PARTS ARE
MISSING,DAMAGED OR BROKEN.CONTACT US FOR REPLACEMENT PARTS
AND INSTRUCTIONAL LITERATURE IF NEEDED.DO NOT SUBSTIT
· TO REDUCE THE RISK OF SIDS, PEDIATRICIANS RECOMMEND HEALTHY
INFANTS BE PLACED ON THEIR BACKS TO SLEEP, OTHERWISE ADVISED BY
YOUR PHYSICIAN.
· STRINGS CAN CAUSE STRANGULATION!DO NOT PLACE ITEMS WITH A STRING
AROUND A CHILD’S NECK,SUCH AS HOOD STRINGS OR PACIFIER CORDS.
DO NOT SUSPEND STRINGS OVER A CRIB OR ATTACH A STRINGS TO TOYS.
· TO HELP PREVENT STRANGULA TION TIGHTEN ALL FASTENERS.A CHILD CAN
TRAP PARTS OF THE BOD YOR CLOTHING ON LOOSE FASTENERS.
· DO NOT PLACE CRIB NEAR WINDOWS WHERE CORDS FROM BLINDS OR
DRAPS MAY STRANGLE A CHILD.
· WHEN CHILD IS ABLE TO PULL TO A ST ANDING POSITION, SET MATTRESS TO
THE LOWEST POSITION AND REMOVE BUMPER P ADS, LARGE TOYS AND
OTHER OBJECTS THATCOULD SERVE AS STEPS FOR CLIMBING OUT.
· WHEN CHILD IS ABLE TO CLIMB OUT OR REACH THE HEIGHT OF 35 IN.(89CM),
THE CRIB SHALL NO LONGER BE USED.
· DO NOT USE A WATER MATTRESS WITH THIS CRIB.
· INFANTS CAN SUFFOCATE ON SOFT BED DIN
COMFORTER.NEVER PLACE ADDITIONAL PADDING UNDER AN INFANT.
· NEVER USE PLASTIC SHIPPING BAGS OR OTHER PLASTIC FILM AS MATTRESS
COVERS BECAUSE THEY CAN CAUSE SUFFOCATION.
· INFANTS CAN SUFFOCATE IN GAPS BETWEEN CRIB SIDES AND A MATTRESS
THAT IS TOO SMALL.
· REPLACE TEETHING RAIL IF DAMAGED,CRACKED OR LOOSE.
· IF REFINISHING,USE A NON-T OXIC FINISH SPECIFIED FOR CHILDREN'S
PRODUCTS.
· FOLLOW WARNINGS ON ALL PRODUCTS IN A CRIB.SEE HEAD PANNEL AND
MATTRESS SUPPORT FOR WARNI
NGS AND INSTRUCTIONS.
G,NEVER ADD A PILLOW OR
KEEP INSTRUCTIONS
UTE PARTS.
3
CONNECTION HARDWARE
(a) 2-1/8" Bolt (24PCS)
(b) 3" Bolt ( 4 PCS)
(c) 5/8" Bolt (4PCS)
(g) Allen wrench (1PC)
(h) Washer (2PCS)
(i ) Screw (2PCS)
(d) Barrel nut (28PCS)
( e ) Wood dowel (8PCS)
(f) Wood dowel (4PCS)
( j ) Belt (1PC)
(k) Tip over restraints (1PC)
PHILLIPS--HEAD SCREWDRIVER REQUIRED
FOR ASSEMBLY ----NOT INCLUDE
4
PARTS ENCLOSED IN CARTON
(C) Changer top rail (2PCS)
(D) Changer shelf
(A) Changer left side (1PC)
(E) Changer middle rail (1PC) (F) Changer shelf (3PCS)
support (6PCS)
(G) Crib left headboard (1PC)
(H) Crib side rail (2PCS) (J) Metal spring support
platform (1PC)
(K) Changer pad (1PC)
(B1) Changer back leg (1PC) (B2) Changer front leg (1PC)
(B3) Changer langer top rail (1PC) (B4) Changer langer middle rail 1(1PC)
(B5) Changer langer middle rail 2 (1PC) (B6) Changer langer bottom rail(1PC)
STEP 1
b
B1
b
U
e
d
B3
B2
e
B4
d
se allen wrench (g) to connect bolts.
Connect
changer langer top rail (B3),
changer langer middle rail 1(B4),
changer langer middle rail 2(B5),
and changer langer bottom rail (B6)
to changer back leg (B1) and changer
front leg (B2) by using wood dowel (e),
barrel nut (d) and 3”bolt (b).
b
B5
e
B6
e
d
d
b
(B) Changer right side
1PC)
(
5
6
STEP 2
Use allen wrench (g) to connect bolts.
Connect changer top rail (C) to changer left side
(A) by using wood dowel ( e
2-1/8”bolt (a).
Connect changer shelf support (D) to changer left
side (A) by using barrel nut (d) and 2-1/8” bolt (a).
),barrel nut (d
) and
e
A
C
d
e
C
d
d
D
D
d
D
d
d
D
d
D
d
D
STEP 3
Lay down the assembled parts on the floor.
Slide the changer shelf (F) into the grooves on changer shelf support (D) and the
changer left side (A).
Assemble changer middle rail (E) to the changer left side (A) by using wood dowel ( f )
C
E
D
D
F
C
D
f
f
F
F
D
A
D
D
7
STEP 4
Assemble
parts of STEP 3 use the same way as shown in STEP 2.
the assembled parts of STEP 1
(B) to the assembled
B
e
d
C
d
D
A
D
e
f
d
d
D
d
D
E
d
d
D
d
D
CHANGER
8
STEP 5
Use allen wrench (g) to connect bolts.
Connect crib side rail (H) to the
B
assembled parts of STEP 4 and crib left
headboard (G) by using barrel nut (d)
and 2-1/8” bolt (a).
H
d
G
d
d
A
d
G
d
STEP 6
Locate the metal spring support platform
(J) with tabs.
Be sure the smooth side of the metal
spring support platform (J) is faced
upward.
Position the tabs of the metal spring
support platform (J) to mount to the
selected position in the legs.
Insert the 5/8" bolt (c),through the tabs
and into thread inserts,then tighten
securely with allen wrench (g).
G
A
J
c
J
A
9
STEP 7
Assemble crib side rail (H) to the assembled
parts use the same way as shown in STEP 5.
d
STEP 8
1. Assembly the belt (j) to the changer side
(A&B) using washer (h) and screw (i).
2. Add the changer pad (K).
3. Put the child on the pad,then insert safty
restraint system of the tape across child's
waist. The tightness can be adjusted by
increasing the tension of the tape.
d
d
d
j
h
i
PHILLIPS--HEAD SCREWDRIVER REQUIRED
FOR ASSEMBLY ----NOT INCLUDE
STEP 9
10
FURNITURE TIPPING DETERRENT HARDWARE
11
k
HOW TO LOCK
Tipping furniture may injure young children. Use of this tipping restraint hardware is highly
recommended.
When properly instated this hardware could provide protection against the unexpected
tipping of furniture due to improper use.
WARNING
This hardware is only a deterrent.Adult supervision is the only proper deterrent to prevent
improper use of any potentially hazardous product.
1. Attach one of the mounting brackets securely to the back top edge of the furniture using
the short screw.
2. Find the stud in the wall and mark the location on the wall for mounting the second
bracket using a 2” wood screw approximately 2” below the bracket mounted to the edge
of the furnitur
3. If a stud cannot be found,purchase a “Hollow-Wall Anchor Bolt” and attach the second
e.
bracket to the wall using that bolt.Make sure to follow all instructions by the manufacturer.
4. Place the furniture so the bracket on the back edge is in line with the bracket on the wall.
5. Lace an end of the nylon restraint strap down through each bracket.Bring both ends
together and slide the beaded end of the strap through the ke
other end tightly.Pull down on the beaded end until it snaps locks into the keyhole.
6. Check to make sure the strap is securely laced and locked to the brackets.
y hole shaped slot in the
