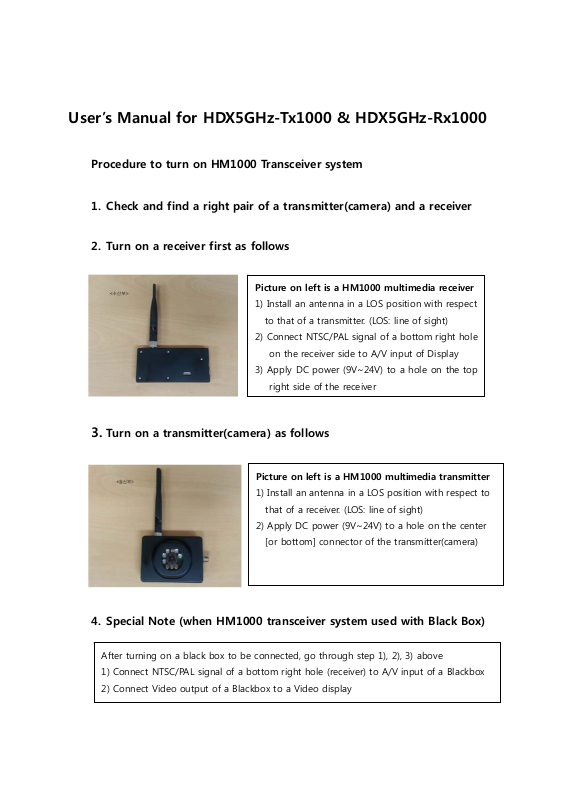

User’s Manual for HDX5GHz-Tx1000 & HDX5GHz-Rx1000
Procedure to turn on HM1000 Transceiver system
1. Check and find a right pair of a transmitter(camera) and a receiver
2. Turn on a receiver first as follows
Picture on left is a HM1000 multimedia receiver
1) Install an antenna in a LOS position with respect
to that of a transmitter. (LOS: line of sight)
2) Connect NTSC/PAL signal of a bottom right hole
on the receiver side to A/V input of Display
3) Apply DC power (9V~24V) to a hole on the top
right side of the receiver
3.
Turn on a transmitter(camera) as follows
Picture on left is a HM1000 multimedia transmitter
1) Install an antenna in a LOS position with respect to
that of a receiver. (LOS: line of sight)
2) Apply DC power (9V~24V) to a hole on the center
[or bottom] connector of the transmitter(camera)
4. Special Note (when HM1000 transceiver system used with Black Box)
After turning on a black box to be connected, go through step 1), 2), 3) above
1) Connect NTSC/PAL signal of a bottom right hole (receiver) to A/V input of a Blackbox
2) Connect Video output of a Blackbox to a Video display
5. Product Specification
g
Frequency 5 160 ㎒ ~ 5 240 ㎒, 5 735 ㎒ ~ 5 815 ㎒
Output Power +14dBm
HDX5GHz-
Tx1000
Antenna Gain 3.81 dBi (NII) / 3.238 dBi (DTS)
Input Voltage DC 12V
Size (mm) 92 x 62 x 42 mm
Weight (g) 500g
Frequency 5 160 ㎒ ~ 5 240 ㎒, 5 735 ㎒ ~ 5 815 ㎒
Output Power +14dBm
HDX5GHz-
Rx1000
Antenna Gain 4.8dBi
Input Voltage DC 12V
Size (mm) 100 x 50 x 5.7 mm
Weight (g) 100g
CE
European CE notice to users and product statements
This product is CE marked according to the provisions
of the R&TTE Directive(99/5/EC). Hereby, Harmonix
declares that this product is in compliance with the
essential requirements and other relevant provisions of
Directive 1999/5/EC. For further information, pl ease
contact http://www.hmnix.com
The manufacturer shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material. This document
contains propriet ary information, which is protected by inte rnational
patent applications an d copyright. All rights rese rved. No part of this
document may be copied, reproduced or translated without prior
written consent of the manu facturer. The manufacturer reserves the
right to revise this publication and to make changes from time to time
in the contents hereof wit hout obligatio n to notify any pers on of such
revisions or chan ges. The manufacturer also reserves the ri ght to
chan
e the specifications without notice.
Disclaimer Notice
Product Warranty
Harmonix warrants this product against all defects in
*
material and workmanship for a period of one year from
the date of purchase by end user. The conditions for
warranty are as follows:
* The warranty is valid only if the original receipt issued to
the original purchaser by the dealer is presented with the
product to be repaired or replaced.
* T he warran ty is voi d if t he ser ial num ber, date of purchas e
and product label had been removed.
* The warranty does not cover an y failure or damag e of the
product due to normal wear and tear, physical abuse,
improper installation, misuse, modification or repairs by
unauthorized third parties.
* Harm onix does not assume responsibilit y for any loss or
damage incurred duri ng shipment and as a result of forc e
majeure.
* Harmonix is not liable for any incidental or consequential
damages arising from the use or misuse of the product.
* All warranty claims are limited to repair or replacem ent of
the defective prod uct at the sole discretion of Harmonix.
* If Harmonix repairs or rep lac es th e prod uct, the repaired or
replaced product shall be warranted for the remaining time
of the original warranty period . Repair or repl acem ent m ay
involve the use of functionally equivalent reconditioned
units. Replaced part or product becomes the property of
Harmonix.*
