SAFETY GUIDELINES
Safety Guidelines
Ensure that all persons read this manual carefully before using the navigation system. It contains instructions on how to use the system in a safe and effective manner.
Warning: Please read and follow these safety precautions. Failure to do so may result in injury or property damage.
When using the navigation system to route you to a emer-
• gency facility, contact the facility to verify its location.
Not all emergency service locations are contained in the data-
• base. Please use your own judgement and ask for directions
in such situations. Glance at the screen only when necessary and safe to do so.
• If prolonged viewing of the screen is necessary pull over at a
safe location. Road conditions and regulations take precedence over infor-
• mation contained on the map display. Observe actual traffic
restrictions and circumstances when driving. Stop use immediately if problem occurs. Failure to do so may
• cause injury or damage to the product. Return it to your
authorized Chrysler dealer to repair.
1
There may be situations where the navigation system errone-
• ously displays the vehicles location. Use your own driving
judgement in this situation, taking into account current driving conditions. Please be aware that in this situation the naviga­tion system should automatically correct the vehicle position within a few minutes.
Make certain that the volume level of the system is set to a
• level that still allows you to hear outside traffic and emer-
gency vehicles. The map database is designed to provide you with route sug-
• gestions and does not take into account the relative safety of
suggested route or factors that may affect the time required to reach your destination. Use your own personal judgement if the navigation system is unable to provide you with an alterna­tive route.
Introduction
INTRODUCTION
state-specific norms and guidelines.
Warnings
This manual contains WARNINGS against operating procedures that could result in an accident or bodily injury. If you do not read the entire manual you may miss important information. Observe all warnings!
The information given in this manual is subject to change.
Safety References
Before operating this navigation system for the first time, please read this manual carefully. Note the safety precautions described in this manual. If you have any questions, please contact the vehicle manufacturer.
Intended Use
Generally recognized rules of navigation technology were main­tained during the development and manufacture of the REU radio navigation system. When using this product, be aware of
Visit http://www.chrysler.com/mygig/ for updates, additional in- formation, compatible phones, etc.
System Care
Software Update
Both navigation data and Gracenote® data are software up­datable. Visit http://www.chrysler.com/mygig/ or contact your Chrysler Dealership for the latest available software.
Safe Usage of the Radio Navigation System
Read all instructions in this manual carefully before using your radio system to ensure proper usage!
Your radio is not a toy. Do not let young children use your radio unsupervised.
Permanent hearing loss may occur if you play your music at the highest volumes. Exercise caution when setting the volume on your radio.
2
INTRODUCTION
Driving is a complex activity that requires your full attention. If you´re engaged in driving or any activity that requires your full attention, we recommend that you not use your radio.
Note: Many features of this radio are speed dependent. For your own safety it is not possible to use the speller to enter a name (e.g., street name), while the vehicle is in motion.
Keep drinks, rain, and other sources of moisture away from your radio. Besides damage to your radio, moisture can cause electric shocks with any electronic device.
Connections
Never force any connector into the ports of your radio. Make sure your connectors are the correct shape and size before you con­nect.
Any attached cable should be routed so that it will not apply any pressure to the connection.
Remove a USB memory stick as soon as the data transfer is complete.
3
Screen
Do not touch the screen with any hard or sharp objects , which could scratch the video screen surface! (pen, USB stick, jewelry, etc...)
Do not spray any liquid or caustic chemicals directly on the screen! Use a clean and dry micro fiber lens cleaning cloth in order to clean the screen. If necessary, use a lint-free cloth dampened with cleaning solu­tion, such as isopropyl alcohol, or an isopropyl alcohol and water solution ratio of 50:50. Be sure to follow solvent manufacturer´s precautions and directions.
CD/DVD Drive
Do not insert any damaged, warped, scratched or dirty CD´s or DVD´s into the CD/DVD changer.
Do not insert any CD or DVD that has a peeled off label on it.
Discs that have been modified with an adhesive label should not be used in the CD/DVD player.
Do not insert more than 1 (one) CD/DVD at a time into the drive slot.
INTRODUCTION
GPS Navigation Antenna
The antenna for the navigation GPS system is mounted in vari­ous locations (depending on the vehicle model) within the dash­board. Do not place items on the dashboard around the GPS antenna location. Objects placed within the line of sight of the antenna will decrease performance. Do not place items directly on or above the antenna.
Satellite Antenna
The antenna for the satellite radio and SIRIUS Satellite Backseat TV™, if equipped, is mounted on the roof of the vehicle. Do not place items on the roof around the rooftop antenna location. Objects placed within the line of sight of the antenna will cause decreased performance. Larger luggage items should be placed as far forward as possible. Do not place items directly on or above the antenna.
Other Electronic Devices
You may bring other electronic devices into your vehicle (e.g., PDA, iPod, laptop computer, etc.) Some of these devices may cause electromagnetic interference with the GPS. If a degrada­tion in the navigation is observed, turn the devices off, or keep them as far away from the GPS antenna as possible.
4
GENERAL HANDLING General Handling
User Interface Elements
(1) SEEK UP/SEEK DOWN
Press the SEEK up and the SEEK down button to seek through radio stations in AM, FM, or SAT bands. Seek through tracks in CD or through songs in the Hard Disc Drive playlist.
5
(2) PRESETS (Radio mode) and 6 DVD Changer
While in Radio Mode: Press a preset button once to switch to one of the radio station
presets 1 to 6. Press a preset button twice to switch to one of the radio station
presets 7 to 12. While in Disc Mode: Press a preset button to select between disc 1 to 6 in the disc
changer.
(3) SET
Press the SET button to assign the currently playing radio sta­tion, to one of the preset buttons.
Press SET once and then one of the preset buttons to assign presets 1-6. Press SET twice and then one of the preset buttons to assign presets 7-12.
(4) FF/RW
Press the FF and the RW button to fast forward or fast rewind tracks in CD modes or through songs in the Hard Disc Drive playlist.
(5) EJECT
To eject a disc, press EJECT and select the desired slot with buttons 1-6.
After pressing the EJECT button it takes a few seconds to eject a CD/DVD, if one was in the slot.
To eject all discs, press and hold the EJECT button.
(6) LOAD
To load a disc, press LOAD and select the desired slot with but­tons 1-6. When inserting a disc, make sure the label is facing up.
Note: It may take several seconds to recognize the type of inserted disc (CD, DVD, MP3, etc.)
(7) SCAN
Press the SCAN button to scan through AM, FM, SAT stations or tracks in CD modes or through songs in the Hard Disc Drive playlist.
(8) UConnect™
Press the UConnect™ button to either activate the UCon­nect™ system or to cancel an active phone call.
GENERAL HANDLING
Note: If you are in one of the navigation menus (NAV Menu, MAP display,
etc.), you need to press the UConnect™ button twice to end an active call.
(9) LIST
(10) MENU
Press the MENU button in order to change mode specific set­tings.
(11) SETUP
Press the SETUP button to access the systems setup menu.
(12) MUSIC TYPE
Press the MUSIC TYPE button to enable/disable certain program types, and in HDD mode to display a list of filter options (By Song, by Artist etc.)
(13) TIME
Press the TIME button to display the current time.
Note: Press and hold the TIME button to access the time settings menu.
(14) ON/OFF VOLUME knob
6
GENERAL HANDLING
Power to operate the navigation radio is supplied through the ignition switch, which must be in the ON, ACC or in ACC Delay mode in order to operate the navigation radio.
It is also possible to set the unit in standby mode during driving, by pressing the ON/OFF VOLUME rotary knob.
Turn the ON/OFF VOLUME rotary knob to adjust the volume. Turn the ON/OFF VOLUME rotary knob while the navigation
voice is speaking to adjust the volume of the navigation voice.
Note: If the ignition is switched off with the radio in standby mode, the radio memorizes the standby state when the ignition is switched on again. Press the ON/OFF VOLUME rotary knob to switch the radio on. The navi­gation software is always working when the ignition is switched on, even if the radio is in standby mode. It is possible to eject the CD and to display the time if the unit is switched off. It may take a few seconds for the radio to power up and show the time or the changer screen.
(15) RADIO
Press the RADIO button to toggle between RADIO modes AM, FM, SAT, SATV (if equipped).
(16) MEDIA
Press the MEDIA button to toggle between MEDIA modes HDD, DISC, AUX, VES (if equipped).
(17) NAV 7
Press the NAV button either to switch to the navigation mode or to toggle between the navigation menu and the map viewer screen.
(18) VR
Press the VR button and wait for the confirmation beep be­fore you say a voice command.
(19) BACK
Press the BACK button to get to the previous screen.
(20) JOYSTICK Push button
While in navigation map mode move the JOYSTICK to move the cursor on the screen.
While in list mode press the JOYSTICK to select a highlighted menu items.
(21) CENTER CONTROL knob
GENERAL HANDLING
While in list mode rotate the CENTER CONTROL knob to scroll through the list.
While in slider mode, rotate the CENTER CONTROL knob to adjust the slider on the screen.
While in navigation map mode, rotate the CENTER CONTROL knob to zoom in and out of the map.
(22) REPEAT PROMPT
Press the REPEAT PROMPT button to hear the current naviga­tion announcement.
(23) DELETE
Press the DELETE button to delete items at the current cursor position on the screen. E.g. characters in name spellers.
Press the DELETE button in a recent destination list in naviga­tion mode to delete selected list entries. Press and hold the but­ton to delete the entire list.
(24) INFO
Press the INFO button to display additional information for the current screen display. E.g. navigation route info, song info,...
Press the INFO button again to hide the information display.
(25) AUX Connector
8
GENERAL HANDLING
Connect an external audio device into the AUX Input (e.g., MP3 player, video-game), to play the device audio through the car audio system.
(26) USB Connector
Connect a supported device into the USB Connector in order to copy files to the internal hard disk drive.
Note: See USB Connector section for information on supported devices.
(27) AUDIO/TUNE knob
Rotate the TUNE knob to change stations in AM, FM, SAT or SATV mode (if equipped).
Push the knob to access the Audio Control Screen.
Electronic Vehicle Information Center (EVIC)
Some vehicles feature an Electronic Vehicle Information Center (EVIC) with driver-interactive display. The EVIC is normally lo­cated in the instrument cluster or overhead. It can display radio station preset frequencies, CD disc number, satellite radio chan­nel, and navigation system information.
9
Steering Wheel Mounted Controls
The remote sound system controls are located on the surface of the steering wheel. Please refer to the vehicle specific owner’s manual for detailed information.
The following describes general steering wheel functionality:
1. The VOLUME switch controls the volume of the sound system.
Pressing the top of the rocker switch will increase the volume and pressing the bottom of the rocker switch will decrease the volume.
2. The MODE ADVANCED switch changes the mode of the navi-
gation radio between the various modes available (FM, AM, CD, DVD, SAT, SATV, NAV etc.). To switch to the navigation mode, push and hold the switch. To leave the navigation mode, push the switch momentarily.
3. The FUNCTION SELECT switch advances the navigation
radio to the next preset, changes the current disc when in disc mode, etc. The function is different depending upon which mode is in use.
4. The SCROLL switch changes selections such as radio station, CD track, and satellite radio channel, depending upon the current mode.
The following describes the operation of the SCROLL switch in each mode:
AM/FM/SAT Operation
Pressing the top of the switch will seek up for the next available station and pressing the bottom of the switch will seek down for the next available station.
HDD/Disc Operation
Pressing the top of the switch will go to the next track on the HDD/Disc, and pressing the bottom of the switch will go to the beginning of the current track, or to the beginning of the previous track, if it is within eight seconds of the start of the current track.
Vehicle Entertainment System™ Operation
If equipped with a remote video player, this control will function the same way as in disc mode.
GENERAL HANDLING
SIRIUS Backseat TV™ Operation
If equipped with a SIRIUS Backseat TV™, this control will func­tion the same way as in Sirius Satellite Radio mode.
Audio Settings
Volume
Use the ON/OFF VOLUME rotary knob to adjust the volume of the currently playing audio source. While you adjust the volume, a volume indicator is displayed in the lower left corner of the display.
10
GENERAL HANDLING
Audio Controls
Press the AUDIO/TUNE rotary knob on the right side of the radio to access the Audio Controls menu.
Use the CENTER CONTROL knob to highlight one of the follow­ing functions:
Treble - Press the JOYSTICK, and then turn the CENTER CON­TROL knob to adjust the treble. Press the JOYSTICK again to exit the adjust mode.
11
Midrange - Press the JOYSTICK, and then turn the CENTER
CONTROL knob to adjust the midrange. Press the JOYSTICK again to exit the adjust mode.
Balance | Fade - Press the JOYSTICK, and then use the JOY­STICK to move the cross-hair to the desired position. Press the JOYSTICK again to exit the adjust mode.
Reset All - Press the JOYSTICK to reset all audio controls.
Press the BACK button or press the Audio Control button to re­turn to the previous screen.
Getting Started
Note: The ignition switch must be in the ON or ACC position to operate
the navigation radio.
If the unit is off, switch it on using the ON/OFF Volume rotary knob.
Disclaimer for Navigation Radio
Before using the navigation radio read and accept the disclaimer.
GETTING STARTED
The disclaimer will be activated after the ignition is turned on. Press the JOYSTICK to accept the disclaimer.
Change the Language
The navigation radio will conform to the vehicle language set in the ELECTRONIC VEHICLE INFORMATION CENTER (EVIC), if equipped.
If you change the language in the navigation radio, the vehicle will change the language for all display information. Refer to the vehicles owner’s manual.
To change the language with the navigation radio:
1. Press the SETUP button.
2. Turn the CENTER CONTROL knob until Language Settings is
highlighted in the Setup menu.
12
GETTING STARTED
3. Press the JOYSTICK to select the Language Settings menu.
4. Turn the CENTER CONTROL knob until the desired language is highlighted.
5. Press the JOYSTICK to select the highlighted language.
6. Turn the CENTER CONTROL knob until YES is highlighted.
7. Press the JOYSTICK to confirm the language change.
13
Note: The check-mark marks the currently active language.
Set the Time
GPS Time
1. Press and hold the TIME button.
Note: The Time Settings screen can also be accessed through the SETUP menu.
GETTING STARTED
Note: The check-mark indicates the currently active time base.
The minutes are set by the GPS system.
2. Turn the CENTER CONTROL knob until Time Zone is high-
lighted.
3. Press the JOYSTICK to select Time Zone.
14
GETTING STARTED
Note: The check-mark indicates the currently active time zone setting.
4. Turn the CENTER CONTROL knob until the desired time zone is highlighted.
5. Press the JOYSTICK to select the highlighted time zone.
15
Daylight Savings
1. Turn the CENTER CONTROL knob until Daylight Savings is
highlighted.
2. Press the JOYSTICK to select the Daylight Savings menu.
Note: The check-mark indicates the currently active setting.
3. Turn the CENTER CONTROL knob to highlight either On or
Off.
4. Press the JOYSTICK to select the desired setting.
User Time
It is possible to set up your own time (ahead or behind actual GPS time).
Set Hours
1. Turn the CENTER CONTROL knob until User Time is high­lighted.
2. Press the JOYSTICK to select the User Time option.
Note: The check-mark indicates the currently active setting.
3. Turn the CENTER CONTROL knob to highlight Set Hours.
4. Press the JOYSTICK to select the desired setting.
5. Turn the CENTER CONTROL knob to adjust the hours.
6. Press the JOYSTICK again.
Set Minutes
7. Turn the CENTER CONTROL knob to highlight Set Minutes.
8. Press the JOYSTICK to select the desired setting.
9. Turn the CENTER CONTROL knob to adjust the minutes.
10. Press the JOYSTICK again.
Clock if Radio off
Check or uncheck the check-mark in this menu entry in order to enable or display the clock display, when the radio is in standby
GETTING STARTED
mode.
12 hour format
Check the check-mark in this menu entry in order to display the time in 12 hour mode.
24 hour format
Check the check-mark in this menu entry in order to display the time in 24 hour mode.
Store Radio Presets
1. Press the RADIO button to select a radio band.
2. Press the RADIO button repeatedly until the desired band is
selected.
3. Either press the SEEK up/down buttons, or the SCAN button,
or rotate the TUNE knob to change the currently playing station.
4. To access preset 1-6 press the SET button once followed by a
preset button (1-6). To access preset 7-12 press the SET button twice followed by a preset button (1-6).
Select Radio Presets
1. Press the RADIO button to select a radio band.
16
GETTING STARTED
2. Press the RADIO button repeatedly until the desired band is selected.
3. To access preset 1-6 press one of the preset buttons (1-6) once. To access preset 7-12 press one of the preset buttons (1-
6) twice.
17

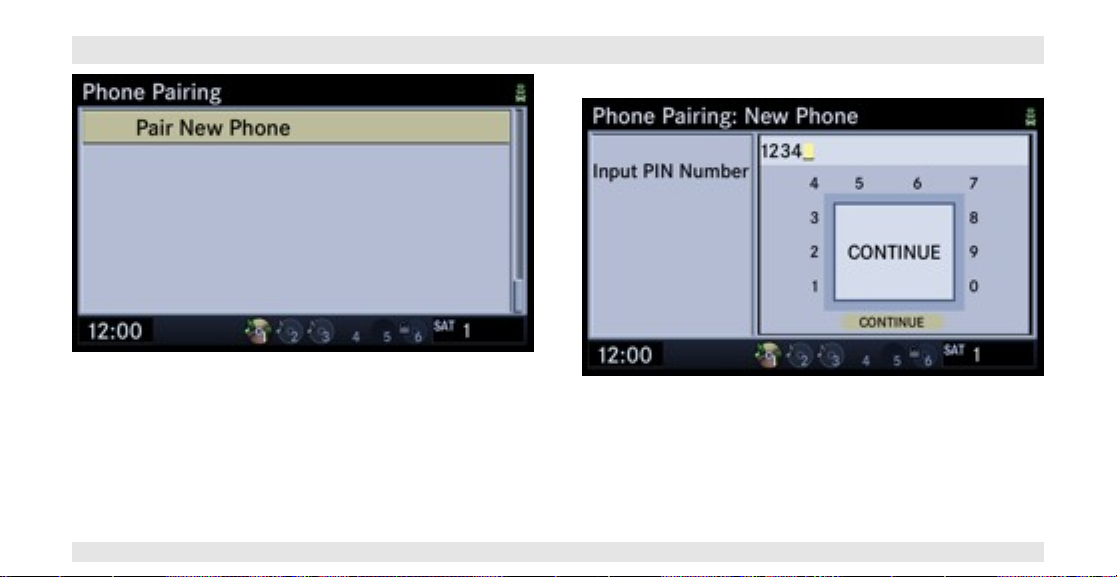

Connect Bluetooth Phone
1. Press the SETUP button.
2. Turn the CENTER CONTROL knob until Phone Pairing is
highlighted.
3. Press the JOYSTICK to select the Phone Pairing screen.
4. Turn the CENTER CONTROL knob until Pair New Phone is
highlighted.
5. Press the JOYSTICK to select Pair New Phone. You need to input a 4 digit PIN number. (The same 4 digit pin
number must be entered in your phone too. Refer to the user´s manual of your phone.)
6. Turn the CENTER CONTROL knob until a digit is highlighted.
7. Press the JOYSTICK to confirm the digit.
8. Press the DELETE button to delete single digits.
GETTING STARTED
9. Enter all four digits until CONTINUE is highlighted.
10. Press the JOYSTICK and start the pairing procedure on the
phone.
11. Refer to the user’s manual of your phone to complete the
procedure.
18
GETTING STARTED
Enter Home Address
1. Press the NAV button. If the radio does not display the NAV ­Main Menu, press the NAV button again.
2. Turn the CENTER CONTROL knob until Guide Me Home is highlighted.
3. Press the JOYSTICK to select Guide Me Home.
19
Note: The following steps are different, if the home address has been set
already. Refer to Address Book for more information. Note: The vehicle must be in park in order to enter an address.
4. Turn the CENTER CONTROL knob until YES is highlighted.
5. Press the JOYSTICK to access the Enter Home Address
menu.
6. Select Street Address and confirm to enter your address.
GETTING STARTED
12. Confirm OK to set your Home Address.
After you have entered your home address, the system will start a route guidance to your home every time you confirm the Guide Me Home selection in the Navigation-Main Menu.
Speech Dialogue System Tutorial
When you press the VR button , you will hear a beep. The beep is your signal to give a command. Say TUTORIAL to listen to a speech dialogue system tutorial.
Press any button to cancel the tutorial.
UConnect™ Tutorial
Note: Read more about destination input and the predictive speller in the
Navigation section of this manual.
7. Change the country if necessary.
8. Change the state or province, if necessary.
9. Select Input Street Name and press the JOYSTICK to confirm.
10. Enter the street name and confirm CONTINUE.
11. Either input a house number or confirm CONTINUE.
When you press the UConnect™ button , you will hear a beep. The beep is your signal to give a command. Say TUTO­RIAL to listen to a UConnect™ system tutorial.
Press any button to cancel the tutorial.
20
RADIO Radio
Radio Mode
Overview
The REU navigation radio is equipped with 4 different tuners: FM 87.7 MHz - 107.9 MHz (RBDS capable) AM 530 kHz - 1710 kHz SAT Sirius Satellite Radio (over 130 channels) SATV SIRIUS Backseat TV™ if equipped
Toggle between the radio bands by pressing the RADIO button.
21
Satellite Radio Mode
In order to receive satellite radio, the vehicle needs to be outside with a clear view to the sky. If the screen shows Acquiring Signal, you might have to change the vehicle position in order to receive a signal. In most cases, the satellite radio does not receive a signal in underground parking garages or tunnels.
Station Presets
There are 12 station presets available for storing the radio sta­tions in each tuner range.
Display Radio Preset List in SAT
1. Press the MENU button while in SAT mode.
2. Turn the CENTER CONTROL knob until Presets List is high­lighted.
RADIO
3. Press the JOYSTICK to mark the selection.
Note: The check-mark indicates that the preset list is available. If the check-mark is already selected press the MENU button again.
Display Radio Preset List in AM, FM
Press the LIST button while in AM or FM mode.
Store Radio Presets
To access preset 1-6 press the SET button once followed by a preset button (1-6).
To access preset 7-12 press the SET button twice followed by a preset button (1-6).
Select Radio Presets
To access preset 1-6 press one of the preset buttons (1-6) once. To access preset 7-12 press one of the preset buttons (1-6)
twice.
Change a Channel or Frequency
Press the SEEK up or the SEEK down button to play the next available station or channel.
Turn the TUNE knob (3) to step manually through the frequency or channel roster.
22
RADIO
Press SCAN for a five second preview of each listenable station in the frequency band. Press the SCAN button again to stop the scan function and to select a radio station.
RBDS (Radio Broadcasting Data System)
Note: Not all radio stations support RBDS.
The RBDS information is displayed above the frequency reading of the currently playing radio station.
Radio Text Information
Press the INFO button to display additional radio text informa­tion in the right half of the screen (FM and SAT only).
23
Press the INFO button again to hide additional radio text infor­mation.
MUSIC TYPE (Program Type Filter)
Program Type (PTY) is only available in FM and SAT mode. Radio stations are grouped according to their program (e.g., Soft Rock, Rhythm & Blues, etc.).
Press the MUSIC TYPE button to enable and/or disable desired program types. The SEEK and SCAN function will then only
RADIO
display stations with matching program types. If you close MU­SIC TYPE, then your selection will not be considered for SEEK and SCAN.
RBDS (FM) Program Types
Adult Hits, Classic Rock, Classical, College, Country, Informa­tion, Jazz, Language, News, Nostalgia, Oldies, Personality, Pub­lic, Religious Music, Religious Talk, Rhythm and Blues, Rock, Soft, Soft Rhythm and Blues, Soft Rock, Sports, Talk, Top 40, Weather.
Sirius Satellite Radio Program Types
Pop, Rock, Electronic/Dance, Hip-Hop, R&B, Country, Christian, Jazz&Blues, Standards, Classical, Latin, International, Talk, Po­litical Talk, Comedy, Entertainment, Howard Stern, Martha Stewart, Family & Kids, Sports Talk & News, College, NFL, NBA, NHL, More Sports, Soccer, NASCAR, Financial News, US News, International News, Public Radio, Traffic & Weather, Religion.
You can find Sirius´ current terms & conditions at
http://www.sirius.com
24
RADIO
Radio Settings
While in radio mode press the MENU button to display the radio Menu.
AM / FM MENU
There are no specific settings for this mode.
SAT MENU
25
Channel vs. Preset List Selection
Select Preset List to display only user presets on the right side of the Sirius Satellite Radio screen.
1. Press the MENU button while in SAT mode.
2. Turn the CENTER CONTROL knob until Presets List is high-
lighted.
3. Press the JOYSTICK to mark the selection.
Note: The check-mark indicates that the preset list is available. If the check-mark is already selected press the MENU button again.
Channel Lock

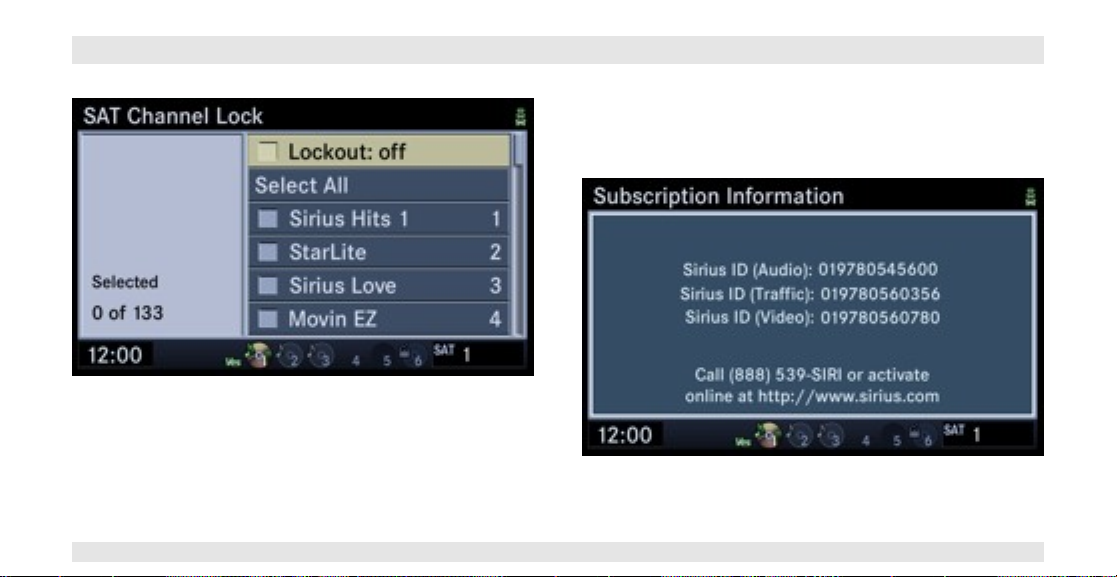

Select Channel Lock to enable and/or disable desired channels. The SEEK and SCAN function will then only display channels without parental lock.
Re-Subscribe to Sirius Satellite Radio
Select Subscription to access the Subscription Information screen.
RADIO
New vehicle purchasers or lessees will receive a free one-year subscription to Sirius Satellite Radio and Realtime Traffic Service with your navigation radio. Following expiration of the one-year free services, it will be necessary to access the information on the Subscription Information screen in order to re-subscribe.
Write down the SIRIUS ID numbers for your receiver. To reacti­vate your service either call the number listed on the screen or visit the provider online.
26
RADIO
SAT VIDEO MENU (if equipped)
While in SATV Mode press the MENU button to display the SATV Menu.
27
Re-Subscribe to SIRIUS Backseat TV™
Select Subscription to access the Subscription Information screen. New vehicle purchasers or lessees will receive a free one-year subscription to SIRIUS Backseat TV™ with your radio. Following expiration of the one-year free services, it will be nec­essary to access the information on the Subscription Information screen in order to re-subscribe.
Write down the SIRIUS ID numbers for your receiver. To reacti-
vate your service either call the number listed on the screen or visit the provider online.
Note: SIRIUS Backseat TV™ is not currently available in Canada.
Display Settings
Press the SETUP button and select Display Setting to access the Display Settings menu.
RADIO
Select Daytime Colors to switch to manual daytime mode and to adjust the brightness of the display using daytime colors.
Select Nighttime Colors to switch to manual nighttime mode and to adjust the brightness of the display using night time colors.
Select Auto Colors to switch to automatic daytime/ nighttime mode and to control the brightness of the display using the light switch of the vehicle.
28
RADIO
View Settings

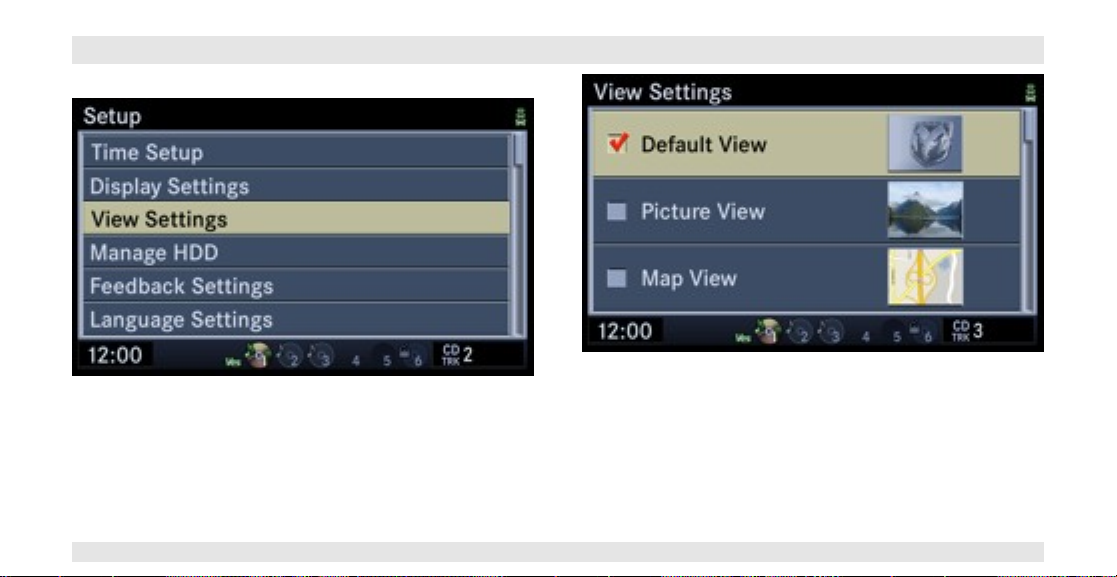

Press the SETUP button and select View Setting to access the View Settings menu.
29
Check Default View to enable the default view mode. Check Picture View to enable the picture view mode. Check Map View to enable the map view mode. Check Screen Saver Black to enable the screen saver.
RADIO

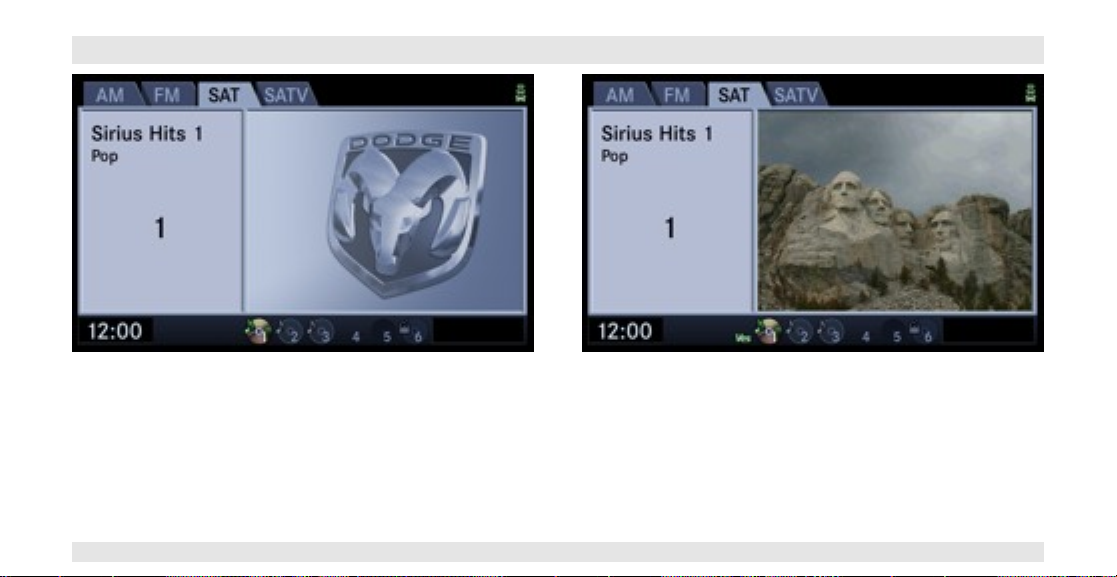

In Default View the vehicle brand logo is displayed in the right half of the screen.
In Picture View a pictures can be displayed on the right half of the radio screen. Refer to Importing Pictures in the Media section for a detailed example.
30
RADIO
In Map View mode the navigation map (as shown above) or turn­by-turn navigation can be displayed on the right half of the radio screen (see Navigation View Settings for more information).
31
In Screen Saver View the screen stays black. Press any button on the radio to de-activate the screen saver.
ParkView™ (if equipped)
When equipped with ParkView™, the radio display shows the rear view camera picture as soon as the shifter is in position R for vehicles with automatic transmission. In vehicles with manual transmission the reverse gear must be engaged.
Disable ParkView™
RADIO
To disable the ParkView™ feature, press the SETUP button and select Rear Camera.
Check or uncheck the check-mark in order to enable/disable the Rear Camera View in Reverse.
Warning: Never back up using the ParkView™ feature only! Use always side and rearview mirrors and check the entire surroundings of the vehicle before moving the vehicle.
32
MEDIA Media
Disc Changer Mode
Overview
The navigation radio is equipped with a CD/DVD changer player.
Toggle between the media modes by pressing the MEDIA button. The disc changer mode is selected when the DISC tab is high-
33
lighted.
Disc Requirements
Caution: this disc player will accept 4 3/4 inch (12 cm) disc only. The use of other sized discs may damage the disc player mechanism.
The radio is capable of playing compact discs (CD), recordable compact discs (CD-R), rewritable compact discs (CD-RW), rec­ordable DVD-R, DVD+R, DVD-RW, and DVD+RW, compact discs
Your radio will play the following formats: MP3, WMA, CD Audio, DVD Audio, DVD Video, DVD-ROM, DVD
Plus, DualDisc, SA-CD (CD Layer). Do not insert anything other than the supported CD/DVD for-
mats. SACD (SACD layer) , VCD, SVCD , VCD format on DVD " and
MPEG-4 are not supported. A complete list of supported CD/DVD formats is available at
http://www.chrysler.com/mygig/
Inserting a Disc
Note: Use only standard size discs. Discs that have been modified with an
adhesive label should not be used in the CD/DVD player. High definition content and media (e.g HD-DVD, Blue-Ray) is not sup-
ported. Note: On MP3 and WMA CD’s with a large number of songs, it may take several seconds to read, play, and display information for all songs on the disc. Note: Recording your own CD on a home computer at a lower write speed will result in a more consistent quality. Note: Do not insert a disc with a peeled off label.

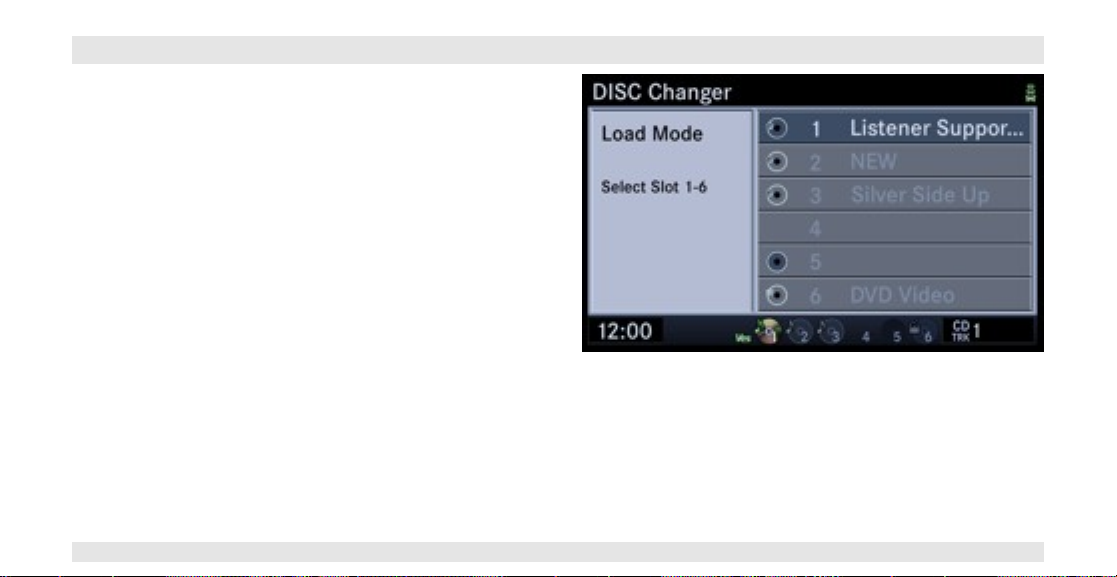

1. Press the LOAD button once.
MEDIA
6).
34
MEDIA
3. Wait until the radio displays Insert Disc on the left side of the screen.
4. With the printed side upwards, insert the disc into the disc slot of the radio. The radio pulls the disc automatically. The radio selects the appropriate mode after the disc is recognized, and starts playing the first track. The display shows “Reading...” dur­ing this process.
35
Removing a Disc
1. Press the EJECT button.
2. Select a disc by pressing one of the preset buttons (1-6).
3. The disc is ejected and can be removed.
Note: If the disc is not removed within approximately 10 seconds, the unit pulls it back into the slot (park position). The disc may be ejected when the ignition is off.
Selecting a Disc
Press one of the preset buttons (1-6) to select and play a disc in a specific slot of the disc changer, while in DISC mode.
Selecting Disc Mode
Toggle between the media menus by pressing the MEDIA button.
Note: When a disc is inserted, the appropriate mode is automatically selected once the disc is recognized.
Scan Search
Press the SCAN button. The individual tracks of the disc will be played in succession for
10 seconds each.
Press the SCAN button again to stop the scan function.
Next Track
Press the SEEK up button. The next track on the disc is played. Once the last track has been reached in the forward direction, the unit will loop back to the first track.
MEDIA
Previous Track
Pressing the SEEK down button plays the previous track. If the first track has been reached in the backward direction, the unit will switch from the first track to the last track. If a track has been playing for more than 1 second when SEEK down button is pressed, the unit will skip back to the beginning of the current track.
Fast Forward Track
Press and hold the FF button. The audio will be heard at a re­duced level while going through the track in this mode. Stop the fast-forward by releasing the button.
Rewind Track
Press and hold the RW button. The audio will be heard at a re­duced level while going through the track in this mode. Stop the fast reverse by releasing the button.
Displaying the Elapsed Title Time
36
MEDIA
The elapsed title time of the current playing track is displayed in the left center of the screen.
Select Title from list

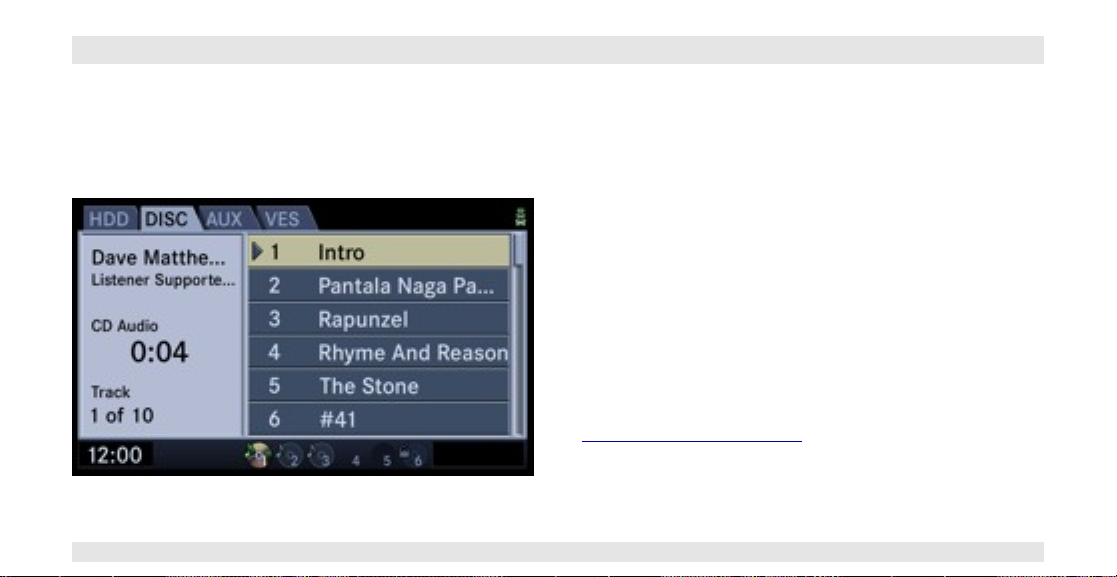

Press LIST to display a list of the titles of the currently playing disc. Select the desired track you wish to play by turning the CENTER CONTROL knob until the track is highlighted. Press the JOYSTICK to play the highlighted track. Press the LIST button again to hide the list.
Disc Info
Press the INFO button to display additional information, if avail­able (e.g. Title, Artist, Album, Genre) in the right half of the screen. Press the INFO button again to close the information.
37
Gracenote Music Recognition Technology
This navigation radio is equipped with the Gracenote Music Rec­ognition Service, with an embedded database to look up album, song title, genre and artist information. Data will be found for most Audio CDs (CDA discs). Data will not be found for DVDs or data discs (those with MP3 or WMA files).
Music recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music recog­nition technology and related content delivery. For more informa­tion visit www.gracenote.com.
Note: Visit http://www.chrysler.com/mygig/ for update information.
Copy Disc to Hard-Drive
Read about copying discs in the Hard Disk Drive section of this manual.
Disc Menu
While in disc mode with inserted audio disc, press the MENU button to access the Disc Menu.
MEDIA
Check-mark Random to play the titles on the disc in random order. Check-mark Repeat to repeat the currently playing title.
Check-mark Normal Play Order to play discs in normal order.
Select Stop to stop the currently playing disc. Select Pause to pause the currently playing disc. Select Play to play the currently playing disc.
38
MEDIA
Playing a MP3/WMA Disc
1. Press the LOAD button once.
6).
3. Wait until the radio displays Insert Disc on the left side of the screen.
4. With the printed side upwards, insert the disc into the disc slot of the radio. The radio pulls the disc automatically. The radio selects the appropriate mode after the disc is recognized, and starts playing the first track. The display shows “Reading...” dur­ing this process.
39
A MP3/WMA disc may contain audio files in a folder structure. The radio may play the audio files in the first available folder.
The folder, if any, are shown in the list view.
5. Press the LIST button, if the list is not displayed.
6. Turn the CENTER CONTROL knob to highlight a folder.
7. Press the JOYSTICK to open a highlighted folder and to play the songs in the folder.
MEDIA
Playing a Video DVD
Note: Viewing a DVD video on the radio screen is not available in all
states, and the vehicle must be stopped, and the shifter must be in posi­tion P for vehicles with automatic transmission. In vehicles with manual transmission the parking brake must be engaged.
Insert a video DVD first.
The playback starts automatically after the DVD video is recog­nized by the disc drive.
40
MEDIA
Press the LIST button to display a list of available chapters or tracks. Select a chapter or track in the list to start playback from the selected section.
DVD MENU Controls
If you insert a DVD video disc that contains a top menu, a menu may appear.
Use the JOYSTICK to navigate menu items, and press the JOY­STICK to select menu items.
DVD Playback Controls

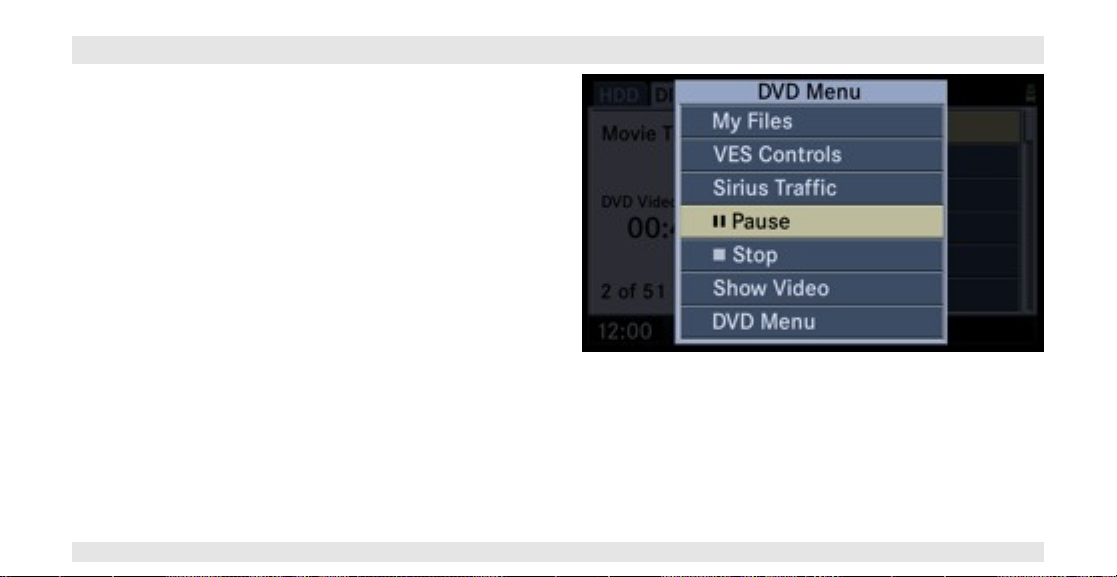

In video playback mode press the MENU button to show the DVD playback controls.
41
To pause playback select Pause. To stop playback select Stop. Press and hold the FF button during playback to fast forward
playback. Press and hold the RW button during playback to fast reverse
playback. Press the SEEK up button to locate succeeding chapters or
tracks.
Press the SEEK down button to start playback from the begin­ning of the current chapter or track. When you press twice in quick successions, playback starts from the beginning of the preceding chapter or track.
DVD Video Menu
While in disc mode with inserted video DVD, press the MENU button to access the DVD Video Menu.
MEDIA

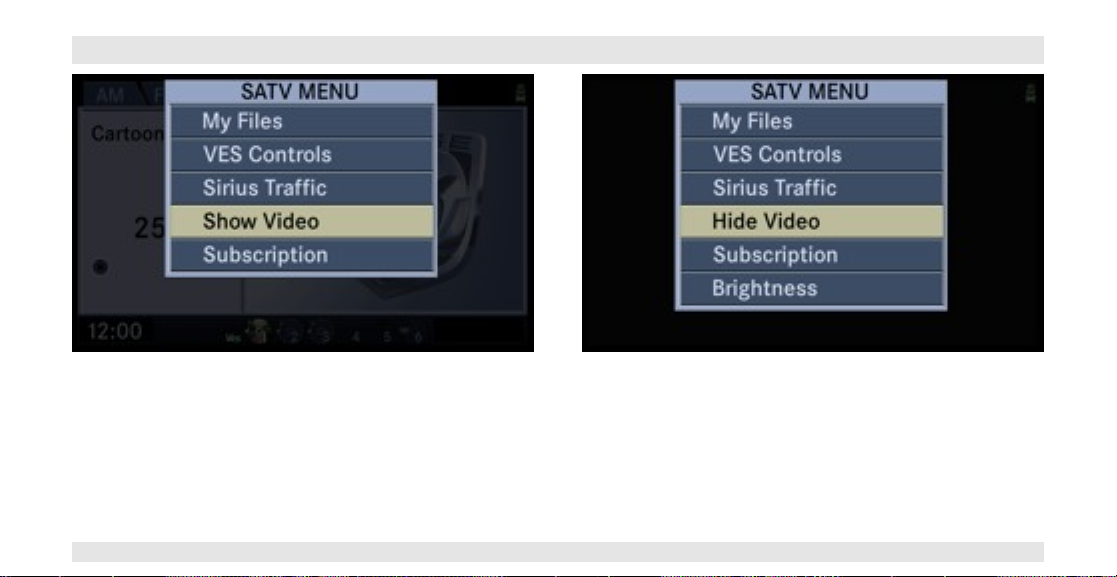

Select Show Video in the DVD Menu to view the video on the screen.
Select Hide Video in the DVD Menu to view the video on the screen.
Select DVD Menu in the DVD Menu to view the top menu, if available on the disc.
Select DVD Setup in the DVD Menu to view the DVD Setup menu.
42
MEDIA
In the DVD Setup menu you may select Menu Language, Audio Language, Subtitle, Camera Angle, Aspect Ratio, and Brightness settings by highlighting selecting the corresponding functions. Some of the functions are disabled, if the inserted disc does not support the functionality.
Disc Skipping
43
Skipping is typically caused by a damaged (scratched) disc. This will result in a 10 second jump forward until the damaged area is passed.
Temperature Protection
If the temperature of the disc reader during operation becomes too high, a popup message will inform the user of an over tem­perature situation. The unit switches to radio mode until the disc reader temperature has dropped to a normal level.
Hard Disk Drive Mode (HDD)
The HDD mode gives you access to the audio files on the inter­nal hard disk drive. It functions similar to a CD player, with the exception that the internal HDD can hold more tracks. It can hold approximately 1,600 four-minute CD-quality songs.
Before using the HDD mode, you will need to copy tracks to the internal hard drive.
MEDIA
The files will be stored on the internal hard disk drive and can be used in the HDD mode.
Copy Audio Disc to Hard-Drive
1. Insert and select a disc.
2. Press the MENU button.
44
MEDIA

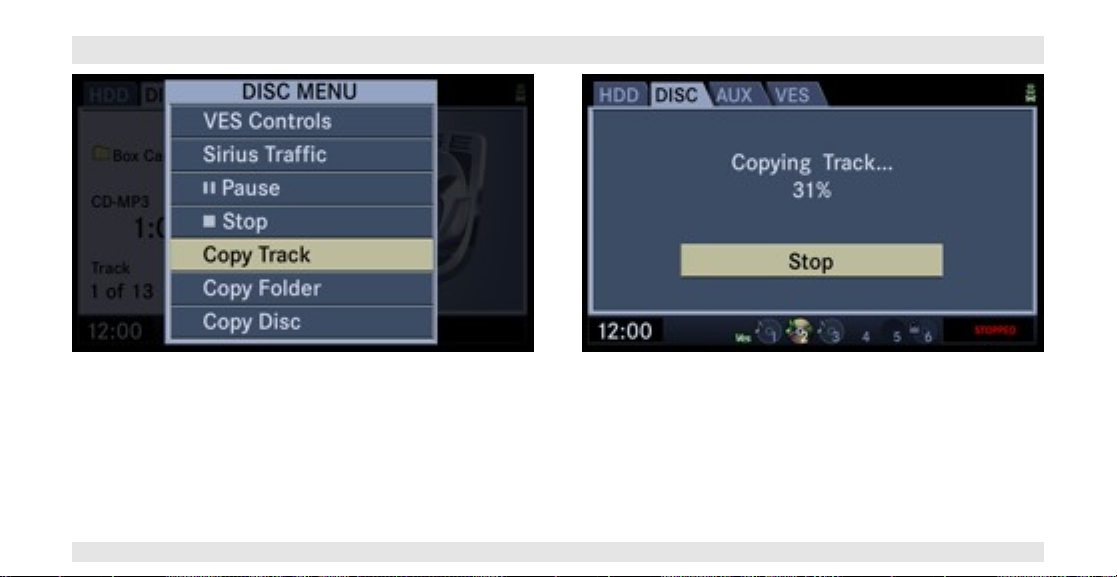

3. Select Copy Track to copy the currently playing music track of the inserted disc, or select Copy Disc to copy the entire disc to the hard disk drive.
During the copy process, the disc player cannot play audio.
45
The copy progress is shown in the display. It is possible to listen radio modes during this process. Copying
time is greater than 5x the normal playback rate.
Note: When copying CD-Audio to HDD, audio files are converted from CD Audio to WMA. DVD-Audio cannot be copied to the HDD.
Press the JOYSTICK to stop the copy process.
Copy WMA/MP3 Files to Hard-Drive
You can copy MP3 and WMA formatted compressed audio files from a disc or via USB (e.g., USB stick).

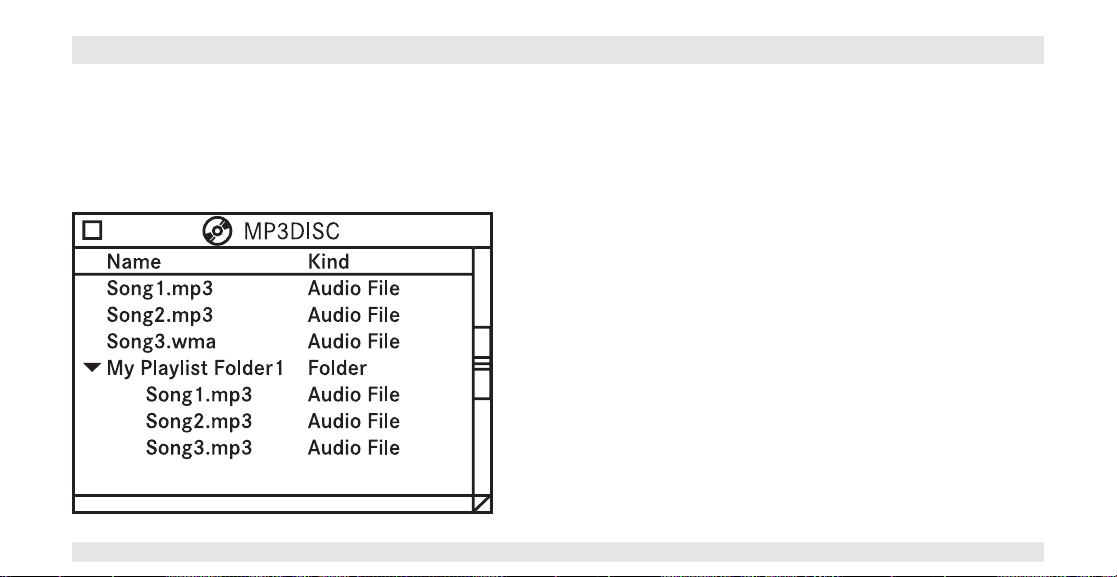

It is recommended to sort music files into folders. Example:
MEDIA
Songs located in the root level (top level) of the disc or USB device are saved in a playlist named Root_Level_Songs.
Once the songs are copied, the playlist will be named by the originating folder name.
For the example above the list on the HDD will show the follow­ing:
Disc_Root_Level Songs (Playlist 1)
# Song 1.mp3 (First song in playlist 1) # Song 2.mp3 (Second song in playlist 1) # Song 3.wma (Third song in playlist 1)
My Playlist Folder 1 (Playlist 2)
# 01 Song.mp3 (First song in playlist 2) # 02 Song.mp3 (Second song in playlist 2) # 03 Song.mp3 (Third song in playlist 2)
46
MEDIA
Copying from Disc
1. Insert a disc with MP3, WMA files.
2. Press the MENU button while the disc is playing.

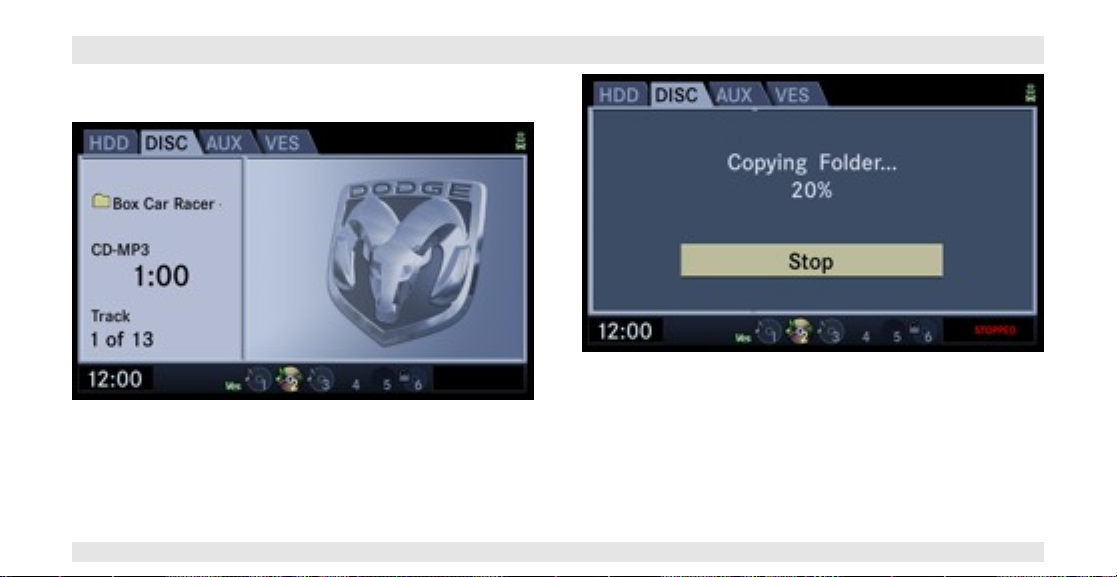

3. Select either Copy Track, Copy Folder, or Copy Disc. During the copy process, the disc player cannot play audio.
47
The copy progress is shown in the display. It is possible to listen radio modes during this process.

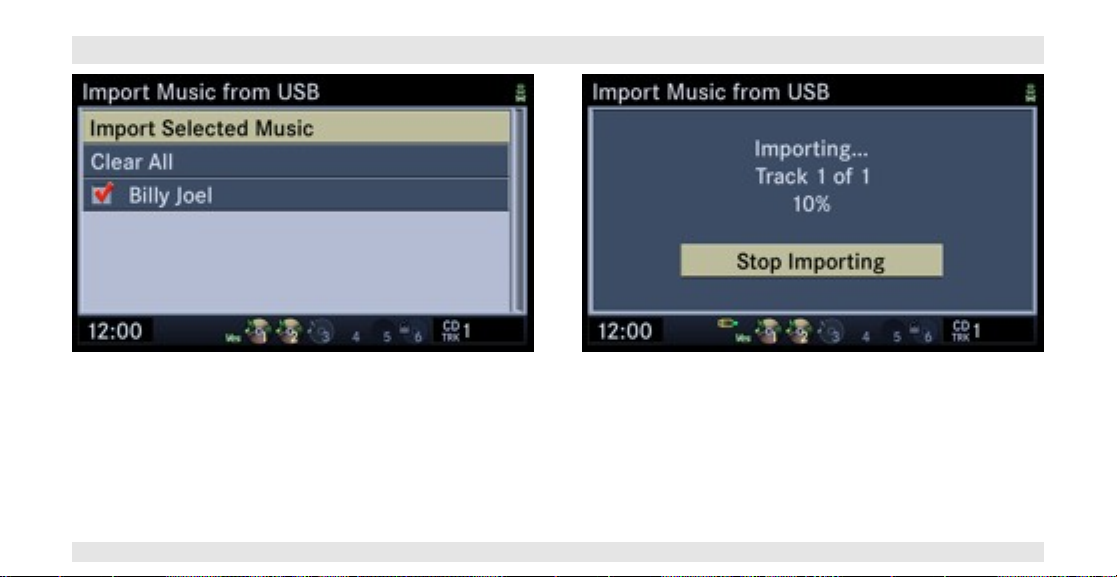

Copying from USB

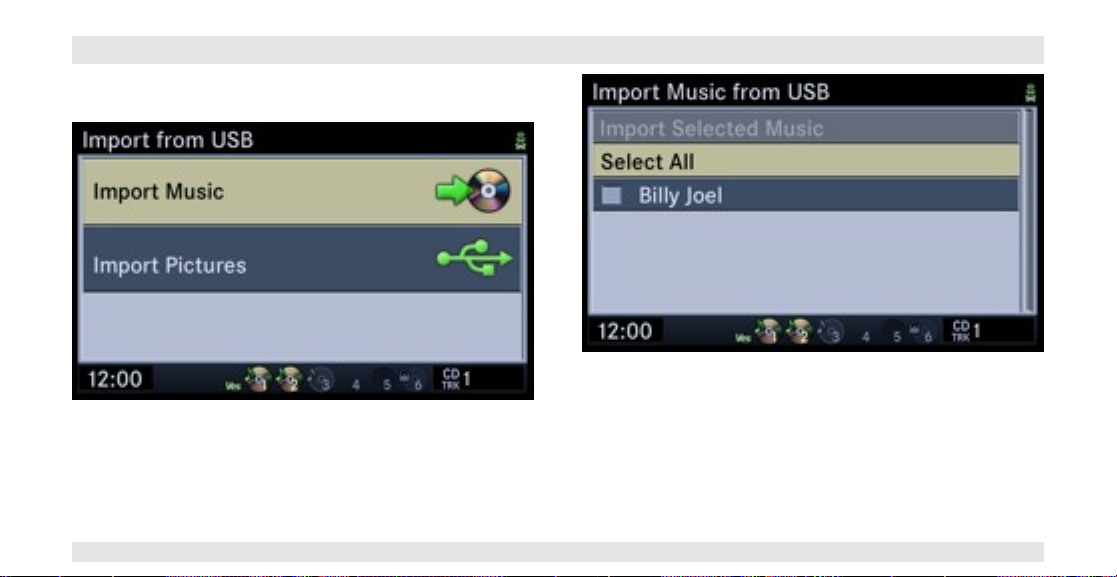

1. Insert a USB device.
2. Select Import Music.
MEDIA
3. Check-mark the desired music, titles, folders, or Select All.
4. Highlight Import Selected Music.
48
MEDIA
5. Press the JOYSTICK to start the copy process. 6. Press the JOYSTICK again to stop the import.
49
Playing Audio Files from the Hard Disk Drive
You can play songs directly from the internal hard disk drive.

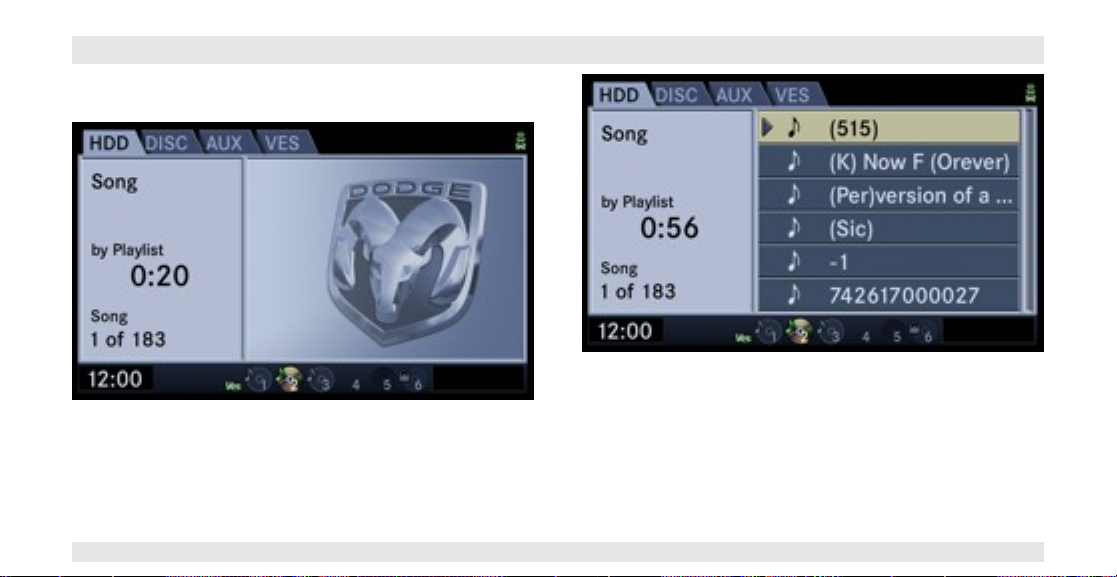

1. Press the MEDIA button repeatedly until the HDD tab is high­lighted.
2. Press the LIST button to display a song list.
MEDIA
An arrow indicates the currently playing song.
3. Turn the CENTER CONTROL knob to highlight a song.
4. Press the JOYSTICK to play the highlighted song.
Playing Audio Files by Music Categories
1. Press the MUSIC TYPE button to select an available category.
The navigation radio can sort the files by playlist, by song name, by artist, by genre, by album, or by year.
50
MEDIA
2. Select Playlists or the desired category for this example. 3. Select the desired playlist to play it. Select PLAY ALL PLAYLISTS to play all available playlists.
51
Next Track
Press the SEEK up button. The next track of the current album is played. Once the last track has been reached in the forward direction, the unit will loop back to the first track. If a track has been playing for more than 10 seconds when SEEK down button is pressed, the unit will skip back to the beginning of the current track, instead of jumping to the previous track.
Previous Track
Press the SEEK down button. The previous track of the current album is played. If the first track has been reached in the back­ward direction, the unit will switch from the first track to the last track. If a track has been playing for more than 10 seconds when SEEK down button is pressed, the unit will skip back to the be­ginning of the current track.
Fast Forward Track
Press and hold the FF button. The audio will be heard at a re­duced level while going through the track in this mode. Stop the fast-forward by releasing the FF button.
MEDIA
Rewind Track
Press and hold the RW button. The audio will be heard at a re­duced level while going through the track in this mode. Stop the fast reverse by releasing the RW button.
Displaying the Elapsed Title Time
The elapsed title time of the current playing track is displayed on the left side of the screen.
52
MEDIA
HDD Menu
While in HDD mode, press the MENU button to access the HDD Menu.
Random Playback
The random play function plays random tracks from the hard disk drive. Either check-mark Random to switch the random play function on or off, or check-mark Normal Play Order to turn Ran-
53
dom playback off.
Repeat Track
The repeat track function repeats the currently played track. Check-mark Repeat to switch the repeat track function on or off.
Normal Play Order
The normal play order function play all songs in normal order.
Add To Quicklist
The Add To Quicklist function adds the currently playing song to a playlist named ‘QuickList’.
Editing Playlists on the Hard Disk Drive

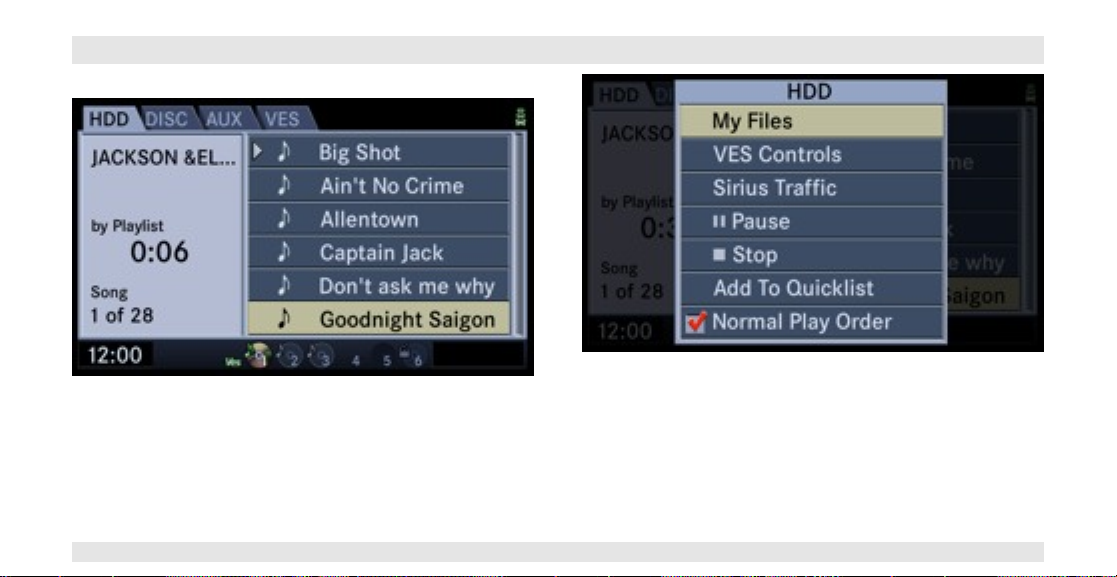

1. While in the HDD mode press the MENU button to access the
HDD Menu.
MEDIA

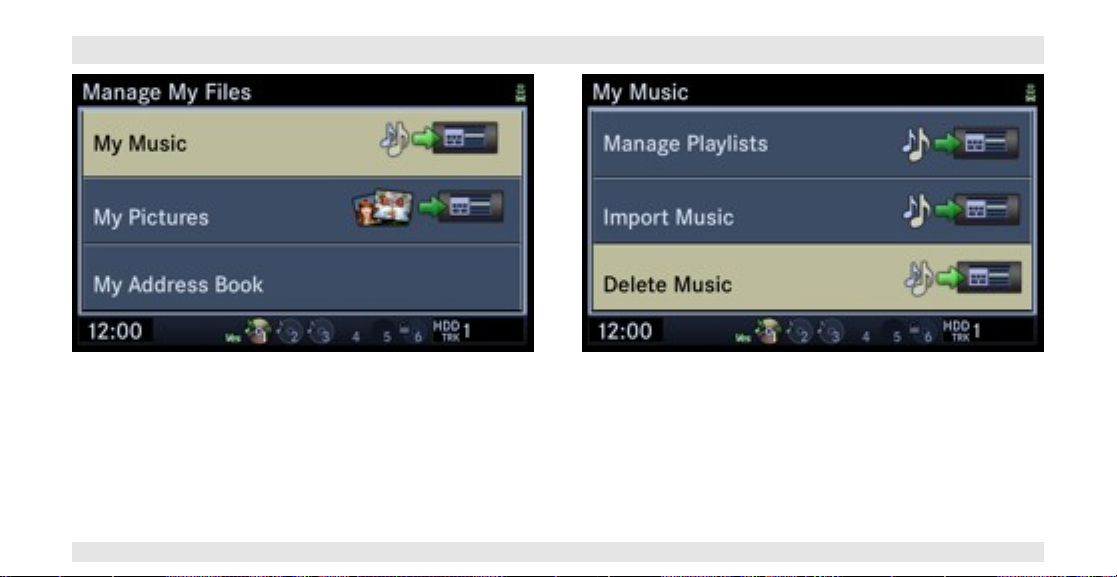

2. Select the My Files function.
54
MEDIA
3. Select My Music. 4. Select the Manage Playlists function. From the Manage Playlists screen you may create a new
playlist, rename a playlist, add songs to a playlist, remove songs from a playlist, rearrange a playlist, or delete a playlist.
55
Create a new playlist
1. Select Create New Playlist.
MEDIA
2. Enter a name for the new playlist in the speller.
3. Highlight CONTINUE and press the JOYSTICK. The playlist is now created but does not yet contain any music.

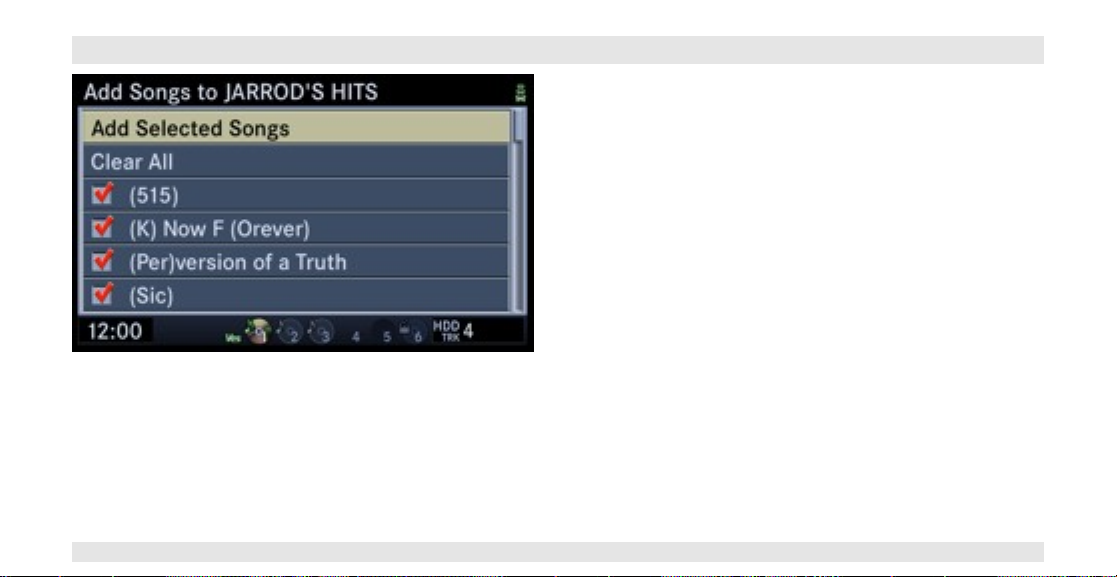

4. Select one of the filters to display a list of songs. In this example we select to filter by Artist.
56
MEDIA
The radio lists all available artists from the internal HDD.
5. Turn the CENTER CONTROL knob until the desired artist is
highlighted and press the JOYSTICK.
6. Check-mark the songs you would like to add to the playlist.
You may use the Select All function to select all songs in the list, or the Clear All function to uncheck all songs.
57
7. Once you made your selection highlight Add Selected and press the JOYSTICK.
You may now select another filter and add more songs to the playlist.
To play the new playlist:
1. Press the MUSIC TYPE button.
2. Select Playlists.
3. Turn the CENTER CONTROL knob until the new playlist is
highlighted.
4. Press the JOYSTICK.
5. Select a song in the list and press the JOYSTICK again to play
the playlist.
MEDIA
Rename a playlist
1. Select a playlist and press the JOYSTICK.
2. You may press the DELETE button to remove existing charac­ters.
58
MEDIA
3. Enter the name and select CONTINUE.
The playlist is now renamed. You may rename another playlist in the list.
To play the renamed playlist:
1. Press the MUSIC TYPE button.
2. Select Playlists.
59
3. Turn the CENTER CONTROL knob until the renamed playlist is highlighted.
4. Press the JOYSTICK.
5. Select a song in the list and press the JOYSTICK again to play the playlist.
Add songs to a playlist
1. Select a playlist and press the JOYSTICK.
2. Select a filter.
In this example we use by Album.
3. Select an album.
MEDIA
4. Check-mark the songs you would like to add to the playlist. You may use the Select All function to select all songs in the list,
or the Clear All function to uncheck all songs.
60
MEDIA
5. Once you made your selection highlight Add Selected Songs
and press the JOYSTICK. You may now select another filter and add more songs to the
playlist. To play the new playlist:
1. Press the MUSIC TYPE button.
2. Select Playlists.
61
3. Turn the CENTER CONTROL knob until the new playlist is highlighted.
4. Press the JOYSTICK.
5. Select a song in the list and press the JOYSTICK again to play the playlist.
Remove songs from a playlist
1. Select a playlist and press the JOYSTICK.
2. Check-mark the songs you would like to have removed from
the playlist. You may use the Select All function to select all songs in the list,
or the Clear All function to uncheck all songs.
MEDIA
3. Once you made your selection highlight Remove Selected Songs and press the JOYSTICK.
To play the new playlist:
1. Press the MUSIC TYPE button.
2. Select Playlists.
3. Turn the CENTER CONTROL knob until the new playlist is highlighted.
62
MEDIA
4. Press the JOYSTICK.
5. Select a song in the list and press the JOYSTICK again to play
the playlist.
Rearrange songs in a playlist
1. Select a playlist and press the JOYSTICK.
63
2. Highlight the song you would like to have moved within the playlist.
3. Press the JOYSTICK.
4. Turn the CENTER CONTROL knob to reposition the song in the list.
5. Press the JOYSTICK to confirm. You may now select another song to be rearranged.
To play the new playlist:
1. Press the MUSIC TYPE button.
2. Select Playlists.
3. Turn the CENTER CONTROL knob until the new playlist is
highlighted.
4. Press the JOYSTICK.
5. Select a song in the list and press the JOYSTICK again to play
the playlist.
Delete a playlist

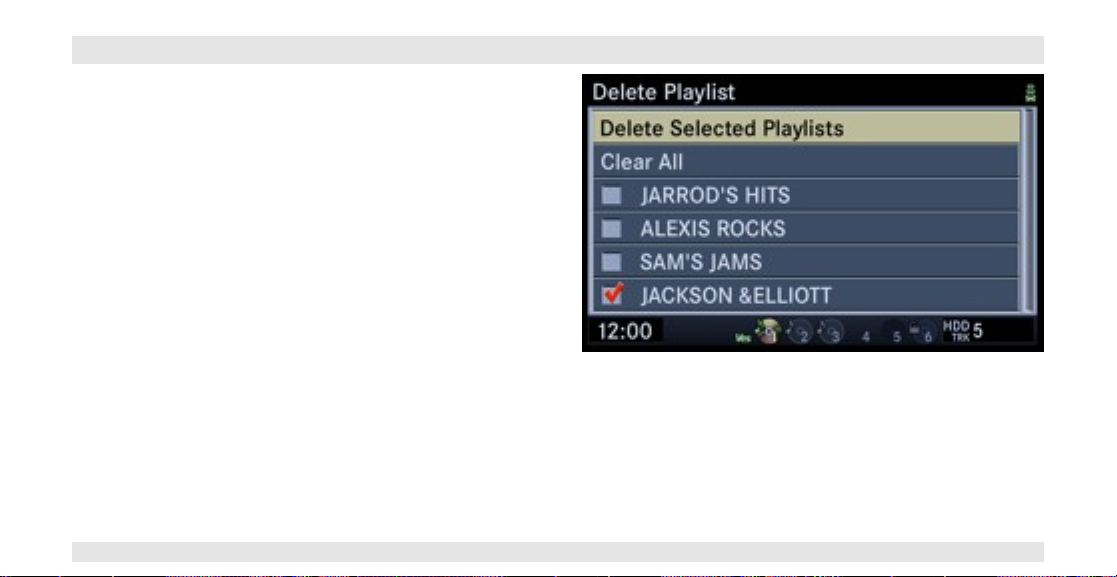

1. Check-mark the playlists you would like to have removed from
the list. You may use the Select All function to select all playlists in the
list, or the Clear All function to uncheck all playlists.
MEDIA
2. Once you made your selection highlight Delete Selected Playlists and press the JOYSTICK.
You may now select another playlist to be deleted.
Note: Deleting a file from a Playlist will not delete it from the Hard Drive.
64
MEDIA
Deleting Songs permanently from the Hard Disk Drive
1. While in the HDD mode press the MENU button to access the
HDD Menu.
65
2. Select the My Files function.
MEDIA
3. Select My Music. 4 . S e l e c t t h e D e l e t e M u s i c f u n c t i o n .
66
MEDIA

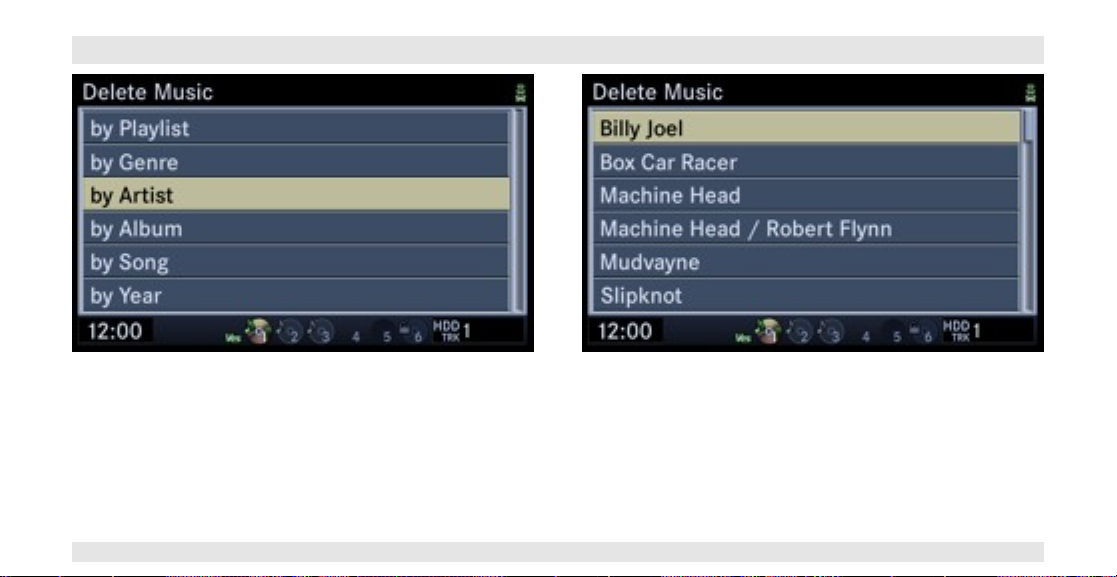

5. Select one of the filters to display a list of songs.
In this example we select to filter by Artist. The radio lists all available artists from the internal HDD.
67
6. Turn the CENTER CONTROL knob until the desired artist is highlighted and press the JOYSTICK.
7. Check-mark the songs you would like to permanently delete. You may use the Select All function to select all songs in the list,
or the Clear All function to uncheck all songs.
8. Once you made your selection highlight Delete Selected
Songs and press the JOYSTICK. You may now select another filter and delete more songs from
the hard disk drive.
MEDIA
Deleting All Music files from the Hard Disk Drive
1. Press the SETUP button.
2. Select the Manage HDD function. This menu displays the available space on the hard disk drive,
and allows you to delete pictures, music files, and address book entries.
68
MEDIA
3. Highlight Delete All of My Music files.
4. Press the JOYSTICK.
Note: If you confirm the next step, all playlists and all songs contained in them, will be permanently deleted. Neither songs nor playlists can be recovered.
5. Select YES and press the JOYSTICK again.
69
Importing Pictures
It is possible to import display pictures to the internal hard disk drive. You can import pictures either from DISC or from USB.
Refer to the Remote Devices section in this manual for a descrip­tion of the USB Connector.
The pictures can be displayed on the right half of the radio screen.
Warning: It is not possible to copy files of a USB device while the vehicle is in motion.
In the default mode, the vehicle brand logo is displayed in the right half of the screen.
It is recommended to change the picture dimensions on a PC or Digital Camera to 466 by 338 pixels before the import.
Note: USB devices (e.g., camera memory USB adaptors, etc.) must com­ply with the MSD (Mass Storage Device) standard. This USB terminal can
MEDIA
provide power to the inserted device. The devices current limitation must be less or equal to 500mA.
1. Press the Menu button.
2. Select My Files.
3. Select My Pictures.
70
MEDIA
4. Highlight Add Picture.
5. Press the JOYSTICK.
71
You can import pictures either from DISC or from USB.
Note: Files must be in the root directory (top level) of the disc or USB device to be recognized.
6. Select USB for this example.
7. Insert the USB device containing the pictures.
8. Select the desired picture.
9. Press the JOYSTICK.
10. Select YES to confirm your selection.
11. Repeat steps 4. to 10. to add more pictures.
The navigation radio can store 48 user pictures.
MEDIA
Deleting Selected Pictures
1. Press the Menu button.
2. Select My Files.
3. Select My Pictures.
4. Highlight a picture.
5. Press the JOYSTICK.
6. Highlight Delete.
72
MEDIA
7. Press the JOYSTICK.
8. Confirm YES to delete the selected picture.
73
Deleting All Pictures
1. Press the SETUP button.
2. Select the Manage HDD function. This menu displays the available space on the hard disk drive,
and allows you to delete pictures, music files, and address book entries.
3. Highlight Delete All of My Picture files.
4. Press the JOYSTICK.
Note: If you confirm the next step, all playlists and all songs contained in them, will be permanently deleted. Neither songs nor playlists can be recovered.
5. Select YES and press the JOYSTICK again.
MEDIA
Set Pictures as Picture View
1. Press the Menu button.
2. Select My Files.
3. Select My Pictures.
4. Highlight a picture.
5. Press the JOYSTICK.
6. Highlight Set as Picture View.
74
MEDIA
7. Press the JOYSTICK.
8. Confirm YES to confirm the selected picture.
Slideshow
Note: The slideshow is not available, when the vehicle is in motion.
1. Press the Menu button.
2. Select My Files.
75
3. Select My Pictures.
4. Highlight a picture.
5. Press the JOYSTICK.
6. Highlight Start Slideshow.
7. Press the JOYSTICK.
8. Press the JOYSTICK again to stop the slideshow.
Remote Devices
SIRIUS Backseat TV™ (if equipped)
SIRIUS Backseat TV™ Mode
In order to receive SIRIUS Backseat TV™, the vehicle needs to be outside with a clear view to the sky. If the screen shows Ac­quiring Signal, you might have to change the vehicle position in order to receive a signal. In most cases, the satellite radio does not receive a signal in underground parking garages or tunnels.
REMOTE DEVICES
Channel List
View SIRIUS Backseat TV™ on the Radio Screen
Note: To view SIRIUS Backseat TV™ on the radio screen, the vehicle
must be stopped, and the shifter must be in position P for vehicles with automatic transmission. In vehicles with manual transmission the parking brake must be engaged.
76
REMOTE DEVICES
In order to watch the desired SIRIUS Backseat TV™ channel, press the Menu button and select Show Video.
77
In order to hide the Sirius Backseat TV™ video, select Hide VIDEO in the SATV MENU.
Change a Channel
Either press the SEEK up or the SEEK down button or turn the TUNE knob to play the next available channel.
Note: Changing a channel on the Sirius Backseat TV™ receiver takes longer than changing the channel on the radio receiver.
Press the SCAN button for a five second preview of each avail­able channel. Press the SCAN button again to stop the scan function.
Video Program Information
Press the INFO button to display additional program information in the right half of the screen. Press the INFO button again to close additional program infor-
mation.
REMOTE DEVICES
Vehicle Entertainment System™(VES) (if equipped)
The navigation radio can remotely control the VES. Refer to the VES user’s manual for more information.
Receiving audio/video from the VES
You can play audio from the VES through the vehicles speaker system. If you have a VES with a video player, you can also see the video on the radios display, if the vehicle is parked.
78
REMOTE DEVICES
The VES tab becomes available after the VES system is turned on. Press the MEDIA button repeatedly until the VES audio source is selected.
79
Press the MENU button and select SELECT VES SOURCE.
REMOTE DEVICES

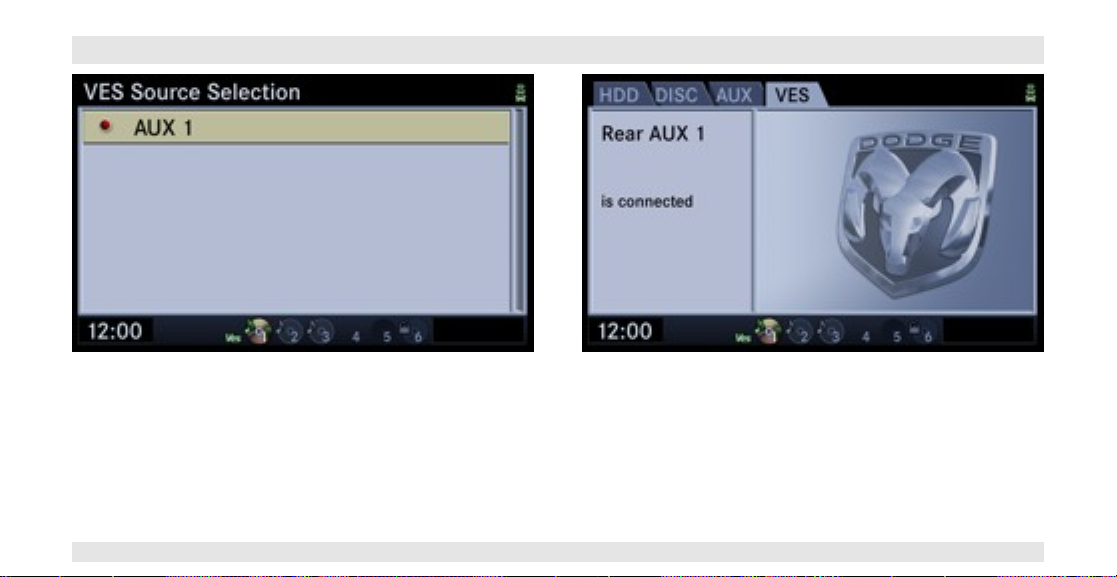

Select the desired source to play the selected source in the vehi­cle cabin.
Note: The availability of a VES source is based on the type of VES in the vehicle. A DVD Player is not available if there is no DVD player in the VES or there is no DVD in the player.
A device must be plugged in to the AUX jack of the VES to be available.
In this example the Rear AUX 1 audio is playing on the naviga­tion radio. You can play the VES source through the navigation
radio sound system.
Sending audio/video and controlling the VES
The navigation radio can also control the VES. All sources are played through the VES headphones.
80
REMOTE DEVICES

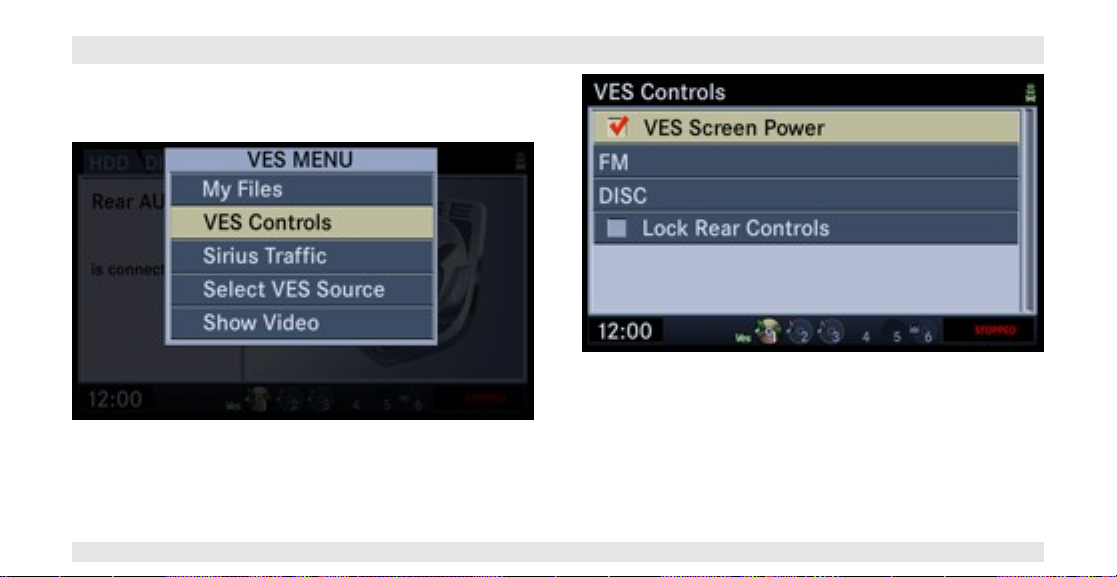

To access the rear VES press the MENU button.
Select VES Controls to display the Rear VES Controls.
81
The Rear VES Controls are displayed. Check or uncheck the VES Screen Power to turn the VES screen on or off. The second entry shows the source of the rear VES channel 1 (Plays FM tuner in this example) The third entry shows the source of the rear VES channel 2 (Plays DISC in this example)
Check the Lock Rear Controls to disable the controls on the VES remote control unit. Once the VES is locked, it is not possible to use the VES controls or the VES remote control. Uncheck the Lock Rear Controls to enable the controls on the VES remote control unit. A VES headset can listen to either audio channel 1 or audio channel 2. Select channel 1. In this example channel one plays the FM RADIO tuner audio.
REMOTE DEVICES
The left half of the screen displays the audio source information, which is in this case the radio frequency 107.9 MHz of Preset 6. The right half of the screen shows the selected audio source. Turn the CENTER CONTROL knob and press the JOYSTICK to
select a different source. Press the LIST button to display the selected source details.
82
REMOTE DEVICES

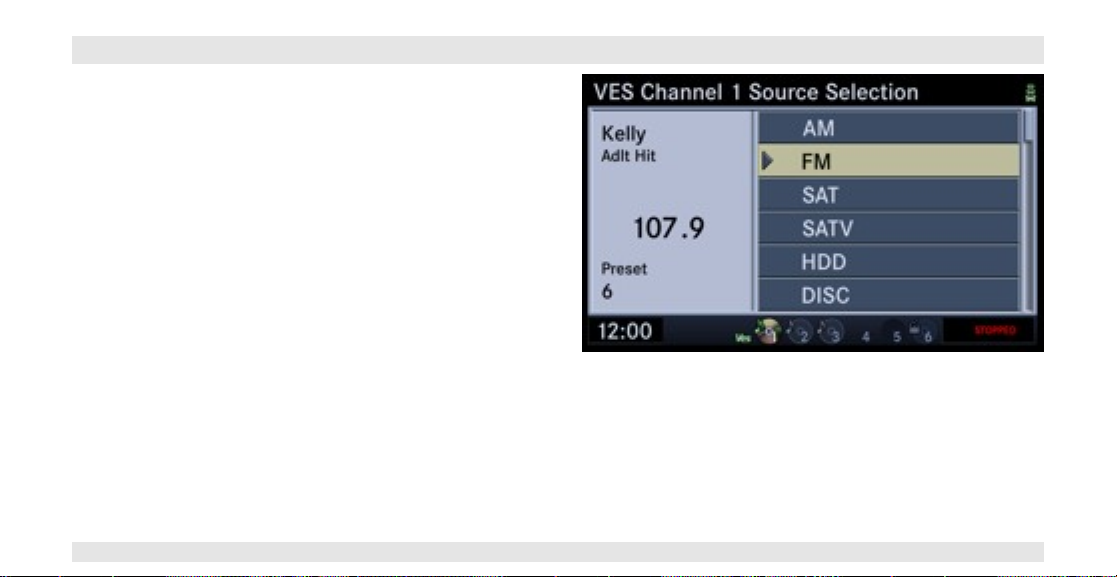

In this case the FM preset list within the selected tuner is dis­played.
You may select a preset to change the station, or turn the TUNER knob, or press the SEEK up or SEEK buttons to change the radio station.
83
Note: The navigation radio cannot play both AM or FM at the same time.
Press the LIST button again to display a list of available sources for the rear VES.
Press the BACK button to go back to the VES Controls screen.
Playing a Video DVD for the rear VES
1. To view a DVD video on the rear VES radio screen, insert a
video DVD.
The playback starts automatically after the DVD video is recog­nized by the disc drive.
2. To access the rear VES press the MENU button.
REMOTE DEVICES
3. Select VES Controls to display the Rear VES Controls. The Rear VES Controls are displayed.
4. Select channel 2 on your VES headset.
84
REMOTE DEVICES
For this example the third entry shows the source of the rear VES channel 2 plays DISC.
5. Select DISC.
85
6. Turn the CENTER CONTROL knob to select Disc Functions.
In this screen you may Start, Stop, or Pause the video. Select Show Video to display the video on the rear VES screen. If the inserted DVD provides a menu, you may select DVD Menu.
REMOTE DEVICES
USB Connector
It is possible to transfer audio files or pictures files to the naviga­tion radio. Files can be on a disc or on a USB device (e.g., USB stick). The USB connector is covered by a small cover, which protects the connector from dust or damage.
Note: USB devices (e.g., camera memory USB adaptors, etc.) must com­ply with the MSD (Mass Storage Device) standard. This USB terminal can provide power to the inserted device. The devices current limitation must be less or equal to 500mA.
The transfer speed for this USB connector is approximately 2 megabytes per second.
MP3 player devices cannot be controlled through the USB con­nector. Some player devices save music files in MP4 format, which cannot be played in this radio. Some copy protected music (e.g., downloads from the internet) cannot be played on this radio.
Compatible devices
Please see your Chrysler Dealership or visit
http://www.chrysler.com/mygig/ for supported devices.
86
REMOTE DEVICES
How to open the cover
How to close the cover
1. Place finger under the pull arrow and pull forward.#
Note: The flap is attached and should not be removed! Do not use a tool (e.g. screw driver, nail file, etc.) to open the flap, as this could cause dam­age to the face of the radio.
Caution: Never force any connector into the ports of your radio. Make sure your connectors are the identical shape and size before you connect.
87
1. Using your thumb to place the flap into the frame as shown above.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
