SOUNDSTICKS
Setup Guide
WIRELESS
English
Japanese
Simplied Chinese
2
SOUNDSTICKS® WIRELESS
Specifications*
System
Frequency range: 44Hz – 20kHz
Power consumption: 4W idle,
Subwoofer
Transducer (1): 6" woofer
Amplifier output power: 20W RMS
Dimensions (W x H): 9-3/16" x 10-3/16"
Weight: 4 lb (2.2kg)
Satellite
Transducers (4): 1" full-range per channel
Amplifier output power: 10W RMS
Dimensions (W x H): 2" x 10"
Weight: 1.5 lb (0.7kg)
Troubleshooting
Symptom Possible problem Solution
No sound from SoundSticks speaker
system.
65W maximum
(232mm x 258mm)
per channel
(51mm x 254mm)
Step 1. Place individual
SoundSticks (satellites)
beside monitor/computer.
Place subwoofer as desired,
but placement under desk
provides best performance.
No power to subwoofer.
Power adapter plug not inserted
correctly.
No volume or low volume.
L
R
Step 2. Connect satellite
cables to the dual
subwoofer cable. Also
connect the input cable
to the subwoofer input
cable jack.
Ensure power supply is connected to live power source and is properly
connected to subwoofer. Please note: When subwoofer is powered, a
power LED should light.
Place plug with arrow symbol facing UP into the subwoofer.
Touch the volume “Up” (+) pad on the volume control satellite to
unmute and/or increase the system volume level.
Note: Touching the volume “Down” (–) pad lowers the system volume.
Touching both (+) and (–) volume control pads at the same time will mute
the system.
Step 3. Insert
SoundSticks input cable
into the computer or
other audio device.
Step 4. Plug power cord
into power adapter.
*These specifications are subject to change without notice.
4
Easy Setup Guide
R
L
Bluetooth
LED

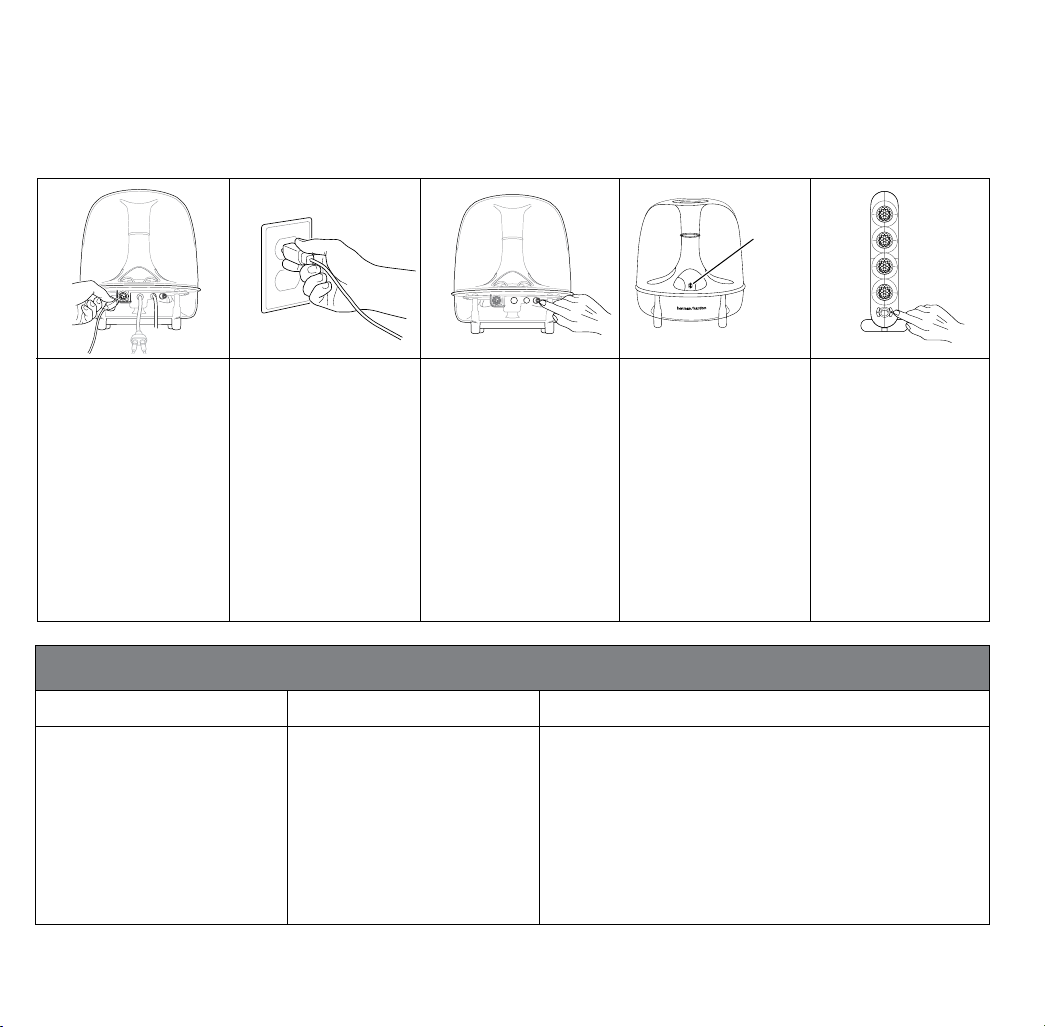

Step 5. Plug power adapter
into subwoofer.
Step 6. Plug power cord
into wall receptacle.
Step 7. Push the subwoofer
volume knob/power ON/
OFF button. Unit is on
when the LED is lit. Use the
subwoofer volume knob to
balance the subwoofer’s
volume with that of the
satellites.
Step 8. Turn on
Soundsticks Wireless.
(Unit will automatically
enter pairing mode.) Put
Bluetooth-enabled device
in pairing mode. Select
“Soundsticks Wireless”
on device’s pairing list.
Step 9. Adjust volume
level by touching + or –
button. Touching both the
+ and – buttons mutes
the audio. When muted,
touching either button
unmutes the audio.
Passcode (if required) is
0000. When pairing is
successful, Soundsticks
Wireless’ Bluetooth LED
will illuminate.
www.harmankardon.com
Symptom Possible problem Solution
No sound from subwoofer,
only satellites.
No sound from satellites,
only subwoofer.
High frequencies sound dull.
No sound from Bluetooth device.
This product is intended to be supplied by a listed direct plug -in power unit marked “Class 2” and output rated 16V DC minimum 1.5 A.
*Audio from a paired Bluetooth device will mix with the audio from a connected audio device. To listen to only one device, stop play on the other device.
Subwoofer volume control set
at minimum.
Satellites not connected
to subwoofer.
Satellites not positioned properly.
Device not paired.
Rotate subwoofer volume control clockwise until relative volume level is
appropriate.
Check connection of satellites to subwoofer.
Position and tilt (angle) loudspeakers toward listener. The sound from the
satellites is very directional due to the four-element linear array design.
Pair device with Soundsticks Wireless. Bluetooth LED illuminates when
pairing is successful.
5
HARMAN International Industries, Inc.
8500 Balboa Boulevard, Northridge, CA 91329 USA
www.harmankardon.com
Made in P.R.C.
© 2012 HARMAN International Industries, Incorporated. All rights reserved.
Features, specifications and appearance are subject to change without
notice.
Harman Kardon and SoundSticks are trademarks of HARMAN International
Industries, Incorporated, registered in the United States and/or other countries.
The Bluetooth word mark and logo are registered trademarks and are
owned by the Bluetooth SIG, Inc., and any use of such marks by
HARMAN International Industries, Incorporated, is under license.
Part No. 950-0454-001 Rev. A
