RUSH SM 850

User Manual

© 2013-2017 Martin Professional ApS. Information subject to change without notice. Martin

Professional and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss,
consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance

on the information contained in this manual. Martin™, RUSH™, JEM™ and other trademarks

mentioned herein are registered as the property of Harman International Industries.

Martin Professional • Olof Palmes Allé 18 • 8200 Aarhus N •Denmark • www.martin.com

Manual: Revision C

Table of contents

Safety information ............................................................................................. 4

Introduction ....................................................................................................... 8

Features at a glance ...................................................................................... 8

Before using the product ............................................................................... 8

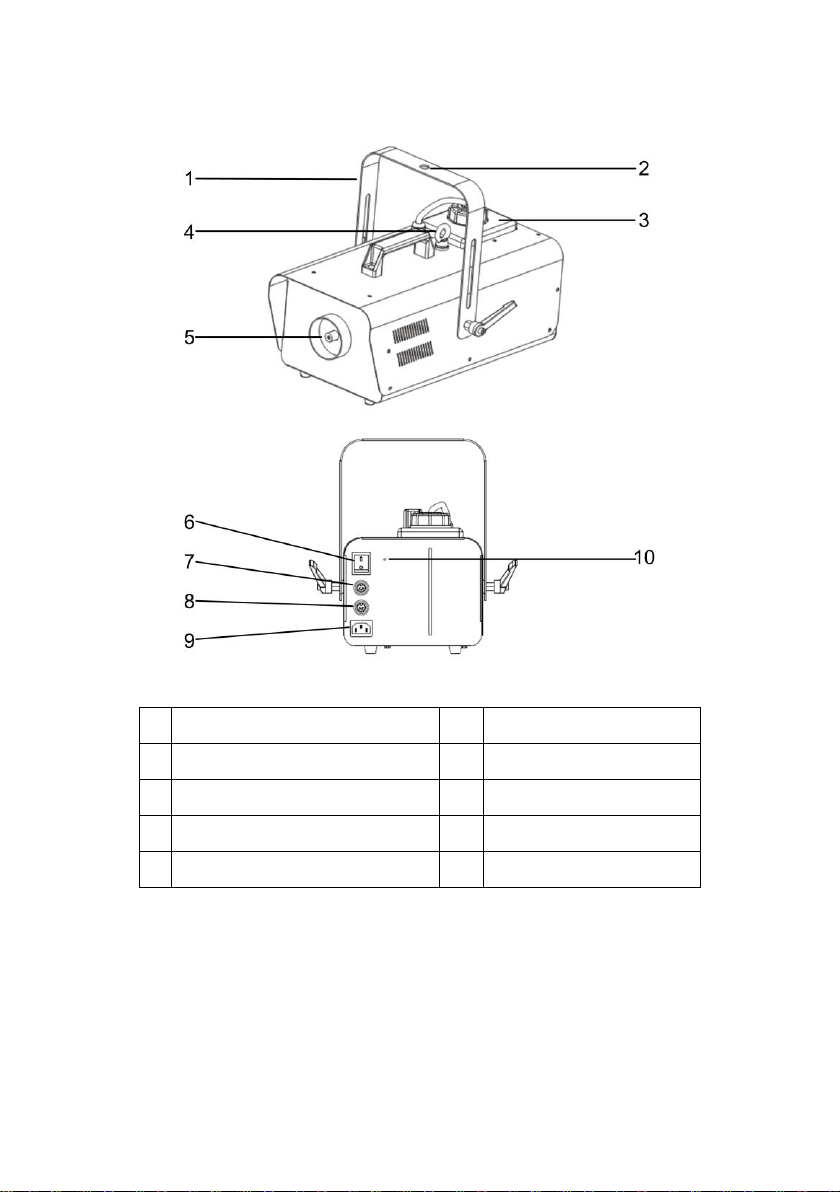

Fog machine overview ...................................................................................... 9

Physical installation ......................................................................................... 10

Mounting the fog machine on a truss .......................................................... 10

Securing with a safety cable ........................................................................ 11

AC power ........................................................................................................ 11

Remote control ................................................................................................ 12

Wired remote control ................................................................................... 12

4-channel wireless remote control and receiver .......................................... 12

Operation ........................................................................................................ 13

Filling the tank ............................................................................................. 13

Making fog ................................................................................................... 13

Maintenance.................................................................................................... 14

Cleaning ...................................................................................................... 14

Replacing the primary fuse .......................................................................... 14

Replacing the wireless remote control battery ............................................ 15

Service and repairs ..................................................................................... 15

Troubleshooting .............................................................................................. 16

Technical Specifications ................................................................................. 17

RUSH SM 850TM User Manual

4

Safety information

WARNING!

Read the safety precautions in this manual before installing,

operating or servicing this product.

The following symbols are used to identify important safety information on the
product and in this manual:

Warning!

Safety hazard.
Risk of severe

injury or death.

Warning!
See user

manual for

important

safety

information.

Warning!

Hazardous
voltage. Risk of
lethal or severe

electric shock.

Warning!

Fire hazard.

Warning!

Hot surfaces.

Burn hazard.

This fog machine is for professional use only and must be
installed by a qualified technician. It is not for household use. It
presents risks of severe injury or death due to fire and burn
hazards, electric shock, falls, and respiratory problems. The fog
produced by the machine is hot enough to cause burns or eye
injury if the safety precautions below are not followed.

Install, operate and service Martin™ products only as directed
in their user manuals, or you may create a safety hazard or
cause damage that is not covered by product warranties.

Follow the safety precautions listed below and observe all
warnings in this manual and printed on the product. Keep this
user manual for future use.

For the latest user documentation and other information for this
and all Martin™ products, please visit the Martin website at
http://www.martin.com

If you have any questions about how to install, operate or

RUSH SM 850TM User Manual

5

service the fog machine safely, please contact your Martin™
distributor (see www.martin.com/distributors for details) or call
the Martin™ 24-hour service hotline on [phone], or in
the USA on 1-888-tech-180.

Respect all locally applicable laws, codes and regulations when
installing, operating or servicing the fog machine.

Protection from electric shock

Do not expose the fog machine to rain or moisture.
Disconnect the fog machine from AC power before carrying out

any installation or maintenance work and when the fog
machine is not in use.

Ensure that the fog machine is electrically connected to ground
(earth).

Use only a source of AC mains power that complies with local
building and electrical codes and has both overload and
ground-fault (earth-fault) protection.

Socket outlets or external power switches used to supply the
fog machine with power must be located near the fog machine
and easily accessible so that the fog machine can easily be
disconnected from power.

Replace defective fuses with ones of the specified type and
rating only.

Disconnect the fog machine from power immediately if the
power plug or any seal, cover, cable, or other component is
damaged, defective, deformed, wet or showing signs of
overheating. Do not reapply power until repairs have been
completed.

Before using the fog machine, check that all power distribution
equipment and cables are in perfect condition and rated for the
electrical requirements of all connected devices.

Protection from burns and fire

Do not operate the fog machine if the ambient temperature (Ta)
exceeds 40° C (104° F).

The surface of the product casing can reach up to 50° C
(122°F) during operation. Avoid contact by persons and
materials. Allow the fog machine to cool for at least 10 minutes
before handling.

RUSH SM 850TM User Manual

6

Do not touch the fog output nozzle during or after use – it
becomes extremely hot, reaching a temperature of 300° C
(572° F). The nozzle cools slowly and can cause burns for up
to three hours after the machine has been shut down.

The fog produced by the machine is hot enough to cause burns
when it leaves the nozzle, and very hot droplets of fluid escape
occasionally. Keep people and objects at least 1 meter (39
inches) away from the fog output nozzle. Do not install the
machine such that hot droplets can fall on people.

Fog output contains glycol, a flammable alcohol that burns with
an almost invisible blue flame. Do not point fog output at
sources of ignition such as open flames or pyrotechnic effects.

Keep flammable materials well away from the fog machine.
Ensure that there is free and unobstructed airflow around the

fog machine. Provide a minimum clearance of 500 mm (20 in.)
around the fog machine. Keep combustible materials at least 1
m (40 in.) away from the machine.

Do not attempt to bypass thermostatic switches or fuses.
Replace fuses only with ones of the type and rating specified in
this manual for the machine.

Protection from injury

Ensure that any supporting structure and/or hardware used can
hold at least 10 times the weight of all the devices they support.

If suspending from a rigging structure, fasten the fog machine
to a rigging clamp. Do not use safety cables as the primary
means of support.

Do not install the fog machine over areas where people are
present.

This appliance is not intended for use by persons (including
children) with reduced physical sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children must be
supervised to ensure that they do not play with the appliance.

If the fog machine is installed in a location where it may cause
injury or damage if it falls, install as directed in this manual a
secondary attachment such as a safety cable that will hold the

RUSH SM 850TM User Manual

7

fog machine if a primary attachment fails. The secondary
attachment must be approved by an official body such as TÜV
as a safety attachment for the weight that it secures, must
comply with EN 60598-2-17 Section 17.6.6 and must be
capable of bearing a static suspended load that is ten times the
weight of the fog machine and all installed accessories.

Fog machines can cause condensation. Do not point the output
at smooth floors. Floors and surfaces may become slippery.
Check these frequently and wipe dry as necessary to avoid any
danger of slipping.

Ensure at least 2 m (6.5 ft.) visibility in areas where fog is being
produced.

Fog fluid contains food-grade glycols in solution but may
present health risks if swallowed. Do not drink it. Store it
securely. If eye contact occurs, rinse with water. If fluid is
swallowed, give water and obtain medical advice.

Block access below the work area and work from a stable
platform whenever installing, servicing, filling, or moving the fog
machine.

In the event of an operating problem, stop using the fog
machine immediately and disconnect it from power. Do not
attempt to use a fog machine that is obviously damaged.

Do not modify the fog machine in any way. Refer any service
operation not described in this manual to a qualified technician.

Protection from breathing problems

A fog machine can operate safely only with the fog fluid it is
designed for. Use only fluid that is approved by Martin™ (see
‘Approved Fluids on page Error! Bookmark not defined.) with
this machine. Other fluids may cause the release of toxic
gases, presenting a severe health hazard. You will also
probably cause damage to the machine that is not covered by
product warranties.

Do not create dense fog in confined or poorly ventilated areas.

Do not expose people with health problems (including allergic
and/or respiratory conditions such as asthma) to fog output.

Do not point fog output directly at a person’s face or at face
height.
