Page 1
INSTRUCTION MANUAL
NXB-KNX
KNX COMMUNICATIONS GATEWAY
Page 2
IMPORTANT SAFETY INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE ONLY with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on
the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptacle.
17. Where th e mains plu g or an applian ce coupler is u sed as the di sconn ect device, the dis connect de vice shall rem ain readily o perable.
18. DO NOT overload wall outlets or extension cords beyond their rated capacity as this can cause electric shock or fire.
The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of suff icient magnitude to constitute a risk of electrical shock to persons.
ESD Warning: The icon to the left indicates text regarding potential danger associated with the discharge of static electricity from an outside
source (such as human hands) into an integrated circuit, often resulting in damage to the circuit.
WARNING: To reduce the risk of f ire or electrical shock, do not expose this apparatus to rain or moisture.
WARNING: No naked flame sources - such as lighted candles - should be placed on the product.
WARNING: Equipment shall be connected to a MAINS socket outlet with a protective earthing connection.
WARNING: To reduce the risk of electric shock, grounding of the center pin of this plug must be maintained.
COPYRIGHT NOTICE
AMX© 2016, all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AMX. Copyright protection claimed
extends to AMX hardware and software and includes all forms and matters copyrightable material and information now allowed by statutory or judicial
law or herein after granted, including without limitation, material generated from the software programs which are displayed on the screen such as
icons, screen display looks, etc. Reproduction or disassembly of embodied computer programs or algorithms is expressly prohibited.
LIABILITY NOTICE
No patent liability is assumed with respect to the use of information contained herein. While every precaution has been taken in the preparation of this
publication, AMX assumes no responsibility for error or omissions. No liability is assumed for damages resulting from the use of the information
contained herein. Further, this publication and features described herein are subject to change without notice.
AMX WARRANTY AND RETURN POLICY
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
Page 3
Table o f C o n tents
3
NXB-KNX - Instruction Manual
Table of Contents
NXB-KNX KNX Communications Gateway ......................................................... 6
Overview ............................................................................................................................ 6
Product Specifications ...................................................................................................... 6
Installation ........................................................................................................7
Wiring and Connections ................................................................................................... 7
Ethernet 10/100 Base-T RJ-45 Wiring Configuration ..................................................... 7
PoE (Power Over Ethernet) ..................................................................................................................... 7
KNX Connector ................................................................................................................. 7
Configuration .................................................................................................... 8
Overview ............................................................................................................................ 8
Determining the IP Address of the NXB-KNX .................................................................... 8
NetLinx Studio (featuring Zero-Config functionality) ............................................................................ 8
Accessing the NXB-KNX WebConsole via Zero-Config ........................................................................... 9
Accessing the WebConsole via Web Browser......................................................................................... 9

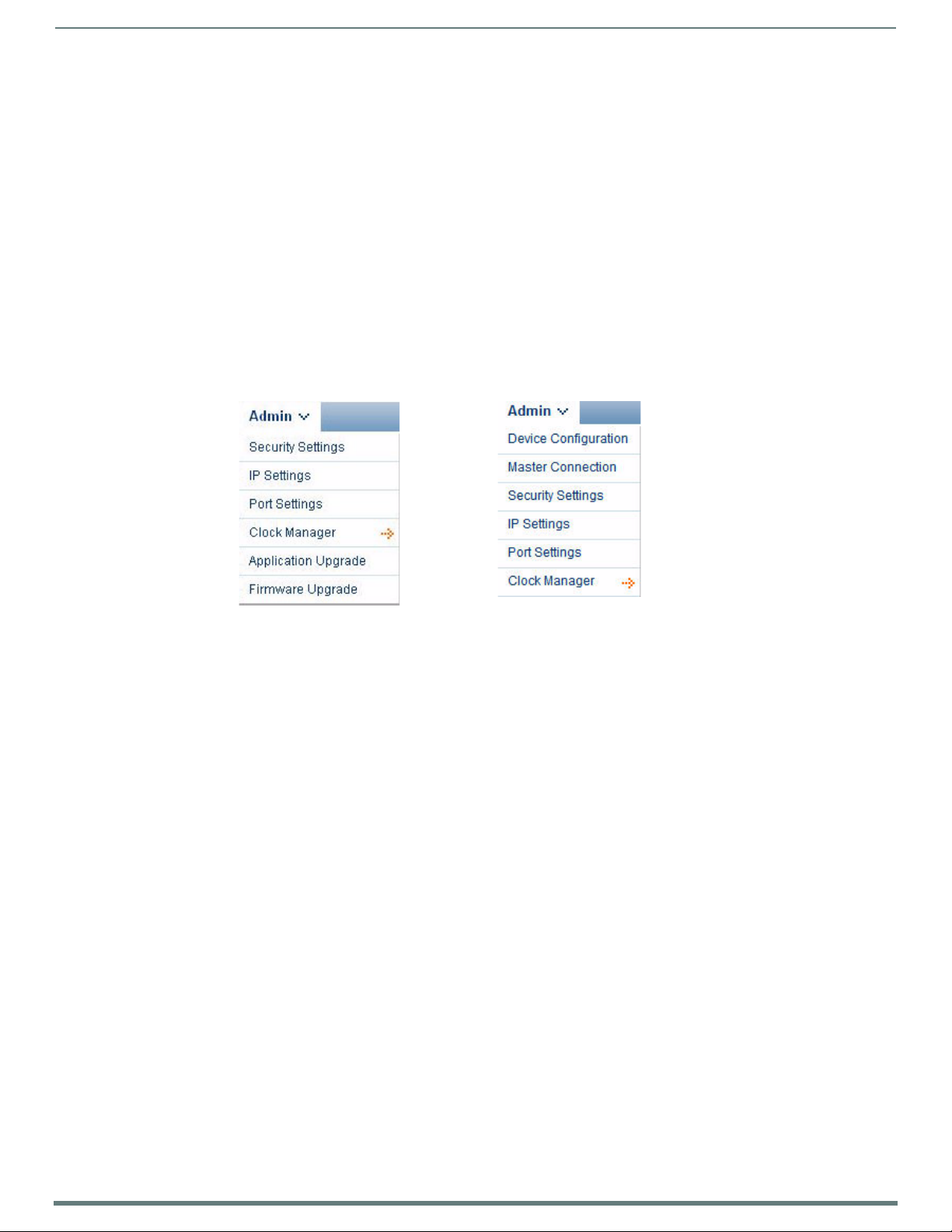

Admin Menu....................................................................................................................... 9
Device Configuration ...................................................................................................... 10
Device Configuration tab ...................................................................................................................... 10
Changing the Device Number ............................................................................................................... 10
Master Connection tab ......................................................................................................................... 10
Security Settings ............................................................................................................ 11
Enable / Disable Security Settings ...................................................................................................... 11
Login Information ................................................................................................................................. 11
Logging Into the Configuration Manager (With Security Enabled) ..................................................... 11
IP Settings ...................................................................................................................... 12
Port Settings................................................................................................................... 12
Clock Manager................................................................................................................ 13
Clock Manager - Mode Manager ........................................................................................................... 13
Clock Manager - Daylight Savings ........................................................................................................ 14
Clock Manager - NIST Servers.............................................................................................................. 15
NetLinx Programming .....................................................................................16
Overview ......................................................................................................................... 16
Understanding the KNX Bus ........................................................................................... 16

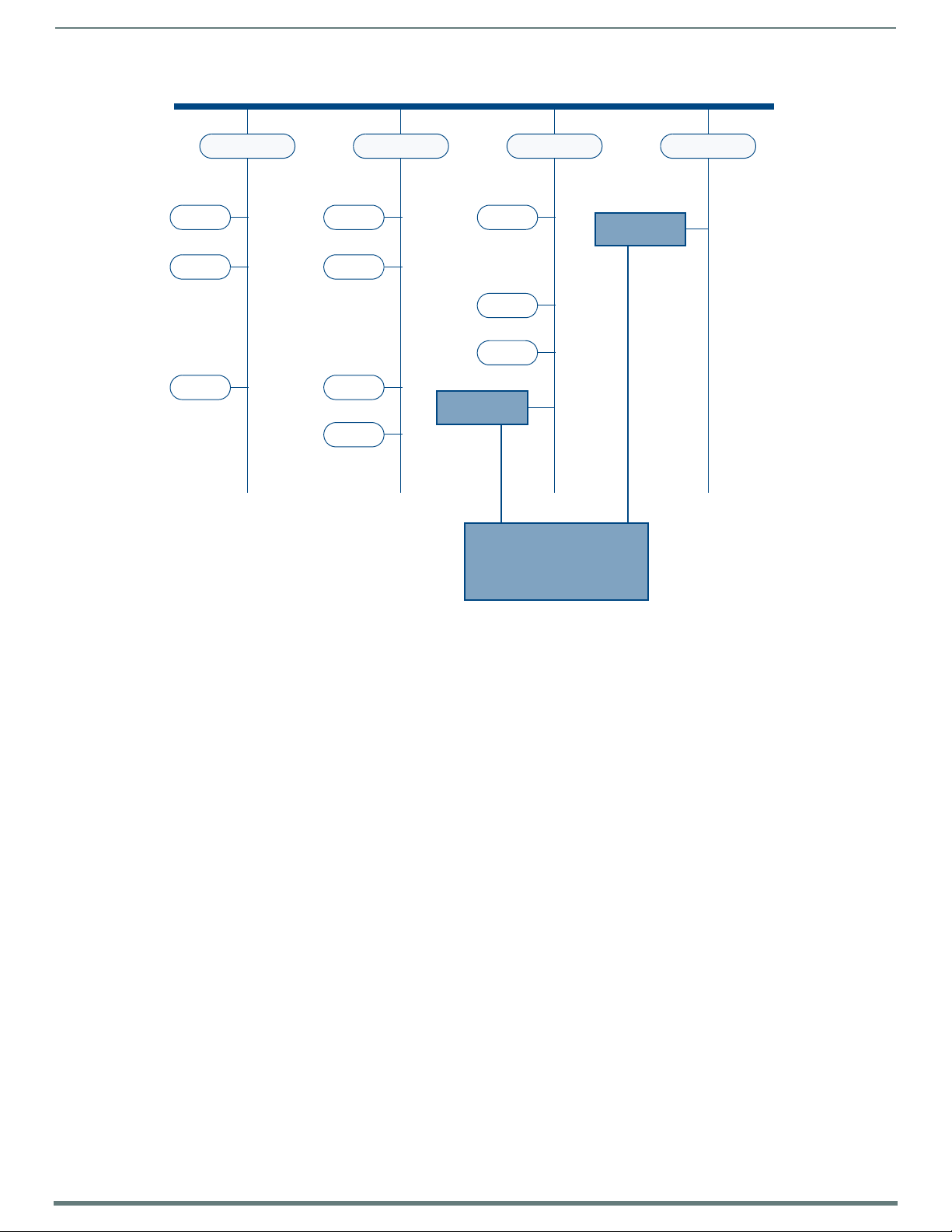

KNX Bus Diagram .................................................................................................................................. 16
Notes on Line Couplers......................................................................................................................... 17
User Data (DPT) Specifications and Requirements.............................................................................. 17
Integrating with NetLinx ................................................................................................ 18
Channels and Levels ............................................................................................................................. 18
Data Types ........................................................................................................................................... 19
Page 4
Table o f C o n tents
4
NXB-KNX - Instruction Manual
Feedback ........................................................................................................................ 19
Runtime................................................................................................................................................. 19
Debugging............................................................................................................................................. 19
AMX_NXB_MOD Module .................................................................................................. 20
AMX_KNX_Updater Module ............................................................................................ 20
Accessing Actuators On the KNX Bus............................................................................. 20
KNX_Table.axi Include File ................................................................................................................... 20
KNX_Tools.axi Include File ................................................................................................................... 20
Analyzing Feedback........................................................................................................ 21
NetLinx SEND_COMMANDs ............................................................................................. 21
ADD=...................................................................................................................................................................................... 21
ADR ........................................................................................................................................................................................ 21
BIND= .................................................................................................................................................................................... 21
DATE= ..................................................................................................................................................................................... 22
DATE?...................................................................................................................................................................................... 22
DEBUGON ................................................................................................................................................................................ 22
DEBUGON= ............................................................................................................................................................................. 22
DEBUGOFF............................................................................................................................................................................... 22
DEL .......................................................................................................................................................................................... 22
EIS5= ...................................................................................................................................................................................... 22
EIS5?....................................................................................................................................................................................... 23
ERRORM=................................................................................................................................................................................ 23
GET= ....................................................................................................................................................................................... 23
GET?........................................................................................................................................................................................ 23
HELP (or) /? ............................................................................................................................................................................ 23
ICSP ........................................................................................................................................................................................ 23
LIST......................................................................................................................................................................................... 23
LIST <No> .............................................................................................................................................................................. 23
LIST <No> <No2> ................................................................................................................................................................. 24
LIST <Type> .......................................................................................................................................................................... 24
LIST BIND .............................................................................................................................................................................. 24
LIST FLAGS ............................................................................................................................................................................ 24
LIST GAPS.............................................................................................................................................................................. 24
LIST LOAD .............................................................................................................................................................................. 24
LIST POLL............................................................................................................................................................................... 24
LIST SAVE ............................................................................................................................................................................... 25
LIST SUM ................................................................................................................................................................................ 25
LIST WATCH............................................................................................................................................................................ 25
POLL=...................................................................................................................................................................................... 25
POLL? ...................................................................................................................................................................................... 25
POLLDELAY= ........................................................................................................................................................................... 25
POLLSTART ............................................................................................................................................................................. 25
SEARCH................................................................................................................................................................................... 25
SENDDELAY= .......................................................................................................................................................................... 26
SET= ....................................................................................................................................................................................... 26
STATE?.................................................................................................................................................................................... 26
STATUS ................................................................................................................................................................................... 26
TIME= ..................................................................................................................................................................................... 26
TIME?...................................................................................................................................................................................... 26
Sample Program............................................................................................................. 27
KNX Table.............................................................................................................................................. 27
Notes For Programming ....................................................................................................................... 27
VAL= ...................................................................................................................................................................................... 27
VERSION ................................................................................................................................................................................ 27
WATCH................................................................................................................................................................................... 27
WATCH OFF............................................................................................................................................................................ 27
WHEN=................................................................................................................................................................................... 27
Example 1 - Structure of KNX Table With Functions From KNX_Tools.axi ........................................... 28
Page 5
Table o f C o n tents
5
NXB-KNX - Instruction Manual
Example 2 - Structure of KNX-Table with SEND_COMMANDS .............................................................. 30
Example 3 - Load Configuration from File ............................................................................................ 31
Example 4 - Main Program.................................................................................................................... 32
KNX_Tools.axi.................................................................................................................. 33
Functions Available In KNX_Tools.axi .................................................................................................. 33
KNXSet.................................................................................................................................................................................... 33
KNXGet.................................................................................................................................................................................... 33
KNXPoll ................................................................................................................................................................................... 33
KNXAdd................................................................................................................................................................................... 33
KNXWhenPoll.......................................................................................................................................................................... 33
KNXString2Array .................................................................................................................................................................... 33
KNXArray2String .................................................................................................................................................................... 33
Cross-Line Communication .............................................................................34
Overview ......................................................................................................................... 34

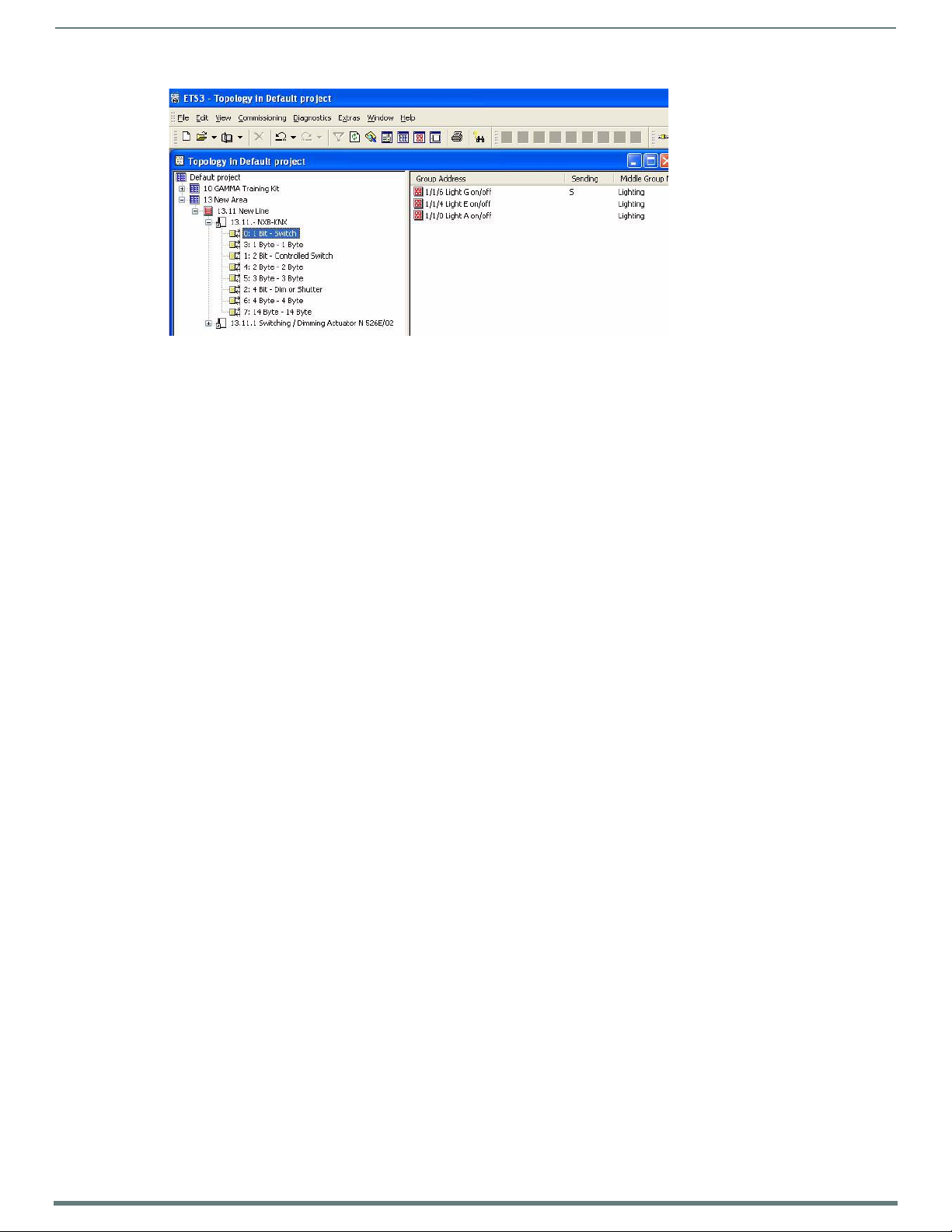

Integrating the NXB-KNX Virtual Device Into An ETS3 Project ............................................................ 34
Adding the Virtual Device to the ETS3 Project...................................................................................... 34
NetLinx Firmware Upgrades ...........................................................................37
Overview ......................................................................................................................... 37
Before You Start ............................................................................................................. 37
Sending a Firmware (*.KIT) File To the NXB-KNX ................................................................................ 38
Additional Documentation .................................................................................................................... 39
One-Time Upgrade of the NXB-KNX to a Native NetLinx Device .....................40
Overview ......................................................................................................................... 40
Determining the Current Firmware Version Of the NXB-KNX ............................................................... 41
Browse For the New Firmware Upload File........................................................................................... 41
Determining the Current Application Version Of the NXB-KNX............................................................ 42
Appendix A: Telnet Commands .......................................................................43
Overview ......................................................................................................................... 43
Establishing a Terminal Connection Via Telnet.............................................................. 43
Terminal Commands ...................................................................................................... 44
Appendix B: Troubleshooting .........................................................................48
Overview ......................................................................................................................... 48
Page 6
NXB-KNX KNX Communications Gateway
6
NXB-KNX - Instruction Manual
(front)
(rear)
NXB-KNX KNX Communications Gateway
Overview
The NXB-KNX KNX Communications Gateway (FG2031-01) allows AMX NetLinx Integrated Controllers the ability to control,
integrate and communicate with homes and buildings that utilize the KNX communication protocol. KNX is the world’s first open,
royalty-free, and platform independent standard for home and commercial building control.
FIG. 1 NXB-KNX Interface
Product Specifications
NXB-KNX Specifications
Front Panel LEDs • Status (green): Blinks to indicate that the unit is communicating with the NetLinx Master. Any state other
Rear Panel Connectors: • KNX 2-pin captive-wire connector (optically isolated).
Power Requirements: • PoE powered – no local Power Supply needed
Memory: • 64 Mbytes of RAM
Dimensions (HWD): With feet:
Weight: 1.45 lbs. (0.65 kg)
Operating Environment: • Operating Temperature: 32°F - 104°F (0°C - 40°C)
Included Accessories: • Rubber feet
Other AMX Equipment: • AC-DIN-CS3 DIN Rail Mounting Bracket (FG532-01)
Certifications: • FCC Class B
than blinking indicates the unit has not completed boot up.
• KNX (green): Solid on indicates power is on and the unit is connected to the KNX bus.
• Output (red): Lights to indicate traffic from the NXB-KNX to the KNX bus.
• Inpu t (yellow): Lights to indicate traff ic from the KNX bus to the NXB-KNX.
• Ethernet Port - 10/100 Ethernet with PoE. LEDs show communication activity, connection status, speeds,
and mode information:
SPD (speed) - Yellow LED lights On when the connection speed is 100 Mbps and turns Off when the speed is
10 Mbps.
L/A (link/activity) - Green LED lights On when the Ethernet cables are connected and terminated correctly,
and blinks when receiving Ethernet data packets.
• IEEE 802.3af Compliant
•256 Mbytes of FLASH
• 1.66" x 5.54" x 4.10" (4.216 cm x 14.07 cm x 10.42 cm)
Without feet:
• 1.52" x 5.54" x 4.10" (3.861 cm x 14.07 cm x 10.42 cm)
• Relative Humidity: 5% to 85% non-condensing
• Intended for indoo r use only
• Green 2-Pin 5mm Phoenix connector with captive screws
• PS-POE-AF PoE Injector (FG423-80)
•CE
•IEC60950
•RoHS
Page 7
7
NXB-KNX - Instruction Manual
Installation
KNX
Control
Bus
NXB-KNXNetLinx Master
Ethernet 10/100 2-wire twisted pair
PoE injector
KNX
Control
Bus
2-wire twisted pair
+
-
Wiring and Connections
Installation
CAUTION:
NOTE: Do not connect power to the NXB-KNX until the wiring is complete.
The NXB-KNX is installed between the NetLinx Master and the KNX control bus, and passes NetLinx control commands to the KNX
control bus via 2-wire twisted pair cabling, as indicated in FIG. 2:
FIG. 2
After you have completed the installation, consult the Configuration section on page 8.
To avoid any damage to the electronic component, installation must be performed in an ESD safe environment.
NXB-KNX installation
Ethernet 10/100 Base-T RJ-45 Wiring Conf iguration
The table below describes the pinouts, signals, and pairing for the Ethernet 10/100 Base-T connector and cable.
Ethernet Pinouts and Signals
Pin Signals Connections Pairing Color
1 TX + 1 --------- 1 1 --------- 2 White-Orange
2 TX - 2 --------- 2 Orange
3 RX + 3 --------- 3 3 --------- 6 White-Green
4 no connection 4 --------- 4 Blue
5 no connection 5 --------- 5 White-Blue
6 RX - 6 --------- 6 Green
7 no connection 7 --------- 7 White-Brown
8 no connection 8 --------- 8 Brown
PoE (Power Over Ethernet)
The NXB-KNX uses CAT5/CAT6 wire via the Ethernet port for PoE power. Use the PS-POE-AF Power over Ethernet Injector (FG423-
80) to simplify wiring and installation by eliminating the need for an AC outlet at each point of installation.
NOTE: The NXB-KNX can be placed up to approximately 330’ (100 meters) from PoE Injector.
If used with a non PoE-capable Ethernet switch (such as the NXA-ENET24), then an optional PS-POE-AF Power-over-
Ethernet (PoE) power supply is required to provide power to the NXB-KNX.
If the NXB-KNX is used with a PoE-capable Ethernet switch (such as the NXA-ENET24PoE), then no PoE Injectors are
required.
KNX Connector
The KNX connector on the rear panel is a 2-pin captive-wire connector (optically isolated) that provides communication between
the NXB-KNX and the KNX control system via 2-wire shielded twisted pair cabling (FIG. 3).
FIG. 3 KNX Connector wiring diagram
Page 8
8
NXB-KNX - Instruction Manual
Conf iguration
Hover mouse here to access
the Admin drop-down menu
Click here to log in
Overview
NXB-KNX units have a built-in WebConsole that allows you to make various configuration settings via a web browser on any PC that
has access to the NXB-KNX device. The web console consists of a series of web pages that are collectively called the "NXB-KNX
Configuration Manager" (FIG. 4).
Configuration
NXB-KNX Configuration Manager - IP Settings Page (initial view)
FIG. 4
The NXB-KNX is set to DHCP by default.
Determining the IP Address of the NXB-KNX
NXB-KNX units feature a built-in zero-configuration networking client that allows you to determine the unit’s IP address via NetLinx
Studio v3.0 (or higher), or a similar zero-configuration client.
Zero-configuration (or Zero-Config) technology provides a general method to discover services on a local area network. In
essence, it allows you to set up a network without any configuration, as described below.
NetLinx Studio (featuring Zero-Config functionality)
NetLinx Studio (v3.0 or higher) features a "Zero-Config" tab in the Workspace Window. This tab provides Zero-Config networking
functionality within NetLinx Studio (FIG. 5).
FIG. 5 Workspace Bar - Zero-Config tab
Refer to the NetLinx Studio online help for details on using Zero-Config.
Page 9
Configuration
9
NXB-KNX - Instruction Manual
Accessing the NXB-KNX WebConsole via Zero-Conf ig
Assuming that the NXB-KNX resides on the same LAN as the PC running NetLinx Studio, and the NetLinx Master to which the NXBKNX is connected, you can access the NXB-KNX via the Zero-Config feature in Netlinx Studio, as described below:
1. In NetLinx Studio (version 3.0 or higher), right-click inside the Zero-Conf ig tab of the Workspace Bar to access the ZeroConfig context menu (FIG. 6).
FIG. 6
NetLinx Studio - Zero-Config context menu
2. Select Refresh List to generate an initial listing of all Zero-Config devices detected (FIG. 7).
3. Click the plus symbol (+) to expand any device in the Zero-Config list. The device’s current IP Address is listed below the
devi ce name (FIG. 7):
FIG. 7 Workspace Bar - Zero-Config tab
4. You can access any device in the Zero-Config list simply by double-clicking on it's entry. The sele cted device's WebCon sole
(HTML) is displayed in a NetLinx Studio window.
5. The unit’s IP Address can be edited IP Settings page (see the IP Settings on page 12).
Accessing the WebConsole via Web Browser
From any PC that has access to the LAN that the NXB-KNX resides on:
1. Open a web browser and type the IP Address of the target NXB-KNX unit in the Address Bar.
2. Press Enter to access the WebConsole for the specified NXB-KNX unit. The initial view is the IP Settings page (FIG. 4).
Admin Menu
There are several configuration pages included in the Configuration Manager, all of which are accessed via the Admin drop-down
menu (FIG. 8):
FIG. 8 NXB-KNX Configuration Manager -Admin menu
Click on an option in this menu to access each of the configuration pages, as described in the following
sub-sections:
NOTE: If you see the additional entries: Application Upgrade and Firmware Upgrade in the Admin menu, it is an indication that your
NXB-KNX is currently using an older version of the device Application and Firmware. Refer to the One-Time Upgrade of the NXB-KNX
to a Native NetLinx Device on page 40 for instructions on upgrading your NXB-KNX to the latest NetLinx Firmware. Once the unit has
been upgraded to the current version of NetLinx Firmware, the Admin Menu will appear as it is shown in FIG. 8.
Page 10
Configuration
10
NXB-KNX - Instruction Manual
The currently installed application
version is displayed here
Device Conf iguration
Select Device Configuration from the Admin menu to open the Device Conf iguration page. Use the options on the page to specify a
Device Number and define connection information for the NetLinx Master.
This page contains two tabs: Device Configuration, and Master Connection.
Device Conf iguration tab
The initial view of this page is the Device Configuration tab (FIG. 9):
Device Configuration page - Device Conf iguration tab
FIG. 9
The current device number assigned to this NXB-KNX unit is displayed in the Device Number field.
The version of the device Application currently loaded on this unit is displayed under Current Application Information.
Changing the Device Number
1. Enter a Device Number for this NXB-KNX unit in the Device Number text f ield.
2. Click Accept to save your changes.
3. Press Reboot to reboot the NXB-KNX and apply the new Device Number assignment.
Master Connection tab
The options in the Master Connection tab allow you to view and edit connection details for the NetLinx Master to which this NXBKNX unit will be connected (FIG. 10). Note that the Master Connection options can also be accessed directly from the Admin Menu
(select Master Connection).
FIG. 10 Device Configuration page - Master Connection tab
To establish communication between the NXB-KNX and a specific NetLinx Master:
1. Enter the Master’s IP/URL in the Master IP/URL text field.
2. The default Master Port Number assignment is 1319 - do not change this number.
3. Under Authentication Settings, enter the NetLinx Master’s Username and Password (only required if the target NetLinx Master
has Authentication enabled).
4. Press Accept to save changes.
5. Press Reboot to reboot the NXB-KNX. Once rebooted, the NXB-KNX should be in communication with the Specified NetLinx
Master (indicated by a steady blink on the NXB-KNX Status LED).
Page 11
Configuration
11
NXB-KNX - Instruction Manual
Security Settings
Select Security Settings from the Admin menu to open the Security Settings page (FIG. 11). Use the options on the page to specify
security options and login information for this NXB-KNX unit.
FIG. 11
Security Settings page
Enable / Disable Security Settings
Web Security: Click this checkbox to enable Web Security.
When Web security is enabled, a username and password are required to access any system Web pages.
Default = disabled
Telnet Security: Click this checkbox to enable Telnet Security.
With Telnet Security enabled, a username and password are required to establish a Telnet or SSH connection.
Default = disabled
Admin Security: Click this checkbox to enable Admin Security.
With Admin Security enabled, a username and password are required to modify any system configuration item.
Default = disabled
Restore Factory
Defaults:
Click to restore all security settings to their factory defaults.
Default = all disabled
Login Information
Use this set of options to specify a Username and Password. These will be required only if one or more of the Security Settings are
enabled.
Username: Enter the Username that will be required to login to this unit if security is enabled. The default Username is
New Password: Enter a new password that will be required to login to this unit if security is enabled. The default Password is
Confirm Password: Re-enter the new password in this field.
Restore Factory
Defaults:
Click Accept to save your changes. Note that changes on this page take effect immediately.
Click Cancel to cancel any changes.
"administrator".
"password".
Click to restore the login information to the factory defaults:
• Default Username = administrator
•Default Password = password
Logging Into the Configuration Manager (With Security Enabled)
Login is only required if the Web and/or Admin security options have been enabled on the unit.
1. Click the Login link in the upper-right corner of the initial page (FIG. 4). This invokes the Login popup page (FIG. 12).
FIG. 12 NXB-KNX Configuration Manager - Login popup page
Page 12
Configuration
12
NXB-KNX - Instruction Manual
Enter the default login information:
Username = administrator
Password = password
2. Click the Login bu tton.
Once you have successfully logged into the Configuration Manager, the IP Settings page is displayed, and can be edited as needed.
IP Settings
Select IP Settings from the Admin drop-down menu to open the IP Settings page (FIG. 13). Use the options on the page to specify
network/IP settings for this NXB-KNX unit.
FIG. 13
IP Settings page
Hostname: Enter a Hostname for this unit (enabled only if DHCP is disabled).
DHCP: Click to toggle DHCP on this unit (default = enabled).
Note that DHCP mu st be enabled in order for the zero-co nf iguration client (i.e. Bonjour for W indows) to detect the
NXB-KNX on the network.
See the NetLinx Studio (featuring Zero-Config functionality) section on page 8 for details.
IP Address: Enter an IP Address for this unit (enabled only if DHCP is disabled).
Subnet Mask: Enter a Subnet Mask for this unit (enabled only if DHCP is disabled).
Gateway: Enter a Gateway for this unit (enabled only if DHCP is disabled).
Domain Suff ix: Enter the Domain Suff ix for this unit.
DNS 1, 2, 3: Enter up to three DNS addresses for this unit.
Reboot: Click to initiate a system reboot.
IP Settings changes only take effect after a reboot.
Port Settings
Select Port Settings from the Admin drop-down menu to open the Port Settings page (FIG. 14). Use the options on the page to
specify various Port settings for this NXB-KNX unit.
FIG. 14 Port Settings page
The options on this page provide inputs for enabling and disabling of HTTP, HTTPS, Telnet, SSH and FTP ports, and allow you to
change each port number from its st andard defau lt assignment.
Page 13
13
NXB-KNX - Instruction Manual
Restore Factory Defaults: Click to restore all Port settings to the factory defaults.
HTTP Port Number: • Default = enabled
• Default port number = 80
HTTPS Port Number: • Default = enabled
• Default port number = 443
Telnet Port Number: • Default = enabled
• Default port number = 23
SSH Port Number: • Default = enabled
• Default port number = 22
FTP Port Number: • Default = enabled
• Default port number = 21
Reboot: • Click to initiate a system reboot.
• Port changes only take effect after a reboot.
Clock Manager
Hover the cursor over the Clock Manager option in the Admin menu to open the Clock Manager sub-menu (FIG. 15).
Configuration
FIG. 15 Clock Manager sub-menu
Each of the options listed in the sub-menu are also accessible via options on the Clock Manager page (FIG. 16).
FIG. 16 Clock Manager options
Clock Manager - Mode Manager
Select the main Clock Manager entry in the Admin Menu, or select Mode from the Clock Manager sub-menu, and the Mode Manager
page will be displayed (FIG. 17):
FIG. 17 Clock Manager - Mode Manager page
The options on the Mode Manager page provide inputs for selecting the current mode of the system time:
Page 14
Configuration
14
NXB-KNX - Instruction Manual
Time Sync: Use the radio buttons to select either Network Time or StandAlone.
Note: If using StandAlone mode, the time will be valid only until the unit is rebooted. Once the unit is rebooted, the
time will be lost, and will have to be reset.
Note that the Daylight Savings and NIST Servers tabs are enabled only if Network Time is selected as the mode.
Re Sync Period: Select the desired re-sync period for the clock from this drop-down menu.
Re-sync period options include 5 minutes, 15 minutes, 1, 2 and 4 hours (default = 1 hour).
Timezone: Select the appropriate Time Zone from the drop-down menu.
Date: Use these fields to manually enter today’s date (mm/dd/yyyy).
Time: Manually enter the current time (hh:mm:ss).
Click Accept to save your changes. Note that changes on this page take effect immediately.
Click Cancel to cancel any changes.
Clock Manager - Daylight Savings
Select Daylight Savings from the Clock Manager sub-menu (or from the main Clock Manager page), and the Daylight Savings
Manager page will be displayed (FIG. 18):
FIG. 18 Clock Manager - Daylight Savings Manager page
Note that this tab is enabled only if Network Time is selected (on the Mode Manager page).
The options on this page allow you to enable and disable daylight savings, and specify daylight savings start and end times.
Daylight Savings: Use these radio buttons to turn daylight savings time on and off (default = Off).
Offset: Use these drop-down menus to specify the amount of time to offset the clock for daylight savings.
Starts: These options allow you to specify when to start using daylight savings time. Select a month and time to start
Ends: These options allow you to specify when to stop using daylight savings time. Select a month and time to start
Click Accept to save your changes. Note that changes on this page take effect immediately.
Click Cancel to cancel any changes.
from the drop-down menus.
• Select Fixed to start daylight savings at a specific Day, Month and Time (an additional field for Day is
provided when this radio button is selected).
• Select Occurrence to start daylight savings at a specified occurrence (additional fields for Week of the
Month, and Day of the Week are provided).
from the drop-down menus.
• Select Fixed to end daylight savings at a specific Day, Month and Time (an additional field for Day is provided
when this radio button is selected).
• Select Occurrence to end daylight savings at a specified occurrence (additional fields for Week of the Month,
and Day of the Week are provided).
Page 15
Configuration
15
NXB-KNX - Instruction Manual
Clock Manager - NIST Servers
Select NIST Servers from the Clock Manager sub-menu (or from the main Clock Manager page), and the NIST Server Manager page
will be displayed (FIG. 19):
FIG. 19
Clock Manager - NIST Server Manager page
Note that this tab is enabled only if Network Time is selected (on the Mode Manager page).
The options on this page allow you to select the NIST server that will be queried at each clock synchronization, and allow you to
add more NIST servers to the list.
NOTE: Only one NIST server is selectable at any given time.
To add a NIST server, enter the NIST Server Name, IP Address and Location in the fields provided.
To remove a NIST server from the list, click the Remove button.
Click Accept to save your changes. Note that changes on this page take effect immediately.
Click Cancel to cancel any changes.
Page 16
16
NXB-KNX - Instruction Manual
NetLinx Programming
KNX
Control
Bus
NXB-KNXNetLinx Master
AMX NXB
MOD
AMX NXB
Updater
NetLinx
Program
Overview
It is important to understand that the NXB-KNX cannot configure a KNX system. The NXB-KNX serves a functioning KNX system,
and can only access bus elements with permitted use.
NOTE: For a successful connection to a KNX system, expert KNX knowledge and access to a knowledgeable KNX installer is crucial. A
wrongly set reading flag in an actuator or restrictively programmed line coupler are difficult to find without the right analysis tools.
Understanding the KNX Bus
KNX is a bus system: all components are connected to the same line and share the available bandwidth. The KNX bus is a 2-core
wire, providing 24V power as well as data transfer between devices.
In contrast to AMX, the KNX system is organized peripherally - there is no "Master" or "Central Controller" controlling
communication. Rather, every device may transmit data to any other device. The KNX protocol ensures that only one device
transmits at a time, to avoid collisions as much as possible.
All communication is carried out via "Telegrams". A Telegram is a data package consisting of the following components:
Source ID - hardware address of the transmitting device
Destination Address - group addresses of receiving devices
User data
A Telegram can be transmitted to several Destination Addresses simultaneously (for instance to switch off all lights in a room at the
same time). There is a basic difference between Source IDs and Destination Addresses:
A Source ID is the hardware address of the device transmitting the Telegram.
A Destination Address is a group address characterizing a function.
Thus each device connected to KNX has exactly one Source ID, but may have several Destination Addresses. Furthermore, it is
common for several Source IDs (devices) to respond to the same Destination Address.
The KNX installer assigns both address types - the Source IDs describing the type and number of utilized devices (assigned during
planning and installation).
Hardware addresses are irrelevant to the NXB-KNX. Destination Addresses are important for AMX programmers, since they define
the functions a KNX installation can perform. Functions are actuated by transmitting a certain value to a Destination Address.
The diagram in FIG. 20 gives a graphic overview to the course of communication from the project-oriented Netlinx source code to
the NXB-KNX.
NetLinx Programming
FIG. 20
Course of communication
KNX Bus Diagram
The NXB-KNX is a transparent KNX device and can be connected at any location with the KNX.
In contrast to simple actuators and sensors, the NXB-KNX may be responsible for up to 3,000 Destination Addresses (where a
normal dimmer only responds to four Destination Addresses). FIG. 21 provides a basic diagram of a KNX Bus:
Page 17
NetLinx Programming
17
NXB-KNX - Instruction Manual
KNX Backbone
Line Coupler
Actuator
KNX Line
Sensor
Actuator
Line Coupler
Actuator
Sensor
Actuator
Line Coupler
Actuator
Line Coupler
Sensor
Sensor
Sensor
KNX Line
KNX Line
KNX Line
NXB-KNX
NXB-KNX
AMX
FIG. 21
KNX Bus Diagram
It is important to ensure that the NXB-KNX can respond to all bus Telegrams in question. When using line couplers, careful planning
is necessary. The following should be considered:
Bus Telegrams have to reach the NXB-KNX. If line couplers are inserted between NXB-KNX and the component to be
controlled, then the filter tables of the line couplers must be programmed to pass on all relevant Telegrams.
Older line couplers may be slow. In this case, KNX devices will require a certain amount of time between receiving
Te leg ram s.
NOTE: "Scene" modules often produce a flood of Telegrams being transmitted to all actuators participating in the scene. Under
normal circumstances these are different devices, the down time of the line coupler does not matter - each line coupler has enough
time to recover before receiving a new Telegram.
The situation with the NXB-KNX is different: the NXB-KNX can read all Telegrams, even with high bus load. Therefore, it is crucial
that activated Actuators are given suff icient time to respond.
Notes on Line Couplers
Telegrams must be in telligently sent across KNX lin es by line coup lers.
Line coup lers prevent Telegrams within a line fro m addi ng traff ic load ou tsi de its line.
Line coup lers als o f ilter ou t cross-li ne Telegra ms if its line i s not the dest ination line.
User Data (DPT) Specif ications and Requirements
KNX def ines the User data in dif ferent Telegrams as Data Point Types (or "DPT"s). KNX defines DPT IDs numerically, in the form
major.minor (for example: DPT 1.001 or DPT 1.002), where the major ID is designated a data length in bits or bytes (8-bit octets),
and the minor ID defines format and encoding. The same data length may be reused in several DPT major IDs. For example, DPT 5s
and DPT 6s are 1-Byte in data length, while DPT 7s, DPT 8s and DPT 9s are 2-Bytes in data length. In essence, the NXB-KNX
supports User Data (DPTs) simply in terms of data length, thereby supporting most DPTs.
The supported data lengths are:
Bits Bytes
•1-bit •1-Byte (=8-bits/octet)
•2-bit •2-Byte
• 4-bit • 3-Byte
• 4-Byte
• 14-Byte Text, HexText
Page 18
NetLinx Programming
18
NXB-KNX - Instruction Manual
6-bit data length DPTs are defined in KNX, but are not widely used. In practice, 1-Byte data lengths replace 6-bit definitions,
and are typically used by KNX devices.
The KNX-defined 8-Byte data length is "date time", but KNX devices typically use 3-Byte DPT 10 "time" and 3-Byte DPT 11
"date" for economy (relative to the lengthier 8-Byte combined format) and for more flexible use.
The module application is responsible for interpreting User Data per each KNX device's definitions.
The NXB-KNX recognizes the most commonly u sed User D ata formats, and translates User Data to simplif y most module application
respo nsibilities.
The supported User Data format options are:
• EIS5
•Date
•Time
The NXB-KNX supports the following commonly used DPT (User Data) data lengths:
Supported DPT Data Lengths
Data Length Description / Example
• 1-bit DPT 1s are Boolean (switch)
• 2-bit DPT 2s "1-bit controlled" (control)
• 4-bit (or "Dim4") DPT 3s "3-bit controlled" (used as on/off with dimmer step values)
• 1-Byte DPT 5s "8-bit unsigned" (also DPT 4s, DPT 6s, DPT 200s, DPT 201s)
• 2-Byte DPT 9s "2-octet float" (also DPT 7s, DPT 8s)
• 3-Byte DPT 10s "time", and DPT 11s "date"
• 4-Byte DPT 12s, DPT 13s, DPT 14s, DPT 15s "4-octet" (e.g. counter values)
• 14-Byte DPT 16s "String" (also known as 'Text', 'HexText')
NOTE: The character sets supported by KNX are ASCII and ISO 8859-1.
Integrating with NetLinx
The NXB-KNX is a native ICSP device in NetLinx. The NXB-KNX associates each actuator (actor number) with a corresponding
Channel and Level mapping.
For example the value of actor 1 will map to Channel 1 / Level 1, and actor 52 will map to
Channel 52 / Level 52. These Channels and Levels are associated with the NXB-KNX device.
The default number of Channels and Levels supported by the NXB-KNX is 256.
If additional channels/levels are required to support additional actors the NXB-KNX can be configured to allocate additional
resources. Refer to “ICSP [ch=n][,lv=m]” on page 23.
For a full listing and description of all supported NetLinx SEND_COMMANDs and String Feedback, refer to the NetLinx
SEND_COMMANDs section on page 21.
Channels and Levels
All addresses are available as channels. The current value is mapped to the corresponding channels of the device.
Channels
Channel Description
1 …n (0 < n < 3000) Mapping of values irrespective of KNX type.
Default n = 256
All addresses are available as levels. For every value change the current value is transmitted as level to the program, for instance to
control a bargraph.
Levels
Level Description
1 …n (0 < n < 3000) Mapping of values irrespective of KNX type.
Default n = 256
Page 19
NetLinx Programming
19
NXB-KNX - Instruction Manual
Data Types
Data Types
Data Type Description
Switch Value '0' or '1' e.g. Off - On
Control Value '0' to '3' e.g. forced operation
4 Bit Value '0' to '15’ e.g. relative dimming - direction, interval
1 By te Valu e '0 ' to '25 5’ e.g. value a bso lute
2 Byte Value '0' to '65535’ e.g. floating point value in EIS5 Notation
3 Byte 3 Byte e.g. Date or Time
4 Byte 4 Byte
Text 1 to 14 ASCII Characters, String automatically filled with spaces
HEXText 1 to 14 Byte Hexvalue in ASCII-Notation
Feedback
Runtime
All actuators/sensors can be configured to feedback to channels and levels via the ICSP command. In addition feedback is
generated in a readable ASCII displa y - depending on flags - meaning, the raw data are output as time string, date string, floating
point display etc.
Example:
Feedback of a 2Byte value, converted according to EIS5 standard (i.e. temperature value). The corresponding actuator was
entered in the filter table with flag "EIS5".
KNXAdd (dvKNX, 15, KNX2Byte, '1/0/201', "KNXEIS5")
The device will report two feedback with each value change (or as answer to a poll command):
String 1 from device (value change):
SET=15:3175'
String 2 from device:
EIS5=15:22.54'
or
String 1 from device (no value change):
VAL=15:3175'
String 2 from device:
EIS5=15:22.54'
Debugging
Example Status feedback:
**********************************************************************
* NXB-KNX: AMX NXB-KNX SN#xxxxxx
* IP xxx.xxx.xxx.xxx
* Version AmxKnxApp v2.0.15-KNX service unavailable
* Running since Jun 18, 2009 2:24:02 PM
* Servlet started
* Total Mem: 22369792
* Used Mem: 11975492
* Free Mem: 10394300
* KNX: KNX bus is not connected
* Send delay is 50 ms
* Poll delay is 1
* ------------------------* # of 1Bit : 13
* # of 2Bit : 0
* # of 4Bit : 2
* # of 1Byte : 4
* # of 2Byte : 3
* # of 3Byte : 2
* # of 4Byte : 0
* # of Text : 0
* # of $Text : 0
* ------------------------* total : 24
* ------------------------* poll triggers : 8
Page 20
NetLinx Programming
20
NXB-KNX - Instruction Manual
* NetLinx: Online at Jun 18, 2009 2:24:32 PM
* Device 13001
* Master xxx.xxx.xxx.xxx
* Channels = 256, Levels = 256
* NXBCommandQ highwater = 38
* Remote logging is on
* LogLevel: Info
**********************************************************************
AMX_NXB_MOD Module
The AMX_NXB_MOD module is provided to facilitate remote logging from NXB-KNX as well as the "List Save" and "List Load"
functions.
The AMX_NXB_MOD module is integrated with the source code as follows:
DEFINE_MODULE 'AMX_NXB_MOD' nxbMod(dvKNX)
The parameters are as follows:
dvKNX - the physical interface for NXB-KNX, as a NetLinx D:P:S address
AMX_KNX_Updater Module
The AMX_KNX_Updater module is optional, and is provided to support implementations (e.g. legacy CommTec projects) that use
array values for feedback control.
NOTE: the NXB-KNX supports channels and levels for each actuator. The Updater module is provided to support legacy NetLinx code
(which was designed to work with the CommTec EIB device). Moving forward the Updater module could and should be replaced with
channel and level event driven feedback from the NXB-KNX, rather than referencing the lKNX_Value array.
The AMX_KNX_Updater module is integrated with the source code as follows:
DEFINE_MODULE 'AMX_KNX_Updater' Updater(dvKNX, lKNX_Value)
The parameters are as follows:
dvKNX - the physical interface for NXB-KNX, as a NetLinx D:P:S address
1KNX_Value - the central value array of the KNX actuators (type LONG!). No strict size is required for the array: it should be
sized appropriately for site-specific optimal performance.
The 1KNX_Value array should be defined in the DEFINE_VARIABLE section:
DEFINE_VARIABLE
...
LONG lKNX_Value[3000]
...
Accessing Actuators On the KNX Bus
To access actuators on the bus, KNX Destination Addresses must be configured on the NXB-KNX. This is done via the
KNX_Table.axi file (included). This include file maps the Destination Address, type, poll conjunction and additional features to an
actor number between 1 and 3000. Communication with the actuators is accomplished via this actor number.
KNX_Table.axi Include File
The KNX_Table.axi file contains the definition of all actuators on the KNX bus that will be controlled or monitored by the NetLinx
system, and is integrated in to NetLinx code via the following source code line:
#INCLUDE 'KNX_Table.axi'
Refer to the Sample Program section on page 27 for more information on the KNX Table and to review sample programs that
illustrate the following:
Structure of KNX Table With Functions From KNX_Tools.axi (see page 28)
Structure of KNX-Table with SEND_COMMANDs (see page 30)
KNX_Tools.axi Include File
Additionally, the KNX_Tools.axi file should be integrated to have easy access to commonly used functions, and is integrated in to
NetLinx code via the following source code line:
#INCLUDE 'KNX_Tools.axi'
Refer to the KNX_Tools.axi section on page 33 for more information, including a listing of the functions available in KNX_Tools.axi.
Page 21
NetLinx Programming
21
NXB-KNX - Instruction Manual
Analyzing Feedback
Data feedback is analyzed in a DATA_EVENT:
The feedback is always in STRING format
One DATA_EVENT is actuated per feedback (exactly one feedback in the DATA.TEXT)
NOTE: In cases of multiple feedback, the corresponding number of events is actuated. Channel feedback is analyzed in a
CHANNEL_EVENT. Level feedback is analyzed in a LEVEL_EVENT.
NetLinx SEND_COMMANDs
Commands to the module always take place per SEND_COMMAND to the device.
NOTE: KNX_Tools.axi provides convenience function equivalents (See the Functions Available In KNX_Tools.axi table on page 33).
The NXB-KNX supports the following NetLinx commands:
NetLinx SEND_COMMANDs
Command Description
ADD= Adds a KNX group address to list.
Syntax:
ADD=<No>:<Type>:<GrpAdr>[:Flags]
Note: Flags are optional
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
• <Type> = Actuator Type (Switch, Control, Dim4, 1Byte, 2Byte, 3Byte, 4Byte, Tex t , HexText)
• <GrpAdr> = KNX group address in 2 or 3 grouped display
•<Flags>:
EIS5 = Value is reported additionally as ASCII Float Value. The KNX Value is converted according to EIS5 Standard
(only valid for 2Byte Actuators)
Time = Value is reported additionally as ASCII Time (hh:mm:ss). Note: Only valid for 3Byte Actuators
Date = Value is reported additionally as ASCII Date (MM/DD/YY). Note: Only valid for 3Byte Actuators)
PS = Actuator is automatically polled with Start of AMX System
Note: Flags are separated by Commas
Examples:
SEND_COMMAND dvKNX,'ADD=13:Switch:1/0/11'
SEND_COMMAND dvKNX,'ADD=17:1Byte:4/7/12:PS'
SEND_COMMAND dvKNX,'ADD=45:2Byte:3/0/11:EIS5'
SEND_COMMAND dvKNX,'ADD=12:3Byte:2/1/101:TIME,PS'
ADR Definition of output format of KNX group address (Main/Middle/Sub-group or Main group/Sub-group).
Syntax:
ADR <Value>
Parameters:
<Value> = 2/3
Example:
SEND_COMMAND dvKNX,'ADR 3'
BIND= Def inition of Bind trigger.
Syntax:
BIND=<No>:<No2>
Note: BIND= will send instruction to <No2> only if <No> is changing its value
• When <No> is changed, <No2> is updated with the same value.
• No telegrams are sent on the KNX bus.
• The updated actor sends its new value to the master using Set= or Val= and Channel and Level events.
• Typical use is to bind a feedback address to a control address.
Parameters:
• <No>= AMX Number of Actuator (range = 1 - 3000)
• <No2>= AMX Number of Actuator to be updated (range = 1 - 3000)
Example:
SEND_COMMAND dvKNX, 'BIND=24:11'
Page 22
NetLinx Programming
22
NXB-KNX - Instruction Manual
NetLinx SEND_COMMANDs (Cont.)
Command Description
DATE= Setting the Date.
Note: Only valid for 3Byte Actuators
Syntax:
DATE=<No>:<Datum>
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
• <Date> - date (format = MM/DD/YY)
Example:
SEND_COMMAND dvKNX,'DATE=17:14/08/06'
Returns:
DATE=<No>:<Value>
Note: Is transmitted as ADDITIONAL feedback, if in actuator <No> the DATE flag is set.
• <No> = AMX Number of Actuator
• <Value> = Date string in format MM/DD/YY (AMX display)
Example:
DATE=17:08/14/06
DATE? Request Date.
Note: Only valid for 3Byte Actuators
Syntax:
DATE?<No>
Parameters:
• <No> = AMX Number of Actuator
Example:
SEND_COMMAND dvKNX,'DATE?17'
DEBUGON
(or)
DEBUGON=
DEBUGOFF Deactivate debug reports
DEL Delete Actuator from Table
EIS5= Setting an EIS5 value. Converts a floating-point value mapped in ASCII into 2Byte EIS5 value before transfer.
Activate debug reports. With activated debug report all actuators of the terminal are listed, which can be accessed
via KNX. This allows simple diagnostics. DEBUGON enables debug and sets level = 1.
Syntax:
DEBUGON=<Level>
• Level 1: enables debug
• Level 2: adds actuator traces
• Level 3: adds ops traces
Example:
SEND_COMMAND dvKNX,'DEBUGON=1'
Syntax:
DEBUGOFF
Example:
SEND_COMMAND dvKNX,'DEBUGOFF'
Syntax:
DEL <Value>
Parameters:
<Value> = AMX Number of Actuator (range = 1 - 3000)
Example:
SEND_COMMAND dvKNX,'DEL 3'
Note: Only valid for 2Byte Actuators
Syntax:
EIS5=<No>:<floating point value>
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
• <Floating Point Value> = Number (range = –671088.64 - 670760.96)
Example:
SEND_COMMAND dvKNX,'EIS5=12:24.3'
Returns: Feedback of a value in ASCII floating point display. The actuator value to be coded according to EIS5.
EIS5=<No>:<Value>
Note: Is transmitted as ADDITIONAL feedback, if in actuator <No> the EIS5 flag is set.
• <No> = AMX Number of Actuator
• <Value> = Floating Point Value (String), converted according to EIS Specification
Example:
EIS5=12:20.25
Page 23
NetLinx Programming
23
NXB-KNX - Instruction Manual
NetLinx SEND_COMMANDs (Cont.)
Command Description
EIS5? Request EIS5 value. Converts the 2Byte raw data into ASCII string with floating point notation.
Note: Only valid for 2Byte Actuators
Syntax:
EIS5?<No>
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
Example:
SEND_COMMAND dvKNX,'EIS5?12'
ERRORM=
(Feedback Only)
GET=
GET?
HELP (or) /? Output of available Terminal Commands
ICSP Conf igures the number of channels and/or levels available.
LIST List all entered actuators.
LIST <No> List one actuator (AMX number) with KNX group address, current value, set flags (if applicable) and resulting
Error message from NXB-KNX and/or bus.
Note: The messages are only for information.
Each message may reflect an actual command, followed by the error condition encountered.
Example feedback:
ERRORM=(del 99) 99 not found
Request Value of Actuator stored in the module
Note: Creates no Telegram on KNX (use for synchronization of master-to-master connection.
Syntax:
GET=<No>
GET?<No>
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
Example:
SEND_COMMAND dvKNX,'GET=17'
Syntax:
HELP (or)/?
Example:
SEND_COMMAND dvKNX,'HELP'
•Requests n channels to be allocated.
•Requests m levels to be allocated.
Syntax:
ICSP [ch=n][,lv=m]
• Channel and level counts can be specified alone or together, and in any order.
• Use this command to override the default number of channels and/or levels.
• Default for Channels and Levels = 256.
Note: Caution is advised when expanding resources, since the Central Controller's resources need to be considered.
Examples:
SEND_COMMAND dvKNX, 'icsp ch=128'
SEND_COMMAND dvKNX, 'icsp lv=512'
SEND_COMMAND dvKNX, 'icsp ch=256,lv=384'
• Lists all entered actuators with AMX number, KNX group address, current value, set flags (if applicable) and
resulting additional feedback values.
• Lists sum of individual Types, sum of all actuators.
Syntax:
LIST
Example:
SEND_COMMAND dvKNX,'LIST'
additional feedback values.
Syntax:
LIST <No>
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
Example:
SEND_COMMAND dvKNX,'LIST 17'
Page 24
NetLinx Programming
24
NXB-KNX - Instruction Manual
NetLinx SEND_COMMANDs (Cont.)
Command Description
LIST <No> <No2> List actuators in the range of <No> to <No2> (AMX numbers) with KNX group address, current value, set flags (if
LIST <Type> List all entered actuators with AMX number, KNX group address, current value, set flags (if applicable) and resulting
LIST BIND List all bind triggers with AMX number and KNX group address.
LIST FLAGS List all actuators with assigned flags in table with KNX group address, current value, set flags (if applicable) and
LIST GAPS List free (unused) AMX numbers
LIST LOAD Reads the entries in table written with LIST SAVE from CF and back.
LIST POLL List all poll triggers with AMX number and KNX group address
applicable) and resulting additional feedback values
Syntax:
LIST <No>-<No2>
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000) (Start)
• <No2> = AMX Number of Actuator (range = 1 - 3000) (End)
Example:
SEND_COMMAND dvKNX,'LIST 17-24'
additional feedback values. Also provides a sum of all actuators of one Type.
Syntax:
LIST <Type>
Parameters;
• <Type> = Data Type, where:
SW or SWITCH - 1Bit Actuators
CO or CONTROL = 2Bit Actuators
D4 or DIM4 = 4Bit Actuators
1B or 1BYTE = 1Byte Actuators
2B or 2BYTE = 2Byte Actuators
3B or 3BYTE = 3Byte Actuators
4B or 4BYTE = 4Byte Actuators
Example:
SEND_COMMAND dvKNX,'LIST 1B'
Syntax:
LIST BIND
Example:
SEND_COMMAND dvKNX, 'LIST BIND'
resulting additional feedback values
Syntax:
LIST FLAGS
Example:
SEND_COMMAND dvKNX,'LIST FLAGS'
Example:
SEND_COMMAND dvKNX,'LIST GAPS'
• The current table is replaced with the read one.
• File name is optional.
• If no file name is specified, the default file name is used.
• Default file name: KNXTableNX.TXT
Note: In terminal connection with master the already available files on CF can be listed by entering "List" (no
SEND_COMMAND to device).
Syntax:
LIST LOAD [<Filename>]
Examples:
SEND_COMMAND dvKNX,'LIST LOAD'
SEND_COMMAND dvKNX,'LIST LOAD MyTable.txt'
Syntax:
LIST POLL
Example:
SEND_COMMAND dvKNX,'LIST POLL'
Page 25
NetLinx Programming
25
NXB-KNX - Instruction Manual
NetLinx SEND_COMMANDs (Cont.)
Command Description
LIST SAVE Writes the current KNX table, including poll trigger, as text f ile on CF. This f ile can be edited with simple text editor.
LIST SUM List sum of all types, sum of all actuators.
LIST WATCH List currently observed actuator with KNX group address, current value, set flags (if applicable) and resulting
POLL=
POLL?
POLLDELAY= Set pause between (au tomatic) value requests
POLLSTART Triggers the pollstart action. Requests current value of all actuators that have been configured with the 'PS' flag
SEARCH Search for KNX group address
The entries correspond with the structure of the regular table. Thus a table can be buffered, modified (i.e. delete or
add actuators) and finally reconstructed with LOAD (see above)
• File name is optional.
• If no file name is specified, the default file name is used.
• Default file name: KNXTableNX.TXT
Note: In monitor connection with master the already available files on CF can be listed by entering "list" (no
SEND_COMMAND to device).
Syntax:
LIST SAVE [<Filename>]
Examples:
SEND_COMMAND dvKNX,'LIST SAVE'
SEND_COMMAND dvKNX,'LIST SAVE MyTable.txt'
Example:
SEND_COMMAND dvKNX,'LIST SUM'
additional feedback values
Example:
SEND_COMMAND dvKNX,'LIST WATCH'
Request current value of actuator.
Note: Creates a Telegram on KNX (For synchronization of master-to-master connection, only use GET command).
Syntax:
POLL=<No>
POLL?<No>
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
Examples:
SEND_COMMAND dvKNX,'POLL=17'
SEND_COMMAND dvKNX,'POLL?17'
Syntax:
POLLDELAY=<Value>
Parameters:
• <Value> = 0-2 (default = 1)
Note: 0 stands for very fast and should not be used, because otherwise the NXB-KNX would create a high bus load. For
installations with slow bus couplers (BCU1), the value 2 should be selected.
Example:
SEND_COMMAND dvKNX,'POLLDELAY=2'
(see Add=). When the optional actuator range is specified, only those actuators are affected. The POLLDELAY setting
affects the rate poll commands are sent to the KNX bus.
• This command is typically sent at the completion of the NXB-KNX configuration.
• This command is automatically executed by the NXB-KNX when the KNX bus is connected.
Syntax:
POLLSTART [<No>-<No2>]
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000) (Start)
• <No2> = AMX Number of Actuator (range = 1 - 3000) (End)
Example:
POLLSTART
POLLSTART 25-75
Syntax:
SEARCH <Groupaddress>
Note: Here 2 and 3 grouped mapping is accepted.
Caution: The addresses 7 / 715 and 7 / 2 /203 are i.e. identical KNX group addresses.
Example:
SEND_COMMAND dvKNX,'SEARCH 1/0/101'
Page 26
26
NXB-KNX - Instruction Manual
NetLinx SEND_COMMANDs (Cont.)
Command Description
SENDDELAY= Delay between commands to KNX.
• Value is the time in 1/10 sec.
• The value 0 deactivated the delay.
Syntax:
SENDDELAY=<Value>
Examples:
SEND_COMMAND dvKNX,'SENDDELAY=0'
SEND_COMMAND dvKNX,'SENDDELAY=2'
SET= Set Actuator
Syntax:
SET=<No>:<Value>
Note: Observe actuator type in value range! The module limits the value range automatically to max valid range of the
accessed actuator.
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
• <Value> = Value to be set
Example:
SEND_COMMAND dvKNX,'SET=5:1'
Returns: Report of a value change
SET=<No>:<Value>
Note: With the NXB_KNX_Updater module, the feedback array (type LONG) is automatically updated, unchanged
values are reported as VAL = (see below).
• <Nr> = AMX Number of Actuator
• <Value> = new Value o f Actuator (raw data)
Example feedback:
SET=8:1
STATE? Output of current module status in terminal
Example:
SEND_COMMAND dvKNX,'STATE?'
STATUS List general status information for:
•AMX hardware
•KNX bus status
•Active KNX table
Syntax:
STATUS
Example:
SEND_COMMAND dvKNX,'STATUS'
TIME= Set time
Note: Only valid for 3 Byte Actuators
Syntax:
TIME=<No>:<Time>
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
• <Time> = Time in format hh:mm:ss
Example:
SEND_COMMAND dvKNX,'TIME=8:13:15:00'
TIME? Request of time
Note: Only valid for 3 Byte Actuators
Syntax:
TIME?<No>
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
Example:
SEND_COMMAND dvKNX,'TIME?8'
Returns: Feedback of Time
TIME=<No>:<Value>
Note: Is transmitted as ADDITIONAL feedback, if in actuator <No> the time flag is set.
• <No> = AMX Number of Actuator
• <Value> = Time string (format = hh:mm:ss)
Example feedback:
Time=18:09:55:30
NetLinx Programming
Page 27
NetLinx Programming
27
NXB-KNX - Instruction Manual
NetLinx SEND_COMMANDs (Cont.)
Command Description
VAL=
(Feedback Only)
VERSION Output of current module version in Terminal
WATCH Activate observation function for actuator. All value changes are recorded on monitor with KNX group address,
WATCH OFF Deactivate observation function for actuator
WHEN= Def inition of Poll trigger
Feedback of an unchanged Value (for instance after GET or POLL):
VAL=<No>:<Value>
Vari able s:
• <No> = AMX Number of Actuator
• <Value> = Value of Actuato r
Example:
SEND_COMMAND dvKNX,'VERSION'
current value, set flags and resulting additional feedback values.
Syntax:
WATCH <No>
Parameters:
• <No> = AMX Number of Actuator (range = 0 - 3000)
• 0 = deactivation of observation
Example:
SEND_COMMAND dvKNX,'WATCH 12'
Syntax:
WATCH OFF
Syntax:
WHEN=<No>:<No2>
Note: WHEN= will send instruction to <No2> only if <No> is changing its value.
Parameters:
• <No> = AMX Number of Actuator (range = 1 - 3000)
• <No2> = AMX Number of Actuator to be polled (range = 1 - 3000)
Example:
SEND_COMMAND dvKNX,'WHEN=32:12'
Sample Program
KNX Table
All actuators to be switched/set/controlled need to be provisioned on the NXB-KNX. In this example it is achieved with the use of
the KNX_Table.axi file. All provisioning commands are listed in the 'ONLINE' for the NXB-KNX device. Other options are possible
however this method is preferred. The method will guarantee that actuators will be synchronized between the master and the NXBKNX
NOTE: Use the version with help function (example 1, see below). In this version less typing errors will occur and the compiler can
perform several checks.
Poll triggers will only be accepted by the NXB-KNX if the polling and polled addresses have already been defended.
NOTE: Def ine poll triggers after all actors have been defined.
Additionally, a snapshot of an active conf iguration may be saved and loaded to/from the master's internal file system.
Refer to “LIST SAVE [<Filename>]” on page 25.
Refer to “LIST LOAD [<Filename>]” on page 24.
Refer to “Example 3 - Load Configuration from File” on page 31.
Notes For Programming
Predefined functions are available for control to generate the SEND_COMMANDs for the NXB-KNX.
NOTE: Recommendation: Use these functions, less typing errors will occur and the compiler can perform several checks.
These functions are in the KNX_Tools.axi include file (see the KNX_Tools.axi section on page 33).
Page 28
28
NXB-KNX - Instruction Manual
Example 1 - Structure of KNX Table With Functions From KNX_Tools.axi
MODULE_NAME='KNX_Table_NXB_A'(DEV dvNxbKnx)
DEFINE_VARIABLE
integer counter
float waitVal
DEFINE_START
Counter=0
waitVal = .2
#INCLUDE 'KNX_Tools.axi'
DEFINE_EVENT
DATA_EVENT [dvNxbKnx]
{
ONLINE: //Start configuration upload when NXB-KNX comes online.
{
wait 10 //1 second delay
{
counter = 1
}
}
}
DEFINE_PROGRAM
NetLinx Programming
WAIT waitVal
{
SWITCH(Counter) //Send config command in groups.
//Caution avoid sending large quantities of config commands without
//intermittent wait intervals.
{
CASE 1:
{
KNXAdd(dvNxbKnx, 1, knxSWITCH, '1/1/0', "") // Light 1 switch
KNXAdd(dvNxbKnx, 2, knxSWITCH, '1/1/1', "") // Light 2 switch
KNXAdd(dvNxbKnx, 3, knxSWITCH, '1/1/2', "") // Light 3 switch
KNXAdd(dvNxbKnx, 4, knxSWITCH, '1/1/3', "") // Light 4 switch
KNXAdd(dvNxbKnx, 5, knxSWITCH, '1/1/4', "") // Light 5 switch
KNXAdd(dvNxbKnx, 6, knxSWITCH, '1/1/5', "") // Light 6 switch
}
CASE 2:
{
KNXAdd(dvNxbKnx, 7, knxSWITCH, '1/1/30', "knxPollstart") // Light 1 status
KNXAdd(dvNxbKnx, 8, knxSWITCH, '1/1/31', "knxPollstart") // Light 2 status
KNXAdd(dvNxbKnx, 9, knxSWITCH, '1/1/32', "knxPollstart") // Light 3 status
KNXAdd(dvNxbKnx, 10, eibSwitch, '1/1/33', "eibPollstart") // Light 4 status
KNXAdd(dvNxbKnx, 11, knxSWITCH, '1/1/34', "knxPollstart") // Light 5 status
KNXAdd(dvNxbKnx, 12, knxSWITCH, '1/1/35', "knxPollstart") // Light 6 status
}
CASE 3:
{
KNXAdd(dvNxbKnx, 20, knxDim4, '1/1/14', "") // Dimmer relative light 5
KNXAdd(dvNxbKnx, 21, knx1Byte, '1/1/24', "") // Dimmer absolute light 5
KNXAdd(dvNxbKnx, 22, knx1Byte, '1/1/44', "knxPollstart") // Dimmer feedback light 5
KNXAdd(dvNxbKnx, 24, knxDim4, '1/1/15', "") // Dimmer relative light 6
KNXAdd(dvNxbKnx, 25, knx1Byte, '1/1/25', "") // Dimmer absolute light 6
KNXAdd(dvNxbKnx, 26, knx1Byte, '1/1/45', "knxPollstart") // Dimmer feedback light 6
}
CASE 4:
{
KNXAdd(dvNxbKnx, 27, knx2Byte, '1/3/4', "knxEIS5, ',',knxPollstart") // Temp Actual
Page 29
NetLinx Programming
29
NXB-KNX - Instruction Manual
KNXAdd(dvNxbKnx, 28, knx2Byte, '1/3/5', "knxEIS5, ',',knxPollstart") // Temp Setpoint
readable
KNXAdd(dvNxbKnx, 29, knx2Byte, '1/3/6', "knxEIS5") // Temp Setpoint
writeable
KNXAdd(dvNxbKnx, 31, knx3Byte, '1/4/0', "knxTIME, ',',knxPollstart") // Time
KNXAdd(dvNxbKnx, 32, knx3Byte, '1/4/1', "knxDATE, ',',knxPollstart") // Date
KNXAdd(dvNxbKnx, 33, knxSWITCH, '1/1/200', "") // All lights ON/OFF
KNXAdd(dvNxbKnx, 38, knxSWITCH, '1/1/120', "") // Scene ABC
KNXAdd(dvNxbKnx, 39, knxSWITCH, '1/1/121', "") // Scene XYZ
}
CASE 5:
{
KNXAdd(dvNxbKnx, 34, knxDim4, '1/2/0', "") // Blind A Up / Down
KNXAdd(dvNxbKnx, 25, knx1Byte, '1/2/6', "") // Blind B Position
KNXAdd(dvNxbKnx, 36, knxDim4, '1/2/1', "") // Blind B Up / Down
KNXAdd(dvNxbKnx, 37, knx1Byte, '1/2/7', "") // Blinds B Position
}
CASE 6:
{
KNXWhenPoll(dvNxbKnx, 5, 22) // Polltrigger
KNXWhenPoll(dvNxbKnx, 20, 22) // Polltrigger
KNXWhenPoll(dvNxbKnx, 21, 22) // Polltrigger
KNXWhenPoll(dvNxbKnx, 22, 5) // Polltrigger
KNXWhenPoll(dvNxbKnx, 6, 26) // Polltrigger
KNXWhenPoll(dvNxbKnx, 24, 26) // Polltrigger
KNXWhenPoll(dvNxbKnx, 25, 26) // Polltrigger
KNXWhenPoll(dvNxbKnx, 26, 6) // Polltrigger
SEND_COMMAND dvNxbKnx,"'pollstart'" //Indicates to NXB-KNX that configuration
is complete
SEND_COMMAND dvNxbKnx,"'status'" //report log from NXB-KNX with current
status of actors
}
DEFAULT: Counter = 0
}// Switch
IF (Counter)
{
Counter ++
}// IF (Counter)
}// WAIT
Page 30
30
NXB-KNX - Instruction Manual
Example 2 - Structure of KNX-Table with SEND_COMMANDS
MODULE_NAME='KNX_Table_NXB_A'(DEV dvNxbKnx)
DEFINE_VARIABLE
integer counter
float waitVal
DEFINE_START
Counter=0
waitVal = .2
#INCLUDE 'KNX_Tools.axi'
DEFINE_EVENT
DATA_EVENT [dvNxbKnx]
{
ONLINE: //Start configuration upload when NXB-KNX comes online.
{
wait 10 //1 second delay
{
counter = 1
}
}
}
DEFINE_PROGRAM
NetLinx Programming
WAIT waitVal
{
SWITCH(Counter) //Send config command in groups.
//Caution avoid sending large quantities of config commands
//without intermittent wait intervals.
{
CASE 1:
{
SEND_COMMAND DATA.DEVICE, "'ADD=5:Switch:1/1/4'" // Light 5 On/Off
SEND_COMMAND DATA.DEVICE, "'ADD=6:Switch:1/1/5'" // Light 6 On/Off
SEND_COMMAND DATA.DEVICE, "'ADD=11:Switch:1/1/34:PS'" // Light 5 status
SEND_COMMAND DATA.DEVICE, "'ADD=12:Switch:1/1/35:PS'" // Light 6 status
SEND_COMMAND DATA.DEVICE, "'ADD=20:Dim4:1/1/14'" // Dimmer relative light 5
SEND_COMMAND DATA.DEVICE, "'ADD=21:1Byte:1/1/24'" // Dimmer relative light 5
SEND_COMMAND DATA.DEVICE, "'ADD=22:1Byte:1/1/44:PS'" // Dimmer feedback light 5
SEND_COMMAND DATA.DEVICE, "'ADD=24:Dim4:1/1/15'" // Dimmer relative light 6
SEND_COMMAND DATA.DEVICE, "'ADD=25:1Byte:1/1/25'" // Dimmer absolute light 6
SEND_COMMAND DATA.DEVICE, "'ADD=26:1Byte:1/1/45:PS'" // Dimmer feedback light 6
SEND_COMMAND DATA.DEVICE, "'ADD=33:Switch:1/1/200'" // All lights ON/OFF
}
CASE 2:
{
SEND_COMMAND DATA.DEVICE, "'WHEN=5:22'" // Polltrigger
SEND_COMMAND DATA.DEVICE, "'WHEN=20:22'" // Polltrigger
SEND_COMMAND DATA.DEVICE, "'WHEN=21:22'" // Polltrigger
SEND_COMMAND DATA.DEVICE, "'WHEN=22:5'" // Polltrigger
SEND_COMMAND DATA.DEVICE, "'WHEN=6:26'" // Polltrigger
SEND_COMMAND DATA.DEVICE, "'WHEN=24:26'" // Polltrigger
SEND_COMMAND DATA.DEVICE, "'WHEN=25:26'" // Polltrigger
SEND_COMMAND DATA.DEVICE, "'WHEN=26:6'" // Polltrigger
SEND_COMMAND DATA.DEVICE,"'pollstart'" // Indicates to NXB-KNX that configuration
is complete
SEND_COMMAND DATA.DEVICE,"'status'" //report log from NXB-KNX
with current status of actors
}
DEFAULT: Counter = 0
} // Switch
Page 31
NetLinx Programming
31
NXB-KNX - Instruction Manual
IF (Counter)
{
Counter ++
} // IF (Counter)
} // WAIT
Example 3 - Load Configuration from File
The configuration can be read and generated from/to a file on the master file system. The reading of the file can for instance be
started in the ONLINE section o f the interface.
...
DATA_EVENT[dvKNX]
{
ONLINE :
{
SEND_COMMAND dvKNX,'LIST LOAD MyTable.txt'
}
}
...
NOTE: Comments at the end of a line must be separated by at least one space and are initiated with "//". Only one command per line
is permitted. Leading spaces are ignored. Lines starting with "//" are ignored.
// Table written <DATE:TIME>
// ---------------------------// Actors / Addresses / Flags
// ---------------------------ADD=1:Switch:1/0/1 // Light 1 On/Off
ADD=2:Switch:1/0/2 // Light 2 On/Off
ADD=3:Switch:1/0/3 // Light 3 On/Off
ADD=4:Switch:1/0/11:PS // Light 1 Status, poll on Start
ADD=5:Switch:1/0/12:PS // Light 2 Status, poll on Start
ADD=6:Switch:1/0/13:PS // Light 3 Status, poll on Start
ADD=7:Switch:1/0/21 // Scene 1+2
ADD=8:Switch:1/0/22 // Scene 3+4
ADD=9:Switch:1/0/31 // Blinds up/down
ADD=10:Switch:1/0/32 // Blinds shutter
ADD=11:Switch:1/0/111 // Dimmer On/Off
ADD=12:Dim4:1/0/112 // Dimmer relative
ADD=13:1Byte:1/0/113 // Dimmer absolute
ADD=14:1Byte:1/0/114:PS // Dimmer read Value, poll on Start
ADD=15:2Byte:1/0/201:EIS5,PS // analog Value, poll on Start
ADD=16:1Byte:1/0/203 // analog Value
ADD=17:3Byte:1/0/205:Time,PS // Time, poll on Start
ADD=18:3Byte:1/0/206:Date,PS // Date, poll on Start
// ------------// Polltrigger :
// ------------WHEN=1:2 // Polltrigger
WHEN=1:3 // Polltrigger
WHEN=11:14 // Polltrigger
WHEN=12:14 // Polltrigger
WHEN=13:14 // Polltrigger
WHEN=14:11 // Polltrigger
Page 32
NetLinx Programming
32
NXB-KNX - Instruction Manual
Example 4 - Main Program
DEFINE_DEVICE
dvKNX = 13001:1:0
dvTP = 10002:1:0
DEFINE_CONSTANT
...
DEFINE_VARIABLE
VOLATILE LONG lKNX_Value[5000] // Feedback array
...
DEFINE_START
...
#INCLUDE 'KNX_Tools.axi'
#INCLUDE 'KNX_Table.axi'
DEFINE_MODULE 'AMX_KNX_Updater' Updater(dvKNX, lKNX_Value) //Module handles update
//of array for feedback control
DEFINE_MODULE 'AMX_NXB_MOD' nxbMod(dvKNX) //Module handles remote
//logging from NXB-KNX
//as well as facilitates
//List Save and
//List Load functions
DEFINE_EVENT
...
DATA_EVENT[dvKNX]
{
ONLINE :
{
SEND_COMMAND dvKNX,'LIST LOAD MyTable.txt'
}
}
BUTTON_EVENT[dvTP,1]
{
PUSH:
{
KNXSet(dvKNX,1,1) // Light 1 ON
KNXSet(dvKNX,16,128) // Ballast to 50% Light 2
KNXSet(dvKNX,12,10) // Dimmer up Light 3
}
RELEASE:
{
KNXSet(dvKNX,12,0) // Dimmer Stop Light 3
}
}
CHANNEL_EVENT [dvKNX, 2] // Feedback Light 1
{
ON:
{
ON[dvTp,31]
}
OFF:
{
OFF[dvTp,31]
}
}
LEVEL_EVENT[dvKNX,21] //Feedback Level light 2
{
SEND_LEVEL dvTP,1,LEVEL.VALUE
}
DEFINE_PROGRAM
Page 33
NetLinx Programming
33
NXB-KNX - Instruction Manual
KNX_Tools.axi
We recommend not to use the send commands directly, but always use the functions of this include file. The compiler has the
opportunity to avoid typing errors already during compiling. Additional typing is avoided. This file also provides absolute terms for
relative dimming and blinds control:
// Constants for dimming Lights
KNX_DIM_UP = 9 //Brighter
KNX_DIM_DN = 1 //Darker
KNX_DIM_SP = 0 //Dimming Stop
// Constants for blind control
KNX_DIR_UP = 1 //UP
KNX_DIR_DOWN = 9 //Down
KNX_DIR_STOP = 0 //Stop
Functions Available In KNX_Tools.axi
The following functions are available in file KNX_Tools.axi for programming:
Functions Available In KNX_Tools.axi
Function Description
KNXSet Sets actuator <actor No> to <Value>.
Syntax:
KNXSet (<NXB-KNX Device >,<actor No>,<Value>)
Note: The module limits the value range automatically to the maximum range of the selected actuator type.
Example:
KNXSet (dvKNX,13,1)
KNXGet Gets the value of actuator <actor No> to <Value> stored in module.
Syntax:
KNXGet (<NXB-KNX Device>,<actor No>)
Example:
nVAL = KNXGet (dvKNX,13)
KNXPoll Polls the actuator <actor No>
Syntax:
KNXPoll (<NXB-KNX Device>,<actor No>)
Example:
KNXPoll (dvKNX,13)
KNXAdd Adds entry to KNX table (description of parameters see above).
Syntax:
KNXAdd (<NXB-KNX Device>,<actor No>,<Type>,<Group Address>,<Flags>)
Example:
KNXAdd (dvKNX,13,KNX2Byte,'1/0/206',"knxPollstart")
KNXWhenPoll Adds a poll trigger.
Syntax:
KNXWhenPoll (<NXB-KNX Device>,<actor No1>,<actor No2>)
Note: Value report from <actor No1> triggers polling on <actor No2>.
Example:
KNXWhenPoll (dvKNX,13,20)
KNXString2Array Converts comma separated Feedback from 14 Byte Hex into Integer Array with 14 chars.
Syntax:
KNXString2Array (<CHAR sArray[]>)
Example:
nArray = KNXString2Array (sArray)
KNXArray2String Converts Integer arrays with 14 chars to comma separated Array for 14 Byte Hex Type.
Syntax:
KNXArray2String (<Integer nArray[]>)
Example:
sArray = KNXArray2String (nArray)
Page 34
34
NXB-KNX - Instruction Manual
Cross-Line Communication
Overview
In many cases cross-line communication is required. In order to enable cross line communication a KNX programmer will need to
utilize the AMX NXB-KNX Virtual Device. This ETS device entry will serve as the NXB-KNX device in ETS3.
The NXB-KNX is not a native KNX device and so it cannot be directly programmed from within ETS3. The AMX NXB-KNX Virtual
Device will allow a programmer to configure cross line communication between KNX devices and the NXB-KNX.
The AMX NXB-KNX Virtual Device, once conf igured as desired, will allow ETS3 to calculate the appropriate routing tables for line
and area couplers.
Integrating the NXB-KNX Virtual Device Into An ETS3 Project
The following are the basic steps for integrating the NXB-KNX Virtual Device into an existing ETS project:
1. Open an existing ETS3 project.
2. Select File > Import to invoke the Import dialog (FIG. 22):
Cross-Line Communication
FIG. 22 ETS3 - Import dialog
3. Locate and select the NXB-KNX Virtual Device.vd4 file, and click Open.
This action invokes the Selective Import dialog (FIG. 23 ):
FIG. 23 Selective Import dialog
4. Verify that NXB-KNX is selected, and click Import.
Adding the Virtual Device to the ETS3 Project
Once the import procedure is complete, the virtual device must be added to the ETS3 project:
1. Identify the appropriate Area and Line at which the physical NXB-KNX will be connected, and right-click on the Line name
(heading) to access the context menu (FIG. 24):
Page 35
Cross-Line Communication
35
NXB-KNX - Instruction Manual
FIG. 24
ETS3 - Topology in Default Project - context menu
2. Select Add Devices to invoke the Product Finder dialog (FIG. 25):
FIG. 25 Product Finder dialog
3. In the Product Finder dialog:
a. Select AMX from the Manufacturer drop down.
b. Click Find.
c. The NXB-KNX Virtual Device will appear in the search results.
d. Select NXB-KNX and click Insert.
e. Close the Product Finder dialog.
4. The NXB-KNX Virtual Device is indicated in the appropriate line (FIG. 26):
FIG. 26 ETS3 - Topology in Default Project indicating NXB-KNX
To facilitate cross-line and cross-area communication, all group addresses which do not originate from a device that is located on
the immediate line must be linked with the appropriate communication object on the NXB-KNX Virtual Device. For example, FIG. 27
indicates Light G, Light E and Light A (which are all of type 1 Bit) are linked with the NXB-KNX Virtual Device 1 Bit communication
object.
Page 36
Cross-Line Communication
36
NXB-KNX - Instruction Manual
FIG. 27
ETS3 - Topology in Default Project indicating NXB-KNX
1. Create this linkage for all group addresses which do not originate within the line at which the NXB-KNX is physically attached.
2. Repeat this process starting with the Adding the Virtual Device to the ETS3 Project for all additional NXB-KNX units in your
installation.
Page 37
37
NXB-KNX - Instruction Manual
NetLinx Firmware Upgrades
Admin Menu as it appears on
NXB-KNX units loaded with:
Firmware v1.0.14
Application v1.0.1
(requires upgrade to allow the unit to
function as a native NetLinx device)
Admin Menu as it appears on
NXB-KNX units loaded with
current Netlinx firmware.
Refer to the One-Time Upgrade of the NXB-KNX to a Native NetLinx
Device section on page 40 for instructions.
Overview
The NetLinx Studio software application (available for free download from www.amx.com) provides the ability to transfer KIT
firmware files to a NetLinx device such as the NXB-KNX. To send firmware files, select Tools > Firmware Transfers, then select Send
to NetLinx Device from the sub-menu.
Before You Start
1. Establish the Firmware and device Application versions currently loaded on your NXB-KNX.
In the Admin Menu, look for the following entries:
Application Upgrade - Accesses the Application Upgrade Manager page.
Firmware Upgrade - Accesses the Firmware Upgrade Manager page.
The presence of these options in the Admin Menu indicates that your NXB-KNX unit is currently loaded with:
Firmware version 1.0.14 and
Application version 1.0.1
NetLinx Firmware Upgrades
FIG. 28
2. Verify you have the latest version of NetLinx Studio on your PC. Use the Web Update option in NetLinx Studio’s Help menu to
3. Go to www.amx.com and download the latest Firmwa re f ile. Firmware f iles are availab le to download f rom www.amx.com - on
4. Verify that an Ethernet cable is connected from the NetLinx Master to the Ethernet Hub.
5. Verify that the NetLinx Master is powered On.
6. Determine the Device Number assigned to the target NXB-KNX.
7. Launch NetLinx Studio and open the Online Device Tree.
Send To NetLinx Device dialog (NetLinx Studio)
NOTE: Alternatively, you can identify the current firmware version via telnet (see Establishing a Terminal Connection Via
Te lne t section on page 43) - the Welcome banner indicates the current firmware version.
In this case, the NXB-KNX must be upgraded to the following Firmware and device Application versions (via .JAR files), in order
to allow the NXB-KNX to function as a native NetLinx Device:
Firmware version 1.0.36 (or higher)
Application version 2.0.15 (or higher)
Refer to the One-Time Upgrade of the NXB-KNX to a Native NetLinx Device section on page 40 for directions on upgrading the
Firmware and Application versions to these base minimum versions. Once the unit has been upgraded, the NXB-KNX will
function as a native NetLinx device, and all subsequent Firmware upgrades are handled via NetLinx Studio, using KIT files (like
any other native NetLinx device).
obtain the latest version. Alternatively, go to www.amx.com and login as a Dealer to download the latest version.
the product’s page in the online catalog.
By default, the Device Number assigned to the NXB-KNX is 0 (zero).
The Device Number can be viewed/edited in the NXB-KNX Configuration Manager - Device Configuration Page (see the
Device Configuration section on page 10 for details).
Page 38
NetLinx Firmware Upgrades
38
NXB-KNX - Instruction Manual
Browse for folder
containing the KIT file
Sending a Firmware (*.KIT) File To the NXB-KNX
Use the Firmware Transfers options in the Tools menu to update the firmware in the NXB-KNX. NetLinx Devices such as the NXB-
KNX use KIT files for firmware upgrades.
NOTE: A Kit file (*.KIT) is a package of several files, all of which are required to upgrade the firmware, and are available online via
www.amx.com. Firmware download links are provided in the relevant product page.
The Online Device Tree (Online Tree tab of the Workspace Window) displays information about each online device, including
the current firmware version.
Before attempting to upgrade the firmware, you must have the appropriate Kit file for your NXB-KNX.
To help alleviate system o r network latency issues during f ile transfer, place K IT files in a "local " d rive for speedy
throughput.
1. Choose Tools > Firmware Transfers > Send to NetLinx Device to open the Send To NetLinx Device dialog (FIG. 29).
FIG. 29
Send To NetLinx Device dialog (NetLinx Studio)
2. Click the Browse (...) button to navigate to the target directory in the Browse For Fo lder dialog (FI G. 30).
FIG. 30 Browse For Folder dialog (NetLinx Studio)
The selected directory path is displayed in the Send To NetLinx Device dialog (Locat ion text box).
Assuming that the specified target directory contains one or more KIT files, the KIT files in the selected directory are
disp layed in the Files list box, with the file's last modified date and time (FIG. 31).
Page 39
NetLinx Firmware Upgrades
39
NXB-KNX - Instruction Manual
5600
FIG. 31
Send To NetLinx Device dialog (NetLinx Studio)
3. Select the appropriate *.KIT file from the Files list.
4. Enter the Device and System ID numbers for the NXB-KNX in the Device and System text boxes.
By default, the Device Number assigned to the NXB-KNX is 0.
Use the Online Device Tree to determine the device's assigned ID, if it has been changed.
5. Review the File, Connection, Address, and Target Device information before you send.
6. Click the Send button. You can watch the progress of the transfer in the Send to NetLinx Device dialog.
NetLinx Studio transfers the files to the NXB-KNX and then tells it to reboot. After it reboo ts, the NXB-KNX actually goes
through the upgrade process.
During the upgrade process, the Status LED blinks, and the NXB-KNX stays offline.
Once the upgrade is complete, the LED will stop blinking and the NXB-KNX will come online.
NOTE: If for any reason your Kit file transfer should fail, continue to retry the transfer until you are successful. DO NOT reboot the
NXB-KNX, or change connections until the transfer is complete. Failure to complete this operation successfully may require a factory
repai r of the NXB-KNX.
Additional Documentation
For additional information on using NetLinx Studio, refer to the NetLinx Studio online help and Operation/Reference Guide (available
at www.amx.com).
Page 40
One-Time Upgrade of the NXB-KNX to a Native NetLinx Device
40
NXB-KNX - Instruction Manual
These two options only appear on early
versions o f the NXB-KNX f irmware
One-Time Upgrade of the NXB-KNX to a Native
NetLinx Device
Overview
This section describes the process of upgrading an older NXB-KNX to the latest version of NetLinx Firmware.
The initial release of the NXB-KNX operated as an IP Device (as opposed to a native NetLinx device). As an IP device, the process of
upgrading the unit to the latest firmware involves upgrading both the device Application and the Firmware, via options in the
Firmware Upgrade Manager (see FIG. 33 on page 41) and the Application Upgrade Manager pages (see FIG. 34 on page 42).
Subsequent releases (and the current version) of the NXB-KNX operate as a native NetLinx device. As a NetLinx device, the process
of upgrading the unit is the same as for any typical NetLinx device: the latest NetLinx firmware KIT f ile is downloaded from
www.amx.com, and transferred to the NXB-KNX via the NetLinx Master, using NetLinx Studio. See the NetLinx Firmware
Upgrades section on page 37 for details.
Older NXB-KNX units that are still using the initial Application and Firmware versions can be upgraded to allow them to function as
a native NetLinx device.
Older NXB-KNX units that are using the initial Application and Firmware versions feature two Configuration pages that are not
included in the current version: the Application Upgrade Manager page and the Firmware Upgrade Manager page (FIG. 32).
FIG. 32
If these options do not appear in the Admin Menu, then your NXB-KNX unit is already a NetLinx device, and the directions in this
section does not apply.
NOTE: Alternatively, you can identify the current firmware version via telnet (see Establishing a Terminal Connection Via
Te lne t section on page 43) - the Welcome banner indicates the current firmware version.
There are two aspects of the NXB-KNX that can be upgraded: the device Firmware and device Application, both of which are
normally updated via options in the Firmware Upgrade Manager (see FIG. 33 on page 41) and Application Upgrade Manager pages
(see FIG. 34 on page 42). However, special steps are required to perform an initial upgrade from early versions of the NXB-KNX
Application and Firmware.
The following steps describe upgrading the NXB-KNX from:
NOTE: The Firmware upgrade must be performed before the Application upgrade.
Admin menu - early Firmware versions only
Firmware v1.0.14 and Application v1.0.1
to
Firmware v1.0.36 and Application v2.0.15
Page 41
One-Time Upgrade of the NXB-KNX to a Native NetLinx Device
41
NXB-KNX - Instruction Manual
Determining the Current Firmware Version Of the NXB-KNX
Select Firmware Upgrade from the Admin menu to open the Firmware Upgrade Manager page (FIG. 33). Use the options on the
page to upgrade the firmware on this NXB-KNX unit.
FIG. 33
This page allows you view information on the firmware version currently loaded on this unit, and to uplo ad a f irmware .JAR file to
the unit.
NOTE: Another method of determining the current firmware version is to establish a telnet session to the NXB-KNX. See Establishing
a Terminal Connection Via Telnet section on page 43.The Welcome banner in item 4 indicates the current firmware version.
Firmware Upgrade Manager page
Bro wse For the New Firmware Upload File
Sele ct the Browse bu tto n to open a standard f ile disp lay for traversing your PC's f ile structure, and select ing an individual .JAR f ile.
The selected file name is displayed in the associated text box. Click the Accept button to initiate the download of the selected .JAR
file to the unit.
If the download fails for any reason, an error message is displayed indicating the failure.
If the download is successful, a message is displayed.
Click the Reboot button to initiate a system reboo t. Firmware changes only take effect after a reboot.
NOTE: System information will not be updated until after a system reboot.
If Current Firmware Version Is Lower Than v1.0.36
1. Select Firmware Upgrade from the Admin drop-down menu to open the Firmware Upgrade Manager page (FIG. 33 on
page 41).
2. Click Browse, and select the f ile: XXXX1.0.36.jar.
3. Click Accept.
4. When the upgrade is complete, reboot the NXB-KNX.
Page 42
One-Time Upgrade of the NXB-KNX to a Native NetLinx Device
42
NXB-KNX - Instruction Manual
Determining the Current Application Version Of the NXB-KNX
Information on the current application version loaded on the device is displayed in the Application Upgrade Manager page (FIG. 34).
FIG. 34
Application Upgrade Manager page
If Current Application Version Is Lower Than v2.0.15
1. Select Application Upgrade from the Admin drop-down menu to open the Application Upgrade page (FIG. 34 on page 42).
2. Click Browse, and select the f ile XXXX2.0.15.jar.
3. Click Accept.
4. When the upgrade is complete, reboot the NXB-KNX.
NOTE: Once the Application upgrade is performed, all subsequent upgrades will be performed via Netlinx Studio supported Kit f ile
upgrades. See the NetLinx Firmware Upgrades section on page 37 for details.
Page 43
43
NXB-KNX - Instruction Manual
Appendix A: Telnet Commands
Overview
The NXB-KNX supports Telnet communications. This type of terminal communication can be accessed remotely, via TCP/IP.
Telnet is an insecure form of terminal communication, since it does not require a physical connection to the device to connect.
Further, the Telnet interface exposes information to the network (which could be intercepted by an unauthorized network client).
NOTE: It is recommended that you make initial configurations as well as subsequent changes via the Web Console. Refer to the
Configuration section on page 8.
Refer to the Termi n a l C o m m ands section on page 44 for a listing of all commands available in a terminal session.
Establishing a Terminal Connection Via Telnet
1. In your Windows taskbar, go to Start > Run to open the Run dialog.
2. Type cmd in the Open field and click OK to open an instance of the Windows command interpreter (Cmd.exe).
3. In the CMD (command), type "telnet" followed by a space and the NXB-KNX’s IP Address info.
Example: >telnet XXX.XXX.XXX.XXX
4. Press Enter.
Unless Telnet security is enabled, a session will begin with a welcome banner:
Welcome to AMX v1.0.36 Copyright AMX LLC 2008
>
If Telnet security is enabled, type in the word logi n to be prompted for a Username and Password before gaining access to
the NXB-KNX.
5. Enter your username to be prompted for a password.
If the password is correct you will see the welcome banner.
If the password is incorrect, the following will be displayed:
Login: User1
Password: *****
Login not authorized. Please try again.
After a delay, ano ther login prompt w ill be disp layed to allo w you to try ag ain.
If after 5 prompts, the login information is not entered correctly, the following message will be displayed and the
connection closed:
Login not allowed. Goodbye!
NOTE: If a connection is opened, but a valid a username / password combination is not entered (i.e. just sitting at a login prompt), the
connection will be closed after one minute.
Appendix A: Telnet Commands
Page 44
Appendix A: Telnet Commands
44
NXB-KNX - Instruction Manual
Terminal Commands
The Terminal commands listed in the following table can be sent directly to the NXB-KNX via Telnet terminal session. In your
terminal program, type "Help" or a question mark ("?") and <Enter> to access the Help Menu, and display the Program port
commands described below:
Terminal Commands
Command Description
----- Help ----? or Help
DATE
DISK FREE
DNS LIST <D:P:S>
ECHO ON|OFF
GET JAVA HEAP
GET ETHERNET MODE
GET IP
IPSEC ON|OFF|STATUS
MEM
MSG ON|OFF
(Extended diag messages are OFF)
Displays this list of commands.
Displays the current date and day of the week.
Example:
>DATE
10/31/2004 Wed
Displays the total bytes of free space available.
Example:
>DISK FREE
The disk has 2441216 bytes of free space.
Displays the DNS configuration of a specific device including:
•Domain suffix·
• Configured DNS IP Information
Example:
>DNS LIST [0:1:0]
Domain suffix:amx.com
The following DNS IPs are configured
Entry 1-192.168.20.5
Entry 2-12.18.110.8
Entry 3-12.18.110.7
Enables/Disables echo (display) of typed characters.
Display the amount of memory allocated for Java pool. This is the current Java memory heap size as
measured in Megabytes.
Example: a value of 5M = 5 MB.
Displays the current Ethernet configuration setting. Settings are either "auto" in which the Ethernet
driver will discover it's settings based on the network it is connected to OR <speed> and <duplex> where
speed is either 10 or 100 and duplex is either full or half.
Example:
>GET ETHERNET MODE
Ethernet mode is auto.
Note: See SET ETHERNET MODE.
Displays the current IP configuration.
Example:
>GET IP
IP Settings
HostName MLK_INSTRUCTOR
Type DHCP
IP Address 192.168.21.101
Subnet Mask 255.255.255.0
Gateway IP 192.168.21.2
MAC Address 00:60:9f:90:0d:39
Enables/Disables IPSec security or displays current setting.
Displays the largest free block of the NXB-KNX’s memory.
Example:
>MEM
The largest free block of memory is 11442776 bytes.
Enables/Disables extended diagnostic messages.
• MSG On sets the terminal program to display all messages generated by the NXB-KNX.
• MSG OFF disables the display.
Example:
> MSG ON
Extended diagnostic information messages turned on.
> MSG OFF
Extended diagnostic information messages turned off.
Page 45
45
NXB-KNX - Instruction Manual
Terminal Commands (Cont.)
Command Description
PING [ADDRESS]
PWD
REBOOT
RELEASE DHCP
SECURITY SETUP
SET DATE
SET DNS
Pings an address (IP or URL), to test network connectivity to and conf irms the presence of another
networked device. The syntax is just like the PING application in Windows or Linux.
Example:
>ping 192.168.29.209
192.168.29.209 is alive.
Displays the name of the current directory.
Example:
pwd
The current directory is doc:
Reboots the NXB-KNX.
Example:
>REBOOT
Rebooting...
Releases the current DHCP lease for the NXB-KNX.
Note: The NXB-KNX must be rebooted to acquire a new DHCP lease.
Example:
>RELEASE DHCP
Modify system security settings.
Prompts you to enter the new date for the NXB-KNX.
Example:
>SET DATE
Enter Date: (mm/dd//yyyy) ->
Note: Due to the absence of a battery-backed real-time clock, setting the current date is only valid for the
life of the current run. When the unit is rebooted, the date will be lost.
Sets up the DNS configuration. This command prompts you to enter a Domain Name, DNS IP #1, DNS IP
#2, and DNS IP #3. Then, enter Y (yes) to approve/store the information in the NXB-KNX.
Entering N (no) cancels the operation.
Note: The device must be rebooted to enable new settings.
Example:
>SET DNS
-- Enter New Values or just hit Enter to keep current settings --
Appendix A: Telnet Commands
SET JAVA HEAP
SET ETHERNET MODE <CMD>
SET FTP PORT
Enter Domain Suffix: amx.com
Enter DNS Entry 1 : 192.168.20.5
Enter DNS Entry 2 : 12.18.110.8
Enter DNS Entry 3 : 12.18.110.7
You have entered: Domain Name: amx.com
DNS Entry 1: 192.168.20.5
DNS Entry 2: 12.18.110.8
DNS Entry 3: 12.18.110.7
Is this correct? Type Y or N and Enter -> Y
Settings written. Device must be rebooted to enable new settings
Set the amount of memory allocated for the Java pool. This is the current Java memory heap size as
measured in Megabytes.
• Valid values = 5M - 35M
• Recommended default = 32M
Note: This setting does not take effect until the next reboot.
This command sets the current Ethernet configuration settings - auto OR speed =
10 | 100, duplex = full | half.
Example:
set ethernet mode auto
set ethernet mode speed=100 duplex=full
Note: See GET ETHERNET MODE.
Enables/Disables the NXB-KNX’s IP port listened to for FTP connections.
Note: The device must be rebooted to enable new settings.
Example:
>SET FTP PORT
FTP is enabled
Do you want to enable (e) or disable (d) FTP (enter e or d):
FTP enabled, reboot the NXB-KNX for the change to take affect.
Page 46
46
NXB-KNX - Instruction Manual
Terminal Commands (Cont.)
Command Description
SET HTTP PORT
SET HTTPS PORT
SET IP
Sets the NXB-KNX’s IP port listened to for HTTP connections.
Note: The device must be rebooted to enable new settings.
Example:
>SET HTTP PORT
Current HTTP port number = 80
Enter new HTTP port number (Usually 80) (0=disable HTTP):
Setting HTTP port number to
New HTTP port number set, reboot the NXB-KNX for the change to take affect.
Sets the NXB-KNX’s IP port listened to for HTTPS connections.
Note: The device must be rebooted to enable new settings.
Example:
>SET HTTPS PORT
Current HTTPS port number = 443
Enter new HTTPS port number (Usually 443) (0=disable HTTPS):
Once you enter a value and press the ENTER key, you get the following message:
Setting HTTPS port number to
New HTTPS port number set, reboot the NXB-KNX for the change to take affect.
Sets the IP configuration. Enter a Host Name, Type (DHCP or Fixed), IP Address, Subnet Mask, and
Ga t e wa y I P A d d re s s .
Note: For NetLinx Central Controllers, the "Host Name" can only consist of alphanumeric characters.
• Enter Y (yes) to approve/store the information into the NXB-KNX.
• Enter N (no) to cancel the operation.
Note: The device must be rebooted to enable new settings.
Example:
>SET IP
--- Enter New Values or just hit Enter to keep current settings ---
Appendix A: Telnet Commands
SET LOG COUNT
SET SSH PORT
SET TELNET PORT
Enter Host Name: MLK_INSTRUCTOR
Enter IP type. Type D for DHCP or S for Static IP and then Enter: DHCP
Enter Gateway IP: 192.168.21.2
You have entered: Host Name MLK_INSTRUCTOR
Type DHCP
Gateway IP 192.168.21.2
Is this correct? Type Y or N and Enter -> y
Settings written. Device must be rebooted to enable new settings.
Sets the number of entries allowed in the message log.
Note: The device must be rebooted to enable new settings.
Example:
>SET LOG COUNT
Current log count = 1000
Enter new log count (between 50-10000):
Once you enter a value and press the ENTER key, you get the following
message:
Setting log count to
New log count set, reboot the NXB-KNX for the change to take affect.
Sets the NXB-KNX’s IP port listened to for SSH connections.
Note: The device must be rebooted to enable new settings.
Example:
>SET SSH PORT
Current SSH port number = 22
Enter new SSH port number (Usually 22) (0=disable SSH):
Once you enter a value and press the ENTER key, you get the following message:
Setting SSH port number to 22
New SSH port number set, reboot the NXB-KNX for the change to take affect.
Sets the NXB-KNX’s IP port listened to for Telnet connections.
Note: The NXB-KNX must be rebooted to enable new settings.
Example:
>SET TELNET PORT
Current telnet port number = 23
Enter new telnet port number (Usually 23)(0=disable Telnet):
Once you enter a value and press the ENTER key, you get the following message:
Setting telnet port number to 23
New telnet port number set, reboot the NXB-KNX for the change to take affect.
Page 47
47
NXB-KNX - Instruction Manual
Terminal Commands (Cont.)
Command Description
SET TIME
SHOW LOG
SHOW HEAP
SHOW MEM
TIME
Sets the current time.
Example:
>SET TIME
Enter Date: (hh:mm:ss) ->
Note: Due to the absence of a battery-backed real-time clock, setting the current time is only valid for the
life of the current run. When the unit is rebooted, the time will be lost.
Displays the log of messages stored in the NXB-KNX's memory. The NXB-KNX logs all internal messages
and keeps the most recent messages. The log contains:·
• Entries starting with first specified or most recent
• Date, Day, and Time message was logged
• Which object originated the message
•The text of the message:
SHOW LOG [start] [end]
SHOW LOG ALL
- <start> specifies message to begin the display.
- If start is not entered, the most recent message will be f irst.
- If end is not entered, the last 20 messages will be shown.
- If <ALL> is entered, all stored messages will be shown, starting with the most recent.
Example:
>SHOW LOG
Message Log for System 50 Version: v2.10.75
Entry Date/Time Object
Text
---------------------------------------------------------------- 1: 11-01-2001 THU 14:14:49 ConnectionManager
Memory Available = 11436804 <26572>
2: 11-01-2001 THU 14:12:14 ConnectionManager
Memory Available = 11463376 <65544>
3: 11-01-2001 THU 14:10:21 ConnectionManager
Memory Available = 11528920 <11512>
4: 11-01-2001 THU 14:10:21 TelnetSvr
Accepted Telnet connection:socket=14 addr=192.168.16.110 port=2979
5: 11-01-2001 THU 14:05:51 Interpreter
CIpEvent::OnLine 10002:1:50
6: 11-01-2001 THU 14:05:51 Interpreter
CIpEvent::OnLine 128:1:50
7: 11-01-2001 THU 14:05:51 Interpreter
CIpEvent::OffLine 128:1:50
8: 11-01-2001 THU 14:05:51 Interpreter
CIpEvent::OnLine 96:1:50
9: 11-01-2001 THU 14:05:51 Interpreter
CIpEvent::OffLine 96:1:50
10: 11-01-2001 THU 14:05:51 Interpreter
CIpEvent::OnLine 128:1:50
11: 11-01-2001 THU 14:05:51 Interpreter
CIpEvent::OnLine 96:1:50
12: 11-01-2001 THU 14:05:51 Interpreter
CIpEvent::OnLine 5001:16:50
13: 11-01-2001 THU 14:05:51 Interpreter
CIpEvent::OnLine 5001:15:50
14: 11-01-2001 THU 14:05:51 Interpreter
Displays heap usage statistics.
Displays the memory usage for all memory types.
Displays the current time on the NXB-KNX.
Example:
>TIME
13:42:04
Appendix A: Telnet Commands
Page 48
48
NXB-KNX - Instruction Manual
Appendix B: Troubleshooting
Overview
AMX recommends activating debugg ing mo de during diagno stics to displa y additio nal er ror messages. This is acti vated with
monitor command "DEBUGON".
The following table provides tips for error definition, in case it does not work. This serves a quick error analysis ON SITE.
Troubleshooting
Error Proposed solution / error def inition
No controls possible, no feedback Ensure NXB-KNX is detected in Netlinx Studio online tree.
No controls possible, no feedback,
according to "Status" the NXB-KNX
is detected
NXB-KNX does not appear in the
NetLinx Studio OnLine Tree view
NXB-KNX date/time is incorrect Use the NXB-KNX Configuration Manager Clock Manager to configure the NXB-KNX time/date
NXB-KNX appears in the NetLinx
Studio OnLine Tree view, but no
control or feedback is possible
Responses to interactive
commands, e.g. 'list', are not
displayed.
Control and/or feedback
is not working
Enter command "List" in debug mode.
• Are all addresses entered?
• Are feedback values displayed ?
Try to switch several addresses directly with "SET" (e.g. light). If it works, there is probably an error
in the AMX program.
If also no access is possible (Is the light still on?), the reason is probably wrong group addresses.
Confirm the NXB-KNX is powered on and connected to your network using an approved PoE cable.
Use a zero-config client, like Internet Explorer's Bonjour or NetLinx Studio's Zero-Config tab, to
access the NXB-KNX Configuration Manager.
• Check the NXB-KNX IP Settings match your network configuration.
• Check the NXB-KNX Master Connection settings match your AMX Master controller
configuration.
Confirm the current NXB-KNX connection status by viewing the NXB-KNX status banner.
• Obtain the NXB-KNX ip address using a zero-config client.
• Establish a telnet session with the NXB-KNX.
• Enable display of diagnostic messages by typing 'msg on all'.
• The NXB-KNX status banner will refresh every 15 minutes.
• Or, use the 'show log' command to display the message log.
settings.
• It is recommended that the NXB-KNX time/date settings match its AMX Master controller time/
date settings.
• e.g. The NXB-KNX and the AMX Master controller both use the same NIST server.
Confirm the NXB-KNX device number shown in the NetLinx Studio OnLine Tree view matches your
NetLinx project's NXB-KNX device number definition.
Use the NXB-KNX Configuration Manager Device Configuration to change the NXB-KNX device
number.
Responses to interactive commands are displayed only when the NXB-KNX log level is debug.
Confirm the NXB-KNX log level is debug.
• Establish a telnet session with the NXB-KNX.
• Enable display of diagnostic messages by typing 'msg on all'.
• The NXB-KNX status banner will refresh every 15 minutes.
• Or, use the NXB-KNX 'status' command to force the status banner to display.
• Or, use the 'show log' command to display the message log.
Use the NXB-KNX 'debugon' command to set the log level to debug.
• It is recommended to return the NXB-KNX to its operational log level of info when the interactive
session is completed.
• Use the NXB-KNX 'debugoff' command to return the log level to info.
Confirm the NXB-KNX configuration by using the 'list' interactive command.
• Do all expected actors appear in the list?
• Do all expected group addresses appear in the list?
• Is the group address assigned to the expected actor number? Remember, the actor number is
also the channel and level number.
• Are all group addresses configured using the correct data type e.g. 'Switch'?
Confirm the KNX device configuration parameters by using the ETS program.
Confirm the KNX device is connected to the KNX bus.
Confirm the NXB-KNX is connected to the KNX bus.
Appendix B: Troubleshooting
Page 49
Last Revised:
6/08/2016
© 2016 Harman. All rights reserved. NetLinx, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of HARMAN.
Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior no tice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
