OWNER’S MANUAL

AirPlay speaker dock for iPod/iPhone/iPad

JBL ONBEAT

™

AIR

0297CSK - JBL OnBeat Air OM FORMATERET.indd 1 08/07/11 12:03:09

IMPORTANT SAFETY INSTRUCTIONS

Please read the following precautions before use:

FCC Statement and Warning

Read these instructions. 1.

Keep these instructions.2.

Heed all warnings.3.

Follow all instructions. 4.

Do not use this apparatus near water.5.

Clean only with a dry cloth.6.

Do not block any ventilation openings. Install in 7. accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, 8. heat registers, stoves or other apparatus (including ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or 9. grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or 10. pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

Only use attachments/accessories speciﬁed by the 11. manufacturer.

Use only with the cart, stand, tripod, bracket or table 12. speciﬁed by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when 13. unused for long periods of time.

Refer all ser vicing to qualiﬁed service personnel. Servicing 14. is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Do not expose this apparatus to dripping or splashing and 15. ensure that no objects ﬁlled with liquids, such as vases, are placed on the apparatus.

To completely disconnect this apparatus from the AC 16. Mains, disconnect the power supply cord plug from the AC receptacle.

The mains plug of the power supply cord shall remain 17. readily operable.

Do not expose batteries to excessive heat such as sunshine, 18. ﬁre or the like.

THE LI GHTN ING FL ASH WIT H AN ARR OWHE AD SYMB OL, WITH IN AN EQU ILATE RAL TR IANGL E, IS INT ENDED TO ALER T TH E US ER TO THE PRES ENCE OF U NINSU LATED “DANG EROUS VOLTAGE” WITH IN TH E PROD UCT’S ENCLO SURE THAT MAY BE OF SUFFI CIENT MAGN ITUD E T O C O N S T I T U T E A R I S K O F E L E C T R I C S H O C K T O PERSONS.

THE EX CLAM ATION POIN T WITHI N AN EQUIL ATER AL TRIA NGLE IS I NTEN DED TO ALE RT THE US ER TO THE PRESENC E OF IM PORTANT OPERATING AND MAINTENANCE SERVICING INSTRUCTIONS IN THE LITE RATUR E ACCOMPA NYIN G THE PRO DUCT.

WARNI NG: TO RE DUCE T HE RISK O F

FIRE O R ELECT RIC SHOC K,

DO NOT E XPOSE T HIS APPA RATUS TO

RAI N OR MOIST URE.

RISK O F ELECT RIC SHOC K

DO NOT OPEN

SEE MA RKIN G ON BACK OF P RODUC T.

CAUTION

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected• . Consult the dealer or an experienced radio/TV technician for help.•

FCC Caution

Any cha nges or modi ﬁcations not expressly ap proved by the party re sponsible for compliance co uld void the user's author ity to operate this equip ment. This device complies with Part 15 of the FCC Rules. Opera tion is subject to the following two conditions : (1) This device may n ot cause harmful inter ference, and (2 ) this device must accep t any interference re ceived, including inte rference

that may cau se undesired opera tion.

MODIF ICATIONS NOT EX PRESSLY APPROV ED BY TH E MANU FACTURE R COULD VOID TH E USER A UTHORI TY TO O PERATE THE EQUIP MENT UND ER FCC RULE S.

IC Statement and Warning

This Clas s B digital appara tus complies with C anadian ICES- 003. Cet appar eil numérique de la clas se B est conforme à la n orme NMB-0 03 du Canada.

FCC/IC Radiation Exposure Statement

This equipment comp lies with FCC/I C RSS-102 radia tion exposure limits set fort h for an uncontrol led environment. This equipmen t should be ins talled and opera ted with minimum dist ance of 8” (20cm ) between the rad iator and your body.

Battery Disposal

CAUTION: RISK OF EXPLOSION IF THE REMOTE CONTROL BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THESE INSTRUCTIONS.

Rechargeable batteries (i.e., nickel cadmium, nickel metal-hydride, lithium and lithium-ion) are hazardous household materials and may pose an unnecessary health and safety risk.

In the European Union and other locations, it is illegal to dispose of any battery with household trash. All batteries must be disposed of in an environmentally sound manner. Contact your local waste-management ofﬁcials for information regarding the environmentally sound collection, recycling and disposal of used batteries.

0297CSK - JBL OnBeat Air OM FORMATERET.indd 2 08/07/11 12:03:09

www.jbl.com

English

CONNECTING AND SETTING UP YOUR JBL ONBEAT™ AIR

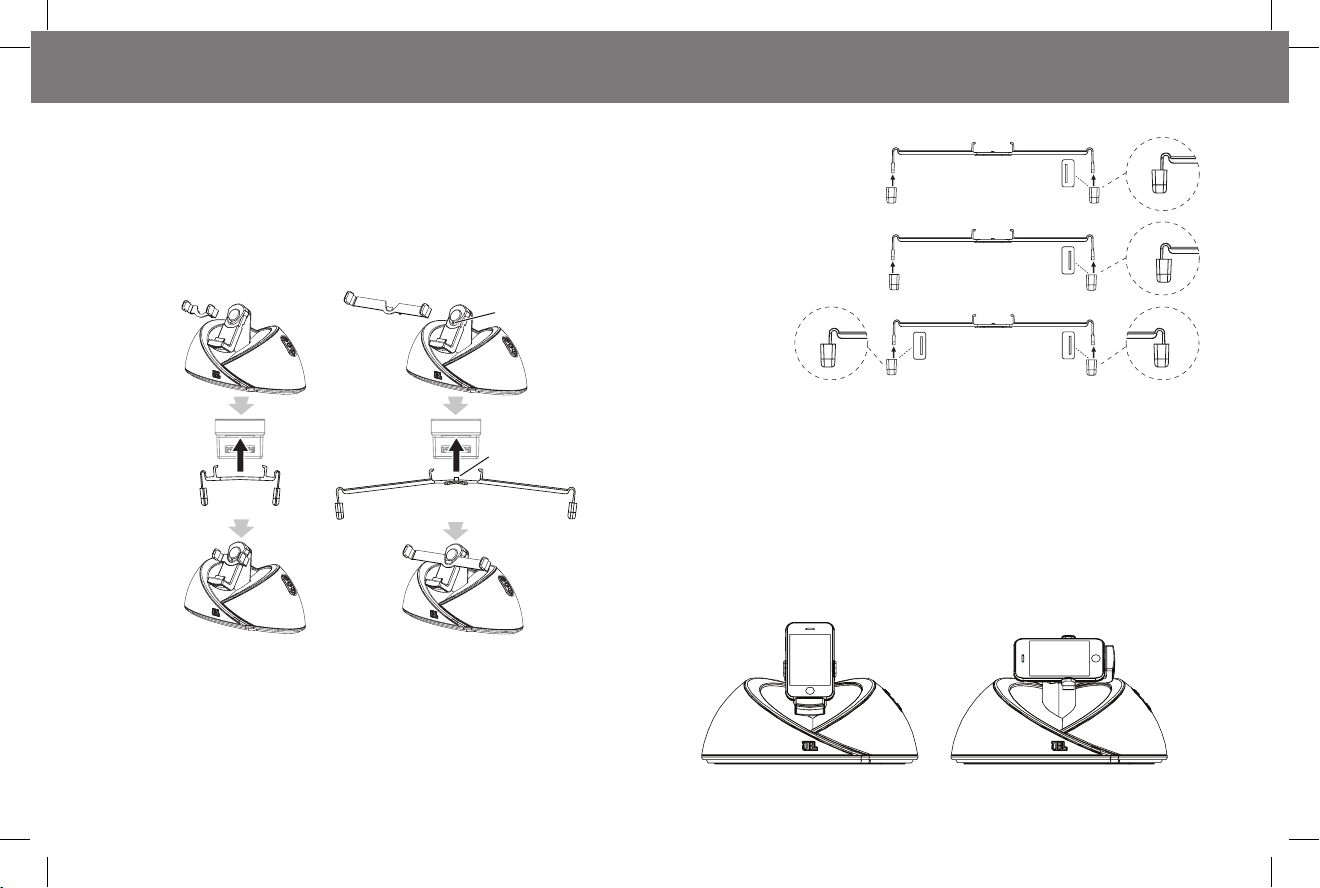

Carefully unpack your speaker dock, and conﬁrm that all the items shown here 1. are included: JBL OnBeat™ Air, power supply, AC cord*, remote control, iPod/ iPhone adapter clip and iPad adapter clip.

* AC cord varies by region.

Connect a USB 2. Type B cable (not included) to the JBL OnBeat Air USB port and to a USB port on the computer where your iTunes library is located. This connection allows you to sync a docked iPod/iPhone/iPad device with iTunes (see Synchronizing with Your iTunes Library, on page 9).

USB

VIDEO OUT

AUDIO IN

DC IN

POWER

USB Type B

If you are going to use your 3. JBL OnBeat Air speaker dock with another audio source, plug one end of a 3.5mm (1/8") stereo cable (not included) into the JBL OnBeat Air Audio In connector, and plug the other end into the audio source’s audio out or headphone out connector.

USB

VIDEO OUT

AUDIO IN

DC IN

POWER

3.5mm (1/8”) cable

IMPORTANT: If you play audio through a docked iPod, iPhone or iPad device and an audio source connected to the Audio In connector at the same time, you will hear both of their outputs mixed through the JBL OnBeat Air speaker dock. To hear only one source, you will need to turn off the other source (the one you do not want to hear) manually.

IMPORTANT NOTE FOR ALL ELECTRONIC PRODUCTS: Before inserting or unplugging audio cables from the device’s Audio In jack, it is good practice to turn off the device ﬁrst. This practice will prolong the life of your unit, help protect it from static electricity and prevent potential damage.

English

0297CSK - JBL OnBeat Air OM FORMATERET.indd 3 08/07/11 12:03:12

If4. you want to view videos or photos from your iPod, iPhone or iPad device on a TV, plug one end of a composite video cable (not included) into the JBL OnBeat Air Video Out connector, and plug the other end into your TV’s composite video input connector.

USB

VIDEO OUT

AUDIO IN

DC IN

POWER

Composite

Video Cable

(not supplied)

Insert the included AC cord all the way into the power supply (if there is more 5. than one AC cord, use the correct one for your region). Then connect the power supply into the JBL OnBeat Air DC In connector and plug it into an AC wall outlet.

CONFIGURE THE JBL ONBEAT AIR FOR WI-FI® OPERATION

Before you can stream audio via AirPlay, you will need to conﬁgure your JBL OnBeat Air for Wi-Fi® operation. You will only need to perform this operation the very ﬁrst time you try to connect the JBL OnBeat Air to your Wi-Fi network.

NOTE – Easy Setup Application: You can download the JBL OnBeat Air easy setup application by visiting the following Web site: www.jbl.com/onbeatair.

Make sure your Wi-Fi network is turned on and operating properly.1. Turn the 2. JBL OnBeat Air on by pressing the Power button on the unit. The

Status LED will ﬂash green and, after several seconds, will change to amber.

Power Button

Connect

Button

After the Status LED changes to amber, press the 3. JBL OnBeat Air’s Connect button for three seconds. The unit’s status LED will alternately ﬂash white and green to indicate the that JBL OnBeat Air is in the Connect mode.

While the 4. JBL OnBeat Air is in the Connect mode, use your Mac, PC, iPhone, iPod touch or iPad to search for the wireless network device called “JBL OnBeat Air” and connect to it (see examples, next page: Windows XP (top), Windows Vista (bottom left), Mac OS (bottom right).

0297CSK - JBL OnBeat Air OM FORMATERET.indd 4 08/07/11 12:03:16

www.jbl.com

English

Launch the Internet browser on your Mac, PC, iPhone, iPod touch or iPad, 5. and navigate to the following Web page: http://169.254.1.1The Web page will display the Setup information page.

Enter the name for the 6. JBL OnBeat Air you’re setting up in theJBL OnBeat Air Name window and click the Change button. (If you have more than one JBL OnBeat Air we recommend that you set up each unit in turn, leaving the other units powered off.)

English

0297CSK - JBL OnBeat Air OM FORMATERET.indd 5 08/07/11 12:03:16
