Harman HKOMNI10P Users Manual

OMNI 10+

App

Harman Kardon Controller|

HarmanKardon Controller

Download the Harman Kardon Controller app to setup and control your Harman Kardon Omni 10+.

Téléchargez l'application Harman Kardon Controller pour conﬁgurer et commander votre Harman Kardon Omni 10+.

Descargue la aplicación Harman Kardon Controller para conﬁgurar y controlar su Harman Kardon Omni 10+.

Baixe o app de controle da Harman Kardon para conﬁgurar e controlar o Harman Kardon Omni 10+.

Laden Sie die Harman Kardon Controller-App herunter, um Ihren Harman Kardon Omni 10+ konﬁgurieren und bedienen zu können.

Scarica l’app Harman Kardon Controller per impostare e controllare il tuo Harman Kardon Omni 10+.

Download de Harman Kardon Controller app om uw Harman Kardon Omni 1.0+ te installeren en te bedienen.

Last ned Harman Kardon Kontroll-appen for å sette opp og kontrollere Harman Kardon Omni 10+.

Lataa Harman Kardon Controller-sovellus, jotta voit määrittää Harman Kardon Omni 10+ -laitteen asetukset ja hallita sitä.

Загрузите приложение Harman Kardon Controller, чтобы настроить свой продукт Harman Kardon Omni 10+ и управлять им.

Hämta appen Harman Kardon Controller för att ställa in och styra din Harman Kardon Omni 10+.

Quick Start Guide

Guide de demarrage rapide

Setup video

Hent applikationen Harman Kardon Controller, så du kan konﬁgurere og styre din Harman Kardon Omni 10+.

Harman Kardon Controller

ダウンロードしてセットアップし、お持ちの

(

ハーマンカードン・オムニ10）をコントロールしてください。

Harman Kardon Controller Omni 10+

下载

Harman Kardon Omni 10+

下載

을 설정하고 제어합니다.

Harman Kardon Controller 应用以设置和控制您的

Harman Kardon Controller

Harman Kardon Omni 10+ Unduh aplikasi Harman Kardon Controller untuk persiapan dan

mengontrol Harman Kardon Omni 10+ Anda.

(ハーマンカードン・コントローラー)アプを

Harman Kardon Omni 10+

앱을 다운로드하여

。

應用程式以設定並控制您的

。

Harman Kardon

What’s in the box

Buttons

LINK

SOURCE

VOLUME -

Connections

PLAY/PAUSE

VOLUME +

AUDIO IN POWER

ETHERNET PORT

WPS

RESET

Stand mount screw holes

Trous de vis de montage du pied Oriﬁcios para los tornillos del soporte de montaje Buracos dos parafusos de montagem do suporte Löcher für die Befestigungsschrauben Fori per le viti di montaggio del supporto Schroefgaten montagestand Skruehull for veggstativ Telineen ruuvikiinnityksen reiät Отверстия для винтов для монтажа стойки Skruvhål för montering på stativ Skruehuller til montering af holder

スタンド取り付け用ねじ穴

스탠드 장착 나사 구멍

坐地安装螺丝孔立式安裝螺孔

Lubang sekrup pemasangan berdiri

Bluetooth®

>3s

HKOMNI 10+

Pairing mode

Bluetooth connected

Bluetooth streaming

Say hello to Spotify Premium

Spotify Premium lets you listen to millions of songs ad-free – the artists you love, the latest hits and discoveries just for you. Simply hit play to hear any song you like, at the highest sound quality.

Try Premium free for 30 days at spotify.com/freetrial

Your new speaker has Spotify Connect built in

Spotify Connect lets you control the music playing on your speaker, using the Spotify app on your mobile, tablet or PC.

Listening is seamless. You can take calls, play games, even switch your phone oﬀ – all without interrupting the music.

Learn more at spotify.com/connect

The Spotify software is subject to third party licenses found here:www.spotify.com/connect/third-party-licenses

How to use Connect

You’ll need Spotify Premium to use Connect, see details overleaf.

Step 1

Add your new speaker to the same wiﬁ network as your phone, tablet or PC (see product user instructions for details).

Step 2 Open the Spotify app on your phone, tablet or PC, and play any song.

Step 3

If you’re using the app on a phone – tap the song image in the bottom left of the screen. For tablet and PC move to step 4.

Step 4 Tap the Connect icon

Pick your speaker from the list. If you can’t see it, just check it’s

Step 5

connected to the same wiﬁ network as your phone, tablet or PC.

All done! Happy listening.

Spotify Connect feature may not be used in countries where Spotify s

ervice is not available.

Full owner's manual

Mode d'emploi complet Manual del propietario Manual do usuário completo Bedienungsanleitung Manuale di istruzioni completo Volledige handleiding Fullstendig brukerveiledning Täydellinen omistajan ohjekirja Полное руководство пользователя Komplett bruksanvisning Komplet betjeningsvejledning

正式な所有者用のマニュアル

사용자 설명서 전문

完整的用户手册完整的擁有者手冊

Panduan pengguna keseluruhan

harmankardon.com/Omni10+

• Model Name: HK OMNI 10+

• Transducers: 1 x 90mm woofer, 1 x 35mm tweeter

• Ratedpower:1x25Wforwoofer;1x25Wfortweeter

• Frequency response: 52~20kHz (-6dB)

• Signal-to-noise ratio: >80dB

• Input connections: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port

• Dimensions (W x D x H): 181mm x 159mm x 166mm

• Weight: 1333g

• Power supply: 19VDC, 3.0A

• Bluetooth® transmitter frequency range: 2402 − 2480MHz

• Bluetooth® transmitter power: 0-4dBm

• Bluetooth® transmitter modulation: GFSK, π /4 DQPSK, 8DPSK

• 2.4G Wi-Fi transmitter frequency range: 2412 − 2472MHz (2.4GHz ISM

Band, USA 11 Channels, Europe and others 13 Channels)

• 2.4G Wi-Fi transmitter power: <20dBm (EIRP)

• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,16QAM,

64QAM

•2.4G Wi-Fi network compatibility: IEEE 802.11b/g/n

• 5G Wi-Fi transmitter power: <18.5dBm

• 5G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,16QAM,

64QAM, 256QAM

• 5G Wi-Fi network compatibility: IEEE 802.11ac

• Network standby power <3W

• Nom de modèle : HK OMNI 10+

• Transducteurs : 1 x 90 mm graves, 1 x 35 mm aigus

• Puissance nominale : 1 x 25 W pour les graves, 1 x 25W pour les aigus

• Réponse en fréquence : 52~20 kHz (-6 dB)

• Rapport signal sur bruit : > 80 dB

• Connexions d'entrée : Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet por t

• Dimensions (L x P x H) : 181 mm x 159 mm x 166 mm

• Poids : 1333 g

• Alimentation : 19 VCC, 3,0 A

• Plage de fréquences de l'émetteur Bluetooth® : 2 402 − 2 480 MHz

• Puissance de l'émetteur Bluetooth® : 0-4 dBm

• Modulation de l'émetteur Bluetooth® : GFSK π/4 DQPSK 8DPSK

• Plage de fréquences de l'émetteur 2.4G Wi-Fi : 2 412 MHz ~ 2 472 MHz

(bande ISM 2,4 GHz, USA 11 canaux, Europe 13 canaux)

• Puissance de l'émetteur 2.4G Wi-Fi : < 20 dBm (ERIP)

• Modulation 2.4G Wi-Fi : OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM

• Compatibilité réseau 2.4G Wi-Fi : IEEE 802.11b/g/n

• Puissance de l'émetteur 5G Wi-Fi : < 18.5 dBm

• Modulation 5G Wi-Fi : OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM,

256QAM

• Compatibilité réseau 5G Wi-Fi : IEEE 802.11ac

• Network standby power<3W

FPO

ES P T

• Nombre del modelo: HK OMNI 10+

• Transductores: 1 woofer x 90 mm, 1 altavo

• Potencia de entrada nominal: 1 woofer x 25 W;

1 altavoz de agudos x 25 W

• Intervalo de frecuencias: 52 ~ 20 kHz (-6 dB)

• Relación señal-ruido: >80 dB

• Conexiones de entrada: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps

Ethernet port

FPO

• Dimensiones (Ancho x Alto x Pr

• Peso: 1.333g

• Alimentación: 19VDC, 3,0A

• Alcance de frecuencia del transmisor Bluetooth®: 2402 − 2480 MHz

• Potencia del transmisor Bluetooth®: 0-4 dBm

• Modulación del transmisor Bluetooth®: GFSK, π/4 DQPSK, 8DPSK

• Intervalo de frecuencias del transmisor Wi-Fi 2.4G: 2412 − 2472 MHz

(Banda ISM 2,4 GHz, 11 canales en USA, 13 canales en Europa y otros)

• Potencia del transmisor Wi-Fi 2.4G: <20 dBm (EIRP)

• Modulación Wi-Fi 2.4G: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM

• Compatibilidad de red Wi-Fi 2.4G: IEEE 802.11b/g/n

• Potencia del transmisor Wi-Fi 5G: <18.5 dBm

• Modulación Wi-Fi 5G: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM,

256QAM

• Compatibilidad de red Wi-Fi 5G: IEEE 802.11ac

• Network standby power<3W

DE IT

• Modellbezeichnung: HK OMNI 10+

• Signalumwandler: 1 x 90mm Tieftöner, 1 x 35mm Hochtöner

• Nennleistung: 1 x 25W für den Tieftöner, 1 x 25W für den Hochtöner

• Frequenzbereich: 52~20kHz (-6dB)

• R

• Eingangsverbindungen: Bluetooth®, Aux-in, WLAN, 10/100 Mbps

Ethernet port

• Abmessungen (B x

• Gewicht: 1333g

• Energieversorgung: 19 VDC, 3,0A

• Frequenzbereich für die Bluetooth®-Übertragung: 2402 – 2480MHz

• Bluetooth®-Übertragungsleistung: 0-4 dBm

• Bluetooth®-Übertragungsmodulation: GFSK, π/4 DQPSK, 8DPSK

• 2.4G WLAN-Übertragungsfrequenzbereich: 2412 − 2472MHz

(2.4GHz ISM-Band, USA 11 Kanäle, Europa und andere Länder 13 Kanäle)

• 2.4G WLAN-Über

• 2.4G WLAN-Modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM

• 2.4G WLAN-Netzwerkkompatibilität: IEEE 802.11b/g/n

• 5G WLAN-Übertragungsleistung: <18.5dBm

• 5G WLAN-M

16QAM, 64QAM, 256QAM

• 5G WLAN-Netzwerkkompatibilität: IEEE 802.11ac

• Network standby power<3W

FPO FPO

auschabstand: >80dB

T x H): 181mm x 159mm x 166mm

tragungsleistung: <20dBm (EIRP)

odulation: OFDM, DSSS, DBPSK, DQPSK, CCK,

FPO FPO

z de agudos x 35 mm

ofundidad): 181mm x 159mm x 166mm

• Nome do modelo: HK OMNI 10+

• Transdutores: 1 woofer de 90 mm e 1 tweeter de 35 mm

• Potêncianominal:1x25Wpara owoofere1x25Wpara otweeter

• Resposta de frequência: 52~20 kHz (-6 dB)

• Razão sinal-ruído: >80 dB

• Conexões de entrada: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port

• Dimensões (L x P x A): 181 mm x 159 mm x 166 mm

• Peso: 1333 g

e de alimentação: 19 VDC, 3,0 A

• Font

• Intervalo de fr

• Potência de transmissão Bluetooth®: 0-4 dBm

• Modulação da transmissão Bluetooth®: GFSK, π/4 DQPSK, 8DPSK

• Intervalo de frequência do transmissor Wi-Fi 2,4 G: 2412 − 2472 MHz

(banda ISM 2,4 GHz, 11 canais padrão EUA, Europa e outros 13 canais)

• Potência do transmissor Wi-Fi 2,4 G: <20 dBm (EIRP)

• Modulação Wi-Fi 2,4 G: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM

ompatibilidade de rede Wi-Fi 2,4 G: IEEE 802.11b/g/n

• C

• Potência do transmissor Wi-Fi 5 G: <18,5 dBm

• Modulação Wi-Fi 5 G: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM, 256QAM

• C

ompatibilidade de rede Wi-Fi 5 G: IEEE 802.11ac

• Network standby power<3W

• Nome Modello: HK OMNI 10+

• Trasduttori:1x90mmwoofer,1x35mmtweeter

• Pot

• Risposta in frequenza: 52~20kHz (-6dB)

• Rapporto segnale-rumore: >80dB

• Connessioni in ingresso: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps

Ethernet port

• Dimensioni (L x P x A): 181mm x 159mm x 166mm

• Peso: 1333g

• Alimentazione: 19VDC, 3.0A

• Gamma di frequenza trasmettitore Bluetooth®: 2402 − 2480MHz

• Potenza trasmettitore Bluetooth®: 0-4dBm

• Modulazione trasmettitore Bluetooth®: GFSK, π/4 DQPSK, 8DPSK

• Gamma di frequenza trasmettitore Wi-Fi 2.4G: 2412 − 2472MHz

(Banda 2.4GHz ISM, USA 11 Canali, Europa ed altri 13 Canali)

• Potenza trasmettitore Wi-Fi 2.4G: <20dBm (EIRP)

• Modulazione Wi-Fi 2.4G: OFDM, DSSS, DBPSK

16QAM, 64QAM

• Compatibilità network Wi-Fi 2.4G: IEEE 802.11b/g/n

• Potenza trasmettitore Wi-Fi 5G: <18.5dBm

• Modulazione Wi-Fi 5G: OFDM, DSSS, DBPSK

16QAM, 64QAM, 256QAM

• Compatibilità network Wi-Fi 5G: IEEE 802.11ac

• Network standby power<3W

equência de transmissão Bluetooth®: 2402 − 2480 MHz

enza nominale: 1 x 25W woofer; 1 x 25W tweeter

FPOFPO

,DQPSK,CCK,

FPO

NL NO

odelnaam: HK OMNI 10+

• M

• Transducers: 1 x 90mm woofer, 1 x 35mm tweeter

• Nominaal vermogen: 1 x 25W voor woofer; 1 x 25W voor tweeter

• Frequentiebereik: 52~20kHz (-6dB)

• Signaal-ruis-verhouding: >80dB

• Ingangen: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port

• Afmetingen (B x D x H): 181mm x 159mm x 166mm

• Gewicht: 1.333g

• Voeding: 19VDC, 3.0A

• Bluetooth® zendfrequentiebereik: 2402 − 2480MHz

• Bluetooth® zendvermogen: 0-4dBm

• Bluetooth® zendermodulatie: GFSK, π/4 DQPSK, 8DPSK

• 2.4G Wi-Fi zendfrequentiebereik: 2412 − 2472MHz (2.4GHz ISM Band,

USA 11 kanalen, Europa en andere 13 kanalen)

• 2.4G Wi-Fi zendvermogen: <20dBm (EIRP)

• 2.4G Wi-Fi modulatie: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM

• 2.4G Wi-Fi netwerk compatibiliteit: IEEE 802.11b/g/n

• 5G Wi-Fi zendvermogen: <18.5dBm

• 5G Wi-Fi modulatie: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM, 256QAM

• 5G Wi-Fi netwerk compatibiliteit: IEEE 802.11ac

• Network standby power<3W

FI RU

• Mallin nimi: HK OMNI 10+

• Muuntimet: 1 x 90 mm:n alibassokaiutin, 1 x 35 mm:n diskanttikaiutin

• Nimellisottoteho: 1 x 25 W alibassokaiuttimelle; 1 x 25 W diskanttikaiuttimelle

• Taajuusvaste: 52~20 kHz (-6 dB)

• Signaali-k

• Tuloliitännät: Bluetooth®, Aux-tulo,Wi-Fi, 10/100 Mbps Ethernet port

• Mitat (L x K x H): 181 mm x 159 mm x 166 mm

• Paino: 1 333 g

• Virransyöttö: 19 VDC, 3,0 A

• Bluetooth®-lähettimen taajuusalue: 2402 − 2480 MHz

• Bluetooth®-lähettimen teho: 0-4 dBm

• Bluetooth®-lähettimen modulaatio: GFSK, π/4 DQPSK, 8 DPSK

• 2,4 G Wi-Fi-lähettimen taajuusalue: 2412 − 2472 MHz (2,4 GHz ISM-kaista,

Yhdysvallat 11 kanavaa, Eurooppa ja muut 13 kanavaa)

• 2,4 G Wi-Fi-lähettimen teho: < 20 dBm (EIRP)

• 2,4 G Wi-Fi-modulaatio: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM

• 2,4 G Wi-Fi-verkon yhteensopivuus: IEEE 802.11b/g/n

• 5 G Wi-Fi-lähettimen teho: < 18.5 dBm

• 5 G Wi-Fi-modulaatio: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM, 256QAM

• 5 G Wi-Fi-verkon yhteensopivuus: IEEE 802.11ac

• Network standby power<3W

FPO FPO

ohina-suhde: >80 dB

FPO

• Modellnavn: HK OMNI 10+

• Signalomformere: 1 x 90 mm woofer, 1 x 35 mm tweeter

• Nominelleﬀekt:1x25Wforwoofer;1x25Wfortweeter

• Frekvensrespons: 52~20 kHz (-6 dB)

• Signal-til-lyd-ratio: >80 dB

• Innganger: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port

•

• Vekt: 1,333g

• Strømforsyning: 19 VDC, 3,0A

• Frekvensområde for Bluetooth®-sender: 2402 − 2480 MHz

• Strøm for Bluetooth®-sender: 0-4 dBm

• Modulasjon for Bluetooth®-sender: GFSK, π/4 DQPSK, 8DPSK

• 2,4G WiFi-frekvensområde for sender: 2412 – 2472 MHz (2,4 GHz

• Strøm for 2,4 G Wi-Fi-sender: <20 dBm (EIRP)

• 2,4 G Wi-Fi-modulasjon: OFDM, DSSS, DBPSK, DQPSK, CCK,

• 2,4 G Wi-Fi-nettverkskompatibilitet: IEEE 802.11 b/g/n

• Strøm for 5 G Wi-Fi-sender: <18.5 dBm

• 5GWi-F

• 5 G Wi-Fi-nettverkskompatibilitet: IEEE 802.11 ac

• Network standby power<3W

• Название модели: HK OMNI 10+

• Преобразователи: 1 низкочастотный динамик 90 мм,

• Номинальная мощность: 1 x 25 Вт для низкочастотного динамика;

• Частотная характеристика: 52~20 КГц (-6 дБ)

• Отношение "сигнал-шум": >80 дБ

• Входные соединения: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet por t

• Габарит

• Вес: 1333 г

• Источник питания: 19 В постоянного тока, 3,0A

• Частотный диапазон передатчика Bluetooth®: 2402 – 2480 МГц

• Мощность передатчика Bluetooth®: макс. 0-4 дБ/мВт

• Модуляция передатчика Bluetooth®: гаусс. част. модул., π/4 относ.

• Частотный диапазон передатчика 2.4G Wi-Fi: 2412 − 2472 МГц

• Мощность передатчика 2.4G Wi-Fi: <20 дБ/мВт (ERIP)

• Модуляция 2.4G Wi-Fi: OFDM, DSSS, DBPSK, DQPSK, CCK,

• Сетевой стандарт 2.4G Wi-Fi: IEEE 802.11b/g/n

• Мощность передатчика 5G Wi-Fi: <18.5 дБ/мВт

• Модуляция 5G Wi-Fi: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM,

• Сетевой стандарт 5G Wi-Fi: IEEE 802.11ac

• Network standby power<3W

Dimensjoner (L x B x H): 181mm x 159mm x 166mm

ISM-bånd, USA 11 kanaler, Europa og andre 13 kanaler)

16QAM, 64QAM

i-modulasjon: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM, 256QAM

1 высокочастотный динамик 35 мм

1 x 25 Вт для высокочастотного динамика

ы(ДxШxВ):181ммx159ммx166мм

квадрат. фаз. модул., относ. восьмер. фаз. модул.

(2,4 ГГц диапазона ISM, США 11 каналов, Европа и другие страны 13 каналов)

16QAM, 64QAM

64QAM, 256QAM

FPOFPO

FPO

SV DA

• Modellnamn: HK OMNI 10+

• Högtalarelement: 1 x 90 mm woofer, 1 x 35 mm diskant

• Klassad eﬀekt: 1 x 25 W för woofer; 1 x 25W för diskant

• Frekvensomfång: 52 Hz~20 kHz (-6 dB)

• Signal-brus-förhållande: >80 dB

• Ingångar: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port

•

Dimensioner (B x D x H): 181 x 159 x 166 mm

• Vikt: 1 333 g

• Strömförsörjning: 19 V DC, 3,0 A

• Bluetooth®-sändarens frekvensomfång: 2 402 − 2 480 GHz

• Bluetooth®-sändarens eﬀekt: 0-4 dBm

• Bluetooth®-sändarens modulering: GFSK, π/4 DQPSK, 8DPSK

• 2,4 G Wi-Fi-sändarens frekvensomfång: 2 412 MHz~2 472 MHz

(2,4 GHz ISM-band, USA 11-kanaler, Europa 13-kanaler)

• 2,4 G Wi-Fi-sändarens eﬀekt: < 20 dBm (ERIP)

• 2,4 G Wi-Fi-modulering: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM

• 2,4 G Wi-Fi nätverkskompatibilit

• 5 G Wi-Fi-sändarens eﬀekt: < 18.5 dBm

• 5 G Wi-Fi-modulering: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM, 256QAM

• 5 G Wi-Fi nätverkskompatibilitet: IEEE 802.11ac

• Network standby power<3W

JP KO

• モデル名：HK OMNI 10+

• トランスデューサー：1 x 90mmウーファー、1 x 35mmツイーター

• 定格出力：ウーファー用 1 x 25W;ツイーター用 1 x 25W

• 周波数特性：52〜20kHz (-6dB)

• S/N比：80dB以下

• 入力接続：Bluetooth®、Aux端子、Wi-Fi、

• 寸法（幅x奥行x高さ）：181mm x 159mm x 166mm

• 重量：1333g

• 電源：直流19V、3.0A

• Bluetooth®対応トランスミッター周波数帯域：2402〜2480MHz

• Bluetooth®対応トランスミッター出力：0-4dBm以上

• Bluetooth®対応トランスミッター変調：GFSK、π/4 DQPSK、8DPSK

• 2.4G WiFiトランスミッター周波数帯域：2412〜2472MH z

(2.4GHz ISMバンド、USA 11チャンネル、 Europeとその他の地域 13チャンネル)

• 2.4G WiFiトランスミッター出力：20dBm(EIRP)以上

• 2.4G WiFi変調：OFDM、DSSS、DBPSK、DQPSK、CCK、16QAM、64QAM

• 2.4G WiFiネットワークへの互換性：IEEE 802.11b/g/n

• 5G WiFiトランスミッター出力：18.5dBm以上

• 5G WiFi変調：OFDM、DSSS、DBPSK、DQPSK、CCK、16QAM、

64QAM, 256QAM

• 5G WiFiネットワークへの互換性：IEEE 802.11ac

• Network standby power<3W

FPO

et: IEEE 802.11b/g/n

10/100 Mbps Ethernet port

FPO

• Modelnavn: HK OMNI 10+

• Transducere: 1 x 90 mm woofer, 1 x 35 mm tweeter

• Nominel eﬀekt: 1 x 25 W for woofer; 1 x 25W for tweeter

• Frekvensområde: 52 ~ 20 kHz (-6 dB)

• Signal til støj-forhold: >80 dB

• Indgangstilslutninger: Bluetooth®, Aux-indgang, Wi-Fi, 10/100 Mbps

• M

• Vægt: 1,333g

• Strømforsyning: 19 V DC, 3.0A

• Frekvensområde for Bluetooth®-sender: 2402 − 2480 MHz

• Bluetooth®-sendereﬀekt: 0-4 dBm

• Bluetooth®-sendemodulation: GFSK, π/4 DQPSK, 8DPSK

• Frekvensområde for 2,4 G Wi-Fi-sender: 2.412 − 2.472 MHz

• 2,4 G Wi-Fi-sendereﬀekt: <20 dBm (EIRP)

• 2,4 G Wi-Fi-modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,

• 2,4 G Wi-Fi-netværkskompatibilit

• 5 G Wi-Fi-sendereﬀekt: <18,5 dBm

• 5GWi-F

• 5 G Wi-Fi-netværkskompatibilitet: IEEE 802.11ac

• Network standby power<3W

• 모델명: HK OMNI 10+

• 변환기: 1 x 90mm 우퍼, 1 x 35mm 트위터

• 정격 전력: 우퍼용 1 x 25W, 트위터용1x25W

• 주파수 응답: 52~20kHz (-6dB)

• 신호 대 잡음비:>80dB

• 입력 연결: 블루투스®, 보조 입력, Wi-Fi, 10/100 Mbps Ethernet port

• 치수(너비 x 깊이 x 높이): 181mm x 159mm x 166mm

• 중량: 1333g

• 전원 공급 장치: 19VDC, 3.0A

• 블루투스® 송신기 주파수 범위: 2402 ~ 2480MHz

• 블루투스® 송신기 출력

• 블루투스® 송신기 변조: GFSK, π/4 DQPSK, 8DPSK

• 2.4G Wi-Fi 송신기 주파수 범위: 2412 ~ 2472MHz (2.4GHz ISM 밴드,

• 2.4G Wi-Fi 송신기 출력: <20dBm(EIRP)

• 2.4G Wi-Fi 변조: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM

• 2.4G Wi-Fi 네트워크 호환성: IEEE 802.11b/g/n

• 5G Wi-Fi 송신기 출력: <18.5dBm

• 5G Wi-Fi 변조: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM,

• 5G Wi-Fi 네트워크 호환성: IEEE 802.11ac

• Network standby power<3W

Ethernet port

FPO

ål (B x D x H): 181mm x 159mm x 166mm

(2,4 GHz ISM-bånd, USA:11 kanaler, Europa og andre lande: 13 kanaler)

16QAM, 64QAM

i-modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,

16QAM, 64QAM, 256QAM

et: IEEE 802.11b/g/n

FPO

: 0-4dBm

미국 11 채널, 유럽 및 기타 지역 13 채널)

64QAM, 256QAM

FPO

CHS CHT

• 型号名称：HK OMNI 10+

• 换能器：1 个 90mm 低音扬声器, 1 个 35mm 高音扬声器

• 额定功率：低音扬声器, 1 个, 25W；高音扬声器, 1 个, 25W

• 频率响应：52~20kHz (-6dB)

• 信噪比：>80dB

• 输入连接：Bluetooth®、辅助输入、Wi-Fi、10/100 Mbps Ethernet port

• 尺寸（宽 x 长 x 高）：181mm x 159mm x 166mm

• 重量：1333g

• 电源：19VDC，3.0A

• Bluetooth® 发射器频率范围：2402 − 2480MHz

• Bluetooth® 发射器功率：0-4dBm

• Bluetooth® 发射器调制：GFSK, π/4 DQPSK, 8DPSK

• 2.4G Wi-Fi 发射器频率范围：2412 − 2472MHz（2.4GHz ISM 频带,

美国 11 个频道, 欧洲和其他国家/地区 13 个频道）

• 2.4G Wi-Fi 发射器功率：<20dBm (EIRP)

• 2.4G Wi-Fi 调制：OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM

• 2.4G Wi-Fi 网络兼容性：IEEE 802.11b/g/n

• 5G Wi-Fi 发射器功率：<18.5dBm

• 5G Wi-Fi 调制：OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM,

64QAM, 256QAM

• 5G Wi-Fi 网络兼容性：IEEE 802.11ac

• Network standby power<3W

• Nama Model: HK OMNI 10+

• Transduser:1x90mmwoofer,1x35mmtweeter

• Nilai daya: 1 x 25W untuk woofer; 1 x 25W untuk tweeter

• Respons frekuensi: 52~20kHz (-6dB)

• Rasio sinyal-ke-bunyi: >80dB

• Input koneksi: Bluetooth®, Aux-in, Wi-Fi, 10/100 Mbps Ethernet port

• Dimensi (W x D x H): 181mm x 159mm x 166mm

• Berat: 1333g

• Catu daya: 19VDC, 3.0A

• Rentang frekuensi pemancar Bluetooth®: 2402 − 2480MHz

• Daya pemancar Bluetooth®: 0-4dBm

• Modulasi pemancar Bluetooth®: GFSK, π/4 DQPSK, 8DPSK

• Rentang frekuensi pemancar 2.4G Wi-Fi: 2412 − 2472MHz

(2.4GHz ISM Band, USA 11 Kanal, Eropa dan 13 Kanal lain)

• Daya pemancar 2.4G Wi-Fi: <20dBm (EIRP)

• Modulasi 2.4G Wi-Fi: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM

• Kompatibilitas jaringan 2.4G Wi-Fi: IEEE 802.11b/g/n

• Daya pemancar 5G Wi-Fi: <18.5dBm

• Modulasi 5G Wi-Fi: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM,

64QAM, 256QAM

• Kompatibilitas jaringan 5G Wi-Fi: IEEE 802.11ac

• Network standby power<3W

FPO

• 型號名稱：HK OMNI 10+

• 轉換器：1x90mm 低音喇叭, 1x35mm 高音喇叭

• 額定功率：低音喇叭, 1x25W；高音喇叭, 1x25W

• 頻率回應：52~20kHz (-6dB)

• 雜訊比：>80dB

• 輸入連接：Bluetooth®、Aux 輸入、Wi-Fi、

• 尺寸（寬 x 深 x 高）：181mm x 159mm x 166mm

• 重量：1333 克

• 電源：19VDC，3.0A

• Bluetooth® 發射機頻率範圍：2402 − 2480MHz

• Bluetooth® 發射機功率：0-4dBm

• Bluetooth® 發射機調變：GFSK、π/4 DQPSK、8DPSK

• 2.4GWi-Fi 發射機頻率範圍：2412 − 2472MHz（2.4GHz ISM 頻帶、

• 2.4GWi-Fi 發射機功率：<20dBm (EIRP)

• 2.4GWi-Fi 調變：OFDM、DSSS、DBPSK、DQPSK、CCK 、

16QAM、64QAM

• 2.4GWi-Fi 網路相容性：IEEE 802.11b/g/n

• 5GWi-Fi 發射機功率：<18.5dBm

• 5GWi-Fi 調變：OFDM、DSSS、DBPSK、DQPSK、CCK、

16QAM、64QAM, 256QAM

• 5GWi-Fi 網路相容性：IEEE 802.11ac

• Network standby power<3W

美國 11 個頻道、歐洲和其他 13 個頻道）

FPO

10/100 Mbps Ethernet port

FPO

Торговая марка : harman/kardon Назначение товара : АКТИВНАЯ АКУСТИЧЕСКАЯ СИСТЕМА Изготовитель : ХАРМАН ИНТЕРНЕШНЛ ИНДАС ТРИЗ ИНКОРПОРЕЙТЕ Д, США, 06901 КОННЕКТИКУТ,

Страна происхождения : Китай Импортер в Россию : OOO “ХАРМАН РУС СиАйЭс“, РОССИЯ, 127018, г.МОСКВА, УЛ. ДВИНЦЕВ, Д.12, КОРПУС 1 Гарантийный период : 1 год Информация о сервисных центрах : www.harman.com/ru тел. +7-800-700-0467 Срок службы : 5 лет Срок хранения : не ограничен Условия хранения : Cтандартные при нормальных значениях климатических факторов внешней среды Номер документа соответствия : Товар сертифицирован Дата производства : Дата изготовления устройства определяется по двум буквенным обозначениям из второй группы

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

This Mark Certiﬁes that this product is compliant with the BLACKFIRE ALLIANCE Standard. Please refer to WWW.BLACKFIREALLIANCE.COM for more information. BLACKFIRE RESEARCH™ is a Registered Trademark (No. 3,898,359) of BLACKFIRE RESEARCH CORP. All rights reserved.

The Wi-Fi CERTIFIED Logo is a certiﬁcation mark of the Wi-Fi Alliance.

The Wi-Fi Protected Setup Identiﬁer Mark is a mark of the Wi-Fi Alliance.

“Made for iPod,”“Made for iPhone,” and “Made for iPad”mean that an electronic accessory has been designed to connect speciﬁcally to iPod, iPhone, or iPad, respectively, and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may aﬀect wireless performance.

AirPlay, iPad, iPhone, iPod, iPod classic, iPod nano, iPod touch, and Retina are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air, iPad mini, and Lightning are trademarks of Apple Inc. In Japan,The trademark“iPhone” is used with a license from Aiphone K.K

г.СТЭМФОРД, АТЛАНТИК СТРИТ 400, ОФИС 1500

символов серийного номера изделия, следующих после разделительного знака «-». Кодировка соответствует порядку букв латинского алфавита, начиная с января 2010 года: 000000-MY0000000, где «M» - месяц производства (А - январь, B - февраль, C - март и т.д.) и «Y» - год производства (A - 2010, B - 2011, C - 2012 и т.д.).

IC Caution: User should also be advised that: (i) the device for operation in the band 5150 - 5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250 - 5350 MHz and 5470 - 5725 MHz shall comply with the e.i.r.p. limit: and (iii) the maximum antenna gain permitted for devices in the band 5725 - 5825 MHz shall comply with the e.i.r.p. limits speciﬁed forpoint-to-point and non point-to-point operation as appropriate. (iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250 - 5350 MHz and 5650 - 5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Les utilisateurs devraient aussi être avisés que (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur aﬁn de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.; (iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se conformer à la limite de p.i.r.e. spéciﬁée pour l’exploitation point à point et non point à point, selon le cas.De plus, les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ilsont la prior ité) pourl es bandes5 250-5 350 MHz et 5 650-5 850 MH z et que ces radars pourrai ent causer du brouillage et/ou des dommages aux dispositifs LAN-EL.

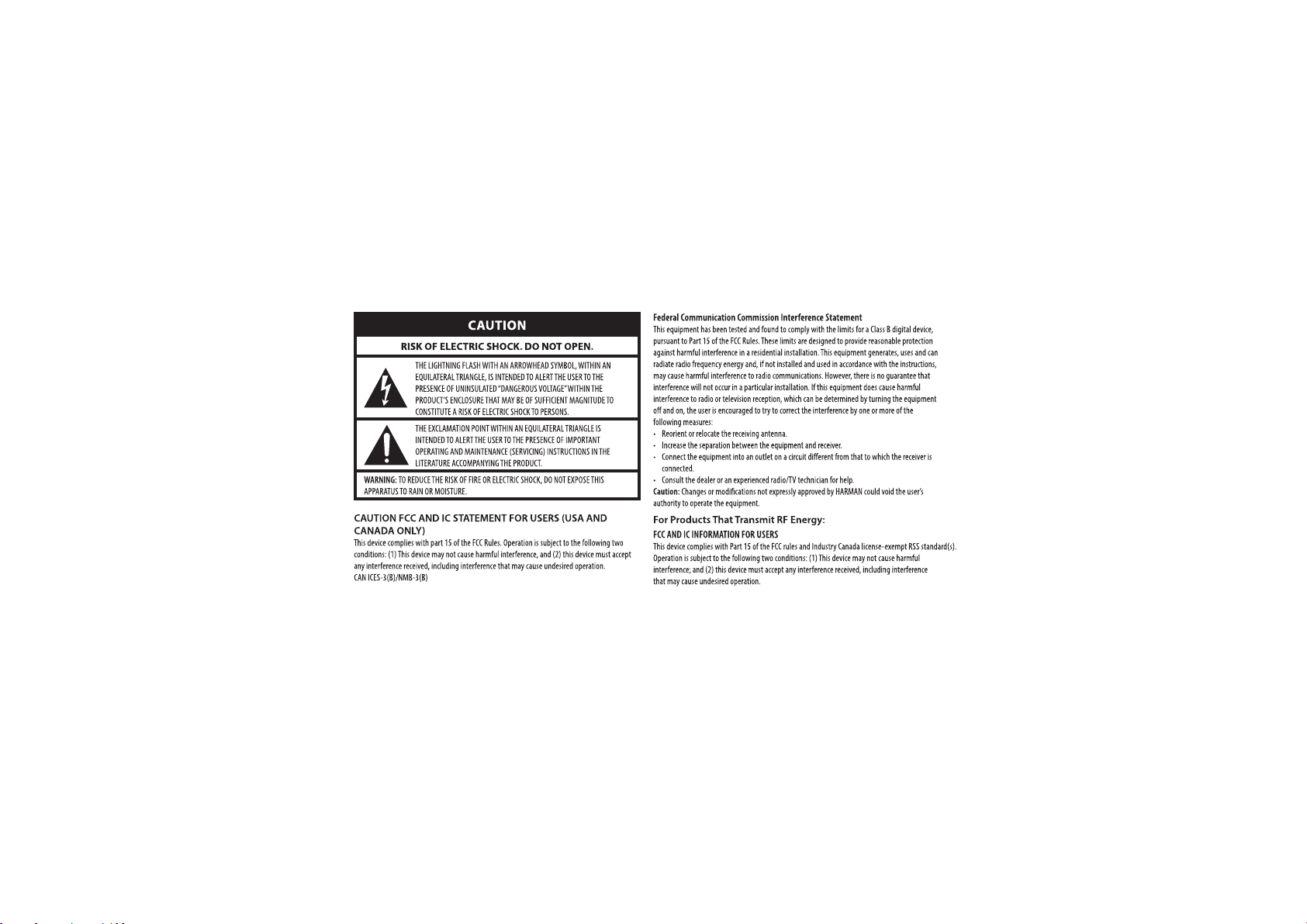

Warning: Changes or modiﬁcations to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment oﬀ and on, the user is encouraged to try to correct the interference by one or more of the following measures: º Reorient or relocate the receiving antenna. º Increase the separation between the equipment and receiver. º Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is connected. º Consult the dealer or an experienced radio/T V technician forhelp.

High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. No conﬁguration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCCgrant of authorization for US operation according to Part

15.407 of the FCC rules. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. No

conﬁguration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCCgrant of authorization for US operation according to Part

15.407 of the FCC rules. “FCC RF Radiation Exposure Statement Caution: Tomaintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.” Use Restriction Attention In France, operation is limited to indoor use within the band 5150-5350 MHz.

해당무선설비는전파혼신가능성이있으므로인명안전과관련된서비스는할수없음

TR01526_A

0560

RESTRICTED

DESIGN ADAPTATION / IMAGE / FINAL ART

TR & Job No:

Job Description:

TR01526 TR01526_HK_Omni_10+_QSG_A

Version :

9 2016-05-25

Date:

Other:

N/A

EQUITY COLORS:

REPRESENTATION:

LTHCyan LTHMagenta LTHYellow LTHBlack

IMPORTANT NOTE : THE PRINT/PDF IS FOR LAYOUT AND TEXT ILLUSTRATION ONLY. THE COLOURS INDICATED HERE MAY NOT APPEAR SAME IN THE FINAL PROOF. ALTHOUGH EVERY EFFORT HAS BEEN MADE TO CHECK THE CORRECTION OF LAYOUT AND TEXT. IT IS CLIENT RESPONSIBILITY TO VERIFY BEFORE GIVING THE FINAL APPROVAL.

MNR1/MNR2/MNR3/MNR4/EDI05/EDI06/EDI07/UK08/UK09

Developed by

+ 7 hidden pages
