Harman EON615 User Manual

User’s Guide

CONTENTS

Safety Instructions .....................................................................................................................................4

Declaration Of Conformity ......................................................................................................................... 5

Quick Setup Guide ......................................................................................................................................6

Overview - EON Family ...............................................................................................................................8

EON Family - Block Diagram ......................................................................................................................9

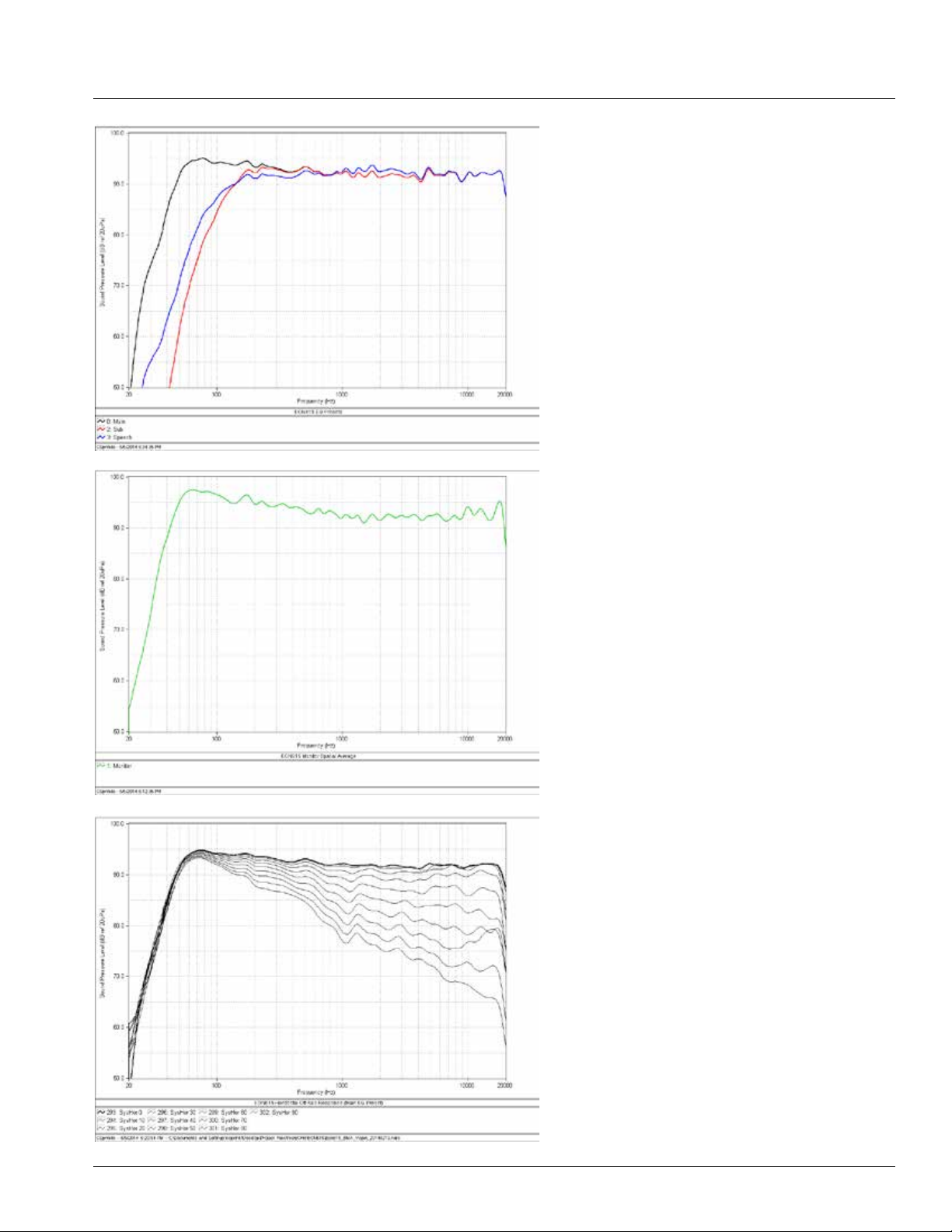

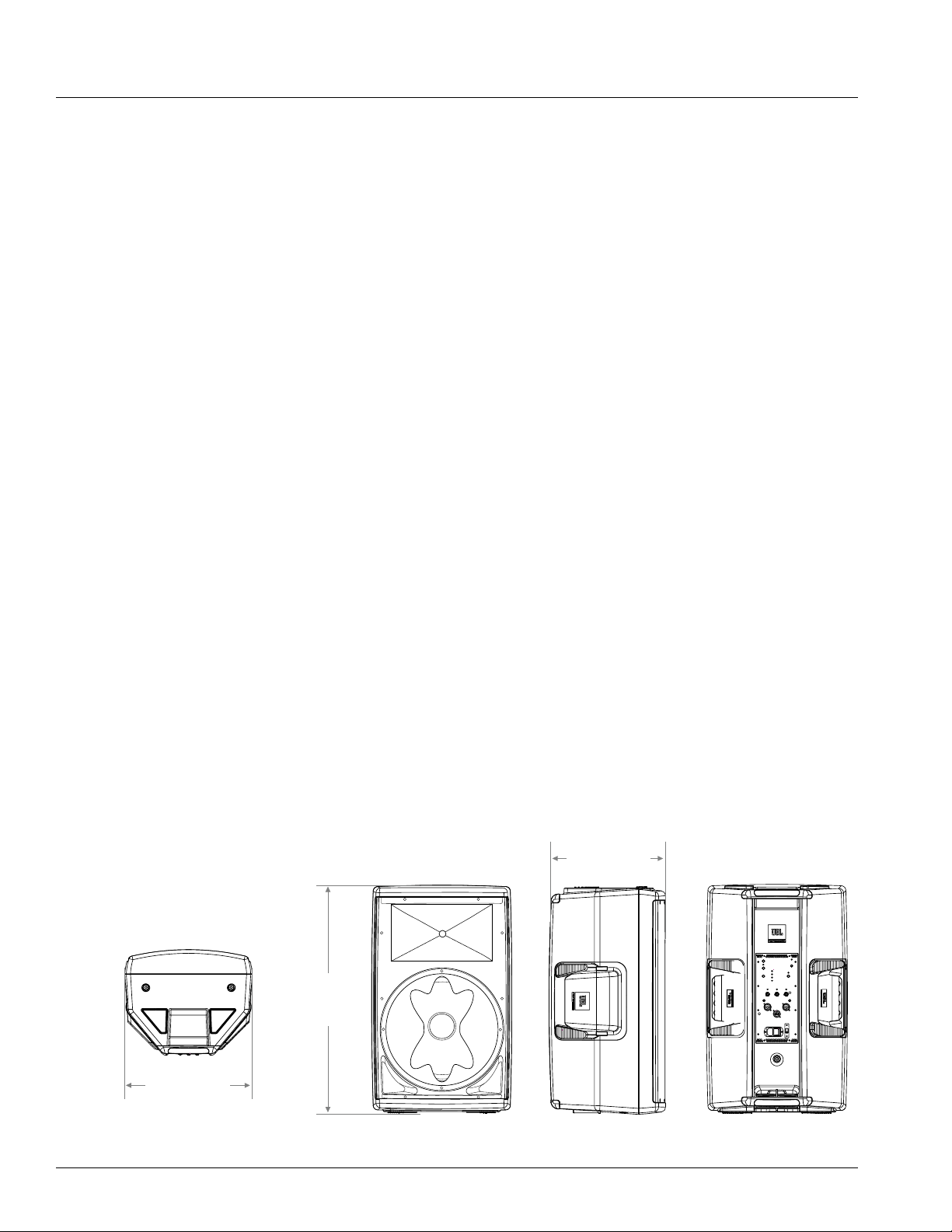

EON615 Speciﬁcations ............................................................................................................................10

Coverage .................................................................................................................................................. 12

Purposeful Product Design.......................................................................................................................13

Back Panel ................................................................................................................................................14

Loudspeaker Placement and Suspension ...............................................................................................16

Application Examples .............................................................................................................................. 17

Trouble Shooting ....................................................................................................................................... 20

Warranty Information .............................................................................................................................. 21

Contact Information ................................................................................................................................. 22

SAFETY INSTRUCTIONS

Before You Begin - Important Information

Before using your EON® speaker system please review the following for important information on safety and protection of your investment in quality loudspeakers.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where

they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Service Instruction in Owner’s Manual: “CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE

PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.”

16. To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug from

the AC receptacle.

17. “WARNING – TO REDUCE THE RISK OF FIRE OR ELECTRIC – SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN

OR MOISTURE.”

18. Do not expose this equipment to dripping or splashing and ensure that no objects ﬁlled with liquids, such as vases, are

placed on the equipment.

19. The mains plug of the power supply cord shall remain readily operable.

DECLARATION OF CONFORMITY

Safety And EMC Compliance Speciﬁcations

EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions EN 55103-1:1997 Magnetic Field Emissions-Annex A@ 10 cm and 20 cm EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits; Conducted, Class A EN 55103-2:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity EN 61000-4-2: A2:2001 Electrostatic Discharge Immunity (Environment E2-criteria B, 4 kV Contact, 8 kV Air discharge) EN 61000-4-3:2003 Radiated, Radio-frequency, Electromagnetic Immunity (Environment E2, criteria A) EN61000-4-4:2005 Electrical Fast Transient/Burst Immunity (criteria B) EN 61000-4-5:2001 Surge Immunity (criteria B) EN 61000-4-6:1996 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (criteria A) EN 61000-4-11:2004 Voltage Dips, Short Interruptions and Voltage Variation UL 6500 2nd Edition 1999 Audio/Video and Musical Instruments Apparatus for Household, Commercial, and Similar General Use IEC 60065_2001 / EN 60065_2002 + A1:2006 + A11:2008

UL Compliance Speciﬁcations

UL 60065 7th Ed. CAN/CSA 22.2 No.60065_2003

FCC Statement IC Warning

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

2. Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

1. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

2. Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.”

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

QUICK SETUP GUIDE

Congratulations on your purchase of JBL Professional EON600 Series loudspeakers! We know you are anxious to get up and running as fast as possible, which is why you are reading this section. The following will help you get set up as soon as possible.

Packaging Contents

Your EON600 system should include the following: 1 x EON600 speaker 1 x 10'(3m) IEC Power Cable 1 x Quick Start Guide

Unbox it

Open the top of the box. Turn box upside down, then lift box up to reveal speaker.Lay box on its side.

Conﬁguration Options

3 4

Floor Standing Monitor Position Pole Mounted Suspended

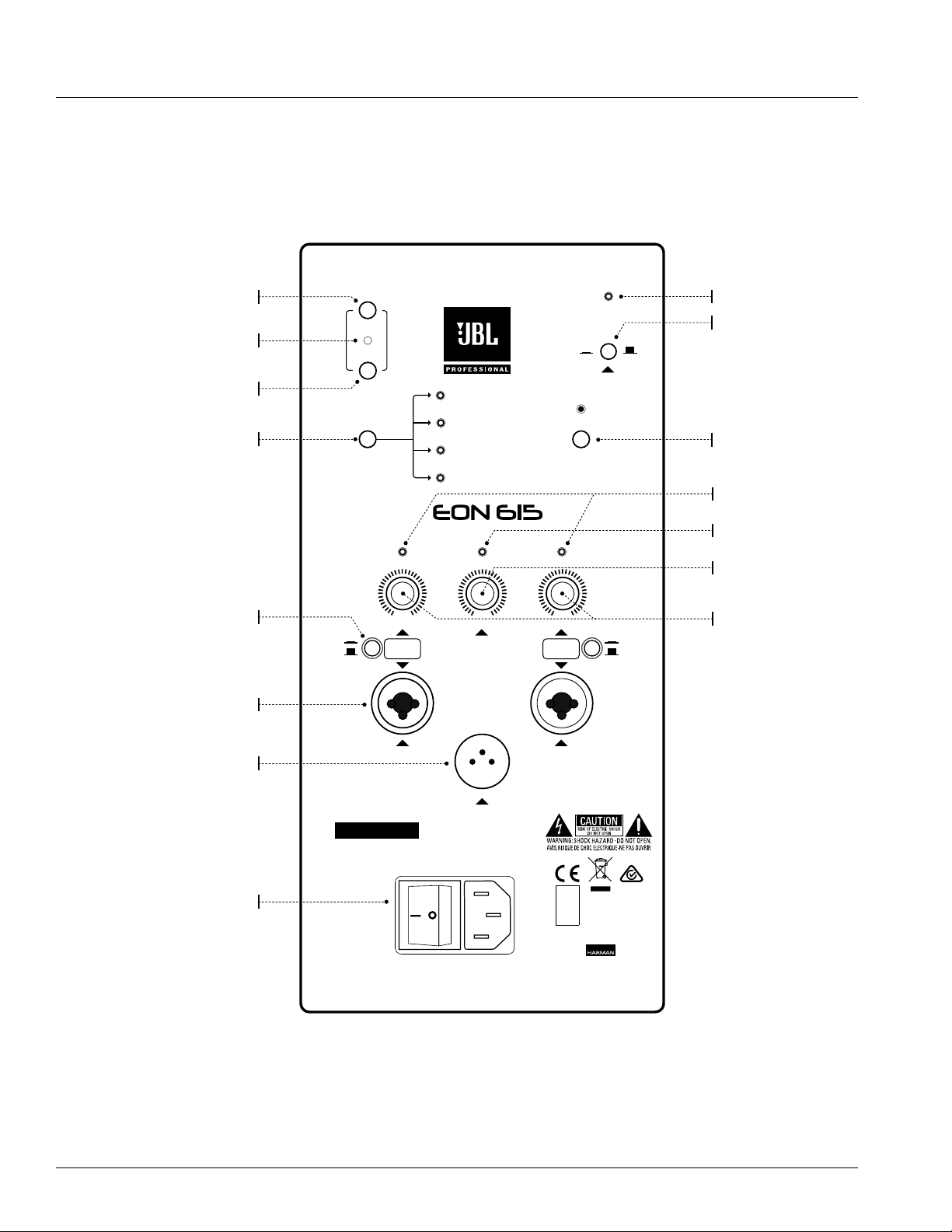

QUICK SETUP GUIDE

Bluetooth Sync

Bluetooth Boot

EQ Presets

Mic/Line Button

XLR-1/4” Combo Inputs

XLR Male Loop Thru

Power Switch

BLUETOOTH

SYNC

BOOT

PRESETS

MAIN

MONITOR

SUB

SPEECH

POWER

ON OFF

FRONT LED

EQ +

Front LED On/Off

Power Button

EQ+ On/Off

EON 615

LIMITSIGNAL SIGNAL

GAIN

MIC

LINE

MODEL: EON615

SERIAL NO:

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

430W Max

100-120VAC 50/60Hz 230-240VAC 50/60Hz

FUSE TYPE: T3.15L250V FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE FUSE ONLY WITH SAME TYPE OF RATING.

MASTER

CH1 CH2

VOLUME

IN 1

THRU

GAIN

IN 2

JBL PROFESSIONAL

NORTHRIDGE, CA. USA

A HARMAN INTERNATIONAL COM PANY

DESIGNED AND ENGINEERED IN THE USA

Made in Mexico

MIC

LINE

CH1 & CH2 Gain

Limit LED

Master Volume

POWER IT ON

1. Conﬁrm the Power Button (I) is in the OFF position.

2. Connect the supplied power cord to the power receptacle on

the rear of the speaker.

3. Connect the power cord to an available power outlet.

4. Flip on the Power Switch (G) and press the Power Button (I) to

ON position, the White Power LED (H) on back and front of the speaker will illuminate

PLUG IN THE INPUTS

1. Turn Channel Gain Controls (K) and Master Volume

Control (M) all the way to the left before connecting any inputs

2. Connect XLR or TRS cable from audio source to CH1

or CH2 inputs (E)

3. Select Mic or Line via the Mic/Line Button (D)

SET OUTPUT LEVEL

1. Using the EQ Preset (C) button, select the appropriate

preset to match your application

2. Set the gain level for the input using the Channel Gain

(K) controls. A good starting point is to set the pot at 12 o’clock .

3. Slowly turn Master Volume (M) to the right until the

desired volume is reached.

OVERVIEW - EON FAMILY

COMING SOON

10" Two-way multipurpose self-powered sound reinforcement

• 1000 Watt

• 26 lbs. / 11.79 kg

• 110° H / 60° V Coverage

12" Two-way multipurpose self-powered sound reinforcement

• 1000 Watt

• 33 lbs. / 14.96 kg

• 100° H / 60° V Coverage

15" Two-way multipurpose self-powered sound reinforcement

• 1000 Watt

• 39 lbs. / 17.69 kg

• 90° H / 60° V Coverage

Thank you for purchasing the new JBL EON!

More than just another great JBL sound system, the new EON600 is a true step forward in technology developed speciﬁcally to

deliver the best sound possible regardless of its application. Completely rethinking how truly good an affordable self-contained,

portable PA system can be, JBL engineers purposely designed and built the EON600 from the ground up featuring JBL’s

advanced waveguide technology, JBL designed and manufactured transducers, and convenient, wireless remote control of its

onboard DSP EQ parameters via Bluetooth.

This total redesign of the EON platform leverages the latest technologies in cabinet materials, acoustic science, transducer

design and user friendliness that delivers the extraordinary quality of a high-end studio monitor in a fully professional, highly

ﬂexible, easy to use, portable system for today’s working musicians and sound providers.

With proper care your EON Series speakers should provide you with many years of ﬂawless performance, and are ﬂexible

enough to be a part of your sound reinforcement system even as it grows in scope.
