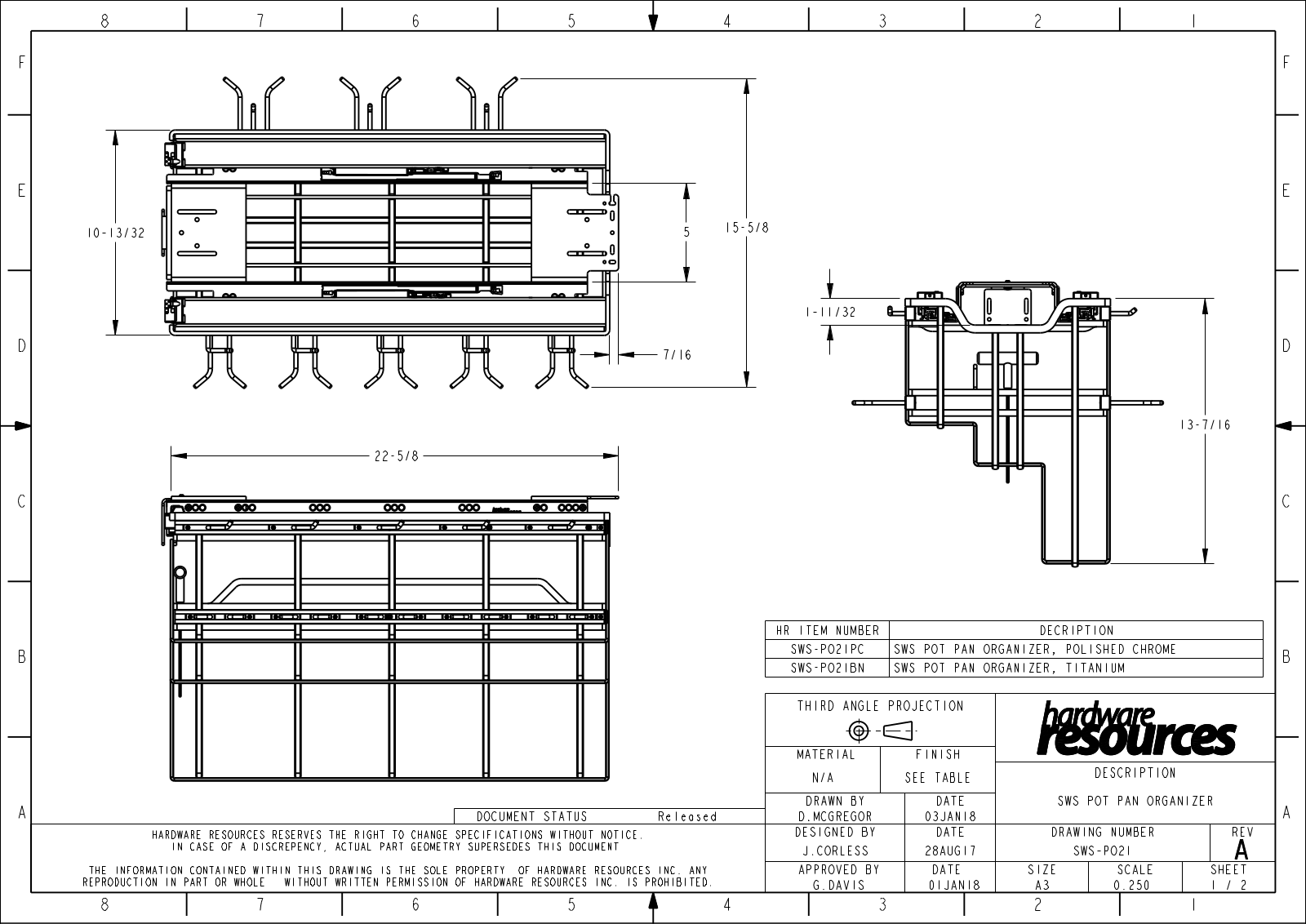

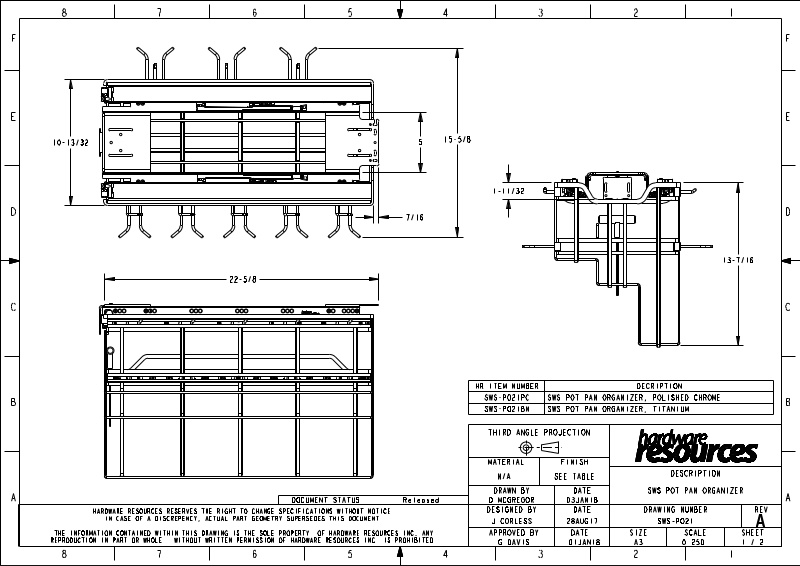

10-13/32
22-5/8
7/16
5
15-5/8
1-11/32
13-7/16
DOCUMENT STATUS Released
HARDWARE RESOURCES RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.
IN CASE OF A DISCREPENCY, ACTUAL PART GEOMETRY SUPERSEDES THIS DOCUMENT.
THE INFORMATION CONTAINED WITHIN THIS DRAWING IS THE SOLE PROPERTY OF HARDWARE RESOURCES INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN PERMISSION OF HARDWARE RESOURCES INC. IS PROHIBITED.
HR ITEM NUMBER DECRIPTION
SWS-PO21PC SWS POT PAN ORGANIZER, POLISHED CHROME
SWS-PO21BN SWS POT PAN ORGANIZER, TITANIUM
THIRD ANGLE PROJECTION
MATERIAL FINISH
N/A SEE TABLE
SWS POT PAN ORGANIZERDRAWN BY DATE
D.MCGREGOR 03JAN18
DESIGNED BY DATE DRAWING NUMBER REV
J.CORLESS 28AUG17 SWS-PO21
APPROVED BY DATE SIZE SCALE SHEET
G.DAVIS 01JAN18 A3 0.250 1 / 2

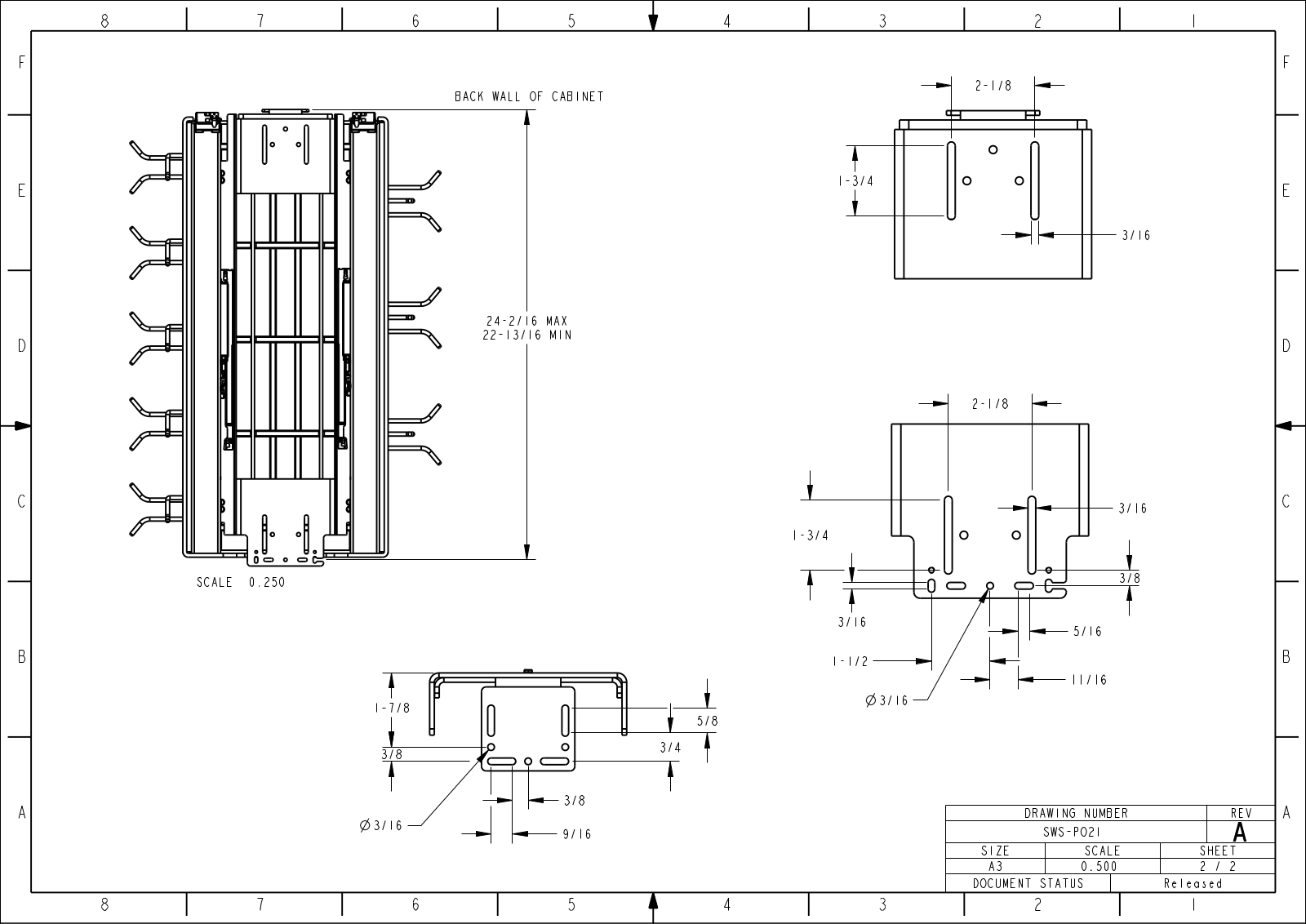

DESCRIPTION
A
BACK WALL OF CABINET
24-2/16 MAX
MIN22-13/16
2-1/8
1-3/4
3/16
2-1/8
SCALE 0.250
1-7/8
3/8
3/16
3/8
9/16
3/4
5/8
1-3/4
3/16
1-1/2
3/16
3/16
3/8
5/16
11/16
DRAWING NUMBER REV
SWS-PO21
SIZE SCALE SHEET
A3 0.500 2 / 2
DOCUMENT STATUS Released
A
