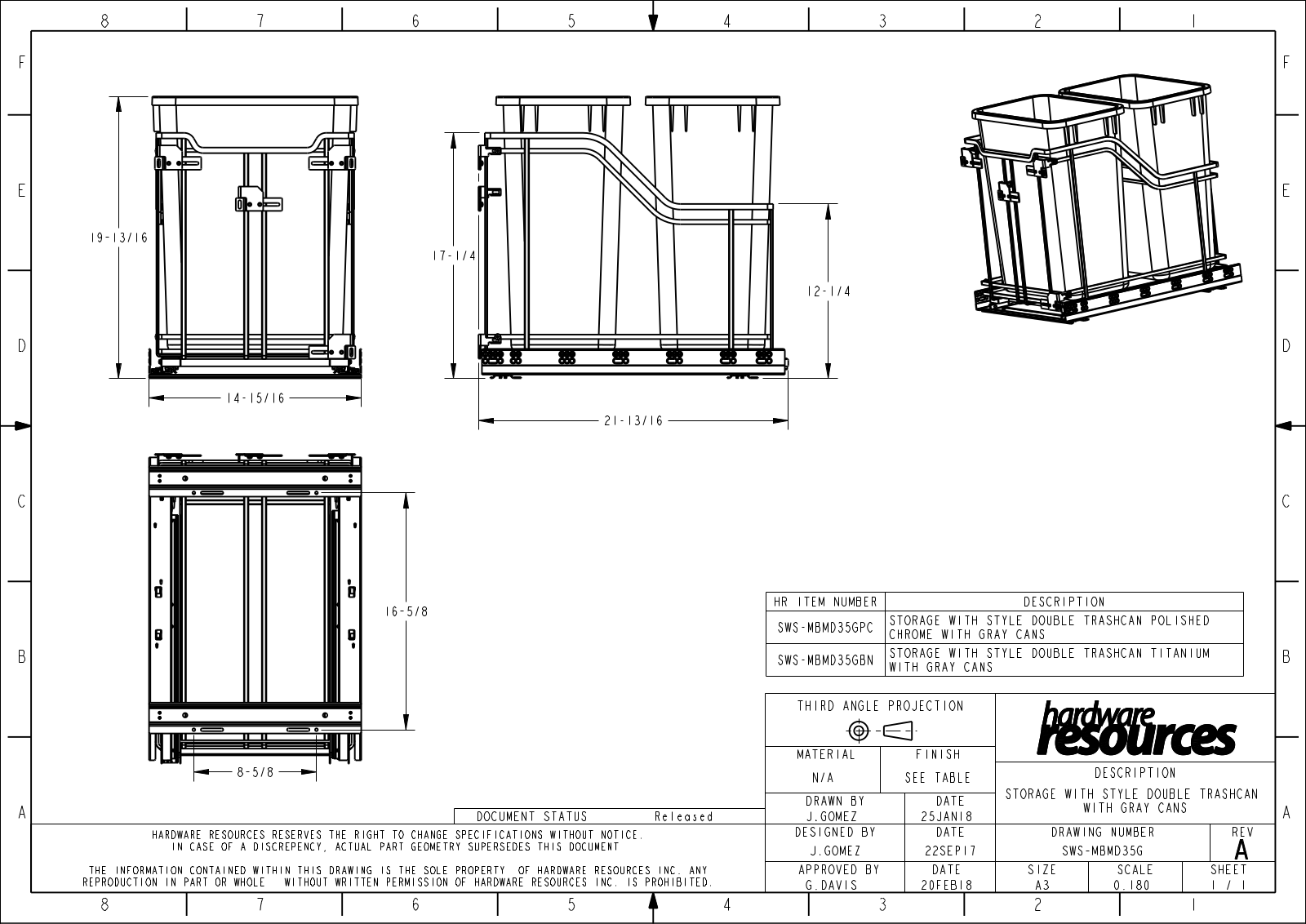

Page 1
19-13/16
17-1/4
12-1/4
14-15/16
21-13/16
16-5/8
8-5/8
DOCUMENT STATUS Released
HARDWARE RESOURCES RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.
IN CASE OF A DISCREPENCY, ACTUAL PART GEOMETRY SUPERSEDES THIS DOCUMENT.
THE INFORMATION CONTAINED WITHIN THIS DRAWING IS THE SOLE PROPERTY OF HARDWARE RESOURCES INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN PERMISSION OF HARDWARE RESOURCES INC. IS PROHIBITED.
HR ITEM NUMBER DESCRIPTION
SWS-MBMD35GPC
SWS-MBMD35GBN
STORAGE WITH STYLE DOUBLE TRASHCAN POLISHED
CHROME WITH GRAY CANS
STORAGE WITH STYLE DOUBLE TRASHCAN TITANIUM
WITH GRAY CANS
THIRD ANGLE PROJECTION
MATERIAL FINISH
N/A SEE TABLE
DRAWN BY DATE
J.GOMEZ 25JAN18
DESIGNED BY DATE DRAWING NUMBER REV
J.GOMEZ 22SEP17 SWS-MBMD35G
APPROVED BY DATE SIZE SCALE SHEET
G.DAVIS 20FEB18 A3 0.180 1 / 1
STORAGE WITH STYLE DOUBLE TRASHCAN
DESCRIPTION
WITH GRAY CANS
A
