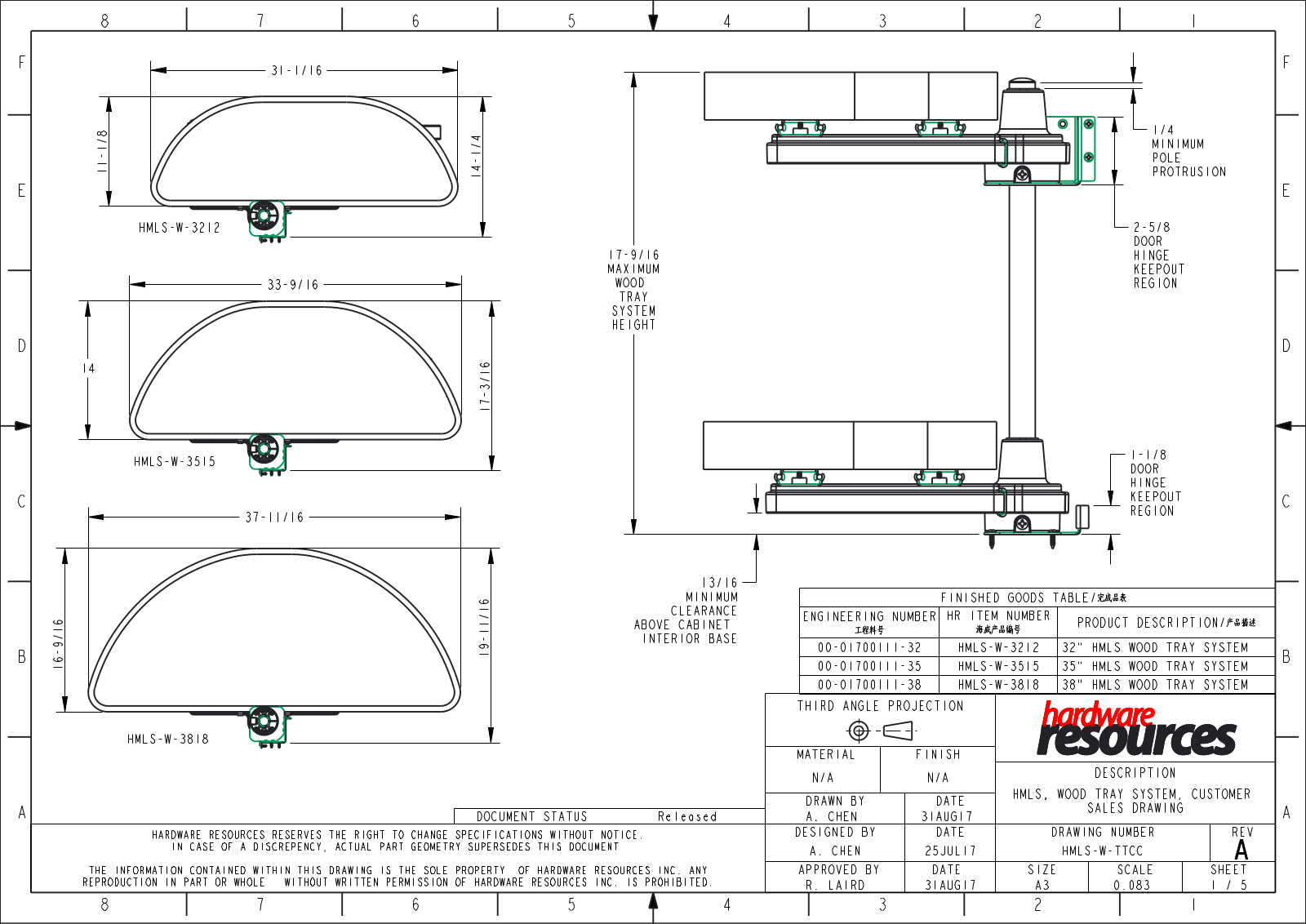

Page 1
11-1/8
31-1/16
14-1/4
1/4
MINIMUM
POLE
PROTRUSION
14
HMLS-W-3212
HMLS-W-3515
33-9/16
37-11/16
17-3/16
17-9/16
MAXIMUM
WOOD
TRAY
SYSTEM
HEIGHT
2-5/8
DOOR
HINGE
KEEPOUT
REGION
1-1/8
DOOR
HINGE
KEEPOUT
REGION
ABOVE CABINET
INTERIOR BASE
19-11/16
16-9/16
HMLS-W-3818
DOCUMENT STATUS Released
HARDWARE RESOURCES RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.
IN CASE OF A DISCREPENCY, ACTUAL PART GEOMETRY SUPERSEDES THIS DOCUMENT.
THE INFORMATION CONTAINED WITHIN THIS DRAWING IS THE SOLE PROPERTY OF HARDWARE RESOURCES INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN PERMISSION OF HARDWARE RESOURCES INC. IS PROHIBITED.
13/16
MINIMUM
CLEARANCE
FINISHED GOODS TABLE/
ENGINEERING NUMBER
00-01700111-32 HMLS-W-3212 32" HMLS WOOD TRAY SYSTEM
00-01700111-35 HMLS-W-3515 35" HMLS WOOD TRAY SYSTEM
00-01700111-38 HMLS-W-3818 38" HMLS WOOD TRAY SYSTEM
HR ITEM NUMBER
PRODUCT DESCRIPTION/
THIRD ANGLE PROJECTION
MATERIAL FINISH
N/A N/A
DRAWN BY DATE
A. CHEN 31AUG17
DESIGNED BY DATE DRAWING NUMBER REV
A. CHEN 25JUL17 HMLS-W-TTCC
APPROVED BY DATE SIZE SCALE SHEET
R. LAIRD 31AUG17 A3 0.083 1 / 5
HMLS, WOOD TRAY SYSTEM, CUSTOMER
DESCRIPTION
SALES DRAWING
A

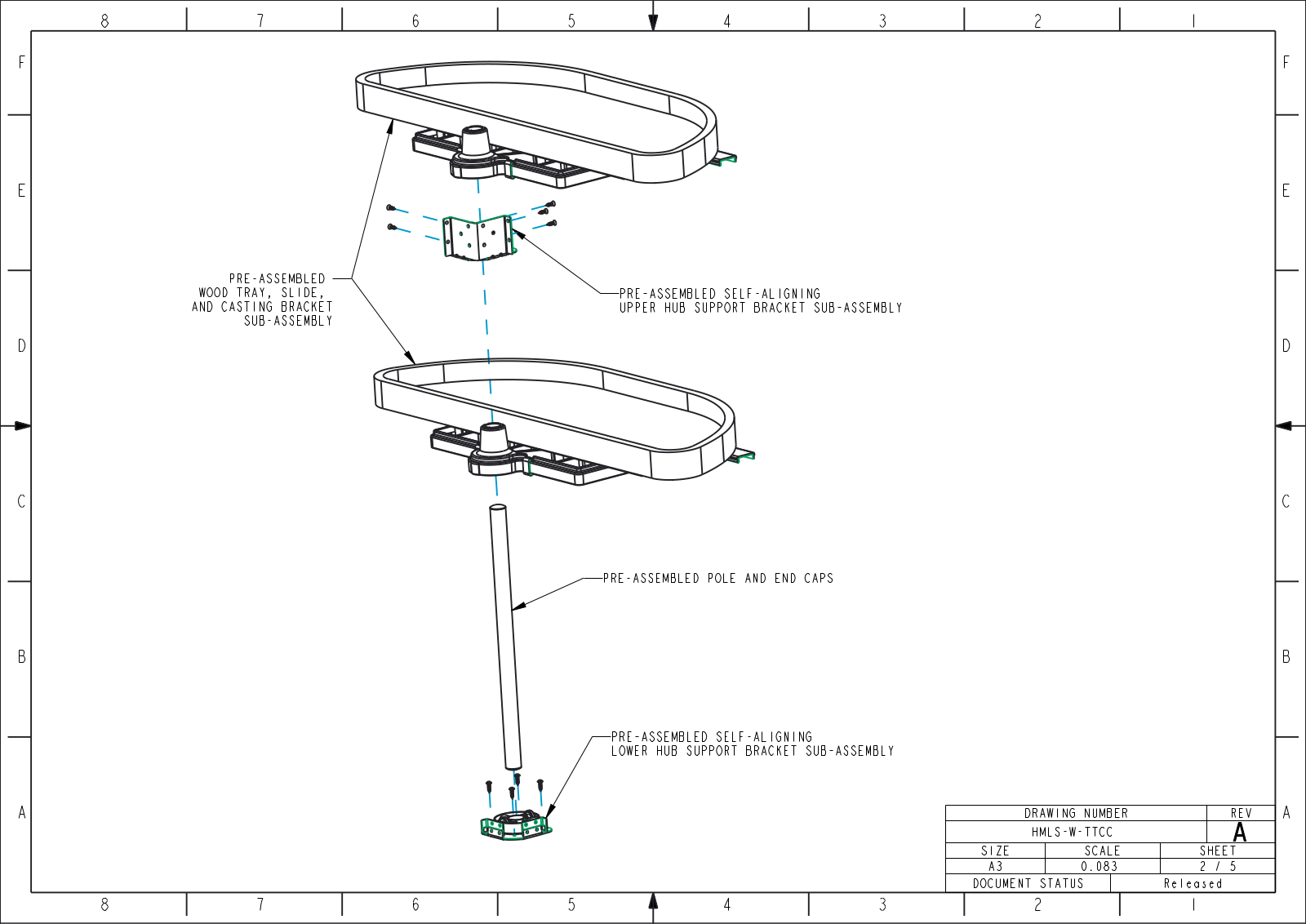

Page 2
PRE-ASSEMBLED
WOOD TRAY, SLIDE,
AND CASTING BRACKET
SUB-ASSEMBLY
PRE-ASSEMBLED SELF-ALIGNING
UPPER HUB SUPPORT BRACKET SUB-ASSEMBLY
PRE-ASSEMBLED POLE AND END CAPS
PRE-ASSEMBLED SELF-ALIGNING
LOWER HUB SUPPORT BRACKET SUB-ASSEMBLY
DRAWING NUMBER REV
HMLS-W-TTCC
SIZE SCALE SHEET
A3 0.083 2 / 5
DOCUMENT STATUS Released
A

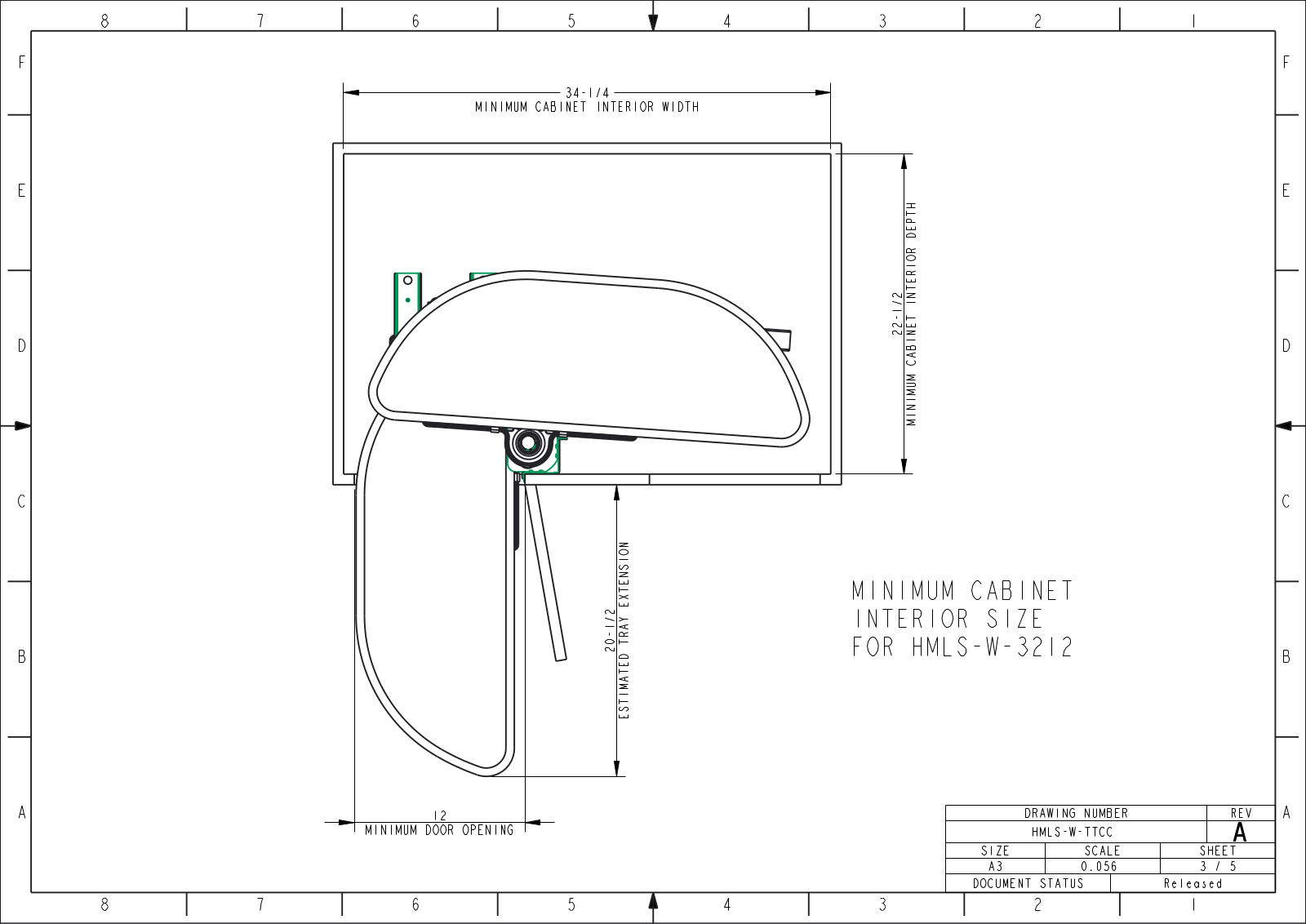

Page 3
34-1/4
MINIMUM CABINET INTERIOR WIDTH
22-1/2
20-1/2
ESTIMATED TRAY EXTENSION
MINIMUM CABINET INTERIOR DEPTH
MINIMUM CABINET
INTERIOR SIZE
FOR HMLS-W-3212
12
MINIMUM DOOR OPENING
DRAWING NUMBER REV
HMLS-W-TTCC
SIZE SCALE SHEET
A3 0.056 3 / 5
DOCUMENT STATUS Released
A

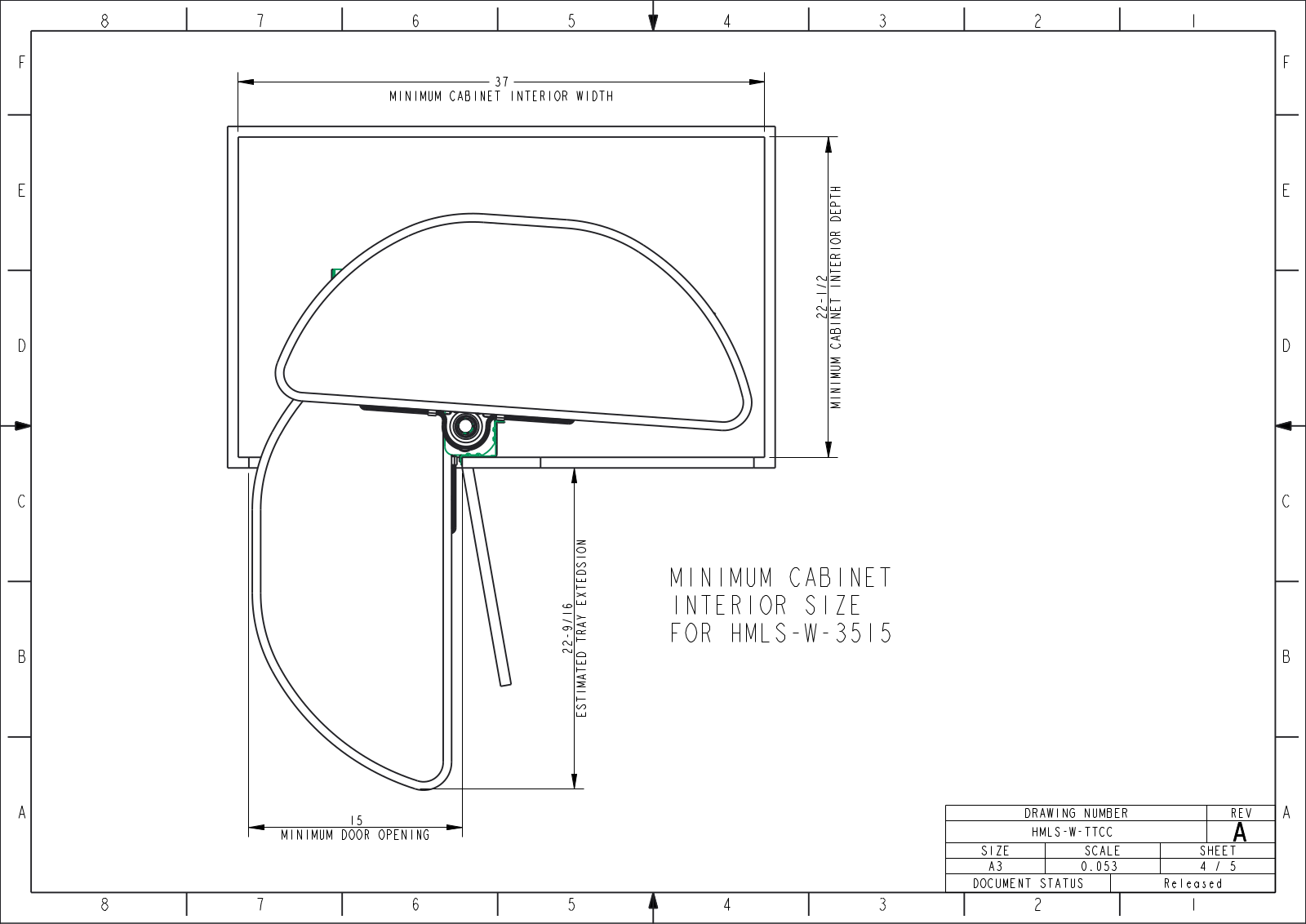

Page 4
37
MINIMUM CABINET INTERIOR WIDTH
22-1/2
MINIMUM CABINET
INTERIOR SIZE
FOR HMLS-W-3515
22-9/16
ESTIMATED TRAY EXTEDSION
MINIMUM CABINET INTERIOR DEPTH
15
MINIMUM DOOR OPENING
DRAWING NUMBER REV
HMLS-W-TTCC
SIZE SCALE SHEET
A3 0.053 4 / 5
DOCUMENT STATUS Released
A

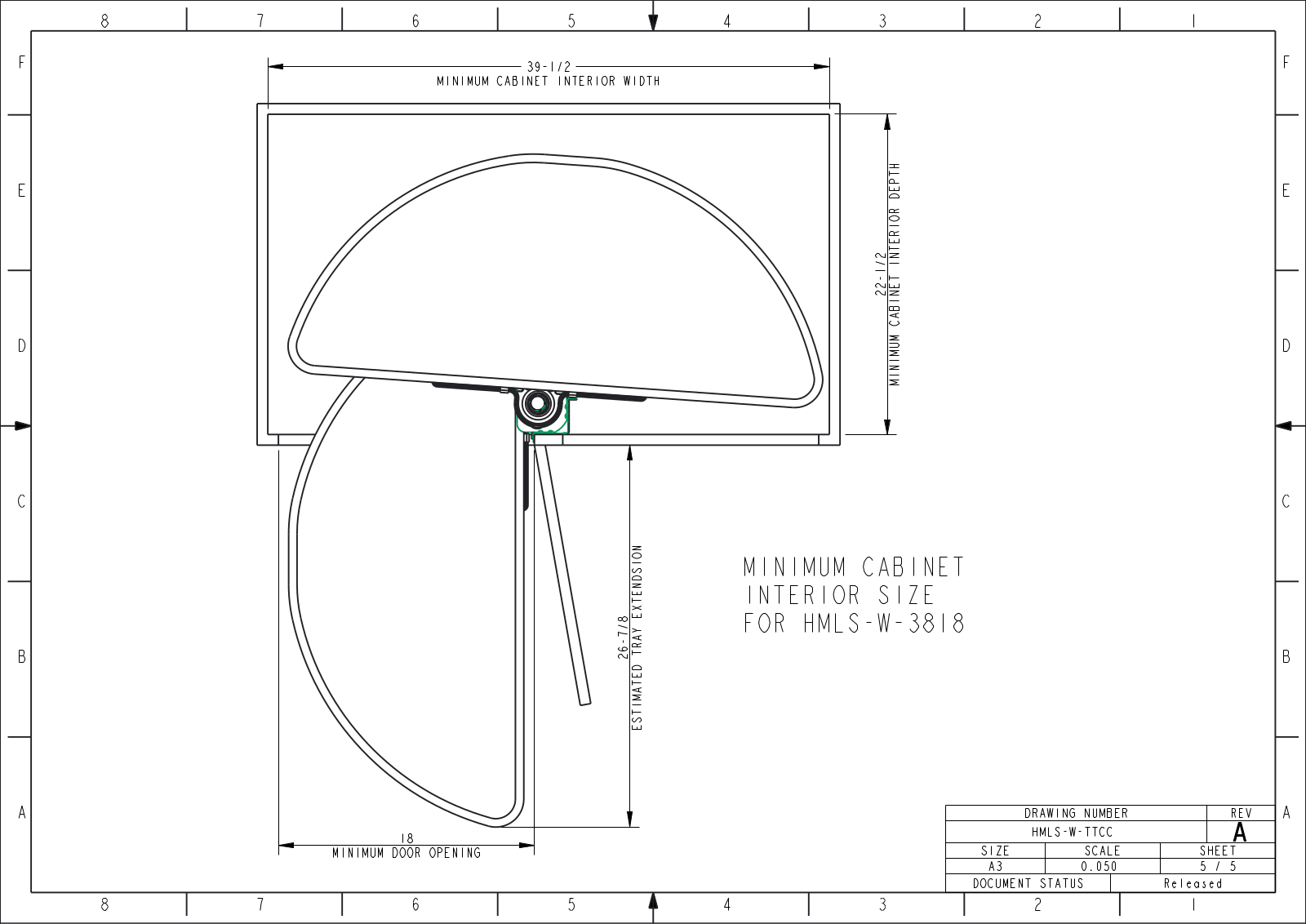

Page 5
39-1/2
MINIMUM CABINET INTERIOR WIDTH
22-1/2
MINIMUM CABINET INTERIOR DEPTH
18
MINIMUM DOOR OPENING
MINIMUM CABINET
INTERIOR SIZE
FOR HMLS-W-3818
26-7/8
ESTIMATED TRAY EXTENDSION
DRAWING NUMBER REV
HMLS-W-TTCC
SIZE SCALE SHEET
A3 0.050 5 / 5
DOCUMENT STATUS Released
A
