10-3/32

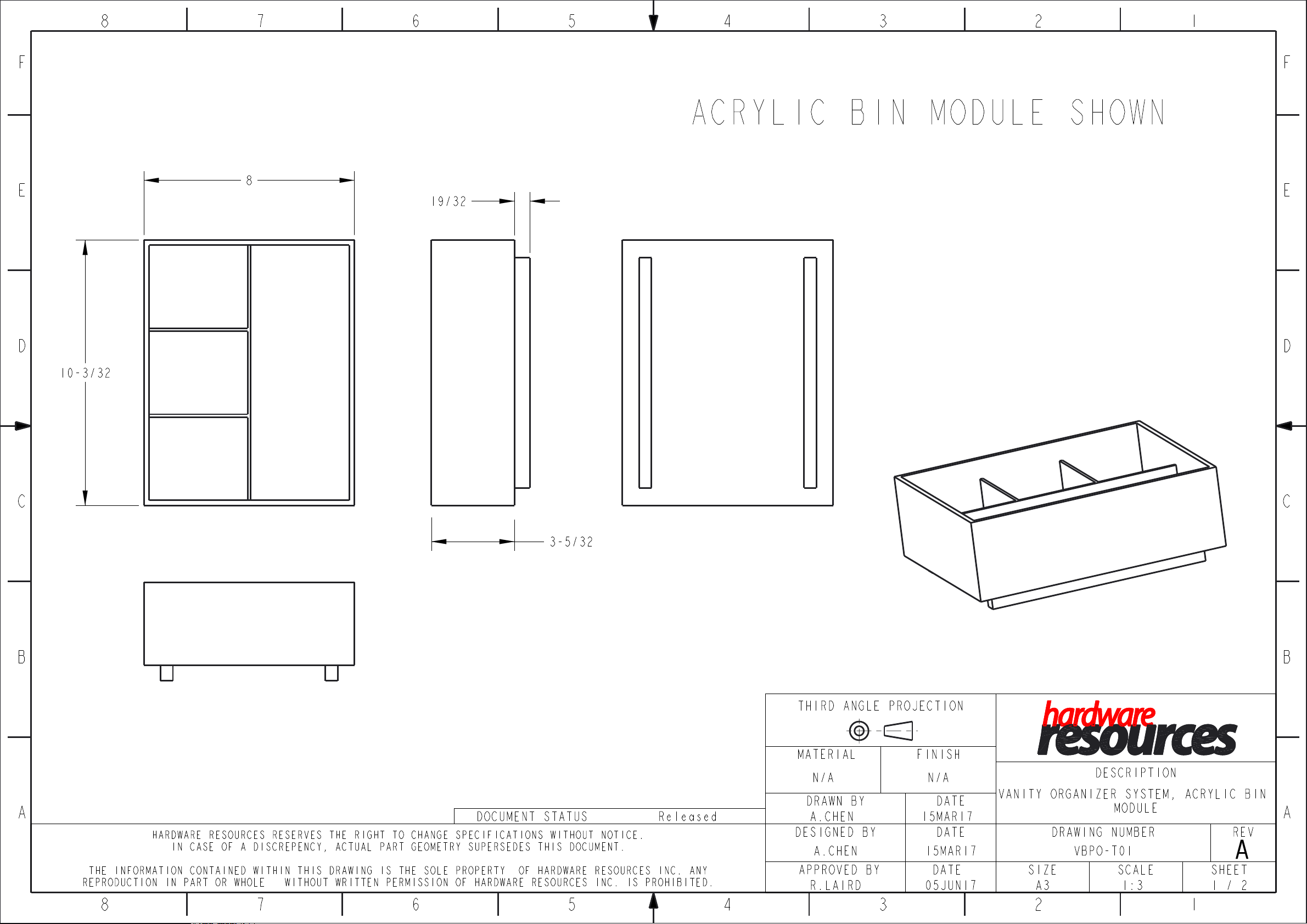

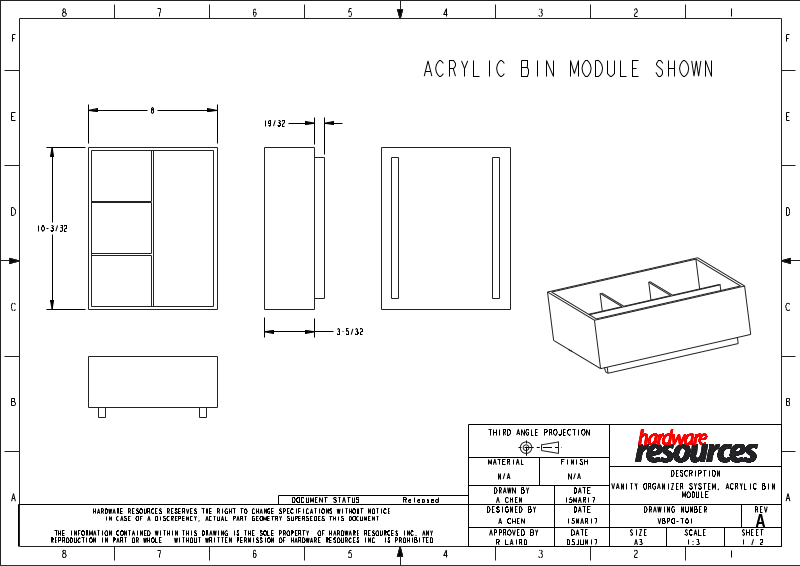

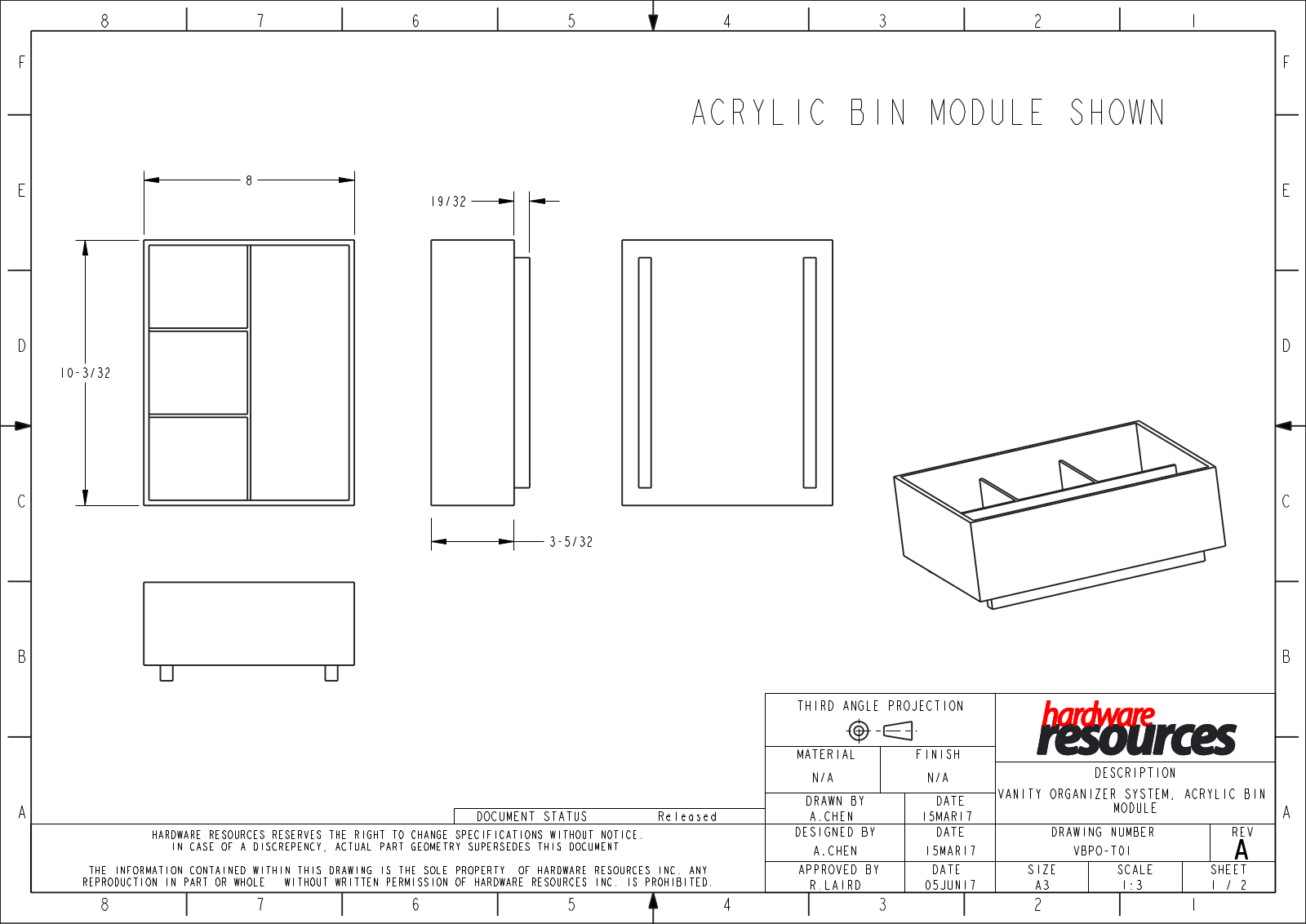

ACRYLIC BIN MODULE SHOWN
8
19/32
3-5/32
DOCUMENT STATUS Released
HARDWARE RESOURCES RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.
IN CASE OF A DISCREPENCY, ACTUAL PART GEOMETRY SUPERSEDES THIS DOCUMENT.
THE INFORMATION CONTAINED WITHIN THIS DRAWING IS THE SOLE PROPERTY OF HARDWARE RESOURCES INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN PERMISSION OF HARDWARE RESOURCES INC. IS PROHIBITED.
THIRD ANGLE PROJECTION
MATERIAL FINISH
N/A N/A
DRAWN BY DATE
A.CHEN 15MAR17
DESIGNED BY DATE DRAWING NUMBER REV
A.CHEN 15MAR17 VBPO-T01
APPROVED BY DATE SIZE SCALE SHEET
R.LAIRD 05JUN17 A3 1:3 1 / 2
VANITY ORGANIZER SYSTEM, ACRYLIC BIN
DESCRIPTION
MODULE
A

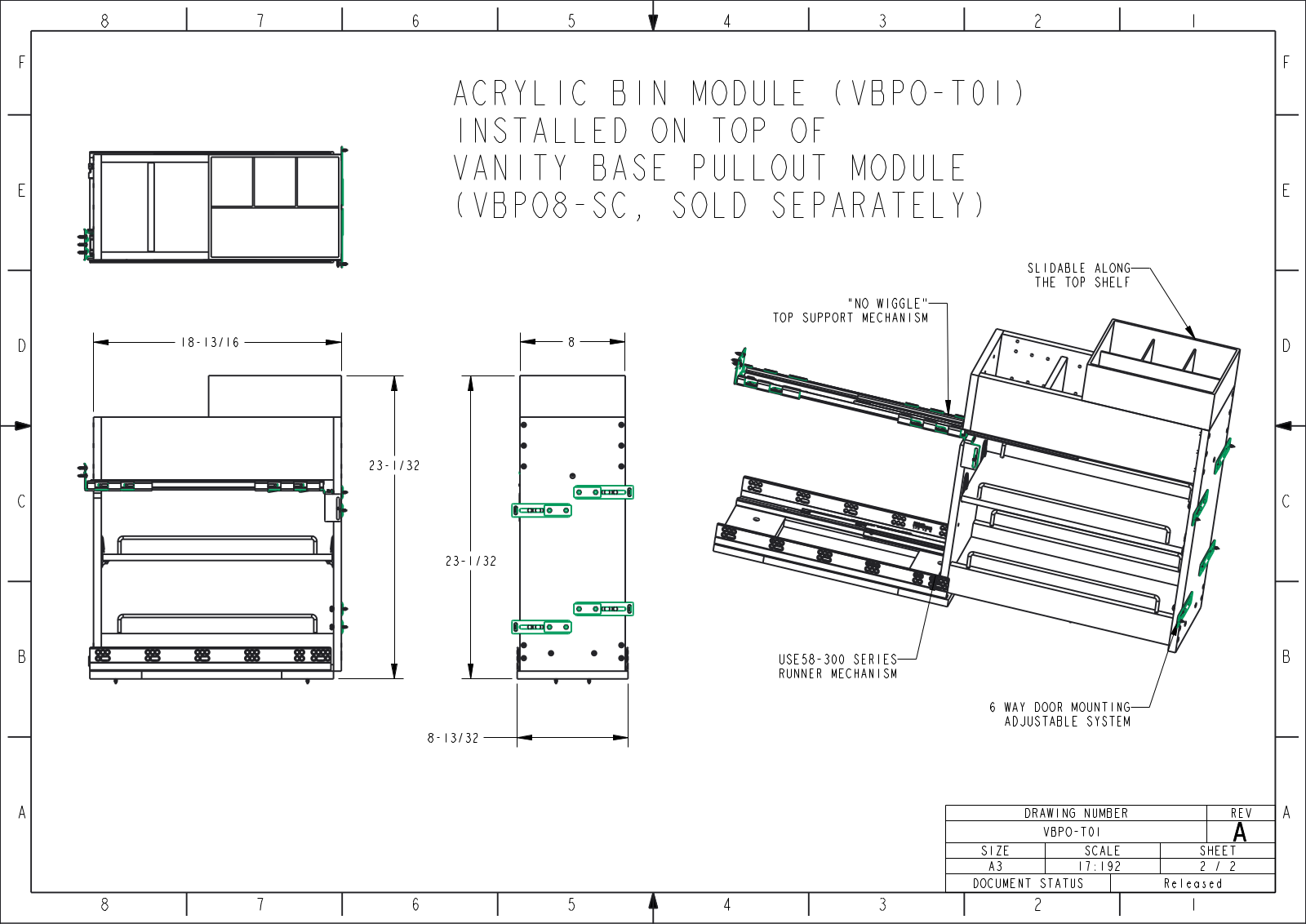

ACRYLIC BIN MODULE (VBPO-T01)
INSTALLED ON TOP OF
VANITY BASE PULLOUT MODULE
(VBPO8-SC, SOLD SEPARATELY)
"NO WIGGLE"
TOP SUPPORT MECHANISM
SLIDABLE ALONG
THE TOP SHELF
18-13/16
8
23-1/32
23-1/32
USE58-300 SERIES
RUNNER MECHANISM
8-13/32
6 WAY DOOR MOUNTING
ADJUSTABLE SYSTEM
DRAWING NUMBER REV
VBPO-T01
SIZE SCALE SHEET
A3 17:192 2 / 2
DOCUMENT STATUS Released
A
