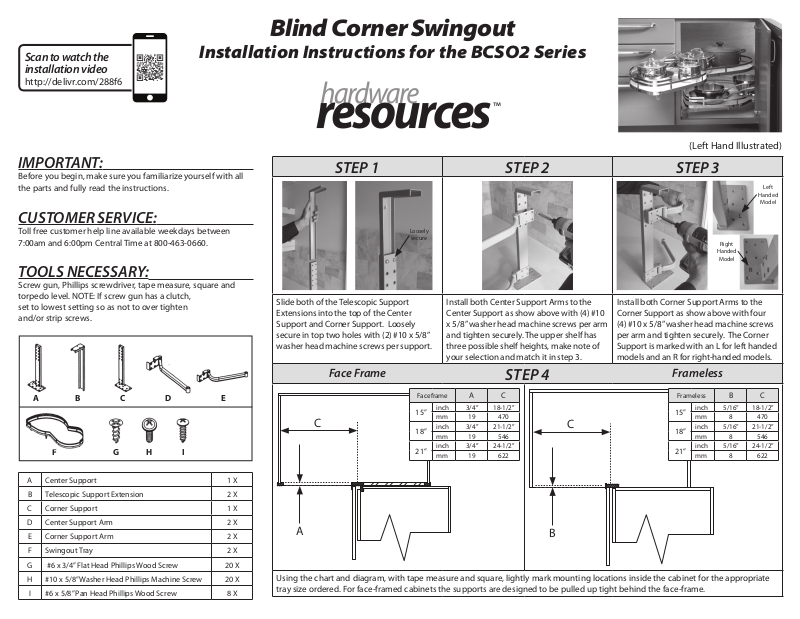

Hardware Resources HWSC1885 Installation & Assembly

Blind Corner Swingout
Scan to watch the
Installation Instructions for the BCSO2 Series
installation video
http://delivr.com/288f6
IMPORTANT:
Before you begin, make sure you familiarize yourself with all the parts and fully read the instructions.
CUSTOMER SERVICE:
Toll free customer help line available weekdays between 7:00am and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun, Phillips screwdriver, tape measure, square and torpedo level. NOTE: If screw gun has a clutch, set to lowest setting so as not to over tighten and/or strip screws.
STEP 1 STEP 2 STEP 3
Loosely
secure
Slide both of the Telescopic Support Extensions into the top of the Center Support and Corner Support. Loosely secure in top two holes with (2) #10 x 5/8” washer head machine screws per support.
Face Frame
Install both Center Support Arms to the Center Support as show above with (4) #10 x 5/8” washer head machine screws per arm and tighten securely. The upper shelf has three possible shelf heights, make note of your selection and match it in step 3.
STEP 4
(Left Hand Illustrated)
Left
Handed
Model
Right
Handed
Model
Install both Corner Support Arms to the Corner Support as show above with four (4) #10 x 5/8” washer head machine screws per arm and tighten securely. The Corner Support is marked with an L for left handed models and an R for right-handed models.
Frameless
A B C D E
F G H I
A Center Support 1 X
B Telescopic Support Extension 2 X
C Corner Support 1 X
D Center Support Arm 2 X
E Corner Support Arm 2 X
F Swingout Tray 2 X
G #6 x 3/4” Flat Head Phillips Wood Screw 20 X
H #10 x 5/8” Washer Head Phillips Machine Screw 20 X
I #6 x 5/8” Pan Head Phillips Wood Screw 8 X
Faceframe
inch 3/4” 18-1/2”
15”
C
mm 19 470 inch 3/4” 21-1/2”
18”
mm 19 546 inch 3/4” 24-1/2”
21”
mm 19 622
A
A C
C
B
Frameless
inch 5/16” 18-1/2”
15”
mm 8 470 inch 5/16” 21-1/2”
18”
mm 8 546 inch 5/16” 24-1/2”
21”
mm 8 622
B C
Using the chart and diagram, with tape measure and square, lightly mark mounting locations inside the cabinet for the appropriate tray size ordered. For face-framed cabinets the supports are designed to be pulled up tight behind the face-frame.
Blind Corner Swingout
Installation Instructions for the BCSO2 Series
STEP 5 STEP 6 STEP 7
Firmly secure the Center Support on the open side of cabinet using (10) #6 x 3/4” at head Philips wood screws.
Firmly secure the Corner Support on the hinge side using (10) #6 x 3/4” at head Philips wood screws.
Mount using (4) #6 x 5/8” pan head screws
Tighten (2) #10 x 5/8” screws
Lift the Telescopic Support Extensions until they are rmly against the bottom of the counter top or cabinet supports and tighten the (2) #10 x 5/8” washer head machine screws in the middle of the arms. Level arms and mark mounting locations. Then rmly secure using (4) #6 x 5/8” pan head wood screws in each top mounting frame bracket.
STEP 8
Position the lower swing arms outside the cabinet and install bottom tray into the pivots in each arm as shown above. Repeat for top tray and test motion of trays.
Left Swing
Right Swing
BCSO204/17 v.1
