Plastic Kidney Lazy Susans
Center Detent Marks
1-1/16”
Top Mounting Support
1-9/32”
Locking Set Screw
Center Detent Marks
1-1/16”

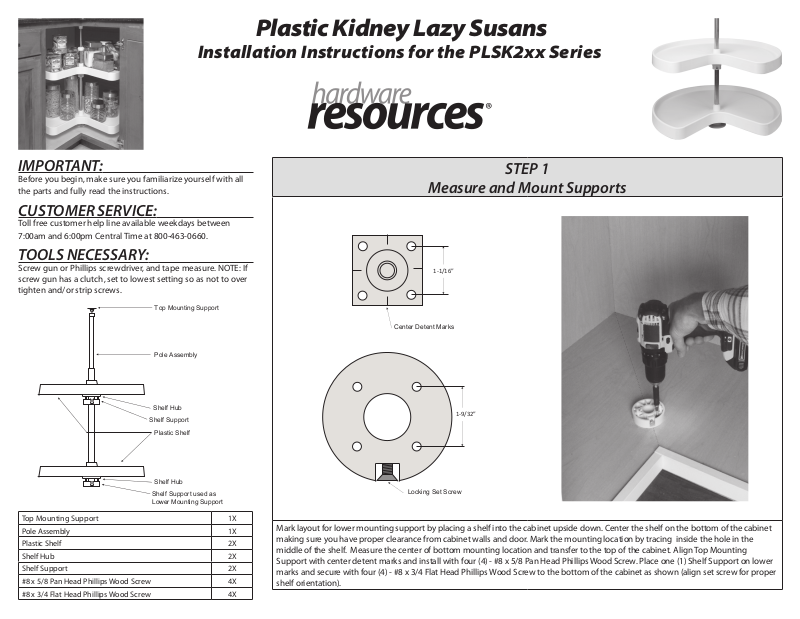

Installation Instructions for the PLSK2xx Series
IMPORTANT:
Before you begin, make sure you familiarize yourself with all
the parts and fully read the instructions.
CUSTOMER SERVICE:
Toll free customer help line available weekdays between
7:00am and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun or Phillips screwdriver, and tape measure. NOTE: If
screw gun has a clutch, set to lowest setting so as not to over
tighten and/or strip screws.
Pole Assembly
Shelf Hub
Shelf Support
Plastic Shelf
STEP 1
Measure and Mount Supports
1-1/16”
Center Detent Marks
1-9/32”
Shelf Hub
Shelf Support used as
Lower Mounting Support
Top Mounting Support 1X
Pole Assembly 1X
Plastic Shelf 2X
Shelf Hub 2X
Shelf Support 2X
#8 x 5/8 Pan Head Phillips Wood Screw 4X
#8 x 3/4 Flat Head Phillips Wood Screw 4X
Locking Set Screw
Mark layout for lower mounting support by placing a shelf into the cabinet upside down. Center the shelf on the bottom of the cabinet
making sure you have proper clearance from cabinet walls and door. Mark the mounting location by tracing inside the hole in the
middle of the shelf. Measure the center of bottom mounting location and transfer to the top of the cabinet. Align Top Mounting
Support with center detent marks and install with four (4) - #8 x 5/8 Pan Head Phillips Wood Screw. Place one (1) Shelf Support on lower
marks and secure with four (4) - #8 x 3/4 Flat Head Phillips Wood Screw to the bottom of the cabinet as shown (align set screw for proper
shelf orientation).
STEP 2 - Install Hubs STEP 3 - Shelf Assembly
Press one (1) Shelf Hub into the bottom of the Plastic Shelf as shown creating the Shelf Assembly.
Repeat with other shelf.
STEP 4 - Pole Extension STEP 5 - Shelf Adjustment
From the top slide one (1) Shelf Assembly, the other Shelf Support and then the other Shelf Assembly
onto the Pole Assembly as shown. Slide bottom of Pole Assembly into the lower mounting support.
Holding onto the lower pole twist the upper pole counter clockwise to release. Extend pole
upwards until it rests rmly against the Top Mounting Support and tighten by turning the pole
clockwise.
Raise upper Shelf Assembly to desired height and tighten the Locking Set Screw. Raise lower Shelf
Assembly and tighten that Locking Set Screw.
PSLK2 8/16 v.2
