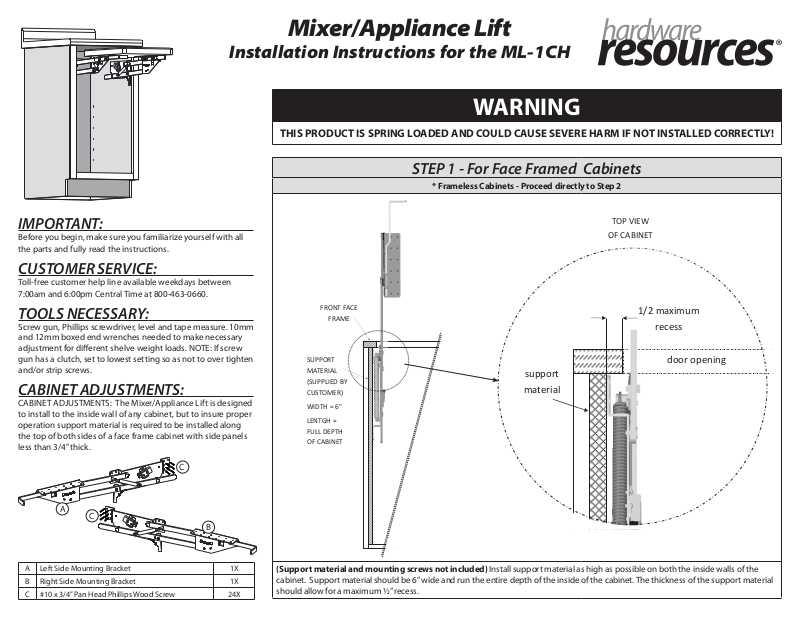

Installation Instructions for the ML-1CH
WARNING
THIS PRODUCT IS SPRING LOADED AND COULD CAUSE SEVERE HARM IF NOT INSTALLED CORRECTLY!
STEP 1 - For Face Framed Cabinets
* Frameless Cabinets - Proceed directly to Step 2
IMPORTANT:
Before you begin, make sure you familiarize yourself with all
the parts and fully read the instructions.
CUSTOMER SERVICE:
Toll-free customer help line available weekdays between
7:00am and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun, Phillips screwdriver, level and tape measure. 10mm
and 12mm boxed end wrenches needed to make necessary
adjustment for dierent shelve weight loads. NOTE: If screw
gun has a clutch, set to lowest setting so as not to over tighten
and/or strip screws.
CABINET ADJUSTMENTS:
CABINET ADJUSTMENTS: The Mixer/Appliance Lift is designed
to install to the inside wall of any cabinet, but to insure proper
operation support material is required to be installed along
the top of both sides of a face frame cabinet with side panels
less than 3/4” thick.
C
A
C
B
FRONT FACE
FRAME
SUPPORT
MATERIAL
(SUPPLIED BY
CUSTOMER)
WIDTH = 6”
LENTGH =
FULL DEPTH
OF CABINET
TOP VIEW
1/2 maximum
recess
door opening
support
material
A Left Side Mounting Bracket 1X
B Right Side Mounting Bracket 1X
C #10 x 3/4” Pan Head Phillips Wood Screw 24X
(Support material and mounting screws not included) Install support material as high as possible on both the inside walls of the
cabinet. Support material should be 6” wide and run the entire depth of the inside of the cabinet. The thickness of the support material
should allow for a maximum ½” recess.
STEP 2 STEP 3
1-1/2” COUNTERTOP
36
1-1/2”
11-3/8”
3/8”
FIG C
“W” MINUS 1-1/4”
3/8”
22-1/2”
SECOND POSITION
TO INSURE PROPER INSTALLATION AND FUNCTION, USE A
LEVEL TO ESTABLISH THIS LINE.
STEP 4
4-1/2”
4-1/2” MIN
22-1/2”
DRILL (2) - 3/32” PILOT HOLES
On both sides of the cabinet, mark down from
the top of the cabinet 4-1/2” and draw a 12”
long level line. On the line measure 3/8” and
11-3/4” from the back of the face frame (1-1/8”
from front of cabinet for frameless application)
and mark. Pre-drill 3/32” pilot holes 1/2” deep
on both sides at these four locations.
1-5/8”
MEASURE DISTANCE
BETWEEN MOUNTING
PLATES AFTER
INSTALLED FOR “W”
BOTTOM VIEW OF SHELF
11-3/8”
LAYOUT AND DRILL
Install both mounting brackets as
shown above with the (24) - #10
x 3/4” Pan Head Phillips Wood
Screws provided. NOTE: To
insure proper operation of the
lift, 12 screws per mounting
bracket must be installed.
20-1/2”
7-1/2”
(4) - 3/32” HOLES
3/8” MIN
1-1/8” MIN
8-1/4”
3/4”
FRONT OF SHELF MATERIAL
RECOMMEND SPRING POSITION
”
1-1/2”
1= 10 - 15 LBS.
2 = 16 - 28 LBS.
3 = 29 - 42 LBS.
Tension
Adjustment Lever
NOTE: MIXER LIFT SHIPS IN THE
4-1/4” clearance at lowest point
4-1/2”
FLOOR
24”
Following the recommend spring position for varying mixer weights shown above, adjust the spring by using a
10mm boxed in wrench to remove the set bolt while releasing the spring tension on the tension adjustment lever
by placing the box end of a 14 mm boxed in wrench over the end of the tension adjustment lever and pulling
toward the front of the cabinet. WARNING: SPRING IS UNDER HIGH TENSION! Do not release the tension
until the set bolt is in the desired location and rmly secured. Repeat with other side.
STEP 5
(Shelf material is not included) Shelf should be a minimum of 3/4” thick and no longer than 20-1/2” in length. Shelf
width is determined by measuring between the side mounting brackets “W” minus 1-1/4”. Mount shelf with at
least 8 suggested #8 x 1/2” wood screws (not provided) to mounting brackets as show in diagram on the left.
ML-1CH 1/17 v.1
