2X 0.19
2X L3
L2
L1
0.28
2X 0.81
HR ITEM
NUMBER
SPR9A 9.5 8.50 15.50
SPR12A 12.5 11.50 18.50
SPR15A 15.5 14.50 21.50
L1 L2 L3
1.5
2X 0.47
1.0
20.25
24.0
4.0
0.5
2.38
4X 2.5
2X 3.56
0.29
5.75
3.75
SECTION A-A
THIRD ANGLE PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES (IN)
HARDWARE RESOURCES RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.
IN CASE OF A DISCREPENCY, ACTUAL PART GEOMETRY SUPERSEDES THIS DOCUMENT.
THE INFORMATION CONTAINED WITHIN THIS DRAWING IS THE SOLE PROPERTY OF HARDWARE RESOURCES INC. ANY
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN PERMISSION OF HARDWARE RESOURCES INC. IS PROHIBITED.
DOCUMENT STATUS Released
MATERIAL FINISH
N/A N/A

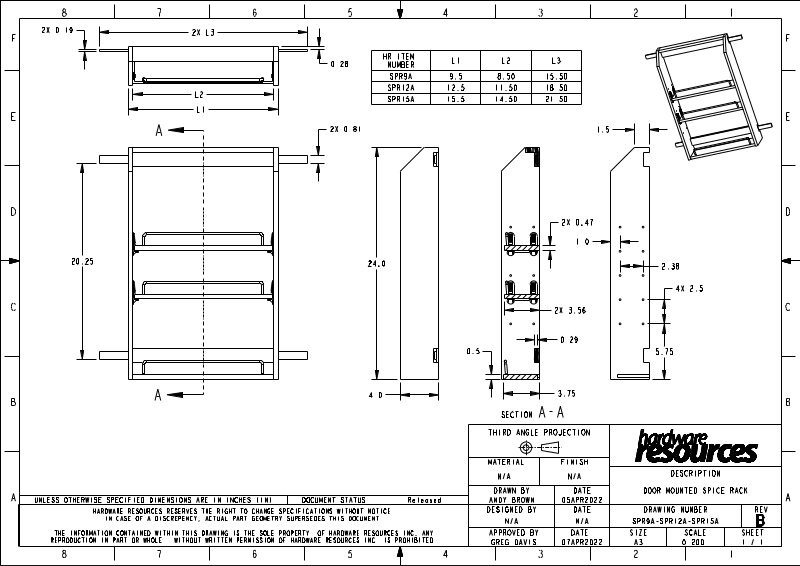

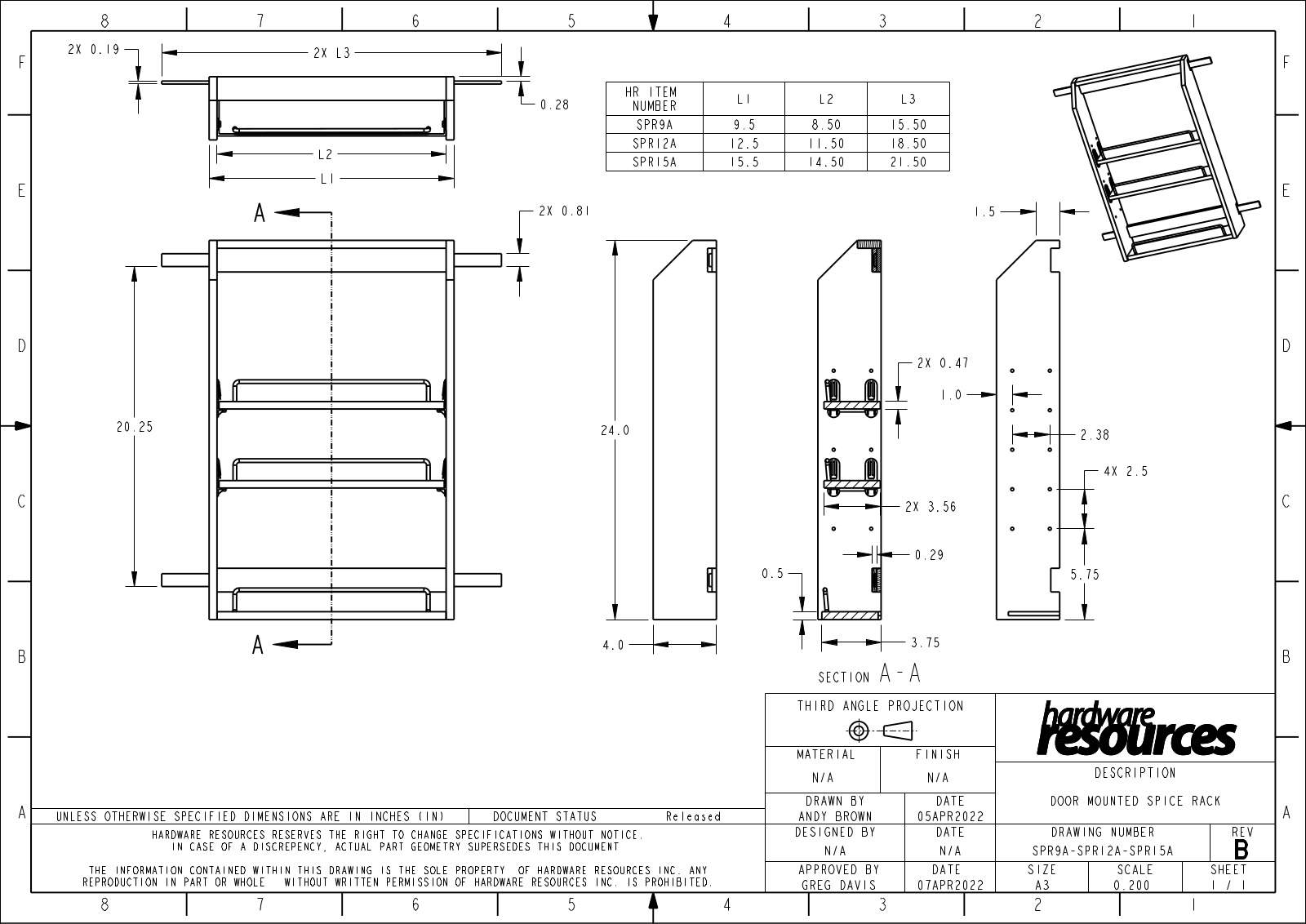

DOOR MOUNTED SPICE RACKDRAWN BY DATE
ANDY BROWN 05APR2022
DESIGNED BY DATE DRAWING NUMBER REV
N/A N/A SPR9A-SPR12A-SPR15A
APPROVED BY DATE SIZE SCALE SHEET
GREG DAVIS 07APR2022 A3 0.200 1 / 1
DESCRIPTION
B
