Hardware Resources HWSC1751 Dimensions

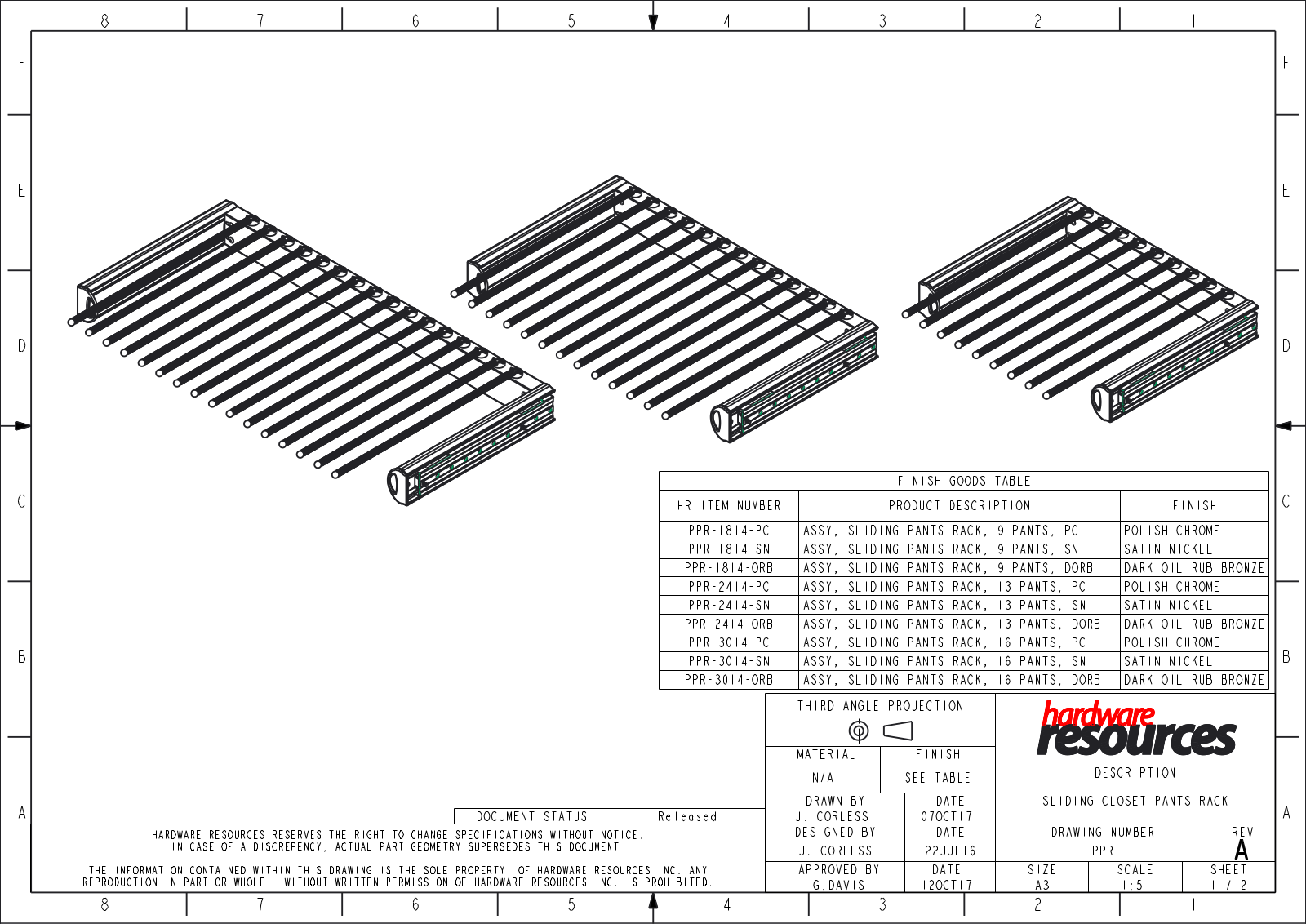

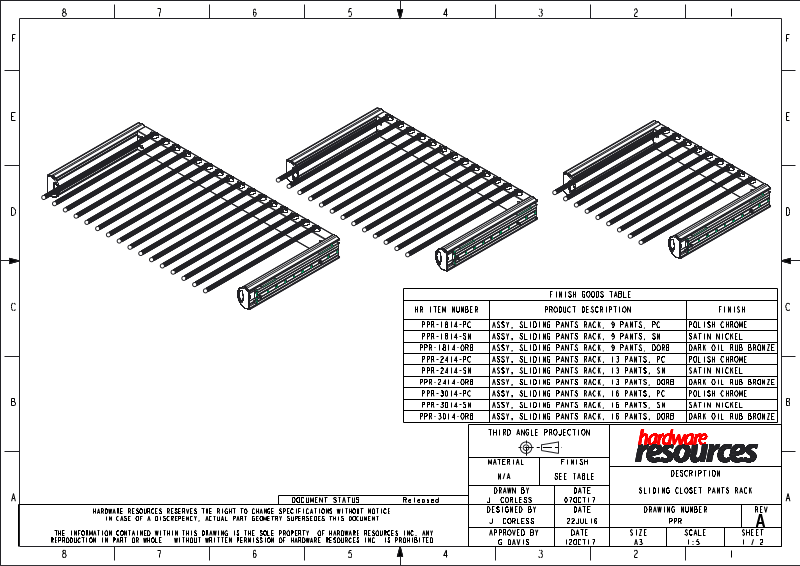

FINISH GOODS TABLE

HR ITEM NUMBER PRODUCT DESCRIPTION FINISH

PPR-1814-PC ASSY, SLIDING PANTS RACK, 9 PANTS, PC POLISH CHROME

PPR-1814-SN ASSY, SLIDING PANTS RACK, 9 PANTS, SN SATIN NICKEL

PPR-1814-ORB ASSY, SLIDING PANTS RACK, 9 PANTS, DORB DARK OIL RUB BRONZE

PPR-2414-PC ASSY, SLIDING PANTS RACK, 13 PANTS, PC POLISH CHROME

PPR-2414-SN ASSY, SLIDING PANTS RACK, 13 PANTS, SN SATIN NICKEL

PPR-2414-ORB ASSY, SLIDING PANTS RACK, 13 PANTS, DORB DARK OIL RUB BRONZE

PPR-3014-PC ASSY, SLIDING PANTS RACK, 16 PANTS, PC POLISH CHROME

PPR-3014-SN ASSY, SLIDING PANTS RACK, 16 PANTS, SN SATIN NICKEL

PPR-3014-ORB ASSY, SLIDING PANTS RACK, 16 PANTS, DORB DARK OIL RUB BRONZE

THIRD ANGLE PROJECTION

MATERIAL FINISH

N/A SEE TABLE

DESCRIPTION

DOCUMENT STATUS Released

HARDWARE RESOURCES RESERVES THE RIGHT TO CHANGE SPECIFICATIONS WITHOUT NOTICE.

IN CASE OF A DISCREPENCY, ACTUAL PART GEOMETRY SUPERSEDES THIS DOCUMENT.

THE INFORMATION CONTAINED WITHIN THIS DRAWING IS THE SOLE PROPERTY OF HARDWARE RESOURCES INC. ANY

REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN PERMISSION OF HARDWARE RESOURCES INC. IS PROHIBITED.

SLIDING CLOSET PANTS RACKDRAWN BY DATE
J. CORLESS 07OCT17
DESIGNED BY DATE DRAWING NUMBER REV

J. CORLESS 22JUL16 PPR

APPROVED BY DATE SIZE SCALE SHEET

G.DAVIS 12OCT17 A3 1:5 1 / 2

A

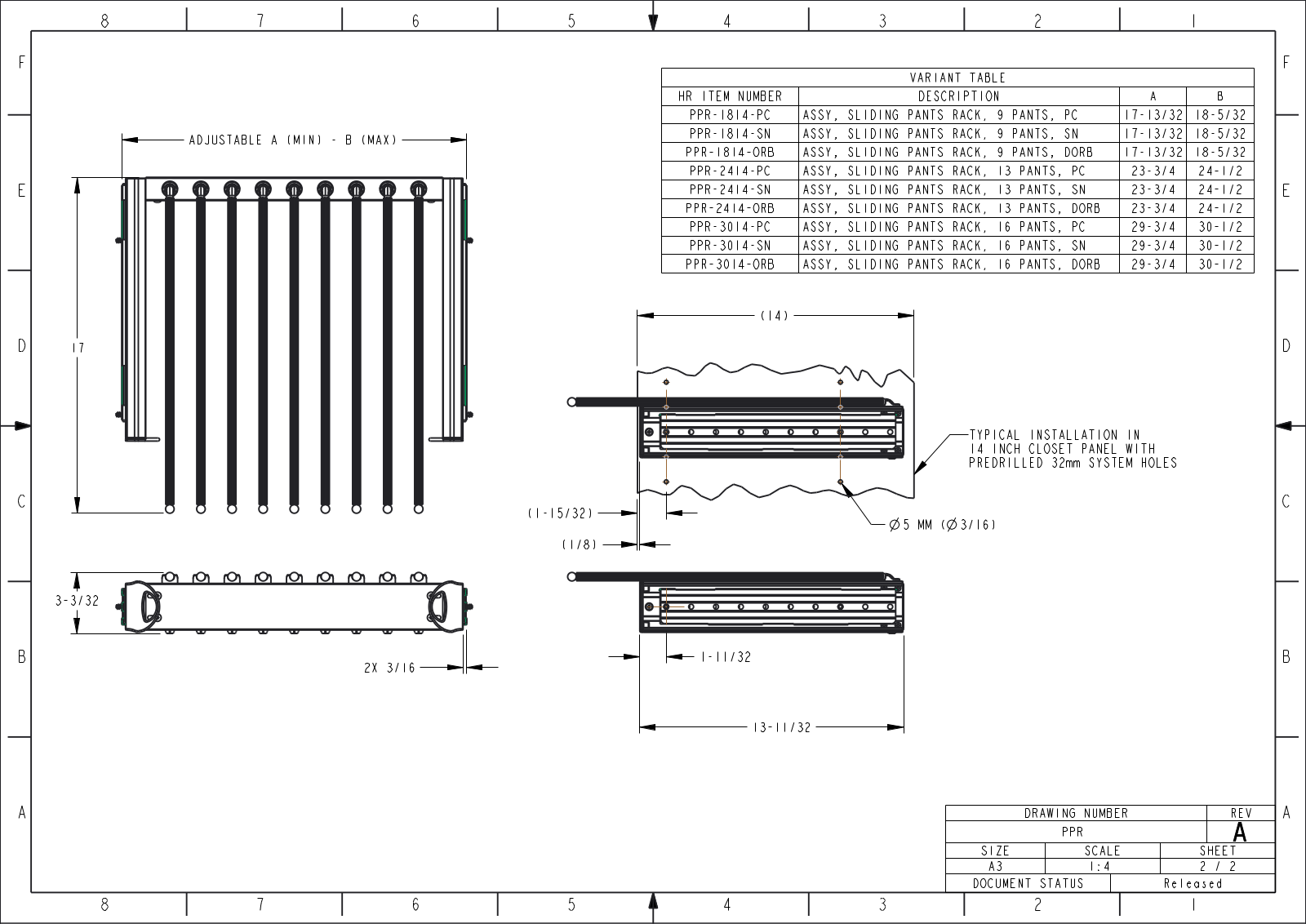

VARIANT TABLE

HR ITEM NUMBER DESCRIPTION

PPR-1814-PC ASSY, SLIDING PANTS RACK, 9 PANTS, PC 17-13/32 18-5/32

A B

17

ADJUSTABLE A (MIN) - B (MAX)

PPR-1814-SN ASSY, SLIDING PANTS RACK, 9 PANTS, SN 17-13/32 18-5/32

PPR-1814-ORB ASSY, SLIDING PANTS RACK, 9 PANTS, DORB 17-13/32 18-5/32

PPR-2414-PC ASSY, SLIDING PANTS RACK, 13 PANTS, PC 23-3/4 24-1/2

PPR-2414-SN ASSY, SLIDING PANTS RACK, 13 PANTS, SN 23-3/4 24-1/2

PPR-2414-ORB ASSY, SLIDING PANTS RACK, 13 PANTS, DORB 23-3/4 24-1/2

PPR-3014-PC ASSY, SLIDING PANTS RACK, 16 PANTS, PC 29-3/4 30-1/2

PPR-3014-SN ASSY, SLIDING PANTS RACK, 16 PANTS, SN 29-3/4 30-1/2

PPR-3014-ORB ASSY, SLIDING PANTS RACK, 16 PANTS, DORB 29-3/4 30-1/2

( )14

TYPICAL INSTALLATION IN
14 INCH CLOSET PANEL WITH
PREDRILLED 32mm SYSTEM HOLES

3-3/32

( )1-15/32

(n )3/16

( )1/8

1-11/32

2X 3/16

13-11/32

DRAWING NUMBER REV

PPR

SIZE SCALE SHEET

A3 1:4 2 / 2

DOCUMENT STATUS Released

A
